SuperChassis 818A-1400B - Châssis Supermicro - Free user manual and instructions

USER MANUAL SuperChassis 818A-1400B Supermicro

Technical line drawing of a server rack with internal components and ventilation ducts (no text or labels)

The SC818 Chassis Series

User Guide

Rev. 1.0

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com.

SUPERMICRO COMPUTER reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

Manual Revision: Rev. 1.0

Release Date: March 20, 2006

Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2006 by SUPER MICRO COMPUTER INC.

All rights reserved.

Printed in the United States of America

Table of Contents

Chapter I: Introduction ......1-4

A. Safety Guidelines 1

B. Packing Lists 1

C. SC818 Chassis Front Panel 1-8

D. The SC818 Chassis Specifications.... 1-10

E. The SC818 Chassis Power Supply Specifications 1-11

Chapter 2: Installation Procedures ......2-1

Section 1: Installing components into the SC818 Chassis .....2-1

A. Removing the Top Cover of the SC818 Chassis 2-1

B. Removing the Riser Card Bracket from the Chassis 2-2

C. Installing the Motherboard into the Chassis 2-3

D. Installing the Chipset Air Shroud into the Chassis 2-5

E. Installing the CPU Air Shroud into the Chassis 2-6

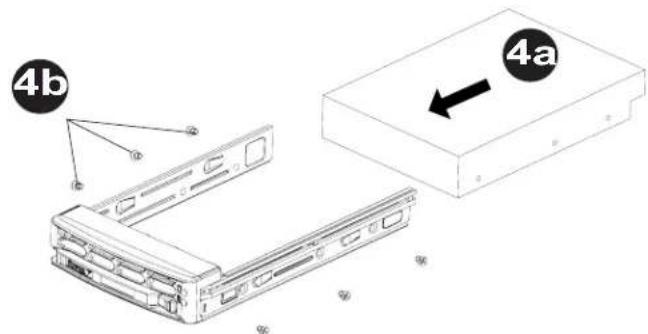

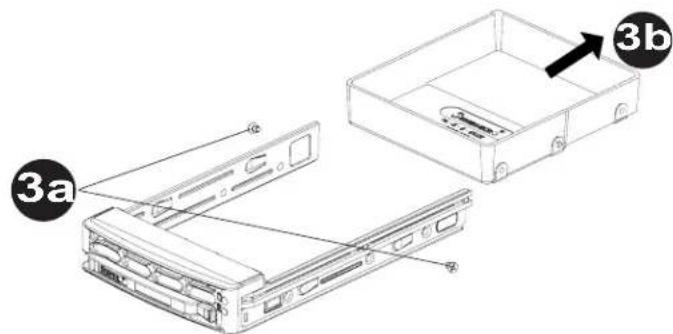

F. Accessing the Hard Disk Drive Tray and Installing a Hard Drive 2-7

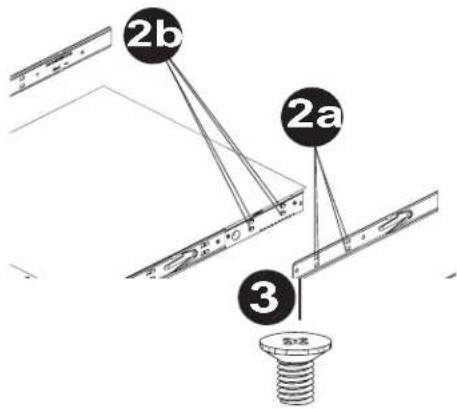

G. Rail Installation 2-8

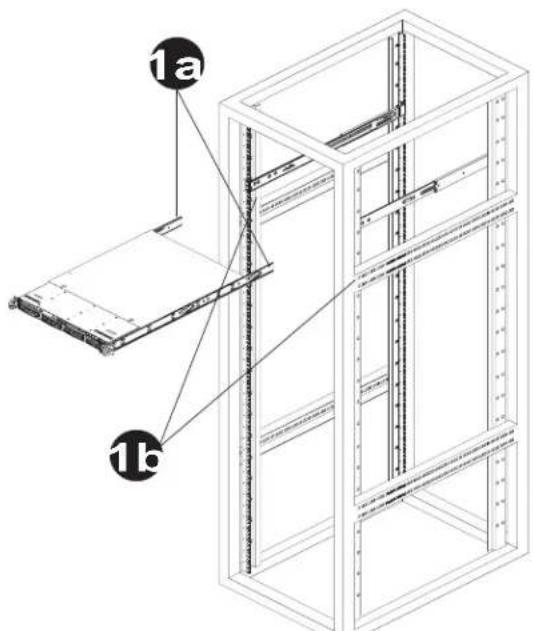

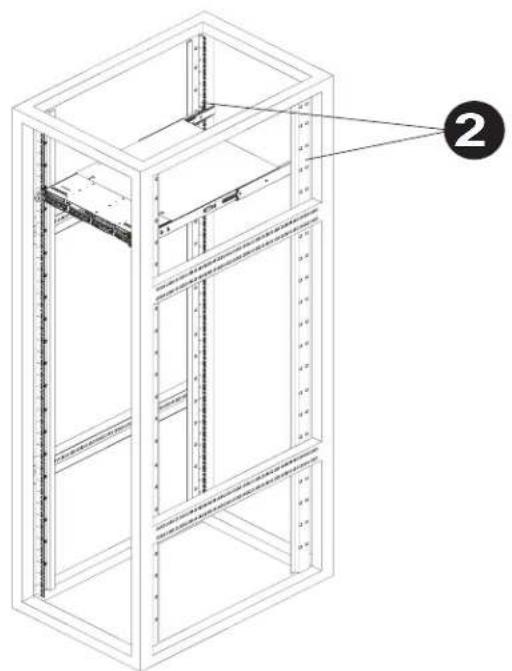

H. Installing the Chassis into the Rack 2-10

Section 2: SCSI (Super) GEM Driver Installation Instructions for the Windows Operating System ....2-6

Appendix: SCA 818S User's Guide ...... A-1

Chapter 1- Introduction

A. Safety Guidelines

A-1 Electricity Safety

General Electrical Safety Guidelines

• Use the exact type of power cords as required.
- Be sure to use power cord(s) that came with safety certifications.
- The power cord(s) must be compliant with the AC voltage requirements in your region.
- Plug the Power cord(s) into a socket that is properly grounded before turning on the power.
• Take extra precautionary measures when working with high voltage components. It is not recommended to work alone.
- Before removing or installing chassis components, be sure to disconnect the power first. Turn off the system before you disconnect the power supply.

A-2. ESD Safety Guidelines

Electric Static Discharge (ESD) can damage electronic components. To prevent damage to your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
- Keep all components and printed circuit boards (PCBs) in their antistatic bags until ready for use.
- Touch a grounded metal object before removing chassis components or the motherboard from the antistatic bag.
- Do not let components or PCBs come into contact with your clothing, which may retain a charge even if you are wearing a wrist strap.
- Handle a motherboard by its edges only; do not touch its components, peripheral chips, memory modules or contacts.
- When handling processors, chips or modules, avoid touching their pins.
- Put the motherboard or components back into their antistatic bags when not in use.
- For the grounding purpose, make sure that your chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.

A-3. General Safety Guidelines

Warning!! Follow the guidelines below to avoid possible damage to the system or injury to yourself:

• To avoid injuries to your back, be sure to use your leg muscles, keep your back straight, and bend your knees, when lifting the system.
• After removing the components or chassis covers from the system, place them on a table for safeguard.
• Avoid wearing loose clothing to preventing it from coming into contact with electrical circuits or being pulled into a cooling fan.
• The handles are for sliding the chassis in and out of the racks only. Do not carry the chassis by the handles.

A-4. Operation Safety Guidelines

Warning: For proper cooling, make sure to install all chassis covers before turning on the system. If this rule is not strictly followed, warranty may become void. Do not open the casing of a power supply. Power supplies can only be accessed and serviced by a qualified technician of the manufacturer. Be sure to follow the steps below to install the chassis covers:

1. Make sure that all components and devices are securely fastened on the chassis and there are no loose parts/screws inside the chassis.
2. Make sure that all cables are properly connected to the connectors and ports.
3. Use the original screws or fasteners to install the covers to the chassis.
4. Be sure to lock to the chassis or the system to prevent unauthorized access.
5. Please follow the procedures listed in Chapter 2 to install or remove components to or from the SC818.

A-5. An Important Note to the User:

All images and graphics shown in this manual were based upon the latest chassis Revision available at the time of publishing. The chassis you've received may or may not look exactly the same as the graphics shown in this manual.

B. Packing Lists

B-1. The SC818+-1000 Chassis Packaging List:

The SC818+-1000 Chassis Packing List
Item Name Part Number Q'ty Notes
Chassis body	CSE-818TS+-1000	1
*Power supply PWS-1K01-1R 1 1000W
*Cooling fan (Chassis fan) FAN-0086 6 40x56 (Nidec) Dual blade 3 pin
*CPU Air Shroud CSE-PT-0128 1
Power Distributor CSE-PT818-PD284 1
Power Distributor Cover CSE-PT126 1
Chipset Air Shroud	CSE-PT0115	1	With two Fan-0089
Slim DVD-ROM	DVM-PNSC-824(B)	1
Slim DVD -ROM adapter	SCD812	1
Slim Floppy device	FPD-Teac-S (B)	0	Optional Item
Slim floppy adapter	SFBP812	0	Optional Item
CD & floppy PWR converter cable	07-01-813904-XX1	2
*Dummy CD-ROM Cover		0
*Dummy FDD Cover		1
*Hard drive carriers	CSE-PT39(B)	4
*Front panel LED board		1
*Front panel control round cable	CBL-0049	1	Flat cable 54cm (cable)
DVD-ROM cable	CBL-0139	1
Floppy cable	CBL-0078	1	Optional Item
Backplane
Hard Drive Backplane	CSE-SAS-818S	1	SuperMicro install item

Notes:
1. Items marked with “*” are included in the chassis packaging.
2. DVD-ROM & FDD are optional items.
3. Slide Rails have no Teflon Tapes.

B-2. The SC-818+-1000 Chassis Accessory Kit:

The SC818+-1000 Chassis
Item Name	Part Number	Q'ty	Note
*Power cord		1
*Rail accessories	CSE-PT51	1	IU Rail w/Teflon Tape
*Screw and tie wrap kits (A)	B0-01-814O01-XXA	1
*Riser card bracket		1
*Accessory Box		1

Note: Items marked with “*” are included in the chassis packaging.

B-3. The SC818-1000 Chassis Packaging List:

The SC818 1000 Chassis Packing List
Item Name Part Number Q'ty Notes
Chassis body	CSE-818 1000 1
*Power supply PWS-1K01-1R	1 1000W
*Cooling fan (Chassis fan) FAN	-0086 6 40x56 (Nidec) Dual	blade 3 pin
*CPU Air Shroud CSE-PT-0128 1
Power Distributor CSE-PT818-PD284 1
Power Distributor Cover CSE-PT126 1
Slim DVD-ROM	DVM-PNSC-824(B)	1
Slim DVD -ROM adapter	SCD812	1
Slim Floppy device	FPD-Teac-S (B)	0	Optional Item
Slim floppy adapter	SFBP812	0	Optional Item
CD & floppy PWR converter cable	07-01-813904-XX1	2
*Dummy CD-ROM Cover		0
*Dummy FDD Cover		1
*Hard drive carriers	CSE-PT39(B)	4
*Front panel LED board		1
*Front panel control round cable	CBL-0049	1	Flat cable 54cm (cable)
DVD-ROM cable	CBL-0139	1
Floppy cable	CBL-0078	1	Optional Item
Backplane
Hard Drive Backplane		1	SuperMicro install item

Notes:
1. Items marked with “*” are included in the chassis packaging.
2. DVD-ROM & FDD are optional items.
3. Slide Rails have no Teflon Tapes.

B-4. The SC818-1000 Chassis Accessory Kit:

The SC818-1000
Item Name	Part Number	Q'ty	Note
*Power cord	1
*Rail accessories	CSE-PT51	1	1U Rail W/Teflon Tape
*Screw and tie wrap kits	(A) B0-01-814O01-XXA	1
*Riser card bracket		1
*Accessory Box		1
Hard Drive Backplane
SATA cable	CBL-0058	4	SuperMicro install item
SATA LED cable	CBL-0056	1	SuperMicro install item

Note: Items marked with “*” are included in the chassis packaging.

C. The SC818 Chassis Front Panel

Top View

Technical diagram of a server rack with numbered components for identification

C-1. Major Chassis Components

1. Front Control Panel (*See C-2 below)
2. Power Module 6. Chipset
3. Power Back Plane 7. DDR Memory Modules (8)
4. Fan Modules (6)
5. CPUs (4)

Front View ③ ⑤ ② ① ④ ④ ④

C-2. Front Panel LED Indicators and IO Ports

1. Front Panel LED Indicators (*See C-3 below)
2. CD-ROM/DVD-ROM
3. Power Supply Module
4. Hard Disk Drives (3)
5. Floppy Drive (optional)

C-3. Front Panel LED Indicators

SUPERMICRO® ⑦⑥⑤④③②①

1. Power Button
2. Reset Button
3. Power-on LED
4. Hard Drive Activity LED
5. LAN Port1 LED
6. LAN Port2 LED
7. Overheat/Fan Fail LED

C-4. Front Panel LED Descriptions

LED Button Color Condition Description
	Green	On System Off	Power
	Off System Off
	Amber	Blinking	HDD Activity HDD
		Off	No Activity
LAN1 & LAN2	Green	On Linked
		Blinking	LAN Activity
		Off	Disconnected
Overheat	Red	On	System Overheat
		Off	System Normal
		Blinking	Fan Failure

D. The SC818 Chassis Specifications

D-1. The SC818+-1000 Chassis Specifications

Model SC818S+-1000 SC818TQ+-1000
Form Factor	1U Rackmount 1U Rackmount
CPU Support	AMD Quad Opteron Processors	AMD Quad Opteron Processors
Max. Motherboard Size	ATX 13” x 16” ATX 13” x 16”
Expansion Slots	1	1
SCA or HD Bays	Three 1”hot-swap Ultra 320/160 SCSI drive bays (SAF-TE Compliant)	Three 1”hot-swap SATA bays
Front Side USB Port &COM port	Optional Optional
Floppy/CD-ROM	Optional/Yes Optional /Yes
Power Supply	1000W cold-swap PS 1000W	cold-swap PS
Cooling System	Six 40mmx40mmx56mm Six	40mmx40mmx56mm
Dimension (W x H x D)	17.2” x 1.7” x 27.75”(437mm x 43mm x 705 mm)	17.2” x 1.7” x 27.75”(437mm x. 43mm x 705mm)
Weight	35 lb. (15.9 kg) 35 lb. (15.9 kg)
Optional Kits	Riser Cards Riser Cards

D-2. The SC818-1000 Chassis Specifications

Model SC818S-1000	SC818TQ-1000
Form Factor	1U Rackmount 1U Rackmount
CPU Support	Intel Quad Processors Intel Quad Processors
Max.Motherboard Size	ATX 16” x 14.5”	ATX 16” x 14.5”
Expansion Slots	1	1
SCA or HD Bays	Three 1”hot-swap Ultra320/160 SCSI drive bays(SAF-TE Compliant)	Three 1”hot-swap SATA bays
Front Side USB Port &COM port	Yes	Yes
Floppy/CD-ROM	Optional/Yes	Optional/Yes
Power Supply	1000W cold-swap PS 1000W	cold-swap PS
Cooling System	Six 40mmx40mmx56mm Six	40mmx40mmx56mm
Dimension(W x H x D)	17.2” x 1.7” x 27.75”(437mm x 43mm x 705 mm)	17.2” x 1.7” x 27.75”(437mm x. 43mm x 705mm)
Weight	35 lb. (15.9 kg)	35 lb. (15.9 kg)
Optional Kits	Riser Cards	Riser Cards

E. The SC818 Chassis Power Supply Specifications

Power Supply Spec SC818
Mfr. Model # PWS-1K01-1R
Mfr. Part # PWS-1K01-1R
Rated AC Input Voltage 100-240 VAC
Rated Input Frequency 50-60 Hz
Rated Input Current 15A (115V)
	10A
Rated Output Power 1000W
Maximum rated BTU 4400 BTUs/Hr
Nominal Output Voltage
+12V 83A
+5Vsb 4A
Mfr. Model # PDB-PT818-8824
Mfr. Part # PDB-PT818-8824
+5V	20A
+3.3V	20A
-12V	0.6A

(230V)

Notes

Chapter 2: Installation Procedures

Section 1: Installing Components into the SC818

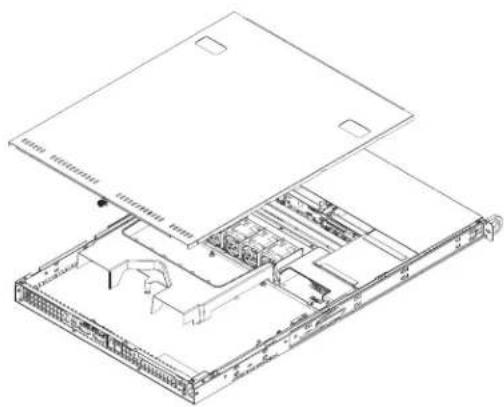

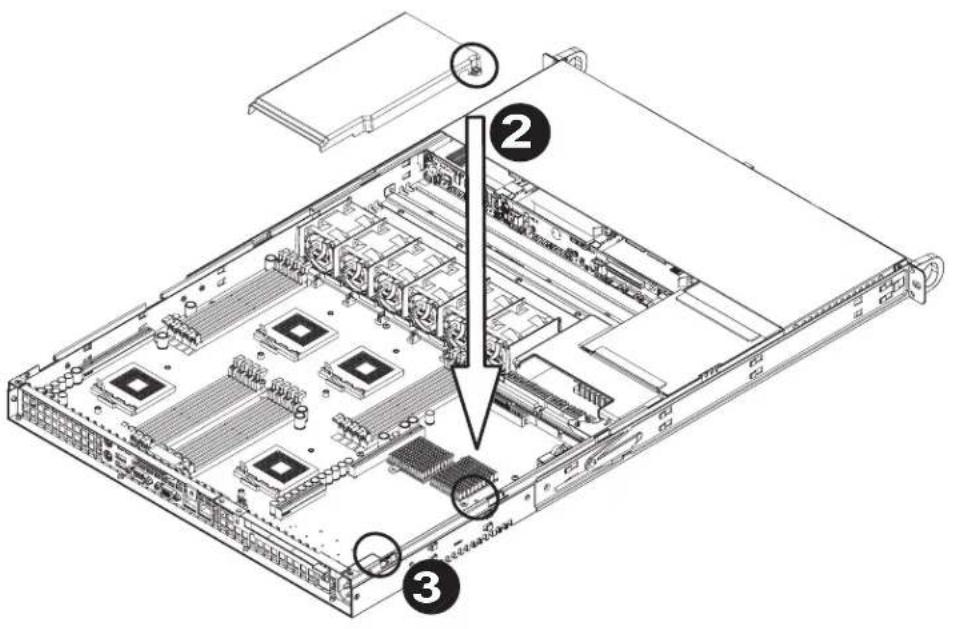

A. Removing the Top Cover from the Chassis

Before installing any components, replacing chassis fans or accessing the motherboard, you will first need to remove the top cove from the chassis.

Procedures

1. Using a Philips screw driver, remove two screws from the top cover as shown below.
2. Unlock and remove the thumb screw from the chassis.
3. Press the release tabs and slide the top cover out from the chassis.

Diagram of a server rack with labeled components and zoomed-in view showing internal structure

The SC818 w/the Top Cover Removed

Technical line drawing of an electronic device chassis showing internal components and casing (no text or labels)

B. Removing the Riser Card Bracket from the Chassis

Before installing the motherboard, you will need to remove the riser card bracket from the chassis.

Procedures

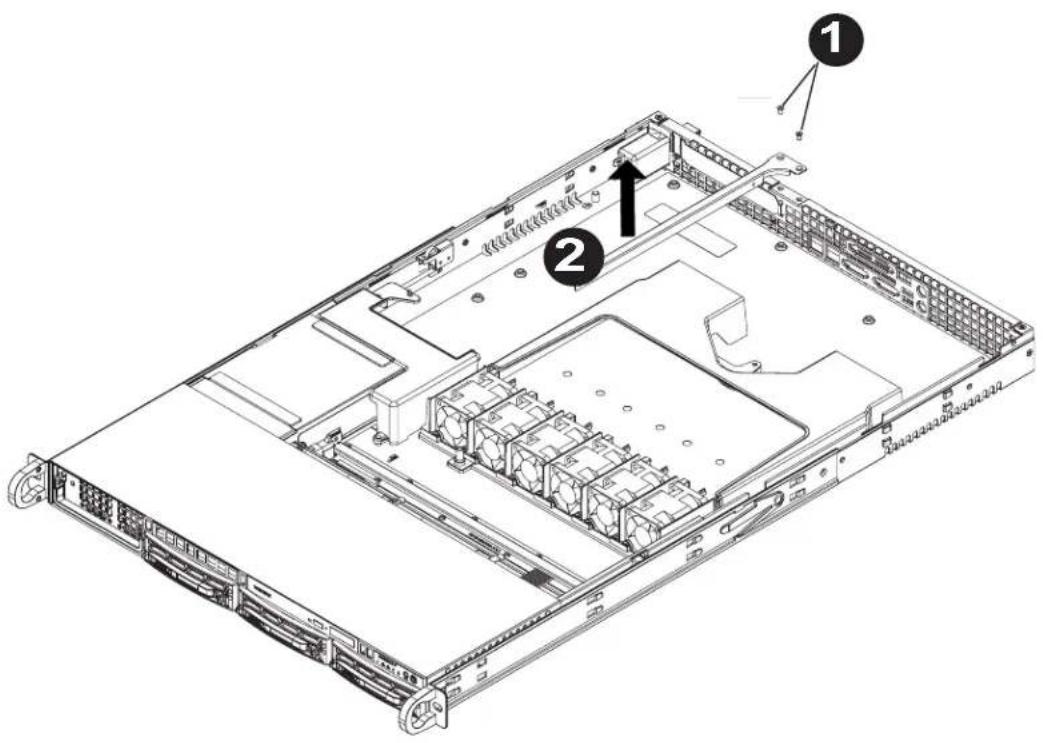

1. After the top cover is removed from the chassis, using a Philips screw driver to remove the two screws on the riser card bracket as shown below:

2. Remove the riser card bracket from the chassis.

Technical diagram of a server rack with numbered components, highlighting internal hardware layout and mounting points.

C. Installing the Motherboard into the Chassis

After you've removed the chassis cover and the riser card bracket from the chassis, you are ready to install the motherboard into the chassis.

Procedures

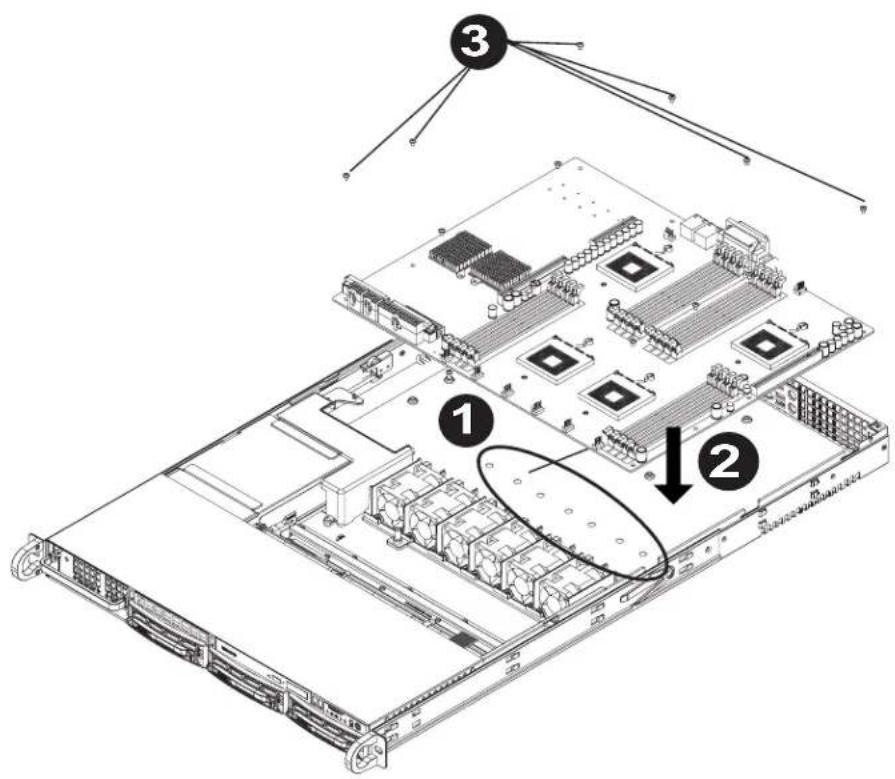

1. Locate the mounting holes on the motherboard and the mounting holes on the chassis.
2. Align the mounting holes on the motherboard against the corresponding mounting holes on the chassis. Once aligned, place the motherboard on top of the chassis.
3. Using a Philips screw driver, install a 6-32 screw into each mounting hole to secure the motherboard onto the chassis.

(To be continued on the next page)

Diagram of a server rack with labeled components and annotations, showing internal layout and connection points.

1. Connect power cables to the power connectors on the motherboard as shown below.
2. Connect fan cables to the fan headers on the motherboard as shown in the picture below.)

Fan Headers 5 Power Connectors 4

D. Installing the Chipset Air Shroud into the Chassis

After the MB is securely installed into the chassis, you will need to install the chipset air shroud to prevent the chipset from overheat.

Procedures

1. Align the chipset air shroud with the chipset.
2. Once aligned, secure the chipset air shroud into the chassis with a 6-32 x 13L screw as shown below.
3. Connect fan cables to the fan headers on the motherboard as shown below.

Technical diagram of a server rack with labeled components and numbered annotations

E. Installing the CPU Air Shroud into the Chassis

After you have installed the CPU and the CPU Heatsink into the chassis, you will need to install the CPU air shroud to prevent the processors from overheat.

Procedures

1. Before installing the air shroud, make sure that the CPU, the heatsink and the memory modules are properly installed.
2. Align the CPU air shroud with the CPUs.
3. Once aligned, secure the CPU air shroud into the chassis with a 6-32 screw as shown below.
4. Cover the chassis with the top cover.

learning: Do not operate the system without the top cover being properly installed.)

1. Securely attach the top cover to the chassis with screws and the thumb screw.

Technical diagram showing a server rack with labeled components and an overhead view of the internal circuit board.

F. Accessing the Hard Disk Drive Tray and Installing a Hard Drive

To install a hard disk drive into the chassis, you need to first remove the HDD tray from the chassis so that the HDD can be installed in.

Procedures

1. Press the release tab to unlock the HDD tray.

2. Pull the HDD tray out from the chassis as shown below:

Diagram showing server rack with labeled components and a magnified inset view of the internal structure

1. Remove the two screws that attach to the both sides of the dummy HDD, and take out the dummy HDD as shown below:

3a 3b

1. Slide a hard drive disk (HDD) into the HDD tray, and secure the HDD to the tray with three screws on each side of the tray as shown below:

4b 4a

1. Once the HDD is securely placed into the HDD tray, you can install the HDD drive tray back to the chassis.

G. Rail Installation

Rail Packaging

includes:

*One pair of inner slides to be installed on the chassis

*One pair of outer slides to be installed in the rack

*One pair of long brackets to be used on the rear side of the outer slides

*Two pairs of short brackets to be used on the front side of the outer slides (Note: One pair of short brackets include screw threads, and the other pair does not. Use the only pair that will fit into your rack.)

G-1 Installing Inner Slides

Procedures

1. Locate the right inner slide, (-the slide that will be used on the right side of chassis when facing the front panel of the chassis).
2. Align the four (4) square holes on the right inner slide against the hooks on the right side of the chassis as show below on the left.
3. Attach the slide to the chassis with two M4 fl at head screws and repeat the steps 1-3 to install the left inner slide to the left side of the chassis.

2b 2a 3 5x2

Diagram showing a mechanical or electronic component with numbered parts labeled 5, 6, and 7.

G-2 Installing Outer Slides

1. Measure the distance from the front rail of the rack to the rear rail of the rack.
2. Attach a short bracket to the rear side of the right outer slide, and a long bracket to the front side of the right outer slide as shown above on the right.
3. Adjust the short and long brackets to the proper distance so that the chassis can snugly fit into the rack.
4. Secure the slides to the cabinet with screws. Repeat steps 4-7 for the left outer slide.

G-3 Installing the Slide Assemblies to the Rack

Procedures

1. After you have installed the short and long brackets to the outer slides, you are ready to install the whole slide assemblies (-outer slides with short and long brackets attached) to the rack. (See the previous page.)

2. Use M5 screws and washers to secure the slide assemblies into the rack as shown below:

M5 Screw/Washer

w/Washer 16 2 2

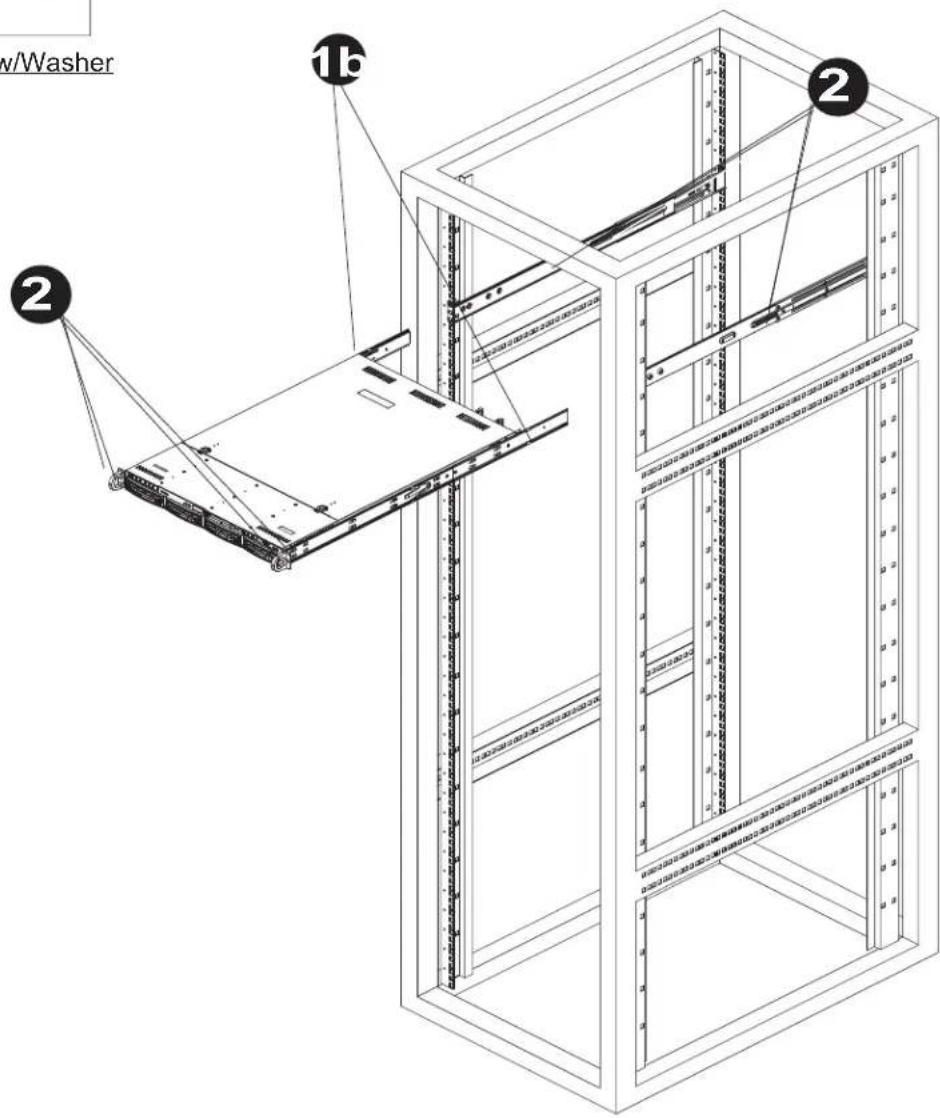

H. Installing the Chassis into the Rack

Procedures

1. Push the inner slides, which are attached to the chassis, into the grooves of the outer slide assemblies that are installed in the rack as shown below:

1a 1b

1. Push the chassis all the way to the back of the outer slide assemblies as shown below: (The plastic bezel is not included in the package.)

Isometric line drawing of a server rack cabinet with labeled components (no text or symbols beyond label)

Section 2: SCSI (Super) GEM Driver Installation Instructions for the Windows Operating System

Please refer to the following instructions to install the SCSI GEM Driver for the Windows operating systems.

(*Note: This driver is not necessary for other Operating Systems. If you have two HDD backplanes, you will need to install the driver twice.)

The driver is located on the Super Micro motherboard driver CD or is available for download from our FTP site: ftp://ftp.supermicro.com/driver/Qlogic/

Follow the instructions below to install this driver to your system.

Installing the driver:

1) Right click on "My Computer" and choose "Property".
2) Select "Hardware" tab and click on "Device Manager".
3) Open "Other Devices" or wherever "GEM318" is on.
4) Right click on this device and choose "Property".
5) Click on "Driver" tab and choose "Update Driver".
6) Click "Next" 2 times, uncheck both "Floppy disk drives" and "CD-ROM drives". Then, select the item- "Specify a location," and choose "Next".
7) Click on "Browse" and choose D drive or wherever Supermicro Setup CD is in.
8) Choose "Qlogic" folder and click on "Open".
9) System will automatically detect GEM318 and install the drive from this point on.

or,

1) Right click the "My Computer" icon on your desktop and choose Properties.
2) Click on the Hardware tab and click on "Device Manager" to bring up the list of system devices.
3) You may see one or two yellow question marks (?) that read QLogic GEM354 or GEM318 SCSI Processor Device. Right click on these, and choose to uninstall. If two such question marks are present, uninstall both.
4) Click on Action tab and choose "Scan for Hardware Changes". The Hardware Wizard program should start up. Click "Next".
5) At the first prompt, choose "Display a list of known device drivers for the device so that I can choose a specific driver" and click "Next".
6) Choose "Other Devices" and click Next.
7) Choose "Have Disk", and specify your fl oppy drive location in the options box. Then, click "Next".
8) Highlight "Enclosure Services Device" and click "Next".
9) Ignore the warning prompt by clicking "Yes".

(*Note: Please refer to the Appendix for SCA-818S Backplane Information.)

Notes

Aappendix

SUPER®

SCA818S Backplane

USER'S GUIDE

Rev. 1.0

Table of Contents

Safety Information and Technical Specifications ...... A-3

1. Safety Guidelines ......A-3

2. Introduction to the SCA818S Backplane ......A-4

3. Jumper Settings and Pin Definitions ......A-5

A. Front Connectors and Jumpers ......A-5

A-1. Front Jumper/Connector Locations....A-5

A-2. Front Jumper/Connector Descriptions ...... A-5

A-3. Front Jumper/Connector Pin Definitions ......A-5

A-4. Front Overheat/Drive Failure LED ......A-6

A-5. Front Jumper Settings and Pin Defi nitions ......A-6

B. Rear Connectors and LED Indicators....A-7

B-1. Rear Connector/LED Indicator Locations ......A-7

B-2. Rear Connector/LED Indicator Descriptions ......A-7

User's Guide Revision: Rev. 1.0

Release Date: 01/23/2006

Safety Information and Technical Specifications

1. Safety Guidelines

To avoid personal injury and property damage, please carefully follow all the safety steps listed below when accessing your system or handling the components:

ESD Safety Guidelines

Electric Static Discharge (ESD) can damage electronic components. To prevent damage to your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing a component from the antistatic bag.
• Handle the RAID card by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the card and peripherals back into their antistatic bags when not in use.

General Safety Guidelines

• Always disconnect power cables before installing or removing any components from the computer, including the SCA818S Backplane.
• Disconnect the power cable before installing or removing any cable from the SCA818S Backplane.
• Make sure that the SCA818S Backplane is securely and properly installed on the motherboard to prevent damage to the system due to power shortage.

An Important Note to the User

- All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing. The card you've received may or may not look exactly the same as the graphics shown in this manual.

2. Jumper Settings and Pin Definitions

A. Front Jumpers and Connectors

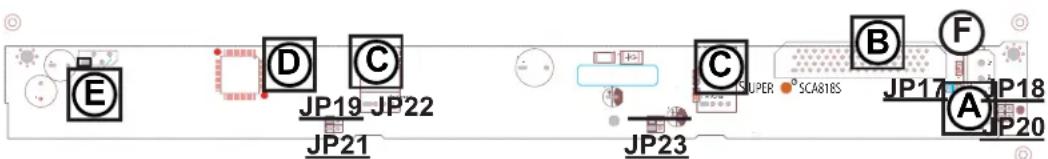

Front Jumper/Connector Locations

Front View

(*See below for front connector/jumper descriptions.)

A-2. Front Panel Connectors

A. JP10: Backplane Main (4-Pin) PWR

B. LVD1: SCSI Channel

C. J1, J2: CD-ROM/Floppy Drive (4-Pin) PWR Connector

D. 318 GEM Chip

E. JP9: I²C Connector

F. D4: Overheat/Drive Fail LED Indicator

Front Connectors and Pin Definitions

A : SCA818S Backplane Main Power (J10)

Backplane Main Power Connector Pin Definitions

You must use the 4-pin power connector (J10), marked "A" on the layout above, to provide adequate power supply to the Backplane. See the table on the right for pin definitions.

Backplane Main PWR4-pin Connector(J10)
Pins #	Definition
1	+12 V
2 & 3	Ground
4	+5V

C: CD-ROM/Floppy Drive Power Connectors

CD-ROM/FDD Power Connector Pin Definitions

You must use the 4-pin power connectors (J1, J2), marked "C" on the layout above, to provide power supply to the CD-ROM and Floppy Drives. See the table on the right for pin definitions.

CD-ROM/FDD PWR4-pin Connectors
Pins #	Definition
1	+5 V
2 & 3	Ground
4	+12V

B: Ultra 320 SCSI Connector (LVD1)

SCSI Connector Pin Definitions

There is a Ultra 320 SCSI connector, marked "B" on the layout, on the backplane. Refer to the table below for the pin definitions of the Ultra 320 SCSI connector located at (LVD1).

Ultra320 SCSI Drive ConnectorPin Defi nitions (J28)
Pin#	Defi nition	Pin # Defi nition
1 +DB (12) 35 -DB (12)
2 +DB (13) 36 -DB (13)
3 +DB (14) 37 -DB (14)
4 +DB (15) 38 -DB (15)
5 +DB (P1) 39 -DB (P1)
6 +DB (0) 40 -DB (0)
7 +DB (1) 41 -DB (1)
8 +DB (2) 42 -DB (2)
9 +DB (3) 43 -DB (3)
10 +DB (4) 44 -DB (4)
11 +DB (5) 45 -DB (5)
12 +DB (6) 46 -DB (6)
13 +DB (7) 47 -DB (7)
14 +DB (P) 48 -DB (P)
15 Ground 49 Ground
16 DIFFSENS 50 Ground
17 TERMPWR	51	TERMPWR
18 TERMPWR	52	TERMPWR
19 Reserved	53	Reserved
20 Ground 54 Ground
21 +ATN	55	-ATN
22 Ground 56 Ground
23 +BSY	57	-BSY
24 +ACK	58	-ACK
25 +RST	59	-RST
26 +MSG	60	-MSG
27 +SEL	61	-SEL
28 +C/D	62	-C/D
29 +REQ	63	-REQ
30 +I/O	64	-I/O
31 +DB (8) 65 -DB (8)
32 +DB (9) 66 -DB (9)
33 +DB (10) 67 -DB (10)
34 +DB (11)	68	-DB (11)

D: GEM 318 (SAF-TE: SCSI Accessed Fault-Tolerant Enclosures)

This chip allows the system to use a set of pre-defined SCSI commands to monitor the status of disk drives and provide disk drive information to the user through LED indicators and buzzers. (*Note: This function is available only when a RAID controller with a RAID set is present and enabled. Please refer to the table below for the information on SAF-TE LED Indicators.)

SAF-TE LED Indicators

LED#	Location	Description
D4 Front Overheat or Drive Failure(red light flashing, buzzer: on)
D5 Rear SCA#0 Fail LED(red light flashing, buzzer: on)
D6 Rear SCA#1 Fail LED(red light flashing, buzzer: on)
D16 Rear SCA#2 Fail LED(red light flashing, buzzer: on)

A-2. Backplane Front Jumpers

Front Jumper Descriptions and Pin Defi nitions

Jumper	Description	Definition
	On (*Default)	Buzzer EnableJP17
	Off	Buzzer Disable
	On	Delay Start-SCA#0 Enable
	Off (*Default)	Delay Start-SCA#0 Disable
	On	Remote Start-SCA#0 Enable
	Off (*Default)	Remote Start-SCA#0 Disable
	On Delay Start-SCA#1 Enable JP22
	Off (*Default)	Delay Start-SCA#1 Disable
	On Remote Start-SCA#1 Enable JP23
	Off (*Default)	Remote Start-SCA#1 Disable
	On Delay Start-SCA#2 Enable JP19
	Off (*Default)	Delay Start-SCA#2 Disable
	On Remote Start-SCA#2 Enable JP21
	Off (*Default)	Remote Start-SCA#2 Disable

A-3. Backplane Front LED

Front Overheat LED Indicator

Front LED Indicator	Specification
D4 (Front) Overheat/Drive Failure LED Indicator(Red light: flashing, Buzzer: On)

B. Rear Connectors and LED Indicators

B-1 Rear Connector/LED Indicator Locations

Rear View

SCA1 D12 D5 SCA4 D13 D6 SCA2 D14 D16 SCA#0 SCA#1 SCA#2

(*See below for rear connector/LED descriptions.)

B-2 Connector/LED Indicator Descriptions

B-2.1 Backplane Rear Connectors

Rear Connector	Specification
SCA1 (Rear)	SCSI HDD#0 (SCA#0)
SCA4 (Rear)	SCSI HDD#1 (SCA#1)
SCA2 (Rear)	SCSI HDD#2 (SCA#2)

B-2.2 Backplane Rear LED Indicators

Rear LED Indicator	Specification
D12 (Rear) SCA#0 Activity LED
D13 (Rear) SCA#1 Activity LED
D14 (Rear) SCA#2 Activity LED
D5 (Rear) SCA#0 Fail LED
D6 (Rear) SCA#1 Fail LED
D16 (Rear) SCA#2 Fail LED
