USER MANUAL 2 in 1 Multi Chipolino

IMPORTANT! KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE!

MUSICAL BABY WALKY 2 IN 1 "MULTI"

MULTI

Line drawing of two decorative objects with internal cutouts, no text or symbols present

This product is produced in conformity with the requirements of Toy Safety Directive 2009/48/EC of the European Parliament and the Council, the Regulation on Essential Requirements and Conformity Assessment of Toys, the Regulation on Conformity Marking and the European standards applicable to this product.

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USING THIS TOY AND KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE.

INSTRUCTIONS AND WARNINGS FOR SAFE USAGE:

• ATTENTION! TO BE USED ONLY UNDER ADULT SUPERVISION!
• ATTENTION! THIS PRODUCT IS INTENDED FOR CHILDREN AGED 12+ MONTHS!
• ATTENTION! CHILDREN WHO CANNOT WALK ALONE SHOULD NOT USE THE PRODUCT!
• WARNING! REGULARLY CHECK ALL THE PARTS OF THE PRODUCT! DO NOT USE THE TOY IN CASE YOU FIND ANY DAMAGED, MISSED OR WORN OUT PART. ALL JOINTS MUST BE IN GOOD WORKING ORDER. NO CRACKS ON THE CONSTRUCTION.
• ATTENTION! FOR DOMESTIC USE ONLY. TO BE USED ONLY ON FLAT AND SAFE SURFACES, AWY FROM STAIRS, OBSTACLES OR SOURCES OF HEAT OR POOLS!
• ATTENTION! USE THE TOY ONLY AT ITS PURPOSE!
• ATTENTION! KEEP AWAY FROM FIRE!
• Unpacking and assemble of the TOY to be done ONLY by an adult!
• DO NOT attach to the TOY additional ties and accessories to avoid the risk of choking!
• When storing and transporting DO NOT place objects or heavy objects on the TOY to avoid damaging of the construction.
• Do NOT move the toy by pulling it with another transport means!
• DO NOT make changes or modifications to the TOY's construction! If necessary, contact your dealer or an authorized service for consultation and repair.
• DO NOT use spare parts and other components not supplied by the manufacturer! The manufacturer assumes no liability for the safety if spare parts other than those originally for the type approved or recommended are used.
• All packages must be kept away from children during unpacking and after that, to avoid risk of strangulation.

IMPORTANT! WARNINGS AND INSTRUCTIONS FOR USING BATTERIES

• Always secure the battery compartment with the cover after inserting the batteries.
- Do not allow children to access batteries and play with them!
- Only use batteries of the specified type and voltage.
- Do not use batteries of different type.
- Do not mix new ones with batteries already used.
- Keep the correct polarity.
- Remove damaged and exhausted batteries.
- Remove the batteries when you will not use the toy for long period.
- Do not dispose of batteries in open fire. Batteries should not be disassembled.
- ATTENTION! Do not throw batteries with household waste, but only in the designated places.

Prohibition sign with a trash bin and crossed-out lines, indicating no waste or disposal.

MAIN FEATURES OF THE PRODUCT

MUSICAL BABY WALKY 2 IN 1 "MULTI" stimulates and supports the development of senses, coordination of movements and physical skills, recognition of colors, forms, sounds and melodies. The child can play with the toy sitting on the floor, while listening to fun music can learn to recognize different shapes and colors.

• THE TOY is intended for children aged 12+ months
- It can be used as baby walky and multifunctional table for play
• Children who can not walk alone should not use the product
- Plays melodies, sounds and lights.
• The handle can be adjusted at height
• The speed can be adjusted.
- Required batteries: 3, type AA / 1.5V (not included) for the music panel and 2 pieces, type AAA / 1.5V (not included) for the mobile phone.

MAIN PARTS

Disassembled mechanical parts including a battery pack, motor housing, and plastic components (no text or symbols visible)

Illustration of a mechanical device with four cylindrical components and internal gears (no text or symbols)

NOTE! Make sure the parts shown are included in the set.

INSTRUCTIONS FOR ASSEMBLY AND SAFETY USE

ATTENTION! FOLLOW THOROUGHLY THE RECOMMENDATIONS AND CONSEQUENCE FOR USE OF THE PRODUCT IN THIS INSTRUCTION MANUAL! ATTENTION! CHECK THE SECURITY OF FIXING AFTER PERFORMING ANY OPERATION!

ASSEMBLY OF THE MUSICAL TOY

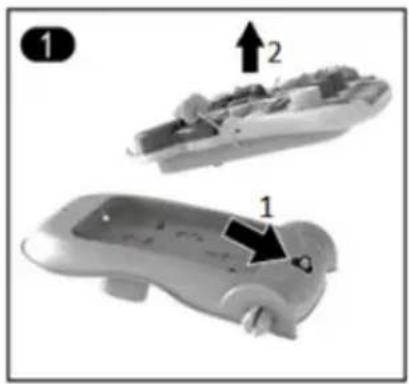

1. REMOVAL OF THE MUSIC PANEL FROM THE BASE.

Press the white button and remove the music panel with the toys.

1. INSERTING OF THE BATTERIS

Unscrew the screw on the battery cover. Remove the cover and insert 3 AA / 1.5V batteries. Put the battery cover and tighten the screw.

IMPORTANT! Keep the correct polarity in the battery compartment!

1. ASSEMBLY OF THE HANDLE

Place the handle on the base. Secure with the plastic screw.

1. WATER CONTAINER.

ATTENTION! The water / sand container increases the stability of the toy and improves the balance during use!

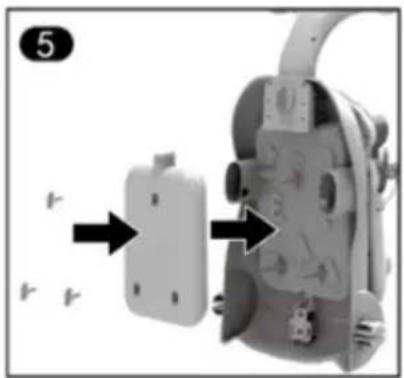

1. ASSEMBLY OF THE WATER CONTAINER.

Place the water container at the back of the base and secure with screws.

6- ASSEMBLY OF THE SUPPPORT LEGS.

7- ASSEMBLY OF THE WHEELS.

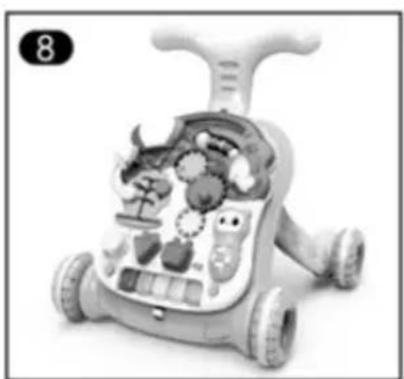

8 - ASSEMBLED PRODUCT

Two views of a toy car showing internal components and a labeled arrow (no text or symbols present)

Diagram of a battery module with labeled components and specifications (no readable text or symbols)

Mechanical assembly diagram showing a robotic arm interacting with a robot's head (no text or symbols visible)

White plastic door with faucet and four holes, no text or symbols visible

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

Top-down view of a robot's internal components, showing gears, bodies, and a directional arrow (no text or symbols)

Illustration of a toy car with internal cutaway scene showing various objects (no text or symbols)

ASSEMBLY OF THE TABLE FOR PLAY

1. REMOVAL OF THE MUSIC PANEL WITH TOYS FROM THE BASE.

Press the white button and remove the music panel with the toys

1. ASSEMBLY OF THE LEGS OF THE TABLE

Note: You will hear a "click" sound during installation.

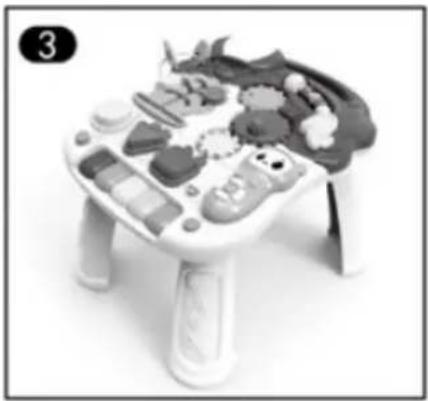

1. ASSEMBLED PRODUCT.

Two views of a toy car showing internal components and a black arrow pointing to a specific part (no text or symbols present)

Mechanical device with four tubes and a black arrow indicating a process (no text or symbols)

3D model of a small white table with cutouts and decorative items on top (no text or symbols visible)

FUCNTIONS

1. Removable mobile phone with sounds and melodies

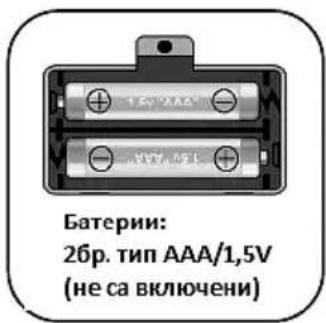

Батерии: 26р. тип AAA/1,5V (не са включени)

To use the functions of the toy:

1. Unscrew the screw on the battery cover (on the back of the phone).
2. Remove the cover and insert 2 AAA / 1.5V batteries. Batteries are not included.
3. Replace the battery cover and tighten the screw.

IMPORTANT! Observe the marked polarity in the battery compartment!

1. Piano with different melodies, tosy with different shapes, rotating gears, lights.
2. Height adjustment of the handle.
3. Adjustable speed.

Diagram of a toy car with labeled parts and internal components, including hand positioning and control buttons.

CARE AND MAINTENANCE

• Periodically check the good working order of the separate parts.
- Do not wash or immerse the TOY with water. Use a soft damp towel and a neutral detergent.
- Do not use aggressive detergents containing abrasive particles, bleach or spirit.
• Regularly oil moving parts.
- Do not use on sandy terrains.
- Do not store the TOY in spaces with hot air or in proximity to warmth to prevent its deforming.
- Store the TOY in a clean and dry space. Do not let it under direct environmental influence – sun, rain, moisture or harsh temperature fluctuations!
- After each cleaning leave the TOY to fully dry before storing or using it. Rust and mildew may appear if you store the product damp.
- In case of problems related to the normal use of the product, turn to authorized service for repair or advice.

Materials used: plastic, metal

Producer: Made in China

Importer: CHIPOLINO LTD., 1 Goliamokonarsko Shosse Str,

Plovdiv, BULGAIRA, tel.: [phone], www.chipolino.com

MIK0200xxx/N5218/N5218A
