USER MANUAL INV1000DBA Pyle

Exterior view of a black DYLE P2508 dual-chamber electronic device (no visible text or symbols on body)

INV559BA
5 Channel 3000 Watts Max Mosfet Amplifier

Front view of a black PYLE brand electronic device with 'ITVINCIBLE' branding and a blue horizontal stripe (no readable text beyond branding)

INV669BA
6 Channel 3000 Watts Max Mosfet Amplifier

INVINCIBLE PYLE

INV500DBA
1 Channel 1000 Watts Max Mosfet Amplifier

INVINCIBLE PYLE

INV1000DBA
1 Channel 2000 Watts Max Mosfet Amplifier

☆□◇□☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆

USER GUIDE

INTRODUCTION

PYLE amplifiers provides high-performance sound reinforcement for your mobile audio equipment. Its versatility enables compatibility with optional Equalizers, Frequency Dividing Crossover Networks, and other audio processors in customized system. The Multi-Mode bridging capabilities allow flexibility in hosting several different speaker configurations.

To achieve optimum performance, it is highly recommended that you read this Owners Manual before beginning installation.

WARNING!

High powered audio systems in a vehicle are capable of generating "Live Concert" high levels of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage.

Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sounds such as; horns, warning signals, or emergency vehicles, thus contributing to a potential traffic hazard. In the interest of safety, PYLE recommends listening at lower volume levels while driving.

TABLE OF CONTENTS

TROUBLESHOOTING GUIDE 16

SPECIFICATION 17

Before beginning the installation, consider the following

1. Do you plan to add additional mobile electronics equipment in the future?

If you plan to expand your system by adding other components sometime in the future, ensure adequate space is left, and cooling requirements are met.

1. Should you use high or low level inputs?

Your Amplifier has been designed to accept Low-Level (Pre-Amp outputs from your radio) signal source. If your radio/source is equipped with Pre-Amp outputs, it is possible to utilize them to drive the Amplifier and connecting (Amplifier) to the 2 rear speakers. Then, use the built-in power of your radio to drive the 2 front speakers.

1. Are your components matched?

The RMS power rating of your speaker's must be equal or greater than the RMS power rating of your amplifier. You speaker(s) also must be 2-8 Ohms impedance for stable amplifier operation. Impedance information is normally printed on the speaker basket or magnet.

1. Where will the amplifier be installed?

Consider both the length of your leads and routing when determining the mounting location. It is best to run power and RCA wiring on opposite sides of the vehicle to prevent induced noise. Pre-Amp input Jacks require a length (depending on location) of high qualityshielded male to male RCA patch cord.

WIRING CONNECTION

CAUTION:

AS A PRECAUTION, DISCONNECT THE POWER WIRE FROM THE BATTERY WHILE MAKING THE POWER AND GROUND CONNECTIONS TO THE AMPLIFIER.

4/8 GAUGE (Thicker if planning for additional Amplifiers) wire is recommended for both the power and ground wires. 12 Gauge, For the remote turn-on wire, 16 Gauge. Both types are available at most Mobile Audio Dealers or Installation Shop.

1. Ground: To Vehicle Chassis

To avoid unwanted ignition noise caused by ground loop, it is essential that the Amplifier be grounded to a clean, bare, metal surface of the vehicle's Chassis.

NOTE:

GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT, (1 METER).

2. +12 Volt (Fused) Constant Power: To Battery (+)

Due to the power requirements of the Amplifier, this connection should be made directly to the positive (+) terminal of battery. For safety measures, install an in-line Fuse Holder (not included) as close to the battery positive (+) terminal as possible. With an ampere rating not to exceed total value of fuses in Amp.

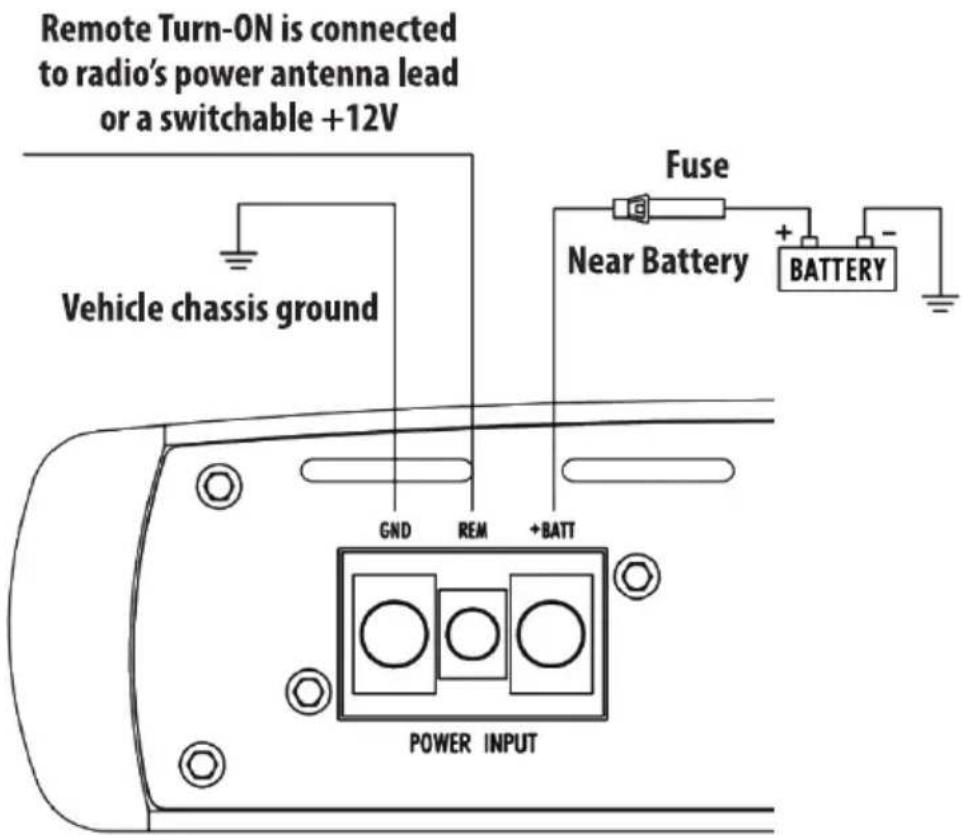

3. Remote Turn-On Input: To Power Antenna output of Car Stereo

This Amplifier is turned "ON" remotely when the vehicle's stereo is turned "ON". NOTE: IF YOUR RADIO DOES NOT HAVE A+12 VOLT OUTPUT LEAD WHEN THE RADIO IS TURNED ON, REMOTE TERMINAL ONTHE AMPLIFIER CAN BE CONNECTED TO VEHICLE'S ACCESSORY CIRCUIT THAT IS LIVE WHEN THE KEY IS "ON".

Remote Turn-ON is connected to radio's power antenna lead or a switchable +12V Vehicle chassis ground Fuse Near Battery + - BATTERY GND REM +BATT POWER INPUT

PANEL LAYOUT

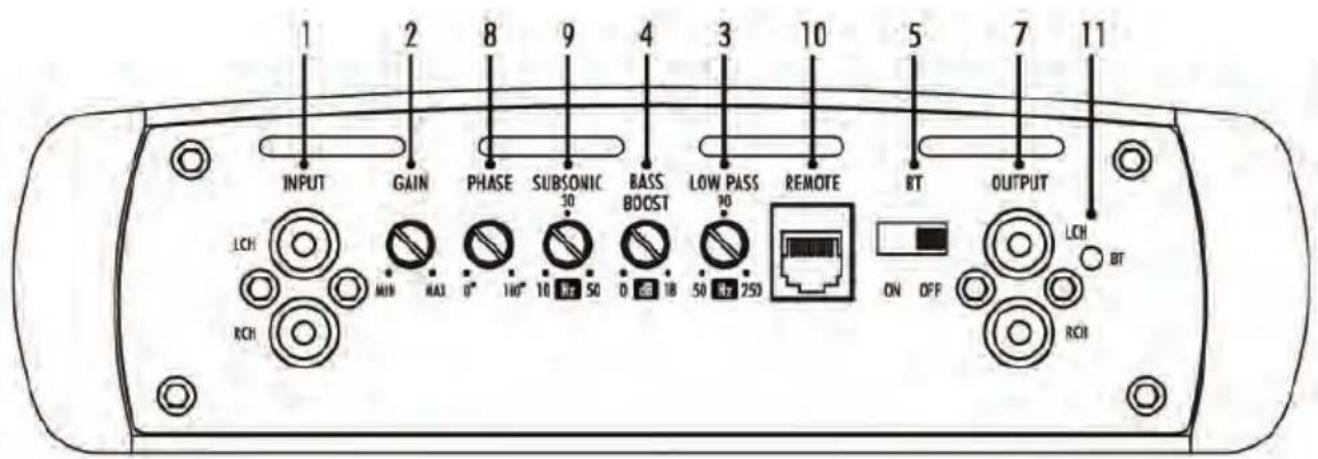

INV500DBA/ INV1000DBA FRONT VIEW

1 2 8 9 4 3 10 5 7 11 INPUT GAIN PHASE SUBSONIC 30 BASS BOOST LOW PASS 90 REMOTE BT OUTPUT LCH MIN MAX 0° 160° 10 50 0 18 50 250 ON OFF LCH RT RCH

INV559BA/ INV669BA FRONT VIEW

3 4 3 2 1 1 1 1 5 2 3 3 FREQ. SELECT GAIN LOW LOW INPUT 30N 30N LOW INPUT 40N GAIN SELECT FREQ. FRONT 40 40 250 LOW PASS 6 8-12 MAX MAX 50N LOW INPUT 40N MAX High Full Band PASS PASS INPUT SELECT 40 X1 250 WOOFEX 40 40 250 CRR OFF ON 50N

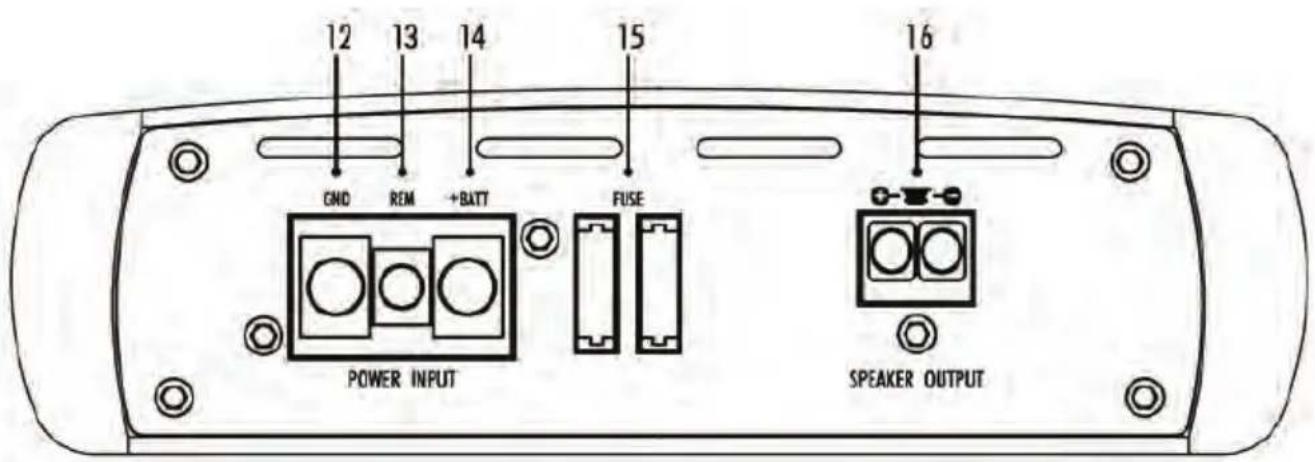

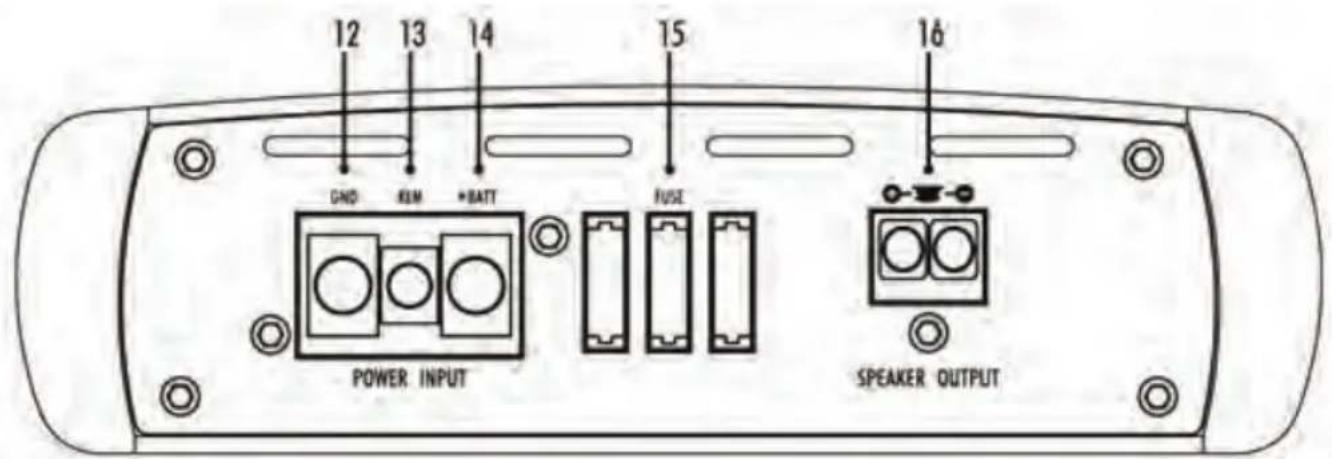

INV500DBA REAR VIEW

12 13 14 15 16 GND REM +BATT FUSE POWER INPUT SPEAKER OUTPUT

INV1000DBA REAR VIEW

12 13 14 15 16 GND KLM +BATT FUSE POWER INPUT SPEAKER OUTPUT

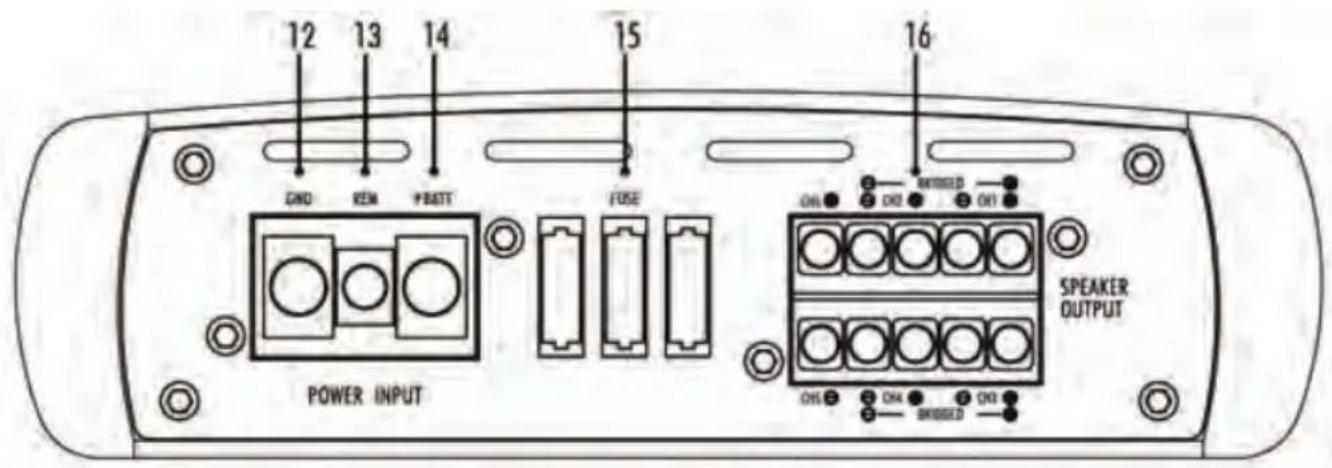

INV559BA REAR VIEW

12 13 14 15 16 DND REM +BATT FUSE POWER INPUT ONL ONO ON1 SPEAKER OUTPUT ONL ONO ON3 SHRIGED

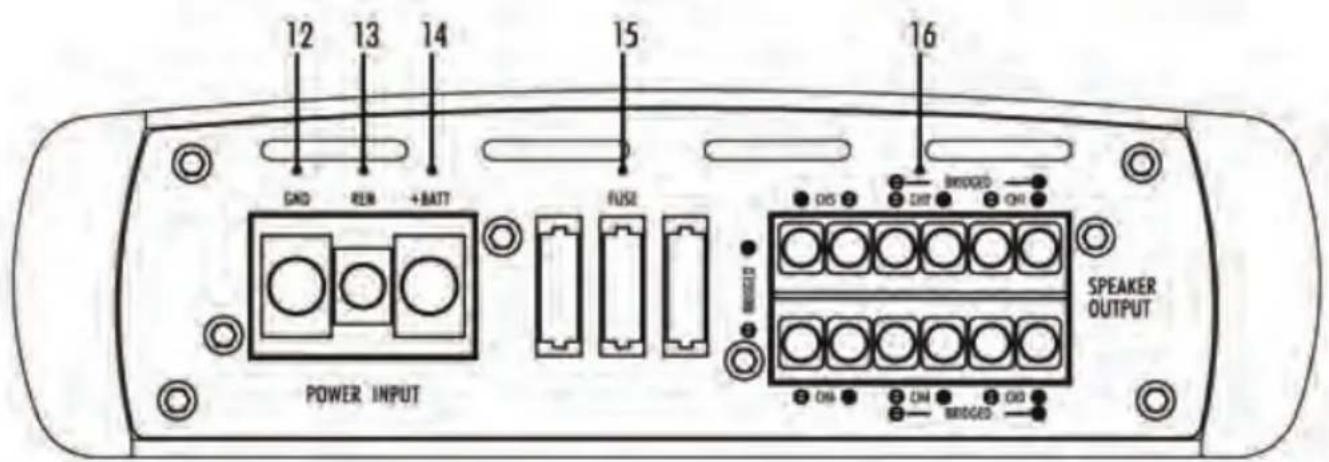

INV669BA REAR VIEW

12 13 14 15 16 CND RER +BATT FUSE DIS DIST CHI POWER INPUT SWEAKER OUTPUT CHN CHM CHD BRIDGED

TOP VIEW

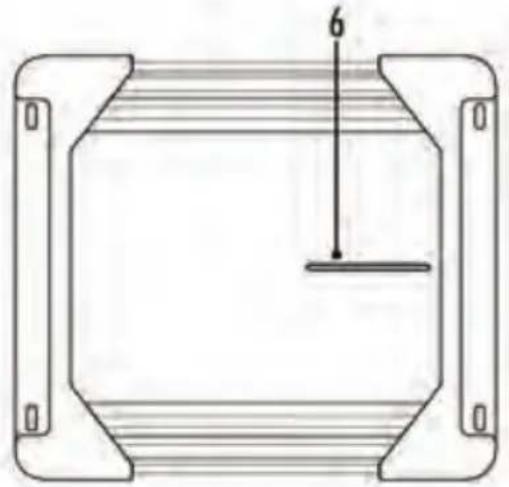

INV500DBA TOP VIEW

Pure technical diagram of a rectangular frame with internal horizontal lines and a vertical dimension labeled '6' (no text or symbols beyond the number)

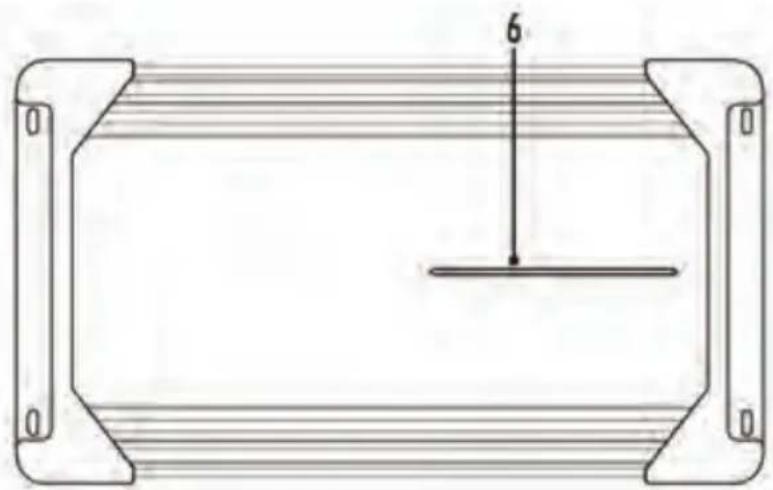

INV1000DBA TOP VIEW

Pure technical diagram of a rectangular frame with internal horizontal lines and a central horizontal bar, no text or symbols present.

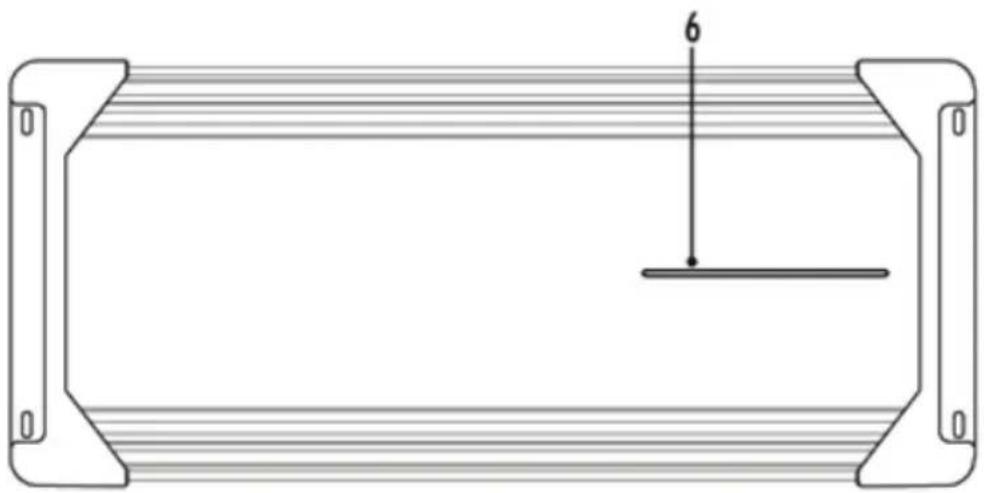

INV559BA/INV669BA TOP VIEW

Pure technical diagram of a rectangular frame with rounded corners and horizontal lines, no text or symbols present

CONTROL FUNCTIONS

1. RCA Input jacks

These RCA input jacks are for use with source units that have RCA or Line level outputs. A source unit with a minimum level of 200mV is required for proper operation. The use of high quality twisted pair cables is recommended to decrease the passivity of radiated noise entering the system.

2. GAIN Control

The level control will match the amplifiers sensitivity to the source units signal voltage. The operating range is 200mW minimum to 6W maximum.

CAUTION: Do not run the amplifier in high volume for long time. Otherwise the loudspeakers will be damaged.

3. X-OVER

*Full pass x-over switch

When the switch is in Full position, the full range is bypassed.

* Low Pass x-over switch

INV500DBA - INV1000DBA: The low pass can be adjusted between 50Hz and 250Hz.

INV559BA - INV669BA: When the switch is in "LPF" position, frequencies lower than the low pass, frequency setting are passed. The frequency can be adjusted between 40Hz and 250Hz.

*Band pass select switch

INV559BA - INV669BA: When the switch is in "Band pass" position, the band Pass range is bypassed.

4. Bass BOOST

INV500DBA - INV1000DBA: The boost can be adjusted between 0dB to 18dB.

INV559BA - INV669BA: The boost can be selected among 0dB, 6dB and 12dB.

5. BLUETOOTH

Wireless Bluetooth "ON/OFF"

6. LED

Will illuminate BLUE to indicate the amplifier is on and operating normally, and will be laminated RED if the amplifier shuts down due to short circuit DC offset, or overheating detected by on board protection circuitry.

7. Auxiliary Outputs

The Auxiliary outputs offer PYLE amplifiers easy, unlimited system expansion. Route RCA, from the line out of the first amplifier to the line input of a second amplifier when using a single source output.

1. PHASE: Allows you to invert the subwoofer phase from 0 to 180.

2. SUBSONIC: The frequency can be adjusted between 10Hz and 50Hz.

10. REMOTE

Controls the subwoofer amplifier gain from a remote location for ease of adjustment during listening.

WARNING: Do not connect a lee control knob from other manufacturers to the Remote sub level control of any amplifier. Even though the connectors fit properly, the control knob and connector pin position maybe different and the amplifier will be damaged.

11. BLUETOOTH LED Light

When the amplifier is successfully connected to the source device, the (Bluetooth) indicator will stay lit.

12. GND

Connect this terminal directly to the sheet metal chassis of the vehicle using the shortest wire necessary to make this connection. Always use wire of the same gauge or larger than the (+) 12 volt power wire. The chassis connection point should be scraped free of paint and dirt.

Use only quality crimped and/or soldered connectors scraped free of paint and dirt. Use only quality crimped and/or soldered connectors.

WARNING: Do not connect this terminal directly to the vehicle battery ground terminal or any other factory ground points.

13. Remote Turn ON

This terminal turns on the amplifier when (+) 12 volt is applied to it. Connect it to the remote turn on lead of the head unit or signal source.

14. (+) 12 Volt Power

Connect this terminal through a FUSE or CIRCUIT BREAKER to the positive terminal of the vehicle battery or the positive terminal of an isolated audio system battery.

WARNING: Always protect this power wire by installing a fuse or circuit breaker of the appropriate size within 12 inches of the battery terminal connection.

15. FUSE

These fuses protect the amplifier against internal electrical damage and are meant to protect the amplifier only. All other power connections should be fused at the source.

1. SPEAKERS: Connect subwoofers to these terminals.

SPEAKER CONNECTION

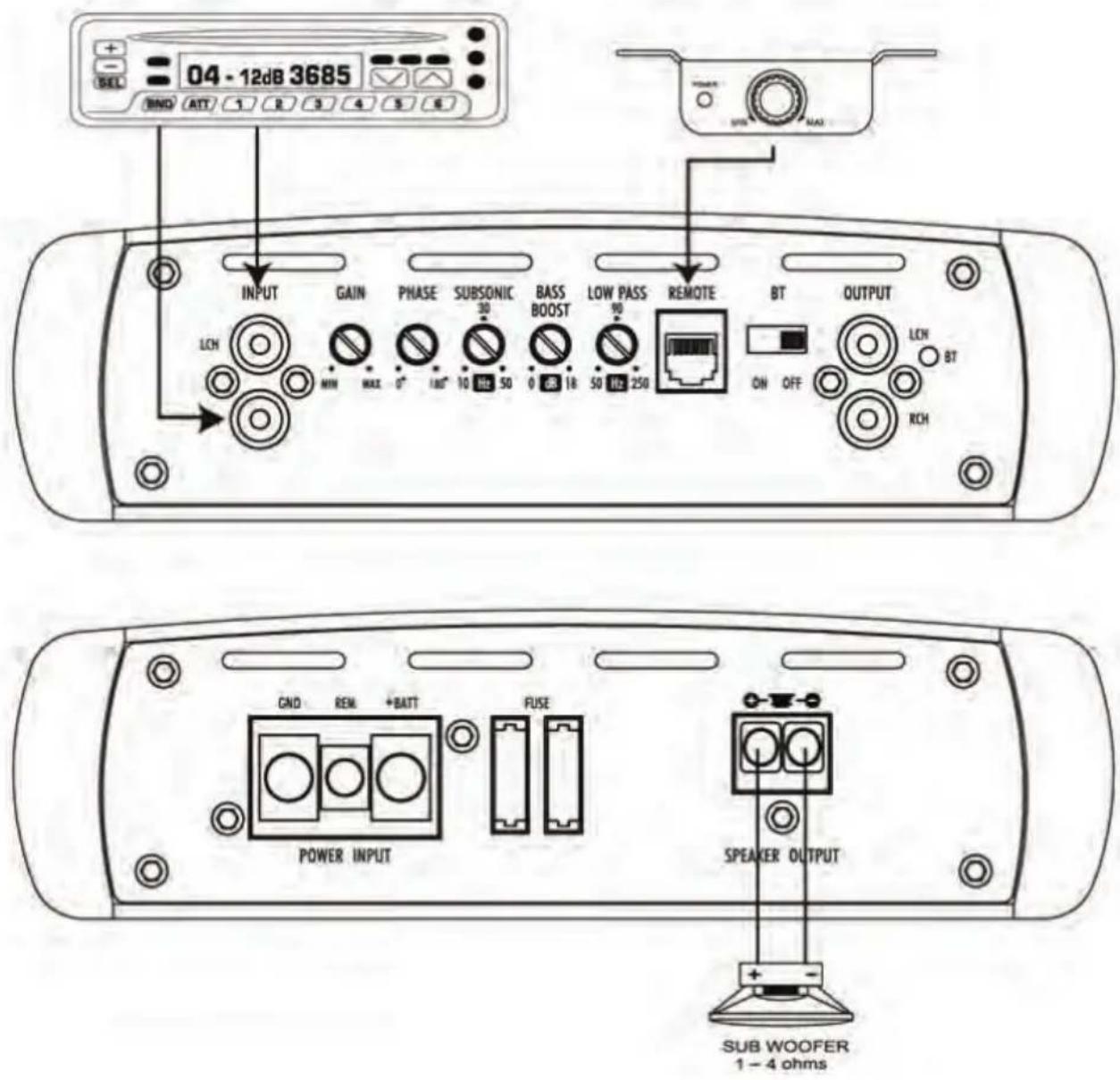

MONO Channel System Design #1 INV500DBA

04 - 12dB 3685 MINI ATT 1 2 3 4 5 6 INPUT GAIN PHASE SUBSONIC BASS LOW PASS REMOTE BT OUTPUT LCH MIN MAX 0° 1.80° 10 Hz 50 0 dB 18 50 Hz 250 ON OFF LCH CND REM +BATT FUSE SPEAKER OUTPUT POWER INPUT SUB WOOFER 1 - 4 ohms

MONO Channel System Design #2 INV1000DBA

04 - 12dB 3685 INPUT GAIN PHASE SUBSONIC BASS LOW PASS REMOTE BT OUTPUT LCH MIN MAX 0° 100° 10 Hz 50 0 18 50 Hz 250 ON OFF LCH RT RCH

GNO REM +BATT POWER INPUT FUSE SPEAKER OUTPUT SUB WOOFER 1-4 ohms

5 Channel System Design #1

INV559BA

04 - 12dB 3685 SND ALT 1 2 3 4 5 6 FIRE SELECT CAIN LOW INPUT FRONT RED NO. NO. LOW PES. RED NO. NO. RBCER RESET CAIN OUT INPUT CIN LOW INPUT 2CH 2-8 Ohms 5CH 2-8 Ohms 1CH 2-8 Ohms POWER INPUT SPEAKER OUTPUT ON ON ON ON ON ON ON ON ON ON 4CH 2-8 Ohms 3CH 2-8 Ohms

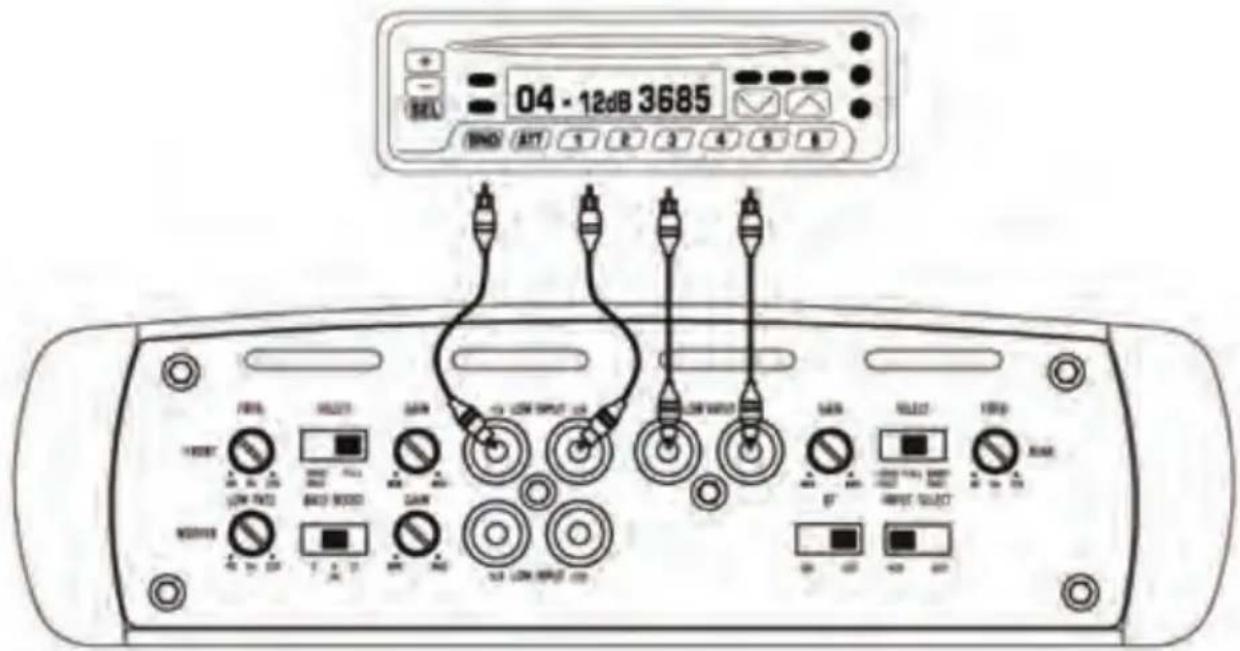

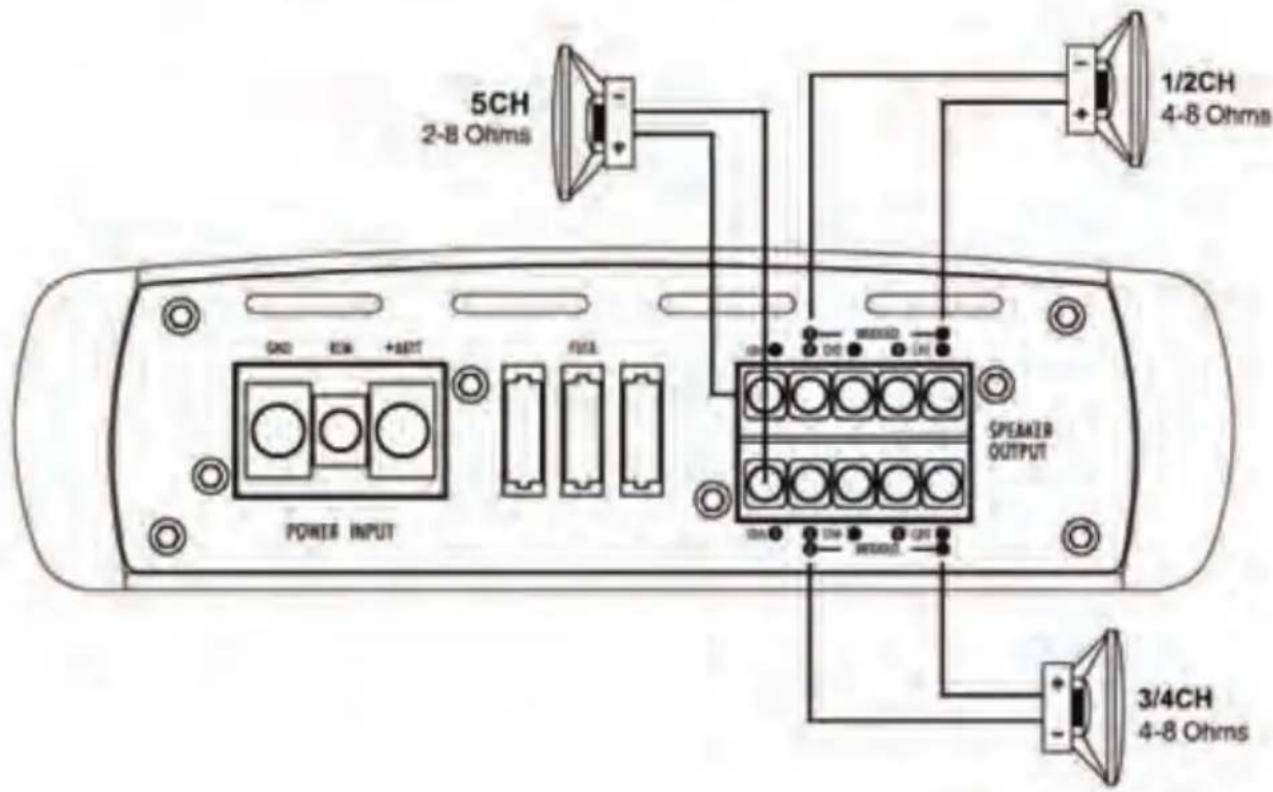

5 Channel System Design #2 INV559BA

04 - 12dB 3685 BND ATT 1 2 3 4 5 6 FND RESET ON FND ON SOUT ON VOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON SOUT ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TIN ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TAT ON TIN

5CH 2-8 Ohms 1/2CH 4-8 Ohms POWER INPUT SPEAKER OUTPUT 3/4CH 4-8 Ohms

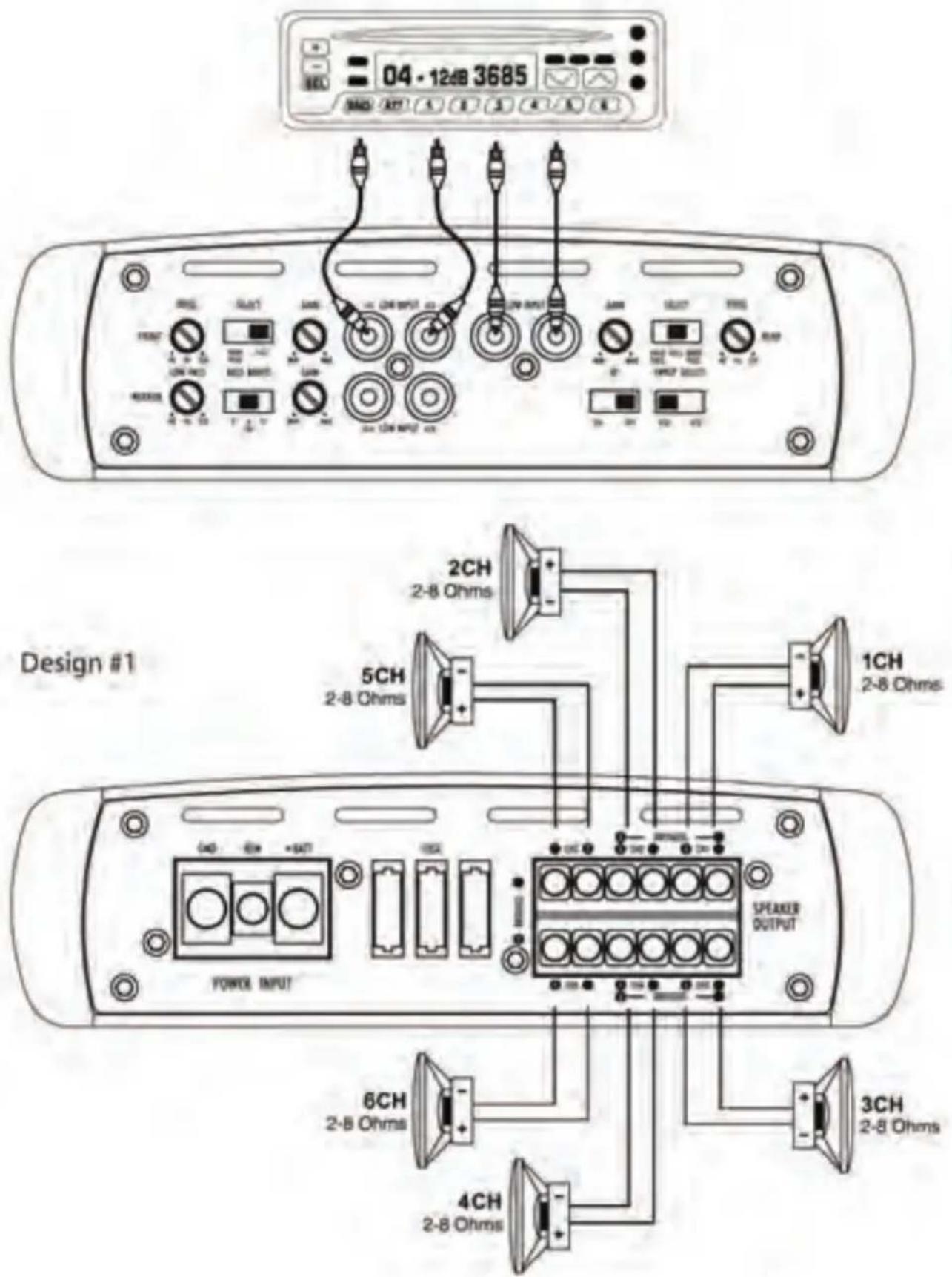

6 Channel System Design #1

INV669BA

04 - 12dB 3685 Design #1 2CH 2-8 Ohms 5CH 2-8 Ohms 1CH 2-8 Ohms POWER INPUT Speaker OUTPUT 6CH 2-8 Ohms 3CH 2-8 Ohms 4CH 2-8 Ohms

6 Channel System Design #2 INV669BA

Design #2 5/6 CH 4-8 Ohms 2CH 2-8 Ohms 1CH 2-8 Ohms POWER INPUT SPEAKER D OUTPUT 3CH 2-8 Ohms 4CH 2-8 Ohms

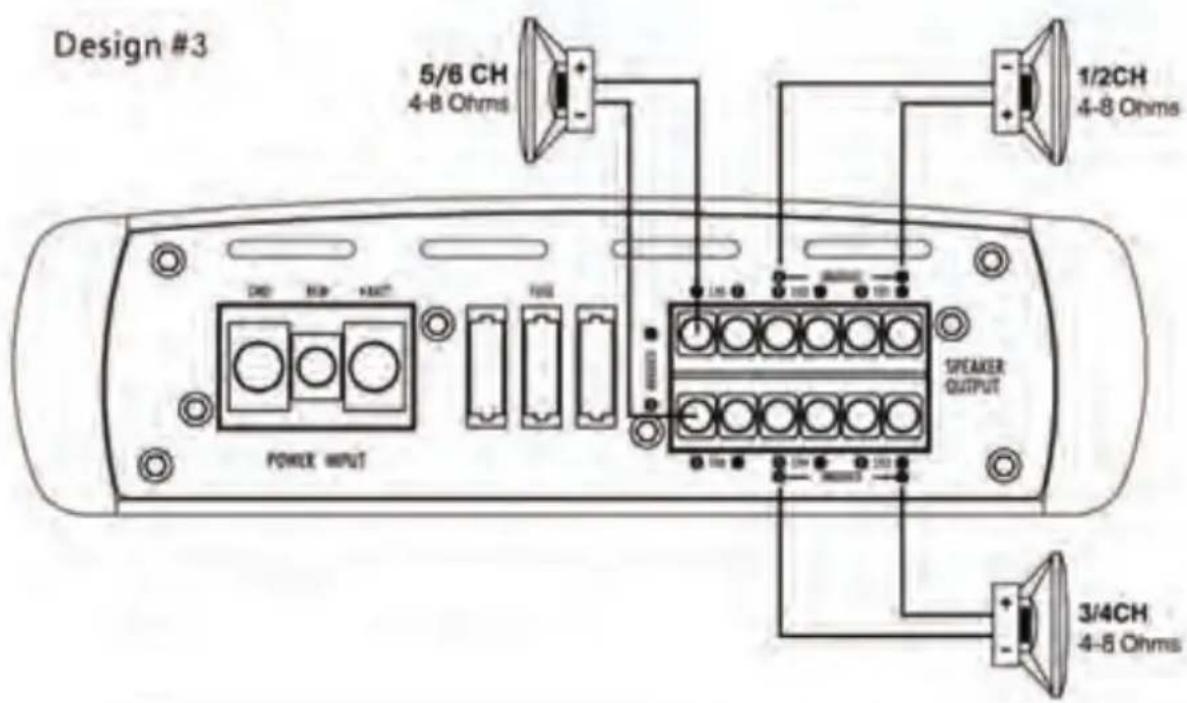

Design #3 5/6 CH 4-B Ohms 1/2CH 4-8 Ohms POWER INPUT SPEAKER OUTPUT 3/4CH 4-8 Ohms

TROUBLESHOOTING GUIDE

Issue Possible Cause Solution
NO SOUND	Is the power LED illuminated?	Check all fuses, replace if necessary.Make sure the power is securely fastened.
UNIT WILL NOT TURN ON	No power to power wire	Repair power wire or connections
	No power to remote wire with receiver on	Check connections to radio
	Fuse broken Check	all fuses, replace if necessary
NO SOUND IN ONE CHANNEL	Check speaker leads	Inspect for short circuit or an open connection
	Check audio input leads	Reverse Left and Right RCA inputs to determine if it is occurring before the amp.Check Tune/Deck volume level.Clean the contacts on fuse holders.
AMP TURNING OFF MEDIUM HIGH VOLUME	Check speaker load impedance	Be sure proper speakers are used to ensure impedance recommendations are observed.(If you use an Ohm meter to check speaker resistance, please remember that DC resistance and AC impedance may not be the same.)

WARNINGS

Investigate the layout of your automobile thoroughly before you drill or cut any holes. Take extra care when working near gas tanks, fuel lines, brake or hydraulic lines and electrical wiring. Never operate the amplifier when it is unmounted. Attach all audio system components securely to prevent damage, especially in an accident. Don't mount this system so that the wire connections are unprotected or are subject to pinching or damage from nearby objects. The +12V DC power wire must be fused at the battery positive terminal connection. Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that your head unit or other equipment is turned off while connecting the input jacks and speaker terminals. If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the amplifier. Using a fuse of a different type or rating may result in damage to your audio system or your amplifier which is not covered by the manufacturer's warranty.

SPECIFICATIONS

	INV559BA	INV669BA INV500DBA INV1000DBA
MAXIMUM POWER OUTPUT	3000W 3000W 1000W 2000W
POWER OUTPUT RMS @40hm	1CHx200W	1CHx400W	4x250W+ 1x650W
POWER OUTPUT RMS @20hm	1CHx350W	1CHx700W	4x350W+ 1x1500W
POWER OUTPUT RMS @10 hm	1CHx500W	1CHx1000W	NONE
BRDGED POWER MAX @40hm	NONE	NONE	2CHx1000W
THD	0.01	0.01	0.01
FREQUENCY RESPONSE -3.00B	250Hz	250Hz	45KHz
HPF	NONE	NONE	40-250Hz
LPF	50-250Hz	50-250Hz	40-250Hz
SUBSONIC	10-50Hz	10-50Hz	NONE
BASS BOOST (50Hz)	0, 6, 12dB	0, 6, 12dB 0, 6, 12dB 0, 6, 12dB
ADJUSTABLE SENSITIVITY RANGE	0.2-6V	0.2-6V	0.2-6V
PHASE	0-180°	0-180°	NONE
INPUT IMPEDANCE (LOW LEVEL)	20K	20K	20K
FUSE	25Ax2	30Ax3	30Ax3
PRODUCT DIMENSIONS (L x W x H)	18.5" x 8.13" x 2.28" -in	18.5" x 8.13" x 2.28" -in	9.21" x 8.13" x 2.28" -in
