S2510BMU33-IRS - Hard Drive Enclosure StarTech.com - Free user manual and instructions

Product Type	Hard Drive Enclosure
Brand	StarTech.com
Model	S2510BMU33-IRS
Drive Form Factor	2.5 inch SATA
Drive Interface	SATA III (6 Gbps)
Host Interface	USB 3.0 (5 Gbps) with UASP support
Maximum Data Transfer Rate	5 Gbit/s
External Connectors	1 x USB 3.0 Micro-B (female), 1 x SATA Power (15-pin), 1 x SATA Data (7-pin)
Compatible Drives	2.5" SATA hard drives or SSDs up to 9.5 mm height
Power Source	USB bus-powered (no external adapter required)
LED Indicator	Single LED: solid when powered, blinks during drive activity
Supported Operating Systems	Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit), Mac OS 9/10, Linux
Enclosure Material	Metal
Color	Black
Dimensions (Approx.)	130 x 80 x 15 mm (without drive)
Weight (Approx.)	100 g (without drive)
Included Accessories	USB 3.0 cable, screw kit, screwdriver, product manual
Warranty	2 years
Certifications	FCC Class B
UASP Support	Yes – enhances performance with compatible systems
Installation Type	Screw-mount drive tray; requires opening enclosure and securing drive with included screws
Usage Recommendation	Do not disconnect while LED is flashing to prevent data loss
Cleaning Instructions	Wipe with a dry, lint-free cloth. Do not use liquids or abrasives.
Safety Precautions	Use anti-static precautions when handling drives; ground yourself before installation.
Repairability	No user-serviceable parts inside. Contact StarTech.com support for service or replacement.

Frequently Asked Questions - S2510BMU33-IRS StarTech.com

What type of hard drive is compatible with this enclosure?

The StarTech.com S2510BMU33-IRS enclosure is designed for 2.5-inch SATA hard drives or solid state drives (SSDs) with a maximum height of 9.5 mm. It supports both HDDs and SSDs with SATA III (6 Gbps) interface.

How do I install a drive into the enclosure?

First, slide the hard drive tray out of the metal enclosure. Connect the drive to the SATA connector on the tray, then secure the drive to the tray using the four larger screws from the included screw kit. Slide the tray back into the enclosure and fasten it using the two smaller screws on the sides. Finally, connect the USB 3.0 cable to the enclosure and your computer.

Does the enclosure require an external power adapter?

No, the enclosure is bus-powered via the USB connection. It draws sufficient power from the USB port, so no external power supply is needed. However, for optimal performance, use a USB 3.0 port.

What is UASP and how does it benefit performance?

UASP (USB Attached SCSI Protocol) is a protocol that improves data transfer efficiency by reducing latency and CPU overhead compared to the traditional BOT (Bulk-Only Transport) protocol. With UASP support, the enclosure can achieve faster read/write speeds and better overall performance on compatible systems.

Is the enclosure compatible with USB 2.0 ports?

Yes, the enclosure is backward compatible with USB 2.0 ports. However, when connected to a USB 2.0 port, the data transfer speed will be limited to 480 Mbps, and UASP may not be supported.

How do I format a new drive after installation?

After connecting the enclosure, the drive may need to be initialized and formatted. On Windows, go to Disk Management (right-click 'My Computer' or 'This PC' > Manage > Disk Management). If prompted, initialize the disk (choose MBR for compatibility). Then right-click the unallocated space and select 'New Simple Volume' to format with your preferred file system.

Why is the LED on the enclosure blinking?

The LED blinks to indicate drive activity (data reading or writing). It is normal and expected. Do not disconnect the enclosure from the computer while the LED is flashing, as this can cause data corruption or loss. Wait until the LED is steady (or the computer signals safe removal) before unplugging.

Can I use a solid state drive (SSD) with this enclosure?

Absolutely. The enclosure supports both 2.5-inch SATA hard drives and SSDs. Using an SSD can take full advantage of USB 3.0 and UASP speeds, resulting in very fast data transfer.

Which operating systems are supported?

The enclosure is compatible with Microsoft Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit), Apple Mac OS 9/10, and Linux. No additional drivers are required for most modern operating systems.

How do I safely eject the enclosure from my computer?

On Windows, click the 'Safely Remove Hardware and Eject Media' icon in the taskbar, select your device, and wait for the 'Safe to Remove Hardware' message. On Mac OS X, drag the drive icon to the Trash or use the Eject option. Always wait for confirmation before disconnecting to prevent data loss.

USER MANUAL S2510BMU33-IRS StarTech.com

2.5" USB 3.0 to SATA III HDD Enclosure with UASP Support

S2510BMU33

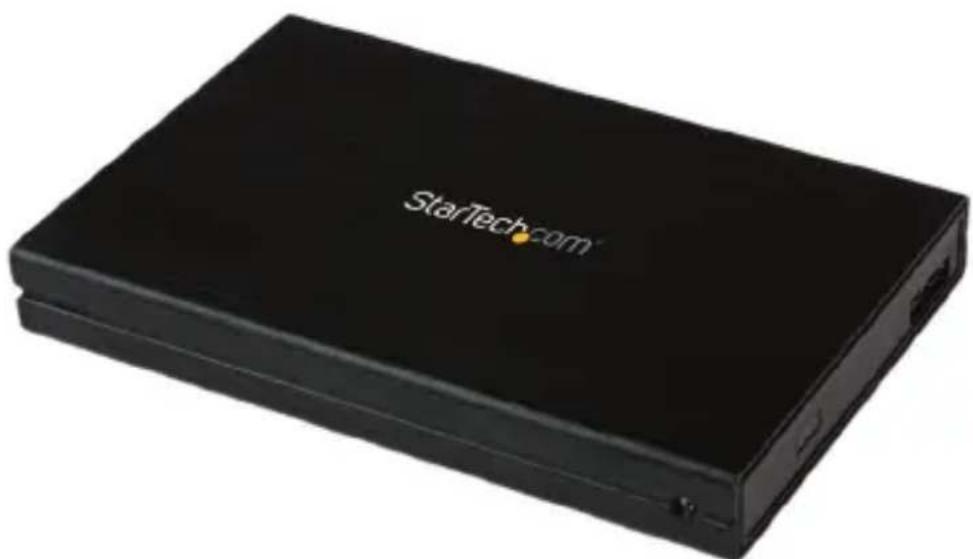

Black rectangular electronic device labeled 'StarTech.com' with no visible text or symbols on its body

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Product Diagram ....1

Top View .... 1

Front View 1

Introduction ......2

Packaging Contents 2

System Requirements....2

Hardware Installation ....3

How to Use ....6

Specifications 8

Technical Support 9

Warranty Information 9

Product Diagram

Top View

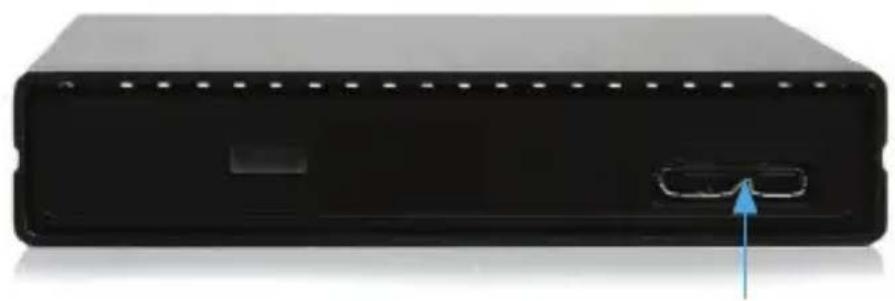

Front View

Black rectangular electronic device rear panel with two ports and a blue arrow pointing to one (no text or symbols visible)

USB 3.0 Micro-B (10 pin; SuperSpeed)

Introduction

Packaging Contents

• 1x 2.5" USB 3.0 SATA III HDD Enclosure
- 1x Screw Kit
- 1x USB 3.0 Cable
- 1x Product Manual

System Requirements

• Computer system with available USB 3.0 (5 Gbit/s) port or USB 2.0 port (480Mbps)
• 2.5" SATA hard drive or solid state drive (9.5mm height)
• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit), or Apple® Mac® OS 9.x/10, or Linux®

Hardware Installation

WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds.

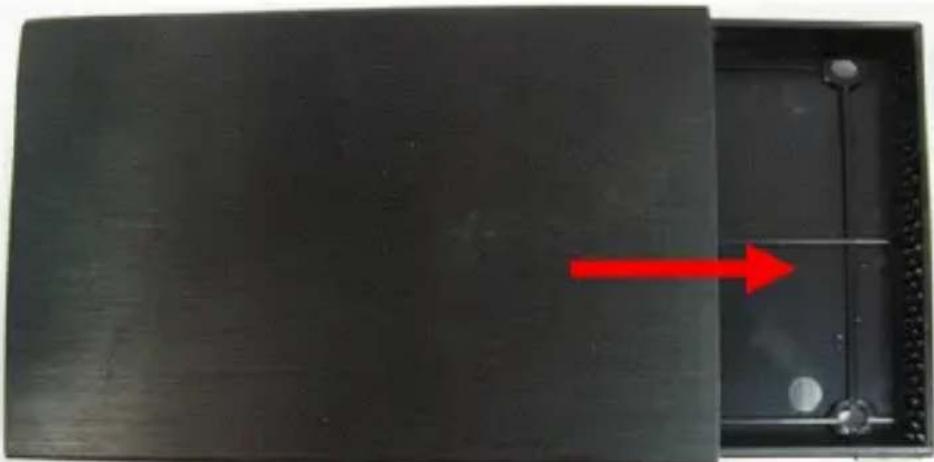

1. Open the enclosure by sliding the Hard Drive Tray out of the Metal Enclosure.

Black rectangular object with a red arrow pointing to a vertical line inside a transparent container (no text or symbols visible)

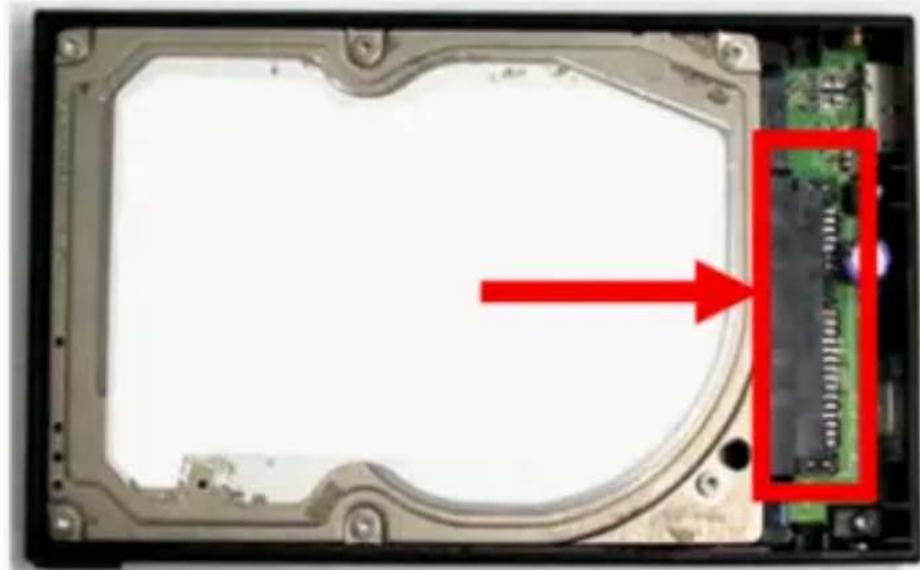

1. Connect the the 2.5" SATA Hard Drive to the SATA connector on the Hard Drive Tray.

Close-up of a computer hard drive casing with a red arrow pointing to a green circuit board component (no text or symbols visible)

1. Mount the Hard Drive to the Hard Drive Tray by inserting 4 of the larger included screws into the bottom of the Hard Drive Tray. Fix them into place using the included Screw Driver.

Close-up of a green printed circuit board with four red circular annotations highlighting specific components (no readable text or symbols)

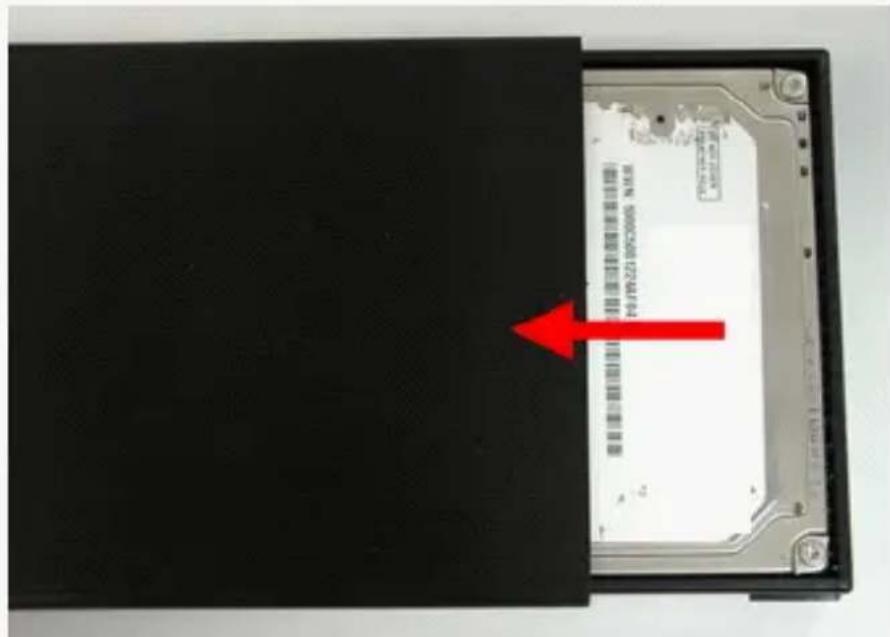

1. Slide the Hard Drive Tray back into the Metal Enclosure.

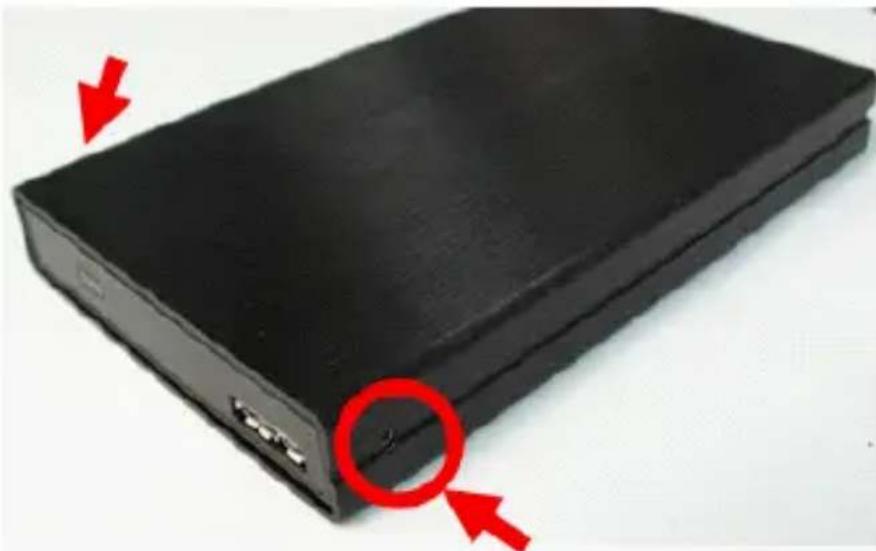

1. Mount the Hard Drive Tray to the Metal Enclosure by inserting 2 of the smaller included screws into either side of the enclosure. Fix them into place using the included Screw Driver.

Black rectangular electronic device with red arrows pointing to ports and a circular mark on the side (no visible text or symbols)

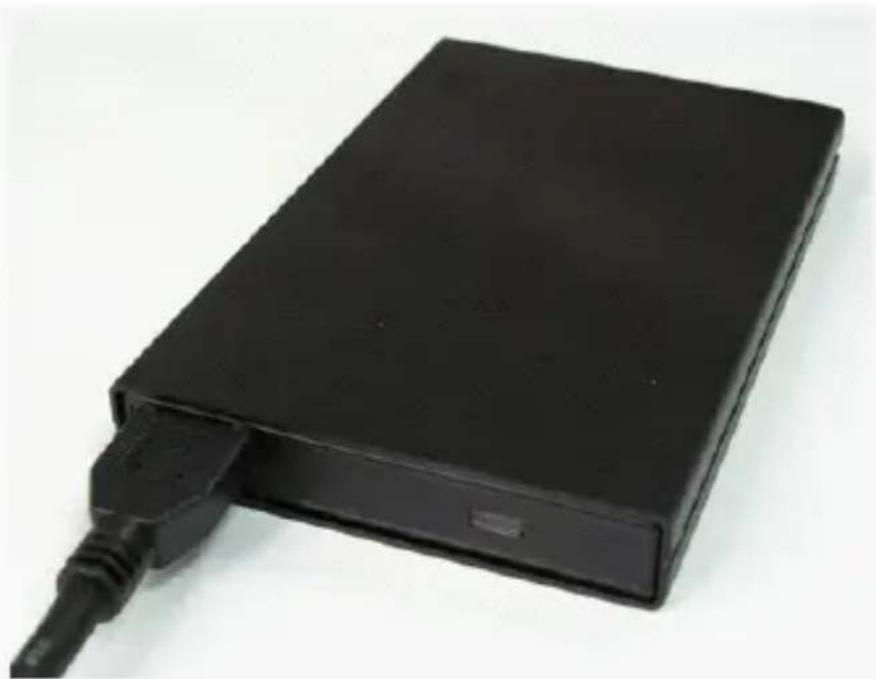

1. With the enclosure fully assembled, connect the USB 3.0 cable from the enclosure to a USB port on the host computer system using the included cable.

Black rectangular electronic device with a cable inserted, placed on a plain white surface (no text or symbols visible)

How to Use

Connecting the Hard Drive

Once the enclosure has been attached to a computer, and the necessary software has been installed, the drive will be accessible as though it were installed within the system.

Prior to using the drive, it will need to be formatted according to your operating system requirements. To format your newly attached hard drive, or create partitions, please consult the documentation that accompanied your operating system at the time of purchase.

Powering the Drive Enclosure

The hard drive enclosure requires no external power supply, as it is capable of receiving enough power from the USB Bus to which it is connected.

LED Indicator

The hard drive enclosure offers an LED indicator, to enable you to monitor drive activity. When the enclosure is powered, the LED will illuminate. While the hard drive is being accessed, the LED will blink. Do not remove the enclosure from the host computer while the LED is flashing, as it could damage the drive or the enclosure, resulting in data loss.

Disconnecting the Hard Drive

Windows

1. Select the "Safely remove Hardware and Eject Media" icon, located in the task bar.

2. Select "Eject USB Device" from the list that appears.

3. Wait for the message indicating that it is now safe to remove the device.

NOTE: Removing the connected drive prior to receiving notification that it is safe to do so, could result in losing or corrupting data stored on the drive. Once the Safe to Remove Hardware message appears, please disconnect the enclosure from the computer by removing the USB connection.

Mac OS X

To safely disconnect the attached drive from the host computer, close any windows listing the contents of the removable drive. Once all windows are closed, click on the USB storage icon on the desktop, and drag it to the Trash Can icon on the desktop. Allow 5 seconds before physically removing the enclosure/drive from the computer.

Initializing the Hard Drive

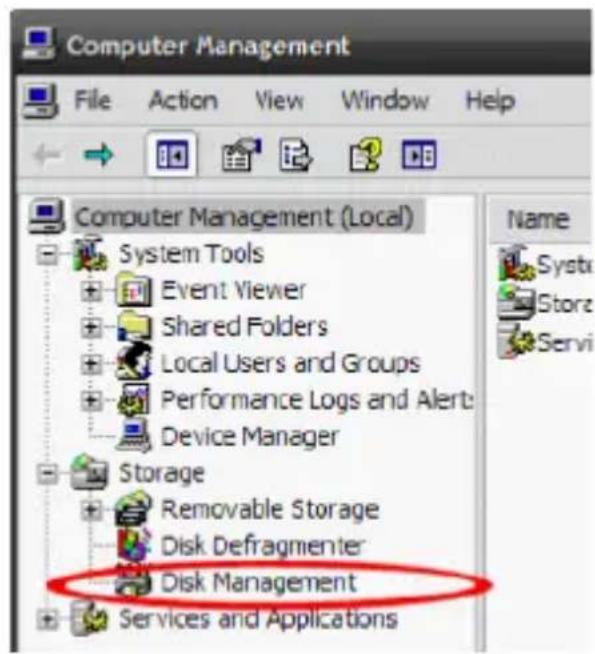

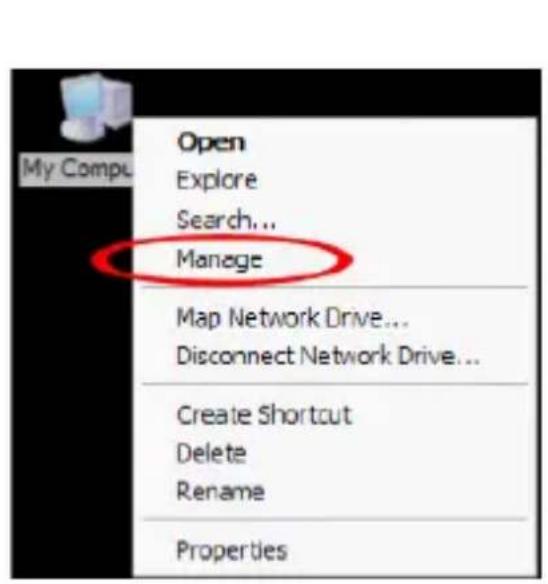

1. If the SATA Hard Drive is blank it may need to be initialized and formatted before use. From the main Windows desktop, right-click on "My Computer" ("Computer" in Vista/7/8), then select Manage. In the new Computer Management window, select Disk Management from the left window panel.

1. A dialog window should automatically appear, asking you to initialize the drive. Depending on the version of Windows, it will give you the option of either creating an "MBR" or "GPT" disk. GPT (GUID partition) is not compatible with some older operating systems, while MBR is supported by newer and older operating systems.
2. Once initialized, locate the Disk that says it is "Unallocated" (check the listed hard drive capacity to confirm it's the correct hard drive) and then right-click in the section that says "Unallocated" and select "New Partition".

Specifications

Host Interface USB 3.0
External Connectors	1 x 15 pin SATA Power female1 x 7 pin SATA Data male1 x USB 3.0 type Micro-B female
Maximum Data Transfer Rate USB 3.0: 5 Gbit/s
Compatible Operating Systems	Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit), Mac OS 9/10, Linux

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
