SV221DVI - KVM switch StarTech.com - Free user manual and instructions

Product Type	DVI KVM Switch
Number of Computer Ports	2
Console Ports	1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x DVI-I monitor
Video Interface	DVI-I (supports digital and analog)
Maximum Analog Resolution	1920 x 1440
Maximum Digital Resolution	1280 x 1024
Form Factor	Desktop
Dimensions (L x W x H)	3.3 x 5.1 x 1.75 in (86 x 140 x 45 mm)
Weight	1.14 lbs (520 g)
Power Source	PS/2 bus-powered (optional 9V DC 500mA adapter)
Supported Keyboards/Mice	PS/2 keyboards and mice (including Intellimouse, Logitech Netmouse)
Hotkey Commands	Scroll Lock-based hotkeys for port selection and autoscan
Operating Systems Supported	Windows XP, 2000, Me, 98, 95, DOS, Linux
Safety Standards	FCC Class B, CE
Operating Temperature	32°F to 104°F (0°C to 40°C)
Warranty	1 year
Cleaning	Use a soft, dry cloth to clean the case; avoid liquids
Repairability	No user-serviceable parts; contact technical support for issues

Frequently Asked Questions - SV221DVI StarTech.com

How do I switch between computers on the SV221DVI?

You can switch by pressing the front panel pushbutton or using hotkey sequences. For hotkeys, press Scroll Lock + Scroll Lock + 1 (or 2) to select the corresponding port.

What should I do if my keyboard or mouse is not working?

Ensure they are connected to the console ports before powering on the PCs. If issues persist, try rebooting the KVM by pressing ScrLk + ScrLk + End or reboot the computers.

What is the maximum resolution supported?

The SV221DVI supports analog resolutions up to 1920x1440 and digital resolutions up to 1280x1024.

Does the KVM switch require external power?

No, it is powered via the PS/2 ports from the connected computers. However, an optional 9V 500mA power adapter can be used if needed.

Why is my screen blank or striped?

This usually indicates the resolution is set higher than the switch supports. Adjust your computer's display settings to a supported resolution (analog: up to 1920x1440, digital: up to 1280x1024).

Can I use a USB keyboard or mouse with this KVM?

No, the SV221DVI only supports PS/2 keyboards and mice. USB peripherals are not compatible.

How do I enable the autoscan feature?

Press ScrLk + ScrLk + S to start autoscan. It will cycle through connected computers. Press any key to exit autoscan.

What operating systems are compatible?

The switch supports Windows XP, 2000, Me, 98, 95, DOS, and Linux.

The monitor displays ghosting or speckles. What should I do?

This may be due to electromagnetic interference. Move the video cables away from power cables, motors, or other sources of EMI.

Does the SV221DVI come with cables?

No, the package contains only the KVM switch. You need to supply your own DVI video cables and PS/2 keyboard/mouse cables to connect computers.

USER MANUAL SV221DVI StarTech.com

StarView DVI KVM Switch

SV221DVI

SV421DVI

Instruction Guide

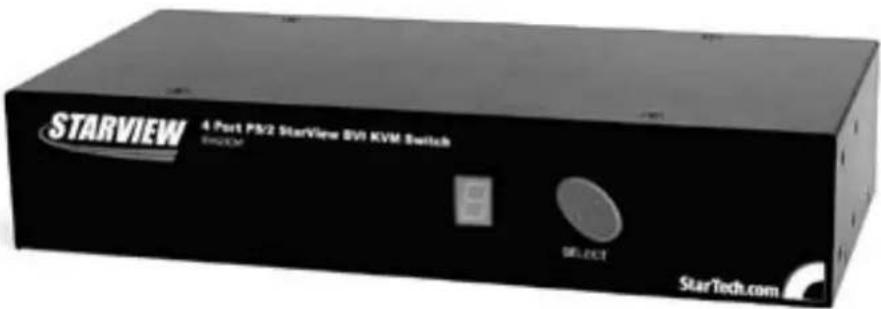

*SV421DVI shown

* Actual product may vary from photo

StarTech.com

The Professionals' Source For Hard-to-Find Computer Parts

FCC COMPLIANCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Table of Contents

Introduction 2

Installation 2

Using Your KVM Switch....3

Troubleshooting....3

Technical Specifications 4

Technical Support 5

Warranty Information 5

Introduction

Thank you for purchasing a StarTech.com StarView DVI KVM switch. Now you can share your DVI monitor or flat panel display, keyboard, and mouse between two (SV221DVI) or four (SV421DVI) DVI-enabled computers. These KVM switches are designed especially for DVI-I interfaces to ensure the distortion-free, crystal-clear images associated with flat panel monitors.

Features

• Allows you to share one DVI monitor, PS/2 mouse, and PS/2 keyboard between multiple computers
• DVI-I interface supports both digital and analog video signal transmission
• Supports PS/2 keyboards and mice, including M/S Intellimouse ^ , Intellimouse Explorer ^ , and Logitech Netmouse ^
  • Supports high digital resolution of up to 1280x1024 and analog resolution of up to 1920x1440
• Support for multiple operating systems: Windows XP, 2000, Me, 98, 95, DOS, Linux, etc.

Package Contents

This package should contain:

• 1 x StarView DVI KVM switch

Installation

1. Make sure that all your computers and peripherals are turned off.
2. Connect your keyboard, monitor, and mouse to the console ports (with the white background) on the back of the KVM switch.
3. Connect each of your PCs to one of the numbered PC ports on the back of the switch. You can use individual standard PS/2 keyboard, PS/2 mouse, and DVI video cables to connect the KVM switch to your PCs.

Note: Your KVM switch is powered by the PS/2 ports. Once your KVM switch is connected to your PC's PS/2 ports, the KVM is powered.

1. Turn on your connected computers. Do not perform any activities on the KVM switch until the PCs have properly booted or your DVI interface may not be properly initialized.

Using Your KVM Switch

There are two ways to access your connected computers: the front panel pushbutton or a hotkey sequence.

Using the Pushbutton

Pressing the pushbutton on the front of the KVM switch allows you to scroll through your computers sequentially.

Using the Hotkey Commands

A keyboard hotkey sequence consists of three keystrokes. Each hotkey sequence starts with two Scroll Lock keystrokes. You must strike the Scroll Lock key twice in two seconds or less in order for the hotkey sequence to be acknowledged.

Command Hotkey Sequence Description
Select PC ScrLk + ScrLk + 1 (2, 3, 4)		Selects the PC plugged into Port 1 (2, 3, 4)
Next lower PC ScrLk	+ ScrLk + Up Selects the next	(lower) PC
Next higher PC ScrLk	+ ScrLk + Down Selects the next (higher) PC
Start Autoscan ScrLk	+ ScrLk + S	Starts autoscan mode. You can quit autoscan mode by pressing any key.
Autoscan Beep ScrLk	+ ScrLk + B	Toggles on/off the confirmation beep while in autoscan mode

Troubleshooting

Keyboard/mouse problems

• You should have connected your keyboard, mouse, and monitor to the KVM switch before connecting the switch to your computer. If you reversed this process, try rebooting your PCs.
• Make sure the mouse/keyboard are properly connected to the KVM switch and that you have installed the proper drivers for your mouse/keyboard.
• Try rebooting your KVM switch by pressing ScrLk + ScrLk + End.
• If your keyboard/mouse came unplugged while in operation, you may need to reboot your PCs in order to get the switch to recognize the keyboard/mouse again.

Video problems

- If your screen won't show properly on your monitor, first make sure that all your cables are firmly seated in their proper ports.

• If your screen is coming up blank or striped, the resolution on your PC may be higher than the maximum resolution supported by the KVM (1920 x 1440 analog, 1280 x 1024 digital). Adjust the screen resolution and frequency until they are in the supported range.
• If there is ghosting, speckles or stripes on your screen, there may be excessive electromagnetic interference from an external source. Check the path of your video cable for strong electromagnetic sources like motors or power cables. Try and keep your video cables as far as possible from these external sources.

Technical Specifications

	SV221DVI SV421DVI
User Port s 1 1
Computer Ports 2 4
Analog Resolution 1920 (Maximum Pixels)	x 1440 1920 x 1440
Digital Resolution (Maximum Pixels)	1280 x 1024	1280 x 1024
PC Connectors: Keyboard Mouse Monitor	2 x PS/2 6-pin mini Din female2 x PS/2 6-pin mini Din female2 x DVI-I Single link female	4 x PS/2 6-pin mini Din female4 x PS/2 6-pin mini Din female4 x DVI-I Single link female
Console Connectors: Keyboard Mouse Monitor	1 x PS/2 6-pin mini Din female1 x PS/2 6-pin mini Din female1 x DVI-I Single link female	1 x PS/2 6-pin mini Din female1 x PS/2 6-pin mini Din female1 x DVI-I Single link female
Power	PS/2, 9V 500mA (optional)	PS/2, 9V 500mA (optional)
Dimensions L x W x H	3.3 x 5.1 x 1.75"(86 x 140 x 45mm)	4.25 x 8.75 x 1.75"(107 x 223 x 45mm)
Weight	1.14 lbs (520g)	2.2lbs (1kg)
Operating Temp.	32~104°F (0~40°C)	32~104°F (0~40°C)
Safety Standards	FCC, CE	FCC, CE

Technical Support

The following technical resources are available for this StarTech.com product:

On-line help:

We are constantly adding new information to the Tech Support section of our web site. To access this page, click the Tech Supportlink on our homepage, www.startech.com. In the tech support section there are a number of options that can provide assistance with this card.

Knowledge Base - This tool allows you to search for answers to common issues using key words that describe the product and your issue.

FAQ - This tool provides quick answers to the top questions asked by our customers.

Downloads - This selection takes you to our driver download page where you can find the latest drivers for this product.

Call StarTech.com tech support for help:

USA/Canada: 1-519-455-4931

UK/Ireland/Europe: 00-800-7827-8324

Support hours: Monday to Friday 9:00AM to 5:00PM EST (except holidays)

Warranty Information

This product is backed by a one-year warranty. In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted below, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
