Brand	Sub-Zero
Model	BI-48O (BI-48S/O)
Product Type	Refrigerator (Built-In)
Dimensions (W x H x D)	48" x 84" x 24"
Refrigerator Capacity	18.5 cu. ft.
Freezer Capacity	9.7 cu. ft.
Electrical Supply	115 VAC, 60 Hz
Electrical Service	15 amp dedicated circuit
Plumbing Supply	1/4" OD copper, braided stainless steel, or PEX tubing
Plumbing Pressure	35–120 psi
Wi-Fi Connectivity	Yes, for remote monitoring and control
Custom Panel Ready	Accepts custom panels or stainless steel accessory panels
Air Purification	NASA-inspired air purification system
Temperature Control	Within one degree of setpoint
Door Seals	Magnetic door seals to lock in cold air
High-Humidity Drawers	Sealed crisper and deli drawers
Ice Maker	Automatic ice production with "Max Ice" mode
Water Filter	Filters contaminants, chlorine taste, and odor
Lighting	LED interior lights
Refrigerator Shelves	5 glass shelves (4 adjustable, 1 stationary)
Freezer Shelves	4 wire shelves (3 adjustable, 1 stationary)
Freezer Drawers	3 storage drawers
Door Bins	5 refrigerator door bins (3 adjustable), 5 freezer door bins (adjustable)
Warranty	Refer to manual; specifications subject to change

Frequently Asked Questions - BI-48O Sub-Zero

Can I connect the Sub-Zero BI-48O to Wi-Fi?

Yes, the BI-48O features Wi-Fi connectivity for remote monitoring and control via the Sub-Zero app.

What are the dimensions of the BI-48O?

The unit measures 48 inches wide, 84 inches high, and 24 inches deep.

Does the refrigerator accept custom panels?

Yes, it accepts custom panels for an integrated look or stainless steel accessory panels to match other Sub-Zero, Wolf, and Cove products.

How do I change the water filter?

The water filter is a standard accessory; replacement details are in the user manual. It removes contaminants, chlorine taste, and odor.

What is the ice maker capacity?

The ice maker produces automatically and has a 'Max Ice' mode for additional production.

What electrical requirements are needed?

A 115 VAC, 60 Hz, 15 amp dedicated circuit with a 3-prong grounding-type receptacle is required.

How does the air purification work?

It uses a NASA-inspired system to fight spoilage and odors inside the refrigerator and freezer compartments.

What is the temperature accuracy?

The temperature is controlled within one degree Fahrenheit of the setpoint.

Are there any special cleaning instructions?

Clean interior and exterior with mild soap and water. Avoid abrasive cleaners. Refer to the user manual for detailed care.

Where can I find accessories for the BI-48O?

Accessories like handles, grilles, and kickplates are available through authorized dealers. Visit subzero-wolf.com/locator for local dealer information.

USER MANUAL BI-48O Sub-Zero

Monitor and control remotely with Wi-Fi connectivity

Accepts custom panels for an integrated look within cabinetry or stainless-steel accessory panels and handles to match other Sub-Zero, Wolf, and Cove products*

Preserves refrigerated foods with cool, moist air and frozen foods with frigid, dry air

Fight spoilage and odors with a NASA-inspired air purification system

Locks in cold air to ensure freshness with magnetic door seals

Keeps produce fresher with high-humidity, sealed crisper and deli drawers

Controls temperature within one degree of setpoint

Filters ice, removing contaminants, chlorine taste, and odor

Yields ice automatically and "max ice" for additional production

Ensures excellent visibility with bright lights

Refer to freshness cards for tips on food preservation, use, and care

ACCESSORIES

90° Door Stop

Air Purification Cartridge

Custom Side Panel Mounting Kit

Egg Container

Legacy 45 3/16" Pro Handle

Legacy 48" Stainless Steel Kickplate

Legacy Custom Front Panel Mounting Kit

Legacy Grille Frame - 84"m

Legacy Pro Louvered Flush Inset Grille - 84"

Legacy Stainless Steel Flush Inset Freezer Door Panel with Pro Handle

Legacy Stainless Steel Flush Inset Freezer Door Panel with Tubular Handle

Legacy Stainless Steel Flush Inset Grille Panel

Legacy Stainless Steel Flush Inset Refrigerator Door Panel with Tubular Handle

Legacy Stainless Steel Side Panel

Legacy Tubular Handle

Water Filter

Water Filter

Water Filter By-Pass Plug

White Side Panel

Stainless Steel Pro Handles

Stainless Steel Tubular Handles

Flush Inset Installation Accessories

Modern kitchen interior with white cabinets and a wooden flooring, featuring a textured brick wall (no visible text or symbols)

HANDLE ACCESSORIES

PRODUCT DETAILS

REFRIGERATOR

• 1 adjustable dairy compartment
• 1 high-humidity crisper drawer with adjustable dividers
- 2 refrigerator storage drawers with adjustable dividers
- 5 glass refrigerator shelves (4 adjustable; 1 stationary)
- 5 refrigerator door bins (3 adjustable; 2 stationary)
• LED refrigerator and freezer lights

FREEZER

• 5 adjustable freezer door bins
  • 4 wire freezer shelves (3 adjustable; 1 stationary)
  • 3 freezer storage drawers

Framed Installation Accessories

Classic Overlay or Flush Inset Grille Frames

Classic Louvered Grilles

Accessories are available through an authorized dealer. For local dealer information, visit subzero-wolf.com/locator

Specifications are subject to change without notice. This information was generated on February 13, 2023. Verify specifications prior to finalizing your cabinetry/enclosures.

PRODUCT SPECIFICATIONS

Model BI-48S/O

Dimensions 48"W x 84"H x 24"D

Refrigerator Capacity 18.5 cu. ft.

Freezer Capacity 9.7 cu. ft.

Electrical Supply 115 VAC, 60 Hz

Electrical Service 15 amp dedicated circuit

Plumbing Supply 1/4" OD copper, braided stainless steel

or PEX tubing

Plumbing Pressure 35–120 psi

Receptacle 3-prong grounding-type

ELECTRICAL PLUMBING

PANEL SPECIFICATIONS For complete panels specifications including width/height, weight requirements, thickness requirements and offset details visit subzero-wolf.com/builtinconfigurator.

NOTE: Dimensions in parenthesis are in millimeters unless otherwise specified

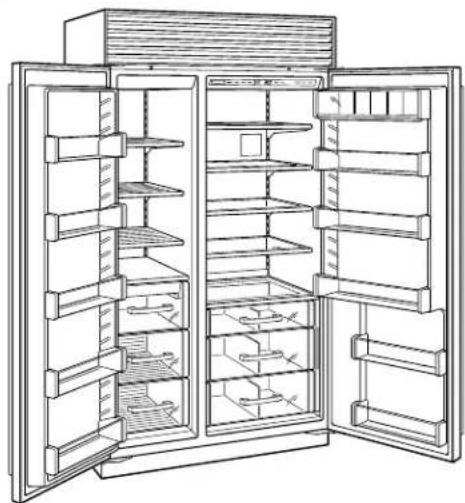

INTERIOR VIEW

Line drawing of an open refrigerator with multiple shelves and doors (no text or symbols)

This illustration is intended for interior reference only and may not represent the exterior of the model being specified.

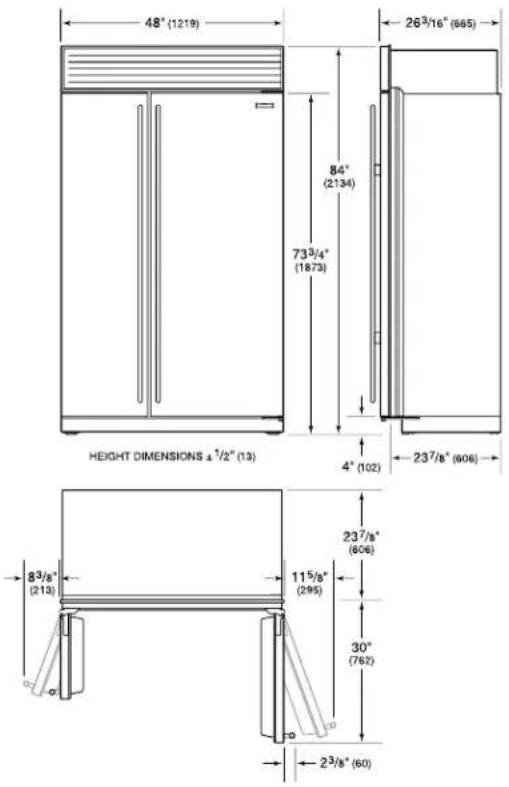

DIMENSIONS

STANDARD INSTALLATION

NOTE 317 (59) finished returns will be visible and should be finished to match cabinetry. Shaded line represents profile of unit.
