Preface

Thank you for choosing our gas cooktop.

To use this appliance correctly and prevent any potential risk, read these instructions before using the appliance.

Keep these instructions in a place where you can find them easily.

If you are unsure of any of the information contained in these instructions, please contact our customer care centre.

The manufacturer shall not be responsible for any damages to persons or property caused by incorrect installation or use of the appliance.

The appliance has been certified for use in countries other than those marked on the appliance.

The manufacturer also reserves the right to make any modifications to the products as may be considered necessary or useful, also in the interests of the user, without jeopardising the main functional and safety features of the products themselves.

The appliance is designed for a domestic environment and not a commercial one.

contents

Preface

Safety Warning

3 Safety Instructions
4 Installation
5 Child and People Safety
6 During Use
8 Cleaning and Service
8 Environmental Information

Instructions for use and maintenance

9 Description of the appliance
10 How to Use the appliance
12 Safety and Energy saving advice
13 Cleaning and Maintenance

Technical instructions

Safety Instructions

■ Please take the time to read this Instruction Manual before installing or using the appliance.
■ This instruction booklet must be kept with the appliance for any future reference.
If the appliance is sold or transferred to another person, ensure the booklet is passed on to the new user.
■ The manufacturer declines any liability should these safety measures not be observed.
■ The following marks are made to be easily understood so that you can prevent any accident caused by misuse in advance, and use the appliance more conveniently.
- Read the following contents thoroughly and ensure you understand them.

Danger/Warning	Neglect of this mark may result in severe personal injury or death.
Caution	Neglect of this mark may result in minor personal injury or property damage.

■ The following marks are used in the Instruction Manual as follows:

Caution

No Access

No Fire Tool

Must Do

■ If gas seems to leak, take the actions as follow:

Installation

Warning

■ This appliance shall be installed in accordance with regulations in force and only used in a well ventilated space.

■ Prior to installation, ensure that the gas and electrical supply complies with the type stated on the rating plate.

■ Where this appliance is installed in marine craft or in caravans, it should not be used as a space heater.

Cartoon illustration of a smiling car with a hand waving beside a van (no text or symbols)

■ The gas pipe and electrical cable must be installed in such a way that they do not touch any parts or the appliance.

Caution

Child and People Safety

Warning

- Do not allow children to play near or with the appliance. The appliance gets hot when it is in use. Children should be kept away until it has cooled.

as cooled.

Caution

■ This appliance is designed to be operated by adults.
■ Children can also injure themselves by pulling pans or pots off the appliance.
This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safety without supervision or instruction by a responsible

During Use

Warning

■ Only use the appliance for preparing food.

■ Do not modify this appliance. Burner panel is not designed to operate from an external timer or separate remote control system.

■ The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

■ Do not use this appliance if it comes in contact with water. Do not operate this appliance with wet hands.

■ The heating and cooking surfaces of the appliance become hot when they

■ Do not use large cloths, tea towels or similar as the ends could touch the

During Use

■ Do not use or store flammable materials in the storage drawer near this appliance.

liance.

■ Perishable food, plastic items and aerosols may be affected by heat and should not stored above or below the appliance.

- Danger of fire: Do not store items on the cooking surface

■ Do not spray aerosols in the vicinity of this appliance while it is in operaiton.

■ Ensure the control knobs are in the “” position when not in use.

Caution

■ This appliance is intended for domestic cooking only. It is not designed for commercial or industrial purposes.
■ Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or increasing the level of mechanical ventilation where present.
■ Use heat-resistant pot holders or gloves when handling hot pots and pans.
■ Do not let pot holders come near open flames when lifting cookware.
■ Take care not to let pot holders or gloves get damp or wet, as this causes heat to transfer through the material quicker with the risk of burning yourself.

Cleaning and Service

Warning

■ Never use abrasive or caustic cleaning agents.

■ This appliance should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.

Caution

■ Before attempting to clean the appliance, it should be disconnected from the mains and cooled.
- You should not use a steam jet or any other high pressure cleaning equipment to clean the appliance.

Environmental Information

■ After installation, please dispose of the packaging with due regard to safety and the environment

Description of the appliance

Model	Top Plate	Dimension (W*D*H)	Ignition device	Gas Connection	Electric supply	Burner Feature	ΣQn
ECT600GBK	Glass	600*510*110	Continuous Ignition Type	G1/2 thread	220-240Vac, 50Hz-60Hz, 0.6W	Wok (1), Semi-rapid (2), Auxiliary (1)	8.1kW

Description of the appliance

Accessories

Bracket (4)

Sponge (4)

Voltage regulator valve (1)

Injector (4)

Pressure joint(1)

Screw (4)

Elbow(1)

Auxiliary pan support (1)

Instruction Manual (1)

How to Use the appliance

The following symbols will appear on the control panel, next to each control handle :

How to Use the appliance

Automatic ignition with flame failure safety device

The appliance is fitted with a flame failure safety device on each burner, which is designed to stop the flow of gas to the burner head in the event of the flame going out.

To ignite a burner:

o Press in the control knob of the burner that you wish to light and turn it anti-clockwise to the maximum position.
o If you keep the control knob depressed, the automatic ignition for the burner will operate.
- You should hold down the control knob for 15 seconds after the flame on the burner has lit. If after 15s the burner has not lit, stop operating the device and open the compartment door and/or wait at least 1 min before attempting a further ignition of the burner.
o After this 15-second interval, to regulate the flame you should continue turning the control knob anti-clockwise until the flame is at a suitable level

Safety and Energy saving advice

- The diameter of the bottom of the pan should correspond to that of the burner.

BURNERS	PANS
	min.	max.
Triple-Crown	200mm	240mm
Rapid	200mm 240mm
Semi-Rapid	160mm	180mm
Auxiliary	120mm	160mm

■ Do not use cookware that overlaps the edge of the burner.

NO YES
	Do not use small diameter cookware on large burners.The flame should never come up the sides of the cookware.	Always use cookware that is suitable for each burner, to avoid wasting gas and discolouring the cookware.
	Avoid cooking without a lid or with the lid half off-as this wastes energy	Place a lid on the cookware.
	Do not use a pan with a convex or concave bottom.	Only use pots,saucepans and frying pans with a thick,flat bottom.
	Do not place cookware on one side of a burner,as it could tip over.	Always place the cookware right over the burners,not to one side.
	Do not use cookware with a large diameter on the burners near the controls,which when placed on the middle of the burner may touch the controls or be so close to them that they increase the temperature in this area and may cause damage.
	Never place cookware directly on top of the burner.	Place the cookware is top of

Cleaning and Maintenance

■ Cleaning operations must only be carried out when the appliance is completely cool.
■ The appliance should be disconnected from your mains supply before commencing any cleaning process.
■ Clean the appliance regularly, preferably after each use.
■ Abrasive cleaners or sharp objects will damage the appliance surface; you should clean it using water and a little washing up liquid.

Usable	Unusable
Soft clothITWD Neutral Detergent	Nylon Brush Metal BrushEdible Oil [40D] Acidic/Alkali DetergentAbrasive Thinner/Benzene

Pan support, Control handles

■ Take off the Pan support.
■ Clean these and the control handles with a damp cloth, washing up liquid and warm

Cleaning and Maintenance

BURNERS

■ Remove the burner lids and Flame Spreaders by pulling them upwards and away from the top plate.
■ Soak them in hot water and a little detergent or washing up liqui.
■ After cleaning and washing them, wipe and dry them carefully. Make sure that the flame holes are clean and completely dry.
■ Wipe the fixed parts of the burner cup with a damp cloth and dry afterwards.
■ Gently wipe the ignition device and flame supervision device with a well wrung-out cloth and wipe dry with a clean cloth.
■ Before placing the burners back on the top plate, make sure that the injector is not blocked.

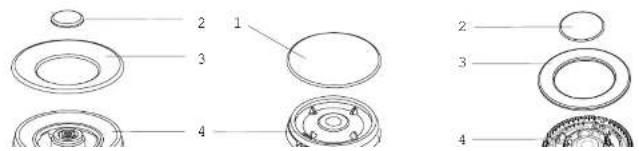

■ Re-assemble the Auxiliary, Semi-Rapid, Rapid and Triple-Crown burners as follows :

2 1 3 4 2 3 4

Using instructions

⚠Warnings

■ Do not modify this appliance.
■ This appliance must be installed by an authorised technician or installer.
■ Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
■ The adjustment conditions for this appliance are stated on the label (or data plate).
This appliance is not connected to a combustion products evacuation device. It should be installed and connected in accordance with current installation regulations. Particular attention should be given to the relevant requirements regarding ventilaton.
■ Before installing, turn off the gas and electricity supply to the appliance.
■ All appliances containing any electrical components must be earthed.
■ Ensure that the gas pipe and electrical cable are installed in such a way that they do not touch any parts of the appliance which may become hot.
- Gas pipe or connector shouldn't be bent or blocked by any other appliances.
- Check the dimensions of the appliance as well as the dimensions of the gap to be cut in the kitchen unit.

Positioning

CLEARANCES REQUIRED WHEN FITTING THE HOB WITH A COOKER HOOD ABOVE 600 mm 700mm 400mm 400mm 55.5mm FO 0813

■ This appliance is to be built into a kitchen unit or 600mm worktop, providing the following minimum distances are allowed;

• The edges of the hob must be a minimum distance of 60 mm from a side or rear wall.
• 700 mm between the highest point of the hob surface (including the burners)

Installing the appliance

Line drawing of a four-position gas stove with four circular vented gauges and control buttons (no text or symbols)

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

Bottom view

1. Remove the pan supports, the burner lid and flame spreader and carefully turn the appliance upside down and place it on a cushioned mat.

Take care that the Ignition devices and flame supervision devices are not damaged in this operation.

1. Apply the sponge provided around the edge of the appliance.

2. Do not leave a gap in the sealing agent or overlap the thickness.

Sponge

The thickness of the sponge is 3 mm. The width of the sponge is 10 mm.

Do not use a silicon sealant to seal the appliance against the aperture.

This will make it difficult to remove the

Gas Connection

■ This appliance must be installed and connected in accordance with installation regulations in force in the country in which the appliance is to be used.
■ This appliance is supplied to run on natural gas only and cannot be used on any other type of gas without modification. Conversion for use on LPG and other gases must only be undertaken by a qualified person.

Turn off power for safety and appliance protection. Close middle valve to prevent gas leakage.

Keep away from inflammable materials around appliance. Before work, put on gloves.

CAUTION

Cool off the appliance for a while right after using appliance for your safety because you can get burners by high temperature from the appliances.

Most of the tools that you might need are shown below. Some are optional.

Item	How to use	Pictures
Screw driver	Use for assembly and disassembly of all screws
Tubing Wrench	Use for assembly and disassembly of tubing to the burner cup
7mm Vox Driver	Use for assembly and disassembly of injector nozzles.

Replacement of gas-type fitting

Tool: Open-end wrench

Gas Connection

Statutory requirements

This installation must conform with the following:

■ Manufacturer's Installation instructions
■ Local Gas Fitting Regulations
■ Municipal Building Codes
■ Refer to AS/NZS 5601.1 for Gas Installations
■ AS/NZS 3000 - Wiring Rules
■ Local Electrical Regulations
■ Any other statutory regulations

Preparing to install

Refer to AS/NZS 5601.1 for piping size details. These built-in cooktops are intended to be inserted in a benchtop cutout. Only an officially authorised technician should connect the appliance. Before you begin, turn off the gas and electricity supply.

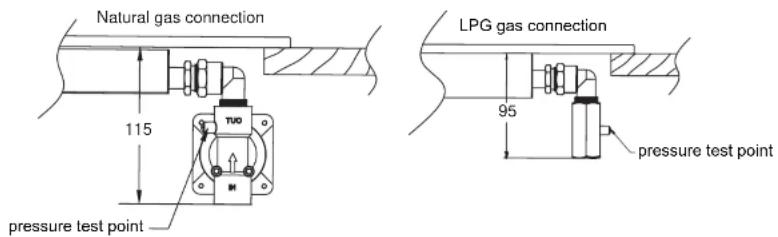

Natural gas connection 115 pressure test point LPG gas connection 95 pressure test point

■ A full operational test and a test for possible leakages must be carried out by the fitter after installation.

Gas Connection

■ Flexible Hose: If installing with a hose assembly, it must comply with AS/NZS 1869,10mmID,class B or D,no more than 1mm long and installed in accordance with AS/NZS 5601.1.
■ Ensure that the hose does not contact the hot surfaces of the hotplate, oven, dishwasher or any other appliance that may be installed underneath or next to the hotplate. The hose should not be subjected to abrasion, kinking or permanent deformation and should be able to be inspected along its entire length with the cooktop in the installed position. Unions compatible with the hose fittings must be used and all connections tested for gas leaks. The supply connection point shall be accessible with the appliance installed.
■ WARNING: Ensure that the hose assembly is restrained from accidental contact with the flue outlet of an underbench oven.

Gas Connection

Install in accordance with relevant gas standards and/or codes of practice applicable.

Connect the elbow fitting to the appliance gas manifold connection, and check that seals between the elbow and manifold connection are in place and in good condition.

• For Natural gas: connect the natural gas appliance regulator (pictured opposite) with integral test point using approved gas thread tape or compound to the elbow fitting.
• For Universal LPG: connect the brass test point adaptor (pictured opposite) using approved gas thread tape or compound to the elbow fitting.

Gas Specification

Model No.	Gas type & pressure	Heat input and orifice size marked(mm)
		Wok burner	Rapid burner	Semi-rapid	Auxiliary-rapid
ECT600GBK		12.96MJ/h	/	6.3MJ/h 4MJ/h
	ULPG 2.75kPa	0.97	/	0.68	0.56
	Natural Gas 1.0kPa	1.60	/	1.12 0.9

Electrical Connection

■ This appliance must be earthed.
■ This appliance is designed to be connected to a 220-240V, 50Hz-60Hz AC electricity supply.
■ The wires in the mains lead are coloured in accordance with the following code;

• Green/yellow = Earth
• Blue = Neutral
• Brown = Live
• It is necessary to allow disconnection of the appliance from the supply after installation. The disconnection can be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

■ The wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol.

■ WIRNG DIAGRAM

AC INPUT L E Switch 1 Switch 2

Gas adjustment

■ Take precautions on the operations and adjustments to be carried out when converting from one gas to another.
■ All work must be carried out by a qualified technician.
■ Before you begin, turn off the gas and electricity supply to the appliance.

Change the injector of the burners.

Remove the pan support, Burner lid and Flame spreader.

Unscrew the injector using a 7mm box spanner and replace it with the stipulated injector for new gas supply. Carefully reassemble the all components.

After injectors are replaced, it is advisable to strongly tighten the injector in place.

Adjustment of minimum level of the flame.

① Turn the taps down to minimum.
② Remove the knob from the tap and place a small bladed screwdriver in the centre of the tap shaft.
③ The correct adjustment is obtained when the flame has a length of about 3 - 4 mm.
- For butane/ propane gas, the adjusting screw must
- be tightly screwed in.
- Refit the control knob.

Trouble shooting

■ Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others.
■ However, some minor problems can be resolved as follows :

Problem	Probable cause	Solution
Not ignited	No Spark.	Check the electricity supply.
	The burner lid is badly assembled.	Assemble the lid correctly.
	The gas supply is closed.	Open the gas supply completely.
Badly ignited	The gas supply is not completely open.	Open the gas supply completely.
	The burner lid is badly assembled.	Assemble the lid correctly.
	The ignition plug is contaminated with alien substance.	Wipe alien substance with a dry cloth.
	The burners are wet.	Dry the burners lids carefully.
	The holes in the flame spreader are clogged.	Clean the flame spreader.
Noise made when combusted and ignited	The burner lid is badly assembled.	Assemble the burner lid correctly.
Flame goes out when in use.	The flame supervision device is contaminated with alien substance.	Clean the flame supervision device.
	Product being cooked has boiled over and extinguished the flame.	Turn off burner knob.Wait one minute and reignite zone.

euro appliances

bringing european quality to your home

Head Office

Eurostyle Group Pty Ltd

65 Glynburn Road

Glynde S.A. 5070

Ph. 1800 440 335

Ph [phone]

Fax: [phone]

Two Year Warranty On Euro Appliances

Warranty

Subject to the exclusions and limitations set out below we warrant to you that if you purchase Euro Appliances from one of our authorised retailers that they will not contain defects as a result of faulty manufacturer workmanship or materials.

This warranty subsists for the periods set out below:

Euro Appliances warranty applies for a period of 24 months (2 Years) from the original date of purchase. Proof of purchase must be produced upon request to obtain benefit of this warranty.

Where any product is used for commercial purposes by the purchaser the warranty period is strictly 90 days (3 months) from the date of purchase.

This warranty only applies to the original purchaser of the product and is not transferrable to any other person or party under any circumstances.

Exclusions and Limitations

No warranty is offered and Eurostyle Group Pty Ltd (Eurostyle) will not be liable for any damage caused by foreign objects (e.g. coins, underwire, nails, buttons or jewellery), any wearable component, factors beyond its control, unauthorized alteration, modification or substitution of any parts of the appliance, installation or use not in accordance with the instructions provided with the product, abnormal, unauthorized or negligent use.

Eurostyle will not be liable for any special, indirect, consequential or economic loss or damage or loss of profits (in contract or tort or arising from any other cause of action) suffered by you or any other person resulting from any act or omission by Eurostyle including, but not limited to: food loss or loss and damage as a result of non-operational appliances.

Total Liability

Eurostyle's total liability in respect of this warranty is limited, at its option to, the replacement of the goods or repair of the goods.

Making a Claim

If your Electrols product is defective and covered by this warranty please contact Electrols on 1800 440 335. You must provide proof of

Interior view of a minimalist room with concrete walls, ceiling-mounted spotlights, and a framed photo of a kitchen appliance (no visible text or symbols)
