IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

Any electrical appliance can be dangerous if used incorrectly. Some of the safety precautions given in this manual apply generally to many appliances. Other warnings are specific to the use of this snow thrower. Keep this manual for future reference.

General Safety WARNINGS!

You and any other operator of this snow thrower must read, understand and follow these instructions in their entirety, and should reread them at the start of each snow season. Failure to follow these instructions may result in ELECTRIC SHOCK, FIRE and/or serious PERSONAL INJURY.

Notice the personal safety alert symbol △ used in this manual to draw your attention to a WARNING given along with the particular operating instruction. This means that the operation requires special ATTENTION, CAUTION and AWARENESS.

Work area safety

1. Keep work area clean and well lit. Cluttered, dark areas invite accidents

refrigerators, microwave ovens and outer frames of heating equipment). Take necessary precautions to avoid electric shock. There is an increased risk of electric shock if your body is earthed or grounded.

1. Do not abuse the cord. Keep cord away from heat, oil, sharp edges or moving parts. Never carry the snow thrower by its cord or yank the cord to disconnect it from the electrical outlet. Damaged or entangled cords increase the risk of electric shock.
2. Replace or properly repair damaged cords. If the cord becomes damaged in any manner while plugged into the wall receptacle, immediately pull the extension cord plug from the receptacle.
3. Contact with water while operating the snow thrower can result in electric shock and serious bodily injury. Do not use the snow thrower in damp or wet locations or expose to rain. Do not handle the plug or the appliance with wet hands or while standing in water.
4. ⚠WARNING – Only use a UL-rated extension cord for OUTDOOR, all-weather use. To prevent the extension cord from disconnecting during operation, refer to Fig. 12 (p. 8).
5. Turn off the power switch and disconnect the power cable before making any adjustments to the unit and before inspecting, servicing, changing accessories or cleaning the snow thrower. Follow the same procedure if any other dangerous conditions present during operation. Any adjustments to the unit should be performed after revolving parts inside the snow thrower stop completely. Such preventative safety measures

Personal Safety

1. Stay alert - Watch what you are doing and use common sense when operating the snow thrower. Do not use the machine when tired, ill or under the influence of drugs, alcohol or medication. A moment of inattention may result in serious personal injury.
2. Wear proper clothing – Wearing rubber boots offers additional protection from electric shock. Do not wear loose clothing or jewelry that may become caught in the machine. Wear protective headgear to keep hair away from revolving parts of the machine. Safety glasses offer better protection than everyday eyeglasses.
3. Moving parts present risks – Keep your face, hair, clothing, hands and feet away from moving parts. All guards and safety attachments must be installed properly before using the unit. Shut off and disconnect the cord before touching any parts other than the handles and the switch.
4. Surfaces - This snow thrower is intended for use on paved surfaces. Do not use on gravel, stone or other unpaved surfaces unless the snow thrower is adjusted for such surfaces according to the instructions given in this operator's manual.
5. Avoid accidental starting - Make sure the switch is in the off position before plugging in the unit. Do not carry the snow thrower with your finger on the switch.
6. Body position – Maintain proper footing and balance at all times. Place heels firmly on the ground and tightly grasp the handle bar. Watch for uneven surfaces and do not overreach. In case you fall or collide with the snow thrower, inspect the unit for any damages or cracks. When stepping backwards, be careful to avoid obstacles beneath your feet or behind you to avoid falling.
7. If the snow thrower strikes any object, immediately stop the snow thrower, then inspect for damage - Repair any damage before restarting and operating the

operation clear of all spectators, particularly children and pets.

• Excessive force – The snow thrower was designed to respond at a certain rate for various snow conditions for optimum safety and performance. Do not force it; keep pressure constant.
• Malfunctioning switch – Do not use the snow thrower if the switch does not turn it on and off. Any electrical appliance that cannot be controlled by the switch is not safe to use and must be repaired.
• Hitting an object – If the snow thrower accidentally strikes an object, follow these steps:

i) Stop the snow thrower and unplug the unit

ii) Inspect for damage
iii) Repair or replace any damaged part before restarting and operating the snow thrower.

- Discharge chute safety – Never direct the snow discharge chute at the operator, at bystanders, at vehicles or at windows. The discharged snow stream and foreign objects accidentally picked up by the snow thrower can cause serious damage and personal injury. Do not use your hands to unclog the discharge chute. Stop the motor before removing debris.

• Hand-held operating position – Operation of the snow thrower in the hand-held position is unsafe.
• Abnormal operation – If you notice the snow thrower running in an unstable state or hear abnormal sounds from the engine, immediately stop the machine, disconnect the power and contact an authorized Snow Joe ^8 + Sun Joe ^9 service center.
• Noise control – When using the snow thrower, you must respect local laws and regulations regarding noise control and environmental protection. To avoid noise disturbance, you should carefully decide upon an appropriate operation time and consider the surrounding conditions.

Safety Symbols

The following table describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate.

Symbols	Descriptions Symbols	Descriptions
	READ THE OPERATOR'S MANUAL(S) – Read, understand and follow all instructions in the user manual(s) before attempting to assemble and operate.		Disconnect the plug before conducting maintenance or when it is damaged or tangled. Do not use this product in the rain or leave outdoors while it is raining.
	SAFETY ALERT – Indicates a precaution, a warning or a danger.	[DSG8]	It is obligatory at all times to wear goggles or a visor to protect the eyes and face.
	Beware of stones and other objects that could be thrown from the appliance. Keep all bystanders and domestic animals a safe distance away from the work area.		Keep the flexible power supply cord away from the cutting blades.
	Wear safety gloves during use to protect hands.		Wear safety footwear at all times to provide protection against objects that may accidentally fall on feet.

Know Your Electric Snow Thrower

Read the owner's manual and safety rules carefully before operating your electric snow thrower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

Technical diagram of a mechanical device with numbered parts for identification

1. Handle bar

2. ON/OFF switch lever

3. Safety switch button

4. Cable restraint holder

5. Middle frame

6. Lower frame

7. Wheels (located at the back of the machine)

8. Polarized cable plug

9. Upper frame

10. Upper chute crank

11. Joint fixing T-Bolt and knob (4 pcs)

12. Lower chute crank

13. Chute deflector

14. Discharge chute

15. Main cover

16. Rubber-tipped steel plates

17. Auger

18. Scraper bar

Assembly

CAUTION

Inspect wiring, which, if damaged during shipping, may cause serious bodily injury during equipment use. If any damage is seen or suspected, do not assemble. Instead, contact the Snow Joe ^3 + Sun Joe ^3 customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Handle with care during assembly so that electrical wiring does not become damaged.

Getting Started

1. Remove the snow thrower and all other items from the box.
2. Determine the left and right hand side of the snow thrower by standing in the normal operating position.
3. Check all items for shipping damage. If damage is found or suspected or if any of the parts are missing, do not assemble. Instead, promptly inform the dealer where you bought the snow thrower or contact the Snow Joe ^® + Sun Joe ^® customer service center for assistance.
4. Check to make sure the upper chute crank is included.

Upper, Middle + Lower Frame Assembly

1. For easy assembly, the unit comes complete with most parts already connected. To complete the handle assembly, simply pull the middle frame back and pull the upper frame up (Fig. 2).

2. Secure the connection of the lower frame to the middle frame by fastening the first set of joint fixing T-bolts and knobs on each side (Fig. 3).

Line drawing of a hand operating a mechanical component, labeled 'Fig. 3' (no other text or symbols)

1. Secure the connection of the middle frame to the upper frame by fastening the second set of joint fixing T-bolts and knobs on each side (Fig. 4).

Fig. 4

Discharge Chute Assembly

Line drawing of hands installing or adjusting a device on a chair (no text or symbols)

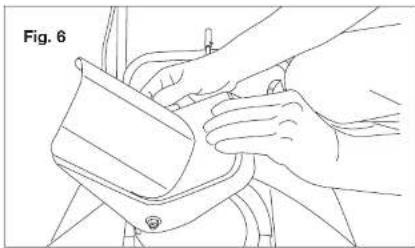

1. Raise or lower the chute deflector to the desired height of the snow stream and tighten the knob (Fig. 7).
   NOTE: Do not overtighten the knob.

2. Loosen the screw on the lower chute crank by hand (Fig. 9).


Line drawing of a hand holding a pen, with no visible text or symbols

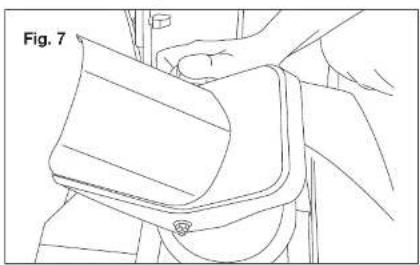

1. Slide the upper chute crank into the lower chute crank (Fig. 10).

Line drawing of a hand holding a device, labeled Fig. 7 (no text or symbols on the diagram itself)

Chute Crank Assembly

1. Slide the upper chule crank through the rubber ring located on the middle frame (Fig. 8).

Line drawing of a hand holding a tool near a pipe or tube, labeled 'Fig. 10' (no text or symbols on the diagram itself)

1. Align the screw holes and tighten the screw by hand (Fig. 11).

Operation

NOTE: Before using this machine, make sure that the power source you will use complies with the specifications detailed in this manual. Before inserting the plug into the socket, verify that the snow thrower's roll shaft and rubber plates are firmly secured with screws, and that the rubber plates are facing the correct direction. Perform a test run to ensure that the rotor turns freely.

Securing the Extension Cord

1. For safe and efficient use of your snow thrower, use only a UL-rated extension cord recommended for outdoor use. Refer to the Extension Cord Chart that follows.

WARNING!

Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:

• Do not allow any part of snow thrower to make contact with water while powered on. If the appliance becomes wet while turned off, wipe dry before starting.
• Use only a UL-, CSA- or ETL-rated extension cord for outdoor, all-weather use. Do not use an extension cord over 100 ft (30 m).
• Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.

EXTENSION CORD CHART

Cord Length:

Up to 50 ft(15 m)

+50 ft - 100 ft(+15 m - 30 m)

1. Insert the female end of the extension cord into the appliance's polarized male plug (Fig. 13).

Fig. 13

Line drawing of a cable clamp and connector (no text or symbols)

1. Note that the snow thrower has a polarized male plug - one prong in the plug is slightly longer and wider than the other (Fig. 14). The extension cord female end should be likewise polarized so that the extension cord fits snugly into the appliance plug.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Powering On + Off

1. To power on, depress and hold the safety switch button found alongside the switch housing (Fig. 15).

Line drawing of a hand pressing down on a car door handle (no text or symbols)

1. While depressing the safety switch button, pull the ON/OFF switch lever toward you. Once the machine powers on, release the safety switch button and begin operation (Fig. 16). The machine can only be started by depressing the safety switch button first, followed by squeezing the ON/OFF switch lever; reverse operation will not start the machine.

Line drawing of hands performing a manual task on a car interior (no text or symbols)

NOTE: The light will only turn ON when the snow thrower is running. After finishing your work session, REMEMBER to TURN OFF the light switch.

Moving the Machine + Plowing the Snow

WARNING

Foreign objects, such as rocks, broken glass, nails, wire, or string, can be picked up and thrown by the snow thrower, causing serious personal injury.

Remove all foreign objects from the area to be plowed before operating the snow thrower.

1. Keep the area of operation free of foreign objects that can become thrown by the rotor blades. Perform a thorough inspection of the area since some objects may be hidden from view by surrounding snow. If the snow thrower hits an obstruction or picks up a foreign object during use, stop the snow thrower, disconnect the extension cord, remove the obstruction and inspect the unit for damage. Repair or replace any damaged part before restarting and operating the unit.
2. Keep children, pets and bystanders away from the area of operation. Be aware that the normal noise of the machine when turned on may make it difficult for you to hear approaching people.
3. When moving the snow thrower, use the wheels on one side as the pivot point. Slightly tilt the snow thrower on this pivot point to move it forward or backward.

4. Start your clearing path near the electrical outlet and work outward, throwing snow in a back and forth motion. To clear in the opposite direction, step over the cord and pivot the snow thrower on its wheels. Make sure to overlap

5. Some parts of the snow thrower may freeze under extreme temperature conditions. Do not attempt to operate the snow thrower with frozen parts. If the parts freeze while the snow thrower is in use, stop the snow thrower, unplug the extension cord and inspect for frozen parts. Free all parts before restarting or operating the snow thrower. Never force controls that have frozen.

6. When working on pebbles, gravel or unpaved surfaces, avoid throwing loose surface material along with the snow by pushing down on the handle to raise the scraper bar at the base of the unit above the pebbles or gravel.

Changing Throw Direction + Throw Height

WARNING

Never direct the snow discharge chute at the operator, at bystanders, at vehicles or at nearby windows. The discharged snow and foreign objects accidentally picked up by the snow thrower can cause serious damage and personal injury. Always orient the discharge chute in the opposite direction from where you, bystanders, surrounding vehicles or windows are located.

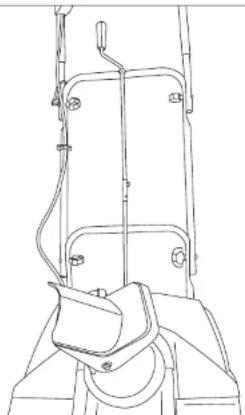

1. The discharge chute can be adjusted 180 degrees by rotating the chute crank. Rotate the chute control crank clockwise to move the discharge chute to the left (Fig.18) and counterclockwise to move the chute to the right (Fig.19).

NOTE: A little lubricant, such as WD-40, will provide a smoother operation of the chute (spray at points A and B as indicated in Fig. 18).

Fig. 19

Technical line drawing of a mechanical device with no visible text or symbols

1. The chute deflector on the top of the discharge chute controls the height of the snow stream. Loosen the knob to raise or lower the deflector to the desired height of snow you wish to throw. Tighten the knob to secure the deflector (Fig. 20).

Fig. 20

WARNING

Make sure that the chute deflector snaps and locks completely onto the discharge chute. An opening between the discharge chute and the chute deflector may allow foreign objects to be picked up by the snow thrower and thrown in the direction of the operator causing serious boldly injury.

• Do not advance the chute deflector too far forward causing an opening to appear between the deflector and discharge chute.

• Do not overtighten the knobs on the chute deflector (Fig. 20).

• Detach the worn rubber plate assembly by removing the two sets of nuts and bolts used to secure it to the auger assembly (Figs. 21 & 22).

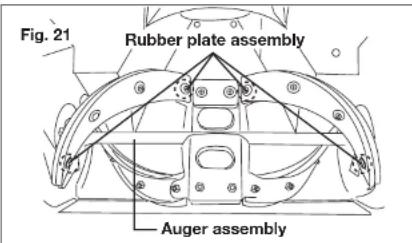

Fig. 21 Rubber plate assembly Auger assembly

Maintenance

WARNING

Make sure to turn off the switch and disconnect the extension cord before performing any maintenance task on your snow thrower.

Fig. 22 Rubber plate assembly Auger assembly

Lifetime Lubrication (Motor + Auger)

Lubrication is not necessary and may damage the unit. The snow thrower is lubricated for lifetime use at the factory before shipment.

1. Loosen the middle two sets of nuts and bolts to detach the worn rubber plate from the metal frame (Fig. 23).

General Maintenance Tips

1. Do not attempt to repair the machine unless you have the

Replacing the Scraper Bar

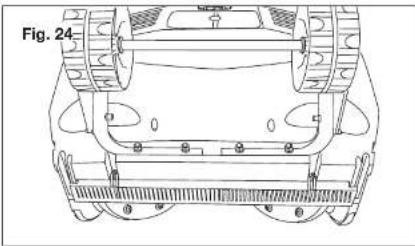

1. The scraper bar is located at the base of the snow thrower beneath the rotor housing (Fig. 24).

Technical line drawing of a mechanical component with no visible text or symbols

1. Detach the worn scraper bar from the snow thrower by removing the two screws that hold it in place (Fig. 25).

Technical line drawing of a mechanical component with hands holding a tab and a bracket (no text or symbols)

1. Install the new scraper bar and fasten it securely to the snow thrower with the two screws (Fig. 26).

Replacing the Belt + Pulley

NOTE: Determine the left and right hand side of the snow thrower by standing behind the unit in the normal operating position

1. Remove the screws from the left panel of the snow thrower and remove the left panel (Fig. 27).

Technical line drawing of a mechanical component with mounting holes and structural supports (no text or symbols)

1. Lift the belt tension pulley and roll the worn belt up and off the big pulley from the top of the big pulley (Fig. 28).

Fig. 28 Belt tension looson lighten Belt Big pulley

Fig. 29 Belt tension Small pulley Belt Big pulley

1. Replace the left panel of the snow blower with all screws (Fig. 27).

Replacing the Skid Shoes

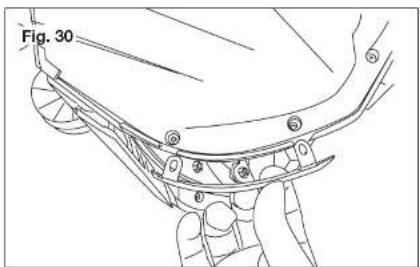

The skid shoes are located at the bottom of the side panel. Unfasten the two screws on the side panel to remove the worn skid shoes (Fig. 30). Install the replacement by fastening it to the side panel with the same two screws.

Fig. 30

1. Inspect the snow thrower carefully for worn, loose or damaged parts. Check connections and screws and tighten if necessary. For repairing or replacing parts, contact your authorized Snow Joe ^® + Sun Joe ^® dealer or the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).
2. Store the unit, along with the disconnected extension cord, in a locked, dry place out of the reach of children to prevent unauthorized use or damage. Cover loosely with a tarp or with Snow Joe's universal 18-inch electric snow thrower cover (Model SJCVR) for added protection. Visit snowjoe.com to purchase the cover online.

Service + Support

If your Snow Joe ^® SJ620-RM electric snow thrower requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company, reordering parts or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal on the main cover of the unit to the left of the discharge chute. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: Model 4: S J S 2 C - R M Serial 4:

Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this electric snow thrower. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe to use a particular replacement part or accessory with your electric snow thrower. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

		ModelAccessor
1	Snow Joe ^2 + Sun Joe ^3 SJTW-A 14-gauge50-foot extension cord with lighted end	PJEXT50-B
<	Universal snow thrower chute clean-out tool	SJCOT
3	Universal 21-inch snow throwerprotection cover	SJCVR-21
