USER MANUAL 24V-PHT17-LTE-RM Sun Joe

A Division of Snow Joe ^2 , LLC

CORDLESS POLE HEDGE TRIMMER 24 VOLT MAX* | MULTI-ANGLE | 17-INCH

Model 24V-PHT17-LTE-RM Form No. SJ-24V-PHT17-LTE-RM-880E-V1

THANKS FOR YOUR PURCHASE OF A REMANUFACTURED PRODUCT.

To make sure you get the most out of your product, be sure to register online at

snowjoe.com

to enjoy full product support.

OPERATOR'S MANUAL

A Division of Snow Joe ^2 , LLC

CORDLESS POLE HEDGE TRIMMER

24 VOLT MAX* | MULTI-ANGLE | 17-INCH

Model 24V-PHT17-LTE-RM Form No. SJ-24V-PHT17-LTE-RM-880E-V1

IMPORTANT!

Safety Instructions

All Operators Must Read These Instructions Before Use

Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

General Power Tool Safety Warnings

⚠ WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

⚠️DANGER! This indicates a hazardous situation, which, if not followed, will result in serious injury or death.

⚠ WARNING! This indicates a hazardous situation, which, if not followed, could result in serious injury or death.

CAUTION! This indicates a hazardous situation, which,

1. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators – There is an increased risk of electric shock if your body is earthed or grounded.
2. Do not expose power tools to rain or wet conditions
3. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

Personal Safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication - A moment of inattention while operating power tools may result in serious personal injury.
2. Use safety equipment. Always wear eye protection – Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3. Avoid accidental starting. Ensure the switch is in the off-position before opening in. Operating components

Power Tool Use + Care

1. Do not force the power tool. Use the correct power tool for your application – The correct power tool will do the job better and safer at the rate for which it was designed.

2. Do not use the power tool if the switch does not turn it on and off – Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools – Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool - Power tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use – Many accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean - Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed - Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

1. Check the hedge for foreign objects before operation, e.g., center fences. Take care that the cutting device does not come in contact with wire or other metal objects.

2. Service on the product must be performed by qualified repair personnel only. Service or maintenance performed by unqualified personnel could result in injury to the user or damage to the product.

3. Keep all parts of the body away from the cutting blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off and the battery is removed when clearing jammed material. A moment of inattention while operating the pole hedge trimmer may result in serious personal injury.

4. Carry the pole hedge trimmer by the handle with the cutting blade stopped. When transporting or storing the pole hedge trimmer always keep the blade covered. Proper handling of the pole hedge trimmer will reduce possible personal injury from the cutter blades.

5. Do not use the pole hedge trimmer if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

6. Use the pole hedge trimmer and accessories in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended use could lead to a hazardous situation.

7. Do not overreach and keep the balance at all times. Always be sure of the footing on slopes. Walk when operating the power tool, never run.

8. Do not touch moving hazardous parts before the battery pack is removed and the moving hazardous parts have come to a complete stop.

9. Always wear eye and ear protection. Wear protective mask if necessary. Dress properly, do not wear loose clothing or jewelry that could become caught in moving parts of the unit. Safe, sturdy, nonskid footwear should always be

Preparation

1. This product can cause serious injuries. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the product. Become familiar with all controls and the proper use of the product.

2. Never allow children to use the pole hedge trimmer.

3. Beware of overhead power lines.

4. Never operate the product while people, especially children, or pets are nearby.

5. Dress properly. Do not wear loose clothing or jewelry, which can be caught in moving parts. Use of sturdy gloves, non-skid footwear and safety glasses is recommended.

6. Wear eye protection and stout shoes at all times while operating the product.

7. If the cutting attachment strikes any foreign object or the product starts making any unusual noise or vibration, switch the product off, allow the product to stop, remove the battery, and take the following steps:

– inspect for damage;

– check for, and tighten, any loose parts;

– have any damaged parts replaced or repaired with parts having equivalent specifications.

Operation

1. Use the product only in daylight or good artificial light.

2. Keep hands and feet away from the cutting device at all times and especially when switching on the motor.

3. Before using the product and after any impact, check for signs of wear or damage and repair as necessary.

4. Always remove the battery

5. Always be aware of your surroundings and stays alert for possible hazards of which you may not be aware due to the noise of the product.

6. Take care against injury to feet and hands from the cutting device.

7. Always ensure that the air vents are kept clear of debris.

8. Wear slip-resistant foot protection and protective clothing when using this product.

9. Always keep proper footing and operate the product only when standing on a fixed, secure and level surface. Change working positions regularly to avoid tiredness and ensure a comfortable working position at all times.

10. Never use replacement parts or accessories not provided or recommended by the manufacturer.

11. The use of this product may be restricted by regional or local regulations.

Vibration + Noise Reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks.

1. Only use the product as intended by its design and these instructions.

2. Ensure that the product is in good condition and well maintained.

3. Use correct attachments for the product and ensure they are in good condition.

4. Keep tight grip on the handles/grip surface.

5. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).

A. 51

1. Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately handled and properly maintained.
2. Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use.
3. Danger of injury and property damage caused by flying objects.

WARNING! This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product.

Battery & Charger Safety Instructions

We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs.

Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack can cause cell damage.

IMPORTANT! Analyses confirm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open flames near a charging battery pack. Vented gases may explode.
  NOTE: The safe temperature range for the battery is 41^ F – 105^ F ( 5^ C – 40.5^ C). Do not charge the battery outside in freezing weather; charge it at room temperature.
• Maintain charger cord - When unplugging the charger, pull the plug, not the cord, from the receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.
• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of fire and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.
• 24V iON+ lithium-ion charger (XZ2600-0450) is rated for 100 – 240 volt AC only – The charger must be plugged into an appropriate receptacle.
• Use only recommended attachments – Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in risk of fire, electric shock or personal injury.
• Unplug charger when not in use – Make sure to remove battery packs from unplugged chargers.

⚠ WARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to flow into the charger

- Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery fluids, wash the affected area with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately flush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

- Do not short circuit - When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

- Store your battery pack and charger in a cool, dry place – Do not store the battery pack or charger where temperatures may exceed 105°F (40.5°C), such as in direct sunlight or inside a vehicle or metal building during the summer.

Battery tool use and care

1. The battery pack supplied with your pole hedge trimmer is only partially charged. The battery pack has to be charged completely before you use the tool for the first time.
2. For optimum battery performance, avoid low discharge cycles by charging the battery pack frequently.
3. Store the battery pack in a cool place, ideally at 77^ F ( 25^ C) and fully charged.

4. Lithium-ion batteries are subject to a natural aging process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements needed for the proper operation of your pole hedge trimmer, and therefore pose a safety risk.

5. If the battery pack suffers overloading and overheating, the integrated protective cutoff will switch off the equipment for safety reasons.
   IMPORTANT! Do not press the ON/OFF switch any more if the protective cut-off has been activated. This may damage the battery pack.

6. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
7. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
8. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
9. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
10. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause explosion.
11. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
12. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

Information about the charger and the charging process

1. During periods of heavy use, the battery pack will become warm. Allow the battery pack to cool to room temperature before connecting it to the charger to recharge.
2. Do not overcharge batteries. Do not exceed the maximum charging times. These charging times only apply to discharged batteries. Frequent connection of a charged or partially charged battery pack will result in overcharging and cell damage. Do not leave batteries connected to the charger for days on end.
3. Never use or charge batteries if you suspect that it has been more than 12 months since the last time they were charged. There is a high probability that the battery pack has already suffered dangerous damage (exhaustive discharge).
4. Charging batteries at a temperature below 41°F (5°C) will cause chemical damage to the cells and may cause a fire.

Protection from environmental influences

1. Wear suitable work clothes. Wear safety goggles.
2. Protect your cordless tool and the battery charger from moisture and rain. Moisture and rain can cause dangerous cell damage.
3. Do not use the cordless tool or the battery charger near vapors and flammable liquids.
4. Use the battery charger and cordless tools only in dry conditions and at an ambient temperature of 41^ F – 105^ F ( 5^ C – 40.5^ C).
5. Do not keep the battery charger in places where the temperature is liable to reach over 105^ F ( 40.5^ C). In particular, do not leave the battery charger in a car that is parked in the sunshine.
6. Protect batteries from overheating. Overloads, overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions
	READ THE OPERATOR'S MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate.		SAFETY ALERT – Indicates a precaution, a warning, or a danger.
	WARNING! Do not expose the unit to rain or wet conditions.		WEAR EYE AND HEARING PROTECTION – For protection against injury, wear ear defenders and safety goggles.
	Wear protective gloves and non-slip footwear when using the machine and handling debris.		DANGER! ROTATING BLADES – Keep hands and feet away from openings while the trimmer is running.
	Keep bystanders a safe distance away from the work area.		WARNING! SHOCK HAZARD – Keep at least 33 ft (10 m) away from power lines. Do not overreach. Keep proper safety measures.

Know Your Cordless Telescoping Pole Hedge Trimmer

Read the owner's manual and safety instructions carefully before operating the cordless pole hedge trimmer. Compare the illustration below to the cordless pole hedge trimmer in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

The other side 1 2 3 4 5 6 7 8 9 10 13 14 15 16 17 18 19 20 21

1. Cutting blade
2. Trimmer head
3. Pivot button
4. Locking base
5. Locking collar

6. Telescoping pole

7. Safety lock button

8. Handle grip
9. Battery compartment
10. On/Off trigger
11. Shoulder strap

12. Battery charge level indicators

13. Charge socket

14. 24V iON+ lithium-ion battery (24VBAT-LTE) featuring exclusive EcoSharp® technology
15. Charger plug
16. 24V ION+ lithium-ion charger (XZ2600-0450)

Unpacking

Carton Contents

• Cordless hedge trimmer head
  • Rear handle with telescoping pole
• Blade cover
• Shoulder strap
  • 24V iON+ lithium-ion battery
  • 24V iON+ lithium-ion charger

• Manuals with registration card

• Carefully remove the cordless pole hedge trimmer and check to see that all of the above items are supplied.

• Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe* + Sun Joe* customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use the cordless pole hedge trimmer. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Battery Pack Operation

The equipment is powered by a lithium-ion battery. The battery pack is completely sealed and maintenance free.

Battery Charge Level Indicator

	Light IndicatorsLights
	Charge level button
	The battery is at 30% capacity and requires charging
	The battery is at 60% capacity and requires charging soon
	The battery is at full capacity

NOTE: If the charge level button does not appear to be working, insert the charger and charge as needed.

NOTE: Immediately after using the battery pack, the charge level button may display a lower charge than it will if checked a few minutes later. The battery cells "recover" some of their charge after resting.

Charger Operation

⚠ WARNING! Charge only 24V iON+ lithium-ion battery packs with its compatible 24V iON+ lithium-ion charger. Other types of batteries may cause personal injury and damage.

To reduce the risk of electric shock, do not allow water to flow into the charger's AC/DC plug.

When to Charge the iON+ 24VBAT-LTE Lithium-iON Battery

NOTE: The iON+ 24VBAT-LTE lithium-ion battery packs do not develop a 'memory' when charged after only a partial discharge. Therefore, it is not necessary to run down the battery pack before inserting the charger plug.

1. Check that the source voltage is the same as that marked on the rating plate of the battery charger. Then, plug the charger adapter into an appropriate AC power outlet. Connect the charger plug into the charge socket of the battery to start charging (Fig. 2).

Fig. 2 Battery indicators

1. The battery will take approximately 4.5 hours to charge. The battery indicator LEDs will twinkle and illuminate one by one during the charging process. Unplug the charger immediately when the 3 LEDs are all illuminated.

⚠️CAUTION! FIRE HAZARD. When disconnecting the charger from the battery, be sure to unplug the charger from the outlet first, then disconnect the charger from the battery.

⚠ WARNING! This charger does not automatically turn off when the battery is fully charged. Please take care not to leave the battery plugged into the charger. Switch off or unplug the

Follow the assembly instructions step-by-step and use the figures provided as a visual guide to easily assemble the unit.

NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss.

Assembling the Tool

The telescoping pole and trimmer head come unassembled. Ensure that the pole hedge trimmer is assembled properly before using.

1. Align the telescoping pole with the trimmer head.
2. Insert the telescoping pole into the trimmer head locking base until the lock holes click into place (Fig. 3).

Fig. 3 Trimmer head Lock hole Locking base Telescoping pole

1. Slide the locking collar onto the locking base and turn clockwise to secure (Fig. 4).

Fig. 4 Locking base

Fig. 5 Screw Locking collar

Attaching the Shoulder Strap

⚠ WARNING! Always attach the shoulder strap to the pole hedge trimmer. Use the shoulder strap to help support the trimmer while in use; do not carry the pole hedge trimmer with only your hands.

1. Wear the shoulder strap over your non-dominant shoulder so that the hook stays on the side of your dominant hand.

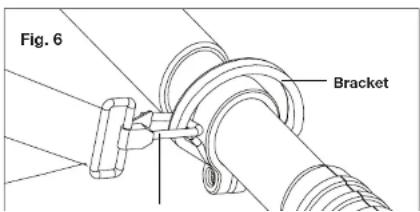

2. Fasten the carabiner hook to the bracket on the pole (Fig. 6).
3. Adjust the length of the strap to attain a comfortable working position.

Fig. 6 Bracket

Operation

⚠ WARNING! Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
⚠ WARNING! Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

Starting + Stopping

⚠ WARNING! Ensure the blade does not touch any objects before turning on the pole hedge trimmer.
⚠️CAUTION! Starting, stopping, and restarting a DC motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. To protect the life of your cordless pole hedge trimmer, always wait at least five seconds after stopping before restarting the pole hedge trimmer.

1. Insert the battery in the battery compartment (Fig. 8).

Fig. 8 Battery Battery Compartment

⚠️CAUTION! Blade coasts after being turned off. Do not use under wet conditions. Do not store with switch locked on.

Adjusting the Telescoping Pole

1. Turn off the pole hedge trimmer and remove the battery.
2. Unclip the clamp to release the pole (Fig. 10).

Fig. 10 Clamp

1. Extend the pole to the desired length (Fig. 11).
   NOTE: Push poles toward each other to shorten the pole or pull them away from each other to lengthen the pole. Only extend the pole to the minimum length required to reach the hedges to be trimmed.

Fig. 11 Telescoping pole

WARNING! Extend the telescoping pole only to the length required to reach the hedges being trimmed. Adjust your hand placement on the telescoping pole of the pole hedge trimmer in order to keep proper balance.

Do not attempt to use the pole hedge trimmer at a length which does not allow you to achieve proper footing and balance at all times!

⚠ WARNING! Failure to lock the telescopic pole clamp as directed could result in personal injury.

Adjusting Pivoting Head

The pole hedge trimmer head can be pivoted into 6 different cutting angles.

1. Tum off the pole hedge trimmer and remove the battery.
2. Place the pole hedge trimmer on a sturdy flat surface.
3. Press and hold the pivot button and adjust the trimmer head to the desired angle. (Fig. 13).

Fig. 13 60° 30° 2° 90° -40° Pivot button

General Operation

1. Check the tool, battery as well as accessories for damage before each use. Do not use the tool if it is damaged or shows wear.
2. Double check that the accessories and attachments are properly fixed.
3. Always hold the tool on its pole and handle. Keep the pole and handle dry to ensure safe support.
4. Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft brush. Blocked air vents may lead to overheating and damage the tool.
5. Turn the tool off immediately if you are disturbed while working by other people entering the working area. Always let the tool come to a complete stop before putting it down.
6. Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the tool.

Trimming Times

Green leaf hedges June to October
Evergreens April to August
Conifers and other fast growing shrubs	Every 6 – 8 weeks

Cutting Tips

⚠ WARNING! Always hold the pole hedge trimmer with both hands. Never hold shrubs with one hand and operate pole hedge trimmer with the other. Failure to heed this warning can result in serious injury.

• Wear gloves when trimming thomy or prickly growth. When trimming new growth, use a wide sweeping action, so that the stems are fed directly into the cutting blade. Older growth will have thicker stems and will be trimmed easiest by using a sawing movement.

Using the Pole Hedge Trimmer

• Hold unit firmly with both hands. Always keep your non-dominant hand on the telescoping pole and your dominant hand on the rear handle. The unit is used for cutting in either direction in a slow, sweeping action from side to side.
• Stand so that you are stable and balanced on both feet.
• Inspect and clear the area of any hidden objects.
  • To protect yourself from electrocution, do not operate within 33 feet (10 m) of overhead electrical lines.
• Never use the pole hedge trimmer near power lines, fencing, posts, buildings, or other immovable objects.
• Never use a blade after hitting a hard object without first inspecting it for damage. Do not use if any damage is detected.

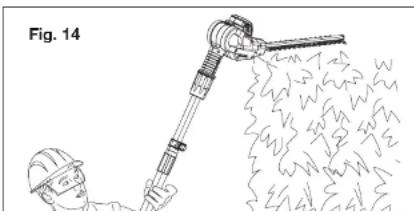

• To use the pole hedge trimmer for trimming tall, hard-to-reach hedges or shrubs, hold the trimmer at the position shown below (Fig. 14). Pivot the power head to several different positions to shape or sculpt shrubs or hedges.

Illustration of a worker spraying water with a mechanical device, labeled Fig. 14 (no text or symbols on diagram)

1. To use pole hedge trimmer for trimming low-lying foliage or ground cover, hold the pole hedge trimmer at the position as shown below (Fig. 16).

Technical line drawing of a mechanical tool or tool with a base and handle, labeled Fig. 16 (no text or symbols on the diagram itself)

⚠️CAUTION! Do not use the pole hedge trimmer for cutting stems greater than 0.6" (1.6 cm) (or approximately 2/3 in. thick).

Use the pole hedge trimmer only for cutting normal shrubbery found around houses and buildings.

Do not force the pole hedge trimmer through dense growth. A slight back and forth sawing action may ease the cutting of larger, more dense growth. If the pole hedge trimmer begins to slow down, reduce the rate of speed at which you are trying to cut. If the pole hedge trimmer becomes jammed, immediately turn the trimmer off. Remove the battery and clear the jammed debris from the cutter blades.

Care + Maintenance

AWARNING

Do not place your hand or fingers between blades or in any position where they could get pinched or cut. NEVER touch the blades or service the unit with the battery inside the unit.

• Store the pole hedge trimmer in the blade cover provided. Store it in a dry location out of the reach of children.
• When servicing, use only identical replacement parts. Use of any other parts can create a hazard or cause product damage. Please contact an authorized Snow Joe ^® + Sun Joe ^2/3 dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOW.JOE (1-866-766-9563) for all replacement parts and accessories for your product.

Lubricate the Blades

For easier operation and longer blade life, lubricate the pole hedge trimmer blade before and after each use.

1. Stop the motor and remove the battery.
2. Lay the pole hedge trimmer on a flat surface. Remove any debris on the blades.
3. Apply lightweight machine oil along the edge of the top blade and make sure handle remains clean and dry (Fig. 17).

Fig. 17

Recycling + Disposal

The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioning properly. Recycle the package afterwards.

WEEE symbol. Waste electrical product should not be disposed of with household waste. Please recycle where facilities exist. Check with you local authority or local store for recycling advice.

Battery Caution + Disposal

Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations.

CAUTION! Even discharged battery packs contain energy. Before disposing, use electrical tape to cover terminals to prevent the battery pack from shorting, which cause a fire or explosion.

WARNING! To reduce the risk of injury or explosion, burn or incinerate a battery pack even if it is damaged, or completely discharged. When burned, toxic fumes materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual for specific information.
2. Install only new batteries of the same type in your product (where applicable).
3. Failure to insert batteries in the correct polarity, as indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.

4. Do not mix old and new batteries.

5. Always store the pole hedge trimmer in a place that is inaccessible to children. The ideal storage temperature is between 50^ F and 86^ F ( 10^ C and 30^ C).

6. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.

Service + Support

If your Sun Joe ^b cordless pole hedge trimmer requires service or maintenance, please call the Snow Joe ^c + Sun Joe ^c customer service center at 1-866-SNOWJOE (1-866-766-9563).

Model + Serial Numbers

When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal affixed to the housing or handle of your cordless pole hedge trimmer. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: Model #: 2 | 4 | V | - | P | H | T | 1 | 7 | - | L | T | E | - | R | M | Serial #:

Optional Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe ^® + Sun Joe ^® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this pole hedge trimmer. Contact Snow Joe ^® + Sun Joe ^® if you are unsure whether it is safe to use a particular replacement part or accessory with your pole hedge trimmer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

Accessories Item Model
1		24V iON+ 2.0 Ah Lithium-Ion BatteryBattery Charge Time Max:24VCHRG-AC: 1 hr 20 min | 24VCHRG-QC: 55 min | 24VCHRG-DPC: 55 minBattery Runtime Max: 50 min	24VBAT-LTE
2		24V iON+ 2.5 Ah Lithium-Ion BatteryBattery Charge Time Max:24VCHRG-AC: 1 hr 20 min | 24VCHRG-QC: 1 hr 10 min | 24VCHRG-DPC: 1 hr 10 minBattery Runtime Max: 1 hr	24VBAT-LT
3		24V iON+ 4.0 Ah Lithium-Ion BatteryBattery Charge Time Max:24VCHRG-AC: 2 hrs 40 min | 24VCHRG-QC: 1 hr 50 min | 24VCHRG-DPC: 1 hr 50 minBattery Runtime Max: 1 hrs 40 min	24VBAT
4		24V iON+ 5.0 Ah Lithium-Ion BatteryBattery Charge Time Max:24VCHRG-AC: 3 hrs 20 min | 24VCHRG-QC: 2 hrs 20 min | 24VCHRG-DPC: 2 hrs 20 minBattery Runtime Max: 2 hrs	24VBAT-XR
5

NOTES

SNOW JOE ^® + SUN JOE ^® REFURBISHED GOODS WARRANTY

GENERAL CONDITIONS:

Snow Joe ^® + Sun Joe ^® operating under Snow Joe ^® , LLC warrants this refurbished product to the original purchaser for 90 days against defects in material or workmanship when used for normal residential purposes. If a replacement part or product is needed, it will be sent free of charge to the original purchaser except as noted below.

The duration of this warranty applies only if the product is put to personal use around the household. It is the owner's responsibility to correctly perform all maintenance and minor adjustments explained in the owner's manual.

HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:

To 9obtain 9a 9replacement 9part 9or 9product, 9please 9visit snowjoe.com/help or email us at [e-mail] for instructions. Please be sure to register your unit beforehand to speed up this process. Certain products may require a serial number, 9typically 9found 9on 9the 9decal 9affixed 9to 9the 9housin or guard of your product. All products require a valid proof of purchase.

EXCLUSIONS:

- 9Wearing 9parts 9like belts, 9augers, 9chains 9and tines 9are not covered under this warranty. Wearing parts can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

- 0Datteries 9ara Acquired Qin Afull 9for 900-day Afrom 9the Ads

Snow Joe ^6 + Sun Joe ^6 may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating Snow Joe ^5 + Sun Joe ^3 to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective.

This warranty is intended to cover product defects only. Snow Joe ^® , 9LLC 9is 9not 9liable 9for 9indirect, incidental 9or consequential damages in connection with the use or misuse of the Snow Joe ^® + Sun Joe ^® products covered by this warranty. This 9warranty 9does 9not 9cover 9any 9cost 9or 9expense 9incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty. Some states do not allow exclusions of incidental or consequential damages so the above exclusions may not apply in 9all 9states. 9This 9warranty 9may 9give 9you 9specific 9legal 9rights 9your state.

HOW TO REACH US:

We're here to help Monday through Friday from 9AM to 7PM EST and Sunday 9AM to 4PM. You can reach us at 1-866-SNOWJOE (1-866-766-9563), online at snowjoe.com, via email at [e-mail] or tweet us @snowjoe.

EXPORTS:

Customers who have purchased Snow Joe ^4 + Sun Joe ^5
