Product Type	LED strip light effect fixture
Dimensions (LxWxH)	19.7 x 4.2 x 5.4 in (500 x 108 x 139 mm)
Weight	6.6 lb (3.0 kg)
Power Supply	Switching internal, 100–240 VAC, 50/60 Hz (auto-ranging)
Power Consumption	25 W (120 V) / 23 W (230 V)
Operating Current	0.3 A (120 V) / 0.1 A (230 V)
Fuse	T 1 A, 250 V
Light Source	6 quad-color RGBA LEDs (3 W each)
LED Lifespan	50,000 hours
Strobe Rate	0 to 20 Hz
Beam Angle	33°
Field Angle	60°
Illuminance @ 2 m	325 lux
DMX Control Modes	4-channel, 6-channel, 16-channel
DMX I/O Connector	3- and 5-pin XLR
Bluetooth Version	4.2 (compatible with BTAir app)
Battery Runtime	Up to 8 hours (all colors on)
Recharge Time	7.5 hours
Control Options	DMX, Bluetooth, IR remote (IRC-6), standalone, master/slave
Maximum Ambient Temperature	104 °F (40 °C)
Cooling System	Fan-assisted convection
Ingress Protection	IP20 (indoor use only)
What's Included	EZLink Strip Q6BT, Quick Reference Guide, power cord

Frequently Asked Questions - EZLink Strip Q6 BT Chauvet

How do I pair the EZLink Strip Q6BT with Bluetooth?

Press the MENU button repeatedly until bLE shows on the display, then press ENTER. The BTAir app will automatically find and pair with all BT series products within range.

What is the battery life of the EZLink Strip Q6BT?

The rechargeable lithium battery provides up to 8 hours of runtime with all LEDs on. Charging time is approximately 7.5 hours.

Can I control the fixture without a DMX controller?

Yes. You can use standalone modes (automatic programs, sound-active, custom color mixing), the IRC-6 infrared remote, or the BTAir Bluetooth app.

How do I set the DMX starting address?

Press MENU until 4Ch, 6Ch, or 16Ch appears. Press ENTER, then use UP/DOWN to select the address d 1-509 and press ENTER.

How do I configure Master/Slave mode?

Set slaves to 4Ch with DMX address d 1 and daisy-chain them. Set the master to SET > out > select dMX (for non-BT slaves) or SLAV (for BT slaves). Then set the master to standalone or IR mode.

How do I clean the EZLink Strip Q6BT?

Unplug and let cool. Use a vacuum or dry compressed air with a soft brush to remove dust. Clean transparent surfaces with a mild soap solution or ammonia-free glass cleaner applied to a soft cloth. Dry carefully.

What type of fuse does the fixture use and how do I replace it?

It uses a T 1 A, 250 V fuse. Disconnect power, pry out the fuse holder with a flat-head screwdriver, replace the blown fuse with the exact same type, and reinsert.

How do I adjust the strobe speed?

In 6Ch DMX mode, channel 6 controls strobe. Values 000-015 = no function, 016-255 = strobe slow to fast. Alternatively, in standalone mode, adjust strobe via the menu under u-- (custom color mixing) by setting S. 0-100.

How do I use sound-active mode?

Press MENU until Snd appears. Press ENTER, then use UP/DOWN to select program Snd1-8. Press ENTER. Adjust sensitivity via SEnS > u 0-100.

Is the EZLink Strip Q6BT compatible with the IRC-6 remote?

Yes. Activate IR mode by pressing MENU until SET shows, press ENTER, select ir, then on. The IRC-6 can control automatic programs, sound-active mode, and manual colors.

USER MANUAL EZLink Strip Q6 BT Chauvet

TABLE OF CONTENTS

1. Before You Begin 1

What Is Included 1 Unpacking Instructions 1

Claims 1

Text Conventions 1

Symbols 1

Disclaimer 1

Intellectual Property 1

Safety Notes 2

1. Introduction ...... 3

Product Overview 3

Product Dimensions 3

1. Setup 4

AC Power 4

Fuse Replacement 4

Power Linking 4

Power-Linking Diagram 4

Battery Power 5

Charging the Battery 5

Battery Life Indicator 5

Mounting 6

Orientation.... 6

Rigging 6

Mounting Diagram 6

1. Operation 7

Control Panel Operation 7

Menu Map 7

Configuration (DMX) 8

Starting Address 8

DMX Personalities 8

DMX Channel Assignments and Values 8

16Ch 8

6Ch....9

4Ch 9

Configuration (Bluetooth) 10

1. Before You Begin

What Is Included

• EZLink Strip Q6BT

- Quick Reference Guide

• Power cord

Unpacking Instructions

Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.

Claims

If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Convention Meaning

1-512 A range of values

50/60 A set of values of which only one can be chosen

Settings A menu option not to be modified

A key to be pressed on the product's control panel

ON A value to be entered or selected

Symbols

Symbol Meaning
	Electrical warning. Not following these instructions may cause electrical damage to the product, accessories, or the user.
	Critical installation, configuration, or operation information. Not following these instructions may make the product not work, cause damage to the product, or cause harm to the operator.
	Important installation or configuration information. The product may not function correctly if this information is not used.

Safety Notes

• This product is not intended for permanent installation.

• Always connect the product to a grounded circuit to avoid the risk of electrocution.

• Always disconnect the product from the power source before cleaning or replacing the fuse.

- Avoid direct eye exposure to the light source while the product is on.

- Make sure the power cord is not crimped or damaged.

- Never disconnect the product from power by pulling or tugging on the cord.

- If mounting the product overhead, always secure to a fastening device using a safety cable.

- Make sure there are no flammable materials close to the product when operating.

- Do not touch the product's housing when operating because it may be very hot.

- The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

- The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose the product to rain or moisture.

• Always install the product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the product's housing are blocked.

- Never connect the product to a dimmer or rheostat.

- Make sure to replace the fuse with another of the same type and rating.

- Never carry the product from the power cord or any moving part.

- The maximum ambient temperature is 104°F (40 °C). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using the product immediately.

- Do not open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document.

2. Introduction

Product Overview

Product Dimensions

3. Setup

AC Power

The EZLink Strip Q6BT has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product's power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product's back panel, or refer to the product's specifications chart. The listed current rating indicates the product's average current draw under normal conditions.

• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure the product has an appropriate electrical ground to avoid the risk of electrocution or fire. • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder out of the housing.
4. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating
5. Insert the fuse holder back in place and reconnect power.

Disconnect the product from the power outlet before replacing the fuse.

Power Linking

The product provides power linking via the outlets located in the back of the product. See the diagram below for further explanation.

Power-Linking Diagram

Setup

Battery Power

The EZLink Strip Q6BT comes with a rechargeable lithium battery for cable-free operation.

Charging the Battery

The battery charges whenever the EZLink Strip Q6BT is plugged into a power source using the included power cord. If the product is plugged in and not in operation, make sure the product is turned off.

• The LED indicator light will flash if you overpower your units. - DO NOT use the EZLink Par Q4BT on full power mode (all LEDs at 100%) while it is being charged/plugged into a power source, as the unit will get extremely hot.

Battery Life Indicator

The indicators on the LED Menu Display show how much battery life remains available. The drawing below provides a key to reading the battery life indicators.

Battery Run Time

Maximum Run Time (all colors on) Recharge Time

Up to 8 hours 7.5 hours

Mounting

Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.

Orientation

The EZLink Strip Q6BT may be mounted in any position; however, make sure adequate ventilation is provided around the product.

Rigging

• Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
• Make sure adequate ventilation is provided around the product.
• Make sure that the structure or surface onto which you are mounting the product can support the product's weight. (see the Technical Specifications)
• When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power-linking cables to reach.

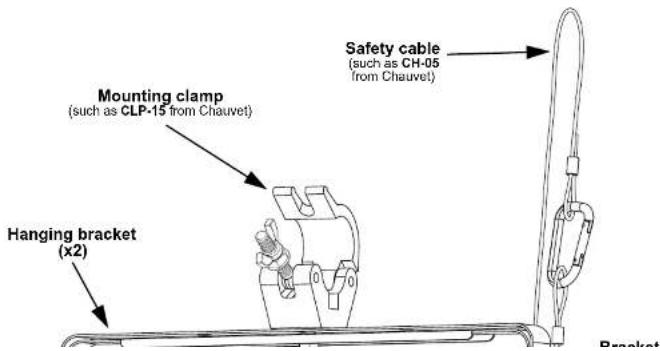

Mounting Diagram

4. Operation

Control Panel Operation

To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control panel.

Button Function

	Press to find an operation mode or to back out of the current menu option
	Press to scroll up the list of options or to increase the numeric value in a function
	Press to scroll down the list of options or to decrease the numeric value in a function
	Press to activate a menu option or set the selected value in a function

Menu Map

Refer to the EZLink Strip Q6BT product page on www.chauvetdj.com for the latest menu map.

Mode Programming Levels Description
DMX Mode	4Ch	channel DMX mode	4-channel DMX mode
	6Ch 6-channel DMX mode
	16Ch 16-channel DMX mode
Static Colors	C-- C 1-15 Static colors
Automatic Programs	P-- P 1-8 Automatic programs
Auto Speed	S--	S. 1-100	Program speed for P1-8, slow to fast
Dimmer	d--	L. 1-255	Dimmer for the Auto/Sound programs
Sound-Active Mode	Snd	Snd1-8	Sound-active programs
Sensitivity	SEnS	u 0-100	Sound sensitivity
Custom Color Mixing	u--	r. 0-255	Custom static colors combine red, green, blue,and amber
		G. 0-255
		b. 0-255
		A. 0-255
		S. 0-100	Strobe rate
Bluetooth Mode*	bLE	----	Bluetooth control mode, displays Bluetooth ID

Operation

Configuration (DMX)

The EZLink Strip Q6BT works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website:

http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf

Starting Address

When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. If the starting address is set too high, access to some of the product's channels could be restricted.

The EZLink Strip Q6BT uses up to 16 DMX channels, which defines the highest configurable address is 497. For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com.

To select the starting address, do the following:

1. Press repeatedly until 4Ch, 6Ch, or 16Ch shows on the display.
2. Press
3. Use or to select the starting address, from d 1-509
4. Press

DMX Personalities

The EZLink Strip Q6BT has three DMX personalities: a 4-channel personality, a 6-channel personality, and a 16-channel personality.

To select a DMX personality, follow the instructions below.

1. Press to view menu options on the display.
2. Use or to select the DMX personality, from 4Ch, 6Ch, or 16Ch.
3. Press .

DMX Channel Assignments and Values

Channel Function Value Percent/Setting
1	Red 1	000 ⇔ 255	0–100%
2	Green 1	000 ⇔ 255	0–100%
3	Blue 1	000 ⇔ 255	0–100%
4	Amber 1	000 ⇔ 255	0–100%
5	Red 2	000 ⇔ 255	0–100%
6	Green 2	000 ⇔ 255	0–100%
7	Blue 2	000 ⇔ 255	0–100%
8	Amber 2	000 ⇔ 255	0–100%
9	Red 3	000 ⇔ 255	0–100%
10	Green 3	000 ⇔ 255	0–100%

EZLink Strip Q6BT Zones for DMX Control (16Ch)

6Ch

Channel Function Value Percent/Setting
1 Red	000 ⇔ 255 0–100%
2 Green	000 ⇔ 255 0–100%
3	Blue	000 ⇔ 255	0–100%
4 Amber	000 ⇔ 255 0–100%
5 Dimmer	000 ⇔ 255 0–100%
6 Strobe		000 ⇔ 015	No function
		016 ⇔ 255	Stroke, slow to fast

4Ch

Channel	Function Value Percent/Setting
1 Red	000 ⇔ 255 0–100%
2 Green	000 ⇔ 255 0–100%
3	Blue	000 ⇔ 255	0–100%
4 Amber	000 ⇔ 255 0–100%

Operation

Configuration (Bluetooth)

The EZLink Strip Q6BT can be operated with the BTAir application over a Bluetooth connection (Bluetooth version 4.2):

1. Download and install the BTAir app from your preferred app store.
2. Press repeatedly until bLE shows on the display.
3. Press .

The app will find and pair automatically to all the BT series products within range.

Configuration (Standalone)

Set the product in one of the standalone modes to control without a DMX controller.

Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller.

Automatic Programs

To run the EZLink Strip Q6BT in automatic mode, follow the instructions below:

1. Press repeatedly until P-- shows on the display.
2. Press
3. Use or to select an automatic program, from P 1-8.
4. Press .

Auto-Program Speed

To set the auto-program speed on the EZLink Strip Q6BT, do the following:

1. Press repeatedly until S-- shows on the display.
2. Use or to increase or decrease the program speed, from S. 1-100
3. Press . The product will return to Auto mode.

Sound-Active Mode

To run the EZLink Strip Q6BT in sound-active mode, follow the instructions below:

1. Press repeatedly until Snd shows on the display.
2. Press .
3. Use or to select a sound-active program, from Snd1-8.
4. Press

The product will only respond to low frequencies of music (bass and drums).

Preset Color Mode

IRC-6 Infrared Remote Control

The EZLink Strip Q6BT is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below:

1. Press repeatedly until SET shows on the display.
2. Press
3. Use or to select ir.
4. Press
5. Use or to select on.
6. Press

IRC-6 Operation

Automatic mode will enable you to run the automatic programs on the product.

To turn on Automatic mode (snap) with the IRC-6:

1. Press on the IRC-6.
2. Press <+> or <-> to choose between the different auto programs.

To select only fading programs:

1. Press on the IRC-6.
2. Press <+> or <-> to choose between the different fading programs.

To adjust the speed of the automatic program:

1. Press on the IRC-6.
2. Press ↔ or ← to increase or decrease the speed of the program.

Sound-Active Mode

To turn on Sound-Active mode with the IRC-6:

1. Press on the IRC-6.
2. Press <+> or <-> to select a sound-active program.

To adjust the sound sensitivity:

1. Press on the IRC-6.
2. Press <+> or <-> to increase or decrease the sensitivity.

Manual Color Control

To select a preset static color with the IRC-6: 1. Press on the IRC-6. 2. Press any number between 0–9 to choose your color. To manually control the RGB percentage with the IRC-6: 1. Press on the IRC-6. 2. Select the color to be edited, from (red), (green), (blue), or (amber).

Operation

Master/Slave Mode

The Master/Slave mode allows a single EZLink Strip Q6BT product (the "master") to control the actions of one or more EZLink Strip Q6BT products (the "slaves") without the need of a DMX controller. The master product will be set to operate in standalone or with the IRC-6, while the slave products will be set to operate in slave mode. Once set and connected, the slave products will operate in unison with the master product.

Configure the products as indicated below.

Slave products:

1. Press repeatedly until 4Ch shows on the display.
2. Press
3. Set the DMX address to d 1.
4. Connect the DMX input of the first slave product to the DMX output of the master product.
5. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave product.
6. Finish setting and connecting all the slave products.

Master product:

1. Press repeatedly until SET shows on the display.
2. Press
3. Use or to select out.
4. Press
5. Press or to select dMX (to Master/Slave with non-BT products) or SLAV (to Master/Slave with other BT products).
6. Press
7. Set the master product to operate in standalone or IR mode.
8. Make the master product the first product in the DMX daisy chain.

- Configure all the slave products before connecting the master to the daisy chain.

• Never connect a DMX controller to a DMX string configured for Master/Slave operation because the controller may interfere with the signals from the master.
• Do not connect more than 31 slaves to the master.

5. Maintenance

Product Maintenance

Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source's life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.

To clean the product, follow the instructions below:

1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl alcohol.
5. Apply the solution directly to a soft, lint-free cotton cloth or a lens-cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.

Always dry the transparent surfaces carefully after cleaning them.

Do not spin the cooling fans using compressed air because they could be damaged.

6. Technical Specifications

Dimensions and Weight

Length Width Height Weight

19.7 in (500 mm) 4.2 in (108 mm) 5.4 in (139 mm) 6.6 lb (3.0 kg)

Note: Dimensions in inches rounded to the nearest decimal digit.

Power

Power Supply Type Range Voltage Selection

Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging

Parameter 120 V, 60 Hz 230 V, 50 Hz

Consumption	25 W	23 W
Operating current	0.3 A	0.1 A
Fuse	T 1 A, 250 V	T 1 A, 250 V
Power I/O	U.S./Worldwide	UK/Europe
Power input connector	IEC	IEC
Power cord plug	Edison (U.S.)	Local plug

Light Source

Type	Color	Quantity	Power	Current	Lifespan
LED	Quad-color RGBA	6	3 W	1 A	50,000 hours

Photometrics

Strobe Rate	Beam Angle	Field Angle	Illuminance @ 2 m
0 to 20 Hz	33°	60°	325 lux

Thermal

Maximum External Temperature Cooling System

104 °F (40 °C) Fan-assisted convection

DMX

I/O Connector	Channel Range	Optional Controllers
3- and 5-pin XLR	4, 6, or 16	IRC-6

Ordering

Product Name	Item Code	UPC Number
EZLink Strip Q6BT	10031541	781462218898

Returns

In case you need to get support or return a product:

• If you are located in the U.S., contact Chauvet World Headquarters.

• If you are located in the UK or Ireland, contact Chauvet Europe Ltd.

• If you are located in Benelux, contact Chauvet Europe BVBA.

• If you are located in France, contact Chauvet France.

• If you are located in Germany, contact Chauvet Germany.

• If you are located in Mexico, contact Chauvet Mexico.

- If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauveldj.com for distributors outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico.

If you are located outside the U.S., UK, Ireland, Benelux, France, Germany, or Mexico, contact your distributor of record and follow their instructions on how to return Chauvet products to them. Visit our website www.chauvetdj.com for contact details.

Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause for the return.

To submit a service request online, go to www.chauvetdj.com/service-request.

Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags.

Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number.

Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box.

Before sending the product, clearly write the following information on a piece of paper and place it inside the box:

- Your name

- Your address

- Your phone number

• RMA number

• A brief description of the problem

Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended.

Chauvet reserves the right to use its own discretion to repair or replace returned product(s).

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]
