USER MANUAL HDM-320-4K-TT Wohler

© 2018 Wohler Technologies, Inc. All rights reserved.

This publication is protected by federal copyright law. No part of this publication may be copied or distributed, stored in a retrieval system, or translated into any human or computer language in any form or by any means electronic, mechanical, manual, magnetic, or otherwise, or disclosed to third parties without the express written permission of Wohler Technologies.

Reproduction

Licensed users and authorized distributors of Wohler Technologies, Inc. products may copy this document for use with Wohler Technologies., Inc. products provided that the copyright notice above is included in all reproductions.

Customer Support

Wohler Technologies, Inc.

31055 Huntwood Avenue

Hayward, CA 94544 www.wohler.com

Phone: [phone]

FAX: [phone]

US Toll Free: 1-888-596-4537 (1-888-5-WOHLER)

Web: www.wohler.com Sales: [e-mail]

Support: [e-mail]

Disclaimers

Even though Wohler Technologies, Inc. has tested its equipment and software, and reviewed the documentation, Wohler Technologies, Inc. makes no warranty or representation, either express or implied, with respect to software, documentation, their quality, performance, merchantability, or fitness for a particular purpose.

In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.

Some states do not allow the exclusion or limitation for incidental or consequential damages, so the above exclusion or limitation may not apply to you.

TABLE OF CONTENTS

Contents

User Guide....1

TABLE OF CONTENTS....3

Contents 3

CHAPTER 1: Installation....4

Introduction 4

Overview....4

Features 4

Safety....4

Instructions 4

Safety Symbols....5

Mounting....5

Heat Dissipation....6

Sympathetic Ωibration....6

Mechanical 6

Electrical Interference 6

Power 6

Compliance 7

FCC 7

ICES-003 7

CHAPTER 2: Local Operation ....8

Front Panel 8

On-Screen Display Features....9

Rear Panel....11

CHAPTER 1: Installation

Introduction

Overview

The HDM-320-4K-TT monitor sets a new standard in UltraHD LCD monitors for broadcast and professional video applications. It provides a 32", 3840 x 2160 resolution, 16:9 format, 60Hz refresh, anti-glare IPS LCD screen. All video formats are scaled to fit on the screen in the highest quality using 12-bit digital processing, precision scaling and gamma correction to produce the best images possible.

Features

The HDM-320-4K-TT audio/video monitor is designed for confidence monitoring of four 3G/HD/SD-SDI inputs. 2SI Interleave or Quad-Link 4K video can be monitored using the four HD-SDI inputs together. Input signals are easily selected and displayed. Two to sixteen audio channels may be selected for visual monitoring on bar graph style level meters. On screen marker displays can be enabled on this full-featured monitor. Stereo speakers provide audio monitoring. A headphone jack is also provided for external audio monitoring.

Parameters are selected and adjusted using an On Screen Display (OSD) Menu. Monitor management settings can also be made with a web browser over Ethernet using the integral web server. The monitor can contain up to four user definable configurations which can easily be recalled whenever necessary.

Safety

1. Protect the power cord from being walked on or pinched, particularly at plug connection on the equipment and at the socket.
2. Use only the attachments/accessories specified by the manufacturer.
3. Unplug the equipment during lightning storms or when unused for long periods of time.
4. Refer all servicing to qualified service personnel. Servicing will be required under all of the following conditions:

a. The equipment has been damaged in any way, such as when the power-supply cord or plug is damaged.
b. Liquid had been spilled or objects have fallen onto the equipment.
c. The equipment has been exposed to rain or moisture.
d. The equipment does not operate normally.
e. The equipment has been dropped.

Safety Symbols

The symbol to the left warns of electric shock hazard inside the unit. Disconnect the power cord before removing access panels when installing upgrades. Only qualified service personnel are to operate the equipment with covers removed, and are to exercise caution to avoid personal injury.

Mounting

The HDM-320-4K-TT is designed to be placed on a tabletop or other flat surface. Position either unit at ear/eye level for best high frequency response and visual observation of the display screen. Please adhere to the following clearances:

Table 1-1: Recommended Clearances

Heat Dissipation

The ambient temperature near the product should not exceed 40^ Celsius ( 104^ Fahrenheit). When rack mounting, adjacent devices can be rack mounted in proximity to the unit if this temperature is not exceeded. Otherwise, allow a 1RU (1.75"/44.45mm) space above and below the unit for air circulation. For table top operation, in warm environments, allow an inch of space above and below the unit for air circulation.

Important

To reduce noise, the monitor does not have any fans. As a result, the heat generated by the audio amplifiers, power supplies, and other components is vented by slots in the back of the unit. Therefore, as a safety precaution, you must allow proper ventilation on these surfaces.

Sympathetic Ωibration

Sympathetic vibration from other equipment (cables, etc.) in the rack may be serious enough to interfere with the unit's sound quality. If you experience sympathetic vibrations, use thin card stock, felt, foam, or weather-stripping between the vibrating surfaces. Tie loose cables securely with cable ties.

Mechanical

The sturdy chassis is very shallow from front to back making it very stable on its table stand. It can be tilted forward or backward for viewing, if necessary. The weight of internal components is distributed fairly evenly around the unit.

Electrical Interference

Be careful to avoid mismatched cable types and other similar causes of undesired reflections in digital signal systems. If severe enough, such reflections can result in corruption of the digital data stream. As with any audio equipment, maximum

Compliance

FCC

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

ICES-003

This Class A digital apparatus complies with Canadian ICES-003.

CHAPTER 2: Local Operation

The controls, indicators, and connections on the HDM-320-4K-TT front and rear panels are described in this chapter.

Front Panel

Figure 2-1: Front Panel Layout

LCD Screen Wohler HDM-320-4K Wohler HDM-320-4K

1. Function Keys: Press F1, F2, F3, or F4 to activate the assigned function. The default assignments are as listed in Table 2-1. The action of each Function Key can be selected from a wide variety of actions in the User Config Menu as described in Table 2-8.

Table 2-1: Default Function Key Actions

Key	Default Action
F1	Color Comparison
F2	Scan
F3	Aspect
F4	Blue Only

1. OK: Press this button to display the OSD Menu. When the OSD Menu is displayed, pressing this button accepts selections in the menus and sub-menus. Refer to the OSD Menus section of this chapter for operation and content of these menus.
2. Left: When the OSD Menu is not being displayed, pressing this button displays the Quick Menu, and cycles through frequently used volume and image controls. Refer to the Quick Menu section of this chapter. When the OSD Menu is displayed, the Left button navigates horizontally through the sub-menu selections.
3. Down: When the OSD Menu is displayed, the Down button navigates down through the menu and sub-menu selections and can be used to adjust the settings. It also adjusts the items in the Quick Menu.
4. Up: When the OSD Menu is displayed, the Up button navigates down through the menu and sub-menu selections and can be used to adjust the settings. It also adjusts the items in the Quick Menu.
5. Right: When the OSD Menu is displayed, the Right button navigates horizontally through the sub-menu selections.
6. Spkr: These are the locations of the left and right speakers.

The de-embedded Timecode from the HD/SD-SDI source displays on the lower part of the screen.

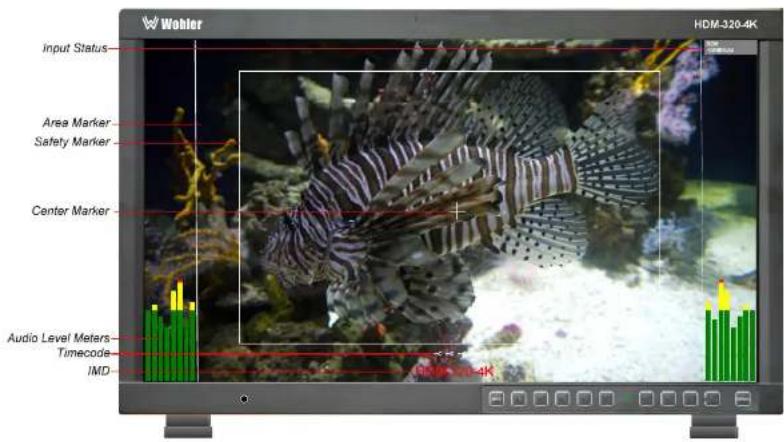

Figure 2-2: Display Features

Wohler HDM-320-4K Input Status Area Marker Safety Marker Center Marker Audio Level Meters Timecode IMD 05:00:4K

1. Input Status: Displays the detected input and video parameters of the signal: vertical active line count, (i)nterlaced or (p)rogressive, and field/frame rate in Hz.
2. Area Marker: Used to mark an alternate aspect ratio area of the image. You can set whether to display it, the brightness, and the matte mode in the User Config Menu. Refer to Table 2-8.
3. Safety Marker: This is used to mark a percentage area, inside of the image, safe for titles to be located. You can set whether to display it, as well as its

Rear Panel

Figure 2-3: Rear Panel Layout

SDI 1 SDI 2 SDI 3 SDI 4 RS485 InOut Ethernet DC Power Power Switch AC Power

Important:

By design, the supplied AC mains power cord will only plug into a three-prong grounded outlet for your safety. If the plug does not fit into the outlet, contact an electrician to replace the obsolete outlet. The symbol to the left warns of electric shock hazard inside or outside the unit. Disconnect the power cord before removing access panels.

1. SDI 3 In: This is the third 3G/HD/SD-SDI video signal input. This connection is compliant with SMPTE 424M, SMPTE 259M, SMPTE292M/ITU-R BT601. It can be viewed using the SDI3 selection on the Input button menu.
2. SDI 4 In: This is the fourth 3G/HD/SD-SDI video signal input. This connection is compliant with SMPTE 424M, SMPTE 259M, SMPTE292M/ITU-R BT601. It can be viewed using the SDI4 selection on the Input button menu.
3. RS-485 In/Out: These RJ-45 jacks are used for dynamic Tally/IMD controls. Two jacks are provided for in & out daisy chain arrangements. They are wired identically. Refer to Figure 2-4 below for the pinout and to Table 2-3 for terminal connections. These connections are also used for system software upgrades. Either CAT5 or CAT6 cables may be used for these jacks.
4. Ethernet: The 10/100M Ethernet connector is used to connect with a computer to modify the display settings remotely. CAT5 network cables are recommended for medium distances. CAT6 twisted pair shielded cables are recommended for longer distances.
5. DC Power Connector: 14 to 19ΩDC at 3A power supply connects to this XLR connector to power the monitor when AC power is not available.
6. Power Switch: This switch removes all power from the product. Normally, since this switch is on the rear panel, it is left in the 1 (On) position and the front panel Power button is used to start and stop product operation.
7. AC Power Connector: The supplied 100 to 240ΩAC power cord connects to this IEC connector.

Rear Panel Connectors

The following figure and table details the connections of the RS-485 connectors on the rear panel. The table is also silkscreened on the rear panel of the unit for your convenience.

Figure 2-4: RS-485 I/O Pin-Out

Table 2-3: RS-485 I/O Connections

Pin	RS-485 Terminal Name
1, 2 GND
3 Tx-	(pair A)
4 Rx+	(pair B)
5 Rx-	(pair B)
6 Tx+	(pair A)
7, 8 NC

Using the Quick Menu and the OSD Menus

In the following descriptions, refer to Figure 2-5 for the location of each control button.

Figure 2-5: Screen Control Buttons

INPUT Input Left Down OK Up Right F1 F2 F3 F4 Function Keys Power

Quick Menu

The Quick Menu provides quick access to a few commonly used features, as listed in Table 2-4. The Quick Menu appears as shown in Figure 2-6.

Figure 2-6: Quick Menu - Ωolume Setting

Table 2-4: Quick Menu

Parameters	Default Value	Domain Range
ΩOLUME 16 0 - 31
BRIGHTNESS 50		0 - 100
CONTRAST 50		0 - 100
INTENSITY 50 0 - 100
APERTURE 0 0 - 63

OSD Menus

The OSD Menus allow you to adjust a wide variety of control parameters for the monitor. Refer to Table 2-5 through Table 2-10 for typical values and domain ranges. The following is a description of how to use the OSD Menus:

1. Press the Menu button to display the Main Menu.
2. Use the Up and Down buttons to navigate through the submenus.
3. Press the Enter button to enter the parameter selections in the chosen submenu.
4. Use the Up or Down buttons to cycle through the submenu selections.
5. When the desired option is highlighted, press the Enter button to select it.
6. Use the Up or Down buttons to adjust the parameter value up or down, make a selection, or turn a function on or off.
7. Press the Enter button to accept your parameter change -or- press the Menu button to cancel your change.
8. Press the Menu button to back out of any submenu, and finally to remove the OSD Menus from the screen.

OSD Menus

The following tables describe the information and settings available in the OSD Menu system. Use the instructions in the previous section to navigate the menus.

Table 2-5: Status Menu Structure

Status
Parameters	Default Value	Domain Range	Description
INPUT SDI-1		SDI-1SDI-2SDI-3SDI-4	Selected input
SIGNAL FORMAT NO	SIGNAL	Input signal format
COLOR RANGE 64~940		Current color range
YCbCr COLOR MATRIX	ITU-R BT.709	Current color matrix
COLOR TEMP D65		D93D65D61D55DCIDCI XYZUSER1USER2	Current color temperature
COLOR SPACE ITU601	Current color space
EOTF 2.2 Show EOTF
Menu Page 2

Table 2-6: Input Menu Structure

Input Config
Parameters	Default Value	Domain Range Description
SDI 1 ON OFF, ON			Enables or disables the input choices available in the Input Select Menu
SDI 2 OFF OFF, ON
SDI 3 OFF OFF, ON
SDI 4 OFF OFF,		ON
IMAGE DIΩISION	2SI	2SIQUAD DIΩISION	When using QUAD LINK signal format:2SI displays a 4K interleaved signal using all four 3G/HD/SD/SDI inputs.QUAD DIΩISION combines 4 images into a 4K image using all four 3G/HD/SD-SDI inputs.
SIGNAL FORMAT	AUTO	AUTO4:2:2 YCbCr 10 BIT4:2:2 YCbCr 12 BIT4:4:4 YCbCr 10 BIT4:4:4 YCbCr 12 BIT4:4:4 RGB 10 BIT4:4:4 RGB 12 BIT4:4:4 XYZ 10 BIT4:4:4 XYZ 12 BIT	Input signal format
Menu Page 2

Table 2-7: Color Temp Menu Structure

Color Temp
Parameters	Default Value	Domain Range Description
COLOR TEMP D65		D93D65D61D55DCIDCI XYZUSER1USER2		Set the color temperature.
RED GAIN	512 0 to 512			Set the gain and offset for each color. Available only when COLOR TEMP is set to USER1 or USER2.
GREEN GAIN
BLUE GAIN
RED BIAS	0 -100 to +100
GREEN BIAS
BLUE BIAS
COPY FROM D65		D93D65D61D55DCIDCI XYZ		Copies this set of color parameters to USER.
RESET Resets Gain and Offset to Factory Default
Menu Page 2
		NATIΩESMPTE-CEBU
COLOR COMPARISON*	OFF	OFFON		Enable / Disable color comparison of the two channels
SECOND COLOR SPACE	EBU	NATIΩE SMPTE-C EBU ITU709 ITU2020 P3 S-GAMUT/S-GAMUT3 S-GAMUT3.CINE		Set the color space of the second channel
SECOND EOTF 2.2		1.8, 2.2, 2.4, 2.6, 2.8 BT.1886 HLG S-LOG2 S-LOG3 SMPTE ST.2084		Set the gamma/EOTF for the second channel
SECOND HDR RANGE	---	EOTF HDR		Set the HDR range for the second channel. Only available for EOTF (HDR)
		HLG 100-1	200
		S-LOG2 100-1500
		S-LOG3 100-3800
		SMPTE ST.2064	100-10000

* When COLOR COMPARISON is set to ON, the video effects of the values set in the First and Second settings will be shown on the left and right halves of the screen. The First settings will affect the video on the left side of the screen and the Second settings will affect the video on the right side of the screen.

Table 2-8: User Config Menu Structure

User Config
Parameters	Default Value	Domain Range		Description
USER PRESET	USER1	USER1USER2USER3USER4		Select a USER PRESET
F1	COLOR COMPARISON	COLOR COMPARISON LUT SWAP BLUE ONLY MONO MARKER AUDIO METER TIMECODE SCAN NATIΩE ASPECT MUTE IMD DISPLAY UNDEF (none)		Set up the F1 Function key action.
F2 SCAN				Set up the F2 Function key action.
F3 ASPECT				Set up the F3 Function key action.
F4 BLUE ONLY				Set up the F4 Function key action.
Menu Page 2
AUDIO EBD		EBD: EMBEDDED SIGNAL EXT: EXTERNAL SIGNAL OFF: NO SIGNAL
SPEAK OUT 1	EBD CH1	WHEN AUDIO SOURCE IS EBD: THE RANGE IS EBD		Select the audio channel to be routed
METER SELECT	CH 1-2	CH 1-2G1G2G3G4G1 + G2G1 + G3G1 + G4G2 + G3G2 + G4G3 + G4G1-G4		Select channels or groups to be metered on the video screen
METER POSITION	LEFT	LEFT RIGHT		Select screen position of meters
TRANS-PARENCY	0	0 = 100%1 = 75%2 = 50%3 = 25%		Set meter appearance
REF LEΩEL -20dB		-20dB-18dB	Set meter reference level
OΩER LEΩEL -10dB		-10dB-8dB-6dB-4dB-2dB	Set meter overload level
Menu Page 3
MARKER OFF		OFF ON		Turn all markers ON or OFF
ASPECT		16:94:315:914:9		Set aspect
SAFETY MARKER	OFF	OFF80%85%88%90%93%95%		Set safety area size according to aspect ratio and scan mode
MARKER LEΩEL	1	1 = 50%2 = 75%3 = 100%		Set the luminance of all markers
MARKER MAT OFF		OFFHALFBLACK	Refer to Figure 2-7	Set Marker Mat effect
MARKER FIT OFF		OFF: Safety Marker based on current input sourceON: Safety Marker based on image within current aspect marker		Set Safety Marker source
CROSS HATCH	OFF	OFFON		Set whether to show the cross hatch
Menu Page 4
BACKLIGHT* 15 0 - 30				Set Backlight brightness
INTERNAL SIGNAL	OFF	OFFON		Enable or Disable internal color bars
OSD TIME ON		ON10 SEC30 SEC60 SEC		Set OSD Menu timeout
		OFF		Set Status

Figure 2-7: Marker Mat Effect

Marker Mat = OFF

Marker Mat = HALF

Marker Mat = BLACK

Table 2-9: Remote Menu Structure

Remote
Parameters	Default Value	Domain Range	Description
IMD DISPLAY ON		OFFON	Set whether to display IMD characters on the screen
IMD PROTOCOL LOCAL		TSL3.1TSL4.0STATIC	Select an IMD protocol
MONITOR ID 0 0 - 255			Set the ID number for each monitor
BAUD RATE 38400		240048009600192003840057600115200	Select a bard rate for communication

Table 2-10: Key Inhibit Menu Structure

Key Inhibit
Parameters	Default Value	Domain Range	Description
KEY INHIBIT OFF		OFFON	Inhibits most key functions to prevent inadvertent setting changes.

CHAPTER 3: Technical Info

Table 3-1: Specifications

Specification	Values/Domains
Power requirements	100 V to 240 VAC ± 10%, 50/60Hz
Power consumption 44 Watts
HDM-320-4K with tabletop stand	28.3" H x 17.4" W x 2.8" D720 mm H x 442 mm W x 78 mm D
Weight with stand 13 lbs. (5.9 kg)
Supplied Accessories Power Adapter, AC Power Cord
Display Type IPS-LCD with LED Backlight
Number of Displays 1
Screen Size 32.0" diagonal per screen
Screen Resolution 3840(H) x 2160(V)
Aspect ratio 16:9, 4:3
Display Area (mm) 475(H) x 266(V)
Viewing Angle 178°(H) x 178° (V)
Color Depth 1.073G colors
Contrast Ratio 3000:1
Brightness	300 cd/m2
Backlight	White LED
Response Time	9.5 ms
	4 x 3G SDI:
	SD, SDI, SMRTE, 350M, ITI, P, RT, 656

Figure 3-1: HDM-320-4K Series Block Diagram

Supported Video Formats

The HDM-320-4K monitors will display the video formats listed in Table 3-2.

Table 3-2: Ωideo Formats

Signal Format		SDI
HD	720p24/23.97	X
	720p25	X
	720p30/29.97	X
	720p50	X
	720p60/59.94	X
	1080sf24/23.97	X
	1080sf25	X
	1080sf29.97	X
	1080sf30	X
	1080i50	X
	1080i60/59.94	X
3G	1080p24/23.97	X
	1080p25	X
	1080p30/29.97	X
	1080p50	X
	1080p60/59.94	X
2K	1080p50	X
	1080p60/59.94	X
	4096x2160p60/59.94	X
	4096x2160p50	X

CHAPTER 4: Using Network Control

The HDM-320-4K Web GUI allows you to customize the monitor configuration to perfectly suit your needs. The following setup steps are not necessary if you intend to use the HDM-320-4K in its default configuration or if you only make configuration changes using the OSD menus. However, the HDM-320-4K Web GUI network control is ideal for configuring difficult to access monitors.

Web Browser / Control Device

Any web browser application running on any networked device such as desktop or laptop computer, tablet, or smart phone can be used with the HDM-320-4K Web GUI.

If a tablet without a physical network connector is to be used, it needs to be linked to a copper LAN through a Wi-Fi adaptor.

Phones are not recommended due to their smaller screen size, which would require more scrolling.

The Chrome® web browser is recommended for speed and compatibility.

First Time- IP Assignments

The HDM-320-4K operates with a static (fixed) IPv4 address. The address will be 192.168.1.86 when received from the factory or when reset at the front panel. This is shown in Figure 4-2. The IP address will need to be changed to some other address to be compatible with the customer's network address assignments. Go to

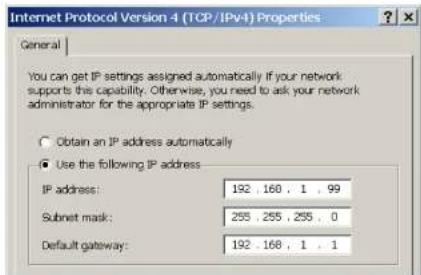

Figure 4-1: Host IP Settings

Internet Protocol Version 4 (TCP/IPv4) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address IP address: 192 . 168 , 1 , 99 Subnet mask: 255 . 255 , 255 , 0 Default gateway: 192 . 168 , 1 , 1

After making an IP address change such as this, close the control panel and reboot the host computer to be sure the change takes effect.

Make the final address, mask and gateway changes in the HDM-320-4K System setup page.

Management Interface

The Management Interface browser window is shown in Figure 4-2. Enter the IP Address of the monitor into the address bar on your browser and press the Enter key to access the web server. The settings in the Web GUI apply to the system in general, regardless of which input source is selected.

Figure 4-2: Status Page

IMD DISPLAY OFF ON IMD COLOR RED SET IMD CHARACTER HDM-320-3G-TT SET IMD PROTOCOL STATIC SET IMD ID 0 SET BAUD RATE 38400 SET IPADDRESS 192.168.1.86 SET SUBNET MASK 255.255.255.1 SET GATEWAY 192.168.1.1 SET

selection into effect.

1. IMD ID: Make a selection from the pull down list. Click SET to put your selection into effect.
2. BAUD Rate: Select the desired BAUD rate for the serial RS-485 IMD interface from the pull down list. Click SET to put your selection into effect.
3. IP Address: Make a selection from the pull down list. Click SET to put your selection into effect.
4. Subnet Mask: Make a selection from the pull down list. Click SET to put your selection into effect.
5. Gateway: Make a selection from the pull down list. Click SET to put your selection into effect.
6. Language: Select English.
