USER MANUAL ST-DWD6502812-JBX-W Security Tronix

SECURITY TRONIX

THE IMAGE OF QUALITY

INSTALLATION MANUAL

ST-DWD6502812-JBX-B/W

Vandal-Proof Infrared Color Camera With cable junction box

Close-up of a black cylindrical object with a circular base and a small circular top, resembling a mechanical or electronic component (no visible text or symbols)

Close-up of a white cylindrical mechanical component with a circular opening and mounting holes (no visible text or symbols)

PACKAGE CONTENTS

This package contains:

One ST-DWD650IRVP2812-B/W Camera with Junction Box base One installation manual

Note: The ST-DWD650IRVP2812-B/W requires a 12VDC 500mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A.

PRODUCT DESCRIPTION

The ST-DWD650IRVP2812-B/W is a vandal-proof infrared camera designed around a 1/3" Color SONY Super HAD CCD with 650TVL of resolution, 36 infrared LEDs providing infrared capability up to 90 feet and a 2.8mm – 12mm manual zoom lens. The ball style dome camera provides the installer with the ability to easily adjust the camera's viewing area. The ST-DWD650IRVP2812-B/W is a cost effective surveillance solution for any budget. The included junction box base is convenient for concealing and protecting cable connections.

SPECIFICATIONS

ST-DWD650IRVP2812-B/W

Specifications (Typical)

1. Image Sensor
   1/3" SONY Super HAD CCD
2. Pixels (HxV)
   811x508
3. Scanning System
   NTSC
4. Horizontal Resolution
   650TV Lines
5. Synchronization
   Internal, negative sync

INSTALLATION AND OPERATION

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged or defective please contact your distributor or Security Tronix at 1-610-429-1511 for assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient space between the camera's power supply and video line and any high voltage equipment and/or cables.
b. To help ensure the camera's life and proper operation do not point the camera towards the sun or strong light.
c. Do not install the camera in an environment where the temperature is above 113^ F. The camera should be installed in a cool and spacious environment.
d. Do not install the camera near a magnetic field or a high-power motor.
e. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe gently with a mild detergent. Never use strong or abrasive detergents.
f. A 12VDC 500mA power supply must be used. AC power cannot be applied. Using a power supply other than 12VDC 500mA will damage the camera.
g. Only qualified installers are allowed to install, test and disassemble the camera.
h. The IR LED angle and lens viewing range are adjusted at the factory. Any change to the camera's lens will affect image quality.

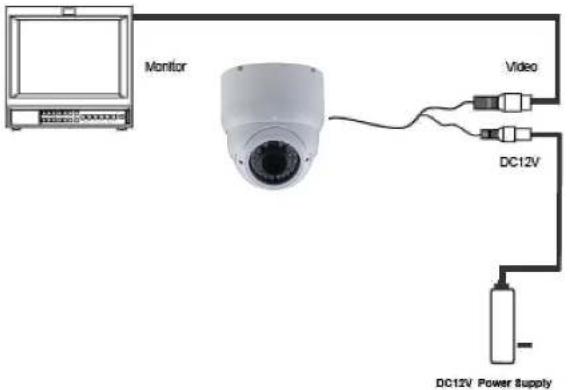

Monitor Video DC12V DC12V Power Supply

* OSD SETTING

OSD SET	LENS	MANUAL/DC/VIDEO
	EXPOSURE	SHUTTER	AUTO, 1/50, 1/250, 1/500, 1/2000, 1/5000, 1/10000, 1/10000, ×1, ×4, ×5, ×16, ×32, ×64, ×128, ×256
		BHORTHNESS	0-100
		AOC	LOW/AWBD/AVEG/OWT
		SENSE UP	OR to USE
		BLO	OFF/SLC/DESC
		D-WDR	OFF/DOOR/OUTDOOR
		RETURN
	WHITE BAR	ATW/AWB/AWC/MANUAL/INDOOR/OUTDOOR
	DAY NIGHT	AUTO/COLOR/BW
	MIME	ON/OFF
	SPECIAL	CAM THILL	ON/OFF
		D-EFFECT	FREE OR/OFF
			MUTEUR
			D-BOX
			GAMR
			NRC IMAGE
			KEYING
		RESIZE	CAM ID
			ID DISPLAY
			READATE
		MOTION	ON/OFF
		PRIVACY	OFF
			AREA SELECT
			AREA DISPLAY
			LEFT/RIGHT
			WIDTH
			Top/Bottom
			Height
			Color

6. TROUBLESHOOTING

a. No picture after applying power - (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current.
b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required; (ii) determine if the monitor is faulty; (iii) determine if other peripheral equipment is causing ripple and if so make the necessary adjustments.
c. The picture background continuously changes color – a fluorescent lamp's magnetic field may cause color roll, therefore, reduce the number of fluorescent lamps or increase the distance between the camera and the lamps.
d. The picture appears smeared – (i) the power supply voltage level may be unstable, therefore, try another power supply; (ii) ensure the cables are correctly connected and/or the cables are of the correct impedance.
e. Other interference may require a Security Tronix ground loop isolation filter.
f. Additional troubleshooting assistance can be found on-line at www.securitytronix.com in addition to support from Security Tronix sales engineers at 1-800-688-9282.
