Product Type	Vandalproof Infrared Color Camera with Integrated Junction Box
Model	ST-DLI6502812-JBX-B (Black)
Image Sensor	1/3" SONY CCD
Resolution	650 TV Lines
Pixels (H x V)	768 x 494
Scanning System	NTSC
IR LEDs	36 LEDs, range up to 90 feet (27.4 m)
Lens	2.8mm - 12mm manual zoom, varifocal
Power Requirement	12VDC, 500mA (use ST-PS12VDC1A or ST-PS12VDC2A)
Operating Temperature	Up to 113°F (45°C)
Construction	Vandalproof, ball-style dome with integrated junction box
Package Contents	Camera with junction box, installation manual
Cleaning Instructions	Use dry cloth; for tough dirt, use mild detergent. Avoid abrasive cleaners.
Safety Notes	Install away from magnetic fields and high-power motors. Qualified installer only.
Support	Contact Security Tronix at 1-610-429-1511 or www.securityTronix.com

Frequently Asked Questions - ST-DLI6502812-JBX-B Security Tronix

What power supply is required for the ST-DLI6502812-JBX-B?

The camera requires a 12VDC 500mA power supply. Recommended models include ST-PS12VDC1A or ST-PS12VDC2A. Using an incorrect power supply may damage the camera.

What is the infrared range of this camera?

The camera has 36 infrared LEDs providing IR illumination up to 90 feet (27.4 meters) in complete darkness.

Can the lens be adjusted?

Yes, the camera features a 2.8mm – 12mm manual zoom lens that can be adjusted to change the field of view. However, adjusting the lens may affect image quality; factory settings are optimized.

How do I clean the camera?

Use a dry cloth for routine cleaning. For stubborn dirt, dampen the cloth with a mild detergent. Never use strong or abrasive detergents.

What should I do if there is no picture after powering the camera?

First, check all plugs and cables are securely connected. Then, ensure the power supply is providing the correct 12VDC 500mA output.

Why does the picture have ripples?

Ripples may be caused by AC ripple in the power supply. Try using a filter, or check if the monitor or other peripheral equipment is faulty.

Why does the background color change continuously?

This is often due to magnetic fields from fluorescent lamps. Reduce the number of lamps or increase the distance between the camera and the lamps.

What if the picture appears smeared?

A smeared picture may indicate unstable power supply voltage. Try a different power supply, and verify that cables are correctly connected and of proper impedance.

Can I install this camera outdoors?

The camera is vandalproof and suitable for outdoor use, but avoid temperatures above 113°F (45°C) and direct exposure to sun or strong light.

How do I get technical support or repairs?

Contact Security Tronix at 1-610-429-1511 or visit www.securityTronix.com for troubleshooting and support. Only qualified installers should service the camera.

USER MANUAL ST-DLI6502812-JBX-B Security Tronix

THE IMAGE OF QUALITY

INSTALLATION MANUAL

ST-DLI6502812-JBX-B/W Vandalproof Infrared Color Camera With Integrated Junction Box

PACKAGE CONTENTS

This package contains:

One ST-DLI6502812-B/W Camera with integrated junction box

One installation manual

Note: The ST-DLI6502812 -B - W requires a 12VDC 500mA power supply such as the ST-

PS12VDC1A or ST-PS12VDC2A.

PRODUCT DESCRIPTION

The ST-DLI6502812-B-W is a vandalproof infrared camera designed around a 1/3" Color SONY CCD with 650TVL of resolution, 36 infrared LEDs providing infrared capability up to 90 feet and a 2.8mm – 12mm manual zoom lens. The ball style dome camera provides the installer with the ability to easily adjust the camera's viewing area. The ST-DLI6502812-B-W is a cost effective surveillance solution for any budget. The included electrical junction box provides safety and convenience for hiding the camera's cabling.

SPECIFICATIONS

ST-DLI6502812-B-W

Specifications (Typical)

1. Image Sensor
   1/3" SONY
2. Pixels (HxV)
   768×494
3. Scanning System
   NTSC
   4 Horizontal Resolution
   650TV Lines

INSTALLATION AND OPERATION

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged or defective please contact your distributor or SecurityTronix at 1-610-429-1511 for assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient space between the camera's power supply and video line and any high voltage equipment and/or cables.
b. To help ensure the camera's life and proper operation do not point the camera towards the sun or strong light.
c. Do not install the camera in an environment where the temperature is above 113° F. The camera should be installed in a cool and spacious environment.
d. Do not install the camera near a magnetic field or a high-power motor.
e. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe gently with a mild detergent. Never use strong or abrasive detergents.

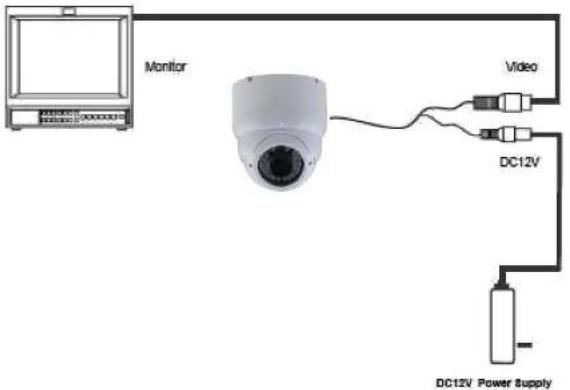

f. A 12VDC 500mA power supply must be used. AC power cannot be applied. Using a power supply other than 12VDC 500mA will damage the camera.
g. Only qualified installers are allowed to install, test and disassemble the camera.
h. The IR LED angle and lens viewing range are adjusted at the factory. Any change to the camera's lens will affect image quality.

5. TROUBLESHOOTING

a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current.
b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required; (ii) determine if the monitor is faulty; (iii) determine if other peripheral equipment is causing ripple and if so make the necessary adjustments.
c. The picture background continuously changes color – a fluorescent lamp's magnetic field may cause color roll, therefore, reduce the number of fluorescent lamps or increase the distance between the camera and the lamps.
d. The picture appears smeared – (i) the power supply voltage level may be unstable, therefore, try another power supply; (ii) ensure the cables are correctly connected and/or the cables are of the correct impedance.
e. Other interference may require a SecurityTronix ground loop isolation filter.
f. Additional troubleshooting assistance can be found on-line at www.securityTronix.com in addition to support from SecurityTronix sales engineers at 1-800-688-9282
