Brand	Security Tronix
Model	ST-D800IRVP3.6-B
Product Type	Vandal-proof Infrared Dome Camera
Image Sensor	1/3" PIXELPLUS Color CMOS
Scanning System	NTSC
Horizontal Resolution	800 TV Lines
Minimum Illumination	0.1 Lux (color) / 0 Lux (B&W with IR)
Lens	3.6mm F2.0 Board Lens
Infrared LEDs	24
Synchronization	Internal, Negative Sync
Auto Electronic Shutter	1/60s ~ 1/100,000s
Gain Control	Automatic
SIN Ratio	>48dB
Mount	3-axis mount
Power Requirement	12VDC, 350mA minimum
Recommended Power Supply	ST-PS12VDC1A or ST-PS12VDC2A
Video Output	75Ω coaxial cable
Maintenance	No user serviceable parts; refer to qualified personnel
Safety	Use specified power source; do not remove cover to avoid electric shock
Package Contents	Camera, mounting hardware, installation manual

Frequently Asked Questions - ST-D800IRVP3.6-B Security Tronix

What power supply is required for the ST-D800IRVP3.6-B?

The camera requires a minimum 12VDC 350mA power supply. Recommended models include the ST-PS12VDC1A or ST-PS12VDC2A.

What is the resolution of this camera?

It provides 800 TV lines of horizontal resolution using a 1/3" Pixel Plus Color CMOS sensor.

Does the camera support night vision?

Yes, it has 24 infrared LEDs for low light illumination down to 0 Lux, enabling clear images in complete darkness.

What type of video output does it use?

The camera outputs video via a standard 75Ω coaxial cable connection.

How do I adjust the camera direction?

The camera features a 3-axis mount that allows easy adjustment of the lens direction for optimal surveillance coverage.

What should I do if there is no picture after applying power?

First, check that all plugs and cables are securely connected. Ensure the power supply provides the correct voltage and current (12VDC, 350mA minimum).

What causes ripples in the picture?

Ripples may be due to AC ripple from the power supply, a faulty monitor, or interference from other equipment. A filter may be required to resolve this.

Can I use this camera outdoors?

The camera is vandal-proof and suitable for both indoor and outdoor use. Ensure it is mounted in a location that protects it from direct exposure to harsh weather if not fully weather-rated.

Is the camera vandal-proof?

Yes, it is classified as vandal-proof, designed to resist tampering and physical impact.

Where can I get support or additional help?

Visit www.securitytronix.com or call 1-800-688-9282, option 3, then option 2 for technical support.

USER MANUAL ST-D800IRVP3.6-B Security Tronix

THE IMAGE OF QUALITY

INSTALLATION MANUAL

ST-D800IRVP3.6-B/W Vandal-proof Infrared Dome Camera

PACKAGE CONTENTS

This package contains:

One ST-D800IRVP3.6-B/W vandal-proof infrared dome color camera

Mounting Hardware

One installation manual

Note: The ST-D800IRVP3.6-B/W requires a minimum 12VDC 350mA power supply such as the ST-PS12VDC1A or ST-PS12VDC2A.

PRODUCT DESCRIPTION

The ST-D800IRVP3.6-B/W is a professional grade, vandal-proof, infrared color dome camera. The camera uses a 1/3" PIXELPLUS Color CMOS sensor providing 800TV lines of resolution. The ST-D800IRVP3.6-B/W has a 3.6mm lens for optimal viewing. The 3-axis mount makes this camera very easy to install and position. The 24 infrared LEDs support low light illumination down to 0 Lux.

SPECIFICATIONS

ST-D800IRVP3.6-B/W

Specifications (Typical)

1. Image Sensor	1/3" Pixel Plus Color CMOS
2. Scanning System	NTSC
3. Horizontal Resolution	800TV Lines
4. Synchronization	Internal, Negative Sync
5. Minimum Illumination	0.1Lux color, 0 lux B&W
6. Scanning System	2:1 interlace
7. Auto Electronic Shutter	1/60s~1/100,000s
8. Gain Control	Automatic
9. Lens	3.6mm F2.0 Board Lens
10. SIN Ratio	>48dB

INSTALLATION AND OPERATION

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

CAUTION: To reduce the risk of electrical shock do not remove the cover or back of this unit. No user serviceable parts are inside.

CAUTION: To prevent electric shocks and risk of fire hazards, do not use other than specified power source.

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged or defective please contact your distributor or SecurityTronix at 1-610-429-1511 for assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient space between the camera's power supply and video line and any high voltage equipment and/or cables.

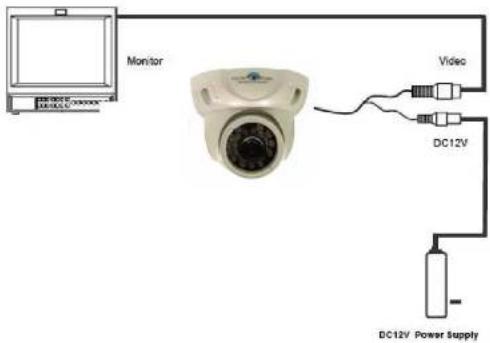

4. WIRING CONNECTIONS

a. Connect the power supply's DC plug to the camera's power port.
b. Connect the camera to the monitor with a 75Ω coaxial video cable.
c. Connect power supply's AC plug to a suitable AC power outlet.
d. Adjust the lens direction according to the required surveillance area and environment.

5. TROUBLESHOOTING

a. No picture after applying power – (i) check all plugs and cables are securely connected to the proper connectors; (ii) ensure your power supply is providing the correct voltage and current.
b. The picture has ripples – (i) check to see if the power supply is experiencing AC ripple, if so a filter may be required; (ii) determine if the monitor is faulty; (iii) determine if other peripheral equipment is causing ripple and if so make the necessary adjustments.
c. The picture background continuously changes color – a fluorescent lamp's magnetic field may cause color roll, therefore, reduce the number of fluorescent lamps or increase the distance between the camera and the lamps.
d. The picture appears smeared – (i) the power supply voltage level may be unstable, therefore, try another power supply; (ii) ensure the cables are correctly connected and/or the cables are of the correct impedance.
e. Other interference may require a Securitytronix ground loop isolation filter.
f. Additional troubleshooting assistance can be found on-line at www.securitytronix.com in addition to support from Securitytronix technicians at 1-800-688-9282, option 3, then option 2.
