USER MANUAL VZ-156PM-4K ViewZ

Scenic mountain landscape with reflection in water, overlaid with two video frames showing length measurements (28" and 15.6") and a distance marker (23.8").

IMPORTANT SAFETY INSTRUCTIONS

The device has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the device should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

➢ Please do not place the display screen towards the ground to avoid scratching the LCD surface.
➢ Please avoid heavy impact.
➢ Please do not use chemical solutions to clean this product. Simply wipe with a clean soft cloth to maintain the brightness of the surface.
➢ Please do not block any vent hole.
➢ Please follow the instructions and trouble-shooting to adjust the product.
➢ Internal adjustments or repairs must be performed by a qualified technician.

(Native/Rec.709/User1\~User3).

➢ Support to upload 3D LUT table via USB port.
▶ Equip HDR function.
Image flip offers great convenience for user's user to place the monitor with various mounting methods under different conditions. Users can view the monitor normally no matter what mounting angles.
➢ Perfect size for both suitcase and rack mount.
▶ Wireless HDMI function for optional.

Contents

1. PRODUCT DESCRIPTION....3
2. SUN SHADE INSTALLATION ....7
3. MENU SETTING....8
4. ACCESSORIES....23
5. PARAMETERS 25
6. TROUBLE SHOOTING....26

1. PRODUCT DESCRIPTION

Front

1 2 3 4 5 6 7 8 9 10 11 12 SCH HDMI1 HDMI2 HDMI3 HDMI4 DV VGA MENU + OUT F1 F2 F3 F4 0 Ω SCH HDMI1 HDMI2 HDMI3 HDMI4 DV VGA MENU + OUT F1 F2 F3 F4 0 Ω

Press to enter menu.

Press to enter option in the menu.

7.

Select option in the menu.

Decrease the option value.

Before enter the menu, single press to activate volume, press again to decrease the volume.

8.

Select option in the menu.

Increase the option value.

Before enter the menu, single press to activate volume, press again to increase the volume.

9. EXIT

Back or exit.

10. F1\~F4 User definable buttons

Default function options:

F1: Color Space

F2: Display Mode

Back

Technical diagram with labeled components and numbered parts, likely from an engineering or manufacturing context.

1. Handle (Only available for BM230/BM280)
2. VESA 75×75 & VESA 100×100 mounting port
3. USB port
4. TALLY port
5. VGA input port
6. DVI input port

	1 GND
	23......
	4+15V

1. Power switch

"II" is battery power, "o" is power off, "I" is DC power.

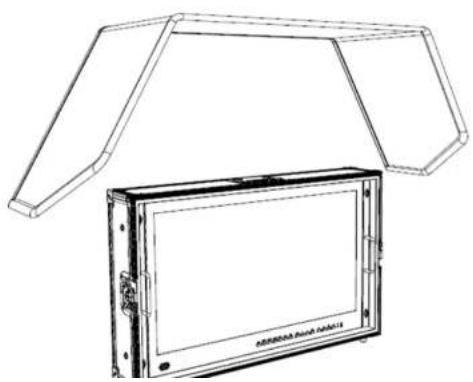

2. SUN SHADE INSTALLATION

1. Put the sun shade on the suitcase, and match the magnets on both sides.

Line drawing of a rectangular device with a canopy structure above it, showing internal components and mounting brackets (no text or symbols)

3. MENU SETTING

Please check whether the device is connected well or not.

3-1. F1\~F4 user definable shortcut buttons

Long keep pressing any one of the 4 buttons for 3-5 seconds to activate shortcut menu setting. Option selected will be highlighted as white. option will be highlighted as yellow, unavailable option will be highlighted as gray.

Select option via "◀/▶" buttons.

Then press "MENU" button to confirm to set as default option.

Shortcut functions can be customized to meet user's needs as following:

NO.	Shortcut Menu when long press any F shortcut button
1 Center Marker
2 Safety Marker
3 Aspect Marker
4 Aspect
5 Underscan
13	Time Code (Only available under SDI mode)
14 Display Mode
15 Disp Mirror
16 Color Space

Default options:

F1: Color Space

F2: Display Mode

F3: Safety Marker

F4: Aspect

3-2. ◀ / ▶ Buttons Operation

Under non menu screen, press "◀/▶" buttons to activate volume bar,

Use "◀ / ▶" buttons to select the desired option.

Press the "MENU" button to select Volume, Brightness, Contrast, Saturation, Hue, Sharpness.

3-3. MENU Operation

When power on, press "MENU" on the device, the menu of function setting will display on the screen.

Picture	Brightness 0~100
	Contrast 0~100
	Saturation 0~100
	Hue 0~100
	Sharpness 0~4
	Color Space	Native/Rec.709/User1~User3
	HDR Off/Auto/H	HDR10
	Backlight Mode	Standard/Outdoor/User
	Backlight 0~100
	Temperature 93	00/7500/6500/5800/User
	Red Gain 0~256		Note: Available only under “User” mode.
	Green Gain	0~256
	Blue Gain	0~256

Picture Function Display Mode Display setting

Adjust the color intensity. Press "◀/▶" buttons to increase or decrease the color intensity.

Hue

It means tint. Use this setting to choose the tint from 0 to 100.

Sharpness

Increase or decrease the sharpness of the image. When the sharpness of image is insufficient, the value of sharpness can be increased to make the image clearer.

Color Space

Selects the color space from among [Native], [Rec.709] [User1\~User3]:

• Saturation/Hue/Color Temperature is only available under Native mode.
• Select [AUTO] or [HDR10] mode under HDR function, the color space will be saved as Native mode automatically. It can be only changed to other color space mode by hand.
• It supports to upload user-defined Lut table "User1\~User3".

- User-defined Lut table only support RGB format. If the format is not correct, please transform it to the correct format by using tool "Lut Converter" (See appendix 1 for details) and named as User1.cube, User2.cube or User3.cube.

- Copy the User-defined Lut table to flash disk and insert it to the device, the screen displays a prompt message to show whether to upgrade. Select upgrade, the device will be loading automatically in a black

● HDR is only available under HDMI 1 signal input.
- HDR under AUTO or DHR10 mode, and the input signal support HDR, the below function is disabled:
Contrast, Brightness, Saturation, Hue, Sharpness, Color Space, BackLight

Color Temperature

• [Auto]

Automatically recognize whether the input HDMI signal supports HDR. If it supports, the input signal shows as the HDR10 performance. If it doesn't, HDR function is disabled. It's suggested select [Auto] when use HDR function.

• [HDR10]

Do not recognize whether the input HDMI signal supports HDR, it will activate the HDR function enforcedly when input signal. If the input signal does not support the HDR function, the image displays abnormal color.

Backlight Mode

Select Backlight Mode from among [Standard], [Outdoor], [User].

Backlight

It is only available under [User] mode.

Temperature

Adjust the color temperature to make the image warmer (Yellow) or colder (Blue). Increase the value to make the image be warmer, decrease the value

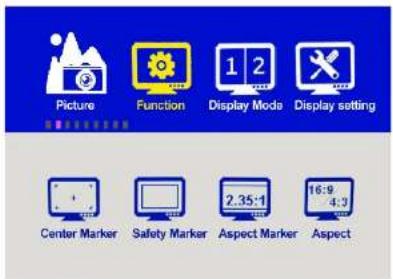

3-3-2.Function

Picture Function Display Mode Display setting Center Marker Safety Marker Aspect Marker Aspect 2.35:1 16:9 4:3

Center Marker

Select On, it will appear "+" marker on center of screen.

Function	Center Marker ON, OFF
	Safety Marker	OFF, 95%, 93%, 90%, 88%, 85%, 80%
	Aspect Marker	OFF, Full, 17:9, 16:9, 4:3, 1.85:1, 2.35:1
	Aspect Full ,17:9, 16:9, 4:3, 1.85:1, 2.35:1
	Underscan	ON, OFF
	Pixel To Pixel	ON, OFF
	Check Filed OFF, Red, Green, Blue
	Freeze	ON, OFF

Safety Marker

Use this setting to set off the safety marker or choose the one of the safety markers: [OFF], [95%], [93%], [90%], [88%], [85%], [80%].

Aspect Marker

Display the different aspect of the displayed image. [OFF], [Full], [17:9], [16:9], [4:3], [1.85:1], [2.35:1].

Aspect

Switch aspect ratio setting among from [Full][17:9][16:9][4:3][1.85:1][2.35:1]. For example:

In [Full] mode, images are scaled to fill the entire screen.

In [4:3] mode, images are scaled up or down to fill the maximum 4:3 portion of the screen.

In [16:9] mode, images are scaled to fill the entire screen if the device aspect is 16:9.

Underscan

If the image shows size error, use this setting to zoom in/out pictures automatically when receiving HDMI signals

Pixel to Pixel

The pixel to pixel is a monitor set to 1:1 pixel mapping with native fixed pixels, which avoids loss of sharpness due to scaling artifacts and normally avoids incorrect aspect ratio due to stretching.

Check Field

A bird in flight with wings spread across a green landscape background (no text or symbols visible)

A bird in flight with wings spread across a grassy landscape (no text or symbols visible)

A bird in flight over a green landscape with hills in the background (no text or symbols visible)

A bird in flight with wings spread across a green field, mountains in the background (no text or symbols visible)

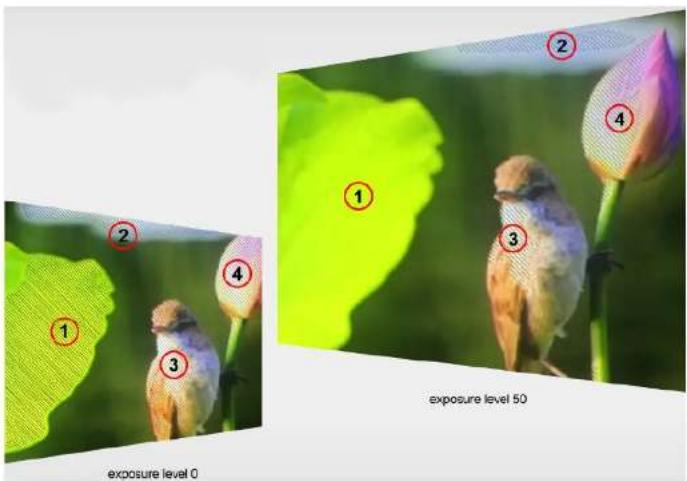

False Color

This monitor has a false color filter to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external equipment.

Colorful abstract background with a small yellow tower and green window (no text or symbols)

Lighthouse with red roof against a clear blue sky, resting on rocky terrain (no text or symbols visible)

Two photos showing a bird perched on a lotus flower, labeled with exposure levels 0 and 50 (no text or symbols on the images themselves)

Histogram

The histogram makes users view visually the exposure of whole and each RGM channels. It has the full contrast range of video for easy color correction during post production.

NOTE: Only available when under SDI mode.

Time Code

The Time Code supports Longitudinal time code (LTC) and Vertical interval time code (VITC). The time code display on the monitor is synchronizing with that of

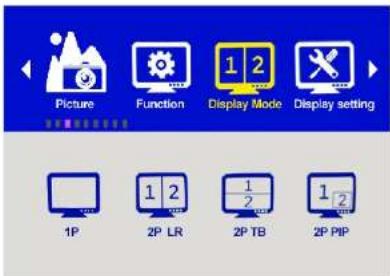

3-3-3. Display Mode

Picture Function Display Mode Display setting 1P 2P LR 2P TB 2P PIP

Display Mode

1P, 2P LR, 2P TB, 2P PIP, 4P

Display Mode

The monitor presets 1P, 2P LR, 2P TB, 2P PIP, 4P five display modes. This function can be work with Select Region function to meet user's requirement. For example:

In 1P mode, images are scaled to fill the entire screen.

In 2P LR, display two different signals on the left and right sides.

3-3-4. Display Setting

Display Rotate and Display Mirror

This setting support to flip the image to 0^ , 90^ , 180^ , 270^ modes. It is only available when single display.

Display mirror

This setting displays two different input signals to Light/Right or Up and Down, the user can choose it to view the images according to the requirement. It is only available when dual display on left and right.

3-3-5. Select Region

1 Select Region Input Audio VGA Right Side Full

3-3-6. Input

Select Region Input Audio VGA SDI HDMI1 HDMI2 HDMI3

Audio	Volume 0~100
	Level Meter	OFF/ON	NOTE: Only available when under SDI mode
	Audio Source	Analog/Digital region 1~4

3-3-7. Audio

Digital region 2\~4 is only available under multi-displays mode and must activate the corresponding Region under Select Region function at the same time.

3-3-8. VGA

Select Page Input Audio VGA Auto Adjust H Position V Position Clock

VGA	Auto Adjust
	H Position	0~100
	V Position	0~100
	Clock

Reset

If there is any problem unknown, press to confirm after selecting. The monitor will return to default set.

Menu Time

Adjust the OSD displaying time form 10 to 60s.

OSD H Position and OSD V Position

Move OSD horizontally or vertically.

Language

System	Reset	Press to confirm after selected.
	Menu Time	10~60s
	OSD H Position	0~100 (To set menu display area)
	OSD V Position	0~100 (To set menu display area)
	Language	English, Chinese
	Transparency	0~255 (To set menu transparency)
	Color Calibration	Off/On
	Rotate	0^ , 90^ , 270^
	Border Width	0~10
	Border Color	R, G, B, W

English between English and Chinese

This setting is available when display in 2P LR, 2P TB, 2P PIP, 4P mode.

signals means Border.

The lines separate the different input

3-3-10. Information

Information

To display current information.

Information SDI

4. ACCESSORIES

1. Folding sun-shade cover 1 piece
2. TALLY connector (in bulk) 1 piece
3. V-mount or Anton Bauer mounts Power cable 1 piece
4. V-mount or Anton Bauer mount 1piece
5. Manual—1 copy
6. Carry-on-suitease 1 piece
7. 15V DC adapter 1 piece
8. Battery plate bracket 1 piece
9. Adapter fixing belt 2 pieces
10. Base bracket 1 pair
11. Acrylic screen protector(Optional for BM150 only) 1 piece
12. WHDI Accessories (optional) 1pair

5. PARAMETERS

Display Screen	15.6" 8bit IPS	23.8" IPS	28" IPS
Physical Resolution	3840×2160 3840×2160
Aspect Ratio	16: 9	16: 9	16: 9
Brightness	330cd/m2	300cd/m2	300cd/m2
Contrast	1000: 1	1000: 1	1000: 1
Viewing Angle	176°/ 176°(H/V)	178°/ 178°(H/V)	170°/ 160°(H/V)
Input Voltage	DC12~24V(XLR)	DC 12~24V(XLR)	DC12~24V(XLR)
Input Signal	3G-SDI, HDMI DVI, VGA, Audio, USB and TALLY	3G-SDI, HDMI DVI, VGA, Audio, USB and TALLY	3G-SDI, HDMI DVI, VGA, Audio, USB and TALLY
Output Signal	3G-SDI	3G-SDI	3G-SDI
Power Consumption	≤18W	≤41W	≤53W
Operating Temperature	0°C~60°C	0°C~60°C	0°C~60°C
Storage	15°C~17°C	15°C~17°C	15°C~17°C

6. TROUBLE SHOOTING

1. Only black-and-white display.

Check whether the color saturation is properly setup or not.

1. Power on but no pictures.

Check whether the cables of HDMI, VGA, DVI and 3G-SDI are correctly connected or not. Please use the standard power adapter coming with the product package. Improper power input may cause damage.

1. Wrong or abnormal colors.

Check whether the cables are correctly and properly connected or not. Broken or loose pins of the cables may cause a bad connection.

1. When on the picture shows size error.

Press "MENU → Function → Underscan" to zoom in/out pictures automatically when receiving HDMI signals

1. Other problems.

Please press "MENU" button and choose "MENU → System → Reset → confirm".

Appendix 1

3D LUT of Loading Manual

BM-4KS supports 3DLUT to load the color calibration document and the User Log by using flash disk

1. Format Requirement:

- LUT format:

Type: .cube

3D Size: 17x17x17

Data Order: RGB

Table Order: RGB

- USB flash disk version

USB: 2.0

System: FAT32

Size: <16G

● Color calibration document: Rec709.cube

- User Log: User1 \~User3.cube

2. LUT Format Conversion

2-2. Enter the Lut Converter interface after input the Enter Key

Load Converter (VL3.50) Input File File Type Type Default Order Data Order Data Order UI Size UI Size Normalization Output Files File Path Type circle 30 Size 17 Default Order Data Order 262 Data Order 268 退出 Language English Generate List

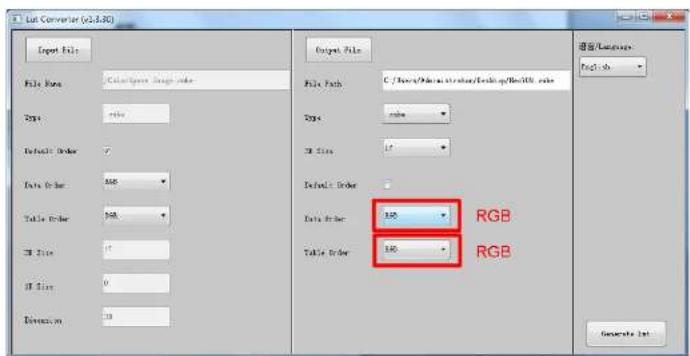

2-3. Click Input File, then select \*LUT

Lush Converter (v1.3.30) Export File File Name: ColorSpace Image.mbs Type: mbs Default Order: Table Order: MS Table Order: MS Output File File Pack: Type: mbcs 20 Size: 17 Default Order: Table Order: PCR Default Order: PCR 设置/Controller: English

Latz Converter (v3.0.8C) Input File File Path: C:\Users\Administrator\Tools\g\MacOS\color Size: 125 Size: 12 Default Order Data Order: 100 Table Order: 100 UI Size: 17 UI Size: 0 Dimension: 19 Output File RGB RGB Generate List

Please note: The format which shown in Red Box above should be selected to RGB.

2-5. Click Generate Lut button to finish the transform.

3. USB Loading

• The USB flash disk must be formatted before using to make sure that there are no other files in the root directory.
• Copy needed files to the root directory of the USB flash drive. Please note that the system only supports updating one LUT table at a time. Therefore, only a single file to be loaded can be copied to the USB flash drive. If it needs to update more LUT tables, please delete other files in USB flash disk.

The device will be restarted automatically after completed. The whole updating process takes about 6 seconds according to the updated LUT name.

- Please activate and set up the updated LUT table under the menu after restart. It doesn't need to be reset if the current updated LUT has been selected before updating.

Please note it only calibrates the color for Rec709 mode and upload it to the device in the factory. User1\~User3 is grayed out and disabled in the menu. After loading the user LUT table, the corresponding button will be shown as blue and able to be use, shown as the following figure.

Before loading

Sharpees Ultra HDG Backlight Mode REC DOS User1 User2

After loading

Sharpness Color Space Ultra HiFi Backlight Mode REC 709 User1 User2
