BI-36UIO - Refrigerator Sub-Zero - Free user manual and instructions

Brand	Sub-Zero
Model	BI-36UIO
Product Type	Panel Ready Over-and-Under Refrigerator/Freezer with Internal Dispenser
Dimensions (W x H x D)	36" x 84" x 24"
Refrigerator Capacity	15.5 cu. ft.
Freezer Capacity	5.2 cu. ft.
Electrical Supply	115 VAC, 60 Hz
Electrical Service	15 amp dedicated circuit
Receptacle Type	3-prong grounding-type
Plumbing Supply	1/4" OD copper, braided stainless steel, or PEX tubing
Water Pressure Range	35 - 120 psi
Temperature Control Accuracy	Within 1 degree of setpoint
Air Purification System	NASA-inspired air purification system that fights spoilage and odors
Door Seals	Magnetic door seals to lock in cold air
Crisper Drawers	High-humidity, sealed crisper and deli drawers
Water Filtration	Removes contaminants, chlorine taste, and odor
Ice Maker	Automatic with "max ice" mode for additional production
Internal Dispenser	Discreetly located internal dispenser for fresh, filtered water
Lighting	Bright lights for excellent visibility
Wi-Fi Connectivity	Monitor and control remotely
Panel Ready	Accepts custom panels for an integrated look or stainless-steel accessory panels

Frequently Asked Questions - BI-36UIO Sub-Zero

How do I adjust the temperature on my Sub-Zero BI-36UIO?

The temperature can be adjusted using the electronic controls inside the refrigerator. Refer to the user manual for specific instructions on setting the desired temperature within one degree of setpoint.

How often should I replace the water filter?

It is recommended to replace the water filter every 6 months or when the indicator light signals. Use a genuine Sub-Zero water filter to ensure proper filtration of contaminants, chlorine taste, and odor.

How do I connect the refrigerator to Wi-Fi?

Download the Sub-Zero app and follow the on-screen instructions to connect your BI-36UIO to your home Wi-Fi network. This allows remote monitoring and control of temperature and other features.

How do I clean the air purification cartridge?

The NASA-inspired air purification cartridge should be replaced periodically, not cleaned. Refer to the manual for replacement intervals, typically every 6 months to maintain freshness and reduce odors.

What are the dimensions of the Sub-Zero BI-36UIO?

The dimensions are 36 inches wide, 84 inches high, and 24 inches deep. These measurements are essential for cabinetry and installation planning.

What is the total storage capacity of this refrigerator?

The refrigerator has a capacity of 15.5 cubic feet, and the freezer has a capacity of 5.2 cubic feet, providing ample space for fresh and frozen foods.

How do I activate the 'max ice' feature?

Press the 'max ice' button on the control panel to increase ice production. This mode is useful when you need extra ice for entertaining. The ice maker will automatically resume normal operation after a set period.

Can I install custom panels on this model?

Yes, the BI-36UIO is panel ready. It accepts custom front panels to match your cabinetry, or you can use Sub-Zero's stainless steel accessory panels and handles for a coordinated look.

What electrical requirements are needed for installation?

The refrigerator requires a 115 VAC, 60 Hz electrical supply on a 15 amp dedicated circuit with a 3-prong grounding-type receptacle. Consult a licensed electrician for proper installation.

How do I troubleshoot if the refrigerator is not cooling properly?

First, ensure the unit is plugged in and the circuit breaker is not tripped. Check that the temperature settings are correct and the door seals are clean and tight. If issues persist, consult the user manual or contact Sub-Zero customer support for further assistance.

USER MANUAL BI-36UIO Sub-Zero

Monitor and control remotely with Wi-Fi connectivity

Accepts custom panels for an Integrated look within cabinetry or stainless-steel accessory panels and handles to match other Sub-Zero, Wolf, and Cove products*

Preserves refrigerated foods with cool, moist air and frozen foods with frigid, dry air

Fight spoilage and odors with a NASA-inspired air purification system

Locks in cold air to ensure freshness with magnetic door seals

Keeps produce fresher with high-humidity, sealed crisper and deli drawers Controls temperature within one degree of setpoint

Filters water and ice, removing contaminants, chlorine taste, and odor

Delivers fresh, filtered water through an internal dispenser located discreetly within the refrigerator

Yields ice automatically and "max ice" for additional production

Ensures excellent visibility with bright lights.

Refer to freshness cards for tips on food preservation, use, and care

ACCESSORIES

36" Stainless Steel Kickplate

66° Dual Flush Inset Stainless Grille Panel

90° Door Stop

Air Purification Cartridge

Custom Front Panel Mounting Kit

Custom Sida Donal Mounting Kit

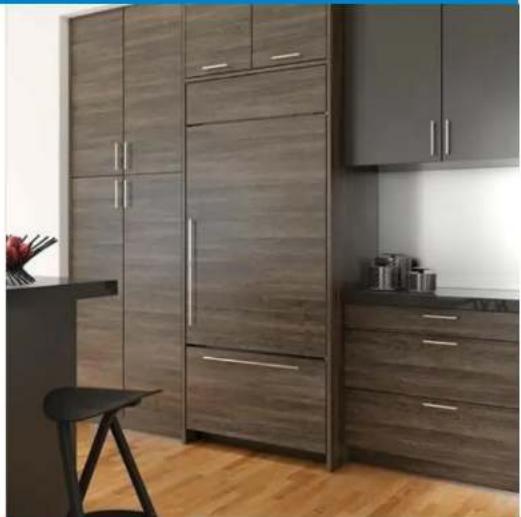

Modern kitchen interior with wooden cabinets and a small table, no visible text or symbols

HANDLE ACCESSORIES

PRODUCT DETAILS

REFRIGERATOR

Stainless Steel Dual Flush Inset Drawer Panel with Pro Handle - RH

Stainless Steel Dual Flush Inset Drawer Panel with Tubular Handle - LH

Stainless Steel Dual Flush Inset Drawer Panel with Tubular Handle - RH

Stainless Steel Flush Inset Door Panel with Pro Handle

Stainless Steel Flush Inset Door Panel with Tubular Handle

Stainless Steel Flush Inset Drawer Panel with Pro Handle

Stainless Steel Flush Inset Drawer Panel with Tubular Handle

Stainless Steel Flush Inset Grille Panel

Stainless Steel Side Panel

Water Filter

White Side Panel

Dual Installation Kit with Dual Wide Grille

Stainless Steel Pro Handles

Accessories are available through an authorized dealerFor local dealer information, visit autzero-wol.com/bachelor.

Specifications are subject to change without notice. This information was generated on December 13, 2022. Verify specifications prior to finalizing your cabinetry/enclosures.

LEGACY MODEL - 36" CLASSIC OVER-AND-UNDER REFRIGERATOR/FREEZER WITH INTERNAL DISPENSER - PANEL READY

SUBZERO

PRODUCT SPECIFICATIONS

Model BI-36UID/O

Dimensions 36"W x 84"H x 24"D

Refrigerator Capacity 15.5 cu. ft.

Freezer Capacity 5.2 cu. ft.

Electrical Supply 115 VAC, 60 Hz

Electrical Service 15 amp dedicated circuit

Plumbing Supply 1/4" OD copper, braided stainless steel

or PEX tubing

Plumbing Pressure 35-120 psi

Receptacle 3-prong grounding-type

ELECTRICAL PLUMBING

PANEL SPECIFICATIONS For complete panels specifications including width/height, weight requirements, thickness requirements and offset details visit subzero-wolf-conbuillies-configurator.

NOTE: Dimensions in parenthesis are in millimeters unless otherwise specified

INTERIOR VIEW

DIMENSIONS

FLUSH INSET INSTALLATION
