Product Type	HDMI 4x1 Switcher with Audio Extractor
Brand	BZBGear
Model	BZB-SW-41A
Dimensions (W x D x H)	120.97 mm x 79.17 mm x 16 mm
Weight	195 g
Power Supply	DC 5V/1A (AC 100-240V 50/60Hz adapter included)
Video Bandwidth	18 Gbps
Max Video Resolution	4K2K@50/60Hz (YUV444)
HDMI Compliance	HDMI 2.0b, HDCP 2.2
Color Depth	10-bit, 12-bit
HDR Support	10-bit HDR pass through
Audio Formats (pass-through)	LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Audio Extraction	L/R analog stereo via 3.5mm jack (LPCM only)
Inputs	4 x HDMI Type A (19-pin female)
Outputs	1 x HDMI Type A, 1 x L/R Audio Out (3.5mm stereo mini-jack)
ESD Protection	Human body model: ±8kV (air-gap), ±4kV (contact)
Housing Material	Plastic enclosure, gray
Operating Temperature	0 - 40°C (32 - 104°F)
Storage Temperature	-20 - 60°C (-4 - 140°F)
Relative Humidity	20 - 90% RH (no condensation)
Power Consumption	1W (Max)
Included Accessories	Power adaptor, remote control, user manual
Warranty	1-year limited + free 2nd year upon registration
Maintenance & Cleaning	Wipe with a dry, soft cloth. Disconnect power before cleaning.
Safety & Surge Protection	Use a surge protector. Operate within specified temperature range. Do not expose to moisture.

Frequently Asked Questions - BZB-SW-41A BZBGear

How do I switch between HDMI inputs?

Press the Select Button on the front panel or use the included remote control to cycle through the 4 HDMI inputs. The corresponding input LED will illuminate.

What is the maximum video resolution supported?

The switcher supports video resolutions up to 4K2K@50/60Hz (YUV444), as well as 4K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz.

Can I extract audio from HDMI to analog output?

Yes, the Audio Out port (3.5mm stereo mini-jack) extracts LPCM 2-channel audio from the HDMI signal. Note: only LPCM audio is extracted, not compressed formats.

What power supply is required?

Use the included 5V/1A DC power adaptor. Connect it to the DC 5V port on the switcher and plug into an AC outlet (100-240V).

Does the switcher support HDR?

Yes, it supports 10-bit HDR pass-through for high dynamic range content.

What is the warranty period?

BZB Gear offers a 1-year limited warranty plus a free second year upon product registration within 90 days of purchase. Visit BZBGear.com/warranty for details.

Can I control the switcher with a remote?

Yes, an infrared remote control is included. Point it at the IR receiver window on the front panel to select inputs.

How do I connect the switcher in my system?

Connect up to 4 HDMI sources (e.g., Blu-ray player, game console) to the inputs. Connect the HDMI output to your TV or projector. Optionally, connect the Audio Out to an amplifier or speakers.

Is HDCP 2.2 supported?

Yes, the switcher is HDCP 2.2 compliant and also supports HDCP 1.4, ensuring compatibility with protected content from 4K sources.

Does the switcher support 4K@60Hz with 4:4:4 color?

Yes, it supports 4K2K@50/60Hz with YUV444 color space at 18Gbps bandwidth, suitable for high-quality 4K HDR content.

USER MANUAL BZB-SW-41A BZBGear

HDMI 18Gbps 4x1 Switcher with Audio Extractor

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Table of Contents

1. Introduction....3
2. Features ....3
3. Package Contents .... 3
4. Specifications....4
5. Operation Controls and Functions....5
6. Connection Diagram......6
7. Mission Statement....7
8. Warranty Information......8

1. Introduction

The BZB-SW-41A HDMI 18Gbps 4x1 Switcher can switch any of 4 HDMI 2.0 sources to an HDMI 2.0 display. It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio bypass as well as HDCP and CEC bypass. It can also extract HDMI audio to L/R analog output (LPCM only).

2. Features

✧ HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
✧ Video resolutions up to 4K2K@50/60Hz (YUV444)
✨ Supports 4 HDMI inputs and 1 HDMI output
Built-in retiming and cable driver
Extracts HDMI audio to L/R analog output (LPCM only)
✨ Supports HDMI High Bit Rate(HBR) audio pass through
✨ Audio sample rates up to 192kHz
✦ 10bits HDR (High Dynamic Range) pass through
✨ Supports HDCP, 3D and CEC bypass

3. Package Contents

✨ 1 x HDMI 4x1 Switcher unit
✨ 1 x 5V/1A Power Adaptor
✨ 1 x Remote Control unit
✨ 1 x User Manual

4. Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth	18 Gbps
Video Resolutions	up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	10-bit, 12-bit
HDMI Audio Formats(Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
L/R Audio Formats	Analog Stereo 2CH
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs	4x HDMI Type A [19-pin female]
Outputs	1x HDMI Type A [19-pin female]1x L/R Audio Out [3.5mm Stereo Mini-jack]
Mechanical
Housing	Plastic Enclosure
Color	Gray
Dimensions	120.97mm [W] x 79.17mm [D] x 16mm [H]
Weight	195g
Power Supply	Input: AC100 - 240V 50/60HzOutput: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	1W (Max)
OperationTemperature	32 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)

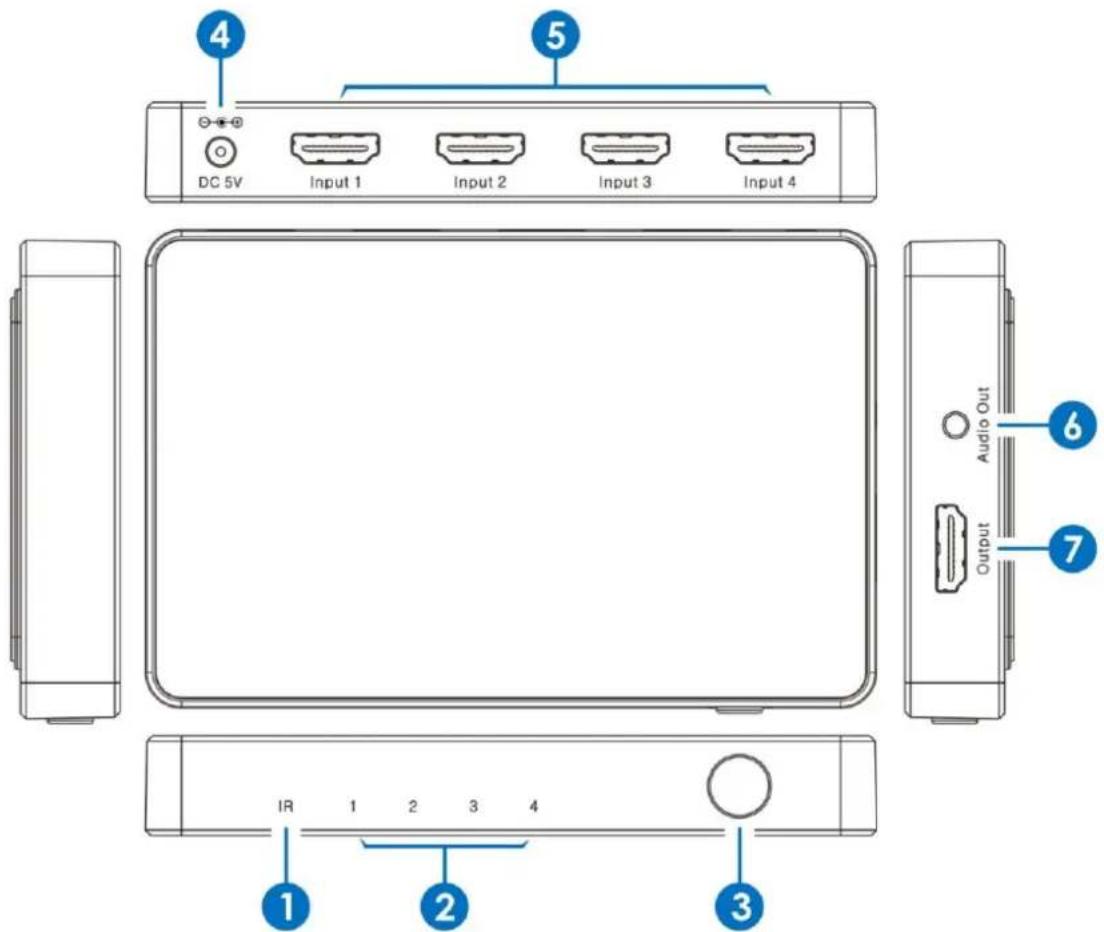

5. Operation Controls and Functions

1 IR: IR receiver window.
2 Input LED: The LED will illuminate when corresponding HDMI input be chosen.
3 Select Button: This allows users to select HDMI input ports.
4 DC 5V: Connect 5V/1A adaptor to AC wall outlet for power supply.
5 HDMI Inputs: Connect them to HDMI source devices such as Blu-ray DVD or PS4 player.
6 Audio Out: Connect to audio amplifier or TV L/R audio input port.
7 HDMI Output: Connect to HDMI display device such as TV/Projector.

6. Connection Diagram

7. Mission Statement

BZB Gear manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today's AV world without having to break the bank. BZB Gear is the solution for small to medium-sized applications requiring the latest professional products in AV.

We live in a DIY era where resources are abundant on the internet. With that in mind, our team offers system design consultation and expert tech support seven days a week for the products in our BZB Gear catalog. You'll notice comparably lower prices with BZB Gear solutions, but the quality of the products is on par with the top brands in the industry. The unparalleled support from our team is our way of showing we care for every one of our customers. Whether you're an integrator, home theater enthusiast, or a do-it-yourselfer, BZB Gear offers the solutions to allow you to focus on your project and not your budget.

8. Warranty Information

BZB Gear | Second Year Assurance

BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*!

Taking advantage of this program is simple, just follow the steps below:

1. Register your product within 90 days of purchase by visiting BZBGear.com/warranty.

2. Complete the registration form. Provide all necessary proof of purchase details, including serial number and a copy of your sales receipt.

For questions, please call 1.888.660.2962 or email [e-mail].

For complete warranty information, please visit BZBGear.com/warranty or scan the QR code below.

*Terms and conditions apply. Registration is required.
