4514G.64 - Watch Sekonda - Free user manual and instructions

Product Type	Quartz Wristwatch
Model Number	4514G.64
Brand	Sekonda
Display Type	Analog (hour, minute, second hands)
Movement	Japanese Quartz
Case Material	Stainless Steel
Bracelet Material	Stainless Steel or Leather (variant dependent)
Case Diameter	Approximately 40 mm
Case Thickness	Approximately 9 mm
Water Resistance	30 meters (3 ATM) – splash resistant
Crystal	Mineral Glass
Battery Type	SR626SW or equivalent
Battery Life	Approximately 2-3 years
Clasp Type	Fold-over clasp with safety catch
Date Display	Yes, at 3 o'clock
Functions	Time, date, and second hand
Warranty	2 years (standard)
Manual Language	English (PDF available)
Care Instructions	Avoid contact with water beyond splash; clean with soft cloth
Weight	Approximately 120 g (with bracelet)

Frequently Asked Questions - 4514G.64 Sekonda

What type of battery does the Sekonda 4514G.64 use?

The Sekonda 4514G.64 uses a SR626SW battery (also known as 377 or AG4). It is a common silver oxide cell.

Is the Sekonda 4514G.64 water resistant?

Yes, it is water resistant to 30 meters (3 ATM). This means it can withstand splashes and brief immersion, but not swimming or diving.

How do I set the date on my Sekonda 4514G.64?

To set the date, pull the crown out to the first click and turn it clockwise until the correct date appears. Avoid setting the date between 9 PM and 3 AM when the date mechanism is engaged.

What size is the case of the Sekonda 4514G.64?

The case diameter is approximately 40 mm and thickness about 9 mm. This is a standard men's or unisex size.

How do I replace the battery in my Sekonda watch?

We recommend having the battery replaced by a professional jeweler or watchmaker to maintain water resistance. The back is typically snap-on or screw-down; opening it without proper tools may damage the watch.

Does the Sekonda 4514G.64 have a warranty?

Yes, Sekonda typically offers a 2-year warranty against manufacturing defects. Keep your purchase receipt as proof.

Can I swim with my Sekonda 4514G.64?

No, the 30m water resistance rating means it is not suitable for swimming, showering, or diving. It only handles minor splashes.

What is the crystal made of?

The watch uses a mineral glass crystal, which is resistant to scratches but more prone to shattering than sapphire.

How do I adjust the bracelet length?

The bracelet has removable links. Use a pin pusher or small screwdriver to remove pins. Alternatively, have it sized by a jeweler.

Where can I download the manual for the Sekonda 4514G.64?

You can download the manual for free from notice-facile.com or directly from Sekonda's support page. It is available in PDF format.

USER MANUAL 4514G.64 Sekonda

InstructionGuide and

2YearGuarantee

IS01

Contents

1ServiceandRepairs/SettingtheTime–AM/PM

2WaterResistancy 3–12OperationandAdjustment

Forfreebraceletadjustingservice,returnthewatch totheaddressbelow.

T.P.(UK)Ltd,AlexanderHouse,ChartwellDrive,Wigston,LeicesterLE182EZ

Formaximumprotection,pleasekeepyourwatch initspresentationboxwhennotinuse.

ImportantNote It is important to identify your watch correctly. If, after reading this Instruction Guide, you have any further questions regarding the use, operation or adjustment of your watch, please call us during office hours on 01162882500

SERVICEANDREPAIRS

YourSEKONDAwatchisguaranteedagainstdefectsinmaterials andworkmanshipforaperiodof2yearsfromthedateof purchase. During this period, wewillexchangeorrepair, atourdiscretion, any defective components.

IMPORTANT-NotcoveredbyGuarantee

1. Batteries, strapsandbracelets.
2. Damagecausedbyaccident, misuseorlackofcare.
3. Waterpenetrationexceptinwatchesmarked as "WaterResistant". (seepage2).

SERVICINGANDREPAIRSUNDERGUARANTEE

Pleasepostyourwatch,togetherwiththeRetailer'sSalesRe- ceiptorProofofPurchase,thecompletedGuaranteesliponthe backcoverofthisbooklet,andabriefnotetoexplainthenature ofthefault,byRegisteredPostorRecordedDeliverytothead-dressshown.Donotsendthepresentationboxasthiswillnotbe returned.

SERVICINGANDREPAIRSOUTSIDEOFGUARANTEE

Availableatareasonablechargeafteranestimatehasbeen sentbySEKONDA.SendyourwatchtousbyRegisteredPost orRecordedDeliverytotheaddresssshownontheinsidefront cover.

SETTINGTHECORRECTTIME(AM/PM)—DATEWATCHES

• IftheDATEchangeswhenthehandsareturnedpast 12o'clock,thetimeshownis“am”.
• IftheDATEdoesnotchange,thetimeshownis"pm".

WATERRESISTANCY

If your watch is water resistant, it will clearly state "Water Resistant" or have a static water pressure indication (eg "30/50/100 metres") on the daily and/or caseback.

IfitisNOTmarkedaswaterresistant, it should not be allowed to come into contact with water or beworn in condition that could expose it to moisture (egwashing, heavy rainetc). Certain chemicals in water may damage the watch seals. Tomaintain its water resistance, were recommend that your watch is serviced and re-sealed at least every 12 months by SEKONDA.

IMPORTANTButtonsmustnotbeoperatedwhilein contactwithwater.

WATERRESISTANTorRESISTANT TO30METRES

Suitablefornormaleverydayuseandwillresist exposuretosplashesandrain;itisNOTdesigned tobeusedwhilebathingorswimming.

WATERRESISTANTTO50METRES

As30metresplusbathingorswimming.

WATERRESISTANTTO100METRES

As50metrespluspoolsidedivingandsnorkelling, butNOThighboardorscubadiving.

WATERRESISTANTTO200METRES

As100metresplusscubadiving, but NO Thighboard diving.

MODELSWITHASCREW-DOWNCROWN (BUTTON)

Unlockthecrownbyturningitanti-clockwiseuntilfree. Lockitbypressinginwhileturningclockwise.WATER RESISTANCEislostwhenthecrownisintheUN-LOCKEDposition.

QuartzanaloguewatchesdoNOT requirewinding.

Thebuttonisusedforhand/functionsettingonly.When inuse,ensurethatthebuttonispushedFULLYINto position“A”.Failuretodosocanresultinexcessive batterydrainordamagetothehandsetting/date mechanism.

The instructions and diagramson the following pages are designed to demonstrate the adjustment of all models within our range.

Yourwatchmaynothaveallofthecharacteristics shownandmayhaveotherbuttonsanddialsinadditiontothoseshownonindividualdiagrams.

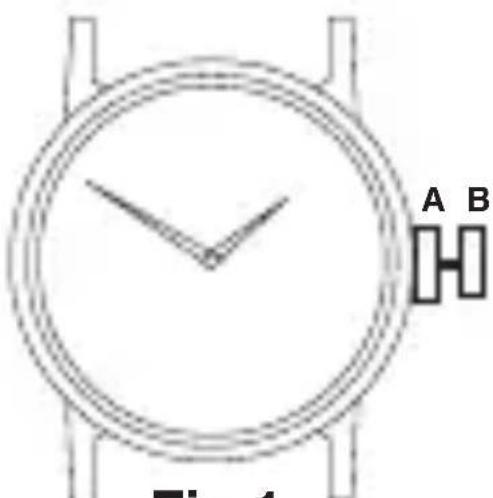

QUARTZNON-DATEWATCH TIMESETTING:

• Pullbuttonouttoposition“B”.
• Advancehandstocorrecttime.
• Returnbuttontoposition“A”.

A B Fig 1

Fig 1

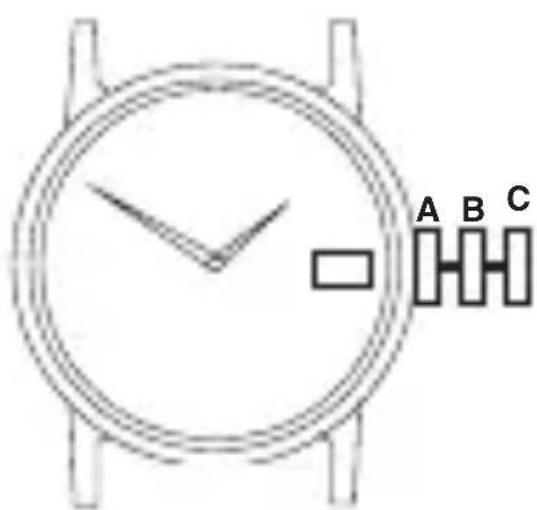

QUARTZDATEWATCH DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnclockwiseoranti-clockwisetosetcorrectdate.
• Returnbuttontoposition“A”.

NOTE: Donotusethisfunctionbetween8.30pm and1.30amasdatechangecycleisinprogress.

A B C

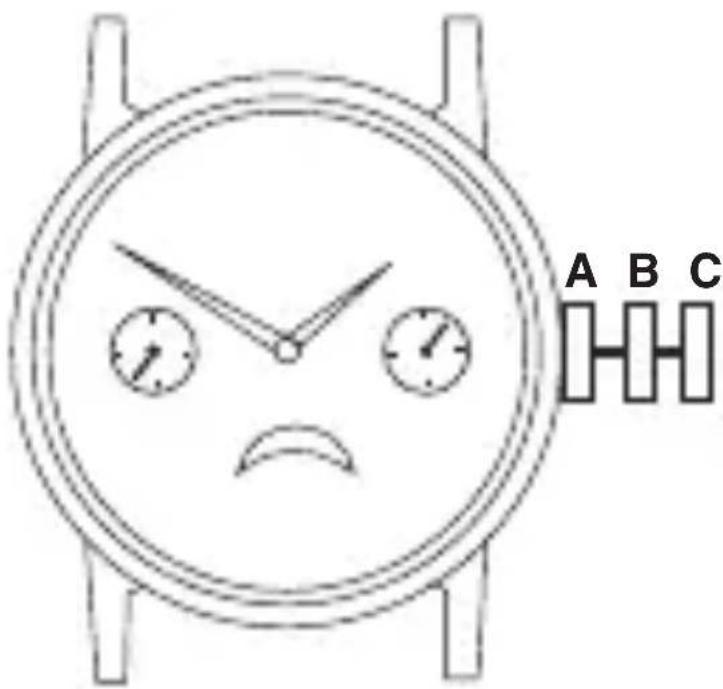

DAY/DATEMOONPHASEWATCH MOONPHASESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwisetosetcorrectmoonphase (seeenclosedleafletfordatesofmoonphase).
• Returnbuttontoposition“A”.

DATECORRECTION:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetosetdate.
• Returnbuttontoposition“A”.

DAY/TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnhandsforwardsuntilcorrectdayandtimearereached.
• Returnbuttontoposition“A”.

A B C

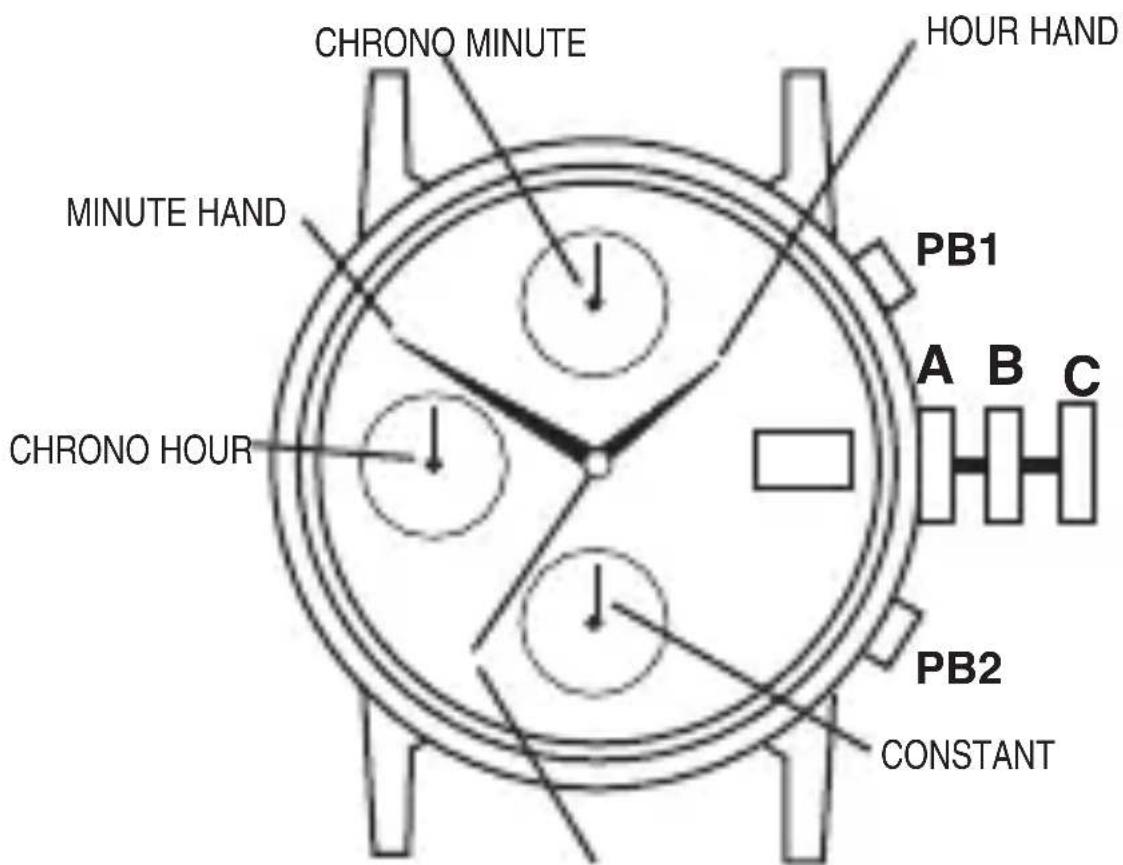

QUARTZ3EYECHRONOGRAPHWITHDATE TIME/DATESETTING:

Seeinstructionsonpages4and5.

OPERATINGCHRONOGRAPH:

• PushPB1tostart/stopchronograph.
• PushPB2toreset.

CHRONOGRAPHZERORESET:

• Pullbuttonouttoposition'C' (Chronosecondhandsreturntozeroposition).
• PushPB1tosetChronosecondhand to12.00(zero)position.
• Returnbuttontoposition'A'.
• PushPB2tosetChronominuteto12.00(zero)position.

HAND DISPLAYS

CHRONO MINUTE HOUR HAND MINUTE HAND PB1 A B C CHRONO HOUR PB2 CONSTANT

CHRONO SECONDS NOTE: Thishandshouldbeat zero(12o'clockposition) whenchronoisnotinuse.

QUARTZDAY/DATEWATCHES TIMESETTING:

• Pullbuttonouttoposition“C”.
• Advancehandstocorrecttime.
• Returnbuttontoposition“A”.

DAY/DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnclockwiseoranti-clockwisetosetcorrectdate.
• Turnclockwiseoranti-clockwisetosetcorrectday.

NOTE:DaysoftheweekcanbesetinEnglishor Spanish. Oncesetthewatchwillautomatically indicatethedayinthechosenlanguage.

- Returnbuttontoposition“A”.

NOTE: Donotsetday/datebetween8.30pm and5.00amasday/datechangecycleisinprogress.

A B C

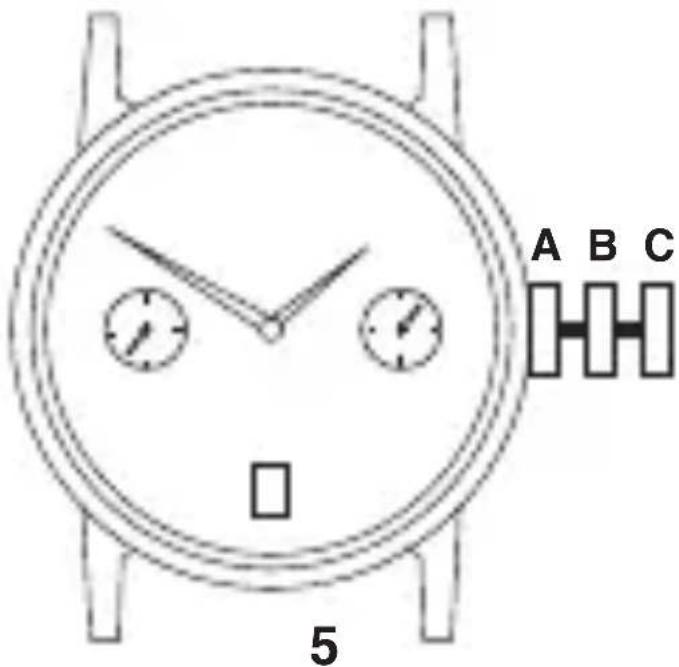

QUARTZ“TWO-EYE”(MONTH&DAY)WITHDATEWATCH DAY&TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnbuttontoadvancehandsuntildaychanges; repeatuntilcorrectdayandtimeisshown.
• Returnbuttontoposition“A”.

DATE&MONTHSETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwiseuntilmonthchanges (every31days).
• Repeat until correct month and date areshown.
• Returnbuttontoposition“A”.

A B C 5

QUARTZ“TWO-EYE”(DAY&DATE)WATCH

IMPORTANT-Thepositionoftheday/date"eyes"referredtoin theseinstructionsMAYBEREVERSEDoncertainModels.

DATEINRIGHTEYE-DAY&TIMESETTING:

• Pullbuttonouttoposition“C”.
• Turnbuttontoadvancehandsuntildaychanges; repeatuntilcorrectdayandtimeisshown.
• Returnbuttontoposition"A".

QUARTZ“TWO-EYE”(DAY&DATE)WATCH(continued) DATEINRIGHTEYE(continued) DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwiseuntildatechanges.
• Repeatuntilcorrectdateisshown.
• Returnbuttontoposition“A”.

DATEINLEFTEYE TIMESETTING:

• Pullbuttonouttoposition"C".
  •Turnbuttontoadvancehands.
• Returnbuttontoposition“A”.

DAY/DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetosetcorrectDAY.
• TurnbuttonclockwisetosetcorrectDATE.
• Returnbuttontoposition“A”.

A B C Fig 5

MODELSWITHELECTROLUMINESCENT DISPLAY(E.L.D.)FACILITY

NON-DATEMODELS

TIMESETTING:

•Seeinstructionsonpage4.

DATEMODELS

TIME/DATESETTING:

•Seeinstructionsonpages4and5.

PB1 A B

E.L.D.DISPLAY

- PressPB1toactivatedisplay (Displayonlyvisibleinsubduedlight).

Note: Displayshouldonlybeactivatedfor shortperiods, e.g. 1 or 2 seconds as excessive use will greatly reduce the life of the battery.

PB1 A B C

E.L.D.-THREEEYEWITHDAY-DATE- 24HOURFUNCTIONS DAYSETTING:

• Pullbuttonouttoposition"C".
• Turnbuttonclockwisetoadvancehands.
• Continueuntilcorrectdayisshown.
• Returnbuttontoposition"A".

NOTE: Datechangetakesplacebetweenapproximately midnight and 5.30am.

TIME/24HRFUNCTIONSETTING:

• Pullbuttonouttoposition"C".
• Turnbuttonclockwisetosetthehour,minuteand24 hourhandstothecorrecttime.*Whensettingthehour hand,besuretocheckthatthe24hourhandisset properly.(E.G.12midnight=24.00hrs)
• Returnbuttontoposition“A”.

NOTE: Whensettingtheminutehandfirstadvanceit4to 5minutesaheadofthedesiredtimeandthenturnitback totheexactminute.

DATE(QUICKCHANGEFUNCTION)SETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetoadvancedatehand tocorrectdate.
• Returnbuttontoposition“A”.

E.L.D.DISPLAY:

Seeinstructionsonpage10.

DAY PB1 A B C 24 HR DATE 11

A

B

MULTIPLECLASPS

Someofourbraceletmodelsare nowfittedwithamultipleclasp systemwhichisdesignedtomake braceletadjustmenteasierforyou.

Toreducethesizeofthebracelet simplyopenandremoveoneor bothoftheadjustableclasps indicatedas(A)and(B)onthe diagram.

Shouldyoufeelthatyourbracelet isinneedoffurtheradjustment, pleasefollowtheproceduresinIn-struction3ofthebraceletgaugein-cluduedinthisleaflet.

Guarantee

BlockCapitals

Name

Address

PostCode

DaytimePhone

T.P.(UK)Ltd,AlexanderHouse,ChartwellDrive,Wigston,LeicesterLE182EZ

Important

Thisguaranteeshouldberetainedbytheownerof thewatchandshouldbesenttoSekondatogether withthewatchand£4.00tocoverhandlingand postagewhenserviceunderguaranteeisrequired. Pleaserefertopage1oftheinstructionguidefor furtherinformationonserviceunderguarantee. Thisguaranteedoesnotaffect yours tatutoryrights.

RetailersStampifrequiredorfullnameandaddress

AttachReceptorProofofPurchase; failuretoattachmayinvalidateguarantee. Thisguaranteedoesnotaffectyour statutoryrights.

IS01/10-10
