Product Type	Quartz Analogue Watch
Brand	Sekonda
Model	4664.27
Power Source	Battery (replaceable)
Water Resistance	Varies by model; check caseback for rating (e.g., 30m, 50m, 100m, 200m) or "Water Resistant" mark; not water resistant if unmarked.
Crown Type	Pull-out crown (some models may have screw-down crown for enhanced water resistance)
Functions	Time, Date, Day, Moonphase, Chronograph, 24-hour hand, ELD backlight (depending on model)
Movement Type	Quartz (battery-operated, no winding required)
Case Material	Not specified in manual; typical for Sekonda: stainless steel or alloy
Strap/Bracelet	Not specified; some models have multiple clasp adjustment
Guarantee	2 years against defects in materials and workmanship
Service/Repair	Send to T.P. (UK) Ltd; registered post recommended; battery, straps, and bracelets not covered under guarantee
Battery Replacement	Recommended service every 12 months to maintain water resistance; ELD use reduces battery life
Setting Instructions	See manual for model-specific crown positions and button operations
Care Instructions	Avoid contact with water if not marked water resistant; keep in box when not in use; do not operate buttons underwater

Frequently Asked Questions - 4664.27 Sekonda

How do I set the time on my Sekonda 4664.27 watch?

Pull the crown out to position 'B' (or 'C' for some models) according to the manual. Turn the hands to the correct time. Push the crown back to position 'A' for normal operation.

How do I set the date?

Pull the crown out to position 'B'. Turn clockwise or anti-clockwise to set the correct date. Avoid setting between 8:30 PM and 1:30 AM as the date change cycle is in progress.

Is my Sekonda watch water resistant?

Check the watch dial or caseback. If it says 'Water Resistant' or has a depth rating (e.g., 30m, 50m, 100m, 200m), it is water resistant. If not marked, avoid any contact with water.

What does 30m water resistance mean?

30m water resistance means the watch can withstand splashes and rain but is not suitable for bathing or swimming. Do not operate buttons underwater.

How do I reset the chronograph hands to zero?

Pull the crown to position 'C' (chrono second hand returns to zero). Push PB1 to set the chrono second hand to 12 o'clock. Return crown to position 'A'. Then push PB2 to set the chrono minute to 12 o'clock.

How long does the battery last?

Battery life varies by functions; ELD display use significantly reduces life. It is recommended to have the battery replaced during annual service to maintain water resistance.

How do I adjust the bracelet size?

Some models have a multiple clasp system. Open and remove one or both adjustable clasps (A) and (B) as shown in the manual. For further adjustment, follow the bracelet gauge instructions.

What is covered under the 2-year guarantee?

Defects in materials and workmanship are covered. Exclusions include batteries, straps, bracelets, damage from accident or misuse, and water penetration unless the watch is marked water resistant.

How do I claim warranty service?

Send the watch with the Retailer's Sales Receipt, completed guarantee slip, and a brief fault description by Registered Post to the address in the manual. Include £4.00 for handling and postage.

My watch has an ELD (Electroluminescent Display). How do I use it?

Press PB1 to activate the ELD display. It is only visible in subdued light. Use for short periods (1-2 seconds) to conserve battery life.

USER MANUAL 4664.27 Sekonda

InstructionGuide and

2YearGuarantee

IS01

Contents

1ServiceandRepairs/SettingtheTime–AM/PM

2WaterResistancy 3–12OperationandAdjustment

Forfreebraceletadjustingservice,returnthewatch totheaddressbelow.

T.P.(UK)Ltd,AlexanderHouse,ChartwellDrive,Wigston,LeicesterLE182EZ

Formaximumprotection,pleasekeepyourwatch initspresentationboxwhennotinuse.

ImportantNote It is important to identify your watch correctly. If, after reading this Instruction Guide, you have any further questions regarding the use, operation or adjustment of your watch, please call us during office hours on 01162882500

SERVICEANDREPAIRS

YourSEKONDAwatchisguaranteedagainstdefectsinmaterials andworkmanshipforaperiodof2yearsfromthedateof purchase. During this period, wewillexchangeorrepair, atourdiscretion, any defective components.

IMPORTANT-NotcoveredbyGuarantee

1. Batteries, strapsandbracelets.
2. Damagecausedbyaccident, misuseorlackofcare.
3. Waterpenetrationexceptinwatchesmarked as "WaterResistant". (seepage2).

SERVICINGANDREPAIRSUNDERGUARANTEE

Pleasepostyourwatch,togetherwiththeRetailer'sSalesRe- ceiptorProofofPurchase,thecompletedGuaranteesliponthe backcoverofthisbooklet,andabriefnotetoexplainthenature ofthefault,byRegisteredPostorRecordedDeliverytothead-dressshown.Donotsendthepresentationboxasthiswillnotbe returned.

SERVICINGANDREPAIRSOUTSIDEOFGUARANTEE

Availableatareasonablechargeafteranestimatehasbeen sentbySEKONDA.SendyourwatchtousbyRegisteredPost orRecordedDeliverytotheaddresssshownontheinsidefront cover.

SETTINGTHECORRECTTIME(AM/PM)—DATEWATCHES

• IftheDATEchangeswhenthehandsareturnedpast 12o'clock,thetimeshownis“am”.
• IftheDATEdoesnotchange,thetimeshownis"pm".

WATERRESISTANCY

If your watch is water resistant, it will clearly state "Water Resistant" or have a static water pressure indication (eg "30/50/100 metres") on the daily and/or caseback.

IfitisNOTmarkedaswaterresistant, it should not be allowed to come into contact with water or beworn in condition that could expose it to moisture (egwashing, heavy rainetc). Certain chemicals in water may damage the watch seals. Tomaintain its water resistance, were recommend that your watch is serviced and re-sealed at least every 12 months by SEKONDA.

IMPORTANTButtonsmustnotbeoperatedwhilein contactwithwater.

WATERRESISTANTorRESISTANT TO30METRES

Suitablefornormaleverydayuseandwillresist exposuretosplashesandrain;itisNOTdesigned tobeusedwhilebathingorswimming.

WATERRESISTANTTO50METRES

As30metresplusbathingorswimming.

WATERRESISTANTTO100METRES

As50metrespluspoolsidedivingandsnorkelling, butNOThighboardorscubadiving.

WATERRESISTANTTO200METRES

As100metresplusscubadiving, but NO Thighboard diving.

MODELSWITHASCREW-DOWNCROWN (BUTTON)

Unlockthecrownbyturningitanti-clockwiseuntilfree. Lockitbypressinginwhileturningclockwise.WATER RESISTANCEislostwhenthecrownisintheUN-LOCKEDposition.

QuartzanaloguewatchesdoNOT requirewinding.

Thebuttonisusedforhand/functionsettingonly.When inuse,ensurethatthebuttonispushedFULLYINto position“A”.Failuretodosocanresultinexcessive batterydrainordamagetothehandsetting/date mechanism.

The instructions and diagramson the following pages are designed to demonstrate the adjustment of all models within our range.

Yourwatchmaynothaveallofthecharacteristics shownandmayhaveotherbuttonsanddialsinadditiontothoseshownonindividualdiagrams.

QUARTZNON-DATEWATCH TIMESETTING:

• Pullbuttonouttoposition“B”.
• Advancehandstocorrecttime.
• Returnbuttontoposition“A”.

Fig 1

QUARTZDATEWATCH DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnclockwiseoranti-clockwisetosetcorrectdate.
• Returnbuttontoposition“A”.

NOTE: Donotusethisfunctionbetween8.30pm and1.30amasdatechangecycleisinprogress.

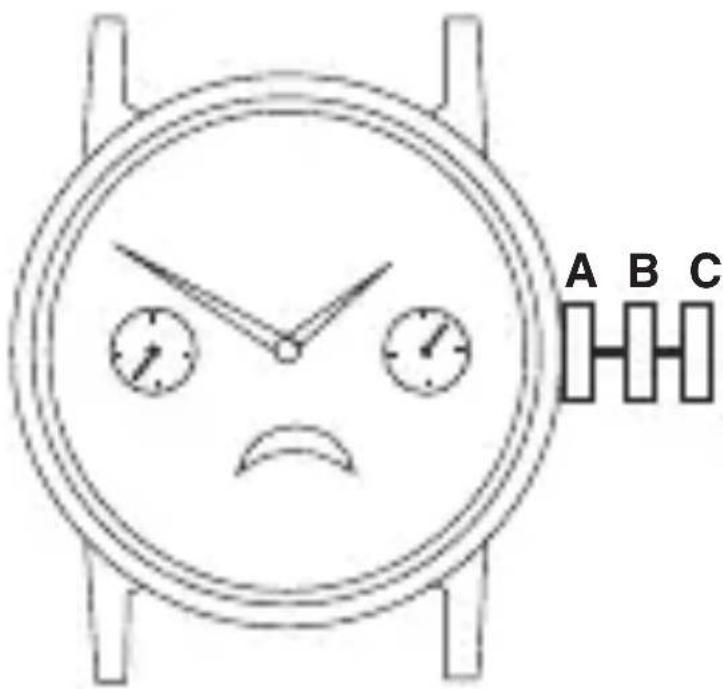

DAY/DATEMOONPHASEWATCH MOONPHASESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwisetosetcorrectmoonphase (seeenclosedleafletfordatesofmoonphase).
• Returnbuttontoposition“A”.

DATECORRECTION:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetosetdate.
• Returnbuttontoposition“A”.

DAY/TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnhandsforwardsuntilcorrectdayandtimearereached.
• Returnbuttontoposition“A”.

QUARTZ3EYECHRONOGRAPHWITHDATE TIME/DATESETTING:

Seeinstructionsonpages4and5.

OPERATINGCHRONOGRAPH:

• PushPB1tostart/stopchronograph.
• PushPB2toreset.

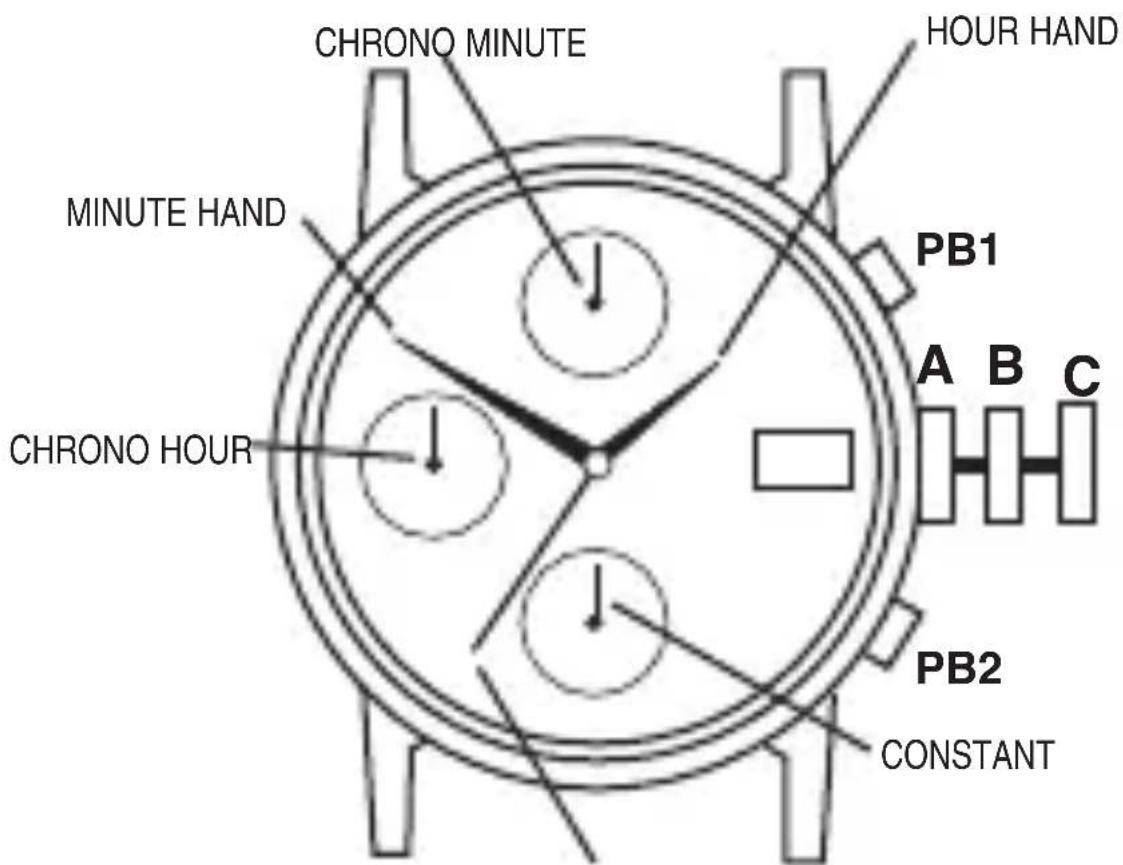

CHRONOGRAPHZERORESET:

• Pullbuttonouttoposition'C' (Chronosecondhandsreturntozeroposition).
• PushPB1tosetChronosecondhand to12.00(zero)position.
• Returnbuttontoposition'A'.
• PushPB2tosetChronominuteto12.00(zero)position.

HAND DISPLAYS

CHRONO SECONDS NOTE: Thishandshouldbeat zero(12o'clockposition) whenchronoisnotinuse.

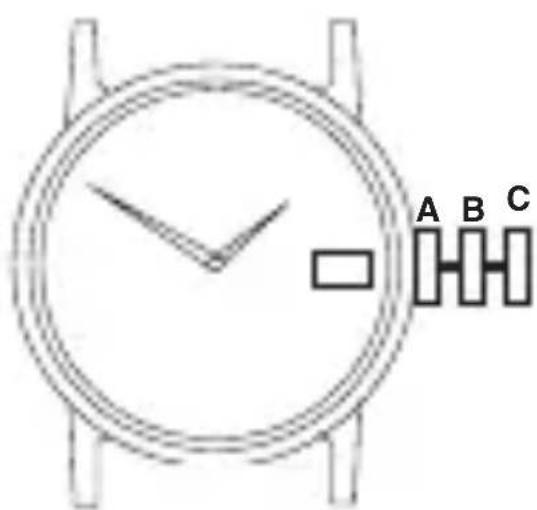

QUARTZDAY/DATEWATCHES TIMESETTING:

• Pullbuttonouttoposition“C”.
• Advancehandstocorrecttime.
• Returnbuttontoposition“A”.

DAY/DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnclockwiseoranti-clockwisetosetcorrectdate.
• Turnclockwiseoranti-clockwisetosetcorrectday.

NOTE:DaysoftheweekcanbesetinEnglishor Spanish. Oncesetthewatchwillautomatically indicatethedayinthechosenlanguage.

- Returnbuttontoposition“A”.

NOTE: Donotsetday/datebetween8.30pm and5.00amasday/datechangecycleisinprogress.

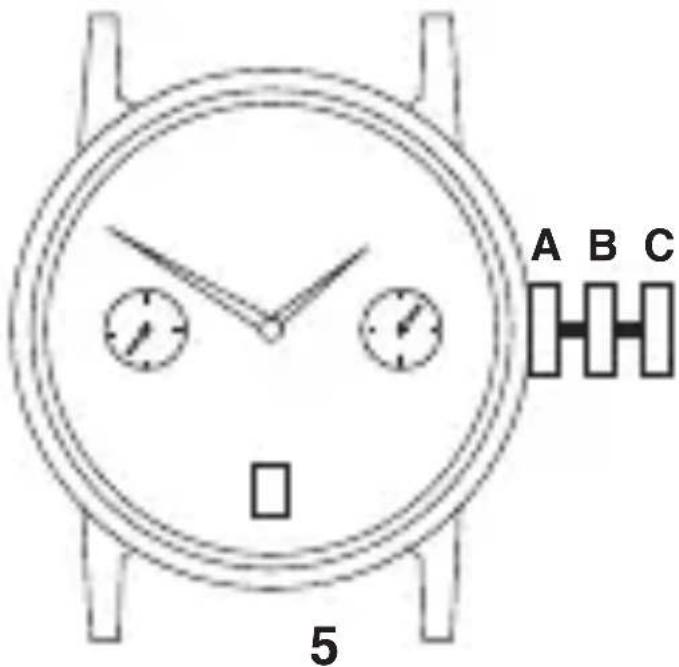

QUARTZ“TWO-EYE”(MONTH&DAY)WITHDATEWATCH DAY&TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnbuttontoadvancehandsuntildaychanges; repeatuntilcorrectdayandtimeisshown.
• Returnbuttontoposition“A”.

DATE&MONTHSETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwiseuntilmonthchanges (every31days).
• Repeat until correct month and date areshown.
• Returnbuttontoposition"A".

QUARTZ“TWO-EYE”(DAY&DATE)WATCH

IMPORTANT-Thepositionoftheday/date"eyes"referredtoin theseinstructionsMAYBEREVERSEDoncertainModels.

DATEINRIGHTEYE-DAY&TIMESETTING:

• Pullbuttonouttoposition“C”.
• Turnbuttontoadvancehandsuntildaychanges; repeatuntilcorrectdayandtimeisshown.
• Returnbuttontoposition"A".

QUARTZ“TWO-EYE”(DAY&DATE)WATCH(continued) DATEINRIGHTEYE(continued) DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonclockwiseuntildatechanges.
• Repeatuntilcorrectdateisshown.
• Returnbuttontoposition“A”.

DATEINLEFTEYE TIMESETTING:

• Pullbuttonouttoposition"C".
• Turnbuttontoadvancehands.
• Returnbuttontoposition“A”.

DAY/DATESETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetosetcorrectDAY.
• TurnbuttonclockwisetosetcorrectDATE.
• Returnbuttontoposition“A”.

MODELSWITHELECTROLUMINESCENT DISPLAY(E.L.D.)FACILITY

NON-DATEMODELS

TIMESETTING:

•Seeinstructionsonpage4.

DATEMODELS

TIME/DATESETTING:

•Seeinstructionsonpages4and5.

E.L.D.DISPLAY

- PressPB1toactivatedisplay (Displayonlyvisibleinsubduedlight).

Note: Displayshouldonlybeactivatedfor shortperiods, e.g. 1 or 2 seconds as excessive use will greatly reduce the life of the battery.

E.L.D.-THREEEYEWITHDAY-DATE- 24HOURFUNCTIONS DAYSETTING:

• Pullbuttonouttoposition"C".
• Turnbuttonclockwisetoadvancehands.
• Continueuntilcorrectdayisshown.
• Returnbuttontoposition“A”.

NOTE: Datechangetakesplacebetweenapproximately midnight and 5.30am.

TIME/24HRFUNCTIONSETTING:

• Pullbuttonouttoposition"C".
• Turnbuttonclockwisetosetthehour,minuteand24 hourhandstothecorrecttime.*Whensettingthehour hand,besuretocheckthatthe24hourhandisset properly.(E.G.12midnight=24.00hrs)
• Returnbuttontoposition“A”.

NOTE: Whensettingtheminutehandfirstadvanceit4to 5minutesaheadofthedesiredtimeandthenturnitback totheexactminute.

DATE(QUICKCHANGEFUNCTION)SETTING:

• Pullbuttonouttoposition“B”.
• Turnbuttonanti-clockwisetoadvancedatehand tocorrectdate.
• Returnbuttontoposition“A”.

E.L.D.DISPLAY:

Seeinstructionsonpage10.

B

MULTIPLECLASPS

Someofourbraceletmodelsare nowfittedwithamultipleclasp systemwhichisdesignedtomake braceletadjustmenteasierforyou.

Toreducethesizeofthebracelet simplyopenandremoveoneor bothoftheadjustableclasps indicatedas(A)and(B)onthe diagram.

Shouldyoufeelthatyourbracelet isinneedoffurtheradjustment, pleasefollowtheproceduresinIn-struction3ofthebraceletgaugein- cluduedinthisleaflet.

Guarantee

BlockCapitals

Name

Address

PostCode

DaytimePhone

T.P.(UK)Ltd,AlexanderHouse,ChartwellDrive,Wigston,LeicesterLE182EZ

Important

Thisguaranteeshouldberetainedbytheownerof thewatchandshouldbesenttoSekondatogether withthewatchand£4.00tocoverhandlingand postagewhenserviceunderguaranteeisrequired. Pleaserefertopage1oftheinstructionguidefor furtherinformationonserviceunderguarantee. Thisguaranteedoesnotaffect yours tatutoryrights.

RetailersStampifrequiredorfullnameandaddress

AttachReceptorProofofPurchase; failuretoattachmayinvalidateguarantee. Thisguaranteedoesnotaffectyour statutoryrights.

IS01/10-10
