USER MANUAL PS-P809CB LG

Read before using product (safety instruction), use properly.

About ensuring users safety and property.

Product warranty card is enclosed with the user manual.

After careful read through the user manual, do keep it in a handy place.

PS-P809 Series

MFL42657818

www.lg.com

The advantages are

It's grateful to use our LG air purifier.

After reading through this manual, using this product for a long-term would be safe and convenient.

Multidimensional Catalyst Sterilization System

• Sterilized by HEPA filter Inside, and once again sterilized outside.
  Only LG air purifier can sterilize perfectly both inside and outside.

Easy-use refreshing HEPA filter system.

- Easy to check out the filter status immediately through the convenient filter separating system.

Powerful Allergen filter

- The Allergen filter could absorbs and decomposes the ingredients which causes the allergy, having the allergy preventive effect also removing the odor and anti-bacteria effect.

Table of Contents

Before Use

☐ The advantages are 2
☐ Cautions for Safety 4\~13
□ Installation 14
Air purifier Start Guide 15
☐ Name of Each Part 16\~19

• Mainframe
• Display and Controller
• Filters System

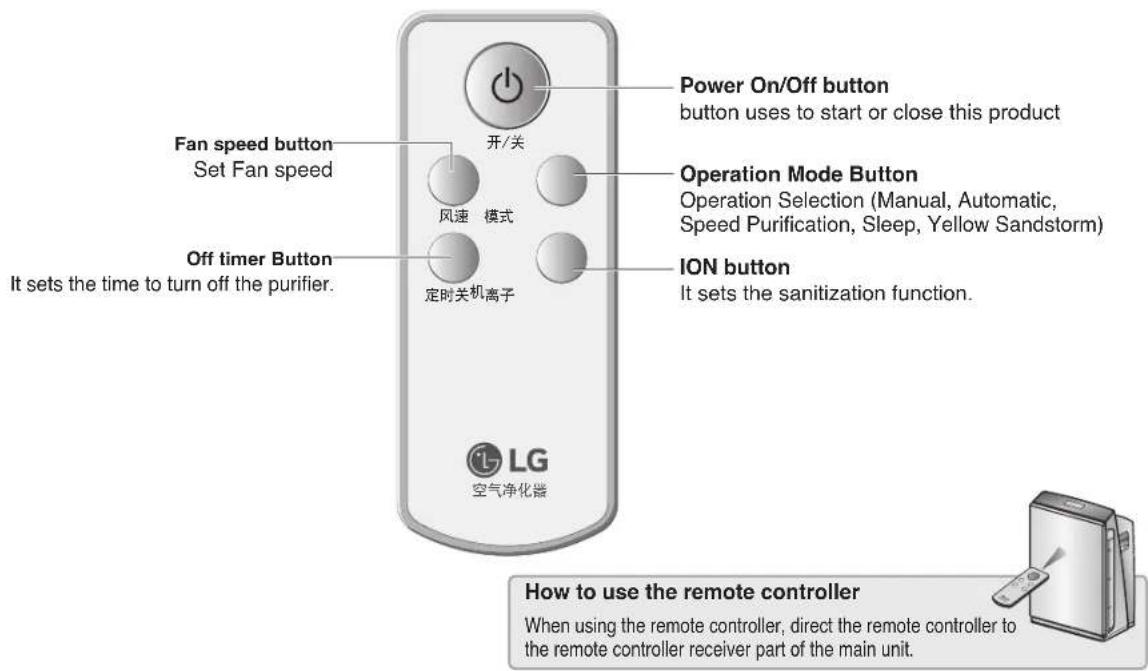

• Remote Controller

☐ Remote Controller Guide 20

• First operation

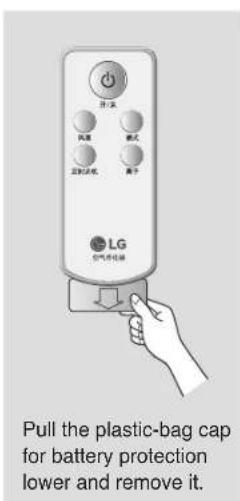

  – Battery Replacement
• Caution

During Use

☐ Operation Mode 21\~24
– Air Purifying Operation
- Speed Mode
- Automatic Mode
- Quick Clean Mode
– Silent Mode
- Sandstorm Mode

☐ Additional Functions ..... 25\~28

• ION Mode
• Filter Cleaning Function
• Off-timer Operation Function
• Filter Cleaning Lamp

After Use

□ Exterior and Dust Sensors Cleaning Method ...... 29
☐ Filter Maintenance ....30\~31
□ Dustbin Cleaning 32
□ Maintenance 33
□ Confirming Items Before Reporting Defect ..... 34\~35
□ Product Specification 36

Cautions for Safety

The following precautions related to safety marked as follows are to prevent unexpected danger or damage by safely and accurately using the product.

Warning / Caution

This is the symbol to get attention focused for the details and operations that can cause any type of danger. To prevent any danger, observe carefully and follow the directions appropriately.

If not followed, it can cause death or major injury to the user.

If not followed, it can cause injury to the user or property damage.

All batteries (whether installed or attached) should not be exposed to excess heat like sunlight or similar source.

Cautions for Safety

Warning

Installation

Do not change or extend power cords at random.

Otherwise, it may cause fire or electrical shock.

Open the window for air ventilation before operating the air purifier when gas leaks.

Otherwise, it may cause explosion, fire and physical injury.

Never use an octopus feet-type of socket.

Unreasonable use of power may cause fire or electrical shock.

Do not use the product a place where there are much moistures or oils such as toilet, bathroom or washing room.

Otherwise, it may cause fire or electrical shock.

electrical shock.

Never use the damaged or loose power cords.

Otherwise, it may cause fire or electrical shock.

Do not disassemble or repair the product at random.

It will cause fire and electrical shock.

Cartoon illustration of a girl holding a book and pointing at a smartphone with a cross symbol (no text or symbols present)

Owner's Manual

Cautions for Safety

Warning

Don't keep and use combustible gas, flammable substance around the product.

Otherwise, it may cause fire and failure of product.

Do not lay fire appliances around the product.

Otherwise, it may cause fire.

Cartoon illustration of a book-shaped device with a crossed-out lever and a hand gesture (no text or symbols)

If abnormal noise comes or smell or smoke emits from the product, pull the power plugs out and call our service center.

Otherwise, it may cause fire or electrical shock.

Cartoon illustration of a child and an adult reacting to a large refrigerator (no text or symbols)

Keep this product out of the direct rays of the sun, heating source and moisture.

Otherwise, it may cause electric shock, fire or failure of product.

Illustration of a firecracker and a refrigerator with a crossed-out door, no text or symbols present

Don't put heavy things on power cords or take care so that they should not be pressed under the product.

Otherwise, it may cause fire or electrical shock.

Illustration of a distressed refrigerator with a crossed-out X symbol, next to a small device (no text or symbols present)

Cautions for Safety

Warning

Operation

Securely insert power plugs to the end so that they should not shake. Incomplete connection may cause fire.

Hand holding a wall-mounted socket with an arrow indicating direction (no text or symbols)

Pull power plugs by grasping the head and never touch with power plugs with the wet hands.

Otherwise, it may cause electrical shock or physical injury. Never damage, process, forcedly bend, twist, pull, lay between gaps or heat power cords.

Damaged cords may cause fire and electrical shock.

Do not hold the power cable to pull out the power plug.

May cause fire or electric shock.

Illustration of a hand using a power tool to test a component on a wall (no text or symbols present)

Do not install a place where there are much industrial Oil dust or metallic dust. If may cause fire and failure of product

Illustration of a factory with an airplane and a smartphone, showing industrial smokestacks and exhaust lines (no text or symbols)

When the power code is damaged, it should be repaired by the qualified person to prevent any risk.

Otherwise, it may cause electric shock, fire or failure of product.

Keep in Mind that water should not run into the product.

Otherwise, it may cause electrical shock or fire.

Owner's Manual

Cautions for Safety

Warning

Do not lay obstacles around the product.

Otherwise, it may cause failure.

Cartoon illustration of a distressed open book with a cross symbol, surrounded by flying stars and musical notes (no text or symbols)

Do not allow children to climb up this product.

May cause the breakdown, injury.

Do not cover with a rug, cushion etc over power cords.

Power cords may be damaged and result in fire and electrical shock in case of putting heavy things on in the manner power cords cannot be seen.

Cartoon illustration of a smartphone with a warning sign and a cross symbol (no text or symbols present)

Do not sprinkle in insecticide or hair spray.

It may cause damage or accident.

INSECTICDE

Do not use thermal appliances near power cords.

Otherwise, it may cause fire or electrical shock.

Illustration of a cartoon refrigerator with a sad face and crossed-out X marks, next to a printer (no text or symbols)

Do not use this product when is in moving.

May cause fire or electric shock or damage to some parts of the product.

Cartoon illustration of a smiling book character with arms crossed out, surrounded by motion lines (no text or symbols)

Cautions for Safety

Warning

Do not move the product by holding the front-panel.

May cause electric shock or damage to some parts of the product.

Cartoon illustration of a book character with arms crossed and holding a cross, surrounded by hands (no text or symbols)

Do not put pressure on the front glass.

It can cause injury and product damage or cause electric shock.

Cartoon illustration of a person running away from a large book with stars and musical notes (no text or symbols)

Do not put coffee or all types of beverage on the air discharge outlet.

Otherwise, it may cause fire or electrical shock.

Cartoon illustration of a smiling refrigerator with arms crossed, surrounded by waving hands (no text or symbols)

Do not insert the hands or bars into the suction inlet or the outlet.

Otherwise, it may cause failure of product or physical injury.

Contact with the service center for repairing the product.

Any arbitrary disconnection or repairing may cause electric shock or fire.

If the product is submersed in the water, you must contact the service center.

It can cause electric shock or fire.

Cartoon illustration of a book character standing in the water holding a book, with no text or symbols present.

Cautions for Safety

Cautions

Installation

Maintain distance of more than 1m when installing the product near TV or audio.

Do not use the product as ventilation fan or range hood at the kitchen. It may cause shorten the lifetime of the product.

Cartoon illustration of a book character with arms crossed out, standing on a table with a steaming cup and an inkwell (no text or symbols present)

Avoid a place near fire arms or heating devices or subject to direct sunlight. It will cause fire.

Balance for Balance for

Install the product at a flat place and do not drop the product. Otherwise, it may cause damage of accident.

Cartoon illustration of a book character falling off with a broken handle and explosion effect (no text or symbols)

Do not use the product for removing toxic gas as CO. Otherwise, it may cause failure.

Cartoon illustration of a smiling face pointing at a closed book with crossed-out exhaust smoke, next to a trash can (no text or symbols)

Maintain a minimum distance of 1.5m from any heat producing light source. For proper ventilation, maintain a distance of 10cm or more from a wall.

more than 1.5 m about 10 cm

Cautions for Safety

Cautions

Do not use except AC 220 V. Otherwise, it may cause fire or electrical shock.

When using the product with a burner within the airtight room, sometimes let fresh air into the room.

Some toxic substances such as carbon dioxide may not be removed.

Illustration of a kitchen appliance with a door, steaming coffee, and a kettle (no text or symbols)

Do not install the air purifier on the transportation vehicle (car, ship etc.).

It may cause failure.

Illustration of a car and a refrigerator with cartoon faces (no text or symbols)

Cautions for Safety

Cautions

Operation

Do not use the product for special purpose such as animals or vegetables, precision machine or conservation of art articles. Otherwise, it may cause damage of property.

berty.

Use it with the dual protection filter firmly secured and clean once every a month. It may cause failure of product.

once every a month

Don't use strong detergent like solvent, etc but use a soft cloth. Otherwise, fire or distortion of the product may occur.

Illustration of a girl pointing at a smartphone screen with a crossed-out arrow (no text or symbols)

Secure all filters and regularly clean them. Otherwise, it may cause failure of product.

Never operate or stop the product while inserting or removing power plugs. Otherwise, it may cause electrical shock or fire.

Cartoon illustration of a child using a smartphone to clean the phone from a device (no text or symbols present)

Pull power plugs out when not using the product for a long time. Otherwise, it may cause failure of product or fire.

Illustration of a girl interacting with a refrigerator displaying a smiling face (no text or symbols present)

Start cleaning after turning off the power and when the fan stops. It can cause electric shock or injury

Illustration of a child holding a card next to a smiling refrigerator (no text or symbols present)

Cautions for Safety

Cautions

Do not let the moisture from the humidifier directly touch the product.

Otherwise, it may cause electric shock, fire or failure of product.

Do not use this product as ventilating fan or so. It may cause shorten the lifetime of the product.

Pull power plugs out for cleaning. Otherwise, it may cause fire and electrical shock.

Do not open the front panel during the operation of the product. Opening the front panel stops the operation.

Illustration of a cartoon refrigerator with a sad face and steam rising, next to a steaming cup (no text or symbols)

Illustration of a smiling girl and a smiling smartphone with a screen, no text or symbols present

Keep batteries out of the reach of children after removing batteries from remote controller.

Ensure batteries out of the reach of children. If children swallow the batteries, contact the doctor immediately.

Wash the dual protection filter and dry it completely in the shade. Otherwise, it may cause failure.

Do not insert any inflammable into the product. Otherwise, it may cause fire or failure of product.

Cartoon illustration of a person operating a large fan inside an open air conditioner unit (no text or symbols visible)

Owner's Manual

Installation

Places to Install

Mainframe

• places with handy power connections
• places with no obstacle to clog air inlet
• places with horizontal surface and rich air circulation

about 10cm

Warning

Install the air purifier on moving objects (car or ship etc) may cause the product defect, therefore do not install on those places.

Warning

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Air Purifier Start Guide

Turn off air purifier when cleaning.

- Cleaning the air purifier with opened windows would disturb the natural air circulation to cause intake too much particles, it may shorten the filter life. After complete cleaning process with enough air circulation, close the windows, turn on the air purifier is the appropriate way to purify air.

Use after enough air circulation when cooking

- When roast meat or fishes, remove the smell by air purifier is not appropriate. The oil particle will block cells on filter, it may cause filter life shorten or filter polluting etc. negative effects. Under this circumstance enough air circulation is necessary. Remove leftover odors by air purifier after no oil particle is the correct and effective way to use product in long-term scale.

Do not stay too closed when sleeping.

• Air purifier fan speed is not strong, before fallen asleep feel cool, after fallen asleep would feel cold. The appropriate way is to keep at least 1 meter distance with air purifier.

Do not place in the corner edge.

- Avoid to install at places surrounded by furniture, appliances etc. or in the edge corner. Install in the edge corner may cause difficulty to purify indoor air from the rest space.

Ensure air circulate 30 minutes at least everyday.

- For those families use the air purifier, air circulation is the prerequisite to ensure enough oxygen supply. Ensure air circulation 30 minutes at least everyday could brings fresh air inflow. Keep opposite windows open may gain a better result for air circulation. In case of being lazy may weaken air refreshing function, therefore it is necessary to ensure clean and maintenance.

Name of Each Part

Mainframe

Operation part Filter case (Dual protection filter + Allergen filter + Triple care filter + HEPA filter) Sensor part (dust sensor) Sensor part (odor sensor) Power Plug Cleaning brush for dual protection filter Do not rotate it with your hand. It may cause failure of product. Front panel Dustbin Purity level lamp It shows the purity condition of the indoor air. It becomes white for clean air and red for polluted air. * Shape of the power cord can be different by country

Air Purifier

Name of Each Part

Operation Display and Controller

Operation Display Filter Check Display Check the polluted condition of filter when turning on the lamp. Check the filter in case of serious pollution. Dust/Odor Display Higher level on the dust/odor display means the pollution level is also high. Airflow Display Sanitary Purification Display Filter Cleaning Display Reservation/Filter Cleaning time Display ON/OFF Button Operation Mode Button Fan Speed Button Open/关模 手动 自动 校正清洁 缝隙 沙尘 涡轮 高中 等离子 清洁中 定时关机 Off-timer Button Filter Cleaning Button ION Button

Owner's Manual

Name of Each Part

1 Dual protection filter 2 Allergy filter 3 HEPA filter 4 Anti-bacteria filter case

Filter system (It introduces only filter part.)

Filter name Function
1 Dual protection filter	Remove big particles Anti-bacteria function Anti-mildew function	This filter has anti-bacteria, anti-mildew, big particles filtering functions. These 3 functions may extend the filter replacement frequency.
2 Allergy filter		Adsorb and decompose allergic ingredients.
3 Triple care filter	Deodorization filter	This is the integrated deodorization filter and it removes cigarette smoke (odor), odor of living food waste, odor of animal's fur, odor of toilet, alkaline & acidic odor, HCHO and volatile organic compound (VOCs).
	SMOG treatment	This filter can remove SO2 and NO2 substances that may cause eye, respiratory and/or heart disease.
4 HEPA filter		This filter removes fine particles such as the carcass of tick, pollen sac, cigarette smoke (particle), fine dust, mote, fur of animal, etc., and effectively removes virus, mold, bacteria, etc. in the air of the room.

※ For washable filter, please dry it completely in a shade without any dampness

(The dry time depends on the seasons. If it is not completely dried, it may cause failure or bad odor.)

※ When the pollution of washable filter is so serious and it is impossible to be clean after washing, it is better to replace it with new one.

※ The filter washing and replacement cycles may depend on the user environment.

Name of Each Part

Remote Controller

Power On/Off button button uses to start or close this product Fan speed button Set Fan speed 开/关 风速 模式 Operation Mode Button Operation Selection (Manual, Automatic, Speed Purification, Sleep, Yellow Sandstorm) Off timer Button It sets the time to turn off the purifier. 定时关机离子 ION button It sets the sanitization function. How to use the remote controller When using the remote controller, direct the remote controller to the remote controller receiver part of the main unit. LG 空气净化器

Owner's Manual

Remote Controller Guide

First operation of remote controller

LG 空气 vent box Pull the plastic-bag cap for battery protection lower and remove it.

Battery replacement

Open the battery lid

Ensure to install batteries as instructed

Close the battery lid

Caution

only 1 no 1

Press only 1 key at one time Press several keys at the same time, the remote controller does not work properly
Do not stand on the remote controller or punch it

Do not use at places have water or humid

Do not use near fire source or heating source

• Remove batteries when the product is stored for an extended period of time. In the unlikely event that battery fluid leak may cause remote controller defect
• Replace all batteries of a set at the same time. Contact the post-sales service center if remote controller defect occurs after replacing batteries.

Operation Mode

Air Purifying Operation Purify Indoor Air.

1 Press On/Off button, after a 'DI-RI-LIN' sound, start working as the led light on.

(Reference according to the following 'preparatory operation' category)

The air outlet on top will exhaust fresh air.
- Press On/Off button again to turn off.
- When connect the power supply plug, there will be a 'DI-RI-RI-LIN' reminding sound.

What is 'preparatory operation'?

During the 2 minutes after turning on, preparatory operation starts when sensoris initiating. Dust/odor indicator level are up and down during the preparatory operation

Operation Mode

Speed mode User may manually adjust fan speed.

1 Press On/Off button.
2 Switch to the speed mode by pressing the mode button.
3 Press the fan speed button to choose expected fan speed

- Default fan speed is weak.

- When restart under speed mode, system will retrieve to the previous fan speed.

Fan speed has 'weak-soft-strong-turbo' 4 modes.

(Switch to the next mode according to the Up-to-Down sequence.)

Automatic mode Air Purifier will automatically set the most appropriate Fan speed.

1 Press On/Off button.
2 Switch to the automatic mode by pressing the mode button.

• Auto-control fan speed, no more attention to manage.
• Press fan speed button under automatic mode will switch to speed mode and increase fan speed by one level.
• Except for the fan speed function, users need to set the rest functions.

Quick Clean Mode It operates strongly in a moment and purifies indoor air.

1 Press On/Off button.
2 Switch to the quick clean mode by pressing the mode button.

• When pressing airflow button in the speed purification operation, it switches into the manual operation and it operates on "LOW" condition.
• In the speed Purification Operation, it works in the turbo mode for around 10 mins, then changes into the auto mode.

Silent Mode Provide quiet indoor atmosphere while sleeping.

1 Press On/Off button.
2 Switch to the silent mode by pressing the mode button.

• Fan speed will switch to weak level under sleep mode, sleeping light on the LED indicator will be on 3 seconds later.
• Press fan speed button will switch to speed mode and increase fan speed by one level.

Sandstorm Mode Purify indoor air effectively when the sandstorm occurs.

1 Press On/Off button.

2 Switch to the sandstorm mode by pressing the mode button.

• Press fan speed button under yellow sandstorm mode will switch to speed mode and increase fan speed by one level.
• Fan speed will be controlled according to previously inputted sequence.
• In addition to fan speed function, users need to set the rest functions.

It generates sterilization ion which is harmless and removes various bacteria.

1 Press On/Off button.

2 Press the ION button to choose expected function.

- Whenever press one time, it switches to sanitary purification → deactivation → sanitary purification in order.

Sanitary Purification Deactivation Sanitary Purification Deactivation

Additional Function

Filter Cleaning Function Remove large particles.

When operating Filter Cleaning Function, the purifier operation stops. The cleaning brush for dual protection filter starts rotating to remove the particles settled on the filter. The particles removed from the dual protection filter come together into the dustbin lower. Clean the dustbin periodically.

Refer to page 32 for the dustbin cleaning.

For automatic operation

• It operates automatically filter cleaning after use for a certain period. You don't need to do separate operation.
• It shows 5 minutes on the operation display and performs cleaning filter for specified time.
• It doesn't activate while sleep operation.

For manual operation

1 Press Filter clean button.

• It starts filter cleaning in 5 seconds.
• It shows 5 minutes on the operation display and
  performs cleaning filter for specified time.
• Whenever press one time, it switches into Filter Cleaning → Deactivation → Filter Cleaning in order.
• When you want to operate the purifier while cleaning filter, press the Filter Cleaning button once again to cancel.

Additional Function

Off-timer Operation Function Automatically shut down after sleeping several hours.

Example:shut down automatically after 3 hours

1 Press On/Off button.

2 Press timer button to set 3 hours.

• Each time pressing the button, operation time will increase 1 more hour.

- Maximum reservation time is 9 hours. - Shut down automatically.

• Automatically shut down 3 hours later.

Additional Function

Filter Check Lamp It will let you know filter cleaning cycle and its replacement cycle after use for a certain period.

1 When turning on Filter Check Lamp, open the front panel while operating the purifier and check the filter. If it is polluted, wash or replace it.
② When opening the front panel after stopping its operation by pressing (ON/OFF) button, it doesn't turn off the filter check lamp. Open the front panel to check while operating the purifier.

3 Refer to the pages 30-31 for the detail of filter maintenance.

• The filter condition may depend on the user environment.
• When closing the front panel after checking it, it switches the air flow to "LOW".

Exterior and Dust Sensors Cleaning Method

Exterior Cleaning Method

Soak soft cloth with warm water, wipe the air purifier after wring dry.

Caution

• Do not clean mainframe controller and indicator by alkaline liquid.
• Do not wipe air purifier's surface by vitriol, hydrochloric acid or organic solvent.

Dust sensor cleaning method

The dust sensor is a device that senses the minute and large dust particles. The lens part must be periodically cleaned to maintain the performance.

1 Open the front panel.
2 Open the dust sensor cover.
3 Wipe the lens of the dust sensor with a cotton stick.

After cleaning the lens, close the cover of the dust sensor in the reverse order.

Clean the lens of the dust sensor once every 6 months.

But the cleaning frequency can differ according to the using environment and time.

So in an environment where it is dusty, clean more frequently.

Front panel

Dust sensor cover Front panel

Lens of the dust sensor

Filter Maintenance

1 Ensure to shut down before cleaning. Hold knob then pull forward, open the front panel.
2 Lift the knob of dustbin to the upper direction to pull it out.
3 Pull the filter case out of the main unit.
4 Place the filter case down on the even ground and lift the fixed hanger of dual protection filter to the upper direction to open it.
5 Disassemble dual protection filter.
6 Clean the dissembled filter according to the filter cleaning method of the next page.

1 Front panel

Interior view of a server rack with fan and ventilation duct (no text or symbols visible)

Illustration of a hand holding a fan blade over a document (no text or symbols visible)

Diagram of a refrigerator with fan and door, showing hand inserting into the air gap (no text or symbols)

Illustration of a hand holding a fan blade with a handle, showing internal blades (no text or symbols)

6 Dual protection filter Allergen filter Triple care filter HEPA filter

Caution

• For your safety, unplug the power before cleaning.
  • After cleaning with water, completely dry the product under a shade. (If it is not dried completely, it may cause amalfunction)
• Replace the filter when it is impossible to clean it due to over clogging.
• If the filter is not dried completely after cleaning, it may cause a bad odor.
• Please, do not rub the product with your hand.

Filter Maintenance

Filter Maintenance Method Filter maintenance may vary depending on the environment.

Type of filter	Classification	Maintenance cycle	Maintenance Method
Dual protection filter	For washing	About a month washing Cycle	Clean the dual protection filter with a vacuum cleaner or a soft brush, and when the contamination is severe, use a neutral detergent and water to clean it off.	Refer to the Fig. 1.
Allergy filter	For replacement	-	Replace it once a year.	Replacement
Triple care filter	For replacement	-	Replace it once a year.	Replacement
HEPA filter	For replacement	-	Replace it once a year.	Replacement

1 Dual protection filter

Clean the dustbin (Cover the front panel after cleaning dustbin. Please cover it tightly, otherwise it doesn't operate.)

1 Ensure that you turn off the power while operation. Pull the front panel forward to open.

Front panel

2 Lift the knob of dustbin to the upper direction to pull it out.

Diagram of a door panel with fan and handle, showing internal structure (no text or symbols)

3 Empty the dustbin.

4 To settle the dustbin, you should fit the side hole of dustbin into the guide of dual protection filter.

Mechanical assembly diagram showing a bracket and mounting bracket (no text or symbols)

Maintenance

1 Ensure to run air purifier over 1 hour in shiny day, press On/Off button to shut down.

开关 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

2 Plug out the power.

Power plug

3 Ensure to clean and protect air purifier's mainframe. Use vinylbag to pack when store air purifier for an extended period of time, avoid dust or particle enter interior.

Illustration of two cartoon-style books with smiling faces and smiling hands (no text or symbols)

Clean by soft cloth.

Scratch may easily cause exterior damage.

Confirming Items Before Reporting Defect

When product goes wrong, before contacting the service center please confirm the following items.

Symptom Confirmation Procedures
Total malfunction	Has the power plug been pulled out? Correctly connect with power point.Does the remote controller have problems?Replace the battery or adjust the battery(+,-) pole.Is the power fuse broken? Ask for assistance from service center.Whether the front panel open or not? Stop working when front panel is opened, close it completely. (Left/right close)
Low fan speed with cacophony	Whether too much dust clog on the HEPA filter or not?Wash filter according to its cleaning cycle and the Whether too much dust clog on the Allergen filter should be replaced by its cycle.
The off-timer doesn't set.	Whether checked the operation indicator or not?Set again according to manual.
Air purify function do not work well	Whether indoor air pollution is too severe or not?Use after enough air circulation.Is filter polluted?Wash or replace filters. (Caution: Do not use over 40 degrees hot water or volatile solvent) Dry completely at shadowed place, avoid places near fire source or direct illumination. Refer to the page 31.Whether using environment is too spacious or not?Use at appropriate space. (Avoid to use at well-ventilated places such as exit and entrance and window etc.)
	Whether there are surrounding obstacles or not?Remove obstacles.Whether install at non-ventilated places or not?Install at other places.
The button doesn't work properly.	Check if your hand(s) wear(s) mittens and etc?Use it after removing any strange things including mittens.

Confirming Items Before Reporting Defect

Symptom Confirmation Procedures
Air outlet has abnormal smell.	· Is it the smell that gives off right after buying the product?	· It is the smell of active carbon. It would be gone in 1-2 weeks after operating the product. The smell isn't harmless. (It is the phenomenon same as the first smell of new car.)
	· Whether complete dry dual protection filter or not?	· Wet dual protection filter may cause odor, please use after complete dry.
	· Whether use at place with food odor or not?	· Food odor may penetrate into filter, use after enough air circulation.
	· Whether use at smoky, odor places or not?	· Use at smoky, odor places may cause weaken air purifying function.
Sensor indicator has problem.	· Dust sensor keeps high level always.	· Clean dust sensor or filter.
	· Odor sensor level goes up? · LG air purifier is designed to detect polluted air, therefore odor sensor may not react to food odors. But odor removing filter will remove odor. Steam particle from cooking or boiling water may cause odor sensor level goes up.
	· Does the numbers of dust sensor and smell sensor keep moving up and down?	· It is the preliminary operation phenomenon to stabilize the initial sensor working during 2 min. after starting the operation. In 2 mins., the working stops and the sensor operates (Refer to page 21).

Owner's Manual

Product Specification

The external dimension, design and product standard can change to improve the quality of the product.

Model Name PS-P809 Series
Power Supply 220 V~50 Hz
Weight of Product 16 kg
Appearance Size(mm) 475 (Width) x 680 (Height) x 300 (Depth)
Power consumption 90 W

* The rating on the manual displays a range for possible usage, so it could be different from the rating on the label, which displays the rating of the using region on the product.
