USER MANUAL PYWM78 Pyle

Black metal TV frame with vertical connectors and a 'PVLE' label on the front panel (no other text or symbols visible)

Row of red star and circle icons including stars, squares, and triangles (no text or symbols)

Fits for 42-84" LED/LCD/OLED & Plasma Flat Screen TV with 2x Standard Weight Support, Weight Up to 132lbs.

USER MANUAL

CAUTION:

Please read this instruction carefully before assembly.

• Fits for 42-84" plasma and LCD TV.
  • Weight Capacity: 60Kg (132Lbs)..

CAUTION:

SAFETY WARNING:

• Never let children climb on product or play with product.
• Do not sit or stand on product.
• Do not fasten a TV that is heavier than the recommended load rating to the mount.
• Using suitable concrete wall or wood stud wall.
• Improper installation may cause property damage and/or personal injury, so the installation must be done by two qualified contractors. The manufacture is not liable for damage or injury caused by incorrect mounting, assembly or use.
• Improper handling can result in cuts and lacerations.
• Pictures for reference only, subject to our available products.
• Keep this instruction for future reference.

CAUTION:

This mount is intended for use with TV weights not exceeding "maximum weight capacity 132lbs." The wall itself has to be capable of supporting 2X standard weight plus 200lbs. Please don't over tighten screws in order to avoid any injury. Use with products heavier than the maximum weights indicated may result in collapse of the mount and its accessories causing possible injury.

PART LIST

Simple line drawing of a rectangular frame with evenly spaced square holes (no text or symbols)

A-Wall plate 1pc

B - Bracket (L) 1pc C - Bracket (R) 1pc

WALL MOUNTING HARDWARE

TV MOUNTING HARDWARE

a--M4x12 bolt 4pcs	b--M6x12 bolt 4pcs	c--M8x25 bolt 4pcs	d--M4x30 bolt 4pcs	e--M6x35 bolt 4pcs

f--M8x50 bolt4pcs	g--M6x17mm spacer4pcs	h--M8x22mm spacer4pcs	i--M8x10mm spacer4pcs

j--2.5mm spacer 8pcs	k--M4 washer 4pcs	l--M6 washer 4pcs

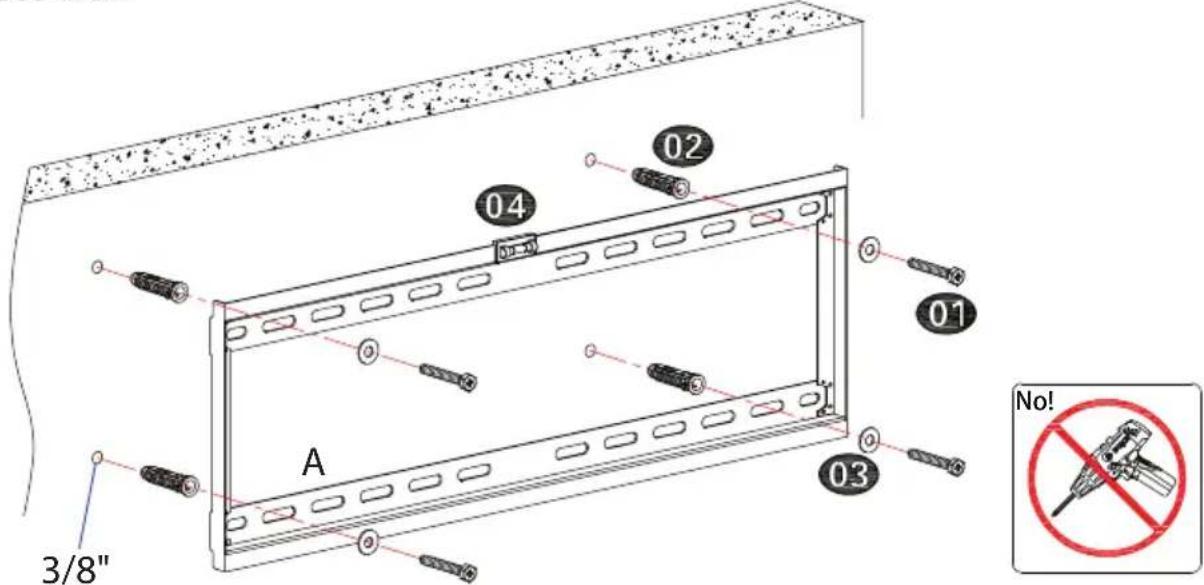

Step 1: Remove the plaster board on the surface of concrete wall when assembling mount on the concrete wall. Hold Wall plate (A) against wall at desired position on concrete wall, then using a pencil mark 4 hole locations. Then drill holes according pencil marks using 3/8" size drill bit to a depth of 2.5". Then you will need to use wall anchors ^02 . Insert wall anchors ^02 into holes, you may need to use hammer to lightly tap wall anchors into wall. Then fix Wall plate (A) to the wall with lag bolt ^01 and washers ^03 . (Figure 1)

CAUTION:

The concrete wall minimum thickness no less than 5.5 inches, and surface covering can't more than 3/8 inches.

If you mount TV mount into wood studs, pre-drill the mark 4 holes using 7/32" drill bit to a depth of 2.5", fix Wall plate (A) to the wall with lag bolt 01 and washers 03. (Figure 2)

CAUTION:

The wood stud min size is 2x4 inches, and surface covering can't more than 5/8 inches. Drill hole on the wooden pillars middle line.

CAUTION: Don't use it on the concrete block.

Concrete wall

01 02 03 A 3/8" No!

Figure 1 (keep the Wall plate level)

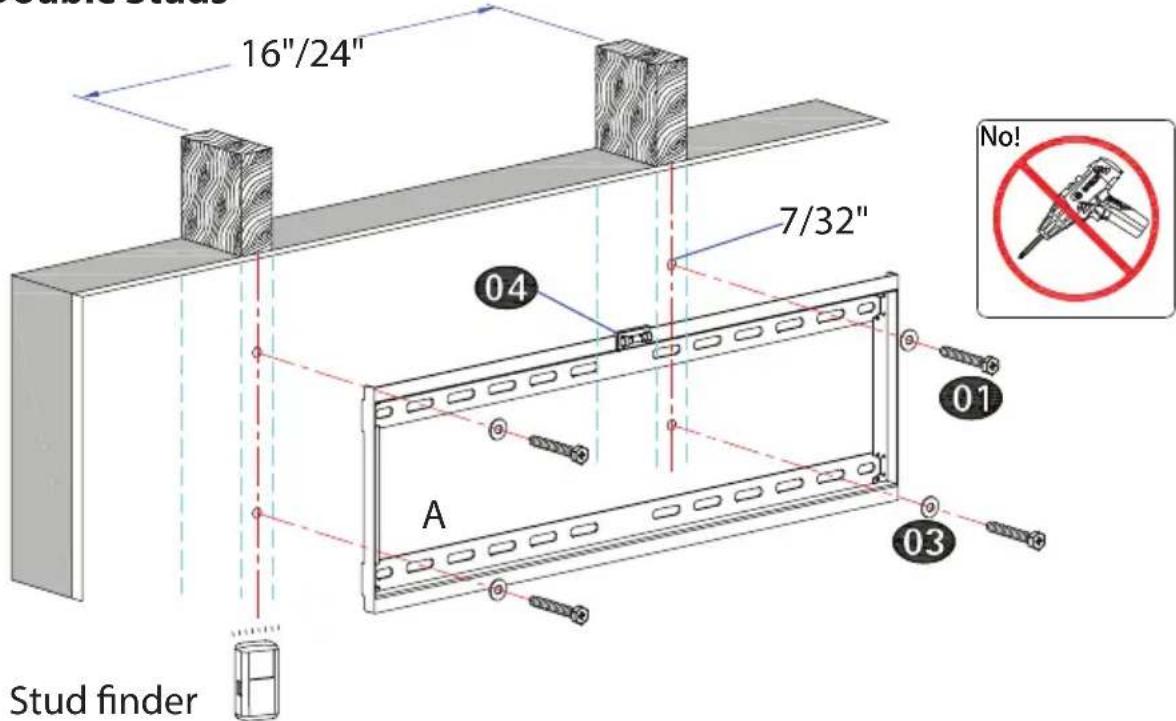

Wood Double Studs

16"/24" 7/32" 04 A 01 03 No! Stud finder

Figure 2 (keep the Wall plate level)

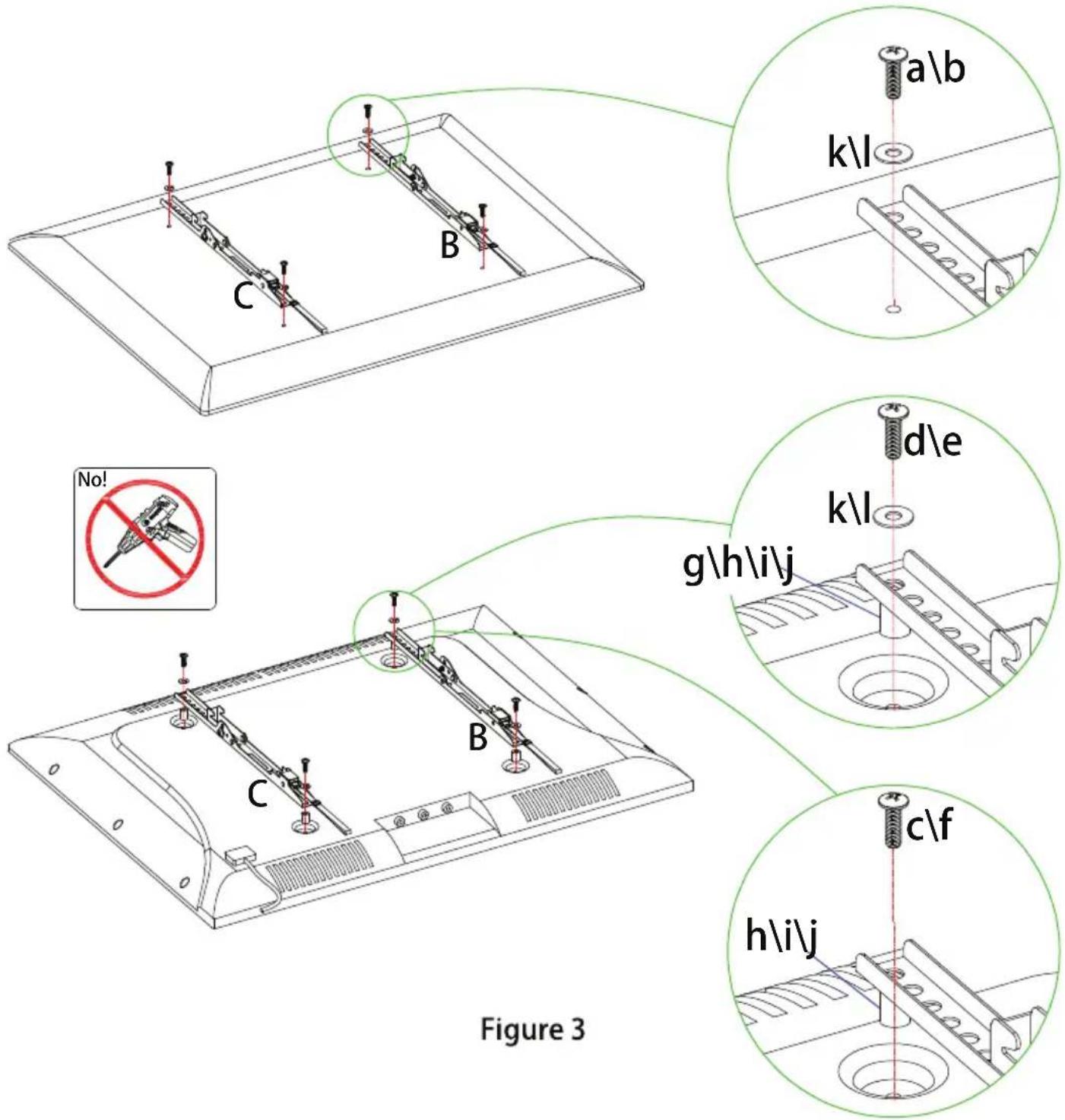

Step 2: Attach TV Bracket (B\C) to the back of TV, choose corresponding bolt, washer and spacer to fix the holes of TV rear. (Figure 3)

If the back of TV is not flat, or the bolts used to assemble TV are too long, or there is interfere between TV bracket and cable inlets, we highly recommend you to use spacers.

CAUTION: Using incorrect bolts may damage your TV.

a\b k\l C B d\e k\l g\h\i\j c\f h\i\j Figure 3

Step 3: Hang the pre-assembled TV unit on the Wall Plate. Pull down to release the safety catch on both Brackets to attach the assembly to the bottom part of the Wall Plate. (Figure 4)

CAUTION: This step must require 2 or more professional to finish.

Pull down

Figure 4

Step 4: Adjust angle by loosening the side screws to allow the Brackets to tilt forward up to 8 degrees. (Figure 5) Once the desired tilt angle is achieved, tighten the screws to secure the television in the new position.

Tighten Loosen 0° -8° Figure 5 05 05

PRODUCT DIMENSIONS:

0°~8° 650mm MAX: 600mm MIN: 75mm 39mm 420mm MAX:400mm MIN:75mm

PAY EXTRA CARE AND ATTENTION WHEN YOU FASTEN TWO TV MOUNTS TO THE BACK PANEL OF TV IN STEP 2. MAKE SURE THE APPROPRIATE MOUNT HARDWARE IS BEING USED PROPERLY.

1. Select correct Mounting Hardware according to the screw hole size of your TV, discard any remaining screws or spacers.
2. Carefully lay your TV on its face on a non-abrasivesurface, making sure to lay padding underneath it so as not to damage the screen.
3. Place left TV mount and right mount in the appropriate position, make sure it is CENTERED on the back of the TV and LEVEL with on another.
4. Only install this product on a perpendicular wall, do not install on the ceiling.

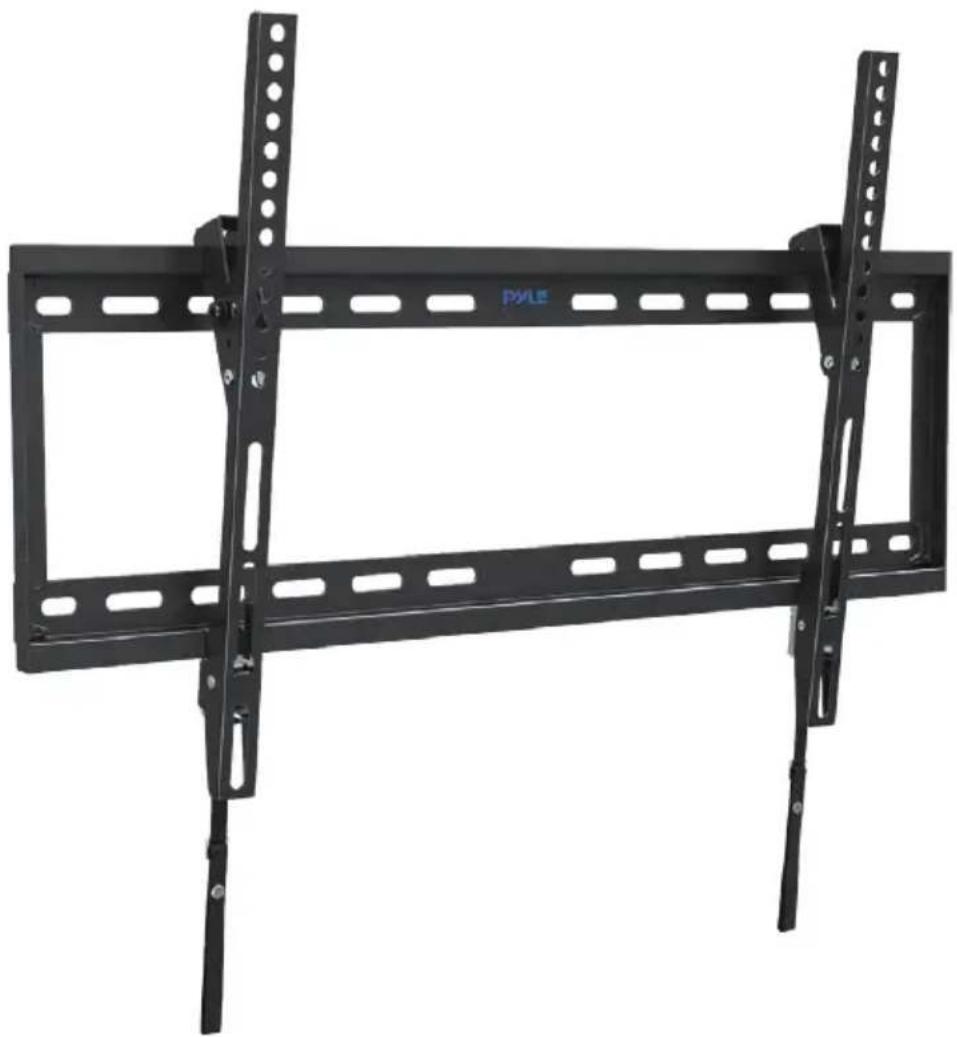

PYWM78

TV Wall Mount Bracket

Fits for 42-84" LED/LCD/OLED & Plasma Flat Screen TV with 2x Standard Weight Support, Weight Up to 132lbs.

Features:

• Fits for 42" to 84" TV or Fits for 16"/24" Studs Plus Concrete Wall
  • Supports 2x Standard Weight
• Saves Space with Stylish Appearance
• Tilt TV for Anti-glaring
• Reduces Glare for Better Viewing
• Easy to Install
  • Heavy Duty Steel Construction
  • Automatic Robot Welding Technology
• Open Wall Plate Design for Outlets
  • TV can Move Easily to be Centered
• Suitable to Use for Home, School, and Office

What's in the Box:

• (1) Wall Plate
• (2) Bracket
- Hanging Hardware

Technical Specs:

• Mount Type: Large Tilt Mount
• TV Size: 42"-84"
  • Fitting Studs Spacing: Up to 24"
  • Max VESA: 23.62" x 15.75"-inches
  • Weight Capacity: 132 lbs. (60 Kg.)
• Tilt angle: 0^ -8^
  • Distance to Wall: 1.54" -inches
  • Construction Material: Steel

- Product Dimension (L x W x H): 25.59" x 8.74" x 1.54"-inches
