Product Type	HDMI Extender over Category Cable
Brand	Simplified MFG
Model	EX1502K
Video Resolution	Up to 1080p/60Hz (RGB/YUV 4:4:4)
HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Audio Support	LPCM, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Transmission Distance	150m (500ft) over Cat6 cable
Power Supply	24V DC, 1A (included)
Power Consumption	5.76W (max)
Dimensions (WxDxH)	115mm x 64.7mm x 17mm (4.5" x 2.5" x 0.67")
Weight	406g (14.3 oz)
Housing	Metal enclosure
Color	Black
Package Contents	Transmitter, Receiver, IR Emitter, IR Receiver, Power Supply, User Manual
Warranty	3 Years Parts and Labor
ESD Protection	±8kV (air gap discharge), ±4kV (contact discharge)
Operating Temperature	0-40°C (32-104°F)
Storage Temperature	-20-60°C (-4-140°F)
Relative Humidity	20-90% RH (non-condensing)
Control	Bidirectional RS232, Two-Way IR
Video Bandwidth	148.5 MHz
Surge Protection	Recommended (device contains sensitive components)

Frequently Asked Questions - EX1502K Simplified MFG

What is the maximum transmission distance of the EX1502K?

The EX1502K can transmit HDMI signals up to 150 meters (500 feet) over a single Category 6 cable.

Does the EX1502K support 4K resolution?

No, the EX1502K supports up to 1080p/60Hz with RGB/YUV 4:4:4 color space. It does not support 4K.

Can I power the extender from either the transmitter or receiver side?

Yes, power can be supplied via a single 24V/1A power supply connected to either the TX or RX unit.

What type of Ethernet cable should I use?

Use a straight-through T-568B terminated Category 6 (or higher) cable for best performance.

Does the EX1502K support two-way IR control?

Yes, the EX1502K features Two-Way IR transmission, allowing IR control signals to pass in both directions between source and display.

Can I control the source and display via RS232?

Yes, the EX1502K supports bidirectional RS232 control through Phoenix connectors on both the transmitter and receiver.

What audio formats are supported?

The extender supports LPCM, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X.

Is the device HDCP compliant?

Yes, the EX1502K is HDCP 1.4 compliant.

What is the warranty period for the EX1502K?

Simplified MFG provides a 3-year parts and labor warranty from the original purchase date.

How can I tell if the connection is working properly?

The RJ-45 connector has two LEDs: Green lights when TX and RX are communicating properly; Amber indicates HDCP presence. Refer to the manual for detailed status.

USER MANUAL EX1502K Simplified MFG

EX1502K

1080p HDMI Extender

over single 150m/500ft. Category Cable with IR

and RS232 Control

1

User Manual

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

2

Surge protection device recommended

The EX1502K contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Caution

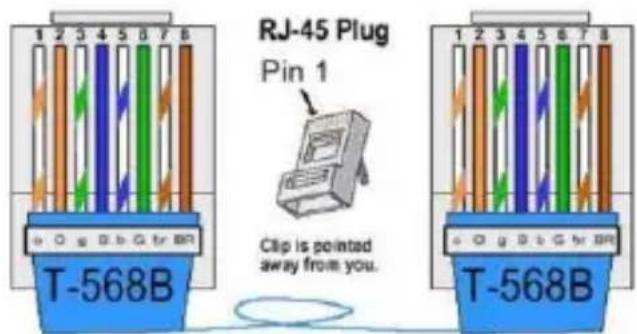

Use 568b direct connection termination

T-568B Straight-Through Ethernet Cable

3

Table of Contents

Introduction

Features

Package Contents

Specifications

Operation Controls and Functions

Connection Diagram

Warranty

Contact Us

Introduction

The EX1502K is a 150 meter (500 ft.) HDMI of Category cable extender with Two-Way IR and RS232 transmission.

Features

1. HDMI 1.4, HDCP 1.4 and DVI compliant
2. Supports video resolutions up to 1080p/60Hz./YUV4:4:4
3. HBR (High Bit Rate) Audio pass through
4. 150m (500ft.) on Category 6 cable
5. Power can be supplied via one power supply at either the TX or RX device (24V 1A)
6. Two-Way IR
7. Bidirectional RS232 transmission
   ----5----

Package Contents

(1) HDMI Extender Transmitter
(1) HDMI Extender Receiver
(1) Wideband IR Emitter
(1) Wideband IR Receiver
(1) 24V/1A multi-voltage AC power supply
(1)User Manual

Specifications

HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	148.5 MHz
Video Resolutions	1080p/60Hz, YUV 4:4:4 / RGB 4:4:4
Color Space	RGB/YUV 4:2:2, 4:4:4
Color Depth	8 Bit
HDMI Audio Formats	LPCM, Dolby Digital, DTS 5.1, DolbyDigital+, Dolby True HD, DTS-HD MasterAudio, Dolby Atmos, DTS-X
ESD Protection	Human Body Model - ±8Kv (Air Gap Discharge) and ±4Kv (Contact discharge)
Inputs	TX: (1) HDMI Type A (19pin Female)(1) IR Input (3.5mm)(1) RS232 (Phoenix Connector)RX: (1) HDBaseT (RJ-45)(1) IR Input (3.5mm)(1) RS232 (Phoenix Connector)
Outputs	TX; (1) HDBaseT (RJ-45)(1) IR Output (3.5mm)RX: (1) HDMI Type A (19pin Female)(1) IR Output (3.5mm)
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	115mm(4.5")x64.7mm(2.5")x17mm(.67")
Weight	406g (14.3 oz.)
Power Supply	Input AC 100-240V 50/60Hz.Output DV 24V 1 Amp
Power Consumption	5.76W
Operation Temperature	32-104°F/0-40°C
Storage Temperature	-4-140°F/-20-60°C
Relative Humidity	20-90% RH (non-condensing)

Operation Controls and Functions

Transmitter

① Power – System Power indicator
② DC 24V – Connection for 24V/1A AC Power Supply
3 HDBaseT Out – UTP cable Connection for HDBaseT Transmission
4 HDMI In – HDMI Type A 19 pin signal input

10

⑤ IR In- IR receiver input to receive IR signals
6 IR Out – IR Emitter connection
7 RS232 – Phoenix connector for RS232 signal connection

Green LED on RJ-45 – Illuminated = TX and RX are communicating properly

Flashing = TX and RX have a poor connection

Dark = TX and RX have no connection

Amber LED on RJ-45 – Illuminated = HDMI input signal has HDCP

Flashing = HDMI signal does not have HDCP

Dark = HDMI signal is not present

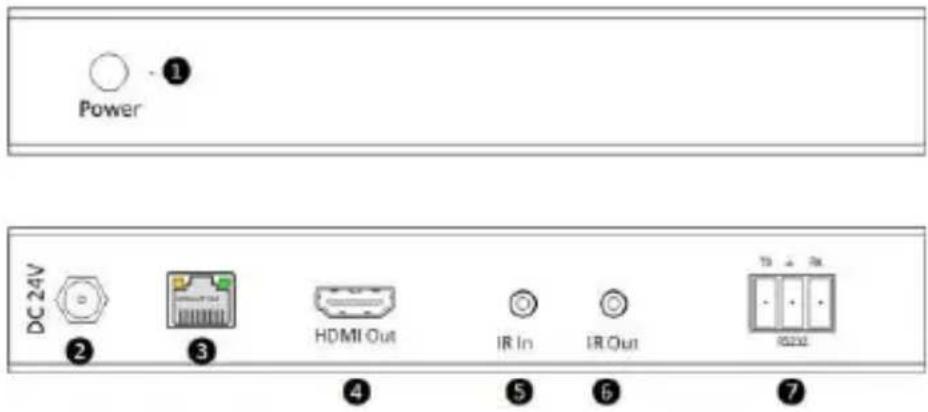

Receiver

① Power – System Power indicator
② DC 24V – Connection for 24V/1A AC Power Supply
3 HDBaseT In – UTP cable Connection for HDBaseT from TX device
4 HDMI Out – HDMI Type A 19 pin output to display
⑤ IR In- IR receiver input to receive IR signals
6 IR Out – IR Emitter connection

12

7 RS232 – Phoenix connector for RS232 signal connection

Green LED on RJ-45 – Illuminated = TX and RX are communicating properly

Flashing = TX and RX have a poor connection

Dark = TX and RX have no connection

Amber LED on RJ-45 – Illuminated = HDMI input signal has HDCP

Flashing = HDMI signal does not have HDCP

Dark = HDMI signal is not present

Connection Diagrams

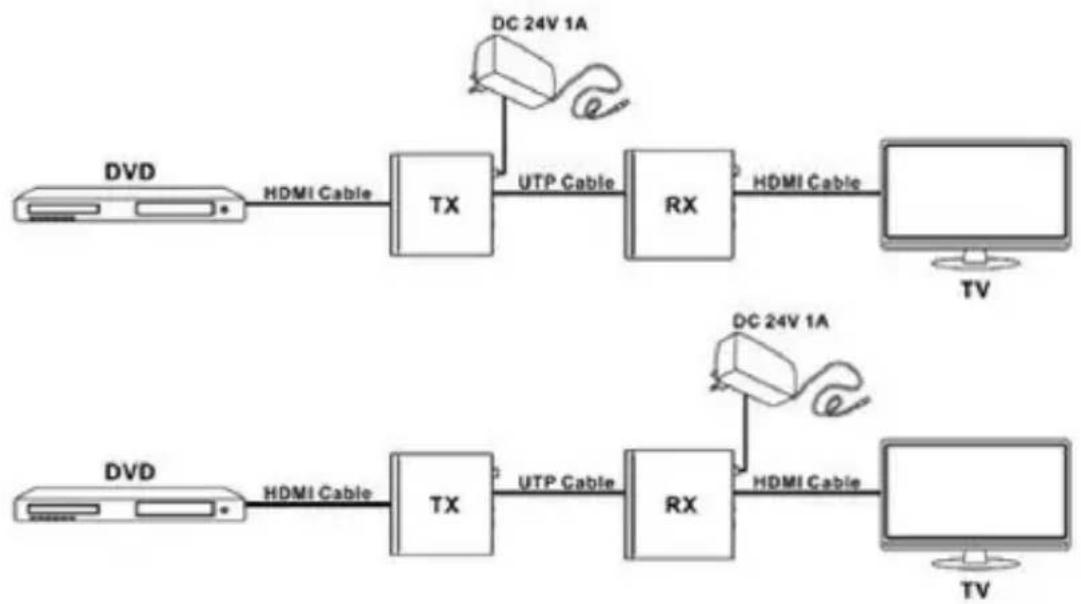

Power over Cable Illustration

14

Bi-Directional IR Illustration


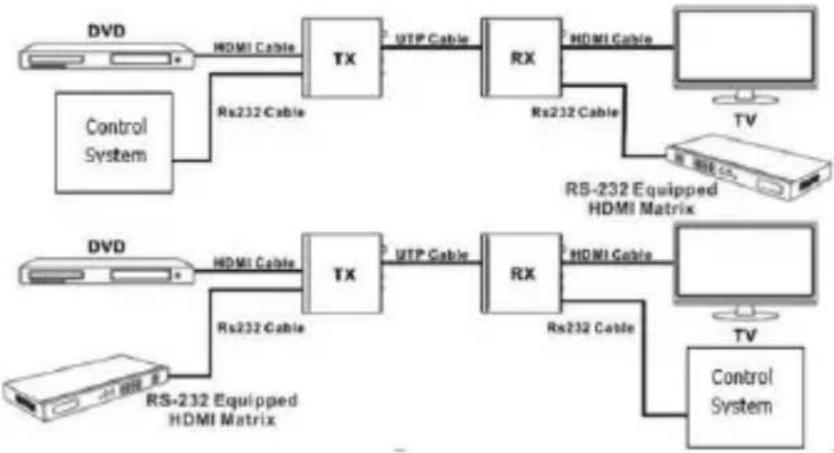

RS232 Illustration
    subgraph_Top_1_DVD["Top DVM"]
        A["Control System"] -->|HDMI Cable| B["TX"]
        B -->|UTP Cable| C["RX"]
        C -->|HDMI Cable| D["TV"]
        B -->|Rs232 Cable| E["RS-232 Equipped HDMI Matrix"]
    end
    subgraph_Top_2_DVD["Top DVD"]
        F["Control System"] -->|HDMI Cable| G["TX"]
        G -->|UTP Cable| H["RX"]
        H -->|HDMI Cable| I["TV"]
        G -->|Rs232 Cable| J["RS-232 Equipped HDMI Matrix"]
    end
    style Top_1_DVD fill:#f9f,stroke:#333
    style Top_2_DVD fill:#f9f,stroke:#333

15

Warranty

Should you feel your product does not function adequately due to defects in materials or workmanship, we (referred to as “the warrantor”) will, for the length of the period indicated below (starting from the original date of purchase) either: a) Repair the product with new or refurbished parts. or b) Replace it with a new or refurbished product. All Simplified MFG products are covered by a 3 year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of product if necessary. The decision to repair or replace will be made by the warrantor. The purchaser must mail-in the product during the warranty period. This limited warranty only covers the product purchased as new and is extended to the original purchaser only. It is non-transferable to subsequent owners, even during the

16

warranty period. A purchase receipt or other proof of original purchase date is required for the limited warranty service.

1. This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship and DOES NOT COVER normal wear and tear or cosmetic damage. The limited warranty also DOES NOT COVER damage that occurs in shipment or failures caused by products not supplied by the warrantor, failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, incorrect installation, set-up adjustment, implementation of/to consumer controls, improper maintenance, power line surge, lightening damage, modification, service by anyone other than a manufacturer-approved service center or factory authorized personnel, or damage attributable to acts of God.

17

1. There are no express warranties except as listed under “limited warranty coverage.” The warrantor is not liable for incidental or consequential damage resulting from the use of this product or arising out of any breach of this warranty. For example: damages for lost time, the cost of having a person/persons remove or re-install previously installed equipment, travel to and from service location, loss of or damage to media, images, data or other recorded/stored content. The items listed here are not exclusive, but are for illustration only. Parts and service not covered by this limited warranty are not the responsibility of the warrantor and should be considered the responsibility of the individual.

18

Simplified MFG Publication Disclaimer

The material contained in this document consists of information that is the sole property of Simplified MFG. This document is intended to provide information to allow interfacing to the relevant Simplified MFG equipment by third party products. Simplified MFG IS NOT RESPONSIBLE FOR MALFUNCTIONS AND/OR THE IN-OPERABILITY WHICH MAY BE CAUSED BY THE APPLICATION OF THIS INFORMATION, WHETHER EXPECTED OR NOT. Simplified MFG reserves the right to change software, control codes and specifications without notice. Simplified MFG will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.

19

Contact

P 1-833-HDMI-411

E [e-mail]

20

SIMPLIFIED

MFG

EX1502K Quick Start Guide

Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)

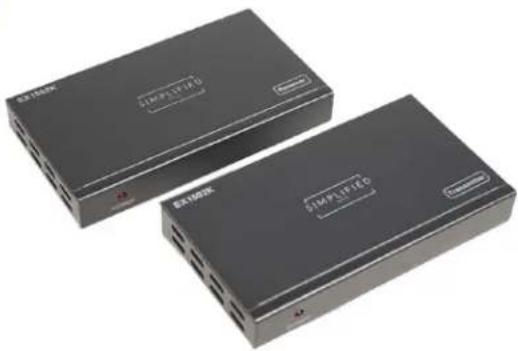

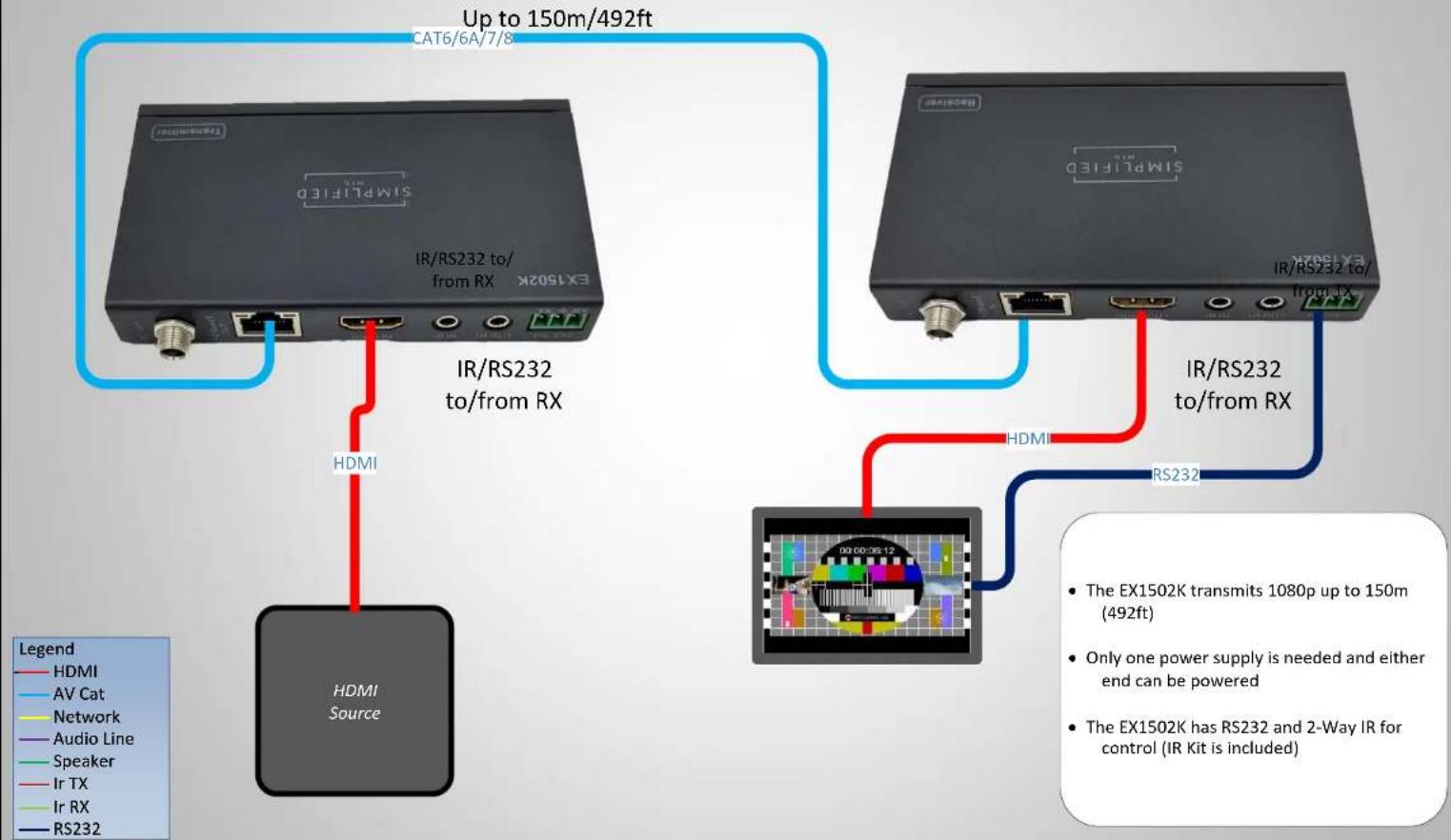

EX1502K

HDMI 1.4 1080p Extender over Category cable

Two black electronic devices labeled 'EX-1800X' and 'SAPPLIED', showing ports and connectors (no readable text beyond branding)

The EX1502K is a HDMI over category cable extender that is designed for longer distance runs (492 ft.). Applications may also include situations were other extender will not work due to some cable issues. Other features include single ended power (either end), Bi-Directional IR (Kit included), & RS232.

Features:

• HDMI 1.4
• 150m (492 ft.) distance
  • Supports 1080p (RGB and YUV4:4:4)
• Single power supply (either end)
• RS232
  • 2-Way IR (kit included)
  • Supports HBR (High Bit Rate Audio)
  • 3-Year Warranty

SIMPLIFIED

MFG

Specifications:

Technical
HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	48.5 MHz.
Video Resolutions	1080p @ 50/60Hz.
Color Space RGB & Color Depth 8-Bit	YCbCr 4:4:4
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digi-tal+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs	TX: 1x HDMI Type A [19-pin female]1x IR INPUT [3.5mm Stereo Mini-jack]1x RS232 [Phoenix jack]RX: 1x HDBaseT In [RJ45]1x IR INPUT [3.5mm Stereo Mini-jack]1x RS232 [Phoenix jack]
Outputs	TX: 1x HDBaseT Out [RJ45]1x IR OUTPUT [3.5mm Stereo Mini-jack]RX: 1x HDMI Type A [19-pin female]1x IR INPUT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions	115mm [W] x 65mm [D] x 17mm [H], 4.5" x 2.5" x .67"
Weight 406g 14.2 Oz.
Power Supply	Input: AC100 - 240V 50/60HzOutput: DC 24V/1A (US/EU standards, CE/FCC/UL certi-fied)
Power Consumption	6W (Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
