USER MANUAL RSP1:2 Simplified MFG

Thank you for purchasing this device

The Simplified MFG RSP1:2 is designed to provide years of reliable service. At

Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection such as the HDSURGE and other systems is highly recommended to protect and extend the life of your equipment.

Introduction

The RSP1:2 is 1 by 2 HDMI 18gbps UHD Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to two HDMI outputs. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV444) resolution and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. Supporting the latest features of the most advanced HDMI 2.0b signals

II. Features

1. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;
2. Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;
3. Supports high resolution VESA mode video format up to QSXGA@60Hz;

4. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio;

5. Supports smart EDID control;

III. Contents

1. UHD 1x2 HDMI Splitter ---- 1PC
2. 5V1A DC Power adapter 1PC
3. Operation Manual 1PC

IV. Specifications

1. Video Bandwidth 600MHz/18Gbps
2. Input Ports 1 × HDMI (Female type)
3. Output Ports 2 × HDMI (Female type),

4. Output Resolution 480i \~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz

5. ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)

6. Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)

7. Dimensions 56 mm (W) × 100 mm (D) × 16 mm (H)

8. Weight 165 g
9. Chassis Material Metal
10. Operating Temperature 0 °C\~40 °C/ 32 °F\~104 °F
11. Storage Temperature -20 ^ 60 ^/-4 ^ 140 ^
12. Relative Humidity 20\~90 % RH (non-condensing)
13. Power Consumption (Max) 5W

V. Operation controls and Functions

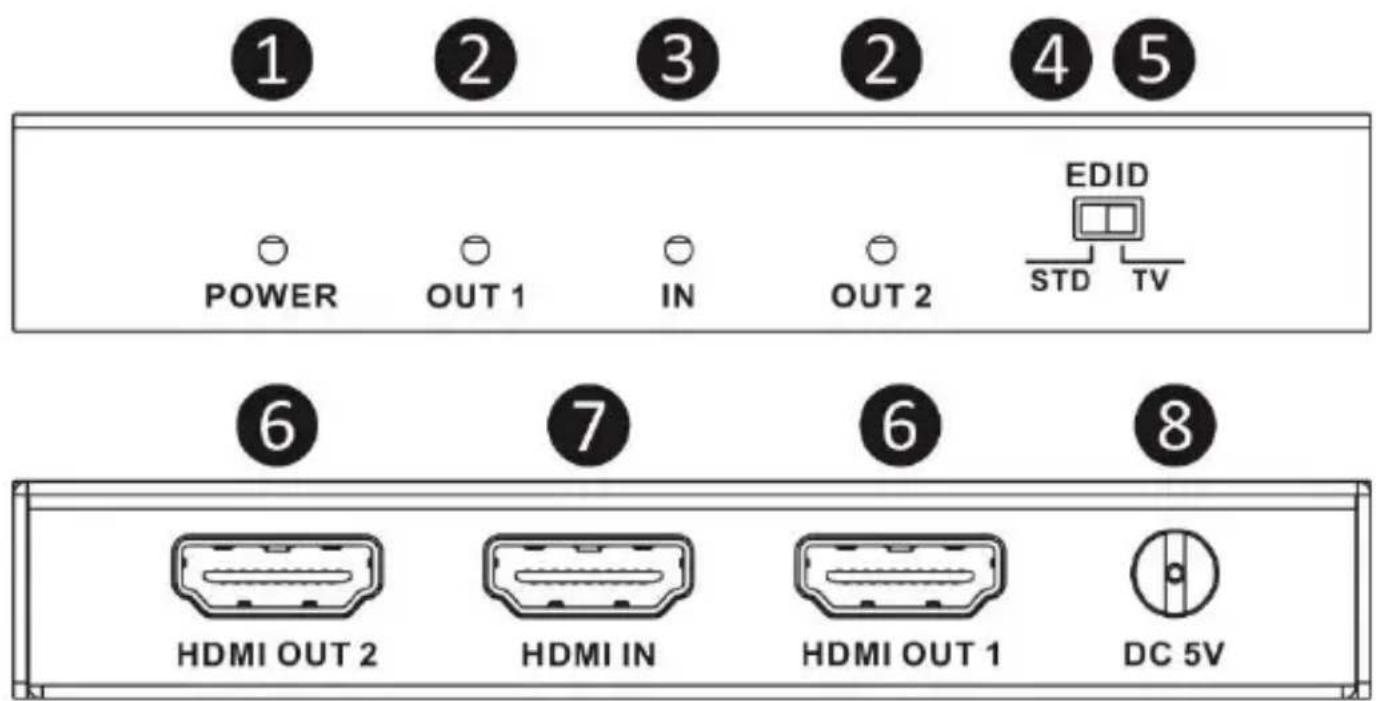

Front Panel & Rear Panel

1 2 3 2 4 5 POWER OUT 1 IN OUT 2 EDID STD TV 6 7 6 8 HDMI OUT 2 HDMI IN HDMI OUT 1 DC 5V

1. POWER LED: This red LED illuminate when the device is connected to power supply.
2. OUT LED: These blue LEDs will light up to indicate which HDMI outputs are connected to an active TV/display/monitor.

3. IN LED: This blue LED illuminate when the Source connected to the device.

4. EDID STD: When in 'STD' mode, the unit will use its own built-in EDID settings. In this mode, the video output will be set to 1080p@60Hz and the audio output at LPCM 2CH Stereo. Use this mode if there are display problems in TV Mode.

5. EDID TV: When in 'TV' mode, the unit will read the EDID settings of the display device connected to HDMI OUT 1. If it detects a 4K2K capable EDID setting it will transmit the signal in that format to all outputs. If no 4K2K capable EDID is detected then the unit will output the best resolution that all displays can support.
6. HDMI OUT 1\~2: Connect each of the HDMI outputs to an HDMI display for simultaneous HDMI distribution, or cascade the output to another transmitter to extend the operating distance.
7. HDMI IN: Connect the input port to the HDMI or DVI output of your source device such as a DVD player or set-top box with an HDMI cable.
8. DC 5V: Plug the 5V DC power supply into the unit and connected the adaptor to an AC

outlet.

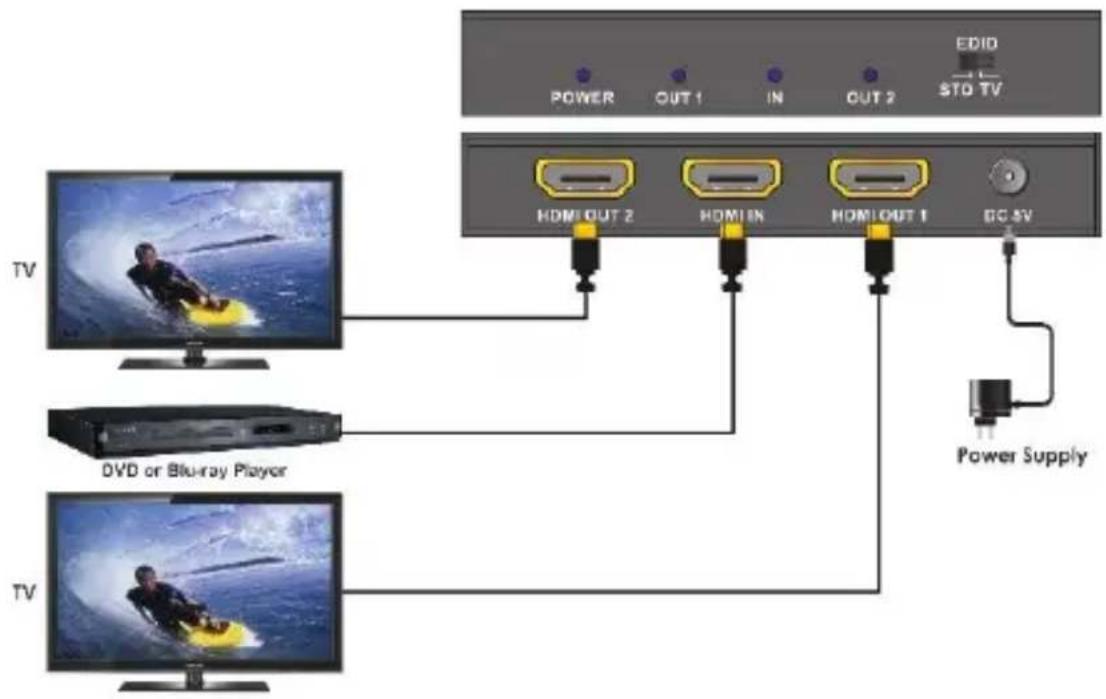

VI. Application Example

Warranty

Should you feel your product does not function adequately due to defects in materials or workmanship, we (referred to as "the warrantor") will, for the length of the period indicated below (starting from the original date of purchase) either: a) Repair the product with new or refurbished parts. or b) Replace it with a new or refurbished product.

All Simplified MFG products are covered by a 3 year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of product if necessary. The decision to repair or replace will be made by the warrantor. The purchaser must mail-in the product during the warranty period. This limited warranty only covers the product purchased as new and is extended to the original purchaser only. It is non-transferable to

subsequent owners, even during the warranty period. A purchase receipt or other proof of original purchase date is required for the limited warranty service.

1. This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship and DOES NOT COVER normal wear and tear or cosmetic damage. The limited warranty also DOES NOT COVER damage that occurs in shipment or failures caused by products not supplied by the warrantor, failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, incorrect installation, set-up adjustment, implementation of/to consumer controls, improper maintenance, power line surge, lightening damage, modification, service by anyone other than a manufacturer-approved service center or factory authorized personnel, or damage attributable to acts of God.

2. There are no express warranties except as listed under “limited warranty coverage.” The warrantor is not liable for incidental or consequential damage resulting from the use of this product or arising out of any breach of this warranty. For example: damages for lost time, the cost of having a person/persons remove or re-install previously installed equipment, travel to and from service location, loss of or damage to media, images, data or other recorded/stored content. The items listed here are not exclusive, but are for illustration only. Parts and service not covered by this limited warranty are not the responsibility of the warrantor and should be considered the responsibility of the individual.

Simplified MFG Publication Disclaimer

The material contained in this document consists of information that is the sole property of Simplified MFG. This document is intended to provide information to allow interfacing to the relevant Simplified MFG equipment by third party products. Simplified MFG IS NOT RESPONSIBLE FOR MALFUNCTIONS AND/OR THE IN-OPERABILITY WHICH MAY BE CAUSED BY THE APPLICATION OF THIS INFORMATION, WHETHER EXPECTED OR NOT. Simplified MFG reserves the right to change software, control codes and specifications without notice. Simplified MFG will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.

Contact

Sales and Tech Support

P 1-833-HDMI-411

E [e-mail]

SIMPLIFIED MFG

SIMPLIFIED

MFG

RSP1:2 Quick Start Guide

4K Display HDMI OUTPUT 2 INPUT OUTPUT 1 DC 5V 4K Display HDMI HDMI The RSP1:2 is a HDMI 2.1 splitter that takes one two outputs. The RSP1:2 copies the E shows that EDID to the

HDMI SourceHDMI Source

• The RSP1:2 is a HDMI 2.0b (18Gbps) 4K splitter that takes one input and splits it to two outputs.
• The RSP1:2 copies the EDID of output 1 and shows that EDID to the source, unless the EDID switch is set to "Std" which will override the displays EDID request and show the source a 1080p EDID
• The RSP1:2 is compact and good for fixing clock issues, EDID, and as a splitter

Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)

RSP1:2

HDMI 2.0b (18Gbps) 1:2 Splitter

Black RSP1.2 wireless device with SIMULIFTED branding and ports (no readable text beyond branding)

The RSP1:2 is a HDMI 2.0b (18Gbps) HDMI splitter device. The RSP1:2 has 1 HDMI Input and 2 HDMI Outputs. The EDID is preset to copy the EDID of OUTPUT 1. By switching displays on the outputs, EDID shown to the source can be manipulated. There is an EDID switch that overrides the display's request and is set to 1080p

Features:

• Supports the entire HDMI 2.0b format
• Supports all Digital audio formats
• EDID copy feature (Output 1)
• EDID override for troubleshooting or to supply needed 1080p EDID
- Compact size
• 3-Year Warranty

SIMPLIFIED

MFG

Specifications:

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/HDCP 1.4
Video Bandwidth (600MHz/18Gbps)
Video Resolutions	Up to 4K2K @50/60Hz. (YUV4:4:4), 4K 30Hz., & 1080p @ 60Hz.
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 8 Bit, 10-Bit, 12 Bit
HDMI Audio Formats (Pass-Through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digi-tal+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs	1x HDMI Type A [19-pin female]
Outputs	2x HDMI Type A [19-pin female]
DC Power	1x 5V Screw Down connector
Mechanical
Housing Metal Enclosure
Color Black
Dimensions	100mm [W] x 56mm [D] x 16mm [H] 4"x 2.2" x .63"
Weight 165g /5.8 Oz.
Power Supply	Input: AC100 - 240V 50/60HzOutput: DC 5V/1A (US/EU standards, CE/FCC/UL certi-fied)
Power Consumption	5W (Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)
