4K NDI PTZ CAMERA

PTC-280NDI

Instruction Manual

Table of Contents

TABLE OF CONTENTS 2

FCC COMPLIANCE STATEMENT .... 5

WARNINGS AND PRECAUTIONS....5

WARRANTY 7

STANDARD WARRANTY....7

THREE YEAR WARRANTY....7

DISPOSAL 8

1. PRODUCT OVERVIEW 9

FEATURES....9

2. LOCATION AND FUNCTION OF PARTS 10

3. BASIC SETUP 14

3.1 POWER-ON INITIALIZATION....14
3.2 VIDEO OUTPUT 14

HDMI Video Output....16

3G-SDI Video Output....16

4. HOW TO USE THE NDI STUDIO MONITOR SOFTWARE 17

4.1 NDI INTRODUCTION....17

5. REMOTE CONTROL AND ON-SCREEN MENU.... 22

5.1 REMOTE CONTROL FUNCTIONS 22
5.2 OSD MENU 27
5.3 PROFESSIONAL JARGON EXPLANATIONS OF THE OSD MENU 38

6. INSTRUCTION FOR INSTALLATION 39

7. NETWORK CONNECTION 45

7.1 DHCP MODE 46
7.2 STATIC IP....48

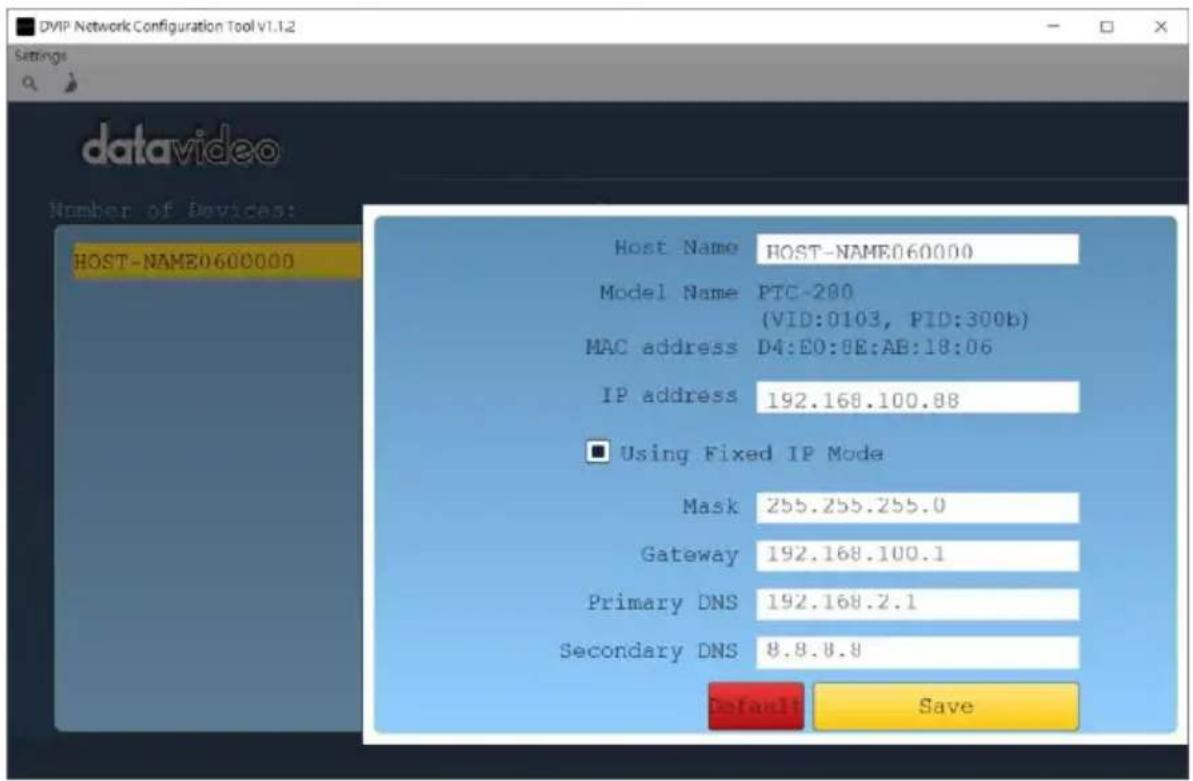

7.3 DVIP 49

8. WEB USER INTERFACE 52

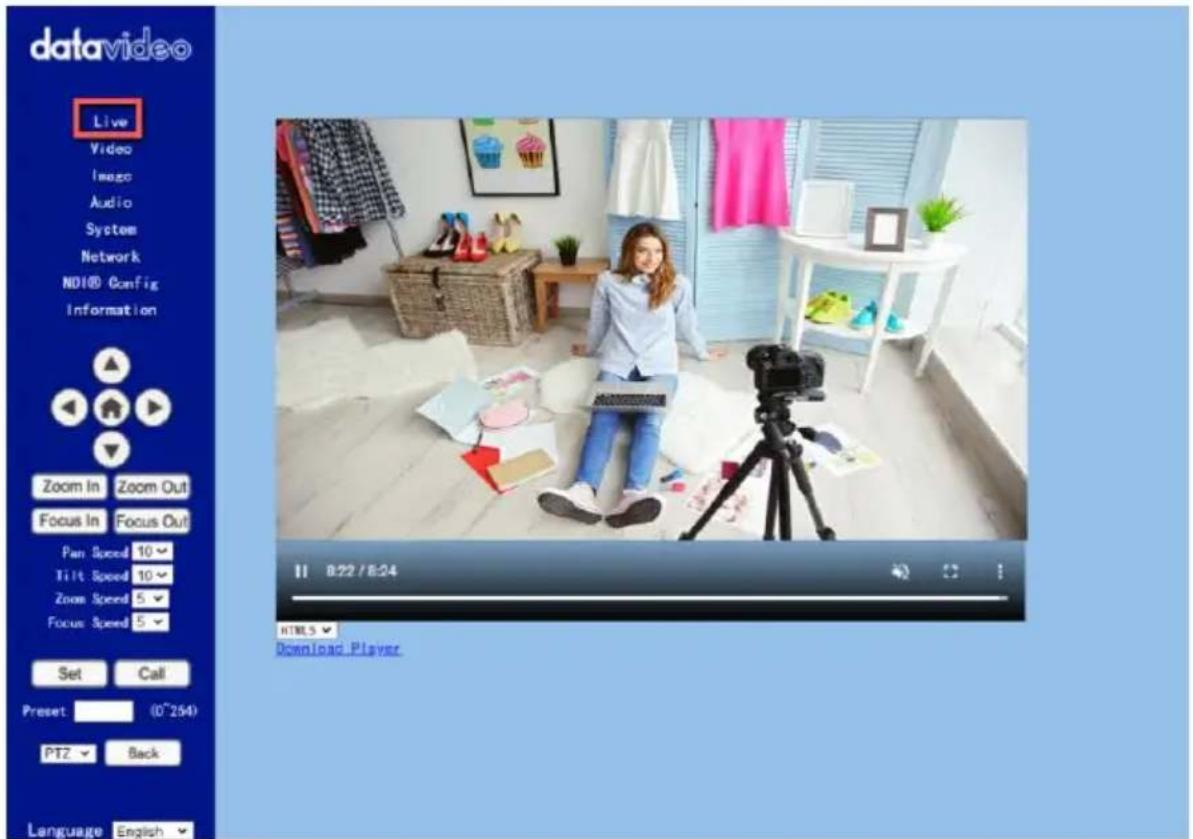

8.1 LIVE 52
8.2 VIDEO....53

8.2.1 How to Connect the PTC-280NDI to a Datavideo Switcher after a 60FPS/50FPS Video Streaming (Take the HS-1300 as an example)....57

8.3 IMAGE 61

8.4 AUDIO....63

8.5 SYSTEM....66

8.6 NETWORK 68

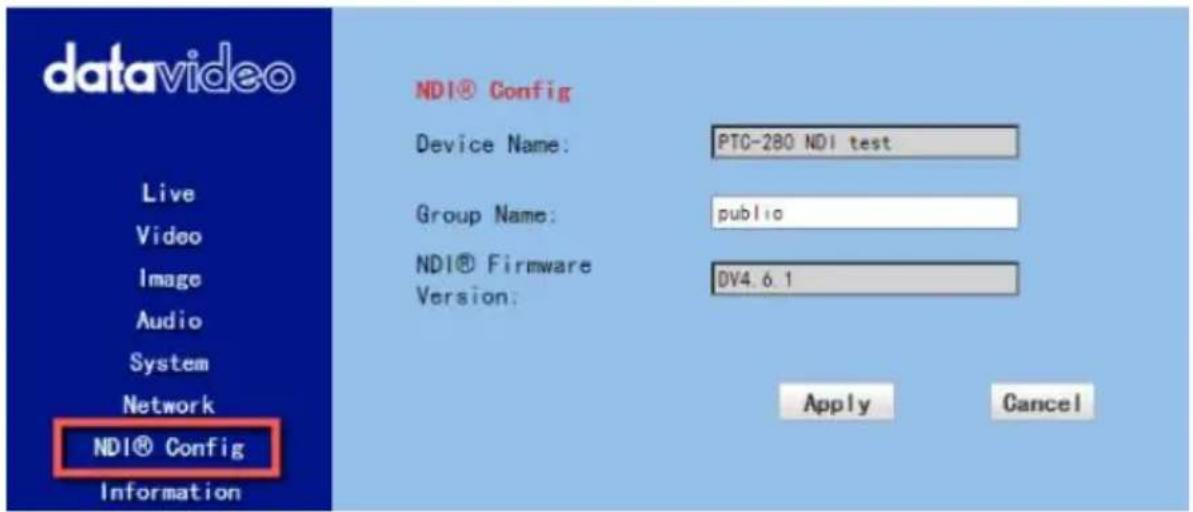

8.7 NDI® CONFIG....76

8.8 INFORMATION....78

8.9 THE PTZ CONTROL AREA OF THE WEB UI 80

1. HOW TO USE THE WEB UI TO SET AND CALL PRESETS 83

2. DIP SWITCH SETTINGS.... 84

10.1 DIP SWITCH SW1 84

10.2 DIP SWITCH SW2 (IRID) 85

1. HOW TO PLAY THE RTSP STREAM BY THE VLC PLAYER.... 86

2. HOW TO PLAY THE MULTICAST BY THE VCL PLAYER....88

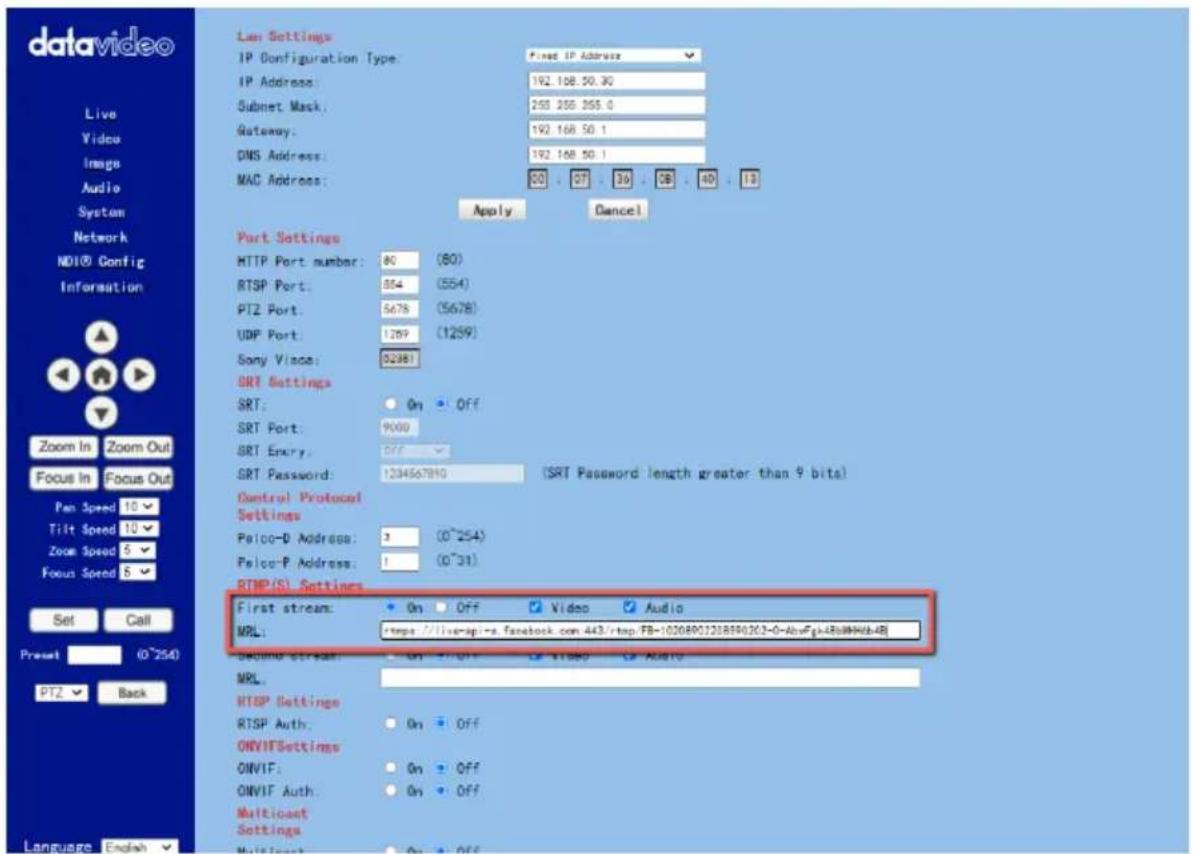

3. HOW TO STREAM TO FACEBOOK...... 89

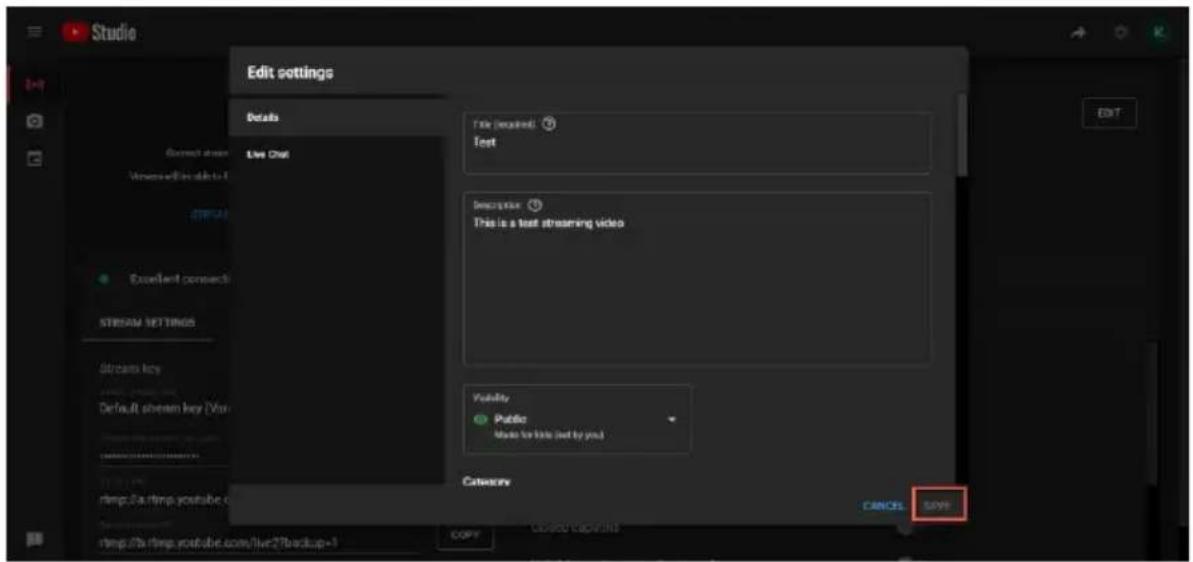

4. HOW TO STREAM TO YOUTUBE .... 100

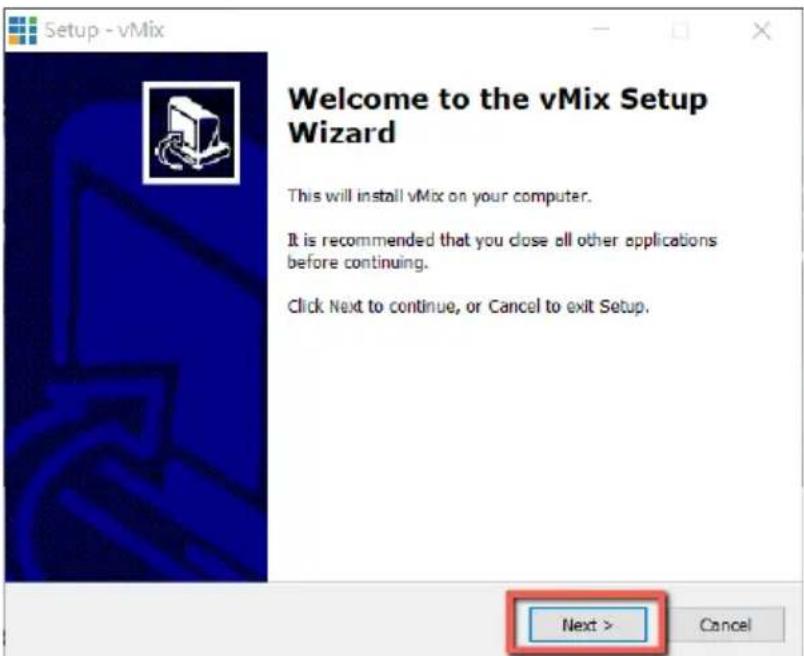

5. HOW TO DO THE SRT STREAMING BY THE VMIX SOFTWARE...... 104

6. REMOTE CONTROL PORT PINOUTS.... 114

7. FIRMWARE UPDATE.... 116

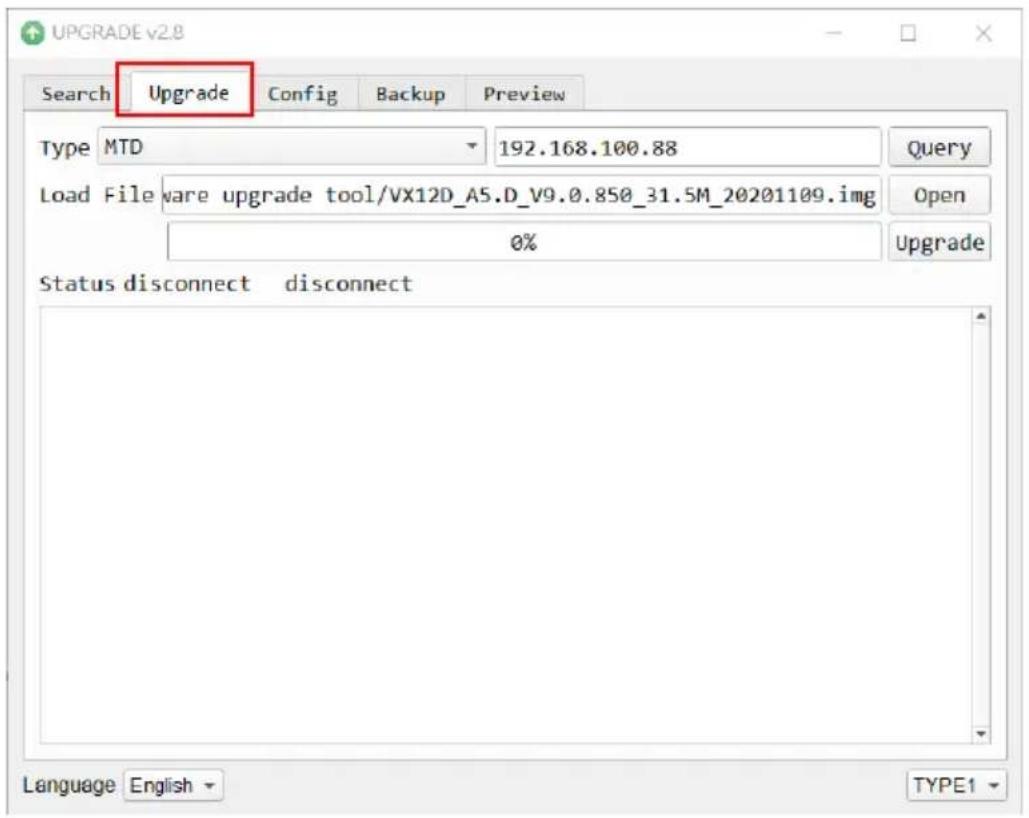

17.1 FIRMWARE UPDATE BY THE PTC-280NDI FIRMWARE UPDATE TOOL......116

17.2 FIRMWARE UPDATE BY THE USB FLASH DRIVE....120

1. FREQUENTLY-ASKED QUESTIONS.... 123

2. DIMENSIONS.... 125

3. SPECIFICATIONS.... 126

SERVICE AND SUPPORT ...... 132

Disclaimer of Product and Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord's rating.

10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.

12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.

13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
• The product warranty period begins on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.

- All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.

- Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.

- Viruses and malware infections on the computer systems are not covered under warranty.

- Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.

- All mail or transportation costs including insurance are at the expense of the owner.

- All other claims of any nature are not covered.

- All accessories including headphones, cables, and batteries are not covered under warranty.

- Warranty only valid in the country or region of purchase.

- Your statutory rights are not affected.

Three Year Warranty

- All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.

Register for 3 year warranty www.datavideo.com

• Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.
• The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Product Overview

The PTC-280NDI features a large 1/2.5" CMOS sensor, supports high-quality 2160p50/60 UHD video output, features 12x optical zoom, 16x digital zooms and supports versatile outputs, including 3G-SDI, HDMI, IP stream and NDI. The PTC-280NDI series is the ideal choice for taking your remote camera production to the next level.

Features

• PTZ Camera for Supporting 2160p50/59.94/60 Resolutions.
  • Supports 12x Optical Zoom and 16x Digital Zoom.
• Supports 4K Video Output Interfaces including HDMI and IP (H.264 & H.265).
  • Supports 2160p and 1080p (3G-SDI) Simultaneous video output.
  • Supports RS-422 Serial Port Control.
• Supports External Audio Input interface: 3.5mm Audio In/Line In (switchable on the web UI).
• Provides Friendly Web UI.

2. Location and Function of Parts

Front of Camera

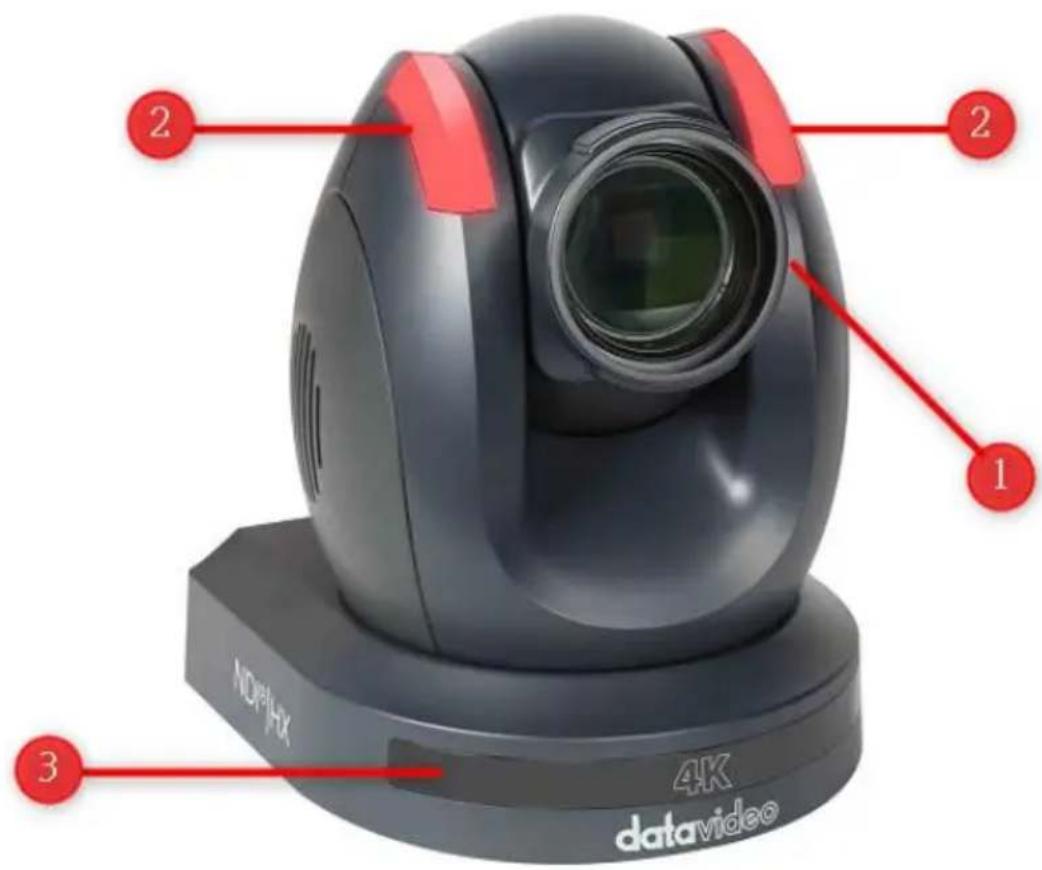

1	LensBuilt-in 1/2.5” 8.51M Pixel CMOS 4K color camera with white balance control, backlight compensation, automatic gain and etc.
2	Tally LEDTally lamp will be turned ON upon receiving the ON signal.
3	Sensor for Remote ControlRemote control IR receiver
Rear of Camera
1	USB PortThis USB port is used for updating firmware. Users can save the latest version of firmware in a USB flash drive and then insert it into this interface for firmware updating.Note: After inserting the USB flash drive, please remember to turn “ON” the SETUP->USB UPGRADE from the OSD menu of the PTC-280NDI camera.
2	Power InputDC in socket connects the supplied 12V PSU. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket.
3	4K HDMI OUTThe 4K HDMI OUT allows you to connect an external HDMI monitor via an HDMI cable.
4	3G-SDI OUTThe 3G-SDI OUT allows you to connect an external monitor via an SDI cable.
5	MIC IN/LINE INThe 3.5mm audio input receives external audio.
6	RS-422 Interface (RJ-45)The RS-422 interface serves to connect external RS-422 devices. Use an Ethernet cable to connect external RS-422 controllers. See“Section 16 Remote Control Port Pinouts”for making the cable for the RS-422 interface.Note: If users want to switch between the RS-422 and DVIP communication protocols, please use the No.4 pin of the DIP Switch which is located at the bottom of the PTC-280NDI. Please switch this pin to “ON” for operating in DVIP mode. If this pin is switched to “OFF”, it will operate in “RS-422” mode.
7	IRID InterfaceThis interface allows users to use the DVIP Switch to control the numbering of the camera on the remote controller. Users can use this interface to set the camera to any number from No.1 to No. 4 in order to use remote controller to control the camera.
8	NDI® | HX & DVIP InterfaceNDI® | HX interface allows users to connect the PTC-280NDI and a PC to the RJ-45 Ethernet interfaces of the same router by using an RJ-45 Ethernet cable. Moreover, users can set the PC and the PTC-280NDI camera in the same local area network for controlling some functions of the PTC-280NDI camera by NewTek’s “NDI Studio Monitor” software.The most important benefit that the NDI brings to users is that it allows the output screen of the PTC-280NDI camera to be auto-recognized by the NDI compatible receiving devices (e.g. Notebook PC) which are set in the same local area network.The DVIP interface allows users to control the PTC-280NDI camera by the proprietary DVIP protocol which is developed by Datavideo.
Bottom of Camera

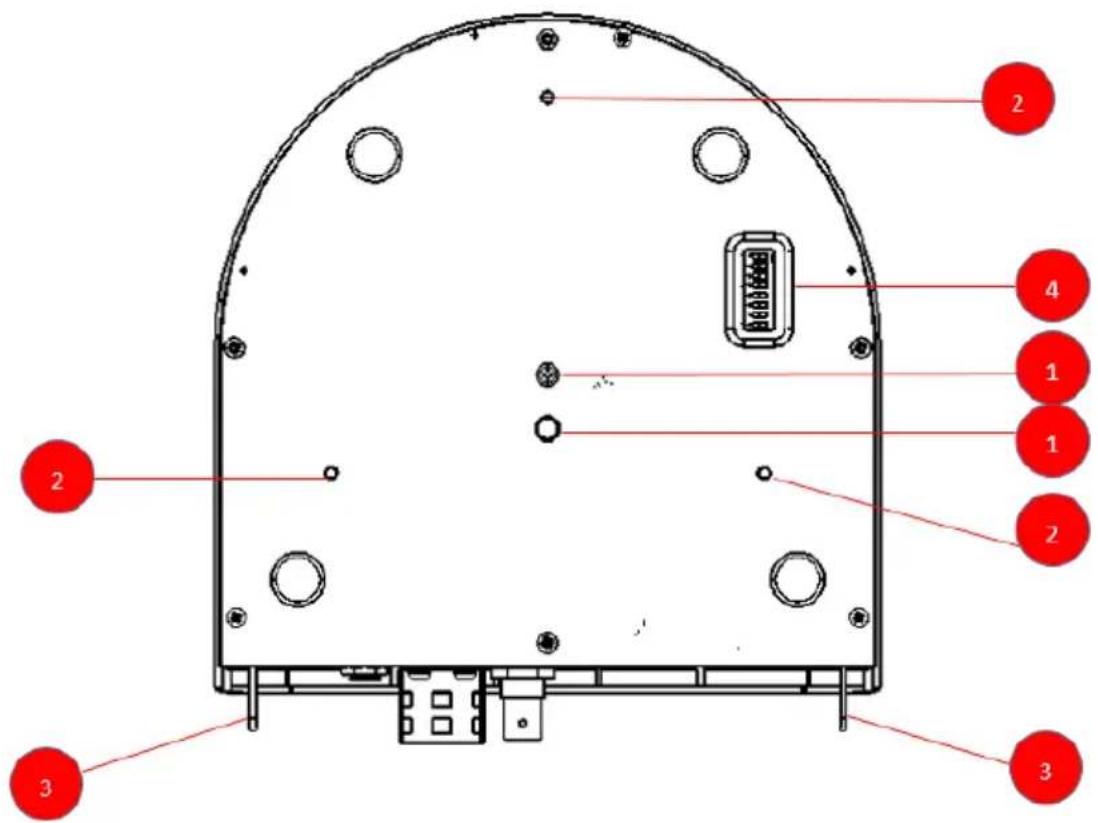

1	Tripod Screw Hole allows the user to mount the camera on the tripod.
2	Screw HoleScrew holes for ceiling bracket mounting.
3	For Safety RopeTies safety rope for fixing the camera to the ceiling.
4	DIP SwitchThis DIP Switch allows users to adjust needed parameters such as VISCA ID, resolutions, remote control protocol and video modes.

3. Basic Setup

3.1 Power-On Initialization

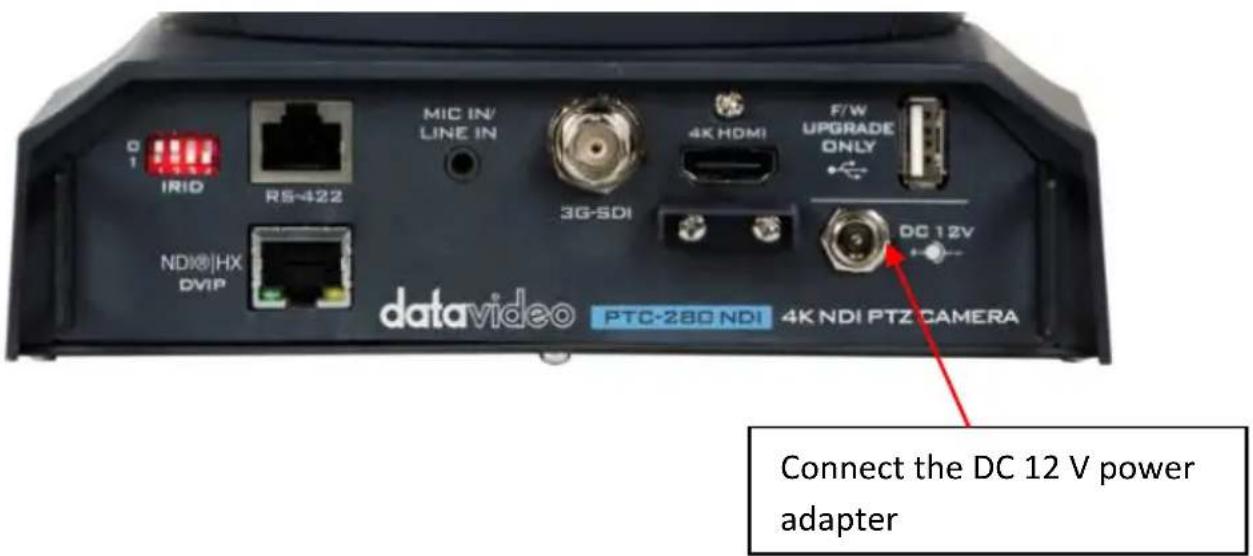

As shown in the diagram below, after you plug in the power cord, the tally light in the front will start flashing red and will be OFF as soon as the power-on initialization is complete. The camera head should be at the HOME position with the lens facing front. After that, the camera lens will turn to the position which the camera is turned off for the last time.

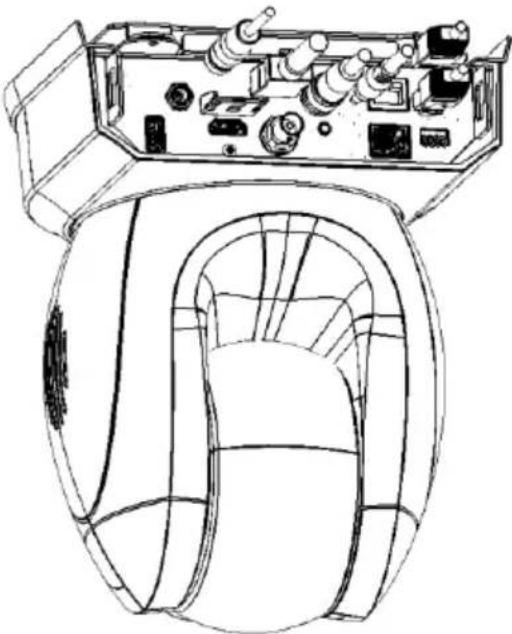

MIC IN/ LINE IN 4K HDMI F/W UPGRADE ONLY 3G-SDI NDX®JHX DVIP DC 12V Datavideo PTC-280 NDI 4K NDI PTZ CAMERA Connect the DC 12 V power adapter

3.2 Video Output

You are allowed to view the camera video via NDI® | HX & DVIP, 4K HDMI OUT and 3G-SDI OUT.

NDI® | HX & DVIP Port

0 1 IRID RS-422 NDI®/HX DVIP MIC IN/ LINE IN 3G-SDI 4K HDMI F/W UPGRADE ONLY DC 12V datavideo PTC-280 NDI 4K NDI PTZ CAMERA

Please follow following steps for viewing the camera video from the web UI.

- Connect the PTC-280NDI camera directly to your PC/Notebook PC

1. Connect the PTC-280NDI to your PC or laptop by an Ethernet Cable.
2. Open the web UI by the connected PC or laptop and then please enter the default IP address into the address bar of the web browser.

Note: The default static IP address of the PTC-280NDI is 192.168.100.88.

1. The login page of the web UI will be opened, please enter the user name and password (the default user name and password are admin/admin).
2. Open the preview window for previewing the video which is shot by the camera.

3. Connect the PTC-280NDI camera to your PC or laptop by a router.

4. Please set the Ethernet IP address of your PC or laptop as 192.168.100.x(x means 0-255) and it will be at the same local area network as the PTC-280NDI.

5. Please use an RJ-45 Ethernet cable to connect from the DVIP port on the rear panel of the PTC-280NDI to the LAN port of a router. And then please use another RJ-45 Ethernet cable to connect from the RJ-45 Ethernet port of your PC or laptop to the LAN port of the same router.
6. Please open the web UI from the connected PC or laptop and then please enter the default IP address of the camera into the address bar of the web browser.

Note: The default static IP address of the PTC-280NDI is 192.168.100.88.

1. The login page of the web UI will be opened, please enter the user name and password (the default user name and password are admin/admin).

2. Click into the preview window on which the video will be displayed.

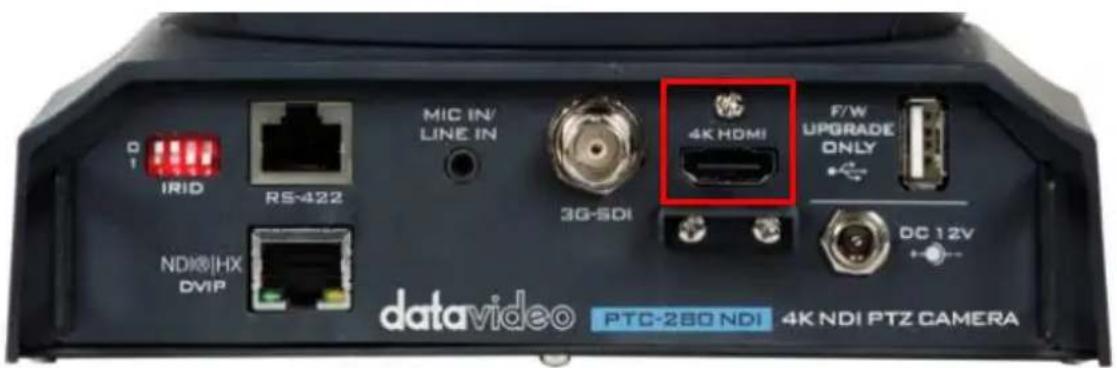

HDMI Video Output

D 1 IRID RS-422 MIC IN/ LINE IN 3G-SDI 4K HDMI F/W UPGRADE ONLY NDI@HX DVIP DC 12V datavideo PTC-280 NDI 4K NDI PTZ CAMERA

Connect the 4K HDMI OUT to an external connected monitor using an HDMI cable.

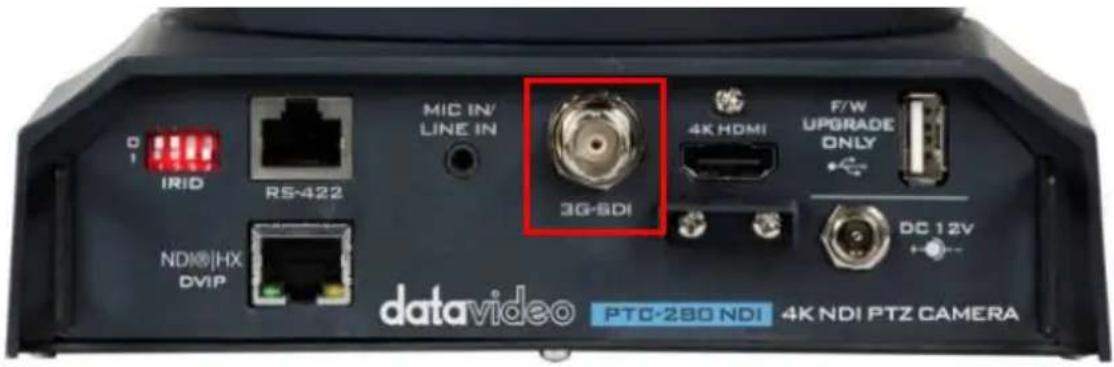

3G-SDI Video Output

MIC IN/ LINE IN IRID RS-422 3G-SDI 4K HDMI F/W UPGRADE ONLY NDIS/HX DVIP DC 12V datavideo PTC-280 NDI 4K NDI PTZ CAMERA

Connect the SDI OUT to an external connected monitor using an SDI cable.

4. How to Use the NDI Studio Monitor Software

4.1 NDI Introduction

NDI is an Ethernet-based open video and audio transmission standard. NDI allows bilateral video and audio signal transmission for devices which are located within the same Local Area Network. It provides low-latency and real-time features which make it an ideal solution for the live production application.

4.2. How to Use the NDI Studio Monitor Software (Take Windows for example) (Take NDI Tools for Windows v.5.0.5.0 for example)

Please follow following steps for using the NDI Studio Monitor software.

1. At first, please make sure that your PTC-280NDI camera and your laptop are connected to a router and they are set in the same LAN.
2. Please go to NewTek official website https://www.ndi.tv/. After that, please

click NDI Tools and then click "Download" from "NDI Tools for Windows" to download the latest version NDI Tools software.

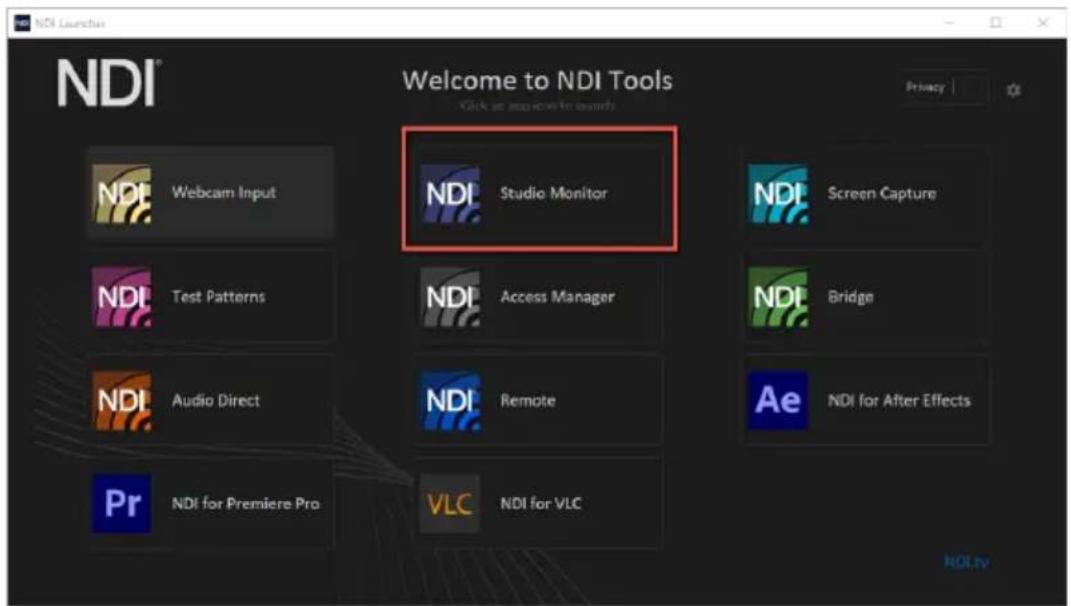

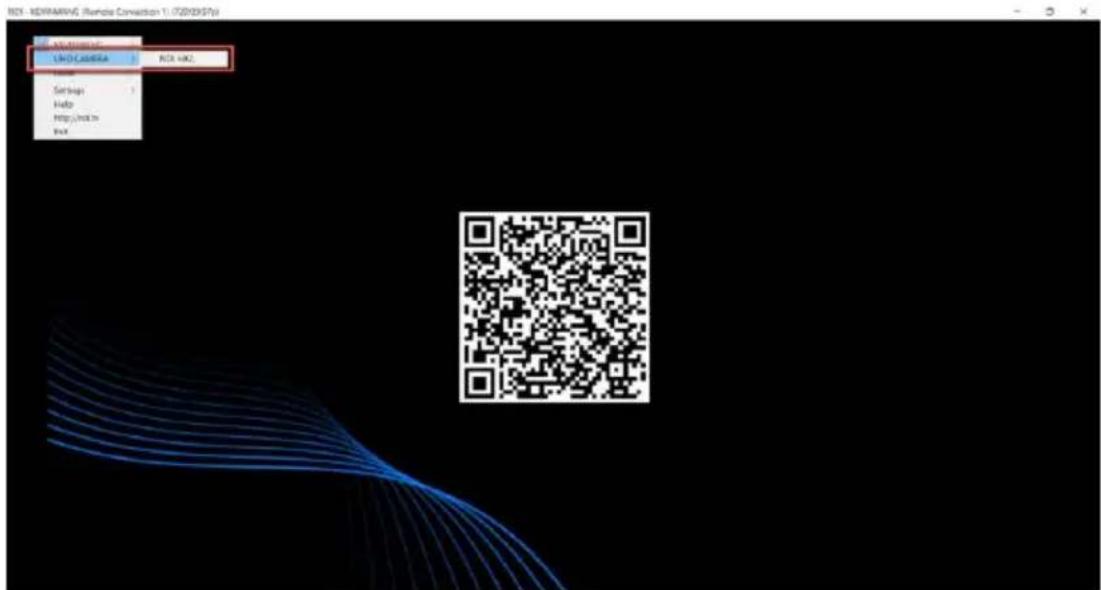

1. After the installation is finished, please click "Studio Monitor" to open the NDI Studio Monitor software.

最近存储 NGS Archive Manager NGS Snap Converter NGS Create Monitor 操作选项 iPod 2013 Audio Artifact X Standard Google Checker 维宏图层 Dutkey 2013 NGS Create Monitor + 4.0 前视图 7.0%

You can also click “NDI” to open the “NDI Launcher” which is shown in the following diagram. After that, please click the “Studio Monitor” from the NDI Launcher panel to enter the Studio Monitor interface.

NDI Welcome to NDI Tools Click as appropriate in security Privacy NDI Webcam Input NDI Test Patterns NDI Audio Direct Pr NDI for Premiere Pro NDI Studio Monitor NDI Access Manager NDI Remote VLC NDI for VLC NDI Screen Capture NDI Bridge Ae NDI for After Effects NDI

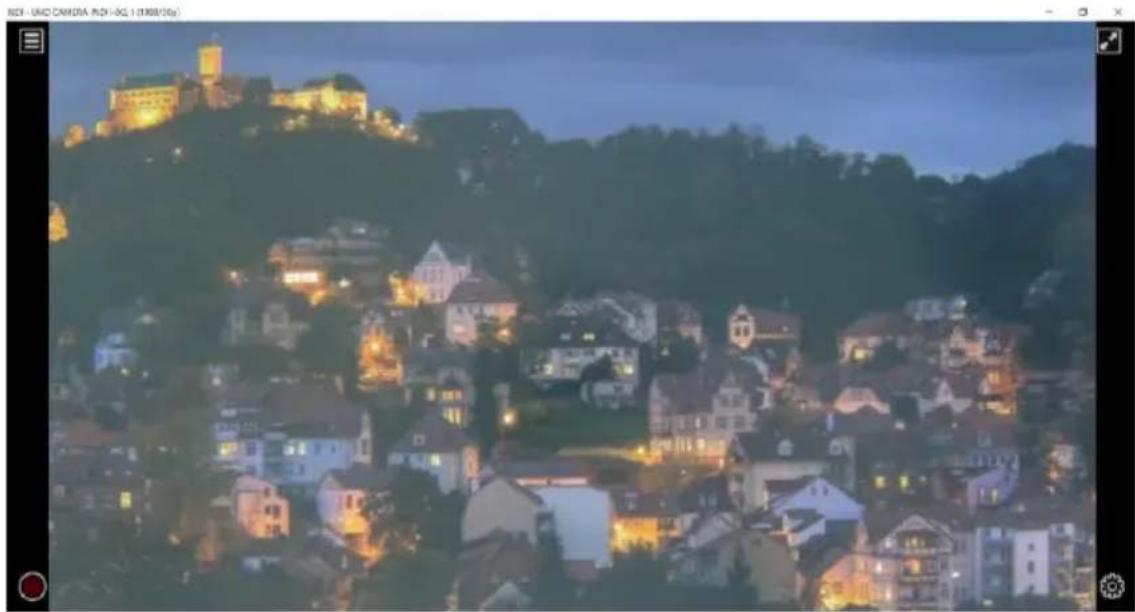

1. After the Studio Monitor Software is opened, the interface will be shown in the following diagram.

NDI - KEVINWANG (Remote Connection 1) (720/25.97pi)

1. Please move your mouse to the up-left corner and then press the Menu button, and then you can see the menu of the Studio Monitor software. You can also right-click your mouse on the NDI Studio interface to show the menu.

REVIWAANG (Remote Connection 1) (720/29.97p)

1. In the menu, you can see that the PTC-280NDI camera which is connected in the same LAN is detected by the Studio Monitor software. Please click it and then you can see the screen which is shot by the PTC-280NDI camera in the following diagram.

NOX - KERRAMING (Remote Conviction 1):J72023579 Auto Camera Auto:482 Settings Help http://ind.in Box

Evening aerial view of a hillside village illuminated with lights, surrounded by trees and buildings (no visible text or symbols)

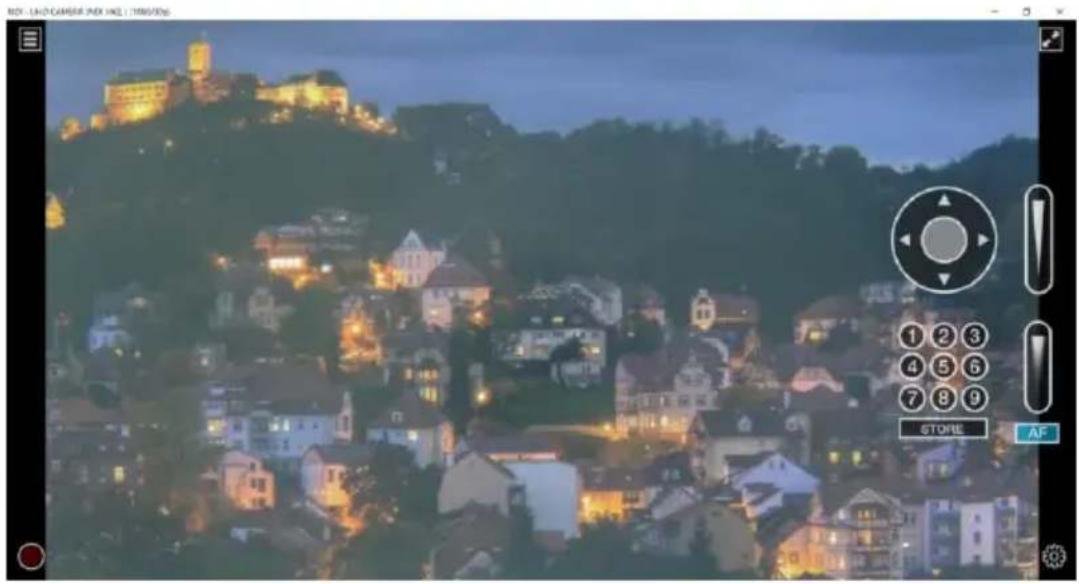

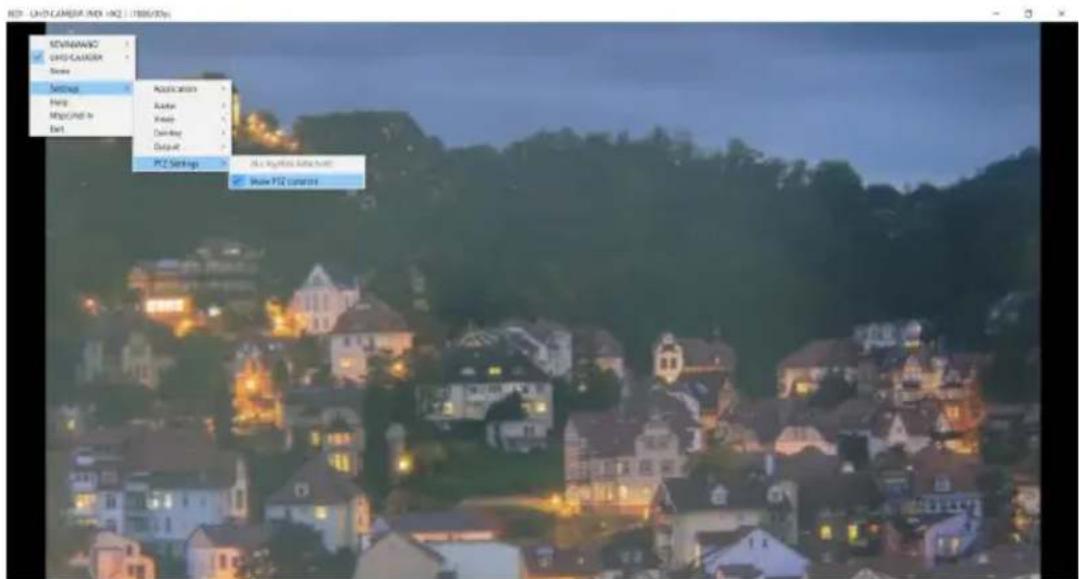

1. Please select “Settings->PTZ Settings->Show PTZ Controls” from the menu. After that, the PTZ control interface will be shown in the NDI Studio Monitor interface for users to control various functions including panning and tilting of the camera lens, Auto Focus, Zooming in/Zooming Out of the camera lens and the preset saving and recalling.

SUPPORTING COLD CASHION Show Settings Help Mfg/Well in Ent Applications Audio Knoop Daiming Output PZ Settings (No Outputs Available) Show PZ Currency

NEW LAUD CARRIER PEER INC | 1986/06 1 2 3 4 5 6 7 8 9 STORE AF

Note: If you have any problems when installing or using the NDI Studio Monitor software, please refer to NewTek NDI website https://www.ndi.tv/ or please contact NewTek NDI Technical Support Team.

5. Remote Control and On-Screen Menu

This chapter provides an overview of remote control functions and OSD menu.

5.1 Remote Control Functions

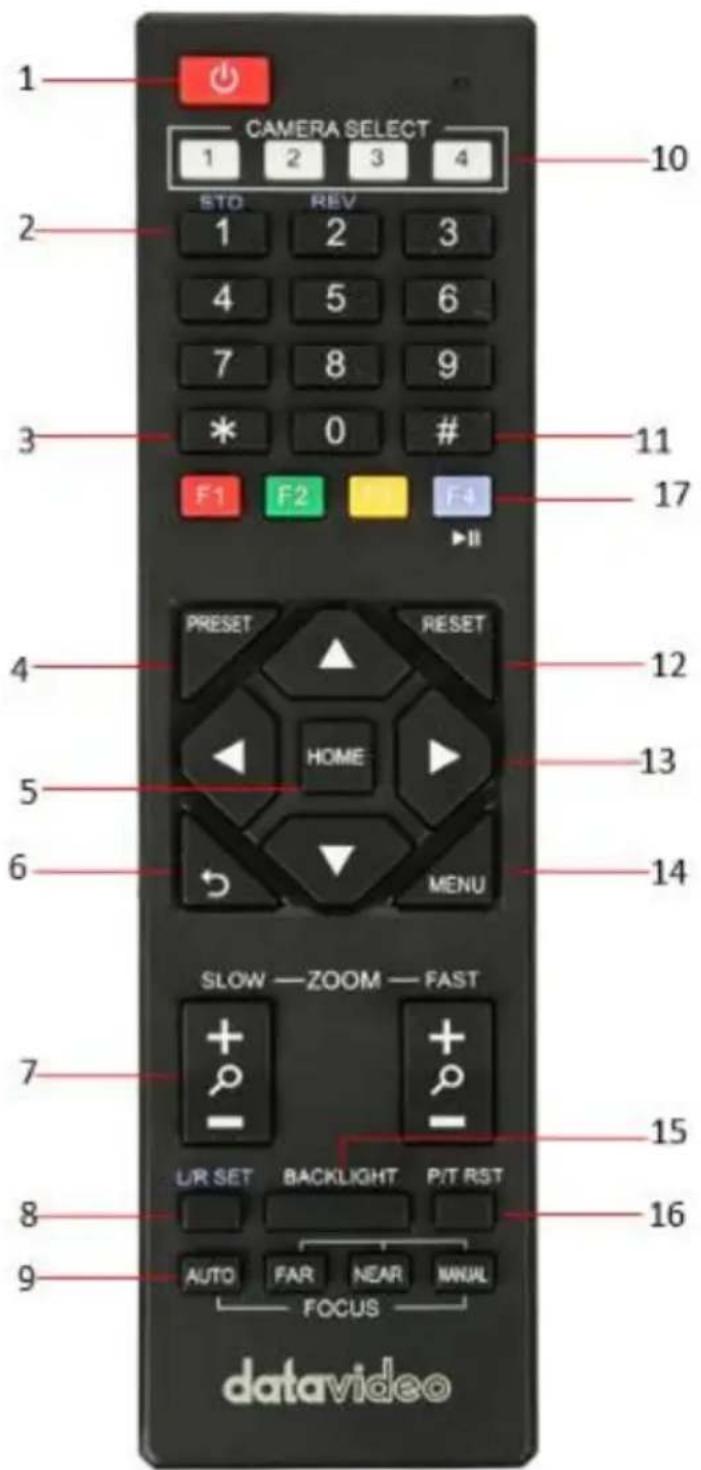

CAMERA SELECT 1 2 3 4 STO REV 1 2 3 4 5 6 7 8 9 * 0 # F1 F2 F4 PRESET RESET HOME MENU SLOW — ZOOM — FAST L/R SET BACKLIGHT PIT RST AUTO FAR NEAR MANUAL FOCUS datavideo

No	Function Keys	Descriptions
1	Standby Key	Standby KeyPress this button once to enter Standby Mode, press it again to enter Normal Mode.Note: The power consumption in Standby Mode is approximately half of the power consumption in Normal Mode.
2	Number Keypad	Number KeypadSet, recall and clear presets using the number keypad.Set PresetAt first, please press PRESET, and then please press any of the 0~9number keyto save the PTZ position.Call PresetPress any of thenumber keyto recall the PTZ position which is saved by the Preset function.Note: Make sure the preset that you want to recall contains PTZ settings before pressing the number key.Clear PresetAt first, please press theneRESETbutton and thenplease press anynumber keyto delete the PTZposition which is saved in corresponding Preset No.Moreover, users can press 【*】+【#】+【RESET】to delete all PTZ positions which are saved in all Preset numbers at one time.
3 & 11	Asterisk and Pound Keys	The asterisk and pound keys form various combinations with other keys to access certain functions directly.(1) 【*】+【#】+【1】: Set OSD MENU language to English.(2) 【*】+【#】+【3】: Set OSD MENU language to Chinese.(3) 【*】+【#】+【4】: Show current IP address.(4) 【*】+【#】+【6】:Restore default value rapidly.(5) 【*】+【#】+【8】:Check camera version.(6) 【*】+【#】+【9】:Set upside down setting rapidly.(7) 【*】+【#】+【MANUAL】:Restore default IP address.
4	PRESET Button	Set Preset PositionPress PRESET to set presets. See Number Keypad description for instructions.
5	Home Key	Home KeyPress Home to return the camera head to the center. Note: In the OSD menu, press Home to enter the selected option item and MENU to exit.
6	Return Key	Return KeyPress this key to return to last level of the OSD menu.
7	Zoom in Slowly(SLOW+)/Zoom out Slowly(SLOW-)	Zoom in Slowly(SLOW+)/ Zoom out Slowly(SLOW-)Press this key to zoom in the camera lens slowly(SLOW+) or to zoom out the camera lens slowly(SLOW-)。
	Zoom in Fastly(FAST+)/ Zoom out Fastly(FAST-)	Zoom in Fastly(Fast+)/ Zoom out Fastly(Fast-)Press this key to zoom in the camera lens fastly(FAST+) or to zoom out the camera lens fastly(FAST-).
8	L/R SET Key	Left/Right Setting KeyPress this L/R SET key and combine this key with the number key 1 and number key 2 to set the panning-tilting directions of the camera lens.Press the L/R SET plus number key 1 (STD) simultaneously to set the panning direction to be the same as the left/right direction setting in the OSD menu.Press the L/R SET plus number key 2 (REV) simultaneously to set the panning direction to opposite direction compared to the left/right direction setting in the OSD menu.
9		Focus KeysThose keys are used for Focus adjusting.Press the AUTO key to focus the focus to the center of the object.Press the MANUAL key to focus the focus to the center of the object manually.Press the MANUAL key and then use the FAR button (Focus to FAR) or the NEAR button (Focus to NEAR) to adjust the focal length manually.
10		Camera Selection KeysUsers can use the IRID DIP Switch which is located on the rear panel of the PTC-280NDI to assign the ID number to camera among the multi-camera scene. After that, please switch between the four cameras by using the Camera Select keys.
12	RESET Button	Clear PresetPress RESET and corresponding 0-9 Number keys to clear preset. Please see Number Keypad description for instructions.
13	PTZ Control Keys	PTZ Control KeysPress the arrow buttons for panning and tilting operations. Press the Home key for turning the camera lens from the back side to the front side.
14		MENUPress this key for entering or exiting the OSD menu.
15		BacklightBLC ON/OFF: Press this key for turning on the backlight compensation function, press this key again for turning off the backlight compensation function.
16	PTZ Reset Button	PTZ Reset ButtonPress this key and then the camera will do the default self-testing.
17	Image Freezing button	Image Freezing ButtonPress this key once and then no matter how the camera head is moved, the camera image will be frozen on current image. Press this button again will unfreeze the image.

5.2 OSD Menu

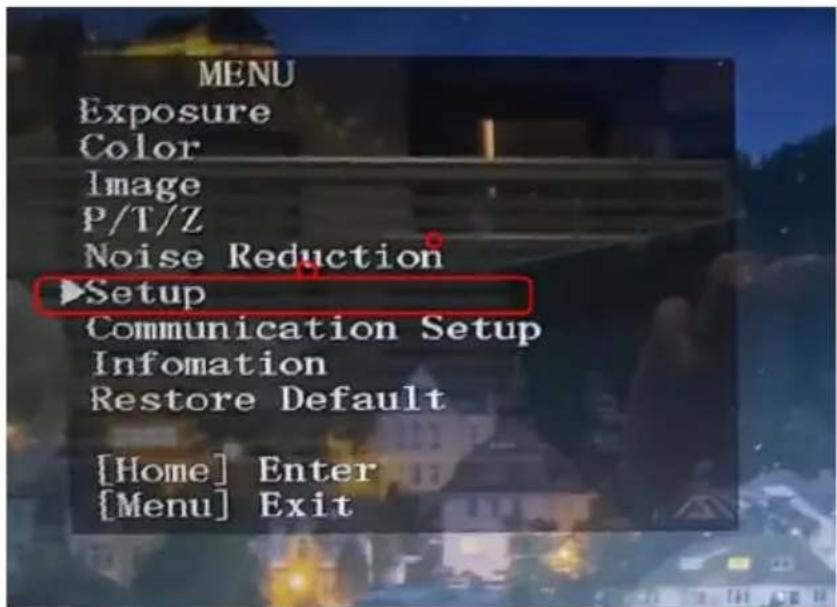

On-Screen Menu allows the user to modify various camera settings. Press [MENU] on the remote control to open the on-screen menu as shown below.

OSD Menu

Exposure

Color


P/T/Z

Noise Reduction

Setup

Communication Setup

Information

Restore Default

【Home】Enter

【Menu】Exit

The table below summarizes the main option items and their sub-options.

Main Options
Exposure	Color	Image	P/T/Z	Noise Reduction	Setup	Communication Setup
Sub-Options	Mode	WB Mode	Luminance	SpeedByZoo m	NR2D-Level	Language	Protocol
	ExpComp Mode	RG	Contrast	AF-Zone	NR3D-Level	HDMI RGB Mode	V_Address
	Backlight	BG	Sharpness	AF-Sense		Video Format	V_AddrFix
	Gain Limit	Saturation	Flip-H	L/R Set		Audio Select	Net Mode
	Anti-Flicker	Hue	Flip-V	Display Info		SDI-3G Mode	Baudrate
	Meter	AWB Sens	B&W- Mode	Image Freeze		USB UPGRADE
	DRC		Gamma	Digital Zoom		VISCA ID
			Style	Pre Speed		Audio Channel
				Pre Zoom Speed

Sub-Options
Information	RestoreDefault
ARM	Restore?Yes/No
SOC
Model
Date
AF
Format
Lens
IP
Gateway
NetMask
CTRL SRC

Details of all options in the on-screen menu are listed in the table below.

Main Menu	Sub Menu	Options	Options
Exposure	Mode	Auto
		Manual
		SAE
		AAE
		Bright
	ExpCompMode	Off
		On	ExpComp
			-7~+7
	Backlight	Off
		On
	Gain Limit	0
		1
		2
		3
		4
		5
		6
		7
		8
		9
		10
		11
		12
		13
		14
		15
		16
		17
		18
		19
		20
		21
		22
	Anti-Flicker	Off
		50Hz
		60Hz
	Meter	Average
		Center
		Smart
		Top
	DRC	0
		1
		2

	3
	4
	5
	6
	7
	8
Iris	F1.8
	F2.0
	F2.4
	F2.8
	F3.4
	F4.0
	F4.8
	F5.6
	F6.8
	F8.0
	F9.6
	F11.0
	Close
Shutter	1/30
	1/60
	1/90
	1/100
	1/125
	1/180
	1/250
	1/350
	1/500
	1/725
	1/1000
	1/1500
	1/2000
	1/3000
	1/4000
	1/6000
	1/10000
Gain	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14

		15
		16
		17
		18
		19
		20
		21
		22
	Bright	0
		1
		2
		3
		4
		5
		6
		7
		8
		9
		10
		11
		12
		13
		14
		15
		16
		17
Color	WB Mode	Auto
		Indoor
		Outdoor
		OnePush
		Manual
		VAR
	RG Tuning	0
		+1
		+2
		+3
		+4
		+5
		+6
		+7
		+8
		+9
		+10
	BG Tuning	0
		+1
		+2
		+3
		+4
		+5
		+6
		+7

	+8
	+9
	+10
Saturation	60%
	70%
	80%
	90%
	100%
	110%
	120%
	130%
	140%
	150%
	160%
	170%
	180%
	190%
	200%
Hue	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
AWB Sens	High
	Middle
	Low
RG	0~255
BG	0~255
Color Temp	2500K
	2600K
	2700K
	2800K
	2900K
	3000K
	3100K
	3200K
	3300K
	3400K
	3500K

		3600K
		3700K
		3800K
		3900K
		4000K
		4100K
		4200K
		4300K
		4400K
		4500K
		4600K
		4700K
		4800K
		4900K
		5000K
		5100K
		5200K
		5300K
		5400K
		5500K
		5600K
		5700K
		5800K
		5900K
		6000K
		6100K
		6200K
		6300K
		6400K
		6500K
		6600K
		6700K
		6800K
		6900K
		7000K
		7100K
		7200K
		7300K
		7400K
		7500K
		7600K
		7700K
		7800K
		7900K
		8000K
Image	Luminance	0
		1
		2
		3
		4
		5

	6
	7
	8
	9
	10
	11
	12
	13
	14
Contrast	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
Sharpness	Auto
	0
	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
Flip-H	Off
	On
Flip-V	Off
	On
B&W-Mode	Off
	On
Gamma	EXT
	PC
	0.48
	0.5

		0.56
		0.63
	Style	Default
		Norm
		Bright
		PC
P/T/Z	SpeedByZoom	Off
		On
	AF-Zone	Front
		Top
		Center
		Bottom
	AF-Sense	High
		Low
		Normal
	L/R Set	STD
		REV
	Display Info	Off
		On
	Image Freeze	On
		Off
	Digital Zoom	Off
		2x
		4x
		8x
		16x
	Pre Speed	1
		2
		3
		4
		5
		6
		7
		8
		9
		10
		11
		12
		13
		14
		15
		16
		17
		18
		19
		20
		21
		22
		23
		24
	Pre Zoom Speed	0

		1
		2
		3
		4
		5
		6
		7
Noise Reduction	NR2D-Level	Auto
		Off
		1
		2
		3
		4
		5
	NR3D-Level	Auto
		Off
		1
		2
		3
		4
		5
		6
		7
		8
Setup	Language	繁體
		EN
		中文
		русский
	HDMI RGB Mode	HDMI
		DVI
	Video Format	1080P25
		720P50
		1080P60
		1080P50
		1080I60
		1080I50
		1080P30
		720P60
		1080P29.97
		1080I59.94
		1080P59.94
		720P59.94
		4KP29.97
		4KP59.94
		4KP25
		4KP30
		4KP50
		4KP60
	Audio Select	MIC
		LINE IN

	SDI-3G Mode	LEVEL-A
		LEVEL-B

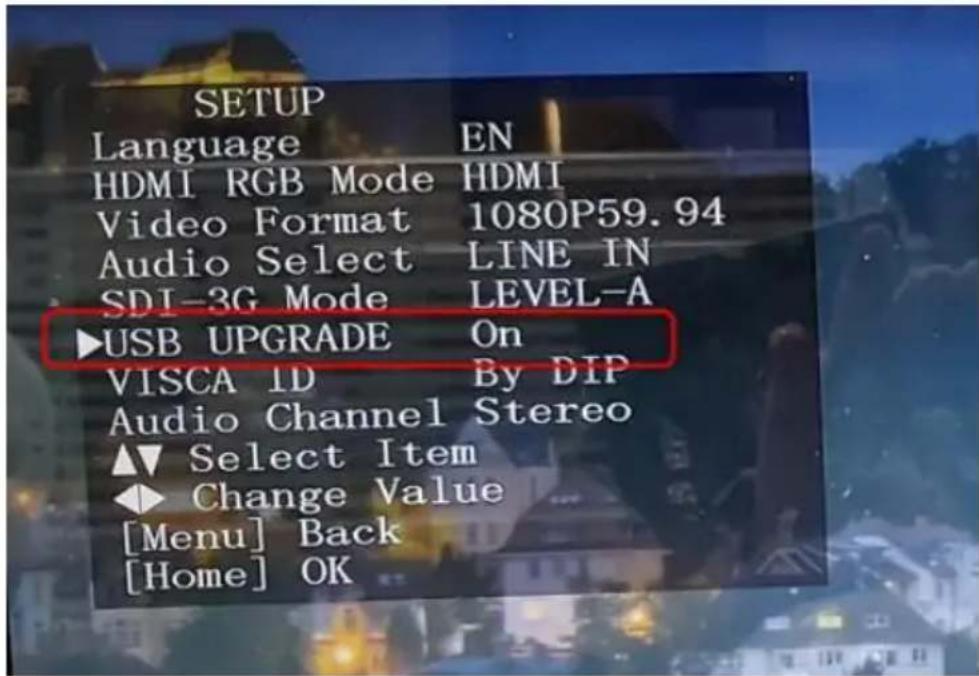

	USB UPGRADE	Off
		On
	VISCA ID	By DIP
		By OSD
	Audio Channel	Stereo
		Mono
Communication Setup	Protocol	VISCA
		PELCO-D
		PELCO-P
		Auto
	V_Address	7
	V_AddrFix	Off
		On
	Net Mode	Serial
		Paral
	Baudrate	38400
		2400
		4800
		9600
Information	ARM
	SOC
	Model
	Date
	AF
	Format
	Lens
	IP
	GateWay
	NetMask
	CTRL SRC
Restore Default	Restore?

5.3 Professional Jargon Explanations of the OSD Menu

There are some professional jargons or nouns which are shown in the OSD menu of the PTC-280NDI camera, please refer to this section for realizing those jargons.

• Speed by Zoom: When this function is turned “ON”, at the time when the zoom-in/zoom out is beginning or it is about to reach the zoom-in/zoom-out limit or users want to stop zooming in/zooming out, the zoom-in/zoom-out speed of the camera lens will be reduced linearly. When this function is turned “OFF”, the zoom-in/zoom-out speed will be consistent no matter when the camera zoom-in is started or stopped.
• Flip-H: This is the “Horizontal Flipping”. When “ON” is selected, the screen which is shot by the camera will flip horizontally. If “OFF” is selected, the screen will be shown in normal direction.
• Flip-V: This is the “Vertical Flipping”. When “ON” is selected, the screen which is shot by the camera will flip vertically. If “OFF” is selected, the screen will be shown in normal direction.
• L/R Set: If the “REV” is selected for this option, the panning direction of the PTC-280NDI camera lens will be opposite to the direction which is controlled by the remote controller. If the “STD” is selected for this option, the panning direction of the camera lens will be the same as the direction which is selected by the remote controller.

6. Instruction for installation

Note: Only mount the bracket on formwork or concrete surface. Do NOT mount the bracket on plasterboard.

Step 1 – DIP Switch Setting

Set the Mirror option to H+V mode.

Step 2 – One End of Retaining Wire

Attach the retaining wire to the junction box mounted on the ceiling by screwing one end of the retaining wire into a screw hole in the junction box with a screw (not supplied) as shown in the diagram below.

Ceiling Hole for connecting cable

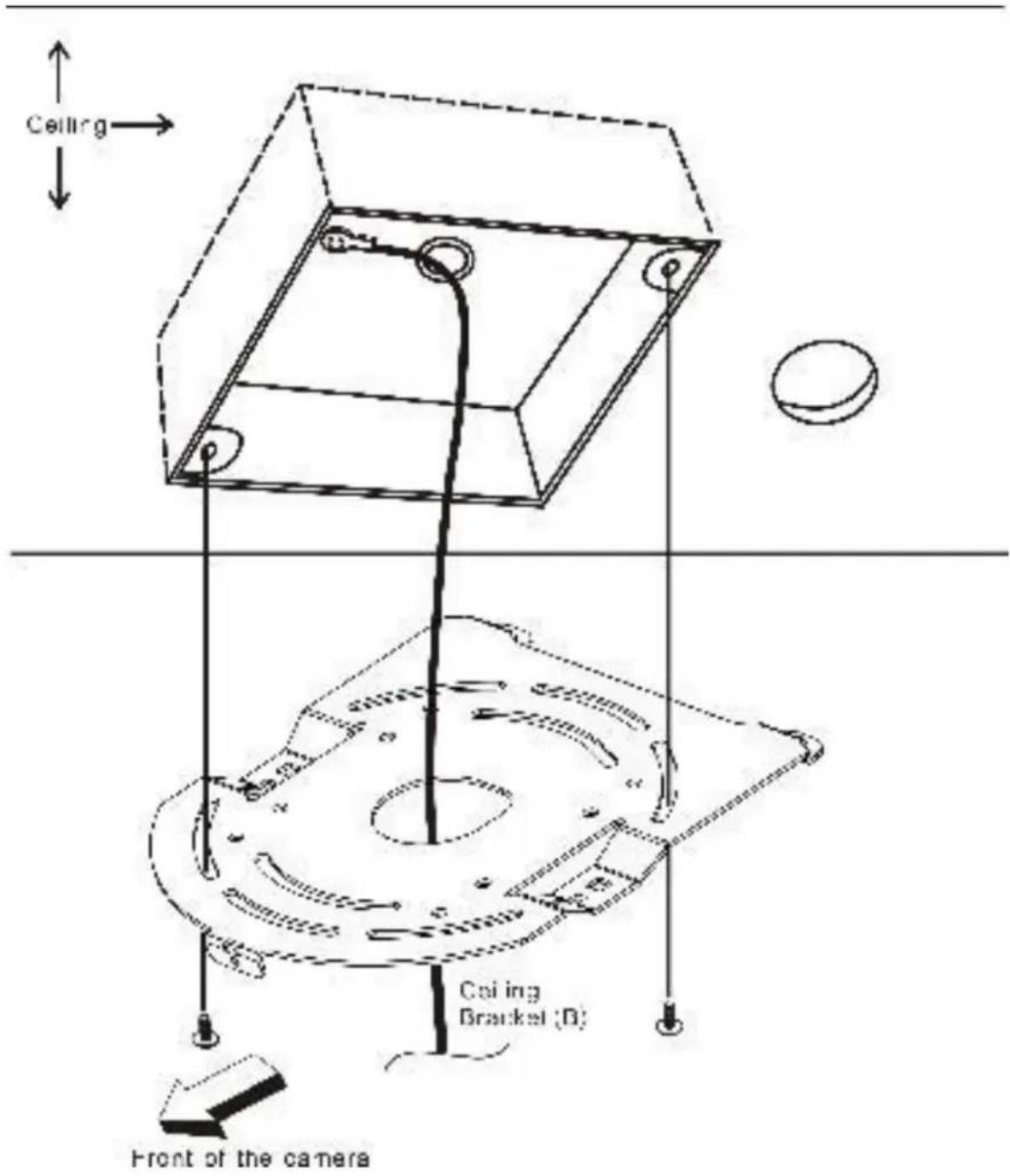

Step 3 – Ceiling Bracket (B)

Again, as illustrated in the diagram below, screw a ceiling bracket (B) into the junction box mounted on the ceiling.

Make sure the screw holes of the ceiling bracket (B) are aligned with the holes on the junction box.

Ceiling Ceiling Brackel (B) Front of the camera

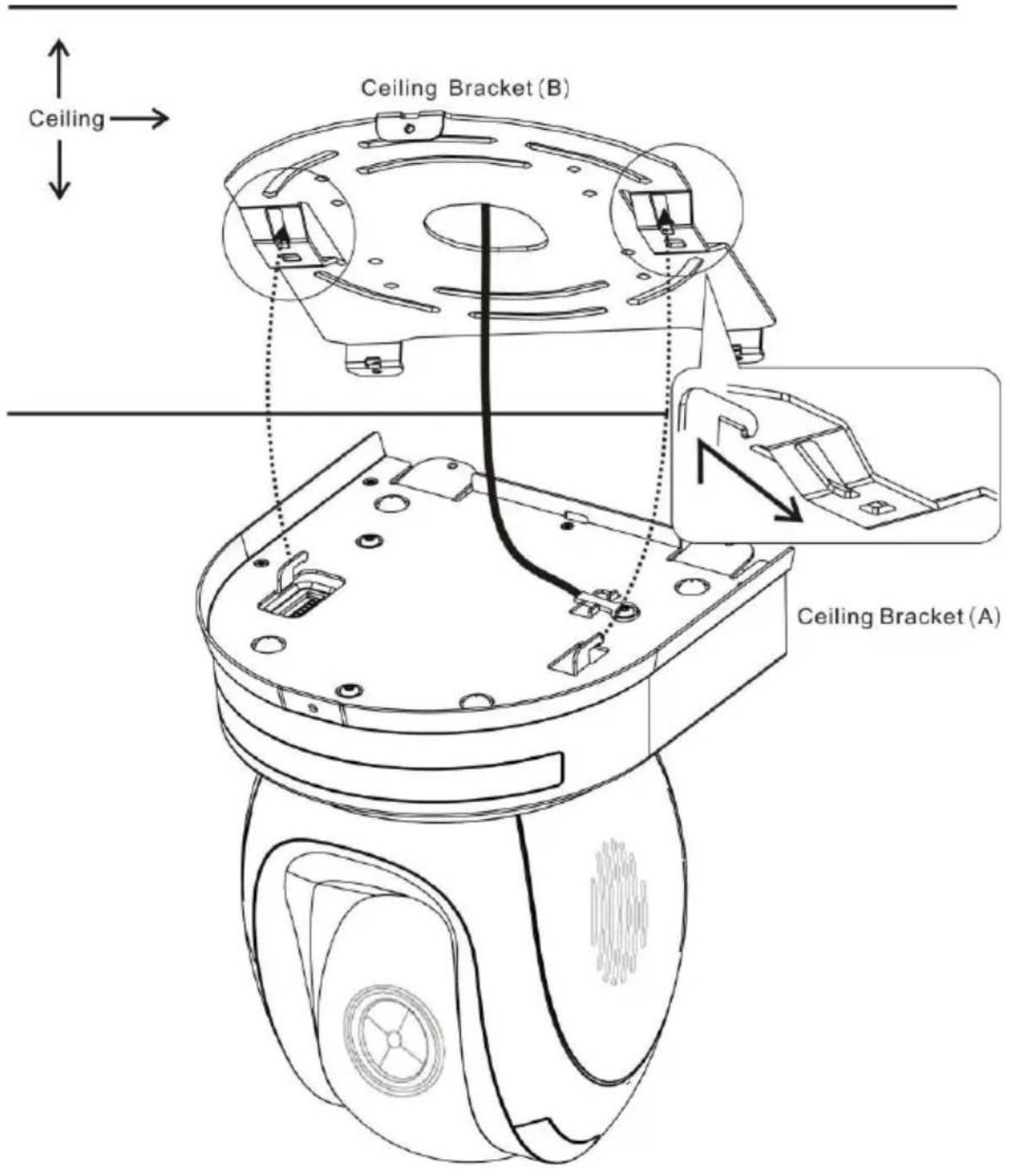

Step 4 – Ceiling Bracket (A) and Camera

• Screw ceiling bracket (A) into the bottom of the camera using three screws.
• Position the screws as shown in the diagram below.
• Align the screw holes on the bottom of the camera with those in the ceiling bracket.
• Insert the screws into the corresponding screw holes in the numbered order.
  • The other end of the retaining wire is screwed into the screw hole #3.
• Securely tighten all three screws.

Ceiling Ceiling Bracket (A)

Step 5 – Mount Camera to Ceiling

Ceiling Ceiling Bracket (B) Ceiling Bracket (A)

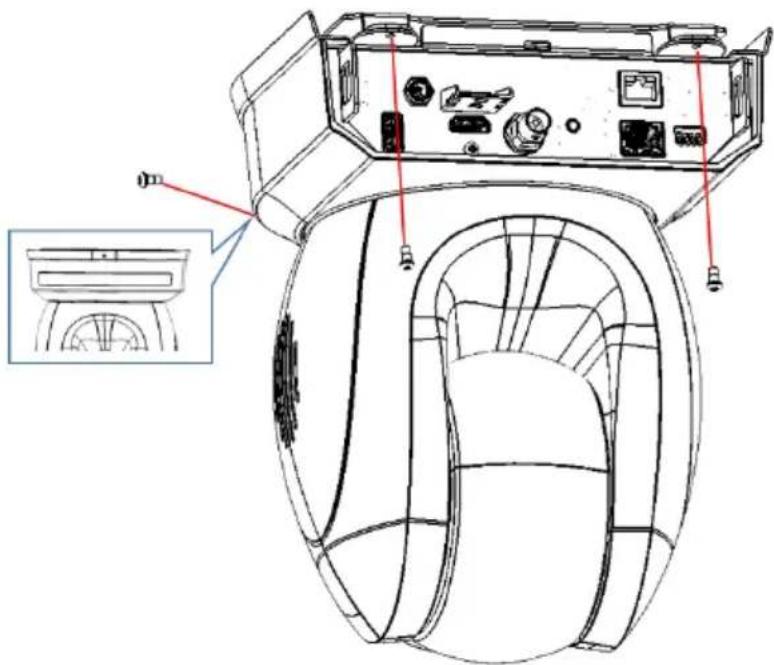

Step 6 – Screw to Fix Camera

Fix the camera by screwing three screws into the corresponding screw holes as shown in the diagram below.

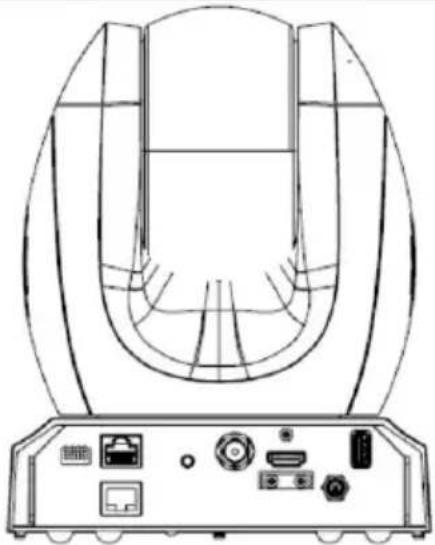

Technical diagram of a device rear view with labeled components and an inset showing a circular component detail.

Step 7 – Cable Connection

Connect the cables to the connectors located on the rear of the camera.

Technical line drawing of a mechanical device interior with no visible text or symbols

7. Network Connection

The Ethernet port on the back panel of your PTC-280NDI allows you to connect to camera from the PC/Laptop with Static or dynamic IP addresses. To access and modify these network settings, you will need to login to the camera's web interface.

If this is your first time using the device, please note that the camera's default IP address is 192.168.100.88.

Set up direct connection between the camera and your PC/laptop as depicted in the diagram below; remember to manually assign an IP address of 192.168.100.X to your PC/laptop.

Ethernet Cable 192.168.100.88 192.168.100.x

On your PC/laptop, open a web browser and in the address bar, enter the camera's default IP address, 192.168.100.88 then press the ENTER key which should take you to login page of the web interface.

datavideo

username admin password ...... Login

The default login credentials are:

• User Name: admin
• Password: admin

After users login into the web user interface successfully, please click the "Network" option and then please click the "IP Configuration Type" drop-down menu from the "Lan Settings" area to modify the connection type of the camera to DHCP or Fixed IP. If the "Fixed IP Address" is selected, it will be set in fixed IP mode. If the "Dynamic IP Address" is selected, it will be set in DHCP mode. After the setting is finished, please click the "Apply" button for completing the setting.

datavideo Live Video Image Audio System Network NDI® Config Line Settings IP Configuration Type: Fixed IP Address IP Address: 192.168.100.88 Subnet Mask: 255.255.255.0 Gateway: 192.168.100.1 DNS Address: 192.168.2.1 MAC Address: 00 : 07 : 36 : 0B : 40 : 13 Apply Cancel Port Settings HTTP Port number: 80 (80) PTCD Port: 554 (554)

In following two chapters, we will show you how to enable DHCP and Static IP modes in two separate sections.

7.1 DHCP Mode

Dynamic Host Configuration Protocol (DHCP) is a network protocol that enables a server to automatically assign an IP address to a network device from a defined range of numbers configured for a given network. The diagram below illustrates a DHCP network connection example.


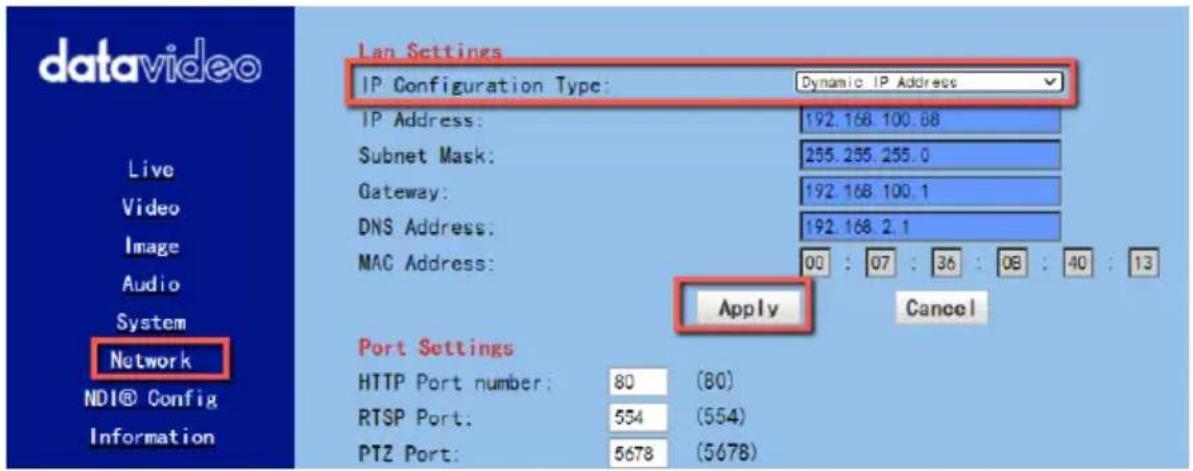

In order to enable the DHCP mode of the camera, please select "Dynamic IP Address" from the "IP Configuration Type" drop-down menu for assigning a dynamic IP address to PTC-280NDI by the router. After that, please click the "Apply" button to save the new settings and then please reboot the PTC-280NDI.

datavideo Live Video Image Audio System Network NDI® Config Information Lan Settings IP Configuration Type: Dynamic IP Address IP Address: 192.168.100.88 Subnet Mask: 255.255.255.0 Gateway: 192.168.100.1 DNS Address: 192.168.2.1 MAC Address: 00 : 07 : 36 : 08 : 40 : 13 Apply Cancel Port Settings HTTP Port number: 80 (80) RTSP Port: 554 (554) PTZ Port: 5678 (5678)

7.2 Static IP

A static IP address is a fixed address manually assigned to PTC-280NDI. First please select “Fixed IP Address” from the “IP Configuration Type” drop-down menu and then please enter an IP address for the camera, the subnet mask and the gateway IP.

Note: Never assign an address that ends in .0 or .255 as these addresses are typically reserved for network protocols. An address to the very start of the IP pool is also not recommended as it is always reserved for the router.

After the Static IP address is set, please click the “Apply” button for saving new settings and then please reboot the PTC-280NDI.

datavideo Live Video Image Audio System Network NDI® Config Line Settings IP Configuration Type: Fixed IP Address IP Address: 192.168.100.88 Subnet Mask: 255.255.255.0 Gateway: 192.168.100.1 DNS Address: 192.168.2.1 MAC Address: 00 : 07 : 36 : 0B : 40 : 13 Apply Cancel Port Settings HTTP Port number: 80 (80) PTCP Port: 554 (554)

7.3 DVIP

DVIP is a special network configuration software tool designed for DVIP device search on the same network and configuring device network settings such as Hostname, DHCP mode, IP address, subnet mask, gateway IP, and primary and secondary DNS.

Depending on your operating system, download DVIP Configuration Tool from the respective sites listed as follows:

PC: https://www.microsoft.com/en-us/p/dvip-network-config/9p6gtz839k6s?activetab=pivot%3Aoverviewtab

Android: https://play.google.com/store/apps/details?id=com.datavideo.dvipnetconfig &hl=en_US

iOS: https://itunes.apple.com/tw/app/dvip-network-config/id1177895983?mt=8

After you've installed the DVIP Network Configuration Tool, follow the steps outlined below to scan for online DVIP devices and configure their corresponding settings.

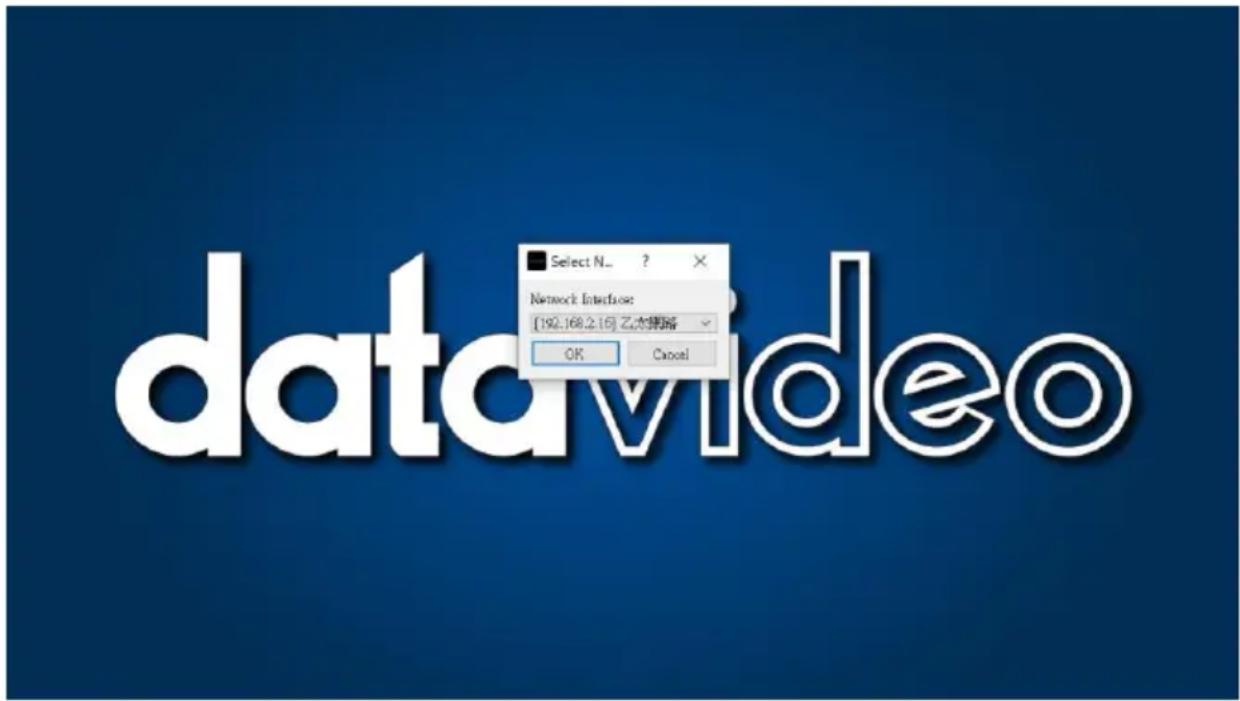

Step 1: Open the DVIP Network Configuration Tool and then select the connected Ethernet option from the “Network interface” pop-up window. After that please press the “OK” button

Select N_ ? × Network Interface: [192.168.2.16] 乙次網路 OK Cancel

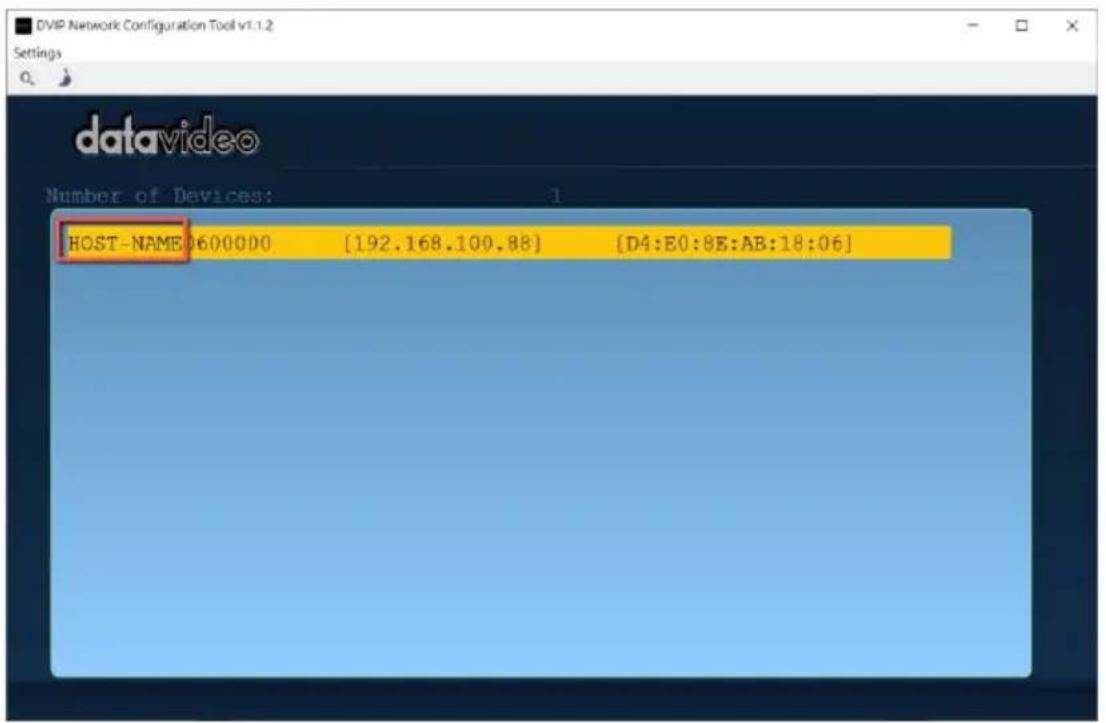

Step 2: After the Network interface is selected, the DVIP Network Configuration Tool interface will be shown as following diagram.

DVIP Network Configuration Tool V1.1.2 Settings datavideo Number of Devices: HOST-NAME0600000 [192.168.100.88] [D4:E0:8E:AB:18:06]

Step 3: Please press "HOST NAME" and then the network settings pop-up window will be shown.

DVIP Network Configuration Tool v1.1.2 Settings datavideo Number of Devices: 1 HOST-NAME:0600000 [192.168.100.88] [D4:E0:8E:AB:18:06]

DVIP Network Configuration Tool V1.1.2 Settings # Number of Devices: HOST-NAME0600000 Host Name HOST-NAME060000 Model Name PTC-280 (VID:0103, PID:300b) MAC address D4:E0:8E:AB:18:06 IP address 192.168.100.88 ■ Using Fixed IP Mode Mask 255.255.255.0 Gateway 192.168.100.1 Primary DNS 192.168.2.1 Secondary DNS 8.8.8.8 Default Save

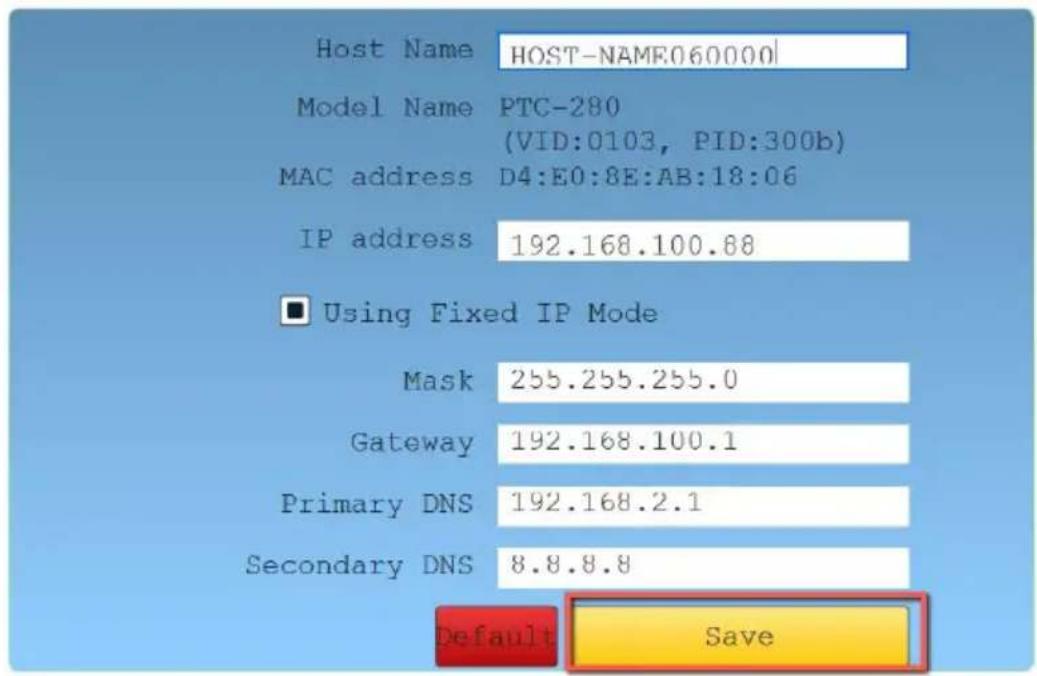

Step 4: users can click "Host Name" column for changing the device name. Users can also click each setting column for changing value if it is needed. After that, please press "Save" for saving those settings. Users can also press "Default" for resuming those settings to factory default value.

Host Name HOST-NAME060000 Model Name PTC-280 (VID:0103, PID:300b) MAC address D4:E0:8E:AB:18:06 IP address 192.168.100.88 ■ Using Fixed IP Mode Mask 255.255.255.0 Gateway 192.168.100.1 Primary DNS 192.168.2.1 Secondary DNS 8.8.8.8 Default Save

8. Web User Interface

The web based user interface allows you to set and control your PTC-280NDI devices.

8.1 Live

Live option allows users to preview the image which is shot by the PTC-280NDI in a real-time basis. Please click the “Live” option and then please select “HTML5” from the drop-down menu below the preview window. After that, users can preview the image which is shot by the PTC-280NDI camera from the preview window.

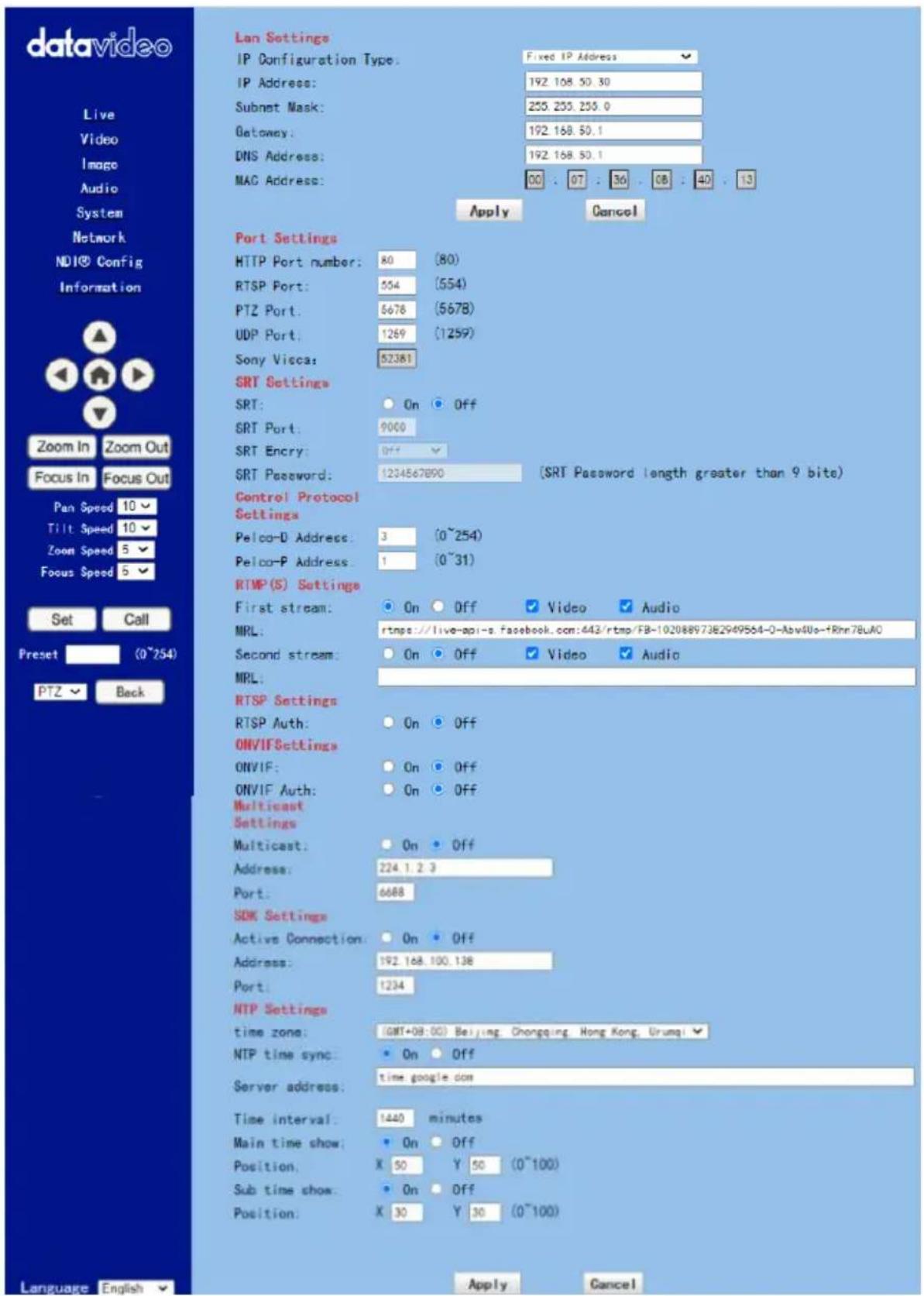

datavideo Live Video Image Audio System Network NOI® Config Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset (0~264) PTZ Back Language English 8:22/8:24 HTTPS Download Player

8.2 Video

"Video" option allows users to set various parameters including Video Format, Encode Level. Moreover, it also allows users to set the Encode Protocol, Resolution, Bit Rate, Frame Rate, I Key Frame Interval, Bit Rate Control, Fluctuate Level, Slice Split Enable and Slice Size for the First stream and Second stream. The main interface for the Video option is shown in the following diagram.

datavideo Live Video Image Audio System Network NDI® Config Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset (0~254) PTZ Back Language English Video Settings Video Format: OSD Encode Level: highprofile First stream Encode Protocol: H264 Resolution: 1920x1080 Bit Rate: 4000 (32~51200) kbps Frame Rate: 30 fps 1 Key Frame Interval: 30 (2~1200) Bit Rate Control: CBR VBR Slice Split Enable: On Off Slice Size: 68 blocks Second stream Encode Protocol: H264 Resolution: 320x240 Bit Rate: 4096 (32~20480) kbps Frame Rate: 30 fps 1 Key Frame Interval: 60 (2~1200) Bit Rate Control: CBR VBR Slice Split Enable: On Off Slice Size: 45 blocks Apply Cancel

Please see following section for realizing the descriptions for each item for the Video option.

Items		Descriptions
		Video FormatIt can support three video formats including 50Hz(PAL), 60Hz(NTSC) and OSD.
50Hz (PAL): If you select this option, the maximum frame rate per second (FPS) for the streaming video will be 50.60Hz (NTSC): If you select this option, the maximum frame rate per second for the streaming video will be 60.Dial Priority: If you select this option, the maximum frame rate per second will be 30, and it is possible that the parameters including the video format and frame rate will be affected by the camera OSD menu settings.Note:1. If you want to use the PTC-280NDI camera to connect to some Datavideo switchers which support the interlace format only such as the HS-1300, SE-120 MU and SE-650, please remember to select the “Dial Priority” option as your video format.2. If the 50Hz or the 60Hz is selected for the PTC-280NDI web UI, the SDI or the HDMI output format of the PTC-280NDI camera will be fixed at 1080p 50/60.
		Encode LevelIt allows users to select needed Encode Level from four Encode Levels including baseline profile, mainprofile, highprofile and svc-t.
		Encode Protocol (First Stream & Second Stream)It allows users to select three Encode Protocols including H.264, H.265 and MJPEG for the “First Stream” and “Second Stream”.

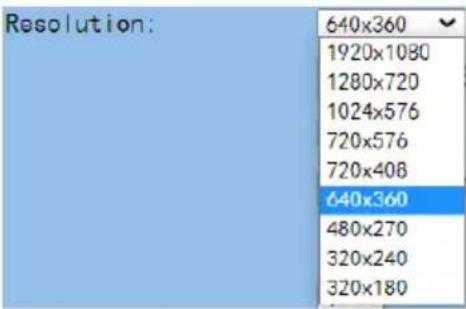

Resolution for the first stream		Resolution (First Stream & Second Stream)There are two drop-down menus including the resolution for the First Stream and the resolution for the Second Stream for users to select different resolution. When the resolution is higher, the image will become clearer. However, it will occupy more network bandwidth.
Resolution for the second stream
		Bit Rate (First Stream & Second Stream)It allows users to determine the Bit Rate range by themselves. The range for the Bit Rate for the first stream is from 32-51200kbps. The range for the Bit Rate for the second stream is from 32-20480kbps.Note: If the network bandwidth is too narrow and the Bit Rate setting is too high, it will cause that the video streaming can not be transferred normally and it will cause a poor visual effect for viewers.
Frame Rate: 25 fps		Frame Rate (First Stream & Second Stream)Users can set the Frame Rate from the drop-down menu by themselves. The range is from 1 to 60. When the Frame Rate value is higher, the image will be smoother.When the Frame Rate value is lower, it will cause an unsmooth image.
I Key Frame Interval: 25 (2~1200)		I Key Frame Interval (First Stream & Second Stream)It allows users to set the interval between two frames. When the interval is larger, the response speed from the viewing window will be lower.
Bit Rate Control: CBR VBR		Bit Rate Control (First Stream & Second Stream)There are two ways for Bit Rate Control including the CBR and VBR.CBR: The video encoder will encode the video according to the default speed.VBR: The video encoder will encode the video by adjusting the encoding speed according to the default value in order to achieve best image quality.
Fluctuate Level:		Fluctuate Level (First Stream & Second Stream)This function is used to suppress the fluctuation degree of the variable bit rate. Users can set different degrees from 1 to 6.
Slice Split Enable: ○ On ● Off		Slice Split Enable (First Stream & Second Stream)This is used to turn on or turn off the Slice Split function.
Slice Size: 68 blocks		Slice Size (First Stream & Second Stream)This is used to set the Slice size.
Apply		Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.
Cancel		Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.2.1 How to Connect the PTC-280NDI to a Datavideo Switcher after a 60FPS/50FPS Video Streaming (Take the HS-1300 as an example)

When you select the 50Hz or the 60Hz option from the 「Video」→「Video Settings」 drop-down menu in the PTC-280NDI web UI for streaming videos, the PTC-280NDI HDMI/SDI output will be fixed at 1080p 50/60. However, the Datavideo HS-1300 switcher supports the 1080i video format only rather than the 1080p video format. So, when you want to connect the PTC-280NDI to the HS-1300 switcher, it is necessary for you to set the PTC-280NDI again in order to make sure that the video formats for the PTC-280NDI and the HS-1300 are consistent. Moreover, it can assure that the input screen that is received by the HS-1300 can be displayed correctly. Please follow following steps for setting the PTC-280NDI and the HS-1300.

● Take the adjustment to 1080i59.94 as an example

Step 1. At first, please press the "MENU" button which is located on the PTC-280NDI remote controller to open the OSD menu.
Step 2. After the OSD menu is opened, please use the down arrow

button to select the "Setup" option and then please press the "Home"

HOME button to enter the "Setup" option.

Step 3. Please select the "Video Format" option, and then please use the left

arrow button and the right arrow button / of the remote controller to select 1080i60, 1080i59.94 or 1080i50 video format.

Step 4. Please press the "MENU" button which is located on the control panel of the HS-1300 switcher to open its OSD menu.

Step 5. Please use the down arrow button to select the "Setup" option.

Step 6. Please use the right arrow button to select "Standard""1080i59.94", and then please press the "Enter" button to enter this option for further adjustment.

Step 7. If the format for the "Standard" is not 1080i59.94, please use the up

arrow button and down arrow button / which are located on the control panel to adjust the video format to 1080i59.94.

Step 8. Please select your desired "Standard" value and then press the "ENTER" button again to confirm your selection.

Step 9. Please press the right arrow button again to select the "Save Setup" option.

Step 10. Please use the left arrow button and the right arrow button to select the "Yes" button and then press the "ENTER" button again to save the setting.

Step 11. After the setting is saved, please press the "MENU" button to exit to the previous menu and to exit the OSD menu of the HS-1300. The "Standard" option setting for the HS-1300 is finished until this step.

Step 12. Please open the web UI of the PTC-280NDI.

Step 13. Please click the "Video" option, and then please select "OSD" from the "Video Format" drop-down menu.

datavideo Live Video Image Audio System Network NDI® Config Information Zoom In Zoom Out Video Settings Video Format: OSD 50Hz Encode Level: 60Hz file OSD First stream Encode Protocol: H264 Resolution: 1920x1080 Bit Rate: 4000 (32~51200) kbps Frame Rate: 30 fps I Key Frame Interval: 30 (2~1200) Bit Rate Control: CBR VBR Slice Split Enable: On Off Slice Size: 68 blocks Second stream Encode Protocol: B264

Step 14. Please click the "Apply" button Apply

Step 15. Please click the "Reboot" button in the "System" option to reboot the PTC-280NDI.

Step 16. After the PTC-280NDI is rebooted, please use an SDI cable to connect from the 3G-SDI interface which is located on the rear panel of the PTC-280NDI to the SDI IN interface which is located on the rear panel of the HS-

1300, or you can use an HDMI cable to connect from the HDMI interface which is located on the rear panel of the PTC-280NDI to the HDMI IN interface which is located on the rear panel of the HS-1300. After that, you can see the image which is shot by the PTC-280NDI is displayed in the MULTIVIEW window of the HS-1300 correctly.

For SDI: The SDI IN 1 to SDI IN 4 interfaces which are located on the rear panel of the HS-1300 represent the MULTIVIEW window's Input 1 to Input 4.

For HDMI: The HDMI IN 1 to HDMI IN 2 interfaces which are located on the rear panel of the HS-1300 represent the MULTIVIEW window's Input 5 to Input 6.

Note: Datavideo's SE-650, HS-1200 MU and HS-1300 switchers support 1080i video format only. So, the 1080p video format is not supported by the above-mentioned switchers. If you want to connect the PTC-280NDI camera to the SE-650 or the HS-1200 MU switcher, please remember to select the “OSD” item from “Video→ Video Format” in the PTC-280NDI web UI. Moreover, please use the OSD menu of the PTC-280NDI camera and the OSD menu of the above-mentioned switchers to adjust them in the same video standard before connecting to prevent the video format incompatible issue and the issue that the video that is shot by the PTC-280NDI can not be displayed normally in the MULTIVIEW window of the above-mentioned switchers.

8.3 Image

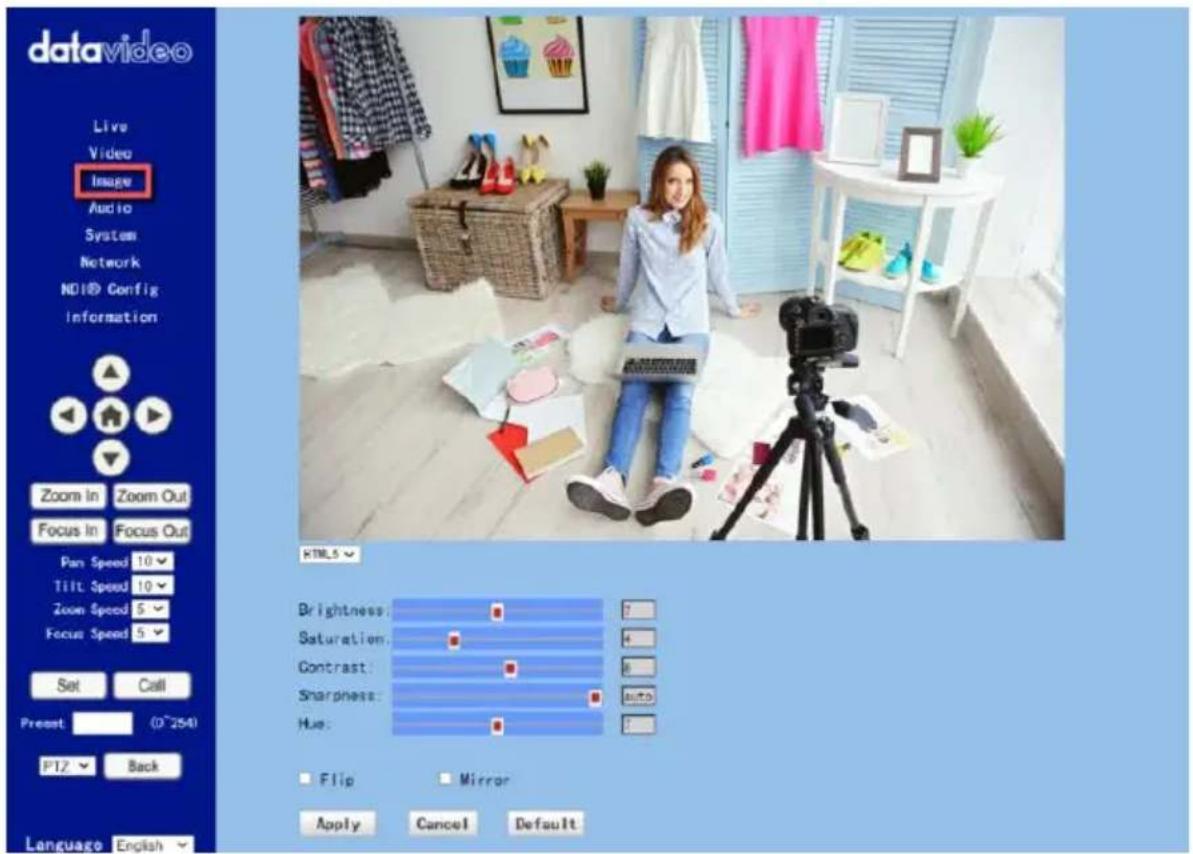

The “Image” option allows users to see the image that is shot by the PTC-280NDI from the preview window. Moreover, users can adjust many parameters including Brightness, Saturation, Contrast, Sharpness and Hue from this interface by using sliders. Please select “HTML5” from the dropdown menu which is located below the preview window and then users can preview the image which is shot by the PTC-280NDI from the preview window. The main interface of the Image option is shown as following diagram.

datavideo Live Video Image Audio System Network NO ID Config Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset (0~254) PTZ Back Language English HTML5 Brightness: 7 Saturation: 4 Contrast: 9 Sharpness: AUTO Hue: 7 Flip Mirror Apply Cancel Default

● Brightness: This option allows users to adjust the Brightness. Please use the slider for adjusting the Brightness.
Saturation: This option allows users to adjust the Saturation. Please use the slider for adjusting the Saturation. After the adjustment is finished, please click the "Apply" button and then it is set successfully.
- Contrast: This option allows users to adjust the Contrast. Please use the slider for adjusting the Contrast. After the adjustment is finished, please click the "Apply" button and then it is set successfully.

● Sharpness: This option allows users to adjust the Sharpness. Please use the slider for adjusting the Sharpness. After the adjustment is finished, please click the "Apply" button and then it is set successfully.
- Hue: This option allows users to adjust the Hue. After the adjustment is finished, please click the "Apply" button and then it is set successfully.
- Flip: Please check the checkbox of the "Flip" option □ Flip and then please click the "Apply" button for flipping the image that is shot by the camera.
- Mirror: Please check the checkbox of the "Mirror" option - Mirror and then please click the "Apply" button for mirroring the image that is shot by the camera.
Default: Please click the "Default" button Default for restoring the settings in this page to factory default value.

8.4 Audio

The Audio option allows users to set the audio related parameters. The main interface of the audio option is shown as following diagram.

datavideo Live Video Image Audio System Network NDI® Config Information Audio Settings Audio Switch: On Audio Type: AAC Sample Rate: 48K Bit Rate: 126K Input Type: LINE IN ADTS Options: On Apply Cancel Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset (0~254) PTZ Back Language English

Please see following section for realizing the descriptions for each item for the Audio option.

Items		Descriptions
Audio Switch:		Audio SwitchThis option allows users to turn on or turn off the input of the audio source.
Audio Type:		Audio TypeThis allows users to select the encoding format of the input audio. The default audio type is the AAC format.
Sample Rate:		Sample RateThis drop-down menu allows users to select desired sample rate for the input audio source. There are two sample rate including 44.1K and 48K for users to select.
Bit Rate:		Bit RateThis drop-down menu allows users to select their desired Bit Rate.
Input Type:		Input TypeThis option allows users to select the audio signal input way. Users can input the audio by external connected MIC or by LINE IN.

Items	Descriptions
ADTS Options:OffOffOn	ADTS OptionThis drop-down menu allows users to turn on or turn off the ADTS.ADTS is the abbreviation of the “Audio Data Transport Stream”. The ADTS is a common transmission format of the AAC audio file. Sometimes, you will encounter an issue that your AAC file which is written can not be played by the PC or mobile phone when you are doing the AAC original stream coding. The possible reason for this issue is that it does not have ADTS Header package for each frame of the AAC file. What you have to do is to add an ADTS Header. The original data block length is variable for an AAC file. When you add an ADTS Header for the original frame and then wrap it up in ADTS package, it will become an ADTS frame. Each frame of the AAC audio file includes an ADTS Header and AAC Audio Data.
Apply	Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.
Cancel	Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.5 System

This System option allows users to select functions including Work Mode, Reboot, User Name and Password. The main interface of the System option is shown as following diagram.

datavideo Live Video Image Audio System Network NDI® Config Information Initialize Reboot: factory default: User username: Passwd: Guest: Passwd: Reboot Apply admin ...... guest ...... Apply Cancel

Please see following section for realizing the descriptions for each item for the System option.

Items	Descriptions

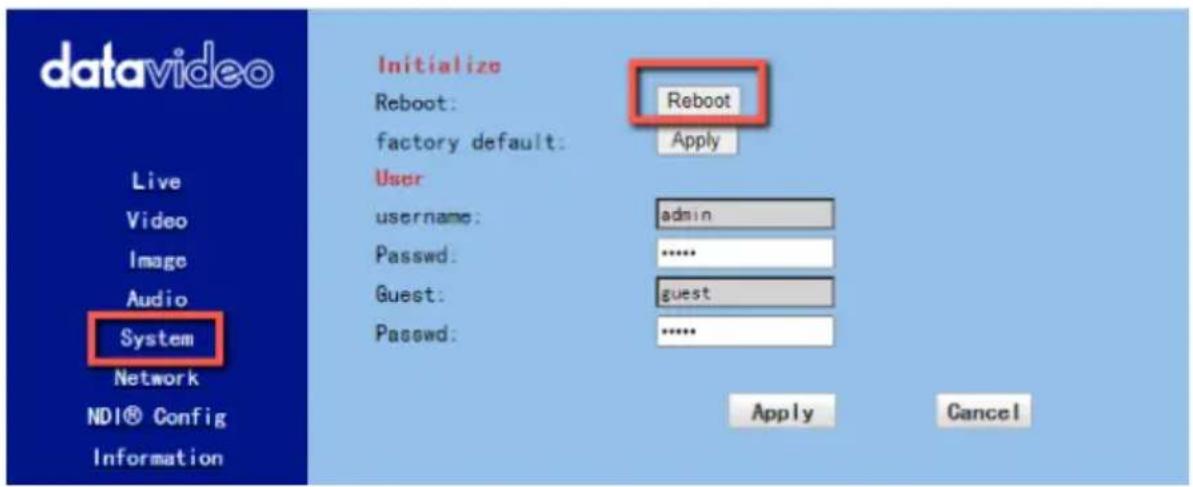

Reboot: Reboot	RebootPlease press this button for rebooting the PTC-280NDI camera.
factory default: Apply	Factory DefaultPlease press this button to reset the PTC-280 to its factory default value.
	UserThere are several items including Username, Password, Guest and Password for users to set the username and password for user and guest. After the setting is finished, please press the “Apply” button for applying the setting.The default username/Password for user is “admin/admin”.The defaultUsername/Password for Guest is “guest/guest”.
[8GxK]	Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.
	Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.6 Network

The Network option allows users to set many network related functions. The main interface of the Network option is shown as following diagram.

datavideo Live Video Image Audio System Network NDI® Config Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset (0~254) PTZ Back Language English Lan Settings IP Configuration Type: Fixed IP Address IP Address: 192.168.50.30 Subnet Mask: 255.255.255.0 Gateway: 192.168.50.1 DNS Address: 192.168.50.1 MAC Address: 00 : 07 : 36 : 08 : 40 : 13 Apply Cancel Port Settings HTTP Port number: 80 (80) RTSP Port: 554 (554) PTZ Port: 5678 (5678) UDP Port: 1269 (1259) Sony Vicca: 52381 SRT Settings SRT: On Off SRT Port: 9000 SRT Encry: Off SRT Password: 1234567890 (SRT Password length greater than 9 bits) Control Protocol Settings Pelco-D Address: 3 (0~254) Pelco-P Address: 1 (0~31) RTMP(S) Settings First stream: On Off Video Audio MRL: rtnps://live-api-s.facebook.com:443/rtmp/FB-10208897382949564-0-Asw40s+Rhr78uA0 Second stream: On Off Video Audio MRL: RTSP Settings RTSP Auth: On Off ONVIF Settings ONVIF: On Off ONVIF Auth: On Off Multicast Settings Multicast: On Off Address: 224.1.2.3 Port: 6688 SDK Settings Active Connection: On Off Address: 192.168.100.138 Port: 1234 NTP Settings time zone: (GMT+08:00) Beijing Chongqing Hong Kong, Urumqi NTP time sync: On Off Server address: time google com Time interval: 1440 minutes Main time show: On Off Position: X 50 Y 50 (0~100) Sub time show: On Off Position: X 30 Y 30 (0~100) Apply Cancel

Please see following section for realizing the descriptions for each item for the Network option.

Items		Descriptions
Lan SettingsIP Configuration Type:IP Address:		IP Configuration TypeThis drop-down menu allows users to select the Static IP or DHCP mode. If the “Fixed IP Address” is selected, it will operate in static IP mode. If the “Dynamic IP Address” is selected, it will operate in DHCP mode.
IP Address:Subnet Mask:Gateway:DNS Address:	192.168.2.100255.255.255.0192.168.2.1192.168.2.1	IP Address/SubnetMask/Gateway/DNS AddressIf the fixed IP address is selected, users can set related parameters manually. After the settings are finished, please click the “Apply” button and then those settings will take effect.
		MAC AddressThis is the MAC Address and it can not be changed by users.
HTTP Port number:	80 (80)	HTTP PortThis is the HTTP Port and the default port No. is 80.
RTSP Port: 554 (554)		RTSP PortThis is the RTSP Port and the default port No. is 554.
PTZ Port: 5678 (5678)		PTZ PortThis is the PTZ Port No. and the default port No. is 5678.
UDP Port: 1259 (1259)		UDP PortThis is the UDP Port No. and the default port No. is 1259.
Sony Visca: 52381		Sony ViscaThis is the Sony Visca Port No. and the default No. is 52381.
SRT: On Off		SRT On/OffThis allows users to turn on or turn off the SRT streaming function.
SRT Port: 4578		SRT PortThis is the SRT port and the default port No. is 4578.
		SRT EncryWhen the SRT function is turned on, this option allows users to select their desired SRT Encryption way. There are three encryption ways including AES-128, AES-192 and AES-256 for users to select.
SRT Password: [12450789] (SRT Password length greater than 9 bits)		SRT PasswordWhen the SRT encryption way is set, it is needed for users to use this password. The default value is 1234567891 and this password can change by users.
		Pelco-D AddressThis option allows users to set the Pelco-D address, the range is from 0 to 254.
		Pelco-P AddressThis option allows users to set the Pelco-P Address, the range is from 0 to 31.
		First StreamThis option allows users to determine whether they want to turn on/turn off the First Stream streaming. Moreover, this option can turn on/turn off the streaming of video and audio separately.MRLPlease copy the RTMP server address and streaming keyfrom the streaming platform and then paste them into this MRL column. After that, please press the “Apply” button for starting the streaming successfully.
		Second StreamThis option allows users to determine whether they want to turn on/turn off the Second Stream streaming. Moreover, this option can turn on/turn off the streaming of video and audio separately.MRLPlease copy the RTMP server address and streaming key from the streaming platform and then paste them into this MRL column. After that, please press the “Apply” button for starting the streaming successfully.
RTSP Auth:OnOff		RTSP AuthThis option allows users to turn on or turn off the authentication of the RTSP streaming.
ONVIF:OnOff		ONVIFThis option allows users to turn on or turn off the ONVIF function.ONVIF AuthThis option allows users to turn on or turn off the ONVIF authentication.
		MulticastThis option allows users to turn on or turn off the Multicast function.
		AddressThis option is the address of Multicast. The default value is 224.1.2.3
		PortThis is the Port No. of the Multicast. The default No. is 1234.
		SDK SettingsThis allows users to turn on or turn off the Active Connection of the SDK Settings.
		Address/PortThis is the Address and Port of the SDK Settings. The Address is 192.168.100.138. The Port No. is 6688.

Items		Descriptions
		Time ZoneThis option allows users to select their time zone.
NTP time sync: On Off		NTP Time SyncThis option allows users to turn on or turn off the NTP Time Sync function.
		Server AddressThis option allows users to enter their desired NTP server.
		Time IntervalThis option allows users to set the time interval for the time calibration.
		Main Time Show/PositionThis option allows users to open or close the time display function for the main time.Moreover, users can enter different X coordinate and Y coordinate positions to determine the position for showing the time on the screen. (The allowable setting range is from 0 to 100).
		Sub Time Show/PositionThis option allows users to open or close the time display function for the sub time.Moreover, users can enter different X coordinate and Y
	coordinate positions to determine the position for showing the time on the screen. (The allowable setting range is from 0 to 100).
Apply	Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.
Cancel	Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.7 NDI® Config

This NDI® Config option provides “Device Name”, “Group Name” and “NDI® Firmware Version” for your reference. The main interface of the “NDI®Config” option is shown in the following diagram.

datavideo Live Video Image Audio System Network NDI® Config Information NDI® Config Device Name: PTC-280 NDI test Group Name: public NDI® Firmware Version: DV4.6.1 Apply Cancel

Please see following section for realizing the descriptions for each item for the NDI®Config option.

Items	Descriptions
NDI® ConfigDevice Name: PTC-280 NDI test	Device NameThis device name option will show the name of your PTC-280NDI camera when it is connected and is detected by the NDI Tools software “NDI Studio Monitor”. This “Device Name” column does not allow you to modify the device name. If you want to modify the device name, please click the “Information” option for entering your desired device name in the “Device ID” column.
Group Name:public	Group NameThis option will show the “NDI Group Name” of your PTC-280NDI camera. The default NDI Group Name is “Public”. For NDI, the transferring and receiving devices must be set in the same group name. Generally speaking, the group name is set by using the NDI Access Manager software. The NDI group can control the visibility and access between each group.
NDI® Firmware Version:DV4.6.1	NDI® Firmware VersionThis column will show current firmware version of your PTC-280NDI camera.

8.8 Information

In the “Information” option, users can change the device name by themselves. Moreover, users can also see the messages including software version, device model and web UI version. The main interface of the Information option is shown as following diagram.

datavideo Live Video Image Audio System Network NDI® Config Information Device ID: PTC-280 NDI test Software Version: 500 v9.0.102B - ARM v7.0.213D Device Type: A5 D Webware Version: v1.5.5 Apply Cancel Zoom In Zoom Out Focus In Focus Out

Please see following section for realizing the descriptions for each item for the information option.

Items		Descriptions
Device ID:	HD Camera	Device IDThis column allows users to determine the device ID by themselves. What they have to do is to enter their desired device ID and then click the “Apply” button.
Software Version:	SDC v9.0.850 - ARM v7.0.1250	Software VersionThis option can show current software version.
Device Type:	AS.D	Device TypeThis can show device type.
Webware Version:	v1.5.5	Webware VersionThis is the version of the web-based control UI.
Apply		Apply KeyAfter all of the options are set, please click the “Apply” key and then all of the changes will be effective.
Cancel		Cancel KeyIf the “Cancel” key is pressed, all of the changes will not take effect.

8.9 The PTZ Control Area of the Web UI

PTC-280NDI camera's PTZ control area in the Web UI allows users to control the directions, Zoom-In, Zoom-Out, Focus Near and Focus Far parameters for the PTZ camera lens. Moreover, users can also adjust the panning, tilting speed, preset setting and preset calling functions. The PTZ control area is shown as following diagram.

datavideo Live Video Image Audio System Network Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset (0~254) PTZ Back

Items		Descriptions
		UP/Down/Left/Right/Home KeysUsers can click the up, down, left and right keys and the PTZ camera lens will rotate to assigned direction. If the Home key pressed twice, the camera lens will return back to the initial position automatically.If this Home key is used with the “Back” key, when the “OSD” is selected and the Back key is clicked, the OSD menu will be shown on the external connected screen and users can use the up, down, left and right keys on the Web UI to control the camera.
		Zoom In/Zoom Out/Focus In/Focus OutClick “Zoom In” or “Zoom Out” for zooming in or zooming out the camera lens.Click the “Focus In” or “Focus Out” for Focusing Near or Focusing Far the camera lens.
		Pan SpeedThe “Pan Speed” allows users to adjust the rotation speed of the PTZ camera lens. The allowable setting range is from 1 to 24. The larger the number, the faster the PTZ camera lens will rotate.
		Tilt SpeedThe “Tilt Speed” allows users to adjust the vertical rotation speed of the camera lens.The allowable setting range is from 1 to 20.The larger the number, the faster the PTZ camera lens will rotate.
		Zoom SpeedThe “Zoom Speed” allows users to adjust the Zoom In/Zoom Out speed of the PTZ camera lens. The allowable setting range is from 0 to 7. The larger the number, the faster the PTZ camera lens will rotate.
		Focus SpeedThe “Focus Speed” allows users to adjust the “Focus Near” and “Focus Far” speed of the PTZ camera lens. The allowable setting range is from 0 to 7. The larger the number, the faster the PTZ camera lens will rotate.
		Set and Call PresetsThe PTC-280NDI provides 255 presets (0-254) for users to set.Users can use “Set” button to set the preset position and users can use the “Call” button to recall the pre-saved presets.
		OSD/PTZ Drop-Down MenuPress the OSD option from the web UI allows camera to call the OSD menu immediately. If the PTZ is selected after the OSD menu is shown, the OSD menu will disappear and the screen will go back to the scene that is shot by the camera.
		Language Drop-Down MenuUsers can use this drop-down menu for selecting four different languages including Traditional Chinese, русский, English and Simplified Chinese.

9. How to Use the Web UI to Set and Call Presets

Please follow following steps for setting and recalling the presets.

● How to Set Preset

1. Please adjust your desired camera parameters and camera lens positions in advance.
2. Please enter your desired preset number in the "Preset"

column

Preset

(0\~254)

1. Please click the "Set" button Set and then the preset is set successfully.

● How to Recall Preset

1. Please enter the preset number that you want to recall into the "Preset" column. Preset (0\~254)

2. Please click the "Call" button and then the preset is recalled successfully.

10. DIP Switch Settings

10.1 DIP Switch SW1

The DIP Switch SW1 can be found at the bottom of the camera, where the user is allowed to set the camera's VISCA ID, enable remote control, select the video resolution, and configure how the video mode can be selected.

On Off 1 2 3 4 5 6 7 8

DIP SW 1/2/3	VISCA ID
(1,2,3) = (ON,OFF,OFF)	VISCA-ID 1
(1,2,3) = (OFF,ON ,OFF)	VISCA-ID 2
(1,2,3) = (ON ,ON ,OFF)	VISCA-ID 3
(1,2,3) = (OFF,OFF,ON)	VISCA-ID 4
(1,2,3) = (ON ,OFF,ON)	VISCA-ID 5
(1,2,3) = (OFF,ON ,ON)	VISCA-ID 6
(1,2,3) = (ON ,ON ,ON)	VISCA-ID 7
DIP SW 4	Remote Control Protocol
ON	DVIP
OFF	RS-422
DIP SW 5/6/7	Resolution
(5,6,7) = (OFF,OFF,OFF)	1920 x 1080i 59.94
(5,6,7) = (ON,OFF,OFF)	1920x1080i50
(5,6,7) = (OFF,ON,OFF)	1920 x 1080p 59.94
(5,6,7) = (ON,ON,OFF)	1920 x 1080p 50
(5,6,7) = (OFF,OFF,ON)	3840 x 2160p 29.97
(5,6,7) = (ON,OFF,ON)	3840 x 2160p 25
(5,6,7) = (OFF,ON,ON)	3840 x 2160p 59.94
(5,6,7) = (ON,ON,ON)	3840 x 2160p 50
DIP SW 8	Video Mode Selection Method
ON	Video mode selectable by DIP switch only
OFF	Video mode selectable by menu

10.2 DIP Switch SW2 (IRID)

The IRID DIP Switch can be found on the rear panel of the PTC-280NDI camera. This DIP switch allows the user to assign an ID number to the camera so that the user can navigate between the cameras by pressing the CAMERA SELECT buttons.

On Off 1 2 3 4

DIP SW 1/2	Camera Select Function (IR Remote Control) – Camera ID Assignment
(1,2) = (OFF,OFF)	CAM1 (IR)
(1,2) = (ON,OFF)	CAM2 (IR)
(1,2) = (OFF,ON)	CAM3 (IR)
(1,2) = (ON,ON)	CAM4 (IR)
* DIP SW 3/4 should be always OFF.

11. How to Play the RTSP Stream by the VLC Player

Please follow following steps for playing the RTSP streaming by using the VLC Player.

VLC media player Media Playback Audio Video Subtitle Tools View Help Open File... Ctrl+O Open Multiple Files... Ctrl+Shift+O Open Folder... Ctrl+F Open Disc... Ctrl+D Open Network Stream... Ctrl+N Open Capture Device... Ctrl+C Open Location from clipboard Ctrl+V Open Recent Media Save Playlist to File... Ctrl+Y Convert / Save... Ctrl+R Stream... Ctrl+S Quit at the end of playlist Quit Ctrl+Q

1. Please open the VLC Player.
2. Please click "Media->Open Network Stream".

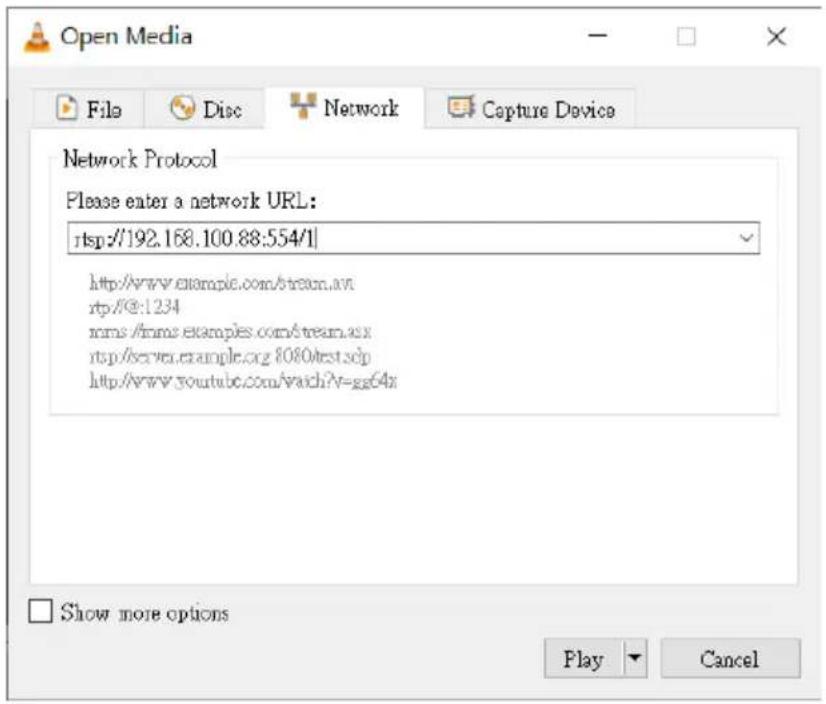

3. Please enter the RTSP address.

rtsp://ip address: port No./1 (first stream).

rtsp://ip address: port No./2 (second stream).

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: rtsp://192.168.100.88:554/1 http://www.example.com/stream.av rtp/#:1234 rms/#m#e.example.com/stream.av rtsp/server.example.org 8080test.sdp http://www.youtube.com/view?v=gg64x Show more options Play Cancel

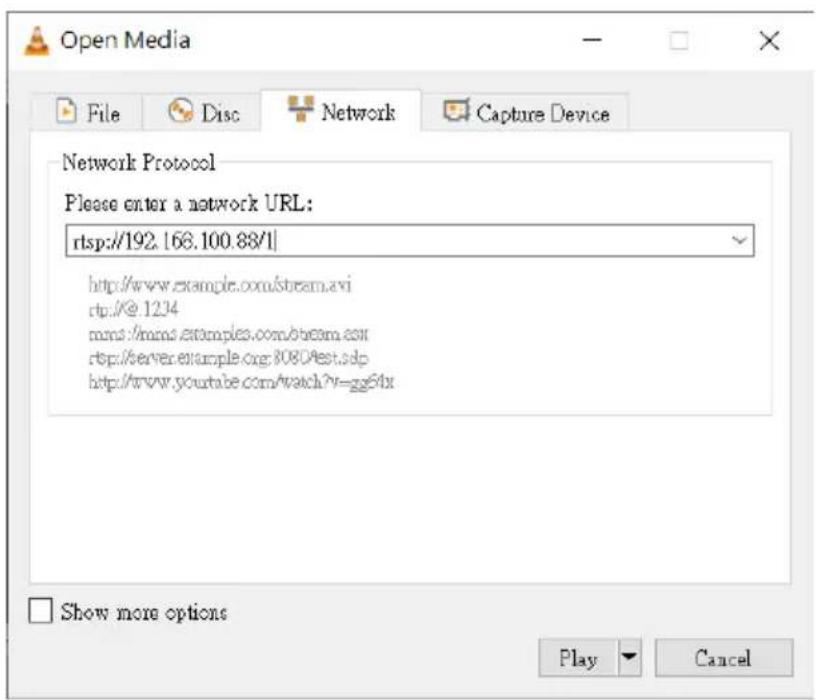

4. Please click "Play" button.

Note: The default port No. of the RTSP is 554, if the default http port of the camera is 80, it is no need for users to enter the port No.

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: rtsp://192.168.100.88/1 http://www.example.com/stream.avi rtp://@.1234 mms:/mms.stamples.com/beam.com rtp://server.example.org:8080'est.sdp http://www.youtube.com/watch?v=zz6fix Show more options Play Cancel

12. How to Play the Multicast by the VCL Player

The RTP Multicast allows users to view the camera image remotely by specific video player such as the VLC Player.

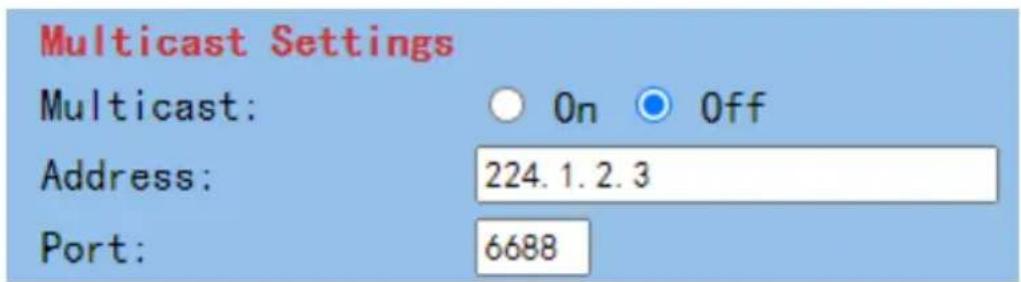

Multicast Settings Multicast: ○ On ● Off Address: 224.1.2.3 Port: 6688

Please follow following steps for playing the RTP Multicast in the VLC Player.

1. Download VLC media player from the link https://www.videolan.org.

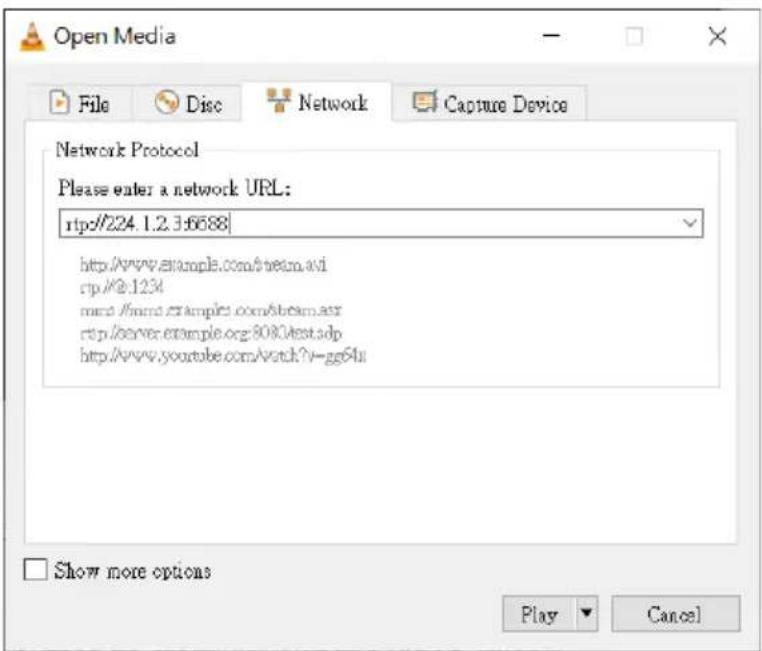

2. Open VLC, click "Media" → "Open Network Stream" then enter rtp://224.1.2.3:6688 to view the first stream and rtp://224.1.2.3:6690 to view the second stream.

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: http://224.1.2.3:6688 http://www.example.com/stream.avi http://@.1234 mrcd://www.example.com/stream.asr http://server.example.org/8080vst.sdp http://www.youtube.com/watch?v-gg64u Show more options Play Cancel

1. Click the "Play" button to start viewing the video stream.

13. How to Stream to Facebook

Please follow following steps for streaming to Facebook Streaming platform.

● Use Facebook Live Producer for Streaming

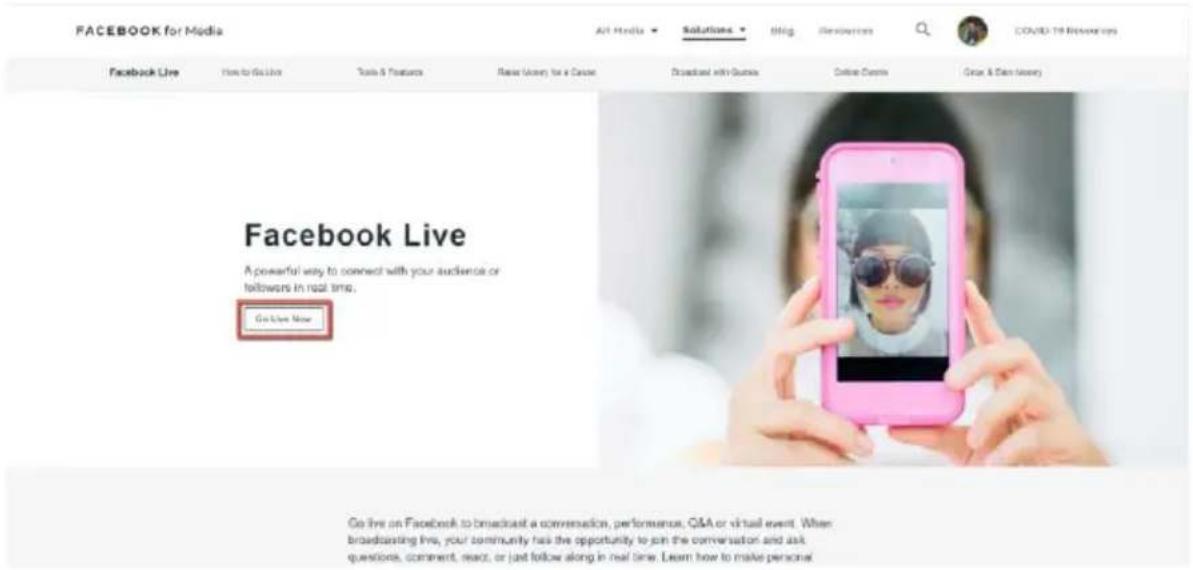

1. Please go to Facebook Live website

https://www.facebook.com/formedia/solutions/facebook-live , and then please click “Go Live Now” button which is shown in the following diagram.

Note: Facebook Live limits each stream to 8 hours.

FACEBOOK for Media Air Media Solutions Blog Reviewers COVID-19 Recommendations Facebook Live How to Find Live Tools & Features Raise Money for a Cause Broadcast with Quote Online Quote Grow & Earn Money Facebook Live A powerful way to connect with your audience or followers in real time. Go Live Now Go live on Facebook to broadcast a conversation, performance, Q&A or virtual event. When broadcasting live, your community has the opportunity to join the conversation and ask questions, comment, react, or just follow along in real time. Learn how to make personal

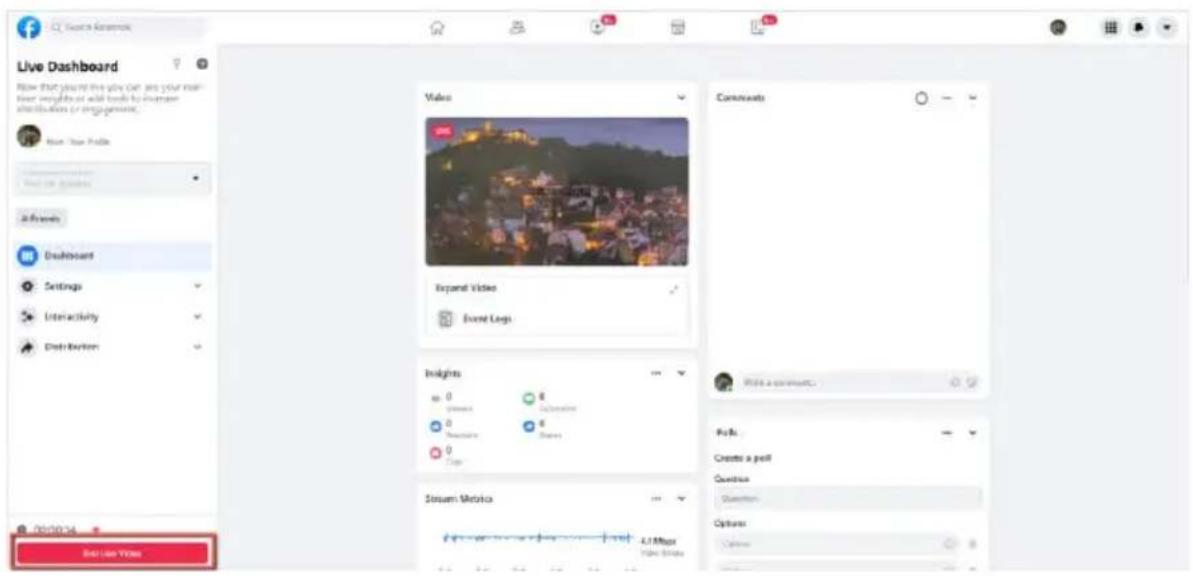

1. Please click the "Select" button from the "Go live" option which is shown in the following diagram.

Create Live Video HomeLine Choose Video Type Word - Your Profile Choose where to post Post on Timeline Go live Go live by yourself or with others Add inactivity tools to keep your audience engaged Select Create live video event People can respond to your event Your live video will be available in more places We'll remind you about your event Select

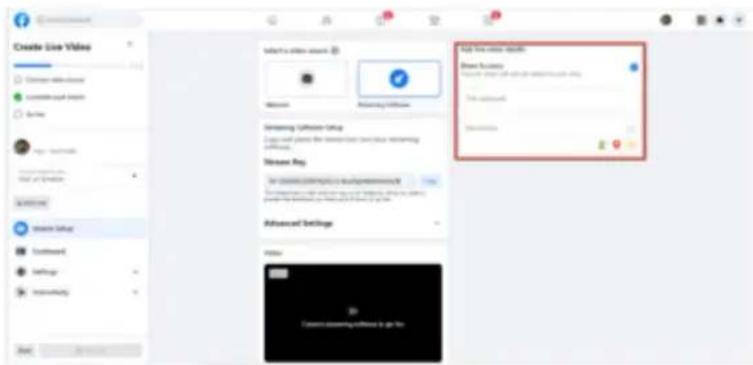

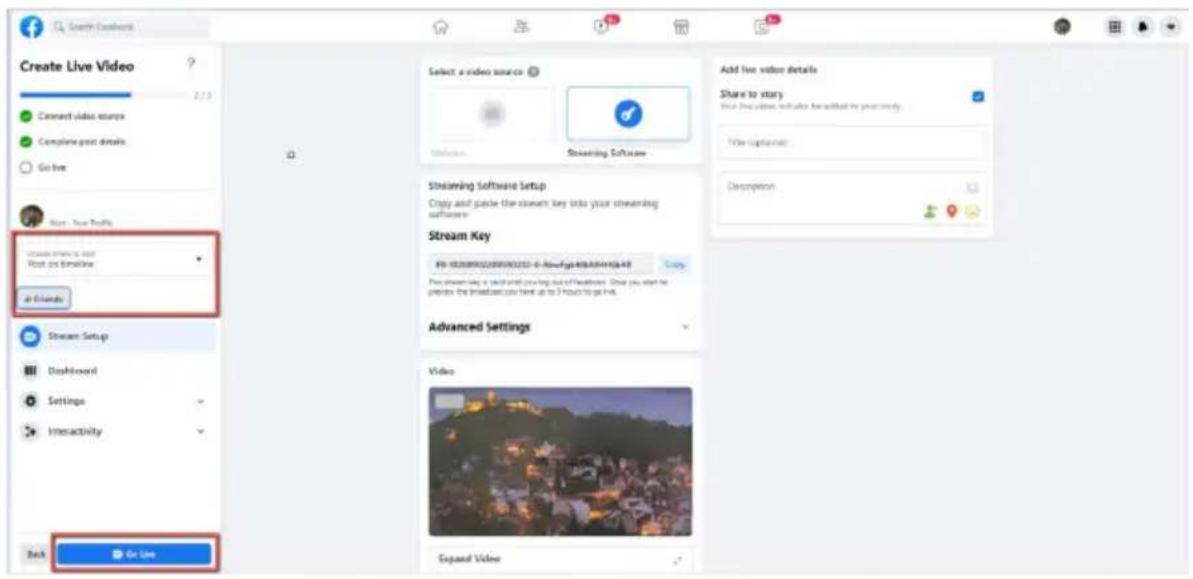

1. Please select the "Streaming Software" option, and then please enter the title and description of your live-streaming video in the "Title" and "Description" columns. Moreover, you can determine whether you want to share your live-streaming video to your Facebook Story.

Create Live Video Show the video clips Show fresh video Show your video (if any image is available) Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image show Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image Show image

1. Please select "Advanced Settings", and then you can see the "Server URL". You need the "Server URL" and the "Stream Key" which are on the page for live-streaming videos on the Facebook page.

Create Live Video 1 20000000000000000000000000000000000000000000000000000000000000000000000000000000000000

1. Please click the "Copy" buttons which are located next to the "Server URL" and "Stream Key" columns respectively. After that, please paste them to the "First Stream MRL" column in the "Network" option of the PTC-280NDI web UI. Please follow the following format to paste the "Server URL" and "Stream Key" into the PTC-280NDI web UI.

Server URL/Stream Key

Create Live Video Connect video source Complete post details Go live Home - Your Profile Online where to your Post on timeline Only one Stream Setup Dashboard Settings Interactivity Back Select a video source Webcam Streaming Software Streaming Software Setup Copy and paste the stream key into your streaming software. Stream Key FB-10203962207016252-0-ADxefgb48b0fH16b48 This stream key is valid until you log out of Facebook. Once you should be present the broadcast you have up to 5 hours to go live. Advanced Settings Persistent Stream Key This can be saved every time you get live, you can only broadcast any live video at a link with your persistent stream key. Backup Stream Show a backup stream's added to your live video, it cannot be removed. It could not affect your stream if you choose next to us it. Server URL: [e-mail]/443/strsp/ This may be referred to as "URL" or "Address" in your streaming service. Copy Add live video details Share to story Find live video will also be added to your story. File (optional) Description

datavideo Live Video Image Audio System Network ND10 Config Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset (0~254) PTZ Back Language English Line Settings IP Configuration Type: Fixed IP Address IP Address: 192.168.50.30 Subset Mask: 258.256.255.0 Gateway: 192.168.50.1 DNS Address: 192.168.50.1 MAC Address: 50 27 30 38 40 13 Apply Cancel Port Settings HTTP Port number: 80 (80) RTSP Port: 854 (554) PTZ Port: 5678 (5678) UDP Port: 1789 (1289) Sony Vincs: 02381 SRT Settings SRT: On Off SRT Port: 9000 SRT Entry: Off SRT Password: 1234567810 (SRT Password length greater than 9 bits) Control Protocol Settings Pelco-D Address: 3 (0~254) Pelco-P Address: 1 (0~31) RTMP(S) Settings First stream: On Off Video Audio MRL: https://userapi-a.facebook.com/443/rtsp/FB-10208002308800202-0-AbvFg48b99Hdb48 Second stream: On Off STBGO Audio MRL: RTSP Settings RTSP Auth: On Off ONVIF Settings ONVIF: On Off ONVIF Auth: On Off Multicost Settings Multicost: On Off

Note: Please make sure that the "ON" is selected for the First Stream MRL. Moreover, please make sure that the "Video" and "Audio" checkboxes are checked.

1. Please click the "Apply" button

1. Please click the "Reboot" button in the "System" option to reboot the PTC-280NDI.

datavideo Live Video Image Audio System Network NDI® Config Information Initialize Reboot: factory default: User Username: Passwd: Guest: Passwd: Reboot Apply admin ...... guest: ...... Apply Cancel

192.168.5030

the ipcam will be rebooted. Are you sure?

1. After the PTC-280NDI is rebooted, you can see the real-time preview which is shot by the PTC-280NDI camera from the "Video" option of the Facebook Live page.

Create Live Video Connect video source Complete post details Go lines View - Your Home Show screen to start WBS on destination Only free Stream Settings Dashboard Settings Interactivity Back Options Select a video source Streaming Software Streaming Software setup: Copy and packs the stream key into your streaming software. Stream Key WS-010905238965132-C-04094840000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Advanced Settings Video Expand Video Add live video details Share to story What the video will also be attached to a user strip. Show images off. Exemptions

1. Please set related settings including "Choose where to post" and "Select audience". After that, please press the "Go Live" button for live-streaming the real-time image which is shot by the PTC-280NDI immediately.

Choose where to post Post on timeline Post on timeline Post to Page you manage Post in group

Select audience Public Anyone on or off Facebook Friends Your friends can Facebook Friends except... Don't plan to some friends Specific friends Only guide to some friends Only new Custom Include and exclude friends and lists Close friends New Country list

Create Live Video Connect video source Complete post details Go Live Add: New Posts Create video to post Post on Timeline All Friends Video Setup Dashboard Settings Interactivity Select a video source Steaming Software Add live video details Share to story Your live video will also be added to previously Use (optional) Description Video Expand Video

1. And then you can see that the live-streaming is done successfully. If you want to stop the live-streaming, please click the "End Live Video" button for stopping the live-streaming immediately.

Live Don't avoid Video Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Share Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image Spread Image

- Use the Personal Facebook Page or the Facebook Fan Page for Streaming

1. Please click the "Select" button from the "Go live" option which is shown in the following diagram.

Create Live Video Home Choose Video Type Host: Your Profile Choose video in just Past on timeline Go live Go live by yourself or with others Add interactivity tools to keep your audience engaged Select Create live video event People can respond to your event. Your live video will be available in more places. We'll remind you about your event Select

1. Please select the "Streaming Software" option, and then please enter the title and description of your live-streaming video in the "Title" and "Description" columns. Moreover, you can determine whether you want to share your live-streaming video to your Facebook Story.

Create Live Video Connect video source Complete search details Go Blue User - Your Website Choose store to post Post on timeline Only one Stream Setup Dashboard Settings Interactivity Add live video details Share to story Your live video will add the content to your daily File (optional) Description Select a video source Webcam Streaming Software Streaming Software Setup Copy and paste the stream key into your streaming software. Stream Key http://83089622051400330-0-000000000000000000000000000000000000000000000000000000000000000000000000000000 Advanced Settings Video Connect streaming software to go live

1. Please select "Advanced Settings", and then you can see the "Server URL". You need the "Server URL" and the "Stream Key" which are on the page for live-streaming videos on the Facebook page.

Create Give Values Create Give Values Show the values source: Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access Allow you to access

1. Please click the "Copy" buttons which are located next to the "Server URL" and "Stream Key" columns respectively. After that, please paste them to the "First Stream MRL" column in the "Network" option of the PTC-280NDI web UI. Please follow the following format to paste the "Server URL" and "Stream Key" into the PTC-280NDI web UI.

- Copy URL / Stream Key

datavideo Live Video Image Audio System Network NDI® Config Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Preset 0~250 PTZ Back Language English LAN Settings IP Configuration Type: Fixed IP Address IP Address: 192.168.50.30 Subnet Mask: 268.258.258.0 Gateway: 192.168.50.1 DNS Address: 192.168.50.1 MAC Address: 50 - 57 - 30 - 38 - 40 - 13 Apply Cancel Port Settings HTTP Port number: 80 (80) RTSP Port: 554 (554) PTZ Port: 5678 (5678) UDP Port: 1259 (1259) Sony Viscs: 52361 SRT Settings SRT: On Off SRT Port: 9000 SRT Encry: Off SRT Password: (234567810 (SRT Password length greater than 9 bits) Control Protocol Settings Pelco-D Address: 3 (0~254) Pelco-P Address: 1 (0~21) RTMP(S) Settings First stream: On Off Video Audio MRL: https://live-spi-a.facebook.com/443/rtmp_FB-10208901218890302-0-AbsFgk48b49b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48b48a Second stream: On Off TVISO TV AIDIO MRL: RTSP Settings RTSP Auth: On Off ONVIFSettings ONVIF: On Off ONVIF Auth: On Off Multicast Settings Multicast: On Off

Note: Please make sure that the "ON" is selected for the First Stream MRL. Moreover, please make sure that the "Video" and "Audio" checkboxes are checked.

1. Please click the "Apply" button

1. Please click the "Reboot" button in the "System" option to reboot the PTC-280NDI.

datavideo Live Video Image Audio System Network NDI® Config Information Initialize Reboot: factory default: User Username: Passwd: Guest: Passwd: Reboot Apply admin guest guest Apply Cancel

192.168.5030

the ipcam will be rebooted. Are you sure?

1. After the PTC-280NDI is rebooted, you can see the real-time preview which is shot by the PTC-280NDI camera from the "Video" option of the Facebook Live page.

Create Live Video Connect live video setup Complete guest details Go Live Text - Book Review Exchange to your POST ON Sensitive Only free Stream Setup Dashboard Settings Interlocking Add Go Live Select a video resource Show your Streaming Software Streaming Software Setup Apply and protect the stream key toke your streaming software. Stream Key WS-10000000000000025-0-00000000000000 You stream key is used will you log out of Facebook. You don't for privacy the streamkey you have go to it, making me go out. Advanced Settings Video Expand Video Add live video details Share to story Now the stream video can add this view on Side (postwell) Dispersions

1. Please set related settings including "Choose where to post" and "Select audience". After that, please press the "Go Live" button for live-streaming the real-time image which is shot by the PTC-280NDI immediately.

Choose where to post Post on timeline Post on timeline Post to Page you manage Post in group

Select audience Public Anyone on an all-friends Friends Next Friends (on Facebook) Friends except... Don't play by some friends Specific friends Only close to some friends Only me Customs Include and exclude friends and flats Classic friends New Customers

Create Live Video Connect video starts Complete post details Go live Save True Traffic Stream key to set Host or timeline Air Files Stream Setup Desktop Settings Interactivity Back Go Live Select a video source Streaming Software Add live video details Share to story Use this video with also far installed in your history. File (optional) Stream Key File: 1020890208900002-6-4w-fga48BAHHS2-48 Copy Play streamkey a valid print you log out of streamkey. Show you start to promote the streamkey you next up to 3 hours to get hit. Advanced Settings Video Expanded Video

1. And then you can see that the live-streaming is done successfully. If you want to stop the live-streaming, please click the "End Live Video" button for stopping the live-streaming immediately.

Live Dashboard Now that you're the you on, see your main towers or add back to create distributions or engagement. New: New Profile Settings Features Dashboard Settings Interactivity Distribution View Data Video Expand Video Event Logs Comments 0 6 0 6 0 6 Insights 0 6 0 6 Score Show Metrics 4.1 Mpa Video Streams Write a comment. Polk: Create a poff Question: Question: Options: Cabinet

14. How to Stream to Youtube

Please see following steps for realizing how to stream to Youtube streaming platform.

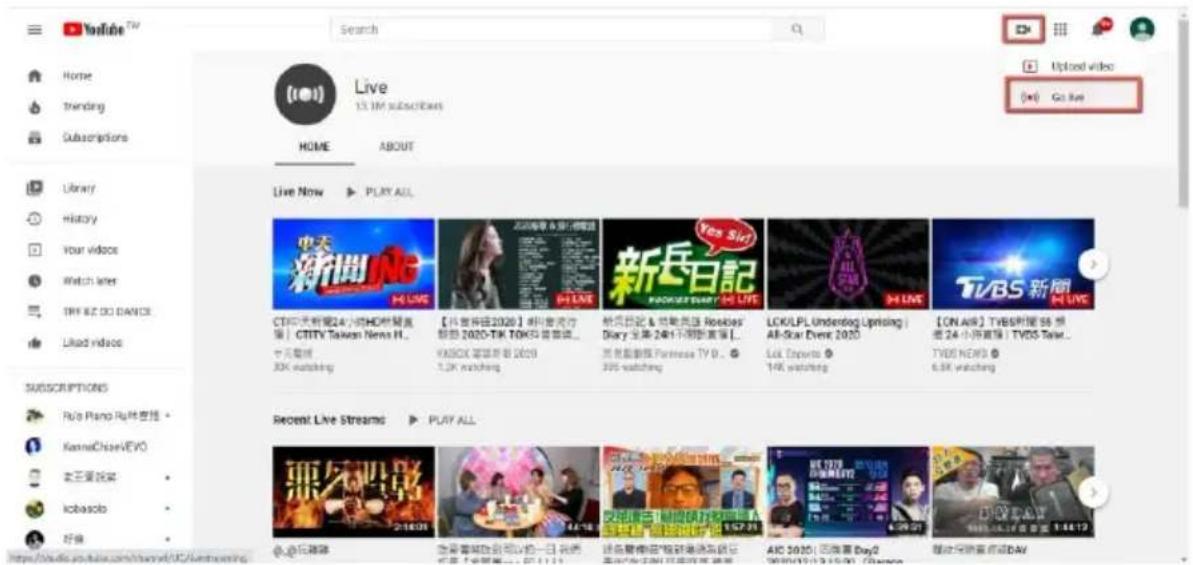

1. Please go to Youtube website www.youtube.com and then click "Create->Go Live".

1. Users will enter "Youtube Live Control Room" page, please click the "START" button from the "Right Now" option.

Studio Stream Webcam Manage Welcome to the new YouTube Live Control Room When do you want to go live? Right now Get set up to live stream now. Don't worry you'll have a chance to review settings before you're live. Learn more START Later date Schedule a stream for a later time. You can even set it up ahead of time. Learn More START SCHEDULE YOUR STREAM SHEET OF TIME AND LET your participants know what you're going live? CLOCK Send Feedback

1. Please click "Go" button from the "Streaming Software" option.
2. Users will see the main page of the "Youtube Studio". Please click the "EDIT" button for setting detail information of your streaming activity. After you finish filling out those information, please click the "SAVE" button.

Studio Connect streaming software to go live Viewers will be able to find your stream onto you go live STREAM SETUP HELP Test Category education Privacy PUBLIC University's working 0 0 EDIT Excellent connection STREAM SETTINGS ANALYTECS STREAM HEALTH Stream key Go over stream key Default stream key (Variable) Stream key point is removed RESET COPY Additional settings Enable DVR 360° video Access color None Streamkey rtmp://a.rtmp.youtube.com/live2 Backup before 35% rtmp://b.rtmp.youtube.com/live2?backup=1 COPY COPY Closed coupons

Studio Edit settings Details Live Chat File (selected) Text Description This is a text streaming video Visibility Public Music for date (set by you) Category CANCE COPY Connect stream Windows will be able to STREAM Excellent connectors STREAM SETTINGS Streams key Default stream key (You http://a.rimp.youtube.com/ http://a.rimp.youtube.com/live2?backup=1 COPY Closed copies

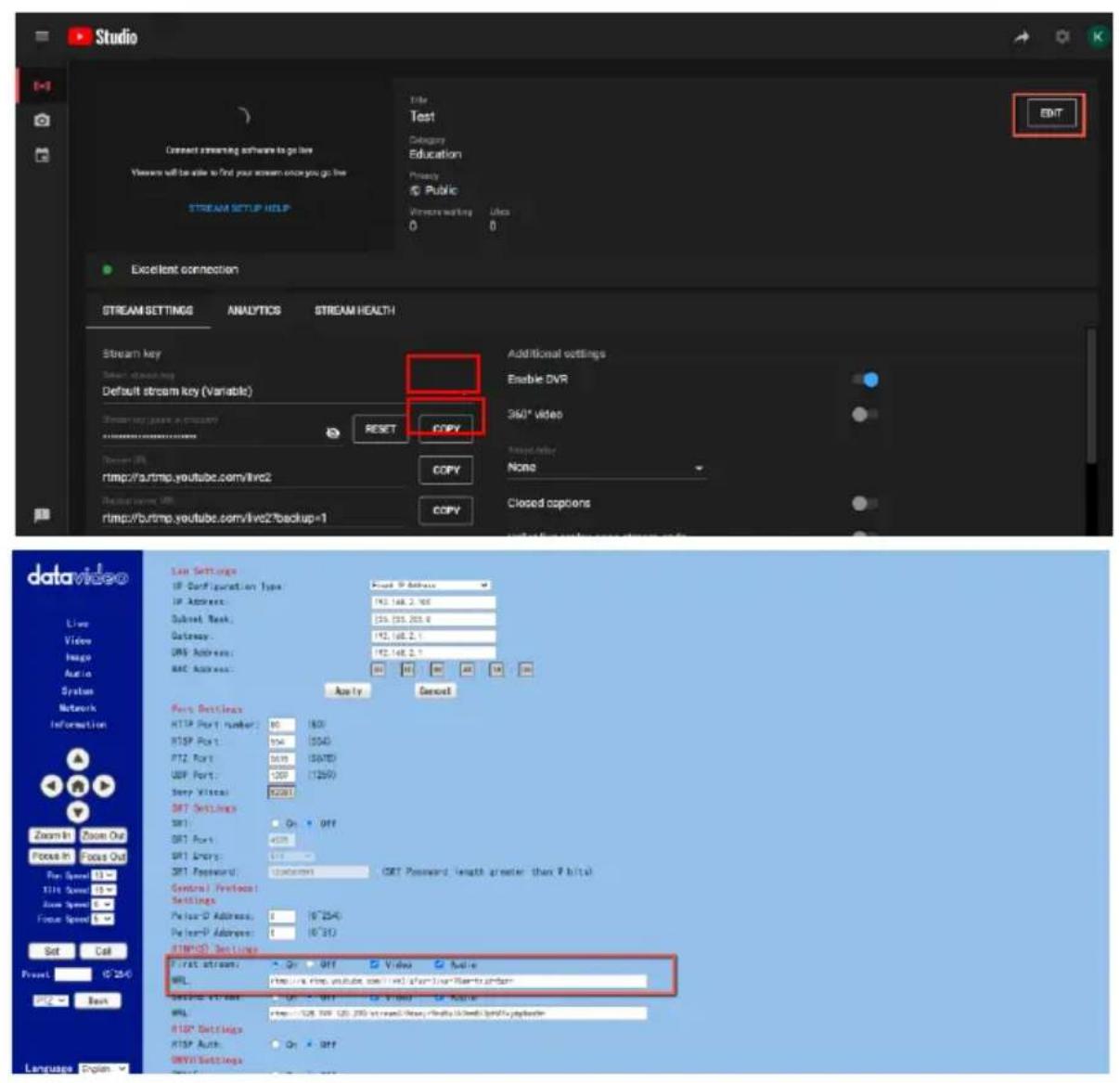

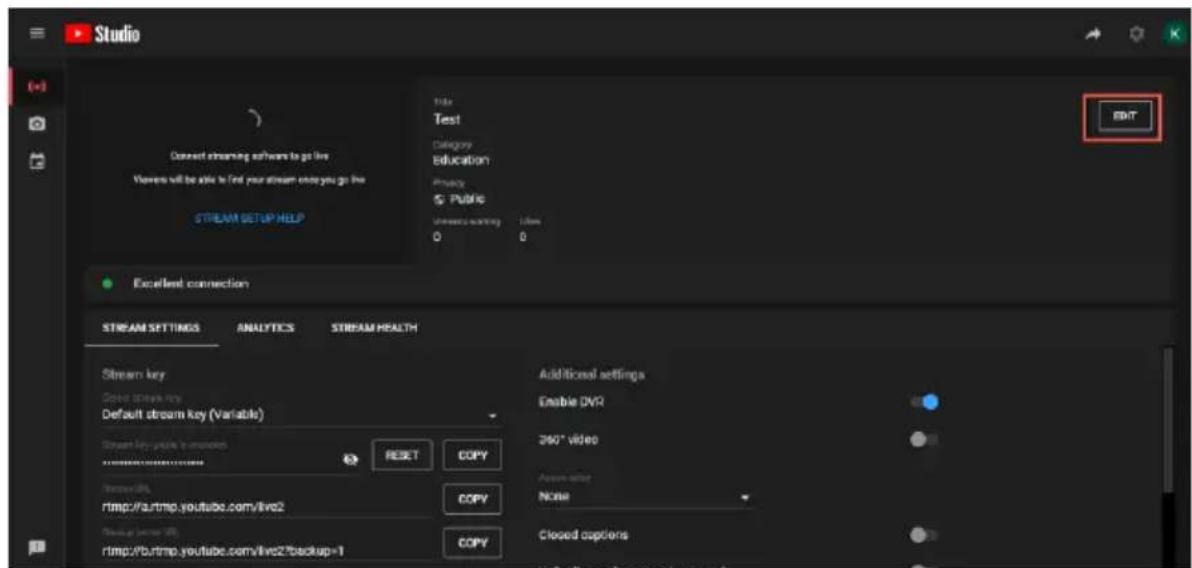

1. Users can see the Stream Key and Stream URL that are provided by the Youtube streaming platform. Please copy the stream key and stream URL and then paste them into the "First Stream MRL" within the "Network" option of the PTC-280NDI Web UI according to the following format (Stream URL/Stream Key). Please click "On" and please check the checkboxes of "Audio" and "Video".

1. Please click the "Apply" button.

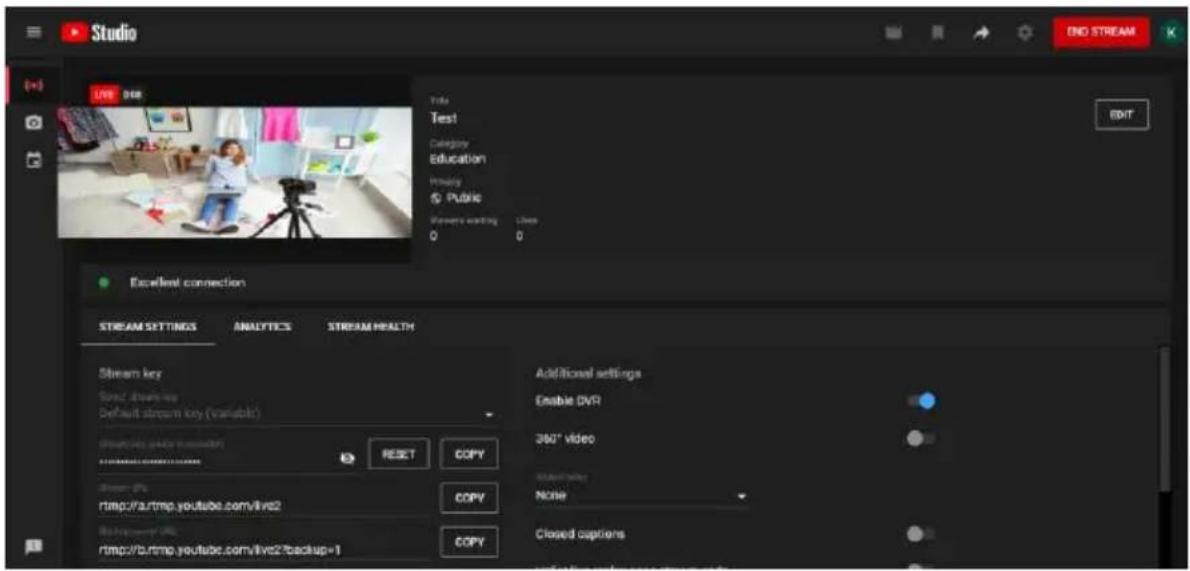

1. Please reboot the PTC-280NDI camera and then users can see the streaming is started on the Youtube Live page. If you want to stop the live streaming, please click the "END STREAM" button for stopping the live streaming.

Studio LIVE DDR Title Test Category Education Primary Public Viewers warning Close 0 0 Excellent connection STREAM SETTINGS ANALYTES STREAM HEALTH Stream key Send/Preview Default stream key (variable) Streamkey video command RESET COPY Stream ID: rtmp://a.rtmp.youtube.com/live2 Backward view: rtmp://b.rtmp.youtube.com/live2?backup=1 Additional settings Enable DVR 360° video None Closed captions

15. How to do the SRT Streaming by the vMix Software

How to install the Vmix Software

Please install the vMix software according to following steps.

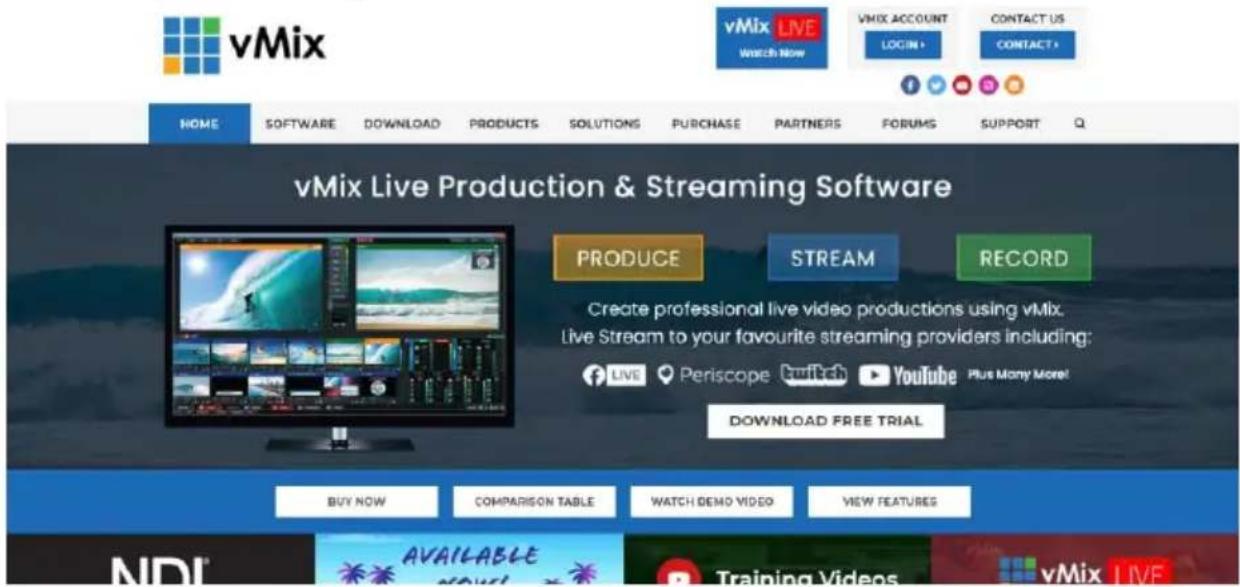

1. At first, please go to vMix official website and then download the vMix 60-day free-trial. This section will use vMix free-trial as an example to demonstrate the operation steps. Please click the “DOWNLOAD FREE TRIAL” button for downloading.

vMix vMix LIVE Watch Now VMIX ACCOUNT LOGIN+ CONTACT US CONTACT+ HOME SOFTWARE DOWNLOAD PRODUCTS SOLUTIONS PURCHASE PARTNERS FORBMS SUPPORT Q vMix Live Production & Streaming Software PRODUCE STREAM RECORD Create professional live video productions using vMix. Live Stream to your favourite streaming providers including: LIVE Periscope Twitch YouTube Plus Many More! DOWNLOAD FREE TRIAL BUY NOW COMPARISON TABLE WATCH DEMO VIDEO VIEW FEATURES NDI AVAILABLE Training Videos vMix LIVE

1. Please double-click the vmix23.exe
2. Please click the "Next" button.

Setup - vMix Welcome to the vMix Setup Wizard This will install vMix on your computer. It is recommended that you close all other applications before continuing. Click Next to continue, or Cancel to exit Setup. Next > Cancel

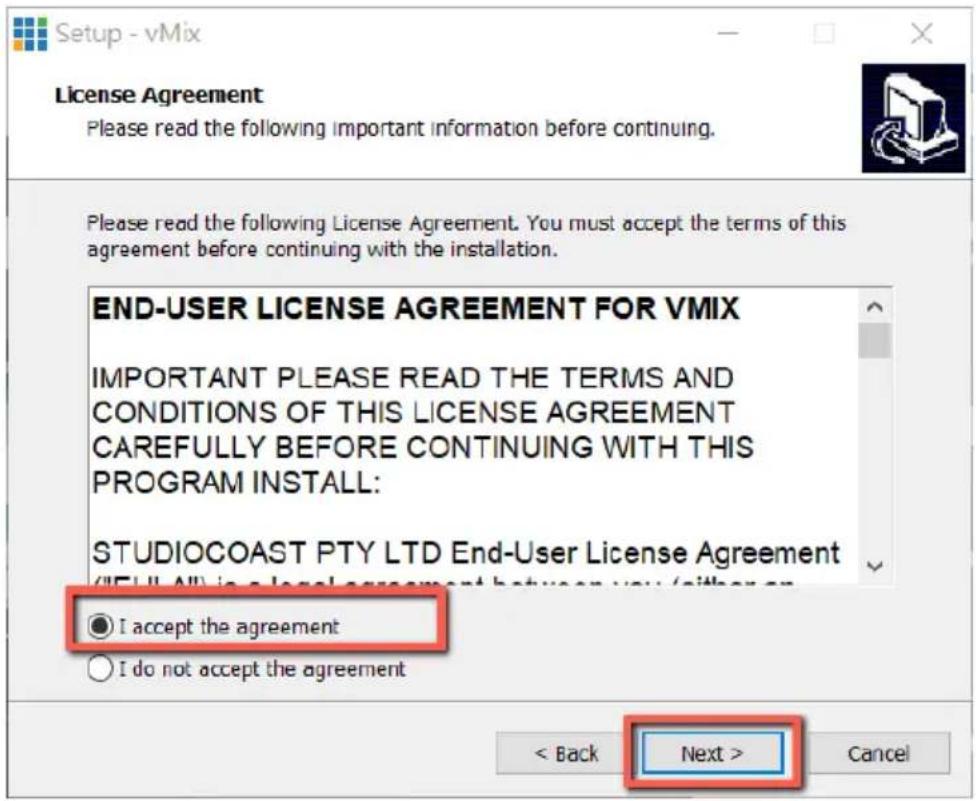

1. Please click "I accept the agreement" and then click the "Next" button.

Setup - vMix License Agreement Please read the following important information before continuing. Please read the following License Agreement. You must accept the terms of this agreement before continuing with the installation. END-USER LICENSE AGREEMENT FOR VMIX IMPORTANT PLEASE READ THE TERMS AND CONDITIONS OF THIS LICENSE AGREEMENT CAREFULLY BEFORE CONTINUING WITH THIS PROGRAM INSTALL: STUDIOCOAST PTY LTD End-User License Agreement (“FULL ALL”) is a legal agreement between you (either on I accept the agreement I do not accept the agreement < Back Next > Cancel

1. Please click the "Next" button.

Setup - vMix Select Destination Location Where should vMix be installed? Setup will install vMix into the following folder. To continue, click Next. If you would like to select a different folder, click Browse. C:\Program Files (x86)\vMix Browse... At least 841.3 MB of free disk space is required. < Back Next > Cancel

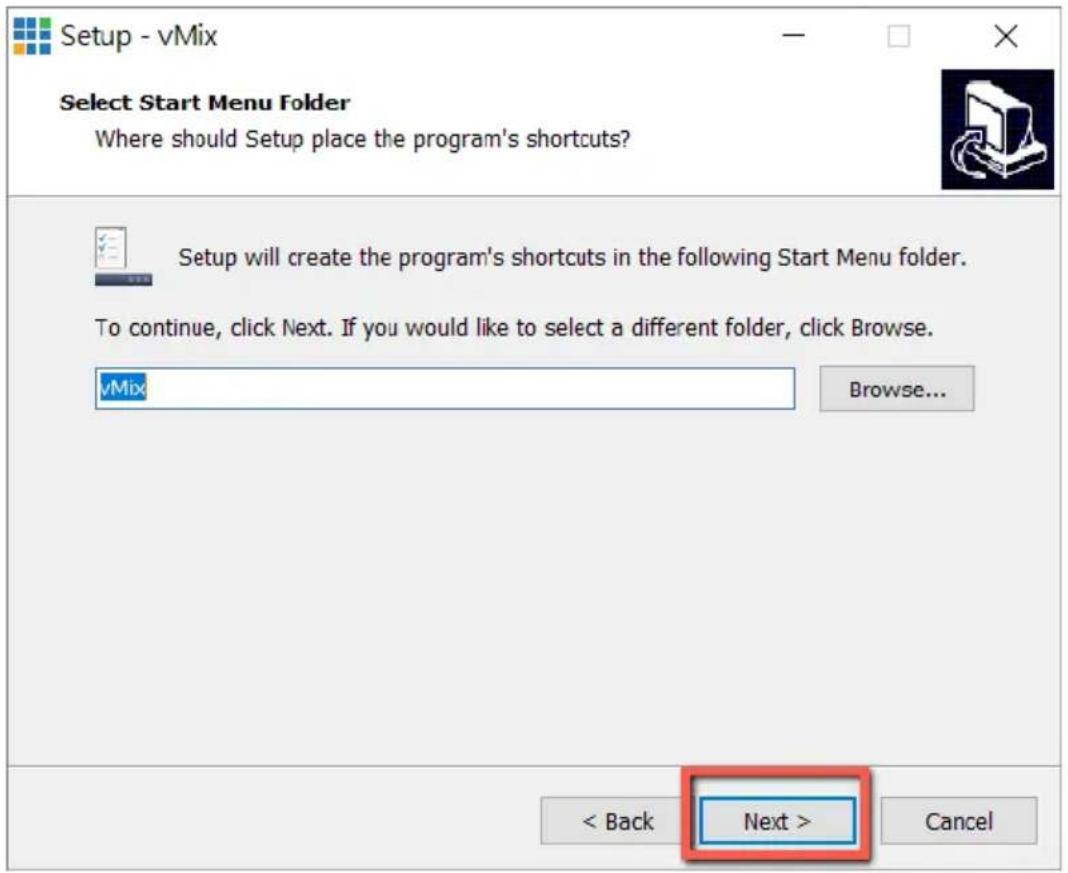

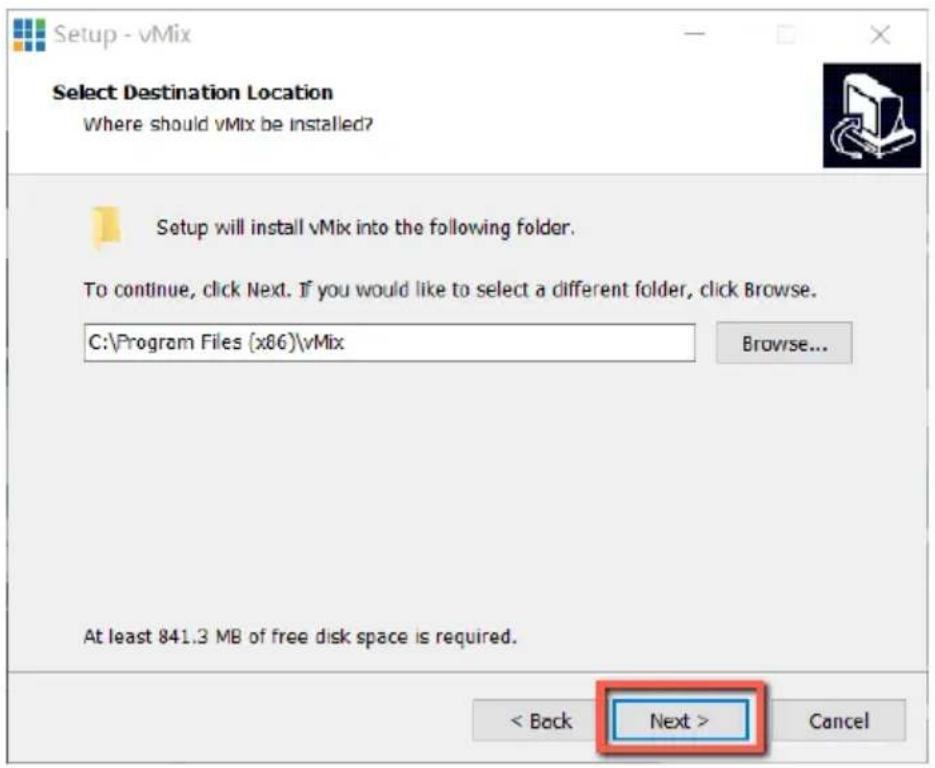

6. Please click the "Next" button.

Setup - vMix Select Start Menu Folder Where should Setup place the program's shortcuts? Setup will create the program's shortcuts in the following Start Menu folder. To continue, click Next. If you would like to select a different folder, click Browse. vMix Browse... < Back Next > Cancel

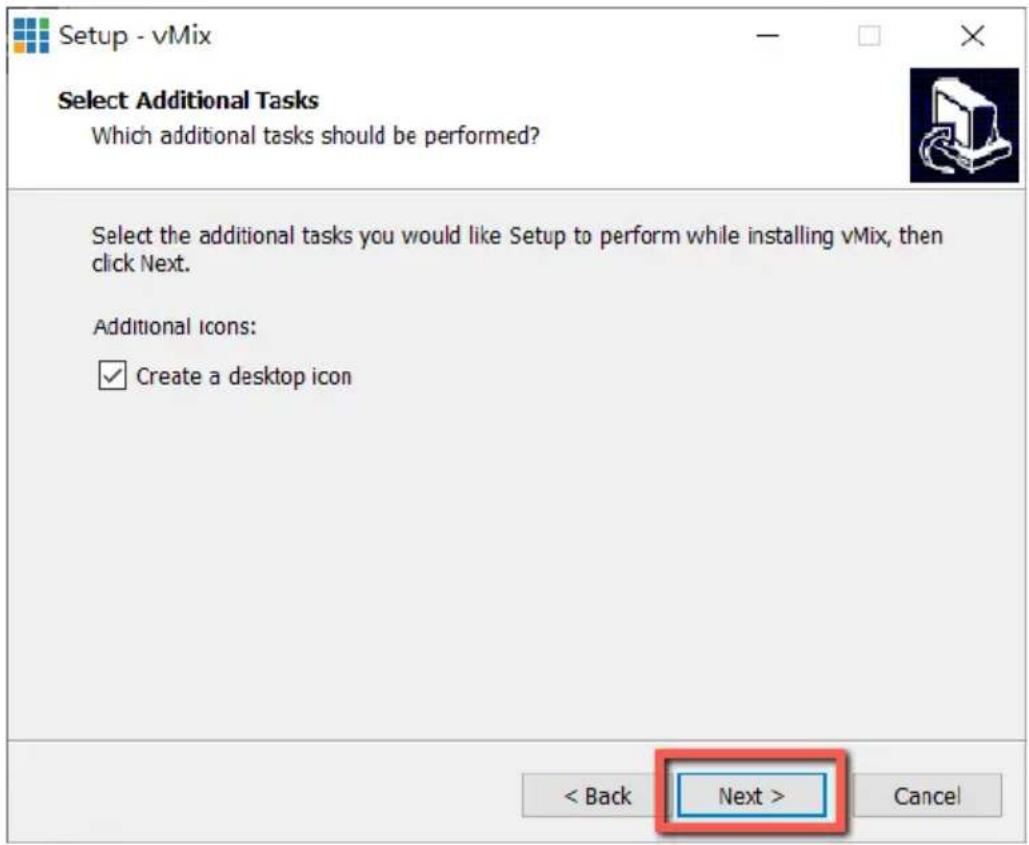

7. Please click the "Next" button.

Setup - vMix Select Additional Tasks Which additional tasks should be performed? Select the additional tasks you would like Setup to perform while installing vMix, then click Next. Additional icons: ✓ Create a desktop icon < Back Next > Cancel

8. Please click the "Install" button.

Setup - vMix Select Additional Tasks Which additional tasks should be performed? Select the additional tasks you would like Setup to perform while installing vMix, then click Next. Additional Icons: ✓ Create a desktop icon < Back Next > Cancel

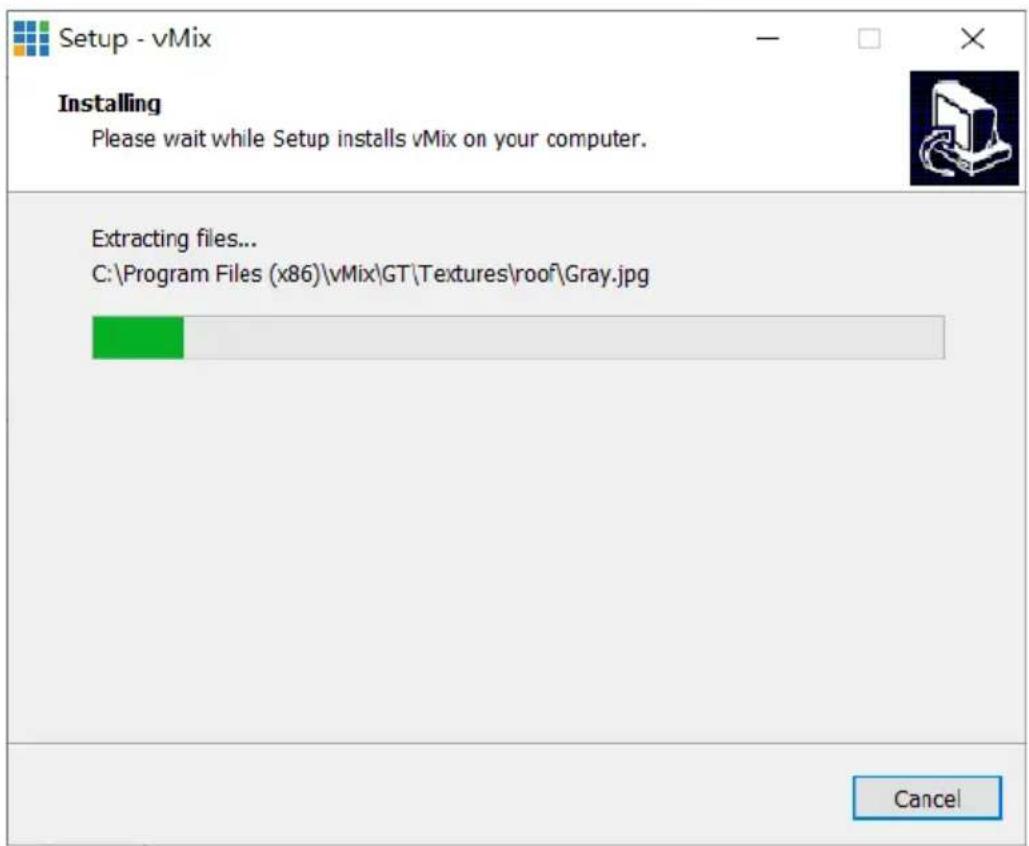

9. The installation will be started.

Setup - vMix Installing Please wait while Setup installs vMix on your computer. Extracting files... C:\Program Files (x86)\vMix\GT\Textures\roof\Gray.jpg Cancel

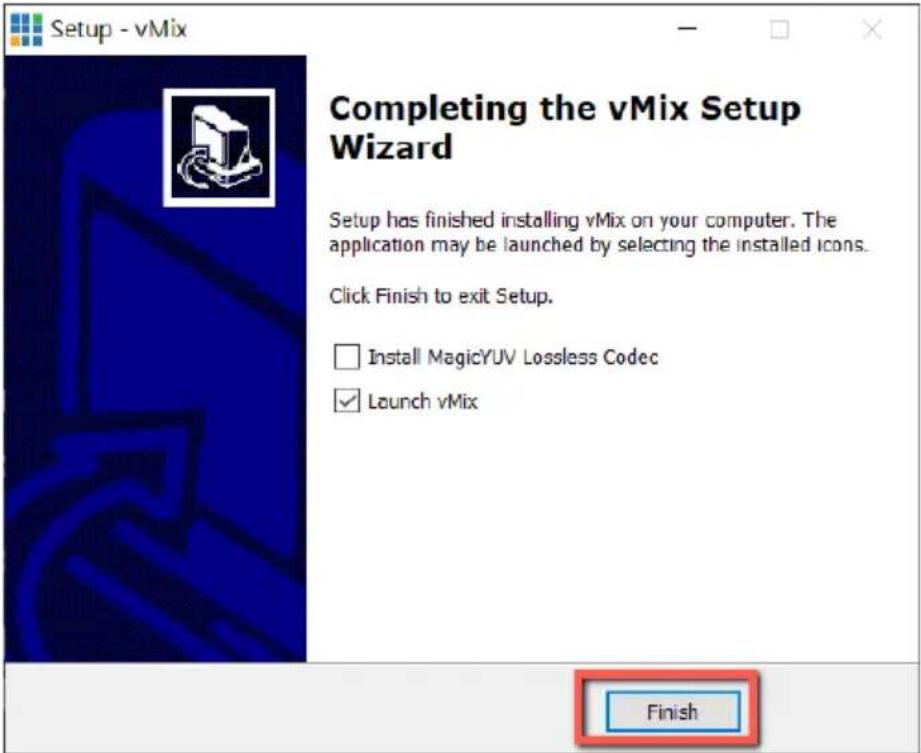

1. Please click the "Finish" button to finish the installation.

Setup - vMix Completing the vMix Setup Wizard Setup has finished installing vMix on your computer. The application may be launched by selecting the installed icons. Click Finish to exit Setup. □ Install MagicYUV Lossless Codec ✓ Launch vMix Finish

1. Please select "Register for a fully functional 60 Day Trial" to fill out your Email Address. After that, please click the "OK" button to open the vMix software.

vMix Registration vMix Registration Internet access required to complete Registration ○ I have a Registration Key Key Visit http://www.vmix.com/ to purchase a Registration Key Visit https://register.vmix.com/ to register for the FREE Basic Edition ● Register for a fully functional 60 Day Trial Email Address [e-mail]/ OK Cancel

1. Please select the initial resolution and frame rate that you want to use and then please click the "OK" button.

vMix Configuration vMix Select a starting configuration for vMix below. These settings can be customised later by clicking the Settings button. HD 1080 29.97p (1920x1080, 29.97 fps) OK

1. After opening vMix, the software interface is shown as following diagram.

How to do the SRT Stream by Using the PTC-280NDI Camera and vMix Software

There are two modes for the SRT streaming including the Caller Mode and the Listener Mode. Please see following steps for realizing operation steps for the vMix.

If the PTC-280NDI is set in Listener Mode

Note: Due to the fact that the PTC-280NDI supports SRT Listener Mode only currently. So, please set the Vmix in SRT Caller Mode.

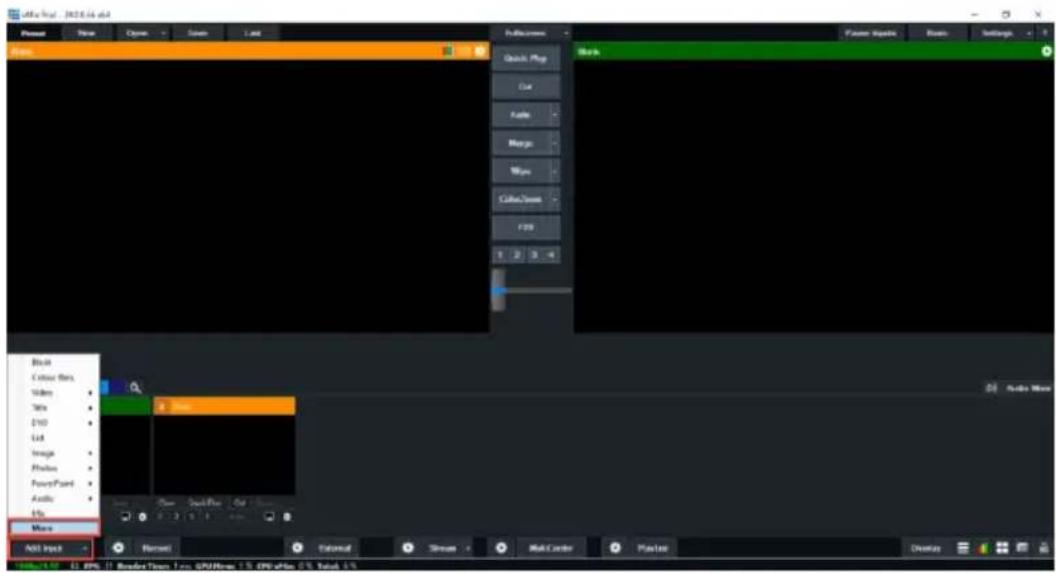

1. At first, please click the "Vmix(x64)" from the Start Menu to open the Vmix software.

vMix vMix (x64) vMix Desktop Capture vMix Diagnostics vMix GT Title Designer vMix Media Converter vMix Title Designer vMix Update vMix Video Tools

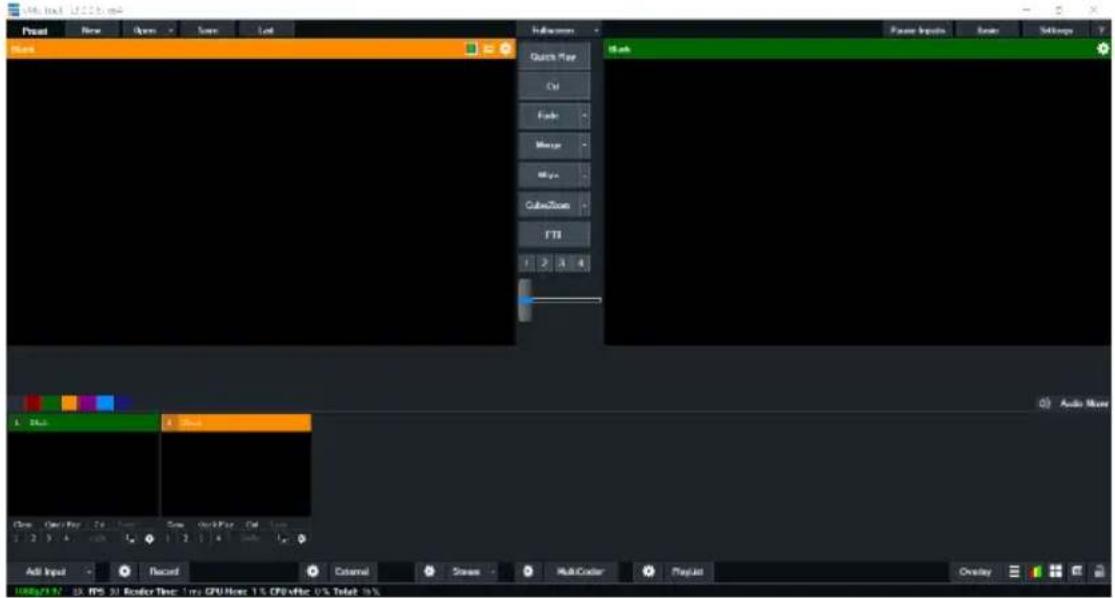

1. After that, you will see the Vmix main interface which is shown in the following diagram.

Preset New Open Save Load Refresh screen Quick Map Cut Fade Manage Mega CubeZoom FTB 1 2 3 4 Black Auto Move Block Show View BackView Add Input Record External Stream MultiCracker Playlist Overlay 100% 100%+1.5" x: EPS 31 Border Then: 1ms GPU Next 1.5% CPU After 0.5% Total 10%

1. Please go back to the PTC-280NDI interface to make sure that the "SRT" option in the SRT Settings is "ON". Moreover, the default value of the "SRT Port" is "4578". The "SRT Encry" drop-down menu allows you to select your desired SRT Encryption way including AES-128, AES-192 and AES-256. The default value of the "SRT Encry" option is "Off". In this section, we will take AES-256 as an example. If you need to set an SRT password, please enter your desired SRT password in the "SRT Password" column, it needs a 10-digit or above number. The default SRT Password is "1234567891". After the setting for the SRT Password is finished, please press the "Apply" button which is located on the bottom side of the Web UI to apply the new setting.

datavideo Live Video Image Audio System Network NDI® Config Information Zoom In Zoom Out Focus In Focus Out Pan Speed 10 Tilt Speed 10 Zoom Speed 5 Focus Speed 5 Set Call Present (0~254) PTZ Back Language English Lan Settings IP Configuration Type: Fixed IP Address IP Address: 192.168.50.30 Subnet Mask: 200.200.200.0 Gateway: 192.168.50.1 DNS Address: 8.8.8.8 MAC Address: 00 : 07 : 36 : 08 : 43 : CD Apply Cancel Port Settings HTTP Port number: 80 (80) RTSP Port: 554 (554) PTZ Port: 5678 (5678) UDP Port: 1259 (1259) Sony Visca: 52381 SRT Settings SRT: On Off SRT Port: 4578 SRT Encry: AES-256 SRT Password: 1234567891 (SRT Password length greater than 9 bits) Control Protocol Settings Pelco-D Address: 0 (0~254) Pelco-P Address: 0 (0~31) RTMP(S) Settings First stream: On Off Video Audio MRL: rtmps://live-api-s.facebook.com:443/rtnp/FB-10208886477956946-D-AbyXlpXZiLJY460w Second stream: On Off Video Audio MRL: rtmp://192.168.100.138/live/stream1 RTSP Settings RTSP Auth: On Off ONVIFSettings

1. Please go back to the main interface of the Vmix software and then press the "Add Input" button. After that, please select the "More" option from the drop-up menu.

Audio Input 1.00 fps Audio Video Size 100 List Image Photo PowerPoint Audio Mio Multi-Input New Original External Stream Multi-Center Platelet Audio Mask Paste Settings Faster Images Basis Options Share Quick Map Cut Audio Merge Mino Color/Space F239 1 2 3 -4 Audio Mask Multi-Input New Original External Stream Multi-Center Platelet Audio Mask Paste

1. After the “Input Select” option is opened, please select the “Stream/SRT” option and then you can see the “Stream/SRT” interface which is shown in the following diagram.

Input Select Video DVD Last Customs NDSL / Desktop Captive Dream / OKT Image Sequence / Diagec Video Delay Image Photo Presentation Colors Audio Audio Input Title / XMLG Virtual Set Web Browser Video Call Drama Type: RGB over UCP URL: Buffer: X30 milliocords Low Latency Mode Close Number 1 OK Cancel

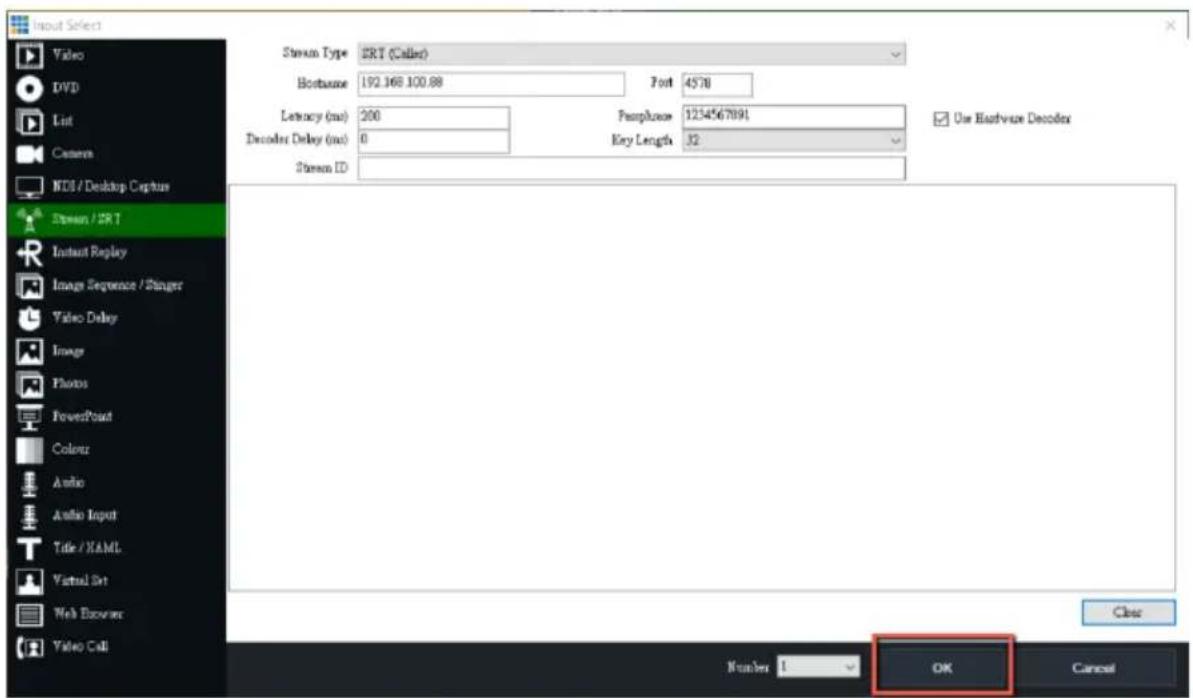

1. Please select the "SRT Caller" option from the "Stream Type" drop-down menu. After that, please enter the default static IP address "192.168.100.88" of the PTC-280NDI into the "Hostname" column. Moreover, please enter the default SRT port number "4578", which is provided by PTC-280NDI web UI's "SRT Port" column into the "Hostname" column. After that, please enter your SRT Password which is set in the PTC-280NDI web UI into the "Passphrase" column. The default password is "1234567891". For the "Key Length", please select "32" from the drop-down menu. After all of the values are entered, please press the "OK" button.

Input Select Video DVD List Camera NDS / Desktop Capture Stream / IRT Instant Replay Image Sequence / Stinger Video Delay Image Photos PowerPoint Colors Audio Audio Input Title / HTML Virtual Set Web Browser Video Call Stream Type: IRT (Caller) Bootname 192.168.100.88 Foot 4570 Latency (ms) 200 Penshift 1234567891 Decoder Delay (ms) 0 Key Length 32 Stream ID: Use Hardvase Decoder Clear Number 1 OK Cancel

1. After that, you can see that the image which is shot by the PTC-280NDI is streamed to the vMix software by the SRT Listener Mode successfully.

Adobe Flash - 2003 Flash Project New Archive Store Load Focus... Quick Play Cut Finish Merge Run CubeZone FTP 1 2 3 4 SR7 157 392 (88.99 4x8) Auto Move Add Input Forward Extens Stream MultiConder RealSet Overlay EPS-16.77 Search Settings: EPS - ROader Time - Top QPS Rate 1.5, QPS-Office 1.5, Total 2.5

16. Remote Control Port Pinouts

In addition to using the Ethernet port for remote control, you can also connect your PC or any keyboard controllers to the RS-422 remote port to control PTC-280NDI. Use an Ethernet cable to connect the external RS-422 controller to PTC-280NDI. You can make your own cable using the pinout information provided in this chapter.

Remote Control Port

0 1 IRID RS-22 MIC IN/ LINE IN 4K HDMI F/W UPGRADE ONLY 3G SDI DC 12V DVIP datavideo PTC-280 4K PTZ CAMERA 1 ---- 8

The RS-422 pinouts are described below.

RMC-180 Controller(RJ-45 Port)			PTC-280NDI Camera(RS-422 Port)
GND	1	White/Orange	GND	White/Orange	1
NC	2	Orange		Orange	2
TX-	3	White/Green		White/Green	3
RX-	4	Blue		Blue	4
RX+	5	White/Blue		White/Blue	5
TX+	6	Green		Green	6
NC	7	White/Brown		White/Brown	7
NC	8	Brown		Brown	8
1/EXT			1/EXT

17. Firmware Update

Datavideo usually releases new firmware containing new features or reported bug fixes from time to time. Customers can either download the firmware as they wish or contact their local dealer or reseller for assistance.

This section outlines the firmware upgrade process which should take approximately few minutes to complete.

The existing settings should persist through the firmware upgrade process, which should not be interrupted once started as this could result in a non-responsive unit.

17.1 Firmware Update by the PTC-280NDI Firmware Update Tool

Requirements

• PTC-280NDI Unit
• PC/Laptop
• Latest firmware files
• Download from: https://www.datavideo.com/product/PTC-280NDI
• Ethernet Cable

Procedure

1. At first, please confirm that the IP address of your laptop is set within the same LAN as the PTC-280NDI camera. Please use an Ethernet cable to connect from the RJ-45 Ethernet port of your laptop to the DVIP port which is on the rear panel of the PTC-280NDI.
2. Please download the PTC-280NDI firmware

"VXxxD_Ax.D_Vx.x.xxx_xx.xM_yyyymmdd" and firmware update tool "upgrade vx.x" from Datavideo official website.

1. Please unzip the downloaded firmware and firmware update tool to the hard disk of your laptop.

2. Please double-click the firmwar3e update tool upgrade.exe .

upgrade

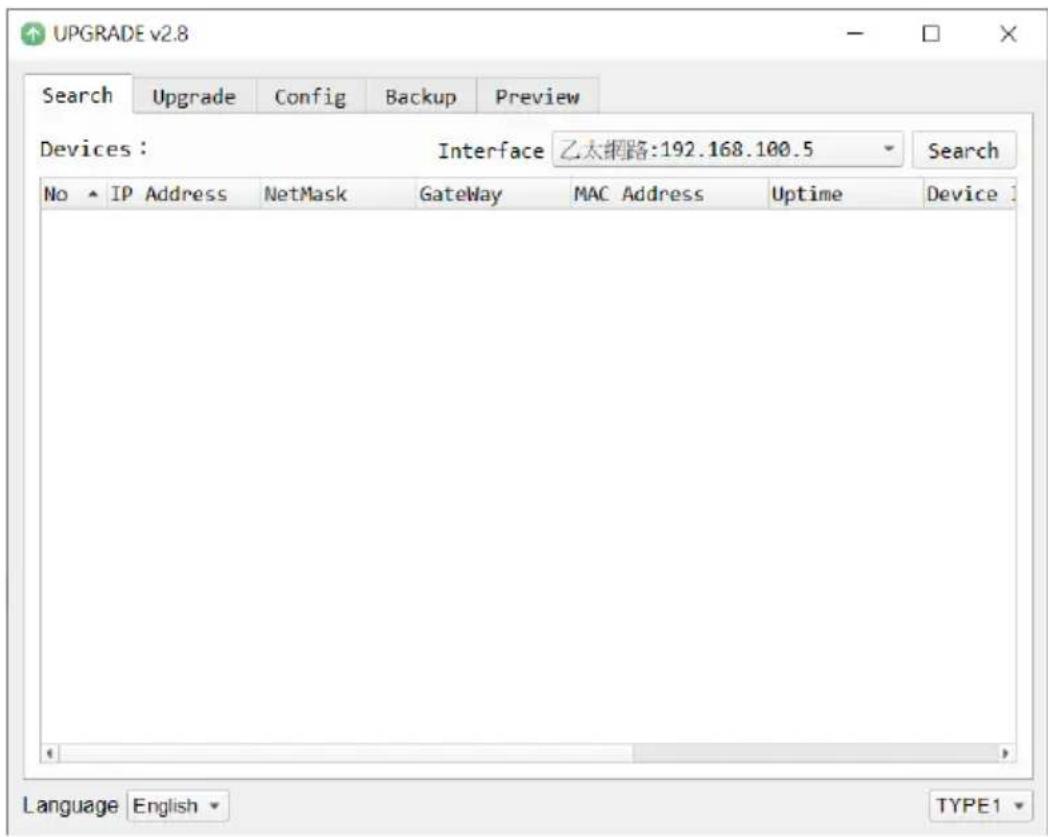

1. Users can see that the interface of the firmware update tool is shown as following diagram.

UPGRADE v2.8 Search Upgrade Config Backup Preview Devices: Interface 乙太網路:192.168.100.5 Search No ▲ IP Address NetMask GateWay MAC Address Uptime Device Language English TYPE1

1. Please select the LAN IP address which is set by your laptop from the "Interface" drop-down menu.

Interface

乙太網路:192.168.100.5

區域連線* 2:169.254.187.22

區域連線*4:169.254.183.113

Wi-Fi:192.168.10.113

1. Please select the "Upgrade" option and then users can see the interface which is shown as following diagram.

UPGRADE v2.8 Search Upgrade Config Backup Preview Type MTD 192.168.100.88 Query Load File ware upgrade tool/VX12D_A5.D_V9.0.850_31.5M_20201109.img Open 0% Upgrade Status disconnect disconnect Language English TYPE1

1. Please click the "Open" button and select the downloaded latest firmware.

UPGRADE v2.8 Search Upgrade Config Backup Preview Type MTD 192.168.100.88 Query Load File ware upgrade tool/VX12D_A5.D_V9.0.850_31.5M_20201109.img Open 0% Upgrade Status disconnect disconnect Language English - TYPE1 -

1. Please click the "Upgrade" button for starting the firmware upgrading. At this time, the external connected monitor will show the wording "Upgrading! Please Wait!"

UPGRADE v2.8 Search Upgrade Config Backup Preview Type MTD 192.168.100.88 Query Load File ware upgrade tool/VX12D_A5.D_V9.0.850_31.5M_20201109.img Open 98% Upgrade Status disconnect file verify succeed upgrading... Language English TYPE1

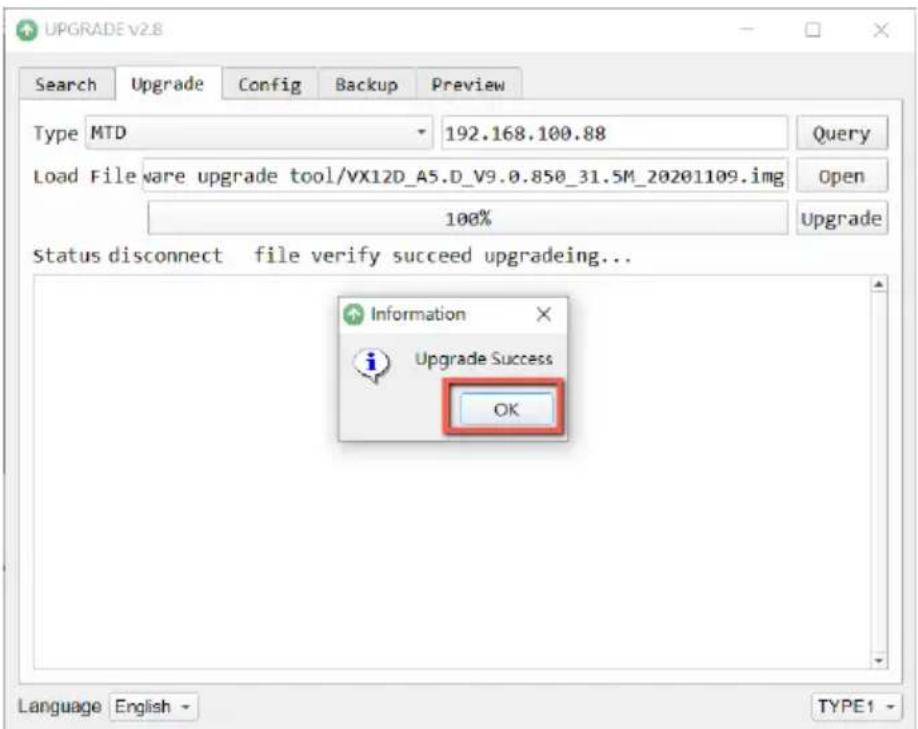

1. After the firmware upgrading is finished, the PTC-280NDI camera will reboot automatically, please click the "OK" button and then the firmware upgrade procedure is completed.

UPGRADE v2.8 Search Upgrade Config Backup Preview Type MTD 192.168.100.88 Query Load File ware upgrade tool/VX12D_A5.D_V9.0.850_31.5M_20201109.img Open 100% Upgrade Status disconnect file verify succeed upgrading... Information Upgrade Success OK Language English TYPE1

17.2 Firmware Update by the USB Flash Drive

Requirements

• PTC-280NDI Unit
• USB 2.0 or USB3.x USB Flash Drive x 1
• Laptop
• Latest firmware files

Download from: https://www.datavideo.com/product/PTC-280NDI

- Ethernet Cable

Procedure

1. At first, please format your USB flash drive in FAT32 format.
2. Please download the latest PTC-280NDI firmware file from Datavideo official website's PTC-280NDI product page https://www.datavideo.com/product/PTC-280NDI and then save it to the hard disk of your laptop.
3. Please unzip the downloaded firmware file and then save the latest firmware file "VX12D_A5.D_Vx.x.xxx_31.5M_yyyymmdd.img" into the root directory of your USB flash drive.

VX12D_A5.D_V9.0.897_31.5M_20210312.img

1. Please insert your USB flash drive with the latest firmware file into the "F/W UPGRADE ONLY" USB interface which is located on the rear panel of the PTC-280NDI.

1. Please press the "MENU" button from the PTC-280NDI remote controller to open the OSD menu.

2. Please press the "down-arrow" button to move to the "Setup" option in the OSD menu.

1. After the "Setup" option is selected, please press the "Home" button

HOME

from the PTC-280NDI remote controller to enter the "Setup" page.

MENU Exposure Color Image P/T/Z Noise Reduction Setup Communication Setup Infomation Restore Default [Home] Enter [Menu] Exit

1. Please press the "down-arrow" button from the PTC-280NDI

remote controller to move to the "USB UPGRADE" option in the "Setup" page.

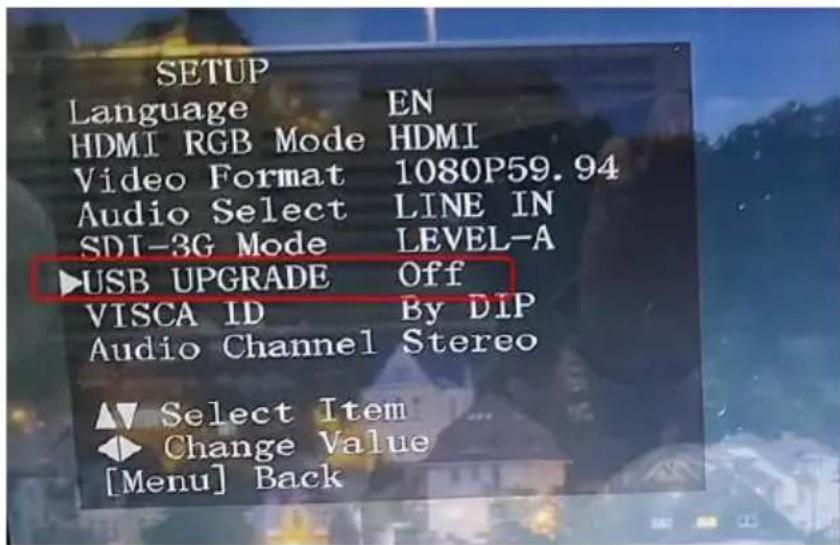

SETUP Language EN HDMI RGB Mode HDMI Video Format 1080P59.94 Audio Select LINE IN SDI-3G Mode LEVEL-A ►USB UPGRADE Off VISCA ID By DIP Audio Channel Stereo ► Select Item ◆ Change Value [Menu] Back

1. Please press the "left-arrow" or "right-arrow" button to set the "USB UPGRADE" option as "ON". After that, please press the "Home" button

HOME

from the PTC-280NDI remote controller for confirmation and then the PTC-280NDI will start the firmware update procedure automatically. During the firmware update procedure, the warning “Updating! Please Wait!” will be shown by the external monitor. When the firmware update procedure is finished, the PTC-280 will reboot automatically. The whole firmware update procedure is done successfully.

SETUP Language EN HDMI RGB Mode HDMI Video Format 1080P59.94 Audio Select LINE IN SDI-3G Mode LEVEL-A ►USB UPGRADE On VISCA ID By DIP Audio Channel Stereo ▲▼ Select Item ◆▼ Change Value [Menu] Back [Home] OK

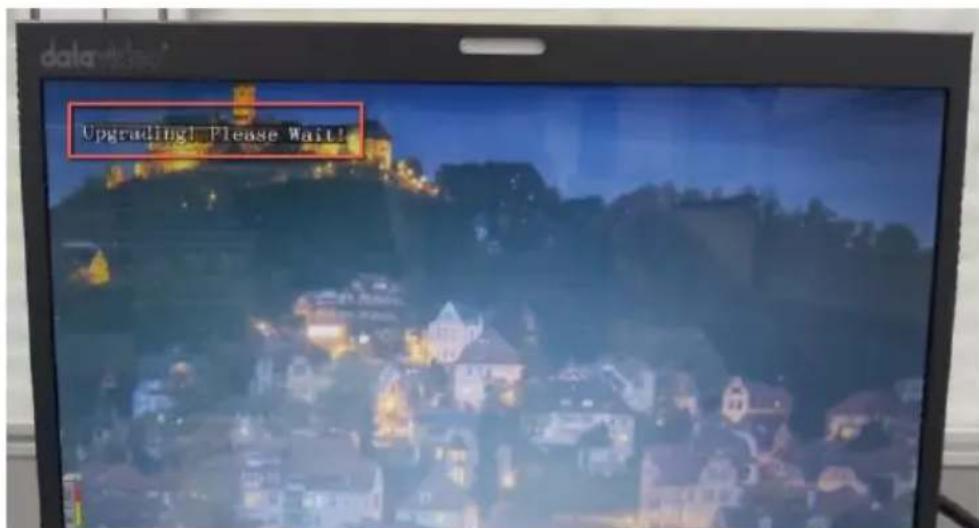

Upgrading! Please Wait!

18. Frequently-Asked Questions

This section describes problems that you may encounter while using PTC-280NDI. If you have any questions, please refer to related sections and follow all suggested solutions. If problem still exists, please contact your distributor or the service center.

No.	Problems	Solutions
1.	What are important points for product maintenance?	1. If the camera will not be used for a long time, please unplug the 12V DC power plug, and remove AC power adapter from AC outlet.2. Use soft cloth or tissue to clean the camera.3. After washing the camera lens, dry it with a soft dry cloth. Use a neutral detergent rather than acidic or corrosive detergents to clean the lens.
2.	There is no output video.	1. Check that your power is properly connected. This is indicated by the power LED.2. After you reboot the camera, please check that whether the camera can do the self-test normally or not.3. Please check that the camera is connected correctly to the external connected monitor.
3.	I have seen image jitter while zooming in or out.	1. Make sure the camera is properly mounted.2. Make sure that machines that could cause vibration are not in proximity of the camera.
4.	There is no image by using the IE browser.	Please go the the VLC website (http://www.videolan.org/vlc) to download the 32-bit VLC media player. After it is installed, the screen will be shown normally when connecting to the camera.
5.	The camera can not be accessed by using the IE browser.	1. Use PC to access the internet to see whether it can operate normally or not. At first, please solve the network failure that is caused by the computer virus until the PC and the camera can ping each other.2. Please remove the Ethernet cable and then connect the PC to the camera directly. After that, please reset the IP address of the PC.
6.	The remote control is not working.	1. Try setting the camera to CAM1 and try again.2. Make sure the remote control's battery is fully charged.3. Check your device working mode.4. Make sure the OSD menu is closed. The remote control cannot be used if the OSD menu is opened.
7.	The serial port is not working properly.	1. Make sure your baud rate and device addresses are correct.2. Check your device working mode.3. Make sure the OSD menu is closed. The remote control cannot be used if the OSD menu is opened.
8.	Can not login to the Web control interface.	1. Please check your Ethernet cable.2. Please check your Ethernet setting such as the IP address.

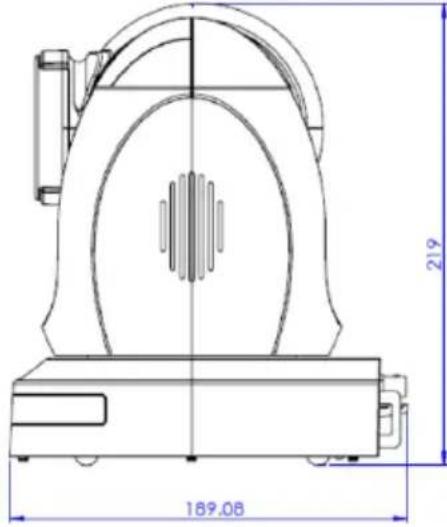

19. Dimensions

Unit: mm

1. Specifications

Camera Parameters
Product Name	4K NDI PTZ camera
Video Format	HDMI:2160p 60/59.94/50/30/29.97/251080p 60/59.94/50/30/29.97/251080i 60/59.94/50720p 60/59.94/50SDI:1080p 60/59.94/50/30/29.97/251080i 60/59.94/50720p 60/59.94/50(2160p 60/59.94/50 YUV 4:2:0 only)
Image Sensor	1/2.5" CMOS
Effective Pixels(approx.)	8.51Mega Pixels
S/N Ratio	≥55dB
Min. Illumination	0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter	1/30s ~ 1/10000s
Zoom Ratio	12x Optical Zoom, 16x Digital Zoom
Gamma Control	Off / Normal
Iris Control	Auto / Manual
Digital Noise Reductions	2D/3D
On-Screen Display (OSD)	English、Traditional Chinese、Simplified Chinese、Russian
White Balance	Auto/Indoor/Outdoor/OnePush/Manual/VAR
AGC / Gain Control	Yes
Mirror / Flip Image	Yes
Focus Mode	Auto / Manual
Panning / Tilting Range	Pan: 300 degrees, Tilt: +130 to -15 degrees
Panning / Tilting Speed	Pan: 0.876°/s~43°/sTilt: 0.693°/s ~21.32°/s
Preset	255 Positions
Focal Length	12x, f=4.4 (wide) to 52.8 (tele) mmF1.8 to F2.6
Field of View (Horizontal, Wide)	71°
Image Compensation	Backlight Compensation
Video Output	HDMI 2.0 x13G-SDI x110/100/1000M RJ45 x1
Audio Input (MIC/Line Input)	3.5mm x 1,MIC/LIN inputCompatible(SDI/HDMI/IP)3.5mm stereo JackInput impedance: Approx:10KΩDuring MIC inputInput level:-36dBV (0dB=1V/Pa,1kHz)Plug-in power compatible , supply voltage : 3V±0.5VDuring Lin inputInput level=10dBV(Max)
Tally LED	Red/Green
Control Protocol	Pelco-D, Pelco-P,VISCA, VISCA over IPDHCP, RTSP, RTMP (IP Cam), RTMPS,DVIP, NDI
Remote Control Interface	IRWeb UIRS-422DVIPNDI
Video Compression Format	H.264/H.265/MJPEG
Audio Compression Format	AAC
Audio Bitrate	96Kbps, 128Kbps, 256Kbps
Streaming Protocols	TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
First Stream Supported Resolution	3840x21601920x10801280x7201024x576960x540640x480640x360
Second Stream Supported Resolution	1280x7201024x576720x576 (50Hz)720x480 (60Hz)720x408640x360480x270320x240
Video Bitrate	32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode	VBR, CBR
Encoding Frame rate	50Hz: 1-50fps60Hz: 1-60fps
POE	IEEE802.3af
F/W Update	By web UI or USB 2.0 port
IR Control	Yes
Camera Control Unit	RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount	1/4-20 UNC
Optional Accessories	WM-1/ WM-10/WM-11
Color	Dark Blue/White
Dimensions	173 (W) x 219 (H) x 189.08 (D) mm
Weight	2.8kg
Operating Temp. Range	0~40 °C
Power	DC 12V 12W

Note

Note

Service & Support

It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo.com for answers to common questions, support requests or contact your local office below.

www.datavideo.com/product/PTC-280NDI

datavideo

www.datavideo.com

@DatavideoUSA @DatavideoIndia2016

@DatavideoEMEA @Datavideojapan

@DatavideoTaiwan @DatavideoLatam

@DatavideoAsia @DatavideoBrasil

@Datavideo

@Datavideo_EMEA

@Datavideo Taiwan

@DatavideoUSA

@DVTWDVCN

@DatavideoUSA

@DatavideoEurope

All the trademarks are the properties of their respective owners.

Datavideo Technologies Co., Ltd. All rights reserved 2020
