USER MANUAL CB-43 DataVideo

Illustration of a coiled cable with two connectors (no text or symbols)

30M/50M/80M/100M

ALL IN ONE CABLE FOR CCU

CB-43/44/45/49

Instruction manual

Table of Contents

FCC COMPLIANCE STATEMENT .... 3

WARNINGS AND PRECAUTIONS .... 3

WARRANTY 4

STANDARD WARRANTY 4

THREE YEAR WARRANTY 4

DISPOSAL 4

OVERVIEW 5

SYSTEM DIAGRAM....5

SPECIFICATIONS 6

17 PIN PLUG DEFINITIONS 6

STICKER LABEL......7

SERVICE & SUPPORT 8

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or dealer.

FCC Compliance Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Warnings and Precautions

1. Read all of these warnings and save them for later reference.
2. Follow all warnings and instructions marked on this unit.
3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this unit in or near water.
5. Do not place this unit on an unstable cart, stand, or table. The unit may fall, causing serious damage.
6. Slots and openings on the cabinet top, back, and bottom are provided for ventilation. To ensure safe and reliable operation of this unit, and to protect it from overheating, do not block or cover these openings. Do not place this unit on a bed, sofa, rug, or similar surface, as the ventilation openings on the bottom of the cabinet will be blocked. This unit should never be placed near or over a heat register or radiator. This unit should not be placed in a built-in installation unless proper ventilation is provided.
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
8. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
9. If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating.
10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.
11. Never push objects of any kind into this unit through the cabinet ventilation slots, as they may touch dangerous voltage points or short out parts that could result in risk of fire or electric shock. Never spill liquid of any kind onto or into this unit.
12. Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
13. Unplug this product from the wall outlet and refer to qualified service personnel under the following conditions:

a. When the power cord is damaged or frayed;
b. When liquid has spilled into the unit;
c. When the product has been exposed to rain or water;
d. When the product does not operate normally under normal operating conditions. Adjust only those controls that are covered by the operating instructions in this manual; improper adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation;
e. When the product has been dropped or the cabinet has been damaged;
f. When the product exhibits a distinct change in performance, indicating a need for service.

Warranty

Standard Warranty

• Datavideo equipment are guaranteed against any manufacturing defects for one year from the date of purchase.
• The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty.
• The product warranty period beings on the purchase date. If the purchase date is unknown, the product warranty period begins on the thirtieth day after shipment from a Datavideo office.
• Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.
• Viruses and malware infections on the computer systems are not covered under warranty.
• Any errors that are caused by unauthorized third-party software installations, which are not required by our computer systems, are not covered under warranty.
• All mail or transportation costs including insurance are at the expense of the owner.
  • All other claims of any nature are not covered.
  • Cables and batteries are not covered under warranty.
• Warranty only valid in the country or region of purchase.
• Your statutory rights are not affected.

Three Year Warranty

• All Datavideo products purchased after July 1st, 2017 are qualified for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase.
• Certain parts with limited lifetime expectancy such as LCD panels, DVD drives, Hard

Drive, Solid State Drive, SD Card, USB Thumb Drive, Lighting, Camera module, PCIe Card are covered for 1 year.

- The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

Disposal

For EU Customers only - WEEE Marking

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européenne" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking" in the Directive 93/68/EEC in 1993. "CE Marking" is now used in all EU official

documents.

Overview

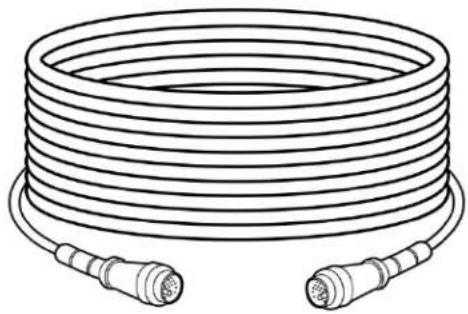

CB-43/44/45/49 all in one cable are designed for CCU-100 and AD-2 system. The cable includes HD-SDI, MCU Control Signal, Power, Look Back Video, View Finder, Intercom and Tally.

Line drawing of a coiled cable with two connectors (no text or symbols)

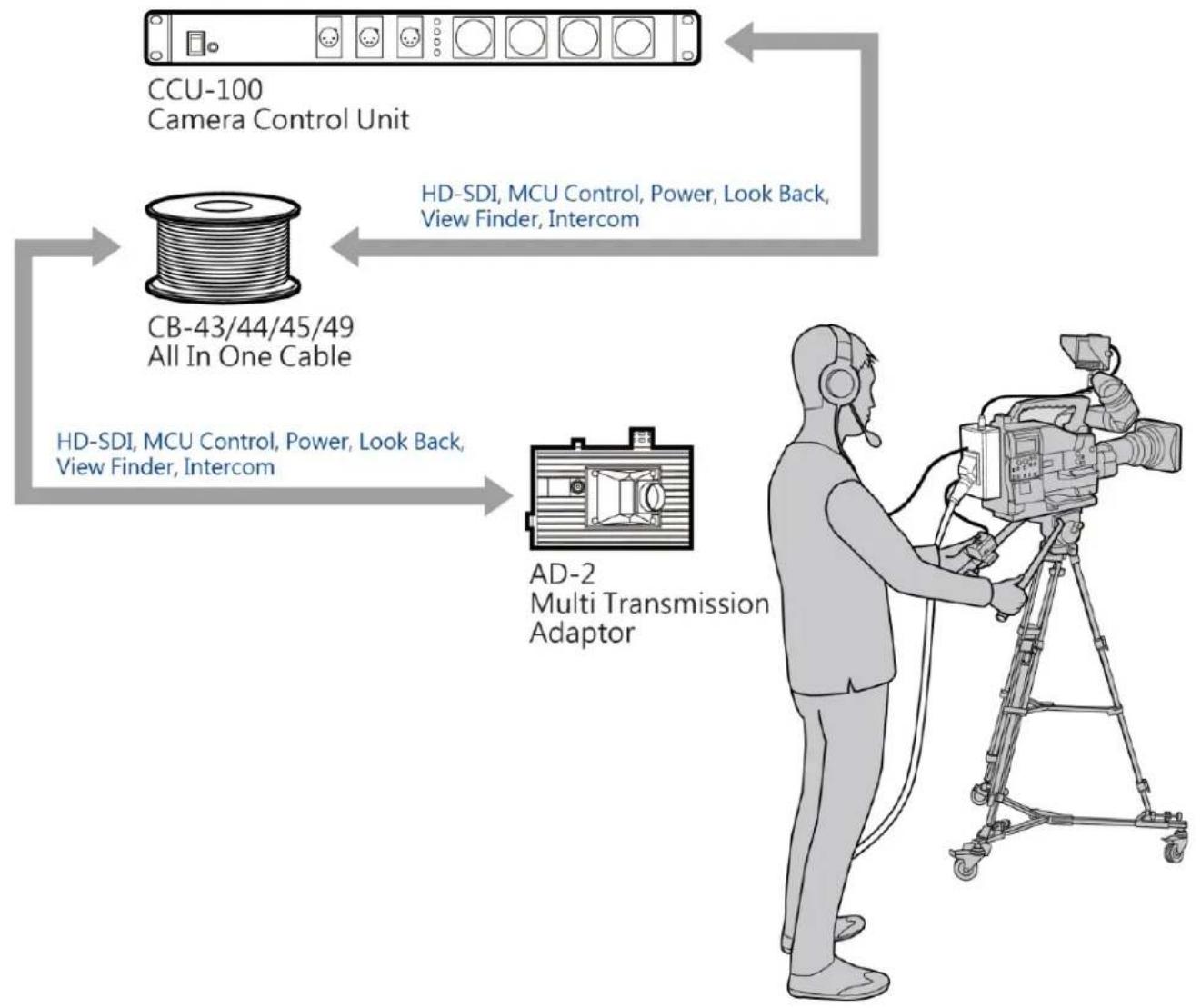

System Diagram

Specifications

Model	CB-43	CB-44	CB-45	CB-49
17 Pin Plug	HD-SDI, MCU Control, Power, Look Back, View Finder, Intercom
Outer Cable Diameter	12 mm
Distance	30M	50M	80M	100M
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Humidity	10% to 90% (non condensing)

17 Pin Plug Definitions

4 5 2 1 3 6 7 8 9 10 11 12 13 14 15 16 17

PIN	Description	Cable Specifications
1	HD-SDI	L-2.5CHD,Coaxial Cable		CANARE
2	Power -	SHIELD	UL1185,18AWG	R<2.5Ω/100M
3	Power +	CEN	UL1185,18AWG
6	MCU_RX-	BLU	CAT.5e, 24AWG (R<9.38Ω/100M)	twist
7	MCU_TX-	WHT/BLU
8	MCU_TX+	GRN		twist
9	MCU_RX+	WHT/GRN
11	Lookback_Signal	BRN		twist
12	Lookback_GND	WHT/BRN
13	View Finder_Signal	ORG		twist
14	View Finder_GND	WHT/ORG
4	Intercom Tally GREEN	ORG	CAT.5e, 24AWG (R<9.38Ω/100M)	twist
5	Intercom Tally Red	WHT/ORG
10	Reserved_GND	BLU		twist
17	Intercom Power	WHT/BLU
15	ITC-TIP	CEN	UL1533,26AWG	R<14Ω/100M
16	Intercom_GND	SHIELD

Sticker Label

Five adhesive labels are provided in the box. There are one model label (CB-43, CB-44, CB-45, CB-49) and four number labels (1, 2, 3, 4). The model label can be placed on the cable connector as indicated by an arrow in the diagram below and the number label can be placed on the exact opposite. The number label identifies the port number of the CCU-100 to which the cable is connected to.

Label Position

Model Label

CB-43 CB-44 CB-45 CB-49

Number Label

1 2 3 4

Service & Support

It is our goal to make owning and using Datavideo products a satisfying experience. Our support staff is available to assist you to set up and operate your system. Contact your local office for specific support requests. Plus, please visit www.datavideo.com to access our FAQ section.

Datavideo Technologies China Co
601. Building 10. No. 1228.
Rd.Jiangchang.
Jingan District, Shanghai
Tel: [phone]
Fax:[phone]
E-mail:[e-mail]

Datavideo Hong Kong Ltd

G/F.,26 Cross Lane

Wanchai, Hong Kong

Tel: [phone]

Fax:[phone]

Datavideo Technologies (S) PTE Ltd

No. 178 Paya Lebar Road #06-03

Singapore 409030

Tel: [phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo Technologies China Co

No. 812, Building B, Wankai Center.

No.316, Wan Feng Road, Fengtai District,

Beijing, China

Tel: [phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo India Noida

A-132. Sec-63. Noida-201307.

India

Tel: [phone]

Fax:[phone]

E-mail: [e-mail]

Datavideo Technologies Co. Ltd

10F. No. 176. Jian 1st Rd., Chung Ho

District, New Taipei City 235, Taiwan

Tel: [phone]

Fax:[phone]

B-823, Meinian square, No.1388,

Middle of Tianfu Avenue, Gaoxin District,

Chengdu, Sichuan

Tel: [phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo India Kochi

2nd Floor- North Wing, Govardhan Building,

Opp. NCC Group Headquarters, Chittoor Road,

Cochin- 682035

Tel: [phone]

Fax:[phone]

Datavideo Corporation

7048 Elmer Avenue

Whittier, CA 90602,

U.S.A.

Tel: [phone]

Fax:[phone]

E-mail:[e-mail] E-mail: [e-mail]

Datavideo Technologies China Co

A1-2318-19 Room, No.8, Aojiang Road,

Taijiang District, Fuzhou, Fujian, China

Datavideo Technologies Europe BV

Floridadreef 106

3565 AM Utrecht,

The Netherlands

Tel: [phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo UK Limited

Brookfield House, Brookfield Industrial

Estate, Peakdale Road, Glossop,

Derbyshire, SK13 6LQ

Tel: [phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo Technologies China Co

902, No. 1 business building,

Xiangtai Square, No. 129,

Yingxiongshan Road, Shizhong District,

Jinan City, Shandong Province, China

Datavideo Visual Technology(S) Pte Ltd

No. 178 Paya Lebar Road #06-07

Singapore 409030

Tel: [phone]

Fax:[phone]

E-mail:[e-mail]

Datavideo France s.a.r.l.

QR code image containing encoded data, no visible human-readable text

Please visit our website for latest manual update.

www.datavideo.com/product/CB-43

www.datavideo.com/product/CB-44

www.datavideo.com/product/CB-45

www.datavideo.com/product/CB-49

datavideo

www.datavideo.com
