USER MANUAL VTC-BM3FP Vitek

Black-and-white photo of a square camera with a circular lens and mounting bracket (no text or symbols visible)

FEATURES:

• 1/2.8" Sony® STARVIS 2.1 MegaPixel CMOS Sensor
- 2.1 MegaPixel with Full 1080p/720p HD/EX-SDI 1.0, 2.0 / TVI / AHD / CVI / CVBS Output
- Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark & Night Scenes
• 3.7mm Pin-hole Included
• 3D-DNR Digital Noise Reduction
• Fully programmable True WDR (Dual Scan)
• ROI (Region of Interest) WDR achieves superior exposure compensation specifically in exact areas of interest while reducing HDD storage space
- Advanced OSD Functions: Motion Detection, Privacy Mask, Defog, Sens-up(\~x32), Sharpness, Mirror/Flip, BLC/HLC, Deblur, Anti-Saturation, Title Set, D-WDR
• 12VDC Operation

Safety Precaution

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.
- To prevent electric shocks and risk of fire hazards, do NOT use other than specific power source.

CAUTION RISK OF ELECTRIC SHOCK . DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the unit.

- Warning :

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

- Caution :

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Main power quality should be that of a typical commercial environment. If the user of the model requires continued operation during power main interruption, it is recommended that the model be powered from an uninterruptible power supply (UPS).

Safety Precaution

NOTICE

• The image used in this instruction manual are processed to help comprehension and may differ from actual video of the camera.
• Avoid installing areas where has shock or vibration which results in the problems.
• Pay attention to safety when running the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
  • The warranty becomes void if repairs are undertaken by unauthorized persons.
• Maintenance and repair have to be carried out only by authorized service centers.
  • Use only a mild detergent to clean the housing.
• The camera should never be operated beyond the technical specifications. This can lead to damage and void the warranty.
  • The camera should never be operated in water.

Contents

p.02\~03 Safety Precaution

p.04 Contents

p.05 Composition

p.05 Dimensions

p.06\~07 Installation Instructions

p.08\~22 Operating Instructions

p.23 Specifications

Composition

Technical line drawing of a mechanical device with no visible text or symbols

Operating Instruction

Mounting Screw: BH 3x10mm (2pcs)CAMERA

Dimensions

1.65" 1.49" 1.80" 1.46"

1.71" 0.85"

Installation Instructions

1. Place the camera bracket at the installation position and attach by using the included mounting screws.
2. Connect the power/video cable then setup the camera menu if neccessory, using the included external OSD Control Board.
3. Adjust the camera's viewing angle (Tilt, Rotation)

Bracket Mounting Screw BH 3x10mm ROTATION TILT Power/Video Cable

[ REAR VIEW ]

OSD Controller Connector Video Connector Power Connector

CAUTION

• Care should be taken that the cable is not damaged, kinked or exposed in hazardous areas.
• Do not expose the camera directly to a strong light source such as the sun or spotlight.

Installation Instructions

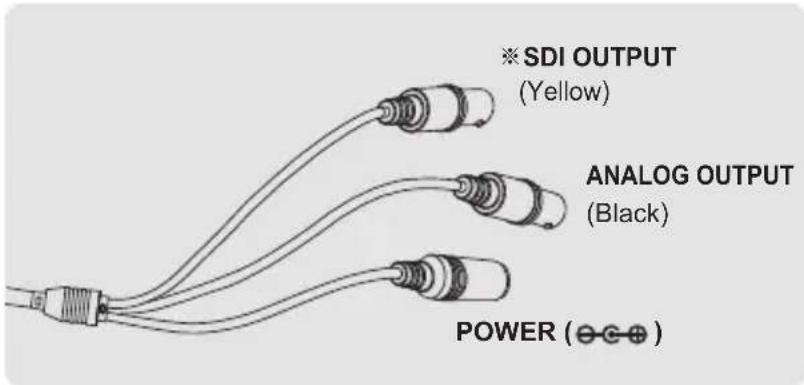

Power Supply Connections

Please use a 12VDC regulated power supply

SDI OUTPUT (Yellow) ANALOG OUTPUT (Black) POWER (●●●)

※ Please use the cable as provided with camera. If camera cable is cut and re-wired, the transmission distance of video can be reduced. Especially SDI cable should not be cut because it requires detailed wiring and affects the transmission distance.

Operating Instructions

OSD menu Table

Camera setup menu can be accessed and controlled by the OSD controller.

• EXIT : Enters 'EXIT' menu with save current setting or without saving.
• RETURN : Returns to the previous menu.

MENU SUB	MENU CONFIGURATION
LENS	DC	MODE (INDOOOR, OUTDOOR, DEBLUR)
	MANUAL
FOCUS Ast.	ON, OFF
EXPOSURE	BRIGHTNESS	0~20
	SHUTTER	AUTO
		MANUAL(SPEED)	1/25, 1/50, 1/100, 1/200, 1/400, 1/800,1/1600, 1/3200, 1/6400, 1/12800, 1/25600
		FLICKERLESS
	SENS-UP	OFF, x2, x4, x8, x16, x32
	AGC	0~10
BACKLIGHT	OFF
	HLC LEVEL, COLOR
	BLC	H/V-POS, H/V-SIZE
	WDR	MODE ROI WINDOW ZONE/USE,		H/V-POS, H/V-SIZE
		TARGET-BRT	LOW, MIDDLE, HIGH
		WEIGHT	LOW, MIDDLE, HIGH
DAY & NIGHT	EXTERN	SMART IR, ANTI-SAT., D>N THRES, N>D THRES, DELAY
	AUTO	SMART IR, ANTI-SAT., AGC THRES, AGC MARGIN, DELAY
	COLOR
	B&W	SMART IR, ANTI-SAT.
COLOR	AWB	AUTO, AUTOext, PRESET, MANUAL (C-TEMP, R/B-GAIN)
	COLOR GAIN	0~20
3D-NR	OFF, LOW, MIDDLE, HIGH
IMAGE	SHARPNESS	MAIN OUTPUT	ANALOG OUT0, ANALOG OUT1, SDI OUTPUT
		ANALOG OUT0	AHD MODE, CVI MODE, TVI MODE, CVBS
		ANALOG OUT1	CVBS, TVI MODE, OFF
		SDI OUTPUT	HD-SDI, EX-SDI 1.0, EX-SDI 2.0, OFF
	GAMMA	0.45, 0.55, 0.65, 0.75

Operating Instructions

IMAGE	MIRROR	OFF, ON
	FLIP	OFF, ON
	D-WDR	OFF, LOW, MIDDLE, HIGH
	DEFOG	OFF, ON	MODE (AUTO, MANUAL)
			LEVEL (LOW, MIDDLE, HIGH)
	PRIVACY ZONE	NORF, ZONE DISP.	H/V-POS, H/V-SIZE, Y LEVEL, CB/CR LEVEL, TRANS
MOTION	OFF, ON	DET WINDOW	WINDOW ZONE, WINDOW USE, DET H/V-POS, DET H/V-SIZE
		DET TONE	0~4
		MDRECT FILL	OFF, ON
		SENSITIVITY	0~10
		MOTION OSD	OFF, ON
		TEXT ALARM	OFF, ON
SYSTEM	OUTPUT	SDI OUTPUT	HD-SDI, EX-SDI 1.0, EX-SDI 2.0, OFF
		ANALOG OUT0	AHD MODE, CVI MODE, TVI MODE, CVBS
	RESOLUTION	1080 25P, 720 25P, 720 50P(Cropped)
	TV SYSTEM	US(NTSC), EU(PAL)
	LANGUAGE ENG	CHN(S), CHN, JPN, KOR, GER
	CAM TITLE	OFF, RIGHT UP, LEFT DOWN
	RESET	ON
EXIT	SAVE, CANCEL

※ If CVBS video is enabled through ANALOG OUT or Sub-out port, WDR and 3D-NR functions are disabled in all video outputs. It should be considered when installer adjusts the video with installation monitor via CVBS video signal.

Operating Instructions

OSD menu Startup

MENU V0. XX

1. LENS	MANUAL
2. FOCUS ASt.	OFF
3. EXPOSURE	J
4. BACKLIGHT	OFF
5. DAY&NIGIIT	COLOR
6. COLOR	J
7. 3D-NR	MIDDLE
8. IMAGE	J
9. MOTION	OFF
A. SYSTEM	J
B. EXIT	SAVEJ

1. LENS (Default: MANUAL)

Lens can be selected either DC or MANUAL lens. It should be selected according to lens type.

1-1. DC

DC is for the best image when DC Auto iris lens is installed

• INDOOR: Optimized for indoor environment.
• OUTDOOR: Optimized for outdoor environment.
• DEBLUR: If enabled it will reduce motion blur in certain indoor environments but can cause more noise and color rolling.

1-2. MANUAL

MANUAL is for the best image when a Fixed lens is installed.

2. FOCUS ASt.

Focus Assist function is useful to set the focus of video.

There are three status bars, for short range, middle range and long range. Shows how exact focus is set. When green bar with yellow bar appears on columns, try the lens focus to NEAR or FAR. The maximum yellow bar indicates the best focusing position.

Operating Instructions

3. EXPOSURE

3. EXPOSURE

BRIGHTNESS	9
SHUTTER	AUTO
SENS-UP	X2
AGC	7
RETURN

3-1. BRIGHTNESS

Adjusts the brightness of video (0\~20).

3-2. SHUTTER

Select AUTO or MANUAL.

If shutter is set to Manual mode, SENS-UP mode is deactivated.

3-2-1. AUTO: Optimizes the video level by controlling the iris and the shutter speed automatically.
3-2-2. MANUAL : 1/25, 1/50, 1/100, 1/200, 1/400, 1/800, 1/1600, 1/3200, 1/6400, 1/12800, 1/25600 Shutter can be set to fixed.
3-2-3. FLICKERLESS : Flicker is used to remove the flickering on screen due to differences in light and electric frequencies.

3-3. SENS-UP

A brighter video can be obtained by increasing the exposure time at

night with SENS-UP. It can be set to Off, x2, x4, x8, x16 or x32.

A higher setting will have a brighter video but more noise will be in the image.

3-4. AGC

AGC(0\~10) amplifies the video gain for brighter video but noise may occur.

Operating Instructions

4. BACKLIGHT

Compensates the video image by cutting out the bright areas with a mask or adjusting the contrast of the video.

HLC LEVEL 10 COLOR BLK RETURN ↻

4-1. HLC (High Light Compensation)

Cuts out the bright area with a mask and excludes it from compensation.

4-1-1. LEVEL (0\~20): Sets the HLC level. It determines the video level that starts cutting out. Lower setting starts the cut out at a lower light level. The cut out area is masked with selected color.

4-1-2. COLOR : Select mask color from 9 colors. Black, White, Yellow, Cyan, Green, Magenta, Red, Blue and Customize.

BLC H-POS 8 V-POS 7 H-SIZE 3 V-SIZE 3 RETURN ↙

4-2. BLC (Backlight Compensation)

This function is used to brighten an image in the foreground with a bright light area behind it such as sunlight, limiting the affect of silhouette. BLC has a target window for compensation and its size and position can be set by H-POS, V-POS, H-SIZE and V-SIZE.

4-2-1. H-POS, V-POS :
Sets the position of BLC area to move vertically and horizontally.
4-2-2. H-SIZE, V-SIZE :
Sets the size of BLC area to move vertically and horizontally.

Operating Instructions
        I["WINDOW ZONE"] & J["WINDOW USE"] & K["H-POS"] & L["V-POS"] & M["H-SIZE"] & N["V-SIZE"] & O["RETURN"]
        P["0"] & Q["ON"] & R["469"] & S["194"] & T["739"] & U["688"]
    end

4-3. WDR (Wide Dynamic Range)

When part of an image is extremely dark but another part is so bright you can't see any details WDR will even the image out.

4-3-1. MODE : Selects WDR mode normal or ROI setting.

• NORMAL: WDR function applies full screen.
- ROI (Region Of Interest) : Sets specific area of WDR by window setting. Select window zone number from 0 to 3 and window use set to on. Then the window zone can be modified for position and size.

4-3-2. TARGET-BRT : LOW, MIDDLE, HIGH

Selects the brightness value of the target area in MODE.

4-3-3. WEIGHT : LOW, MIDDLE, HIGH

Selects the WDR value of the target area in MODE.

※ If CVBS video is enabled through ANALOG OUT or Sub-out port, WDR and 3D-NR functions are disabled in all video outputs. It should be considered when installer adjusts the video with installation monitor via CVBS video signal.

Operating Instructions

5. DAY & NIGHT

DAY/NIGHT is used to control the setting during day-time and night-time operation. Select the mode according to the light condition and the camera types.

MENU V0.XX

DAY or NIGHT is determined by the built-in light photo sensor for cameras with built-in IR LEDS.

5-2. AUTO

Used when DAY or NIGHT is determined by light level through the lens and DAY from/to NIGHT is switched automatically by the scene brightness.

It can be controlled by the AGC threshold level, AGC margin and delay time.

5-2-1. SMART IR

: SMART IR can be set to reduce the saturation of strong IR illumination at night in any menu of EXT, AUTO and B/W(NIGHT). Set to ON, SMART IR is enabled and ANTI-SAT. level is controlled.

5-2-2. ANTI-SAT. (Available only with the SMART IR is ON)

: Sets the anti saturation level 0\~20. Setting high level of ANTI-SAT can make the corners darker

5-2-3. AGC THRES

: AGC(Auto Gain Control) is a threshold level which determines to switch DAY from/to NIGHT in AUTO mode. Higher value makes the camera switch DAY from/to NIGHT at brighter illumination.

Operating Instructions

5-2-4. AGC MARGIN

: Sets the gap level switching from/to DAY(color) or NIGHT(B/W).

5-2-5. DELAY

: D→N DELAY is time in seconds while camera maintains its status before Day to Night switching. DELAY can avoid the unwanted/frivolous switching by a short term light such as light from a passing car. Set delay term low, middle or high.

5-3. COLOR

The camera is always in COLOR mode.

DAY/NIGHT is disabled and outputs color video.

5-4. B/W

The camera is always in B/W mode.

Forcibly removes IR cut filter and switches to B/W regardless of light level.

5-4-1. SMART IR : OFF (Not Available)

5-4-2. ANTI-SAT.: NOT USED (Available only with the SMART IR is ON)

Operating Instructions

6. COLOR

1. COLOR

AWB

COLOR GAIN RETURN

AUTO

10

6-1. AWB (Auto White Balance)

Automatically tracks the changes of color temperature and continuously adjusts the white balance. AUTO, AUTOext, PRESET and MANUAL modes are available.

6-1-1. AUTO : Optimized for Indoor installation and compensates AWB for low color temperature such as incandescent lights.
6-1-2. AUTOext : Optimized for outdoor sunlight applications and compensates AWB for high color temperature such as sunlight.
6-1-3. PRESET : AWB is performed only whenever ● is pressed.
6-1-4. MANUAL : White balance is fixed to the settings by Color-Temperature Red-GAIN and Blue-GAIN. It can be used only when the color temperature does not vary.

6-2. COLOR GAIN

Sets the color gain control level 0\~20.

Operating Instructions

7. 3D-NR (Digital Noise Reduction)

DNR function improves picture quality by filtering out signal noise which is generated under low light conditions. Set off, low, middle or high level. 3DNR(3-dimensional noise reduction) which reduces noise by multi frames. It is effective in low light. Set to high will reduce the most noise but the image will be less sharp and a tailing effect might occur.

MENU V0. XX

1. LENS	MANUAL
2. FOCUS ASt.	OFF
3. EXPOSURE	↓
4. BACKLIGHT	OFF
5. DAY&NIGIIT	COLOR
6. COLOR	↓
7. 3D-NR	MIDDLE
8. IMAGE	↓
9. MOTION	OFF
A. SYSTEM	↓
B. EXIT	SAVE↓

※ If CVBS video is enabled through ANALOG OUT or Sub-out port, WDR and 3D-NR functions are disabled in all video outputs.

It should be considered when installer adjusts the video with installation monitor via CVBS video signal.

8. IMAGE

1. IMAGE

SHARPNESS
GAMMA	0.55
MIRROR	OFF
FLIP	OFF
D-WDR	OFF
DEFOG	OFF
PRIVACY	OFF
RETURN

SHARPNESS

MAIN OUTPUT	SDI OUTPUT
SDI OUTPUT	HD-SDI
SDI&CVBS	5
HD-C-MODE	5
HD-T-MODE	6
HD-A-MODE	7
RETURN

Operating Instructions

8-1. SHARPNESS

Sets the Sharpness level 0\~10. Increases or decreases the sharpness of the picture. Too much sharpness can make image harsh and show more noise as well as line flicker at the edge of object in the picture.

8-2. GAMMA

Adjust gamma level of video.

8-3. MIRROR

The Video is reversed left and right if turned ON.

8-4. FLIP

The Video is reversed upside down if turned ON. When the video is flipped Vertical, then the joystick directions are reversed accordingly. It is very useful when a camera is installed upside down.

8-5. D-WDR

Improves the visibility for the bright areas and the dark areas by compensating the video gain. Care should be taken to select low, middle or high level, because video may lose its quality in some environments by over compensation. Video noise can be increased in the dark area accordingly

8-6. DEFOG

Enhance foggy video according to status of scene. Video quality can be less in normal environments. Sets AUTO or MANUAL mode.

8-6-1. MODE :

• AUTO : Enhance foggy video automatically according to status of scene.
• MANUAL : Set to enhance foggy video manually regardless of status of scene.

8-6-2. LEVEL : Set Low, Mid or High.

Video quality can be less in normal environments.

8-7. PRIVACY

Set ON/OFF for enabling/disabling PRIVACY mask. 16 privacy areas are available and each area is programmable in size, color, position and transparency.

8-7-1. ZONE NUM : Selects mask zone number from 0 to 15 to be adjusted.
8-7-2. ZONE DISP: Displays OFF/ON for the mask area which you selected.
8-7-3. H-POS, V-POS :

Adjusts the mask area H, V position which you selected.

Operating Instructions

PRIVACY

ZONE NUM	0
ZONE DISP	ON
H-POS	12
V-POS	2
H-SIZE	3
V-SIZE	3
Y-LEVEL	10
CB LEVEL	10
CR LEVEL	10
TRANS	0
RETURN

8-7-4. H-SIZE, V-SIZE :

Adjusts the mask size using H, V direction.

8-7-5. Y LEVEL : Adjusts the mask color by Y LEVEL. (0: black \~ 20: white)

8-7-6. CB LEVEL: Adjusts the mask color by CB LEVEL. (0: yellow \~20: blue)

8-7-7. CR LEVEL : Adjusts the mask color by CR LEVEL. (0: Green \~20: magenta)

8-7-8. TRANS.: Selects transparency rate for the mask area from 0 to 3

0 : Privacy mask is not transparent.

1 : Privacy mask is 25% transparent.

2 : Privacy mask is 50% transparent.

3 : Privacy mask is 100% transparent.

9. MOTION

4 motion detection areas are available and each area is programmable in size and location. Motion can be detected in the area and displays the results in blocks and/or a text message.

9-1. DET WINDOW Sets the MOTION DETECTION areas on screen.

9-1-1. WINDOW ZONE : Set the detection zone number from 0 to 3.

9-1-2. WINDOW USE : Sets ON/OFF motion detection area which you selected. If set to ON, It can be adjusted position and size.

9-1-3. DET H-POS, V-POS : Adjusts the detection area H, V position.

9-1-4. DET H-SIZE, V-SIZE : Adjusts the area size using H, V direction.

Operating Instructions

9. MOTION

DET WINDOW

DET TONE

MDRECT FILL

SENSITIVITY

MOTION OSD

TEXT ALARM

RETURN

DET WINDOW

WINDOW ZONE 0

WINDOW USE ON

DET H-POS 1

DET V-POS 1

DET H-SIZE 58

DET V-SIZE 32

RETURN

9-2. DET ZONE

Sets the detection zone 0 to 4 display types which window use setting ON.

0 : Set 100% opacity level of video background except detection window zone.

1 : Set 50% opacity level of video background except detection window zone.
2 : Set 25% opacity level of video background except detection window zone.
3 : Video background image is same as detection window zone.
4 : Detection window zone is displayed with box line

9-3. MDRECT FILL

Sets the motion display type when motion is detected in video.

Setting ON will display a red solid box type.

Setting OFF will display a red outline box type.

9-4. SENSITIVITY

Sets the detection sensitivity for motion (0\~10). Higher values increases the sensitivity to detect motion. Too low of a value will cause the erratic detection by tree leaves or light level changes.

9-5. MOTION OSD

Set ON or OFF to display motion results.

9-6. TEXT ALARM

Setting ON enables to display a text message ' WINDOWS MOVING!!' or icon when motion is detected.

Operating Instructions

A. SYSTEM

Sets the system related functions.

A. SYSTEM OUTPUT RESOLUTION 1080 30P TV SYSTEM US(NTSC) LANGUAGE ENG CAM TITLE OFF RESET ON RETURN

A-1. OUTPUT

Selects the main video output.

A-1-1. SDI OUTPUT :

Selects the SDI output OFF, HD-SDI, EX-SDI 1.0, EX-SDI 2.0

A-1-2. ANALOG OUT0 :

Selects HD-ANALOG modes AHD MODE, TVI MODE, CVI MODE or CVBS.

Set ANALOG OUT to AHD MODE, TVI MODE or CVI MODE if CVBS

video is necessary through sub-out port.

If ANALOG OUT is set to CVBS, there is no CVBS video through sub-out port.

Operating Instructions

※ If CVBS video is enabled through ANALOG OUT or Sub-out port, WDR and 3D-NR functions are disabled in all video outputs.

It should be considered when installer adjusts the video with installation monitor via CVBS video signal.

A-2. RESOLUTION

Select the video resolutions, 1080P/720P are available. 1080P outputs 1920x1080 video at the frame rate of 30P/25P. 720P outputs 1280x720 video at the frame rate of 60P/50P.

A-3. TV SYSTEM

Selects HDTV standards for analog video, output switches to 60HZ, US(NTSC) or 50HZ, EU(PAL) accordingly.

A-4. LANGUAGE

6 languages are available for OSD menu.

English, Korean, Japanese, Chinese(S), Chinese, German.

A-5. CAM TITLE

Camera title(name) can be set and edited with alphanumeric characters.

Select the camera title position 'LEFT DOWN' or 'RIGHT UP' on the video.

Then ◀, ▶ moves the cursor and ▲, ▼ choose a character to select it.

The selected characters are added and displayed on the input line.

CAM TITLE

U, D - CHAR SELECT

L, R - POSITION

ENTER - RETURN

A-6. RESET Resets camera to factory default.

B. EXIT : Exits SETUP MENU and returns to the normal display.

B-1. SAVE : Save all the settings and exit the setup menu.

B-2. CANCEL : Exit the setup menu without saving.

Detailed Specifications

Imaging Sensor	1/2.8" Sony® STARVIS 2.1 MegaPixel CMOS Sensor
Effective Pixels	1920(H) x 1080(V) x 30p
Scan Frequency	30Hz(V), 22.5Khz(H) / Progressive
Video Format	HD: 16:9, 1080p@30fps / CVBS: 16:9 (NTSC)
Video Output	HD/EX-SDI 1.0, 2.0 / TVI / AHD / CVI / CVBS
Video Resolution	2.1 MegaPixel 1080p (1920x1080)
Min.Illumination	Color: 0.08 Lux, B/W: 0.005 Lux
S/N Ratio	More than 50dB (AGC Off)
Lens	3.7mm Pin-hole
Exposure	Brightness / Shutter / Sens-up / AGC
DAY / NIGHT	YES
White Balance	AUTO / AUTOext / PRESET / MANUAL
WDR	True Dual Scan WDR
ROI (Region of Interest) WDR	Yes
DNR	3D-NR
MIRROR/FLIP	Off / On
Functions	Motion Detection, Privacy Mask, Defog, Sens-up(~x32), Sharpness, Mirror/Flip, BLC/HLC, Deblur, Anti-Saturation, Title Set, D-WDR
Remote Control	CoC (Control over COAX) via DVR HD-TVI / AHD
Operating Power	12VDC
Operating Temp.	14° ~ 122°F (-10° ~ +50°C) @ 20-80% RH
Weight	3.95oz (112g)
Dimension (WxHxD)	1.65" x 1.80" x 1.71" (42 x 45.7 x 43.5mm)

Two black VITEK remote control devices with keyboard and keypad (no visible text or labels)

OnCue Bridge 8 & 16 Channel Complete HD/EX-SDI, TVI, AHD, CVI, Analog & IP Recording Solution

8 & 16 Channel Stand-alone Real-time Video Recorders

• Supports IP, HD/EX-SDI, TVI, AHD, CVI, Analog (CVBS) Cameras with automatic format detection

• Full HD MegaPixel Real-time recording, live display, and playback

• Panorama (Thumbnail) Search

• HDMI 2.0 (4K), VGA, and BNC Outputs

- Plug and Play & Auto configuration for IP Cameras via OnVIF or generic protocol

- Point-Of-Sale (POS) Integration

- Alarm In/Out

• 2-way Full Duplex Audio

• Video Analytics with Search Feature (Camera Dependent)

- Remote Viewing via CMS Software, Internet Explorer, and Mobile Phones (iOS/Android)

• Web-based remote configuration

- Advanced Video Detection: Camera tampering, Camera lens blocking, Day&Night, Defocus

• Supports up to 30TB Internal Storage (VT-HDOC16BR) / 12TB Internal Storage (VT-HDOC8BR)

• eSATA for storage extension of up to 5 more HDD

- Configurable Advanced Mirroring (Dual Recording, RAID1)

• RS-485 / CoC (Control Over Coax) PTZ Control

LIMITED PRODUCT WARRANTY

VITEK products carry a three (3) year limited warranty. Digital recording and storage products are also warranted for 3 years. * Per a special agreement with Western Digital, as of August 2016, VITEK also warrants factory installed Hard Drives for the full 3 year span of the recorder warranty provided that the recorder was purchased through an authorized VITEK distributor.

VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is non-transferable and extends only to the original buyer or end user customer of a Vitek Authorized Reseller.

This warranty shall not apply to repairs or replacements necessitated by any cause beyond the control of VITEK, including but not limited to, acts of nature, improper installation, excess moisture, misuse, lack of proper maintenance, accident, voltage fluctuations, or any unauthorized tampering, repairs or modifications. This warranty becomes VOID in the event of alteration, defacement, or removal of serial numbers.

Within the first 6 months of purchase, VITEK will replace or credit any defective product returned at the request of the customer (subject to availability) with a new product that equals or exceeds the performance of the original product purchased.

Within the first 6 months of purchase, at its sole discretion, VITEK may issue an advance replacement for a defective product; however, all related costs including, but not limited to shipping and/or delivery charges will be the responsibility of the customer. If upon return inspection a product is determined to be in good working order or shows evidence of misuse, the customer will be responsible for full payment of the original product purchased as well as the replacement product.

Beyond the first 6 month period for the remainder of the warranty, VITEK'S responsibility shall be limited to repairing the defective product, including all necessary parts and related labor costs. At its sole discretion, VITEK may choose to either exchange a defective product or issue a merchandise credit towards future product purchases. Any replacement parts furnished in connection with this warranty shall be warranted for a period not to exceed the remaining balance of the original equipment warranty.

A Return Authorization number or “RA” number must be obtained prior to the return of any item for repair, replacement, or credit. VITEK requires that this “RA” number be clearly printed on the outside of the shipping carton to avoid refusal of said shipment. The Return Authorization number expires after 30 days. Products returned after the 30 day period will be subject to refusal. Shipping charges, if any, must be prepaid. A copy of the bill of sale (or invoice of purchase), together with a complete written explanation of the problem must accompany all returns.

Vitek makes no warranty or guarantee whatsoever with respect to products sold or purchased through unauthorized sales channels. Warranty support is available only if product is purchased through a Vitek Authorized Reseller.

*Limited Warranty means that VITEK reserves the right to repair or replace any product found defective within the warranty time period, prorated to the date of original purchase. If VITEK cannot repair the product, VITEK reserves the right to replace it with an equal or better product and grade at VITEK's discretion.
