Product Type	Wall Mount
Brand	NEC
Model	PDW T XS
Compatible VESA Patterns	200x200 mm
Warranty	5 years
Mounting Hardware	Not included (must be selected based on wall material)
Safety Requirement	Wall must support at least 4x the combined weight of screen and bracket
Professional Installation	Recommended

Frequently Asked Questions - PDW T XS NEC

What is the maximum load capacity of the NEC PDW T XS wall mount?

The maximum load capacity is listed in the installation manual included with the product. Ensure your wall can support at least four times the combined weight of the screen and mount.

Which VESA patterns are compatible with this mount?

The mount supports VESA 200x200 mm patterns. It is also described as universal for various screens and projectors.

Does the mount come with mounting screws and bolts?

No, mounting fittings are not included for safety reasons. You must select appropriate hardware based on your wall material.

What is the warranty period for this mount?

The product comes with a 5-year warranty from SMS Smart Media Solutions AB, covering manufacturing defects.

Can I install the mount myself, or do I need a professional?

Professional installation is recommended. If you attempt DIY, carefully follow all instructions and ensure the wall can bear the load.

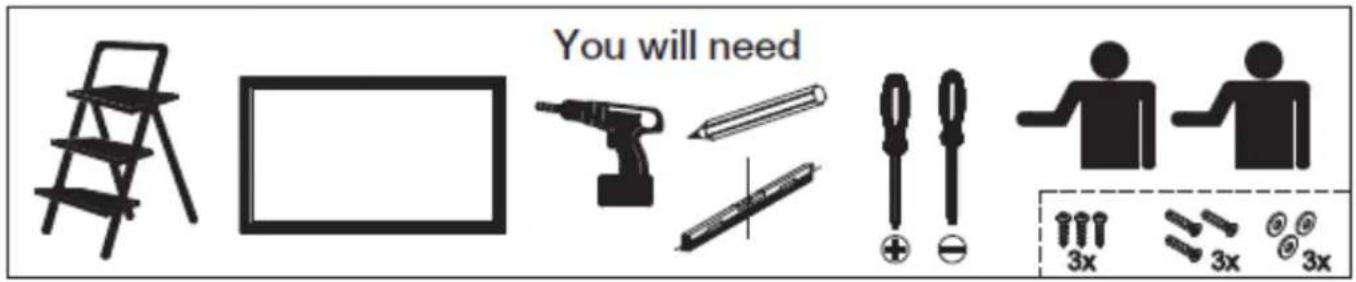

What tools are required for installation?

Typical tools include a drill, screwdriver, and a level. Exact requirements may vary based on your wall type.

Is this mount suitable for both LCD screens and projectors?

Yes, it is a universal wall mount designed for use with both screens and projectors, as indicated in the manual.

How should I clean the wall mount?

Use a dry cloth for cleaning. Avoid solvents or corrosive agents that could damage the finish.

What should I do if the mount is defective?

Contact SMS with the original purchase receipt within the warranty period. They will repair or replace the product.

Can this mount be used outdoors?

The manual does not specify outdoor use; it is intended for indoor installation. Avoid exposure to extreme weather.

USER MANUAL PDW T XS NEC

XS Universal Wall Mount - PDW T XS

Technical line drawing of a mechanical assembly with two vertical plates and a central rod (no text or symbols)

FS011074 FUNC BRACKY 200x200

Installation Manual - PDW T XS

GB – Instructions for Mounting Warning

A correct mounting is extremely important and this is not the responsibility of SMS Smart Media Solutions AB. Faulty mounting may result in injury to persons or damage to equipment. SMS will not be responsible in any way if the product has been mounted Incorrectly.

Mounting fittings are not included with the product for reasons of safety, since the properties and bearing strength of walls/ceilings are specific for each case. Suitable mounting fittings must be selected based on the material of the wall/ceiling. Obtain advice from a specialist in the field or from a specialist shop concerning the choice of mounting fittings. It is the responsibility of the installer to ensure that the wall/ceiling can support at least four times the combined weight of the screen/projector and bracket.

The maximum load for this product is given in the table in these

Installation Instructions. The Instructions for installation and use of the screen/projector must also be followed with respect to the location and attachment of the screen/projector.

Installation Manual - PDW T XS

GB - Warranty terms and conditions

1. SMS guarantees that a product that SMS has determined to be defective as a result of deficient manufacture or material will be repaired or -- if necessary -- replaced, without cost, on condition that a claim is made within the period of warranty, which is 5 years. The guarantee does not apply for normal wear and lease.

2. In the event of a claim being made under the terms of the warranty, the product and the original purchase receipt are to be returned to SMS. The name of the supplier and the date of purchase must be clearly legible on the receipt. The owner is to pay the cost of returning the product to SMS, while SMS is to pay the cost of returning the product subsequently to the owner.

3. The warranty provided by SMS does not apply under the following conditions:

- If the product has been drilled, mounted and/or used in any way that is not in accordance with the instructions for use, or if it has been mounted using inappropriate mounting fittings.

• If the product has been modified or repaired by anyone other than SIMS.

- if the defect has seen as a result of external factors (that are not associated with this product), such as lightning strikes, water damage, fire, mechanical scratching, storage at extreme

temperatura, whether conditions, solvents or corrosive agents, faulty use, or carelessness.

* If the product has been used for equipment other than that specified on the packaging.

Installation Manual - PDW T XS

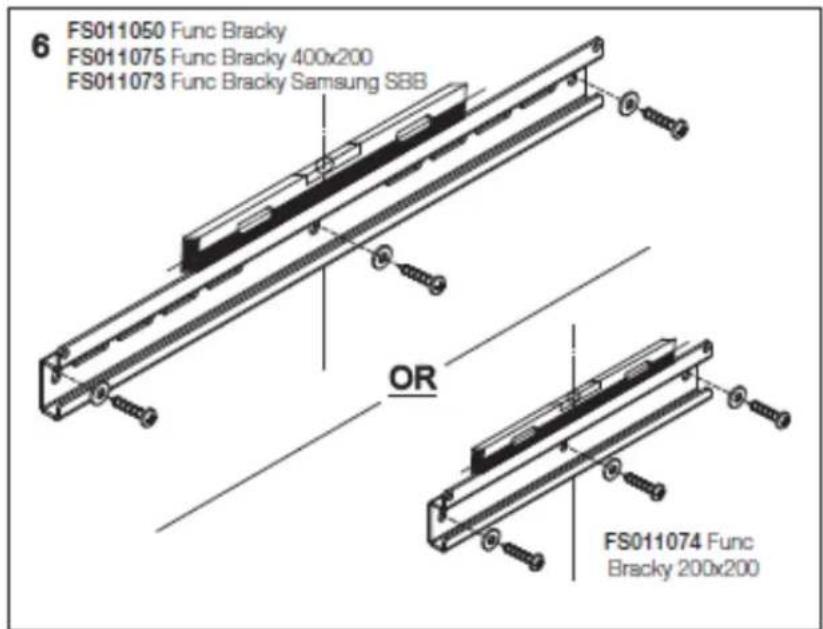

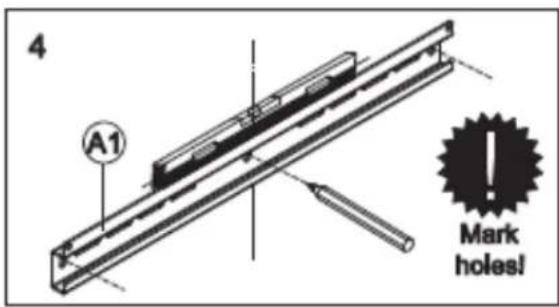

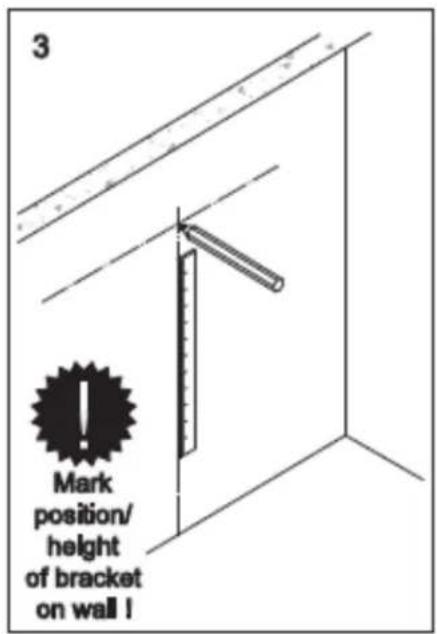

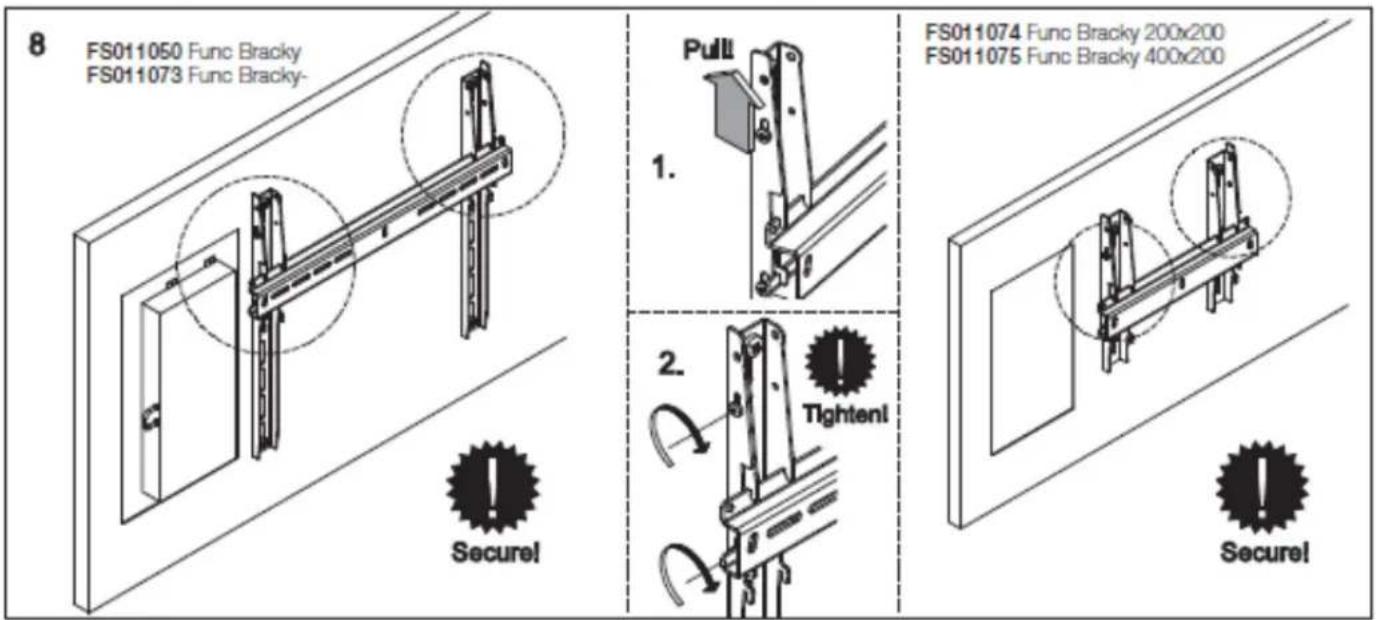

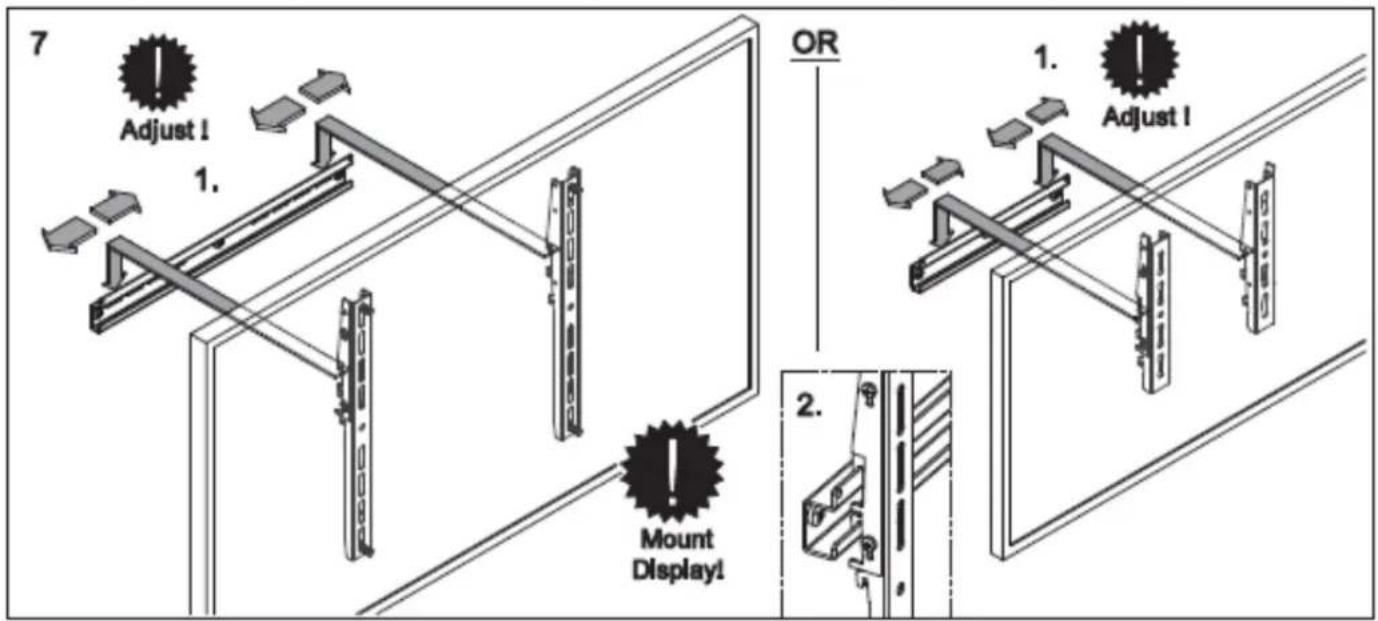

Assembly Instructions

Installation Manual - PDW T XS

Installation Manual - PDW T XS

Installation Manual - PDW T XS

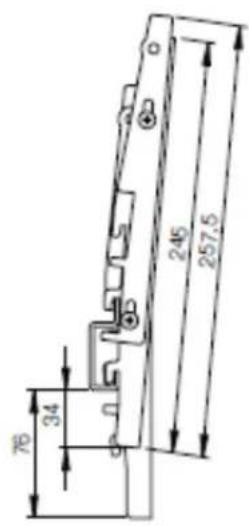

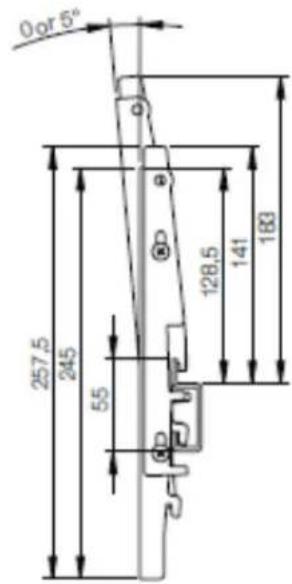

Product Dimensions

All dimensions in mm. Drawing not to scale
FS011074 Func Bracky 200x200

Simple line drawing of a mechanical support frame with two vertical supports and a central horizontal bar (no text or symbols)
