USER MANUAL GSR-HD02 VAIS Technology

(SXV300 SiriusXM Tuner required)

Black and white barcode image with vertical lines and dots, no readable text or symbols

GSR-PK01-MAN

UNIVERSAL

What's Included

Vehicle Antenna and SiriusXM Tuner SXV300 are included in GSR-Tuner Kit only

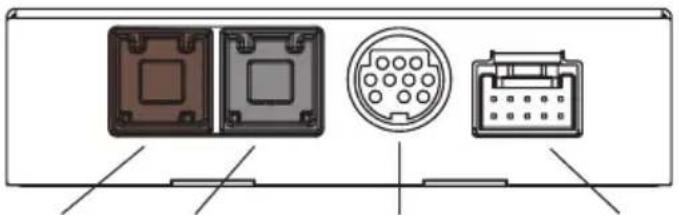

GSR Connectors and Ports

Diagram of four electronic component connectors (no text or symbols)

Brown USB interface connector
Not Used
Interface connector for SiriusXM SXV300 Tuner
Power connector

GSR

(Generation 2)

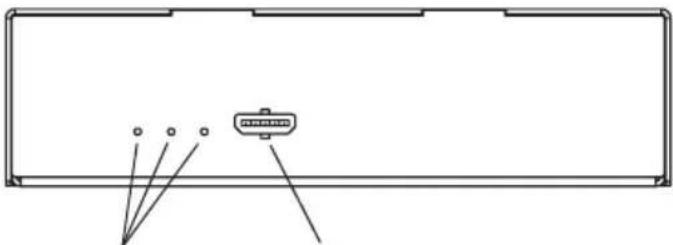

Pure electrical connector diagram without any text, numbers, or symbols

Micro USB connector (used for firmware update)

Connecting GSR

To SiriusXM Tuner SXV300 To Vehicle USB port To Vehicle OBD II Connection

Interior view of a car showing a person's arm seated at the seat of the dashboard, with no visible text or symbols.

Connect OBD II Connector

Connect the ODB II connector to the OBD II connection in the vehicle for power

Close-up of a hand holding a USB cable inserted into a device panel (no visible text or symbols)

Connect GSR to Factory USB Port

Our adapter plugs into the factory USB data port to feed SiriusXM data into the factory radio

Close-up of a wall-mounted electronic device with a sensor or signal unit attached, no visible text or symbols.

Install Antenna on the Roof

For the best Satellite Radio reception, install antenna on the highest point of the vehicle, and must be mounted outside the vehicle

Close-up of a black SiriusXM powertrain battery mounted on a vehicle chassis, with visible wiring and components (no readable text or symbols)

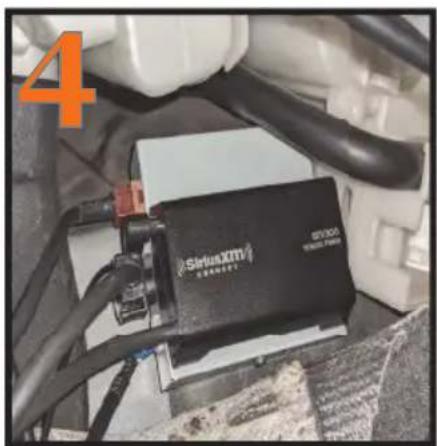

Mount Everything Behind the Panels

Mount the GSR and the SiriusXM Vehicle Tuner behind the dash and secure in place

Optional: Connecting GSR Power Without OBD II Connector

Always use the OBD II connection for power when possible. If you cannot use the ODB II connection, here is an optional method for connecting the GSR Power Harness.

Illustration of two yellow pliers connected to a black connector (no text or symbols)

Cut off the OBD II Connector

ALL WIRES IN THE POWER HARNESS MUST BE CONNECTED

Yellow Wires CONSTANT BATTERY POWER +12V connect BOTH to constant battery power

DO NOT CONNECT TO ACCESSORY POWER

Black Wires

connect BOTH to car chassis ground

General Information

● Illustrations in this Owners Manual are for reference only. Your radio and the screens displayed will vary by car manufacturer and radio.

- Some functions of your radio may not be available while the vehicle is in motion. When present, steering wheel controls are always available.

● ● For questions about your SiriusXM subscription contact SiriusXM at 1-866-635-2349.

Select SiriusXM as the Audio Source

A

Select Audio or Media or Source:

AUDIO OROR MEDIA Source

Varies by Radio

PKIR-VOL HOME SEEK > TUNE - SCROLL MENU AUDIO INFO Select Audio Source 9:01 Source AM FM SiriusXM iPhone Bluetooth AUX Reorder < TRACK PHONE APPS

B

Select SiriusXM or SXM or iPod or USB:

SiriusXM OROROR SXM iPod USB

Varies by Radio

Select Audio Source 9:01 Source AM MSiriusXM iPhone Bluetooth AUX Reorder

Browse and Select SiriusXM Channels

To browse a list of the SiriusXM channels and select a channel to listen to, follow steps A through D.

(Select Browse or List or Menu and then select Artists)

A Select Browse or List or Menu: OROR LIST PUSH SELECT Varies by Radio MENU SiriusXM 9:15 Source Now Playing Song List Browse Sound CH014 Upbe The Salsoul Or Christmas Med 15 0:00 - 60:00

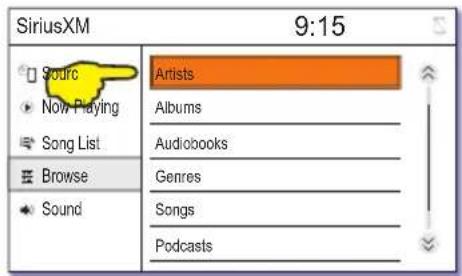

B Select Artists:

SiriusXM 9:15 Sources Now Playing Song List Browse Sound Artists Albums Audiobooks Genres Songs Podcasts

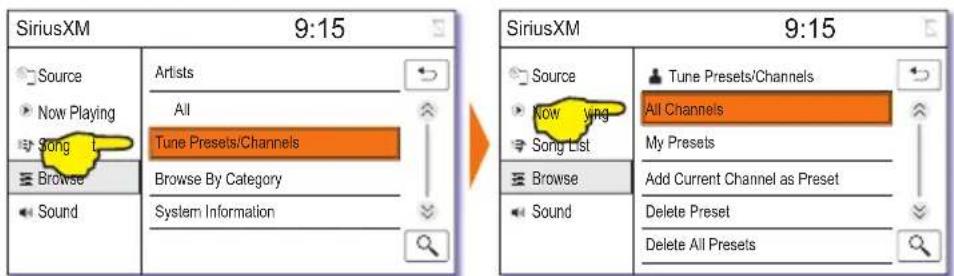

C Select Tune Presets/Channels, select All Channels, and select a channel:

SiriusXM 9:15 Source Now Playing Song Browse Sound Artists All Tune Presets/Channels Browse By Category System Information SiriusXM 9:15 Source Now Playing Song List Browse Sound Tune Presets/Channels All Channels My Presets Add Current Channel as Preset Delete Preset Delete All Presets

Use Track Seek or Tune to tune previous/next channel:

SEEK > OR OR OR < TRACK

Varies by Radio TUNE

HOME SEEK > SonusXM 9:15 TUNG - SCROLL MENU AUDIO INFO Sound New Platform Song List Browse Sound Ch015 The Board Theory Of 4 Deadman DRC Of My Head 5.0 13.0 / 205 -22.0M < TRACK PHONE APPS

MODE OK

Presets

Add a Preset

Select Browse or List or Menu:

OROR

SiriusXM 9:15 Source Now Playing Song List Browse Sound CH014 Upbeat Feel-Hol... The Salsoul Orchestra Christmas Medley 15 of 255 0:00 - 60:00

Select Artists:

SiriusXM 9:15 Sourc Now Playing Song List Browse Sound Artists Albums Audiobooks Genres Songs Podcasts

Select Tune Presets/Channels:

SiriusXM 9:15 Source Now Playing Song List Browse Sound Artists All Tune Presets/Channels Browse By Category System Information

SiriusXM 9:15 Source Now Playing Song List Browse Sound Tune Presets/Channels All Channels My Presets Add Current Channel as Preset Delete Preset Delete All Presets

Select Add Current Channel as Preset, and select the channel:

SiriusXM 9:15 Source Now Playing Song List Browse Sound Tune Presets/Channels All Channels My Presets Add Current Channel as Preset Delete Preset Delete All Presets

SiriusXM 9:15 Source Now Playing Song List Browse Sound Add Current Channel as Preset 1 Save as P2 - CH015 The Blend

Tune a Preset

To select a specific Preset:

Select Tune Presets/Channels, and select My Presets:

SiriusXM 9:15 Source Now Playing Song Browse Sound Artists All Tune Presets/Channels Browse By Category System Information

SiriusXM 9:15 Source Now Playing Song Browse Sound Tune Presets/Channels All Channels My Presets Add Current Channel as Preset Delete Preset Delete All Presets

Select a preset:

SiriusXM 9:15 Source Now Playing Browse Sound My Presets 1 CH058 Prime Country 2 CH015 The Bridge

To quickly tune the previous or next Preset:

Long press Track Seek to tune previous/next preset:

SEEK > OR OR OR < TRACK TUNE HOME SEEK > SinusXM 9:15 TUNG PENCIL MENU Sonic Show Playing Song List Browse Sound CHD15 The Band Theory Of Deadman Out Of My Head Sing 12 of 200 < TRACK PHONE INFO 0.00 300 50 51.00 APPS MODE #no.>

Delete a Preset

Select Delete Preset, and select the preset to be deleted:

SiriusXM 9:15 Source Now Playing Song List Browse Sound Tune Presets/Channels All Channels My Presets Add Current Channel as Preset Delete Preset Delete All Presets

SiriusXM 9:15 Source Now Playing Browse Sound Delete Preset 1 CH058 Prime Country 2 CH015 The Bridge

Delete All Presets

Select Delete All Presets, and select Delete All [x] Presets:

SiriusXM 9:15 Source Now Playing Song List Browse Sound Tune Presets/Channels All Channels My Presets Add Current Channel as Preset Delete Preset Delete All Presets

SiriusXM 9:15 Source Now Paying Song List Browse Sound Delete All Presets 1 Delete All 2 Presets

Browse SiriusXM Categories

A

Follow A and B on page 6 (select Browse or List or Menu and then select Artists).

B

Select Browse By Category and select a category:

SiriusXM 9:15 Source Now Playing Song List Brows Sound Artists All Tune Presets/Channels Browse By Category System Information

SiriusXM 9:15 Source Now Playing Song List Browse Sound Browse By Category All Pop Rock Hip-Hop/R&B Dance/Electronic

System Information

A

Follow A and B on page 6 (select Browse or List or Menu and then select Artists).

B

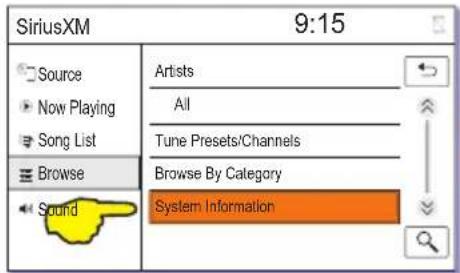

Select System Information to show the SiriusXM Radio ID and the System FW (Firmware):

SiriusXM 9:15 Source Now Playing Song List Browse Sound Artists All Tune Presets/Channels Browse By Category System Information

SiriusXM 9:15 Source Now Pla ng Song List Browse Sound System Information SiriusXM Radio ID - 1234ABCD Signal Quality - Excellent System FW - V1.2.324 HW Edition - 4.01 SYSTEM RESET

Troubleshooting

Problem Solution
My presets are gone after I turn the car off	GSR requires constant 12V power connection. If the GSR doesn’t keep presets after the car is turned off, this means GSR was connected to Accessory power source
SiriusXM doesn’t appear as the source	Verify the power connection by checking the power harness connection or by verifying the lights at LEDs on the GSR moduleVerify the USB connection between the GSR and vehicle’s USB port
Check Antenna message	Verify the antenna connection to the tuner
No Signal message Make	sure the SiriusXM antenna has a clear view of the southern sky
Check Tuner message Ver	ify the tuner connection to the GSR module or replace the tuner

WARNING

DO NOT DISASSEMBLE OR ALTER

Doing so may result in an accident, fire or electric shock

Do not block the airbag

Do not mount product or any added audio and/or video equipment where it can obstruct the operation of any safety devices such as the airbag.

Distraction warning

Do not let product or any added audio and/or video equipment distract you while you are driving.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL

Before starting any installation work, you must wait 90 seconds after turning the ignition switch to the LOCK position and disconnecting the negative (-) terminal from the battery. The supplemental restraint system (airbag) is equipped with a backup power source. If installation work is started less 90 seconds after disconnection of the negative (-) battery terminal, the SRS may deploy. When the negative (-) terminal cable is disconnected from the battery the clock and audio systems memory will be erased. Before starting installation work make a record of the clock and audio systems memory settings. When installation is complete, reset the clock and audio systems to their previous settings. Check power tilt, power telescopic steering column, front power seats, power mirrors, and power shoulder belt anchorage are equipped with a memory function. When installation is complete, it is necessary to readjust the features to their previous settings Never use a backup power supply (such as another battery) during installation work to avoid losing these memory settings.

CAUTION

DO NOT SPLICE INTO ELECTRICAL CABLES

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS

Cables or wiring that obstruct or get caught on places such as the steering wheel, shift lever, brake pedals, etc. can be extremely hazardous.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST

Moisture or dust may result in product failure.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS

The wiring and installation of this product requires special technical skills and experience.

USE ONLY SPECIFIED ACCESSORY PARTS

Use of other than specified parts may damage product internally.

FOLLOW THE OPERATIONAL AND INSTALLATION MANUALS.

YOU SHOULD READ AND FAMILIARIZE YOURSELF THOROUGHLY WITH THE FOLLOWING INFORMATION PRIOR TO INSTALLING AND USING THIS UNIT. IN ADDITION, YOU MUST CAREFULLY READ AND FOLLOW THE INSTALLATION SCHEMATICS/INSTRUCTIONS FOR THE PRODUCT AND THE VEHICLE IN WHICH IT IS BEING INSTALLED. FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY DAMAGE THE PRODUCT AND THE VEHICLE, WILL VOID THE PRODUCT WARRANTY, AND MAY VOID THE VEHICLE WARRANTY

CHECK YOUR LOCAL LAWS

Some States/Provinces or other governmental jurisdictions (such as cities) may have laws that prohibit the operation of a video screen within the sight of the Driver. If you have purchased such a product, you should use the product only in locations where it is legal to do so, and if you do use the product, set up the screen so it is only visible to passengers.

TROUBLESHOOTING

Should this product fail to operate properly, please contact your Dealer or our Customer Service Department at [e-mail].

About SiriusXM Satellite Radio Operation

The unit may refuse to change the channel if your reception is going ON and OFF.

Please wait until your reception stabilizes in order for the unit to allow you to change the channel easily. Due to bad reception in some areas, SiriusXM Satellite Radio may not work and/or not able to display text.

Warranty is available for download: https://www.vaistech.com/download/15244/

To request a paper warranty copy please contact us:

VAIS Technology

Warranty Department

8811 American Way

Unit 125

Englewood, CO 80112

720-733-2348

[e-mail]
