Point Source Audio is a solution

based design, engineering, and manufacturing company with audio products used in a variety of markets from TV to theatre, and from sports to space.

Since 2002, Point Source Audio has developed, engineered and manufactured transducer products for companies under a variety of brands. While continuing to do this, we are also focused on innovating products under the Point Source Audio brand.

As of 2016, the company holds four patents across its miniature microphone and audio headset product lines, raising the performance bar on traditional miking practices and production flow.

Audio Precision that Speaks for Itself

FOH HONORING EXCELENCE in the Manufacturing and Advancement of Audio Technology Best New Theater Product Point Source Audio CO2 Confidence Collection. 2020

2017 BEST SHOW BEIJING February 24, 2017 Point Honors Auflin (2017) Prenounced in our Broadcast Houston

NEW PRODUCT AWARDS WINNER 2014

MICROPHONES

03 NEW! CX2 CROSS FUNCTION MICS Best of Omni and Directional—In One
04 CONFIDENCE™ COLLECTION Built-in Redundancy
08 EMBRACE™ COLLECTION Conceal Mics in Sec:00nds
13 SERIES8™ COLLECTION Classic Styles, Uncommon Features
17 ENDURE™ COLLECTION Long-life Lemo-style Connector
22 SPEECH OPTIMIZED MICS Bankable Styles for Basic Speech
23 MIC ACCESSORIES Success is in the Details

30 MIC FEATURE GUIDE Pick the Perfect Mic

31 MIC SPECIFICATIONS Performance References

33 MIC CONNECTOR OPTIONS X-Connector and Hardwired Options

AUDIO HEADSETS

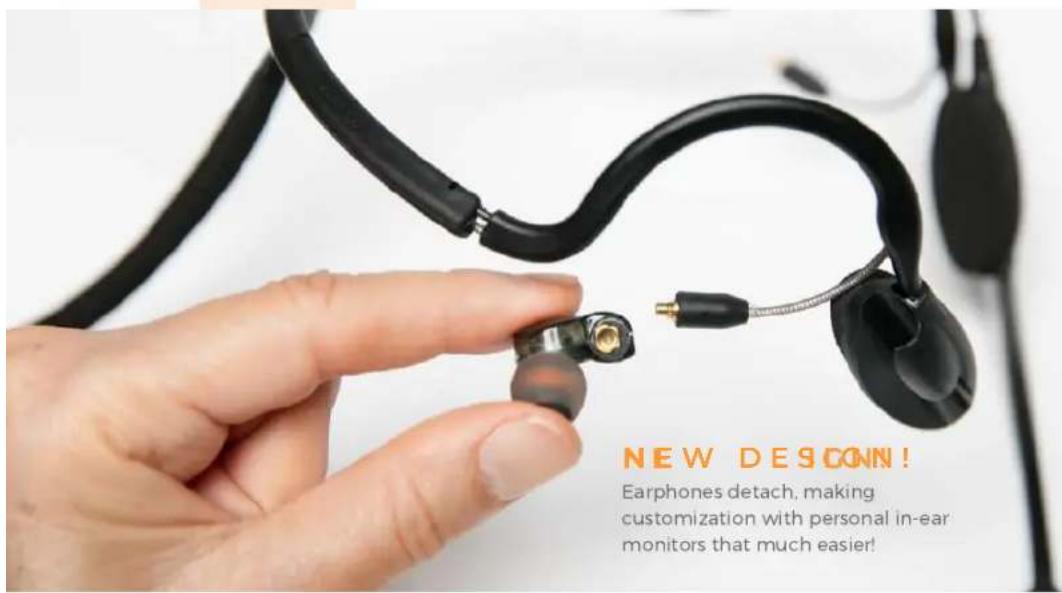

35 UPDATED! CM-i IN-EAR HEADSETS Features New Detachable Earphones
39 NEW! CM-PPT PUSH-TO-TALK Combines Radio and Comms
40 IN-EAR HEADSET ACCESSORIES "Adapt" Your Headset to any Comms System

confidence™ microphones

N EWW !

CX2-8D HEADSET

Features Cross Functionality

The CX2 switches between—or operates simultaneously—as an omnidirectional and directional microphone ready to address a host of audio scenarios.

For unexpected feedback in live sound applications, switch from the omni to the directional for an instant solution. While the omni delivers an excellent live audio signal, the directional mic simultaneously optimizes it for a clean recording or broadcasting feed.

Separate Wire Paths in a Convenient Single Cable Splits to Two Packs

Close-up of a hand holding two black cable connectors with visible tassels (no text or symbols)

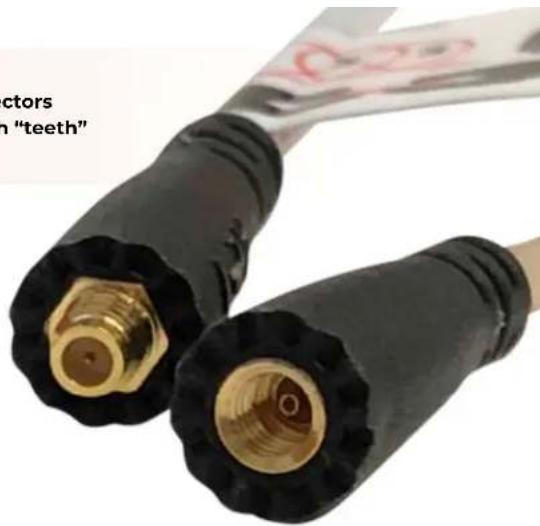

One cable with two terminations

Switchable

Directional / Omnidirectional Elements

Colors:

confidence™ microphones

N EWW !

CX2-8IL LAAWALLERR

Features Cross Functionality

At its minimal size, the CX2-8L cross-functional lavalier provides maximum audio flexibility and effortless cable dressing. Elegantly styled, the low-profile compact size will be a guaranteed standout—leaving only the presenter in the spotlight.

Broadcast or record from two element options in one mic.

The CX2 microphones are a technical first with no end to its possibilities.

Separate Wire Paths in a Convenient Single Cable Splits to Two Packs

POINT-SOURCEAUDIO.COM

Switchable

Directional / Omnidirectional Elements

Close-up of a black handheld device with a curved cable, no visible text or symbols on the device itself.

confidence™

microphones

ence™ ones FOR GOLDST & AR WWBIRD 2020 BEST NEW THEATRE PRODUCT EXCELLENCE IN MANUFACTURING TWO MICS for the SIZE OF ONE Double down with the • Dual Petite Elements Only 3mm Each • Use as Single or Dual Mic • Sonically Matched Elements of ± .05 dB

FOH GOLDSTAR WARWARD

2020 BEST NEW

THEATRE PRODUCT

EXCELLENCE IN MANUFACTURING

TWO MICS

for the SIZE OF ONE

Double down with the confidence of built-in backup!

• Dual Petite Elements Only 3mm Each
• Use as Single or Dual Mic
- Sonically Matched Elements of ±.05 dB
• Both Elements IP 57 Waterproof (as always)
- Separate Wire Paths in a Convenient Single Cable Splits to Two Packs

POINT source

confidence™

microphones

U.S. Pat: D850,422

CO2-8WLL | COO288Wlp

Close-up of a metallic connector attached to a cable against a textured gray fabric background (no text or symbols visible)

Less cables, more confidence.

Double mic'ing is heavy lifting ... unless you have two mics in one. The ingenuity of the CO2 microphones makes light work of double miking with unprecedented convenience and ease from a single cable housing two separate wire paths. Two sonically matched and waterproof elements deliver the confidence boost every audio tech needs for live mic applications. Colors:

Colors:

CO2-8WL Dual Lavalier

Close-up of a medical or laboratory probe lying on a plain beige surface (no text or symbols visible)

Single Element Lavalier

Close-up of a human skin with a small, thin, cylindrical object attached (no text or symbols visible)

Dual Element Lavalier

Close-up of a beige medical catheter or tube with two protruding tubes (no text or symbols visible)

Colors:

CO2-8WLp

Dual Petite Lavalier

confidence™ microphones

CO2-28W8WD

• Dual Petite Elements Only 3mm Each
- Sonically Matched Elements of ± .05 dB
- Both Elements IP 57 Waterproof (as always)
- Separate Wire Paths in a Convenient Single Cable Splits to Two Packs

Double Up!

Because in Live Sound, There are No Second Chances.

Three identical wooden cable connectors arranged vertically against a white background (no text or symbols visible)

Profile view of a man wearing a black hat and beard, with a pipe earpin, against a tiled wall background (no text or symbols visible)

Actor Blake Burgess wearing the PSA CO2-8WD

The longest-running symphonic drama, The Lost Colony, is performed on an outdoor theatre in North Carolina. Now in its 82nd season, the theatre has 24 PSA mics that stand up to the outdoor elements including water—both rain and sweat—as well as wind and heat.

Colors:

CO2-8WD Dual Element Headset

EMBRACE™

microphones

U.S. Pat D786.220 and 9.706.285

Close-up of a hand holding a flexible, curved mechanical component (no visible text or symbols)

CONCEAL MICS in Sec 00nds

POINT-SOURCEAUDIO.COM

Discover Hidden Talents Besides being able to conceal in sec:00nds, our twice patented EMBRACE microphone hugs the ear to give it tremendous staying power regardless of head or body movement. Actors from theatre and TV alike welcome the comfort and ease of the touchable and pliable material, along with the ingenious concealable design.

Discover Hidden Talents

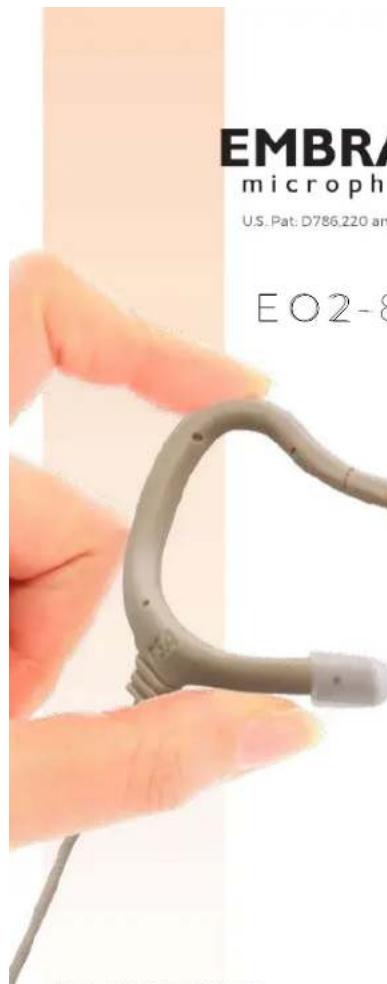

Besides being able to conceal in sec:00nds, our twice patented EMBRACE microphone hugs the ear to give it tremendous staying power regardless of head or body movement. Actors from theatre and TV alike welcome the comfort and ease of the touchable and pliable material, along with the ingenious concealable design.

EMBRA microph U.S. Pat: D786.220 an EO2-8

EMBRACE™

microphones

U.S. Pat: D786,220 and 9,706,285

EO2-8WLL || EEO 88WLL

Light like a lav.

Hold like a headset.

EMBRACE conceals with practically no effort—and mic placement is always consistent regardless of head movement. EMBRACE blends out of sight quickly and easily so any performer, speaker or actor can be mic'd and camera-ready in mere seconds.

Colors:

EO2-8WL Dual Element Earmount

Close-up of three electronic earments with visible branding and color swatches (no text or symbols on the devices themselves)

"This will be a permanent change to our approach for Sandy's featured performances during Danny's concerts. I highly endorse it for any application where a violinist as to be miked and still have the freedom of movement."

- Paul Bevan

POINT-SOURCEAUDIO.

EMBRACE Microphones for It sounded much more natural to her and I had to do almost no EQ-ing.

Deliver

for Danny Elfman Tour

As Tim Burton's The Nightmare Before Christmas toured the UK at the end of 2019, virtuoso violinist Sandy Cameron received a new miking technique thanks to Point Source Audio's EMBRACETM EO-8WL earmount microphone. Reflecting on the tour, both Paul Bevan, the sound engineer, and Cameron have been highly impressed. "It sounded much more natural to her and I had to do almost no EQ-ing to get it to sound just like the acoustic instrument," says Bevan. "There was so much gain before feedback that we were never close to ringing – even in arenas, with huge PA systems and a full monitor system. An added bonus was that as the microphone was attached to Sandy, and not the violin, she could put it down and walk away. After a few years of using a clip-on, it took her a while to remember that she had this freedom! Also, because the microphone was hidden by her hair, it was completely invisible to the audience, even on tight camera shots. The clip-on with attached cable always looked untidy."

Portrait of a man in formal attire with a red bow tie, standing in front of an Olympic sculpture (no visible text or symbols)

Emmy-winning sound engineer Paul Bevan switches to EMBRACE earmount mic to create a more natural sound for violin virtuoso Sandy Cameron.

EMBRACE™

microphones

U.S. Pat D786,220 and 9,706,285

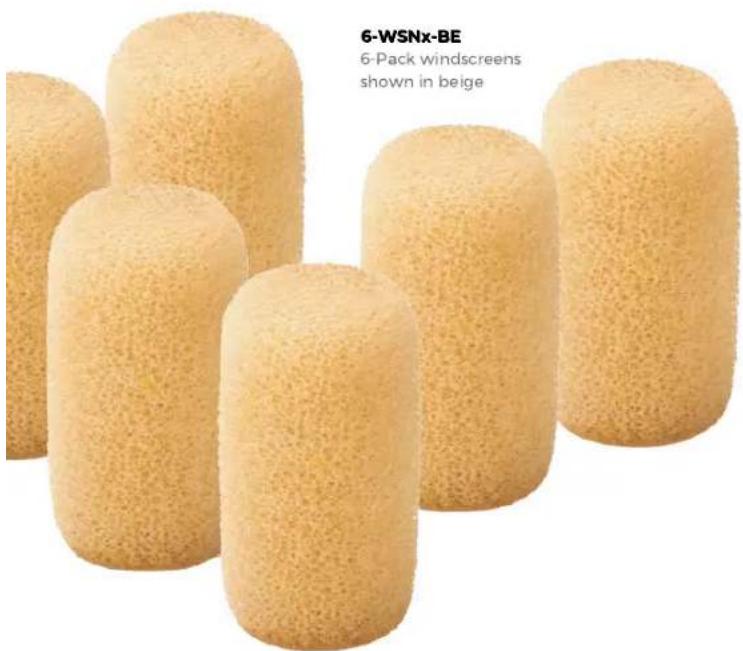

WSC Windscreen Caps assist mic performance in wet conditions and can even change the color of your mic!

Five cylindrical electronic components with mesh surfaces, shown from different angles (no text or symbols visible)

A Comfortable Actor is a Confident Actor!

Close-up side profile of a person's ear with a finger, no visible text or symbols

Blend to hair and skin tones with interchangable earmounts and color caps

POINT SOURCEAUDIO.COM

Broadcast Studio Televisa Adopts EMBRACE™

A rapid and Concealable Mic'ing System for its Television Productions

EMBRACE mics have allowed them to wire the actors so much faster.

Televisa, the television studio and broadcast behemoth, added Point Source Audio's EMBRACE EO-8WL microphones for use in their popular telenovela and music competition reality productions.

Headquartered in Mexico City, Televisa is considered to be one of the largest mass media conglomerates and content creators in Latin America. The vast majority of its programming is for the Hispanic market with much of its content airing in the United States.

With traditional lavaliers, it used to take a lot of time to wire an actor and to conceal it for television. EMBRACE mics have allowed them to wire the actors faster while reducing noise problems with clothing, jewelry, or chest hair when using traditional lavs.

Televisa actors wear EMBRACE™ microphones concealed at the ear.

Hand holding multiple automotive air filter connectors (no visible text or labels)

SERIES8™

microphones

Welcome to the flagship!

This workhorse collection of headset, lavalier and earworn styles deliver a premiumn feature set for actors, pastors, and presenters alike.

Classic Styles

uncommon features

• Interchangeable X-Connectors
• IP 57 Waterproof rated
- 360^ bendable booms

Profile view of a person wearing glasses and a headset, with no visible text or symbols

SERIES8™

microphones

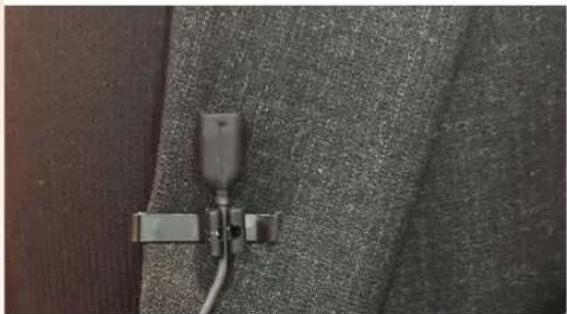

CR-8L | CO-8WL

Close-up of a person's collar with patterned fabric and zipper, no visible text or symbols

Lavaliers

The Proof is in its Performance

Colors:

CO-8WL (low sensitivity) Waterproof Lavalier

CO-8WLh (high sensitivity) Waterproof Lavalier

• Miniature 4m • IP 57 water, s • Wearable ear • Interchangea

POINT-SOURCEAUDIO.COM

Colors:

CR-8L Cardioid Lavaller

Close-up of a finger holding a small electronic component (no visible text or symbols)

WSC Windscreen Caps for

CO-8WL and EO-8WL

Five cylindrical objects with textured surfaces, arranged on a white background (no text or symbols visible)

14

SERIES8™

microphones

CR-8D | CO-8WD

Close-up of a person's face with curly hair near mouth, holding a medical device (no visible text or symbols)

• Boom bends 360^ without breakage
  • IP 57 water, sweat, makeup proof (omni)
  • Interchangeable X-Connectors
  • Earhooks fold flat for storage
  • Instantly reverses for left or right wearing
  • Headframe sizes to fit perfectly

Close-up of a brown, elongated tool or tool with a pointed tip (no visible text or symbols)

Colors:

CR-8D Cardioid Headset

Headsets

Adjust to Your Head Size

Co-8WD Omni Headset medical device with coiled tubing and connectors (no text or symbols on the device itself)

Close-up portrait of a man with curly hair and beard, wearing a headset microphone (no visible text or symbols)

Profile view of a man wearing a medical ear cap, smiling (no visible text or symbols)

SERIES8™

microphones

CR-8S || 000-88WSS

Side profile of a person's head and ear with a black ear cap, no visible text or symbols

Earworn

The Original

"Unbreakable Boom" Bends 360°

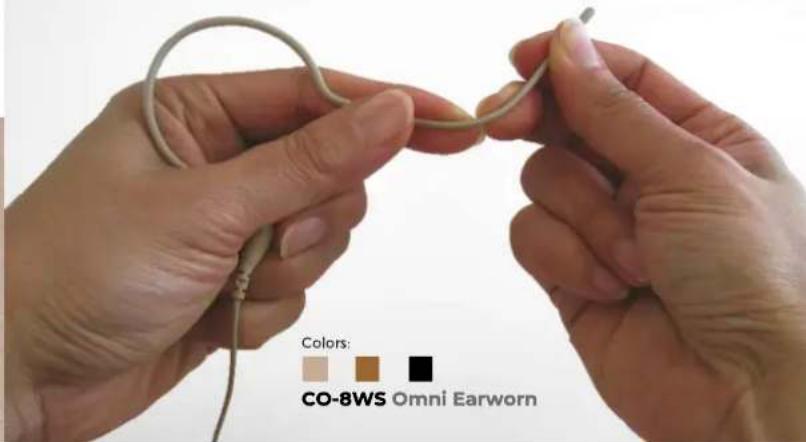

Colors: CO-8WS Omni Earworn

• Boom bends 360^ without breakage
  • IP 57 water, sweat, makeup proof (omni)
  • Interchangeable X-Connectors
• Converts to dual ear with optional clip

Brown elongated tool with a pointed tip, isolated on white background (no text or symbols)

Colors:

CR-8S Cardioid Earworn

Portrait of a woman with short dark hair and green eyes, smiling (no text or symbols visible)

Close-up of a curved, brown wire or filament with a dark end, labeled '16' at the bottom (no other text or symbols)

16

enudure™

microphones

Close-up of a black USB cable connector with metallic connectors and a white cord (no text or symbols visible)

EFFORTLESS

ENDURANCE

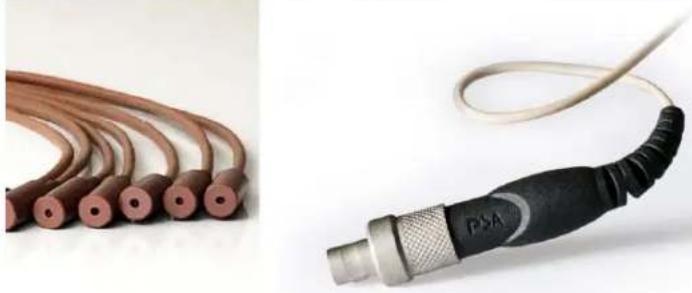

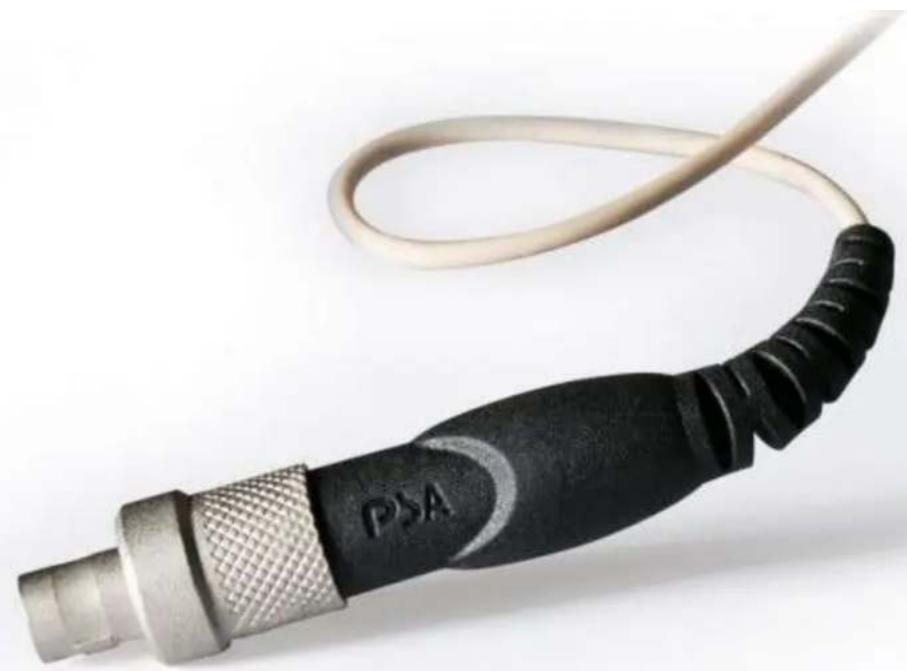

Patent pending connector endures up to 12,000 bends

Nothing even comes close to the effortless endurance of the ENDURE microphone collection. We feature a proprietary Lemo-style connector with accelerated life testing to 12,000 bends on all mics in the collection.

enudure

microphones

GO-8WLL || G002288WLL

A tighter tolerance from ±3dB to ±2dB means you can count on a smaller difference from mic to mic. Our mics match closer — setting us even further apart from the competition.

POINT-SOURCEAUDIO.COM

Hardwired

Lavaliers

THE PICK OF

BROADWAY!

Colors:

CO-8WL-SK Waterproof Lavalier

CO2-8WL-SK

Dual Element Waterproof Lavalier

Three abstract sculptural designs in beige, brown, and black against a white background (no text or symbols)

18

enudure

microphones

CO-8WD-SK

CO2-8WD-SK

Man in suit joyfully splashing water, no visible text or symbols

Hardwired

Headset

A Heavy Hitter!

Colors:

GO-8WD-SK Waterproof Headset

GO2-8WD-SK Waterproof Headset with dual element

• Boom bends 360^ without breakage
  • IP 57 water, sweat, makeup proof (omni)
• Earhooks fold flat
• Reverses for left or right wearing in an instant
  • Headframe sizes to fit perfectly
• Long-life Lemo-style connector
• ±2dB tolerance from mic to mic

Two types of electronic connectors: a bundle of brown cables and a black USB cable with 'PSA' label (no text or symbols on the cables themselves)

enudure™

microphones

G0-88MM

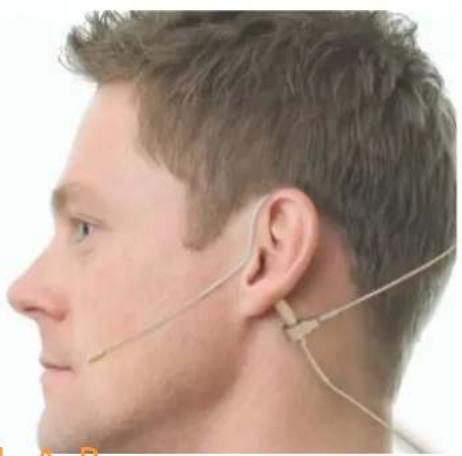

The GO-8WM Moldable Microphone is a revolutionary approach to custom miking that can be user-shaped into a variety of mic styles.

Designed specifically for professional theatre, the moldable GO-8WM-SK starts out flat but can be shaped by an A2 or mic expert into a collar mic or halo mic.

Close-up of a black USB cable with metallic connector and coiled cable (no visible text or symbols)

POINT SOURCEAUDIO.COM

Moldable

Microphone

Your Mic is What You Make It Colors: GO-8WM-SK Moldable Mic

Close-up portrait of a woman with curly hair and facial features, wearing a yellow top (no text or symbols visible)

GO-8WM Moldable Mics Capture the Fierce Fight Sounds of Cirque du Soleil's R.U.N

Renowned sound designer Jonathan Deans says Point Source GO-8WM mics shine onstage with R.U.N for many reasons. First, they offer superior fidelity. "I need good quality," he says. "I want to be able to capture the true sound of what's going on." Point Source GO-8WM mics are unconventionally malleable: "We could just shape them to whatever form we wanted, not knowing exactly how the performers' moves would work and whether they would feel comfortable about how it would be best placed on them," he explains. The body-fitted Point Source GO-8WM moldable microphones turned stunt performers into "moving mic stands" onstage. The transmitter and the microphone needed to be located where they could capture the sounds—not just of the performers—but the sound around them.

"It's a completely unconventional way that we're using microphones.

Portrait of a middle-aged man with gray hair, wearing a dark jacket, standing beside a red ornamental fence (no text visible)

This is the 15th Cirque du Soleil show for Deans, whose Cirque collaborations—Michael Jackson's ONE, LOVE, KÀ, Zumanity, O, Mystère, Believe, Elvis, La Nouba, Kooza, Wintuk, Ovo, Corteo, and Saltimbanco—have helped shape the modern circus legacy.

POP IPL ITEM! M

Speech Optimized Earworn

Side profile of a person wearing an ear with medical earphones (no visible text or symbols)

A R

R-DMC Reversible Dual Ear Adapter

Close-up of a curved metallic wire or cable with two connectors (no text or symbols visible)

Our unique adapter adds instant stability to any of our single ear mic styles when needed.

• Converts any single ear to dual ear
• Wears left
• Wears right
• Folds flat

POINT SOURCEAUDIO.COM

Bankable Styles For Basic Speech Colors: CO-6 Single Earworn CO-6-KIT (includes R-DMC)

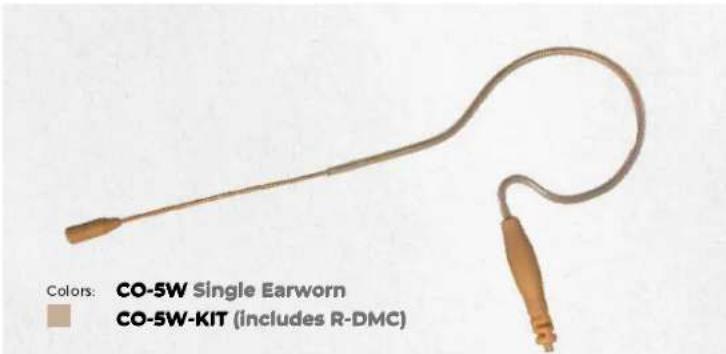

Co-5W Single Earworn medical device with attached catheter, shown in color legend (no text on device itself)

Medical device with labeled parts: CO-3 Single Earworn and CO-3-KIT (includes R-DMC), shown in beige and black (no text or symbols on the device itself)

Microphone Accessories

Success is in the details

Complement your mic performance with the finer points from our collection of unique microphone accessories.

Microphone Accessories

Headset

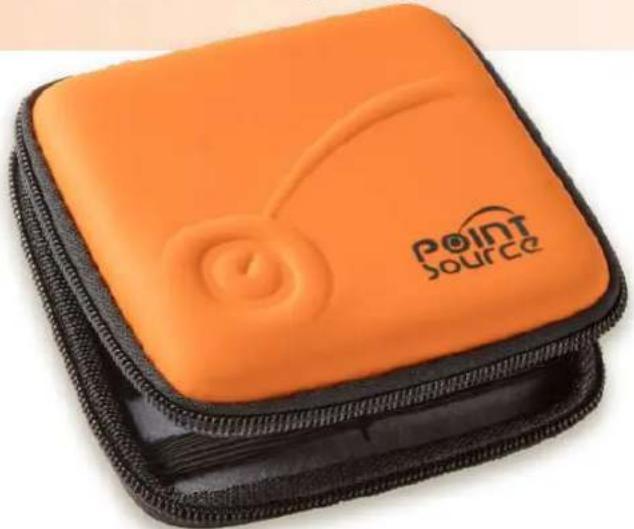

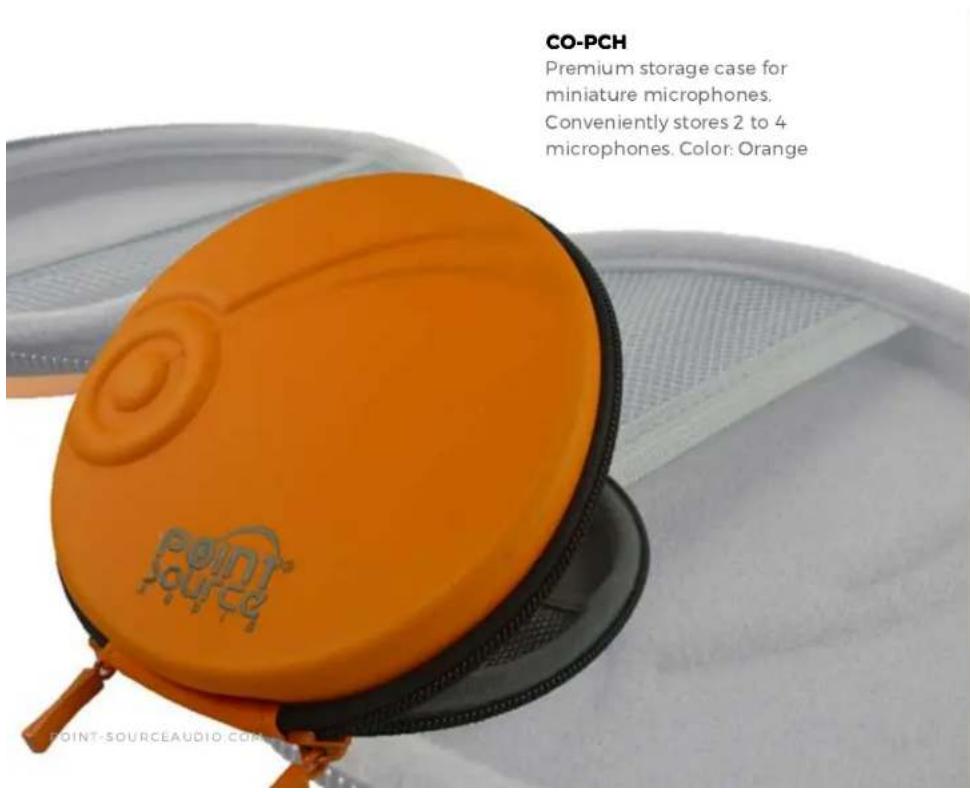

CO-PCH Premium storage case for miniature microphones. Conveniently stores 2 to 4 microphones. Color: Orange

Wears Left or Right

Ear hooks fold flat for protection in storage and travel. Our headsets feature the unique ability to reverse for left or right ear wearing.

Three curved medical or surgical instruments with no visible text or symbols

Control clips for headframe. Set of 4. Colors: BE—Beige, BR—Brown or BL—Black

R-DMC-XX

Reversible (left or right) dual ear mic clip converts single to dual ear microphones. Colors: BE—Beige, BL—Black

Microphone Accessories

EMBRACE

EMB-CAP-XX

12-Pack Finishing Caps Colors: BE—Beige, BR—Brown, BL—Black

EMB-6-XX (3 right/3 left)

EMB-12-XX (6 right/6 left)

EMB-24-XX (12 right/12 left)

Replaceable Earmounts with

matching Finishing Caps. Colors:

BE—Beige, BR—Brown, BL—Black

EMBRACE™ microphones U.S. Pat: D786.220 and 9.706.285

EMBRACE Earmounts are replaceable as needed, or can convert any of your Point Source lavaliers to wear on-ear.

POINT-SOURCEAUDIO.COM

POINT source

Microphone Accessories

Proprietary Clips

Black mechanical component with a clamped base, resting on a flat surface (no text or symbols visible)

SLIDER1-BL

Single holder Slider-clip in 2 Pack. Color: Black

SLIDER1-WH

Single holder Slider-clip in 2 Pack. Color: White

• Ultra low-profile design
• Slides on for fast fitting
- Secure hold even on delicate fabrics
• Does not mar clothing
• Single or Dual mic holders
• Available in white or black

POINT·SOURCEAUDIO.COM

Close-up of a black cable clamp securing a white button on a beige fabric background (no text or symbols visible)

Inspired by the fast-paced demands of live sound productions, our proprietary SLIDER Clips "slide" on quickly and easily for attaching to all types of fabrics — even the thinnest, most delicate materials — with a steadfast hold.

SLIDER2-BL

Dual holder Slider-clip in 2 Pack. Color: Black

B-CLIP-BL

Cable Clip. Color: Black

SLIDER2-WH

Dual holder Slider-clip in 2 Pack. Color: White

B-CLIP-WH

Cable Clip. Color: White

M-Clip

Magnet Clip for microphones. Color: Black

v-Clip

Vampire Clip for microphones. Color: Black

Microphone Accessories

Windscreens

2-WSC-GR

2-Pack windscreen caps shown in gray

Two cylindrical gray objects with a mesh pattern, possibly industrial sensors or filter tubes (no text or symbols visible)

6-WSNx-BE 6-Pack windscreens shown in beige

POINT SOURCEAUDIO.COM

2-WSC-XX (CO-8WL & EO-8WL only)
2-Pack windscreen caps for optimal water protection. Colors: BE—Beige, BR—Brown, BL—Black, WH—White, GR—Gray

6-WSNr-XX
6-Pack windscreens for CO2 and CX2 dual element microphones. Colors: BE—Beige, BR—Brown or BL—Black

6-WSNx-XX
6-Pack windscreens for Cardioid microphones. Colors: BE—Beige, BR—Brown or BL—Black

6-WSN-XX
6-Pack windscreens for omnidirectional microphones. Colors: BE—Beige, BR—Brown or BL—Black

Microphone Accessories

Lavalier Accessory Organizer

Orange point source hard drive case with black zip strap (no text or symbols on device)

MODEL: CO-LAV-KIT

The portable and compact pouch measures 4.5" x 4.5" x 1" Color: Orange

CO-PCH-LV

Organizer pouch only sold separately. Accessories not included.

CO-LAV-KIT includes all the following:

WSN—small windscreens in 3 colors
WSNx—large windscreens in 3 colors
WSC—windscreen caps in 5 colors
SLIDER1—single mic holder in 2 colors
SLIDER2—double mic holder in 2 colors
M-Clip—Magnet Clip
V-Clip—Vampire Clip
B-Clip—Alligator Clip

Microphone Accessories

X-Connectors

X-Connectors

lock with "teeth"

Model# XAK

Interchangeable locking 4-pin

Hirose X-connector for Audio-Technica

Model# XATcH

Interchangeable locking 4-pin Hirose X-connector

for Audio-Technica cH-style transmitters

Model# XLE

Interchangeable 4-pin mini-XLR X-connector with locking ring for MiPro and Beyerdynamic Opus & TG Black switch

Model# XSH

Interchangeable 4-pin mini X-connector for Shure, Line 6, JTS, Trantec, Carvin and Beyerdynamic TG Gray switch

Model# XSE

Interchangeable 3.5mm locking X-connector

Interchangeable Lemo-style 3-pin X-connector for Sennheiser SK, Shure URIM, Zaxcom and WisyCom

Model# XTX

Interchangeable 4-pin mini X-connector for Telex

Model# YSK

Two microphone combiner for Point Source Audio Lemo-style terminated microphones

Model# YSH

Two microphone combiner for Point Source Audio TA4F Shure-terminated microphones.

Close-up of two black RF cables with gold connectors, no visible text or symbols on the cables themselves.

Model# X-CON-EXT

SERIESB X-Connector Extender Cable. 2ft. extended.

Model# CON-XLR

Phantom Powered Preamp for Shure terminated PSA Microphones

Model# CON-XLR-SK

Phantom Powered Preamp for Sennheiser SK terminated PSA Microphones

POINT-SOURCEAUDIO.COM

Microphones

Feature Guide

POINT SOURCEAUDIO.COM
*Color options vary within each collection. Please reference the product page for color availability.

Microphones

Technical Specifications

MODEL	PERFORMANCE VOCALS		OPTIMIZED SPEECH		BASIC VOICE
	OmniEO/CO/CO2/CX2/GO-8	CardioidCR-8	OmniCO-6	OmniCO-5W	OmniCO-3
ELEMENT	Back Electret Condenser	Back Electret Condenser	Back Electret Condenser	Back Electret Condenser	Back Electret Condenser
FREQUENCY	20Hz - 20kHz	160Hz - 14kHz	40Hz - 17kHz	40Hz - 17kHz	50Hz - 16kHz
LO SENSITIVITY	-43 dB 1V/Pa(±3dB at 1kHz)(±2dB at 1kHz)*	-50 dB 1V/Pa(±3dB at 1kHz)	-47 dB 1V/Pa(±3dB at 1kHz)	-47 dB 1V/Pa(±3dB at 1kHz)	-44 dB 1V/Pa(±3dB at 1kHz)
HI SENSITIVITY(CO-BWLh)	-32 dB 1V/Pa(±3dB at 1kHz)
OUTPUT IMPEDANCE	1,400Ω ± 30%(at 1kHz)	5,000Ω ± 30%(at 1kHz)	2,000Ω ± 30%(at 1kHz)	2,000Ω ± 30%(at 1kHz)	1,500Ω ± 30%(at 1kHz)
OPERATING VOLTAGE	1 - 10V	1 - 10V	1.5 - 10V	1.5 - 10V	1.5 - 10V
CABLE LENGTH	4 ft .077 in.+ connector	4 ft .077 in.+ connector	4 ft 2 in.+ connector	4 ft 2 in.+ connector	3 ft 11 in.+ connector
NET WEIGHT	0.6 oz	0.6 oz	0.6 oz	0.6 oz	0.28 oz

POINT-SOURCEAUDIO.COM
*The ENDURE Collection of CO-8 AND CO2-8 mic models have a tighter tolerance for a closer match from mic to mic.

Microphone

Technical Specifications

PERFORMANCE VOCALS
MODEL# EO-8 / CO-8 / CO2-8 / CX2-8 / GO-8 / GO-8

OPTIMIZED SPEECH
MODEL# CO-6 / CO-5W

BASIC VOICE
MODEL# CO-3

Microphones

X-Connector Compatibility

MODEL #		-XAK	-XAT	-XATcH	-XLE	-XMP	-XSE	-XSH	-XSK	-XTX
TERMINATION		3-pin mini	locking 4-pin Hirose	locking 4-pin Hirose	5-pin mini	4-pin mini XLR locking ring	3.5mm locking	4-pin mini	Lemo-style 3-pin	4-pin mini
WIRELESS BRAND		AKG, Audix	Audio Technica	Audio Technica cH-style	Lectrosonics	MiPro, Beyerdynamic Opus & TG Black switch	Sennheiser	Shure, Line 6, JTS, Trantec, Carvin & Beyerdynamic TG Gray switch	Sennheiser SK, Zaxcom, Wisycom & Shure URIM	Telex
CONFIDENCE	CO2-8WL	●	●	●	●	●	●	●	●	●
	CO2-8WLp	●	●	●	●	●	●	●	●	●
	CO2-8WD	●	●	●	●	●	●	●	●	●
	CX2-8L	●	●	●	●	●	●	●	●	●
	CX2-8D	●	●	●	●	●	●	●	●	●
EMBRACE	EO-8WL	●	●	●	●	●	●	●	●	●
	EO2-8WL	●	●	●	●	●	●	●	●	●
SERIES8	CO-8WL	●	●	●	●	●	●	●	●	●
	CO-8WS	●	●	●	●	●	●	●	●	●
	CO-8WD	●	●	●	●	●	●	●	●	●
	CR-8L	●	●	●	●	●	●	●	●	●
	CR-8S	●	●	●	●	●	●	●	●	●
	CR-8D	●	●	●	●	●	●	●	●	●

Microphones

Hardwired Options

World's First In-Ear Audio Headsets

Production and camera crews everywhere from sports to space are turning down the volume, and turning up their in-ear protection and audio clarity.

Close-up of a person wearing a headset and glasses, seated in a control room with computer monitors in the background (no visible text or symbols)

Kevin B. Hart Production Manager

Profile view of a person wearing a headset and jacket, outdoors under clear sky (no visible text or symbols)

Carolina Panthers Panthervision Camera Team

Profile view of a person wearing earphones and glasses, viewed from behind in an indoor arena with crowd (no visible text or symbols)

Michael Weinman, Tampa Rays In-game Producer

Close-up portrait of a man wearing glasses and a headset (no visible text or symbols)

Jared Olson, Elevation Church Production Director

Close-up portrait of a man wearing a headset, focused on the ear (no visible text or symbols)

Matt Jones, Ed Sheeran + Tour Lighting Director

POINT-SOURCEAUDIO.COM

As production manager, Olson says the team has to know he is always available, so that's why he wears the (CM-i) headset the entire day.

Techs at Elevation Church Go "All in"

A worthwhile Investment of "In-Ear" Headsets

Jared Olson is production director at Elevation's Ballantyne Campus. Olson says, "I wear mine for 8-10 hours a day every Saturday and Sunday. I've had the same headset for four years with no problems. Any production I do, I do with this headset. I wear glasses and any muff-style headset gives me a headache." Olson continues, "Most of the techs have custom in-ear molds and you can easily replace the stock or standard earbuds with your in-ear molds. It's even more comfortable, and also provides an added measure of isolation. Olson wears the headset listening to rehearsals, front-of-house mixes or the streaming mix, as well as for conducting party line communication with camera operators, graphics, the stage, the band—the full production team.

"When I first used the CM-i3 headset, it was transformational. . . ."

Close-up portrait of a woman wearing a headset (no visible text or symbols)

Melissa Ward has used the CM-i3 for a number of years in her role as Elevation Church's Live Performance Director.

Mike Mitchell was the first member of the Elevation team to buy the CM-i3 back in 2016. "When I first used the CM-i3 headset, it was transformational," says Mitchell. "The ability to hear better and protect my hearing at the same time has improved the way I approach my role in the production process.

AUDIO headsets

U.S. Pat 9,271,065

NEW DEESS CONN!

FEATURES DEUTACHABLE ARPHODENSES

CM-i5 | CM-i3

IN -EAR AUDIO HEADSETS

NEW DESCONN! Earphones detach, making customization with personal in-ear monitors that much easier!

CM-i3 Dynamic microphone

CM-i5 Condenser microphone

EM-X Detachable earbuds

POINT-SOURCEAUDIO.COM

Mi

AUDIO headsets

U.S. Pat: 9,271,065

Close-up of a black audio headset with earbuds and connector, labeled 'NEW! CM-Is Condenser Element' (no other text or symbols visible)

Close-up of a black adjustable microphone with earbuds and connector (no text or symbols visible on device body)

SPECIFICATIONS

CM-i5

CM-i3

Earphone Specifications

Speaker type: Single driver

Sensitivity: 96dB SPL@1VRMS (at 1 kHz)

Impedance: 16Ω

Color: Transparent gray using with gray cable

Cable length (total): 1.2 Meters

L/R cable: 50cm

Input connector: 3.5mm

Transducer housing: Molded plastic with male MMCX connector

Accessories: 3 sizes of eartips

Microphone Specifications

Directional Characteristics: Cardioid Noise-Cancelling

CM-i5

Back-Electret Condenser

(requires bias power)

Sensitivity: -47dB 1V/Pa

Frequency: 100Hz - 10kHz

Impedance: 1500Ω

Cable length (total): 4 Feet (1.2 Meters)

CM-i3

Dynamic

(self-powered)

Sensitivity: -83dB 1V/Pa

Frequency: 200Hz - 10kHz

Impedance: 200Ω

Cable length (total): 4 Feet

(1.2 Meters)

CMi

AUDIO headsets

NEW!

P US IS - F O - T A D K - T A L K

CM-PTT-M1

Compatible with all CM-i audio headsets

The CM-PTT combines your intercom system and a Motorola™ portable two-way radio on a single CM-i headset. No more fumbling between two discrete systems or removing your headset to use a radio. Simply engage the push-to-talk to switch from comms to radio and back.

Close-up of a black circular sensor or optical component with a coiled cable, no visible text or symbols.

• Convenient plug-and-play; no setup required!
• Compatible with most comms systems and Motorola™ radios using 2-pin plug connector
  • Active listening on both systems
  • Large push-to-talk button
• Cable length keeps both both packs comfortably separated

Close-up of two black and metallic audio/video connectors with metal leads, no visible text or symbols

POINT source

Audio Headset Accessories

Comms

NEW
DESIGN!N!

Close-up of a pair of earbuds with metallic clamps and earments, no visible text or symbols

EM-X

Replacement earphones terminated with 3.5mm TRRS mini connector for the CM-iX3 and CM-iX5

3 sizes of eartips for EM-X earphones included

Black backpack with visible straps and front pocket (no text or symbols)

CM-PCH

Intercom headset travel pouch. Rugged all-purpose 6-pocket pouch with adjustable shoulder strap. Color: Black

ADP-4M×5M

Adapter cable with 4-pin male XLR to 5-pin male stereo XLR

ADP-5Fx4F

Adapter cable with 5-pin female XLR to 4-pin female XLR

ADP-4MxPH

Adapter cable with 4-pin male XLR to male 3.5mm TRRS

ADP-5FxPH

Adapter cable with 5-pin female XLR to male 3.5mm TRRS

ADP-PHx4F

Adapter cable with female 3.5mm TRRS to 4-pin female XLR

ADP-PHx5M

Adapter cable with female 3.5mm TRRS to 5-pin male mono XLR

Expandable coiled cable - 2 ft. retracted /10 ft. extended:

CM-EXT-4

4-pin male XLR - 4 pin female XLR CM-EXT-5

5-pin male XLR - 5-pin female XLR

CM-CSE

Headset storage case. Custom designed case for optimum protection. Color: Orange

Orange USB flash drive case with spiral logo (no text or symbols visible)

CM-WSN-5

Windscreen for CM-i5

CM-WSN

Windscreen for CM-i3

CM-BCP

Belt clip for XLR connector

CM-HSi

Headband Sizer

Close-up of a hand holding a black circular object with a cable, next to a black square container (no text or symbols visible)

Interior view of a black plastic case containing a circular device with metallic components (no visible text or symbols)

Orange you glad you have a custom case?

Close-up of a series of brown curved conductors or wires against a plain white background (no text or symbols visible)

Audio Precision That Speaks for Itself

POINT-SOURCEAUDIO.COM

Product specifications subject to change without notice.

© 2020 Point Source Audio
