Product Type	OEM Radio Integration Interface
Model	LocPro Advanced LPA1.2
Brand	PAC
Compatible Vehicles	2019+ RAM 1500, 2019+ RAM 2500/3500, Jeep Cherokee, Chrysler Pacifica, 2015-2016 Grand Cherokee
Number of Channels	4 (Front L/R, Rear L/R)
Wire Harness Included	Yes, with inline fuse (remove before install)
Power Input	12V DC (Constant + Yellow, Ground Black, ACC/Rem Red)
Turn-On Method	ACC wire or DC Offset if no ACC
Remote Output	Blue/White wire for aftermarket amplifier turn-on
Speaker Level Inputs	Yes, via harness (Front/Rear +/-)
RCA Outputs	Yes (for aftermarket amplifier)
OEM System Compatibility	Non-Amplified OEM systems only
ANC Identification	ANC unit is small/silver with 2 plugs; Amplifier is larger/black with 3 plugs
Installation Difficulty	Moderate (some harness cutting required for 4-channel amp)
Fuse Rating	Inline fuse (amperage not specified, typical 10-15A)
Dimensions (Approx.)	2.5 x 4 x 1 inches
Weight (Approx.)	0.5 lbs
Operating Temperature	-20°C to 85°C
Certifications	Designed for OEM integration, meets industry standards
Warranty	Limited lifetime (manufacturer)

Frequently Asked Questions - LocPro Advanced LPA1.2 PAC

What is the PAC LocPro Advanced LPA1.2?

It is an OEM radio integration interface that allows you to connect an aftermarket amplifier to a factory non-amplified audio system.

Does the harness include a fuse?

Yes, the harness comes with an inline fuse. Remove it before installation and reinsert it once all connections are complete.

What if my vehicle does not have an ACC (accessory) wire?

If your vehicle lacks an ACC source, the harness will not have a red wire. The LPA will turn on via DC offset from the speaker outputs and will also provide a remote output.

Can I use this interface with an amplified OEM system?

No, this harness is designed to work only with OEM non-amplified systems.

How do I identify the ANC module vs the amplifier in my vehicle?

The amplifier is larger and black with three plugs. The ANC module is small and silver with two plugs.

Where is the amplifier/ANC located in a 2019+ RAM 1500?

The amplifier or ANC module is located under the driver dash.

Do I need to cut the harness for a mono amplifier installation?

No, for a mono amplifier installation, do not cut the harness. Connect the wires as shown in the example installation diagram.

What wire colors are used for the front right speaker?

Front right positive is gray and front right negative is gray/black.

How many channels does the LPA1.2 support?

The LPA1.2 supports 4 channels: front left, front right, rear left, and rear right.

Can I use the remote output to turn on multiple amplifiers?

Yes, the blue/white wire provides a +12V remote turn-on signal that can be used to trigger aftermarket amplifiers.

USER MANUAL LocPro Advanced LPA1.2 PAC

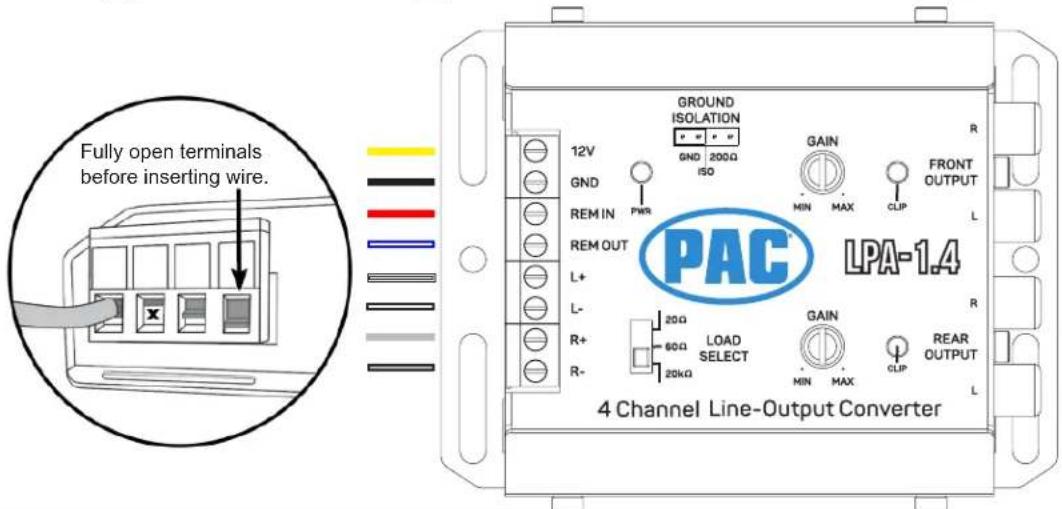

Wiring Connection Chart (All Models)

MODELS:
• LPA-E4
• LPA2.4 / LPA2.2
• LPA1.4 / LPA1.2

Important Note: This harness is provided with a inline fuse installed. Please remove prior to install and reinsert once finished.

If your vehicle does not provide ACC source your harness will not have a "RED" wire to connect.

It will use DC Offset to turn on as well as trigger the "REM OUT" on the LPA. On LPA-E4 there will be a jumper that you can move based on your application.

This harness is designed to work on OEM NON-AMPLIFIED systems.

Connect the RED BUTT Connector to the aftermarket system turn on for your amplifiers.

Wire Color	Function
Yellow	Constant 12V +
Black	Ground
Red	ACC / Rem Input
Blue/White	Amp Turn On +
White	Front Left +
White/Black	Front Left -
Gray	Front Right +
Gray/Black	Front Right -
Green	Rear Left +
Green/Black	Rear Left -
Purple	Rear Right +
Purple/Black	Rear Right -

Example Installation - 4-Channel Amplifier - (HARNESS CUT REQUIRED)

Example Installation - Mono Amplifier - (HARNESS CUT NOT REQUIRED)


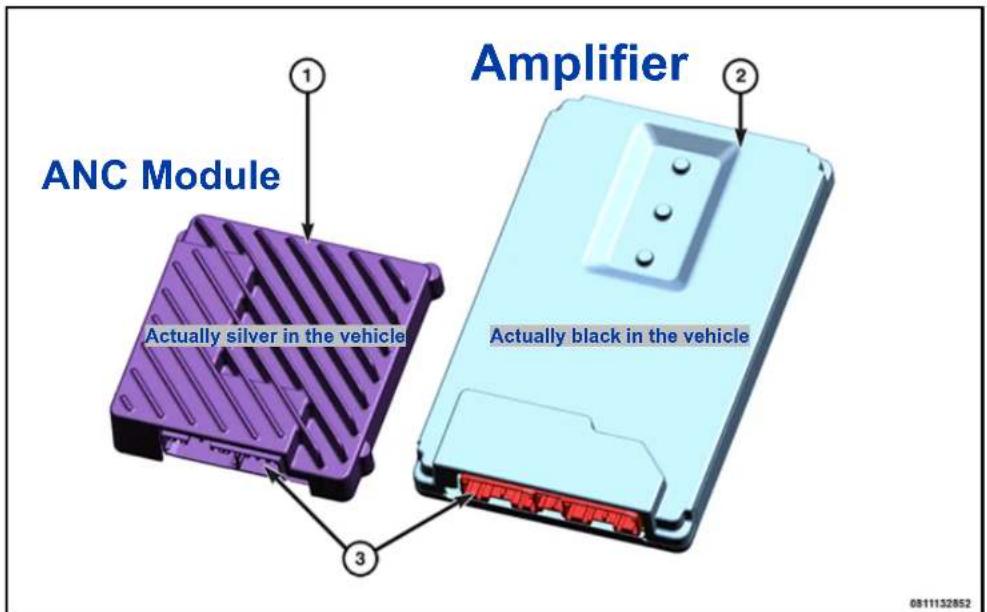

ANC vs Amplifier

©2018 AAMP Global • All Rights Reserved.

• Amp is larger/Black
  • ANC is small/Silver
• Amp has 3 plugs
  • ANC has 2 plugs

ANC / Amp Location 2019+ RAM 1500

ANC / Amp Location 2019+ RAM 2500/3500

Technical line drawing of a car's rear window and dashboard, showing structural components and a green component labeled '1' (no text or symbols beyond label)

Under Driver Dash

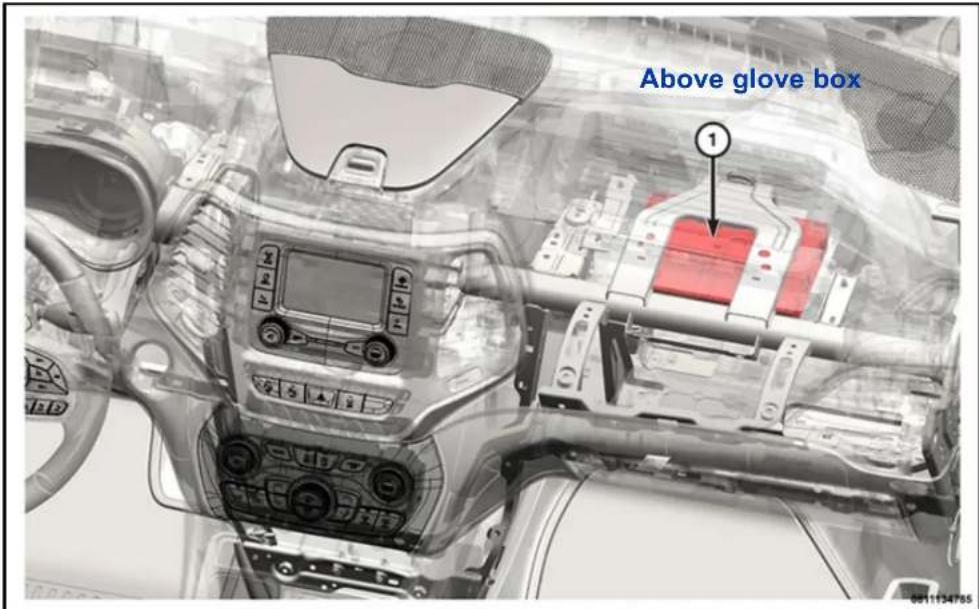

ANC / Amp Location Jeep Cherokee

©2018 AAMP Global • All Pights Reserved.

ANC / Amp Location Chrysler Pacifica

ANC Location 2015-2016 Grand Cherokee

Behind Right Quarter Trim Panel
