95-7383 - Car Radio Metra - Free user manual and instructions

Product Type	Car Radio Installation Kit
Model	95-7383
Brand	Metra
Compatible Vehicles	Hyundai Sonata 2018 and up
Radio Provision	ISO DDIN (Double DIN)
Finish	Painted matte black and silver
Kit Components	Radio trim panel A, Radio trim panel B, Radio brackets
Dimensions (approximate)	7 x 4 inches (180 x 100 mm) for radio opening
Weight (approximate)	0.5 lbs (0.23 kg)
Material	Plastic and metal brackets
Installation Tools Required	Panel removal tool, Phillips screwdriver, cutting tool
Wiring Harness	Required (sold separately, visit metraonline.com)
Antenna Adapter	Required (sold separately, visit metraonline.com)
Safety Precautions	Disconnect battery before installation; do not remove radio with ignition on
Maintenance	Clean with soft, dry cloth
Spare Parts Availability	Contact Metra or authorized dealers
Repairability	Non-repairable; replace components if damaged
Warranty	Limited lifetime warranty (subject to Metra policy)
Technical Support	1-800-253-TECH (USA)

Frequently Asked Questions - 95-7383 Metra

What vehicles is the Metra 95-7383 kit compatible with?

This kit is designed for Hyundai Sonata 2018 and up. Always check metraonline.com for the latest vehicle applications.

What type of radio does this kit accommodate?

It fits an ISO DDIN (Double DIN) radio provision, meaning it can mount a standard double-DIN aftermarket radio.

What tools are required for installation?

You will need a panel removal tool, a Phillips screwdriver, and a cutting tool (e.g., Dremel or file) to modify the factory panel as per instructions.

Does the kit include wiring harness or antenna adapter?

No, the wiring harness and antenna adapter are sold separately. Visit metraonline.com for compatible options.

How do I remove the factory radio?

First, disconnect the battery. Then remove trim panels and screws as detailed in the dash disassembly section. Do not remove the radio with the ignition on or while the vehicle is running.

Will this kit work with aftermarket radios that have a large screen?

Yes, the kit provides an ISO DDIN opening which accommodates most double-DIN aftermarket radios, including those with large screens, as long as they fit the standard DIN dimensions.

Do I need to modify the factory dash panel?

Yes, the factory panel must be permanently modified by cutting the opening as shown in Figure B of the kit preparation instructions to allow room for the new radio trim panel.

What is the finish of the kit?

The kit components are painted matte black and silver to match many factory dash trims.

How do I contact Metra technical support?

Call 1-800-253-TECH (USA). Before calling, review the instructions and have the vehicle apart ready for troubleshooting.

What should I do if a part is missing or damaged?

Contact Metra or the retailer where you purchased the kit. The kit includes a limited lifetime warranty; refer to Metra's policy for replacement.

USER MANUAL 95-7383 Metra

Interior view of a car dashboard with a digital display and control panel (no visible text or symbols)

Hyundai Sonata 2018-up\*

*Visit NetraOnline.com for up-to-date vehicle specific applications.

KIT FEATURES

• ISO DDIN radio provision
- Painted matte black and silver

KIT COMPONENTS

• A) Radio trim panel A • B) Radio trim panel B • C) Radio brackets

AB

Simple line drawing of a rectangular frame with rounded corners and a small protrusion at the bottom (no text or symbols)

The image is too blurry to recognize any text content.

Technical line drawing of a rectangular frame with mounting holes and side brackets (no text or symbols)

The image is too blurry to recognize any text content.

TABLE OF CONTENTS

Dash Disassembly 2-3

Kit Preparation 4

Kit Assembly 5

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: Please visit metraonline.com for wiring harness options

Antenna Adapter: Please visit metraonline.com for antenna adapter options

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• Cutting tool

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY

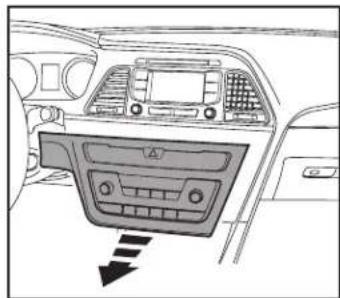

1. Unsnap and remove the climate/hazard/clock panel. (Figure A)
2. Unsnap and remove the trim panel on the drivers side of the dash and then remove (2) Phillips screws. (Figure B)

Interior view of a car dashboard with air vent and control panel (no text or symbols visible)

(Figure A) (Figure C)

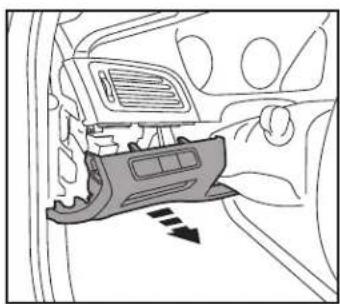

1. Unclip and remove the panel below the left a/c vent, then remove (1) Phillips screw. (Figure C)
2. Unsnap the knee panel from under the steering wheel. (no need to completely remove this panel). (Figure D)

Continued on the next page

Interior view of a car showing the dashboard and air vent (no text or symbols visible)

Interior view of a car showing the dashboard and seat area with a directional arrow indicating movement (no text or symbols present)

Interior view of a car showing dashboard and steering wheel (no text or symbols)

(Figure B) (Figure D)

DASH DISASSEMBLY (CONT.)

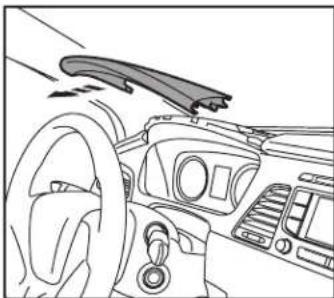

1. Unsnap and remove the panel above the instrument cluster. (Figure D)
2. Unsnap the top half of the steering column cover. (Figure E)
3. Remove (4) screws to remove the radio panel; (2) under the radio section, and (2) above the instrument cluster. (Figure F)

Note: The top of the steering column cover will come with the large panel.

1. Remove (4) Phillips screws securing the radio and then remove the radio.

Interior view of a car dashboard and steering wheel (no text or symbols visible)

Interior view of a vehicle showing dashboard and engine compartment with no visible text or symbols

Interior view of a car showing dashboard and engine compartment with directional arrows indicating movement (no text or symbols)

(Figure F)(Figure E)(Figure D)

Continue to Kit Preparation

KIT PREPARATION

Attention! The factory panel will be permanently modified after following these steps.

1. Remove (4) Phillips screws securing the bottom of the vents, then unsnap and remove them.
2. Remove (7) Phillips screws securing the radio trim panel to the radio panel, then remove the trim panel. (Figure A)
3. Cut the opening as shown (front of dash panel shown) to allow room for the new radio trim panel. (Figure B)
4. Attach the radio trim panels to the radio panel, then secure with the (7) factory screws. (Figure C)

Continue to Kit Assembly

Technical line drawing of a vehicle front panel with no visible text or symbols

(Figure A)

(Figure B)

Technical line drawing of a car interior frame with structural components and directional arrows indicating movement (no text or symbols)

(Figure C)

KIT ASSEMBLY

ISO DDIN radio provision

1. Secure the radio to the radio brackets using the screws supplied with the radio. (Figure A)
2. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation.
3. Secure the completed assembly into the dash using the factory screws.
4. Reassemble the dash in reverse order of disassembly to complete the installation.

Technical line drawing of an electronic device casing with internal components and mounting holes (no text or symbols)

(Figure A)

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by supplying in the most recognized and supported

mobile electronics school in our industry.

Log onto www.installennstitute.com or call

800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
