Product Type	Car Radio Installation Kit
Brand	Metra
Model	99-3023HG
Color	Painted High Gloss Black
Compatibility	Chevrolet Trax 2017-up (visit MetraOnline.com for latest)
Radio Provision	ISO DIN with Pocket
Kit Components	Radio Trim Panel, Radio Housing, Radio Brackets, Pocket, (8) #8 x 3/8" Phillips Screws, (4) Panel Clips
Required Tools	Panel Removal Tool, Phillips Screwdriver, 9/32" Socket Wrench, Cutting Tool
Wiring Harness (sold separately)	Not specified (check Metra or Axxess)
Antenna Adapter (sold separately)	40-EU55
Steering Wheel Control Interface (sold separately)	ASWC-1
Installation Difficulty	Moderate (requires cutting sub-dash)
Warranty	Standard Metra warranty (check documentation)
Country of Origin	Not specified
Material	Plastic (high gloss painted)
Package Weight	Approx. 1.5 lbs (estimated)
Package Dimensions	Approx. 10 x 8 x 4 inches (estimated)
Safety Notes	Connect all accessories before cycling ignition; do not remove factory radio with key on
Maintenance	Clean with damp cloth; avoid harsh chemicals
Spare Parts Availability	Contact Metra or authorized dealers

Frequently Asked Questions - 99-3023HG Metra

What vehicles is the Metra 99-3023HG compatible with?

The kit is designed for Chevrolet Trax models from 2017 and later. Always check MetraOnline.com for the most up-to-date vehicle applications.

Does the kit include a wiring harness?

No, the wiring harness is sold separately. Metra recommends using the proper mating adapter from Metra and/or Axxess. The antenna adapter required is 40-EU55.

What tools are needed for installation?

You will need a panel removal tool, a Phillips screwdriver, a 9/32" socket wrench, and a cutting tool to modify the sub-dash.

Is cutting required during installation?

Yes, the sub-dash must be cut to accommodate the aftermarket radio. After cutting, the factory radio cannot be reinstalled. Proceed with caution.

Can I retain steering wheel controls?

Yes, if you purchase the ASWC-1 steering wheel control interface (sold separately), you can retain factory steering wheel audio controls.

What is the finish of the trim panel?

The radio trim panel is painted high gloss black to match many factory interiors.

Does the kit come with installation instructions?

Yes, the kit includes detailed installation instructions. You can also download the manual from MetraOnline.com or other free manual websites.

Can I install a double-DIN radio?

The kit provides ISO DIN radio provision with pocket, which means it is designed for single-DIN radios. For double-DIN, you would need a different kit.

How many screws are included?

The kit includes (8) #8 x 3/8" Phillips screws for attaching the pocket and radio assembly.

What should I do if I have installation difficulties?

Call Metra Tech Support at 1-800-253-TECH before returning the product. Have the vehicle apart and ready for troubleshooting.

USER MANUAL 99-3023HG Metra

Chevrolet Trax 2017-up*

*Visit NetraOnline.com for up-to-date vehicle specific applications.

KIT FEATURES

• ISO DIN radio provision with pocket
- Painted high gloss black

KIT COMPONENTS

• A) Radio trim panel • B) Radio housing • C) Radio brackets • D) Pocket • E) (8) #8 x 3/8" Phillips screws • F) (4) Panel clips

A

•

The image is too blurry to recognize any text content.

-

E

F

TABLE OF CONTENTS

Dash Disassembly 2

Kit Preparation 2

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: TBA

Antenna Adapter: 40-EU55

Steering Wheel Control Interface: ASWC-1

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench • Cutting tool

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY KIT PREPA

1. Unclip and remove the dash panel surrounding the radio. (Figure A)
2. Unclip and remove the radio trim. (Figure B)
3. Remove (2) 9/32" screws securing the radio, then pull down and back to release the radio. Unplug the connectors to remove the radio.
4. Unclip and slide off the plastic trim piece on the top of the radio. (Figure C)
5. Remove (2) 9/32" screws securing each a/c vent, then unclip and remove the vents

Continue to Kit Preparation

Please visit Metraonline.com for Dash Disassembly illustrations.

TION

Attention! After the sub-dash has been cut, the factory radio will no longer be able to be installed.

1. Cut the sub-dash to allow room for the aftermarket radio. (Figure A)

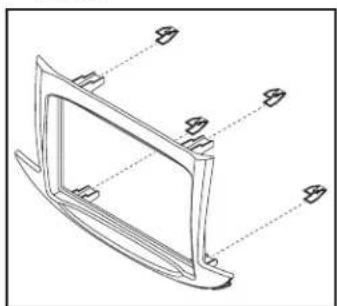

2. Attach (4) panel clips provided with the kit onto the radio trim panel. (Figure B)

Continue to Kit Assembly

(Figure A)

(Figure B)

KIT ASSEMBLY

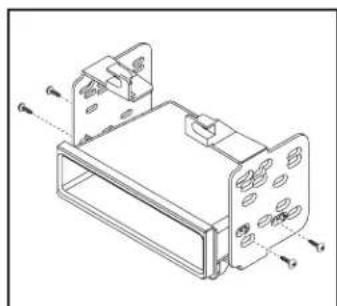

1. Attach the pocket to the radio brackets using the (4) #8 x 3/8" Phillips screws provided. (Figure A)
2. Remove the metal DIN sleeve and trim ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket assembly, then secure it using the screws supplied with the radio. (Figure B)

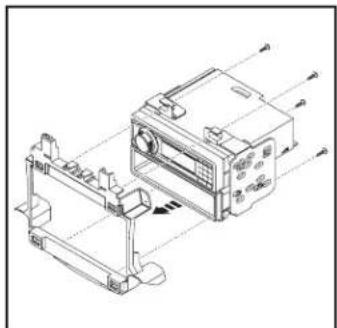

4. Secure the radio assembly to the radio housing using the (4) #8 x 3/8" Phillips screws provided. (Figure C)
5. Attach the plastic trim piece removed in dash disassembly to the top of the radio housing.

(Figure A)

(Figure B)

1. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess. Test the radio for proper operation.
2. Secure the completed radio assembly, and the a/c vents, to the dash using the factory screws.

a. Slide the radio assembly into the dash.
b. Wiggle the a/c vents in.
c. Secure the now complete assembly to the dash using the (6) factory 9/32" screws.
8. Reassemble the dash in reverse order of disassembly to complete the installation, using the 99-3023HG radio trim panel.

(Figure C)

Meta®

99-3023HG

INSTALLATION INSTRUCTIONS

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by supplying in the most recognized and supported

mobile electronics school in our industry.

Log onto www.installennstitute.com or call

800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
