USER MANUAL 99-7331 Metra

INSTALLATION INSTRUCTIONS FOR PART 99-7331

APPLICATIONS

KIA Amanti

2007-2009

99-7331

KIT FEATURES

• DIN Radio Provision
• ISO Mount Radio Provision

KIT COMPONENTS

Interior view of a car dashboard with air conditioner and control panel (no visible text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of two mechanical bracket components (no text or symbols)

Technical line drawing of a rectangular bracket with mounting holes (no text or symbols)

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

- Phillips Screwdriver - Socket set

Line drawings of four different screwdriver tools (no text or symbols)

TABLE OF CONTENTS

Dash Disassembly

- KIA Amanti 2007-2009 1,2

Kit Assembly

- DIN Radio Provision....3

- ISO Mount Radio Provision ....4

Final Assembly 5

*Note:

Refer also to the instructions included with the aftermarket radio.

INSTALLER INSTITUTE

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

KIA AMANTI 2007-2009

1 Disconnect the negative battery terminal to prevent an accidental short circuit.
2 Unclip the top half of the shift knob and remove the "C" clip securing the shifter. Pull up on shifter to remove. (Figure A)

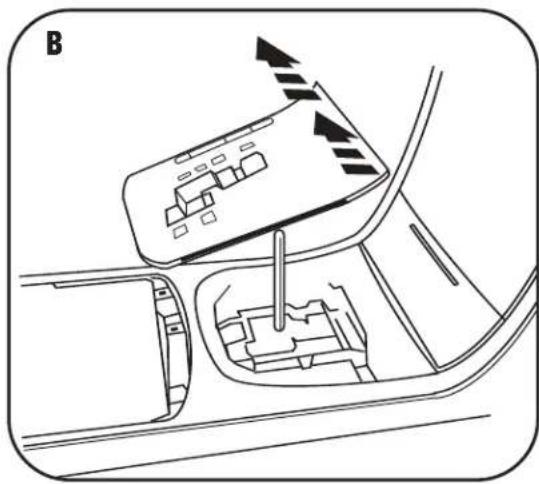

3 Unclip and remove the panel surrounding the shifter. (Figure B)

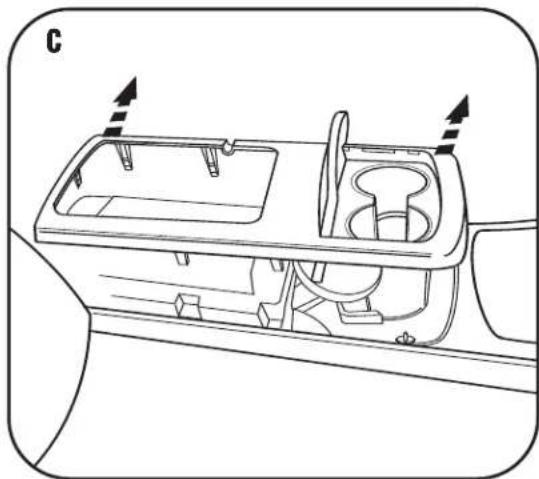

4 Unclip and remove top half of center console including the cup holders. (Figure C)
5 Open center console and remove screw cover in bottom. (Figure D)
6 Remove (2) 10 MM bolts securing compartment then unclip and remove the compartment. (Figure D)
Continue to kit assembly.

A 1 2 3

Diagram of a car interior showing a hand valve and control panel (no text or symbols)

Technical diagram of a car seatbelt switch mechanism (no text or labels)

Line drawing of a car interior showing dashboard, intake manifold, and exhaust pipe (no text or symbols)

KIA AMANTI 2007-2009

7 Unclip the rear trim panel from the center console including a/c vents. Unplug and remove the rear trim panel. (Figure E)
8 Remove (1) Phillips screw from each side at the rear of the center console. (Figure E)
9 Unclip the side panels from the front of the center console. It is not necessary to remove these panels. (Figure F)
10 Remove (4) Phillips screws securing center console then lift and slide the center console back out of the way. Note: You do not have to take the center console all the way out. (Figure G)
11 Remove (1) Phillips screw from each side panel then unclip and remove the side panels. (Figure H)
12 Remove (4) Phillips screws securing the radio. Unplug and remove the radio.
13 Unclip and remove the switches and/or switch covers along the top of the factory radio. (Retain switches and/or covers to be reinstalled in the radio housing.)

Continue to kit assembly.

Technical line drawing of a car gear shift lever mechanism (no text or symbols)

Diagram of a car interior showing airflow direction and component placement (no text or symbols)

Interior view of a car gear shift lever with directional arrows indicating motion (no text or symbols)

G

DIN RADIO PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

1 Snap the switches into the radio housing in the same location as removed from the factory radio. (Figure A)
2 Slide the DIN cage into the radio housing and secure by bending the metal locking tabs outward. (Figure B)
3 Slide the aftermarket radio into the cage until it snaps into place. (Figure C)
4 Snap the trim plate onto the front of the radio housing. (Figure C)

Continue to final assembly.

Technical line drawing of a mechanical component with internal compartments and mounting holes (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install an electrical component (no text or symbols visible)

Technical line drawing of a mechanical device with labeled components and directional arrows (no readable text or symbols)

ISO MOUNT RADIO PROVISION

*Note: Refer also to the instructions included with the aftermarket radio.

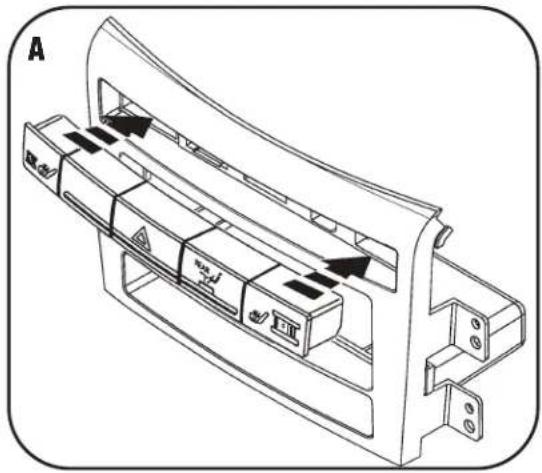

1 Snap the switches into the radio housing in the same location as removed from the factory radio. (Figure A)
2 Mount the ISO brackets to the radio using the screws supplied with the radio. (Figure B)
3 Slide the radio into the radio housing until the ISO brackets snap into place. (Figure C)
4 Snap the trim plate onto the front of the radio housing. (Figure C)
Continue to final assembly.

Technical line drawing of a mechanical component with internal compartments and mounting holes (no text or symbols)

Line drawing of a hand inserting a screw into a device casing (no text or symbols)

C RIGHT SIDE CLIP

FINAL ASSEMBLY

A B C D

(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape

1 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2 Re-connect the negative battery terminal and test the unit for proper operation.
3 Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Right Front (+) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12V Batt / Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Left Front (-). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Amp Turn-On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Amp Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Illumination. . . . . . . . . . . . . Orange Dimmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

*NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer's specifications.
