USER MANUAL 92-3005P Metra

Before starting, compare items on your invoice with items received. Carefully check through packaging material.

If an item is missing, please call:

Crutchfield at 1-888-955-6000

120 92-3005P

Chevrolet

Revision 09/18/03

Parts Supplied:

Isometric line drawing of a rectangular enclosure with multiple circular openings and mounting holes (no text or symbols)

Isometric line drawing of a trimplate component (no text or symbols)

Isometric line drawing of a support tray component (no text or symbols)

Technical line drawing of a mechanical bracket or mounting plate (no text or symbols)

Mounting Bracket

(4) 1/4" Hex Screws

(2) Studs

(2) 3/8" Nuts

Kit assembly instructions are on the following pages.

CRUTCHFIELD®

Copyright 2003 Crutchfield Corporation

Installation Kit

120 92-3005P

Chevrolet

DIN Receiver Assembly

1. Press posts on trimplate into holes on kit frame to snap parts together and secure from the rear with hex screws (Figure 1).
2. Use a utility knife to cut out shaft supports in trimplate to create a DIN opening (Figure 2).
3. Push clips on support tray into slots on rear of kit frame to secure (Figure 1).
4. Use pliers to break off all tabs on mounting bracket that are shown as shaded (Figure 3). The tabs labeled "B" should be the only tabs remaining.
5. Secure mounting bracket to bottom of kit frame with studs and nuts supplied (Figure 1).
6. Remove DIN sleeve from receiver and slide into opening in trimplate. Secure sleeve to trimplate by bending the securing tabs (Figure 4).
7. Slide receiver into sleeve/kit assembly.

Tools Required 3/8" & 1/4" Sockets Utility Knife Small Flat Blade Screwdriver Pliers

FIGURE 2 Shaft Supports Support Tray Trimplate Hex Screws Stud Kit Frame Mounting Bracket DIN Sleeve Nut FIGURE 1

FIGURE 3 Mounting Bracket "B" Tabs Break off shaded tabs FIGURE 4 Securing Tabs Bend tabs after sleeve is inside assembly.

CRUTCHFIELD®

Copyright 2003 Crutchfield Corporation

Installation Kit

120 92 -3005P

Chevrolet

Shaft Receiver Assembly

1. Press posts on trimplate into holes on kit frame to snap parts together and secure from rear with hex screws (Figure 1).
2. Push clips on support tray into slots on rear of kit frame to secure (Figure 1).
3. Use pliers to break off tabs on mounting bracket that are shown as shaded (Figure 2). The tabs labeled "B" should be the only tabs remaining.
4. Secure mounting bracket to bottom of kit assembly with studs and nuts supplied (Figure 1).
5. Choose the proper spacers (supplied with your order) to allow receiver nosepiece to extend 1/8" to 1/4" beyond face of trimplate (Figure 3).
6. Insert receiver shafts (with spacers in place) through openings in trimplate. Secure receiver and faceplate with shaftnuts supplied with receiver.
7. Attach control knobs.

FIGURE 1 Support Tray Spacers (supplied with your order) Hex Screws Kit Frame Mounting Bracket Nut Faceplate Shaftnuts Stud Control Knobs Trimplate

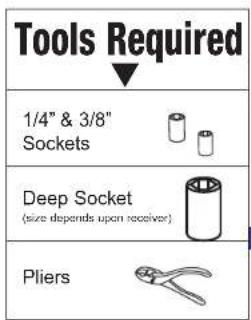

Tools Required 1/4" & 3/8" Sockets Deep Socket (size depends upon receiver) Pliers

FIGURE 2 Mounting Bracket "B" Tabs Break off shaded tabs

FIGURE 3 1/8" -1/4" Spacer
