Product Type	Invicta 3 Panelboard (Surface-mounted, enclosed)
Model	JN206BG
Rated Operational Voltage (Ue)	415 V AC, 50 Hz
Rated Insulation Voltage (Ui)	690 V AC
Rated Impulse Withstand Voltage (Uimp)	6 kV
Rated Current of Assembly (InA)	250 A (or lower based on incoming circuit rating)
Rated Short-time Withstand Current (Icw)	25 kA for 1 s
Rated Conditional Short-circuit Current (Icc)	25 kA
Number of Ways	6 (as per JN206B)
Dimensions (H x W x D)	1100 x 710 x 178 mm
Weight	45 kg
Degree of Protection	IP30 with door closed; IP2XC with door open and devices/blanks fitted
Mechanical Impact Protection	IK05
Pollution Degree	3
Form of Separation	Form 3b (with outgoing shrouds)
Incoming Device Options	MCCB or Isolator kits up to 250A (3 or 4 pole)
Outgoing Device Ratings	MCCB 16A - 125A
Torque for M8 Electrical Connections	13 Nm
Torque for Single Pole MCCB Connections	6.6 Nm
Installation	Wall-mounted, vertical only, indoor use
Warranty	24 months against defective material or manufacture
Intended Use	Not intended for operation by ordinary persons
Compliance	BS 7671, IEC 60364, Electricity at Work Regulations
Accessories	Blanking plates, digital meter packs, DIN rail boxes, spreader boxes, door kits

Frequently Asked Questions - JN206BG HAGER

What is the maximum incoming current rating for the JN206BG panelboard?

The panelboard is rated for 250 A incoming current, but the actual rating depends on the installed incomer kit and circuit protection.

What torque should be applied to M8 electrical connections?

All M8 electrical connections, including busbar and neutral links, must be tightened to 13 Nm.

Can the JN206BG be used outdoors?

No, this panelboard is designed for indoor use only.

What is the degree of protection when the door is open?

With the door open and all outgoing devices or blanks fitted, the protection is IP2XC.

What types of earthing systems are compatible?

The panelboard is suitable for TNC-S, TN-S, and TT systems when installed per BS 7671.

How do I achieve Form 3b separation?

Fit the dedicated outgoing terminal shrouds (e.g., HYA021H for x160 frame) and ensure all live parts are covered. A competent person must verify safety.

What is the warranty period for this panelboard?

Hager offers a 24-month warranty against defective material or manufacture from the date of purchase.

Which incomer kits are available for the JN2 series?

Available kits include MCCB incomer (125A or 250A, 3 or 4 pole), isolator incomer (250A), and direct connection kit (250A).

What is the rated diversity factor for a 6-way board?

For a 6-way board, the rated diversity factor (RDF) is 0.7 for continuously and simultaneously loaded circuits.

Can I install the panelboard horizontally?

No, the panelboard must be installed in the vertical plane only.

USER MANUAL JN206BG HAGER

Invicta 3 Panelboard

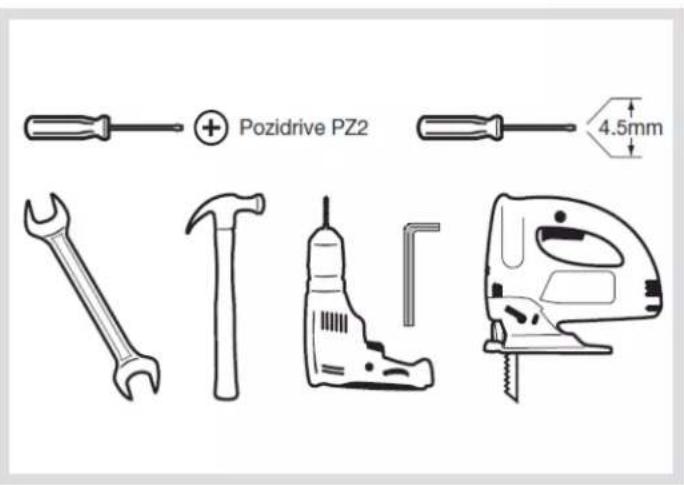

Installation instructions

All product(s) must be installed by a suitably competent electrician giving consideration to their intended use and in accordance with the current edition of BS 7671 (IET Wiring Regulations).

The Electricity at Work regulations and the Health and Safety at Work Act shall be complied with.

Only equipment and arrangements specified in Hager's technical documentation / catalogue shall be used

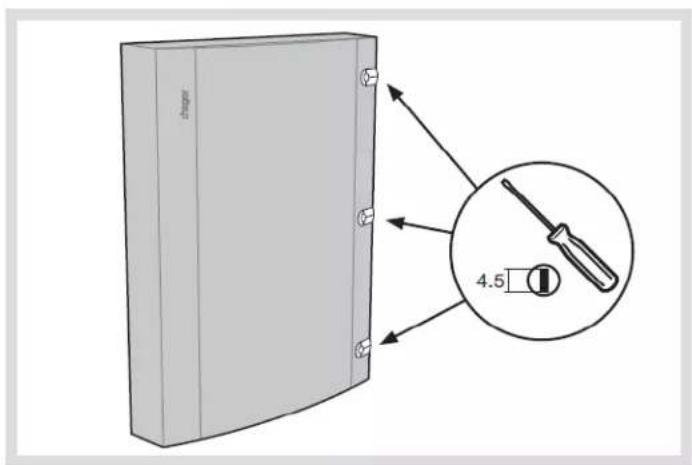

Install in the vertical plane only.

Notice:

To prevent potential overheating from loose connections the installer shall check connections are tightened to the torque levels stated in these instructions prior to energising this board.

This check should include factory made connections which may have loosened in transit or as a result of.

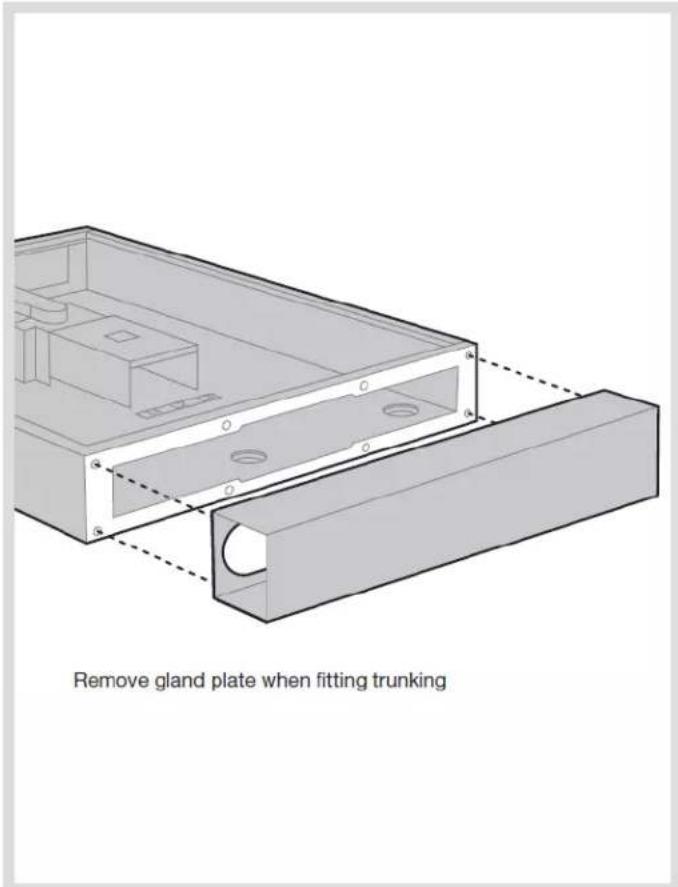

Illustration of an open cabinet with internal compartments and mounting holes (no text or symbols)

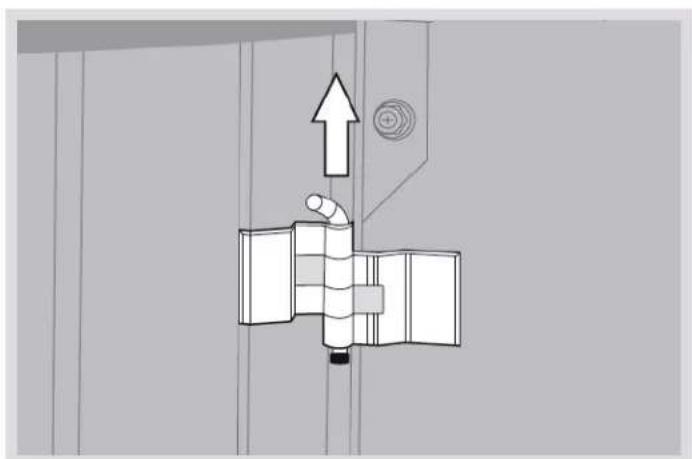

Diagram of a mechanical assembly with an upward arrow and circular component (no text or symbols)

ZD0695 issue 4a

JN2 3 Pole MCCB/MCS incomer kit

250A 3 pole incomer kit contains:

• 1 x 3 pole MCCB/MCS
- 3 x line extension links
• 6 phase link Allen key bolts and washers
• 2 x long MCCB fixing screws
• 3 x M8 120mm lugs

Ensure terminal shrouds are removed before fitting

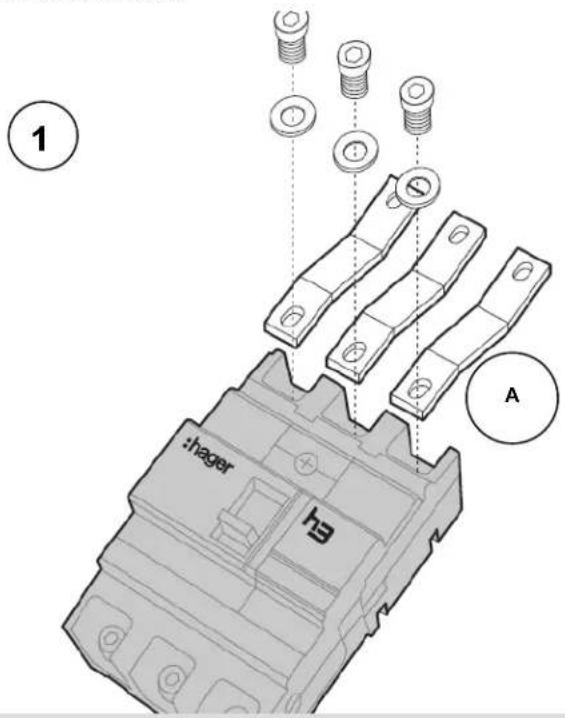

Fit the MCCB to the pan assembly with the fixings provided (do not tighten at this stage). Remove the 3 x M8 coach bolts from the L1, L2 and L3 busbar. Fit the extension links (note the orientation of the links (A). Fit the 3 x M8 Allen bolts (6mm Allen key). Do not tighten at this stage.

Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

Connect the extension links to the busbar with the 3 x M8 coach bolts. Hand tighten at this stage.

Now tighten the MCCB fixing screws to secure the MCCB to the pan assembly.

Once the MCCB is in place tighten all electrical M8 connections to 13Nm

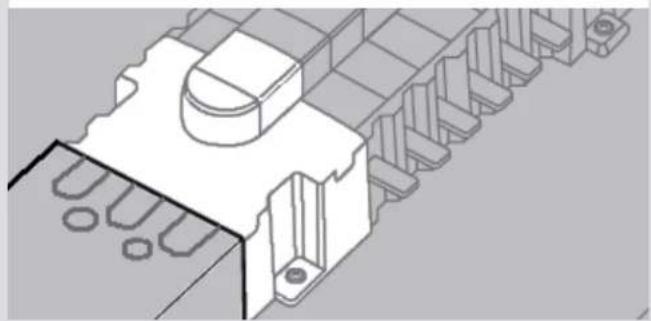

Fit the terminal shroud

Technical line drawing of a mechanical component with no visible text or symbols

ZD0695 issue 4a

JN2 4 Pole MCCB/MCS incomer kit

250A 4 pole incomer kit contains:

• 3 x line extension links
• 1 x neutral link
  • 8 phase link Allen key bolts and washers
• 2 x long MCCB fixing screws
• 4 x M8 120mm lugs

Ensure terminal shrouds are removed before fitting

Pure mechanical part diagram without any text, numbers, or symbols

13mm A/F
6mm HEX

Architectural cross-section diagram of a multi-story building facade with windows and doorways (no text or symbols)

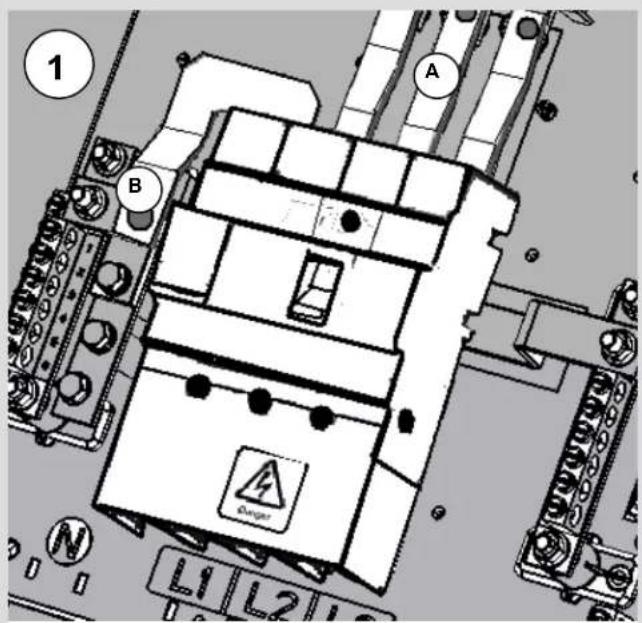

Fit the MCCB to the pan assembly with the fixings provided (do not tighten at this stage). Remove the 3 x M8 coach bolts from the L1, L2 and L3 busbar. Fit the extension links (note the orientation of the links (A). Fit the 3 x M8 Allen bolts (6mm Allen key). Do not tighten at this stage. Remove the neutral swing link from the board and fit the neutral connection between the MCCB and the neutral connection point (B).

Technical line drawing of a mechanical assembly with numbered components (U1–U3) and two mounting holes (no text or symbols)

Connect the extension links to the busbar with the 3 x M8 coach bolts and the neutral connect using 1 x M8 coach bolt. Hand tighten at this stage.

Now tighten the MCCB fixing screws to secure the MCCB to the pan assembly.

Once the MCCB is in place tighten all M8 electrical connections to 13Nm

Fit the terminal shroud

Isometric technical drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

ZD0695 issue 4a

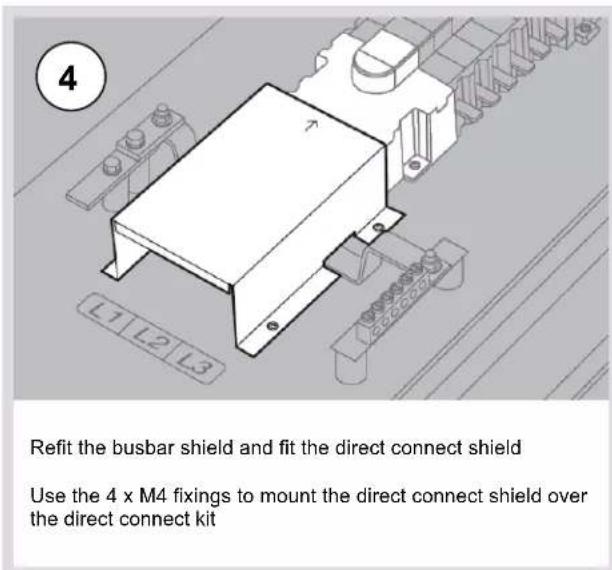

JN2 3 Pole Direct Connection incomer kit

Only equipment and arrangements specified in Hager's technical documentation / catalogue shall be used.

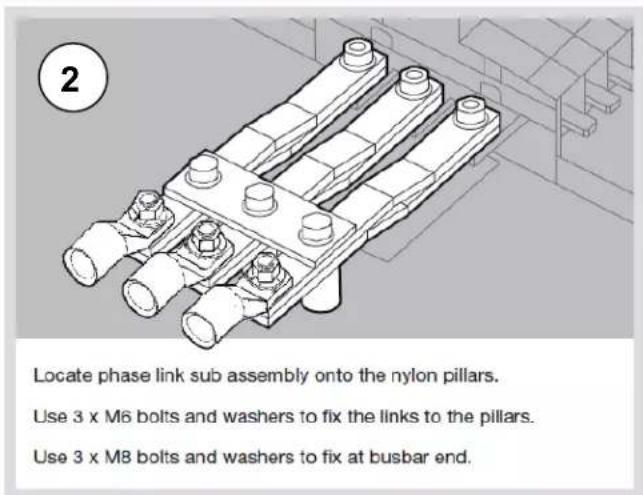

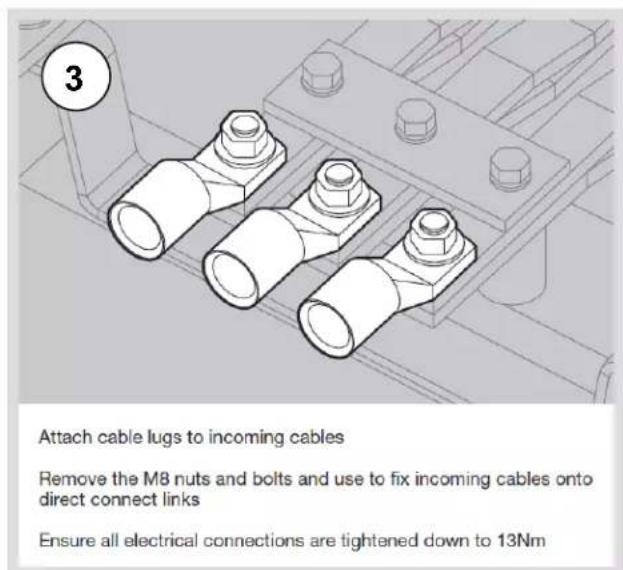

3D diagram showing a connector pin layout with an arrow pointing to a final connector (no text or symbols present)

Fitting Single Pole MCCBs

Single pole MCCB contains:

• 2 x Fixing bolts
• 2 x Spring washers
• 2 x Single fixing plates
• 2 x Double fixing plates

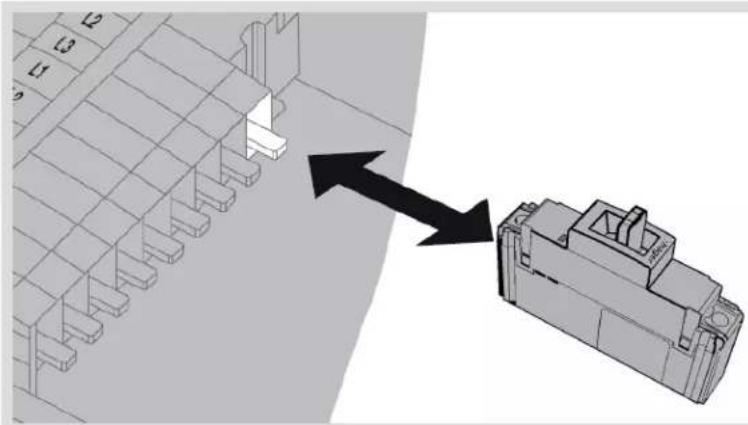

Mount the MCCB on to the busbar finger with the red trip button facing inwards. Fix the device to the pan assembly using the fixings provided

See single pole instructions for more information

Tighten electrical connections to 6.6Nm

Achieving Form 3b type 2 on x160 frame MCCB outgoing

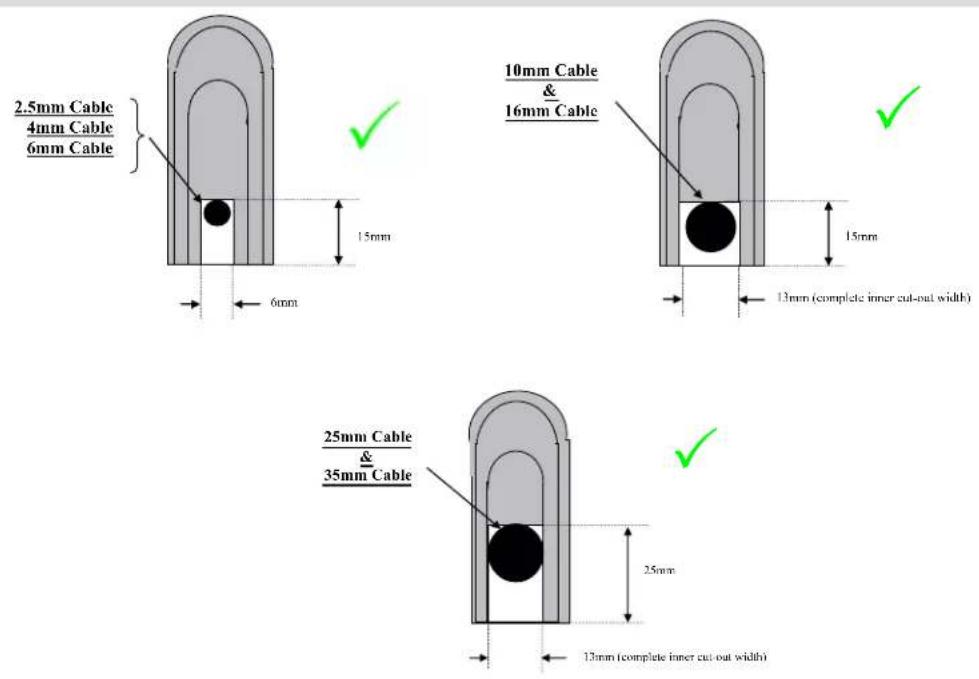

Using HYA021H Terminal cover: Outgoing Devices x160 Frame only (125A) Cut Out Dimensions are shown below to achieve IPXXB (Form 3b type 2)

Interface characteristics

Rated & operational voltage (U n / U e )

415V a.c. 50Hz

Rated insulation voltage (U)

690V a.c. 50Hz

Rated impulse withstand voltage ( U_imp ) 6kV

Rated current of the Assembly ( I_nA )

JN2xxx 250A ^1

^1 or rating of incoming circuit / incomer kit whichever is lower

Rated current of an Outgoing circuit ( I_nc )

MCCB 16A - 125A (marked rated current on device)

Rated short-time withstand current of the main busbars ( I_cw )

25kA/1 sec ^1 with equipment and arrangements specified in

Hager's technical documentation / catalogue

^1 Current limitation characteristics specified in Hager's technical documentation / catalogue

Rated conditional short-circuit current of the PSC-ASSEMBLY ( I_cc )

25kA ^1 with equipment and arrangements specified in Hager's technical documentation / catalogue

^1 Current limitation characteristics specified in Hager's technical documentation / catalogue

Protection against electric shock

PSC-ASSEMBLY shall be installed in an electrical system conforming to IEC 60364 / BS 7671

Rated diversity factor (RDF) / Values of assumed loading

4 way = 0.8

6 way - 8 way = 0.7

10 way - 16 way = 0.6

Note: RDF only applies to continuously and simultaneously loaded circuits.

Rated frequency (fn)

50 Hz

Pollution degree

3

Types of system earthing for which the PSC-ASSEMBLY is designed

TNC-S, TN-S and TT when installed in an electrical system conforming to BS 7671

Indoor use only

Stationary PSC-ASSEMBLY

Degree of protection

IP30 with Door Closed

IP2XC with Door Open and compliment of outgoing devices and or blanks fitted.

Intended use

Not intended to be operated by ordinary persons.

Electromagnetic compatibility (EMC) classification

EMC Environment B

External design

Wall-mounted, surface type, enclosed assembly

Mechanical impact protection

IK05

The type of construction

Fixed parts

The type of Electrical connections of functional units

FF = Fixed connections

Forms of separation

Form 3b when outgoing shrouds are fitted. A competent person must always complete a risk assessment and appropriate test to confirm that, the un-shrouded neutral within the Panelboard is not a hazardous live part. In particular, The Electricity at Work Regulations 1989 including any amendments must be complied with.

Designation H W D Weight (Kg)

JN204B(G) 950 710 178 40

JN206B(G) 1100 710 178 45

JN208B(G) 1100 710 178 47

JN212B(G) 1250 710 178 55

JN216B(G) 1550 710 178 60

Warranty

This distribution board is offered with a 24 month warranty against defective material or manufacture. If a warranty claim is necessary, please call the technical support number given at the bottom of the page and we will be pleased to help.

JN2 Incomer Kits

Cat Ref.	No of Poles	Description + Rated Current of Incoming Circuit
JN213BM	3	MCCB Incomer Kit 125A
JN214BM	4	MCCB Incomer Kit 125A
JN223BM	3	MCCB Incomer Kit 250A
JN224BM	4	MCCB Incomer Kit 250A
JN223BS	3	Isolator Incomer Kit 250A
JN224BS	4	Isolator Incomer Kit 250A
JN224BD	4	Direct Connection Kit 250A

JN2 Accessories

Cat Ref.	Description + Rated Current of Incoming Circuit
JN001BP	1P BLANKING PLATE 125A FRAME
JN2PLATE	JN ENDPLATE
JN201BA	MF Digital Meter Pack (Pulsed)
JN201MJ	MF Digital Meter Pack (Modbus)
JN201BE	SMALL DIN RAIL BOX, PLAIN DOOR
JN201BEG	SMALL DIN RAIL BOX, GLAZED DOOR
JN203BE	LARGE DIN RAIL BOX, PLAIN DOOR
JN203BEG	LARGE DIN RAIL BOX, GLAZED DOOR
JN205BE	SMALL SPREADER BOX (NO DOOR)
JN205DK	DOOR KIT FOR SMALL SPREADER BOX
JN206BE	LARGE SPREADER BOX (NO DOOR)
JN206DK	DOOR KIT FOR LARGE SPREADER BOX

Panel board circuit designation chart

D.B No:

Voltage:

Supplied From:

Supply cable mm:

Incoming Isolator:

Ze:

P.S.C.

CIR	AMPS	TYPE	CABLE MM	C.P.C MM	LOCATION DESCRIPTION

Hager Ltd.

Hortonwood 50

Telford

Shropshire

TF1 7FT

National Sales Hotline [phone]

National Tech Support helpline 01952 675689
