Product Type	In-Wall Subwoofer
Brand	NUVO
Model	NV-SUBIW8
Speaker Size	8" (200 mm) High-Output
Enclosure Type	Sealed
Frequency Response	35-200 Hz
Output Power (RMS)	125 W
Sensitivity	85 dB
Impedance	8 Ohm
Peak Power Consumption	250 W
Input Connector	Gold-Plated, Spring-Loaded Binding Posts
Mounting	In-Wall
Cutout Size	12" x 12" (310 mm x 310 mm) Square
Unit Dimensions (H x W x D)	13.7" x 13.7" x 4.2" (347.6 x 347.6 x 106.8 mm)
Unit Weight	13.01 lb (5.90 kg)
Shipping Dimensions (H x W x D)	18.3" x 18.3" x 10.2" (465 x 465 x 260 mm)
Shipping Weight	16.76 lb (7.60 kg)
Recommended Amplifier	NV-SUBAMP200-xx (up to 2 units)
Compatibility	Up to 2 units (parallel wiring) with one amp
Warranty	Lifetime (exceptions apply)
Humidity	70% non-condensing
Regulatory Approvals	RoHS
Languages Supported in Manual	English, French, German, Italian, Portuguese, Spanish

Frequently Asked Questions - NV-SUBIW8 NUVO

How do I install the NV-SUBIW8 subwoofer?

Use the cutout template to mark a 12"x12" square, cut the hole, run speaker wire, connect to the binding posts, insert the subwoofer, tighten mounting screws, and attach the magnetic grille.

Can I wire two NV-SUBIW8 subwoofers to one amplifier?

Yes, up to two identical subwoofers can be wired in parallel (+ to +, - to -) to a compatible amplifier like the NV-SUBAMP200-xx.

What amplifier should I use with the NV-SUBIW8?

The recommended amplifier is the NV-SUBAMP200-xx. You can connect up to two NV-SUBIW8 units to this amplifier.

What is the cutout size for the NV-SUBIW8?

The cutout is a 12" x 12" (310 mm x 310 mm) square. Use the provided template for precise marking.

Can the subwoofer grille be painted?

The manual does not specify painting instructions, but typical magnetic grilles can be painted. For best results, use a thin coat of spray paint designed for speaker grilles.

What is the warranty on the NV-SUBIW8?

NUVO subwoofers come with a lifetime warranty. Exceptions apply; see www.legrand.us for details.

What is the power handling of the NV-SUBIW8?

The RMS power handling is 125 watts, with a peak power consumption of 250 watts.

Can I install the NV-SUBIW8 in a ceiling?

No, the NV-SUBIW8 is designed for in-wall installation only. For in-ceiling, use the NV-SUBIC8 model.

What is the difference between NV-SUBIW8 and NV-SUBIWDUAL8?

The NV-SUBIW8 has a single 8" woofer, while the NV-SUBIWDUAL8 has dual 8" woofers for more output (250 W RMS, 88 dB sensitivity) and deeper bass (29 Hz).

How do I clean the subwoofer grille?

Carefully remove the magnetic grille and wipe with a dry or slightly damp cloth. Avoid using harsh chemicals or wetting the speaker cone.

USER MANUAL NV-SUBIW8 NUVO

Technical line drawings of three mechanical components with circular features, shown from front, top, and side views (no text or symbols)

Installation Instructions

1507316 Rev A 20190328

Part Numbers

NV-SUBIWDUAL8

NV-SUBIW8

NV-SUBIC8

This instruction sheet covers the installation of the Nuvo 8" In-Wall and In-Ceiling Subwoofers. These subwoofers deliver powerful bass using reinforced polymer woofers. Optimized for in-wall or in-ceiling installation, these subwoofers offer a variety of discreet placement options to provide superior sound quality for your audio system.

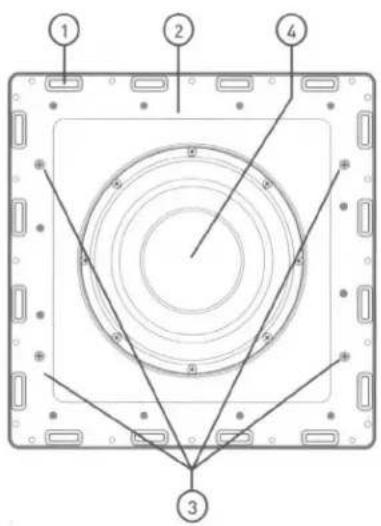

Subwoofer Features

1	Grill magnets

2

Baffle

3	Baffle mounting screws

4

Woofer

Fig. 1

Installation

STEP 1: Prepare the subwoofer placement locations. (Fig. 2 & Fig. 3)

a. Review the figure detailing the recommended placement for the subwoofers.

Note: Two subwoofers are not required for subwoofer placement. A second subwoofer is shown in a lighter color as a placement option only.

Recommended Placement

Fig. 2

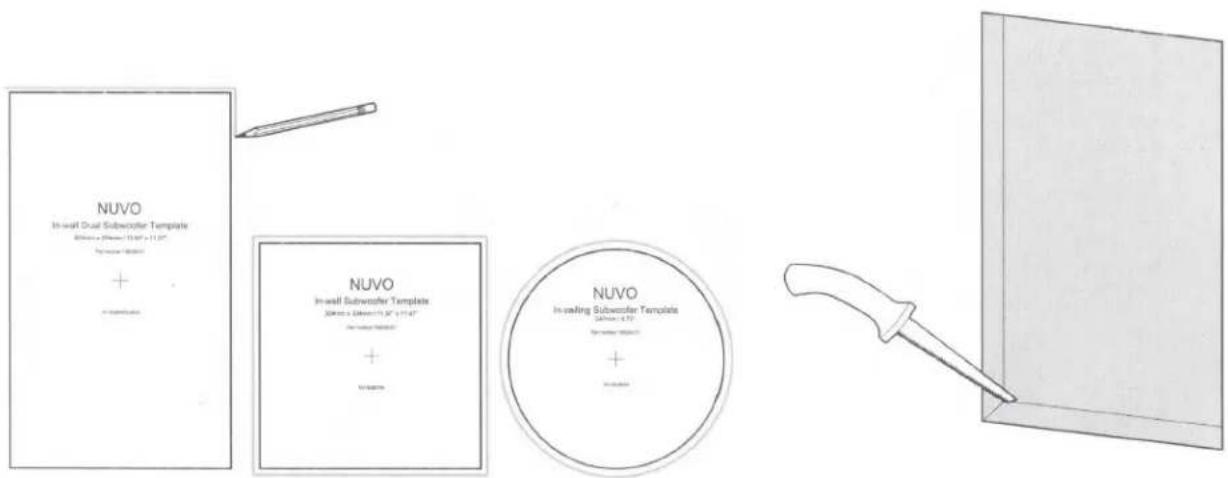

b. Place the subwoofer cutout template in the desired location.
c. Make sure the template is in alignment with any surrounding devices and does not interfere with lights or air vents.
d. Trace the outside of the template using a pencil. Remove the template.
e. Cut along the pencil line to clear the area for the subwoofer.

Fig. 3

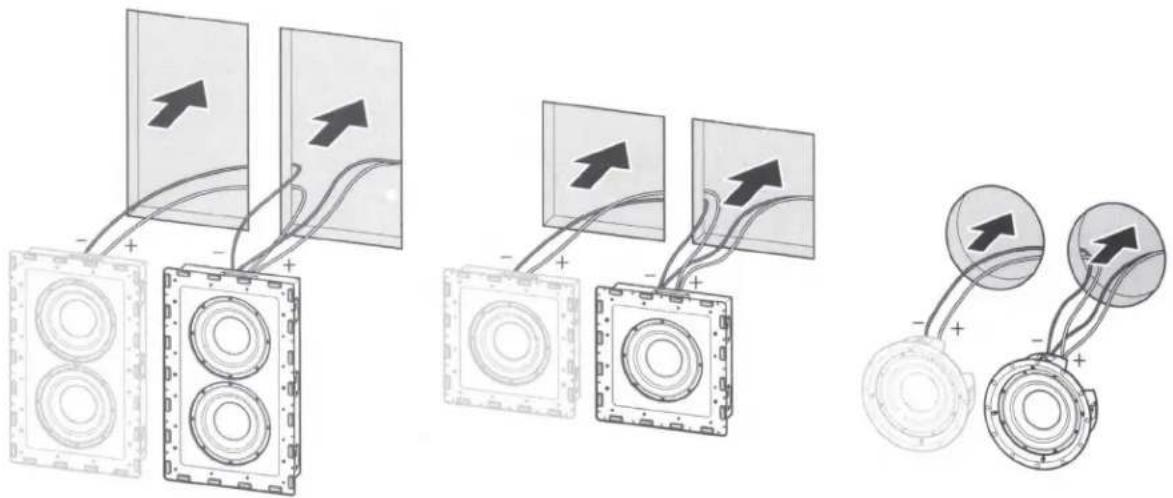

STEP 2: Wire the subwoofer. (Fig 4)

a. Strip 1/4 in. off of the end of the speaker wire.
b. Connect the speaker wire to the subwoofer.
c. Insert the subwoofer in the hole cutout, tucking the wires in carefully. Make sure not to pinch the wires.

Note: Identical models (up to a total of 2) can be wired together and connected to one amp. The models must be wired in parallel (+ with + and - with -). An optional second subwoofer is shown in a lighter color.

Fig. 4

Sub Model
Recommended Amplifier Model

NV-SUBIWDUAL8	Up to two may be connected to the NV-SUBAMP500-xx or the NV-SUBAMP200-xx
NV-SUBIW8	Up to two may be connected to the NV-SUBAMP200-xx
NV-SUBIC8	Up to two may be connected to the NV-SUBAMP100-xx

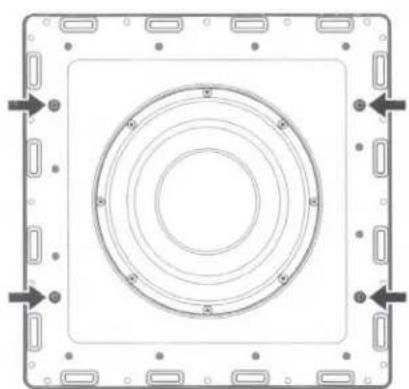

STEP 3: Finish the installation. (Fig 5)

a. Tighten the baffle mounting screws.
b. Place the grill on the speaker.

Technical diagram of a dual-circular mechanical component with mounting flanges and bolt holes (no text or symbols)

Technical diagram of a square mechanical component with concentric circular features and directional arrows (no text or symbols)

Circular mechanical component diagram with concentric rings and mounting holes (no text or symbols)

Fig. 5
STEP 4: Enjoy!

Subwoofer Specifications

	NV-SUBIC8	NV-SUBIW8	NV-SUBIWDUAL8
General Specifications
Humidity	70% non-condensing	70% non-condensing	70% non-condensing
Interoperability	Use up to two units with NV-SUBAMP100-xx	Use up to two units with NV-SUBAMP200-xx	Use up to two units with NV-SUBAMP500-xx
Mounting	In-Ceiling Cutout Round - 9.62" (245 mm)	In-Wall Square Cutout - 12" x 12" (310 mm x 310 mm)	In-Wall Rectangular Cutout 19.75" x 12" (510 mm x 310 mm)
High Level Input Connector	Gold-Plated, Spring-Loaded Binding Posts	Gold-Plated, Spring-Loaded Binding Posts	Gold-Plated, Spring-Loaded Binding Posts
Speaker Size	8" (200 mm) High-Output	8" (200 mm) High-Output	Dual 8" (200 mm) High-Output
Enclosure Type	Infinite Baffle	Sealed	Sealed
Output Power (watts)	125 W RMS	125 W RMS	250 W RMS
Sensitivity	85 dB	85 dB	88 dB
Frequency	35-200 Hz	35-200 Hz	29-200 Hz
Speaker Impedance	8 Ohm	8 Ohm	8 Ohm
Power Requirements
Power Consumption (max)	250 W Peak Power	250 W Peak Power	500 W Peak Power
Regulatory Approvals
Environmental	RoHS	RoHS	RoHS
Physical Specifications
Unit Size (mm)	272.4 H x 272.4 W x 108.0 D	347.6 H x 347.6 W x 106.8 D	547.6 H x 347.6 W x 106.8 D
Unit Size (inch)	10.7 H x 10.7 H x 4.3 D	13.7 H x 13.7 H x 4.2 D	21.6 H x 13.7 H x 4.2 D
Unit Weight (kg)	2.80	5.90	10.20
Unit Weight (pounds)	6.17	13.01	22.49
Shipping Specifications
Unit Carton Size (mm)	335.0 H x 335.0 W x 155.0 D	465.0 H x 465.0 W x 260.0 D	655.0 H x 465.0 W x 260.0 D
Unit Carton Size (inch)	13.2 H x 13.2 W x 6.1 D	18.3 H x 18.3 W x 10.2 D	25.8 H x 18.3 W x 10.2 D
Unit Weight (kg / pounds)	3.40 / 7.50	7.60 / 16.76	12.5 / 27.56
Languages Supported

English, French, German, Italian, Portuguese, Spanish
Legrand reserves the right to change specifications without notice.
Nuvo Subwoofers have a lifetime warranty, exceptions apply, go to www.legrand.us for details.
