USER MANUAL MR-458ER-ST-A MITSUBISHI

BEST BRAND CHOICE 2021 FRIDGES

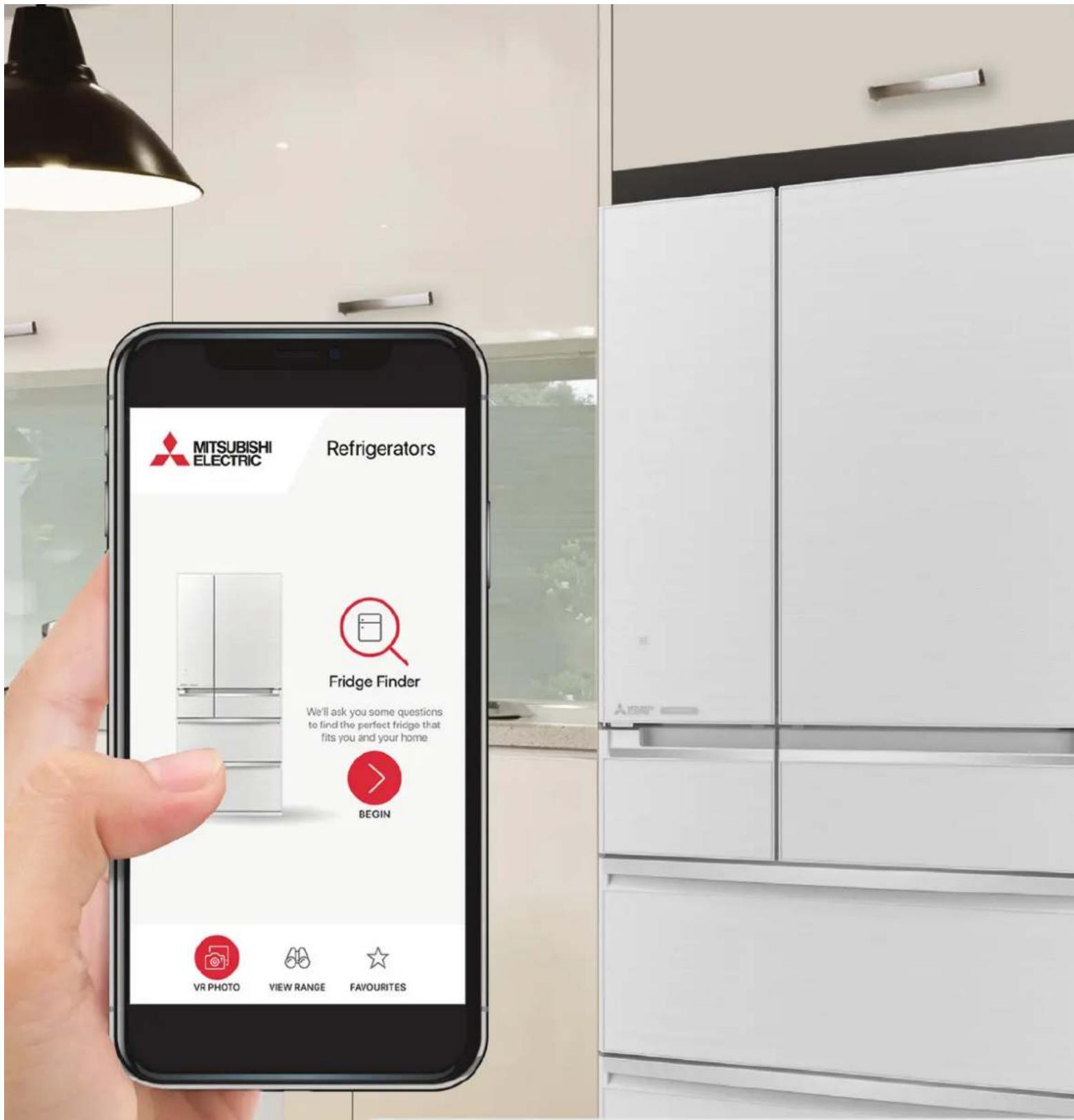

MITSUBISHI ELECTRIC Refrigerators Fridge Finder We'll ask you some questions to find the perfect fridge that fits you and your home BEGIN VR PHOTO VIEW RANGE FAVOURITES

MITSUBISHI ELECTRIC

ME Fridge Finder

Want to see how these fridges will look in your kitchen?

Download on the App Store

BEST BRAND CHOICE 2021 FRIDGES

Awarded CHOICE

BEST BRAND FRIDGES 2021

Mitsubishi Electric has been awarded the CHOICE® Best Brand for Fridges 2021. CHOICE® judges its Best Brand awards based on performance, reliability, and customer satisfaction.

More than 50 popular fridges are rated by the CHOICE experts on food freshness, temperature stability, 10-year running costs and reliability and Mitsubishi Electric were rated as the best performer for 2021.

Freshness that brings food to life

Mitsubishi Electric has been an integral part of Australian kitchens for more than 30 years, providing high-quality, innovative appliances that serve as fixtures in this important space.

We pride ourselves on understanding the Australian household and delivering products tailored to meet their needs.

MITSUBISHI ELECTRIC

worksforme

Designed specifically for those that care about preserving the quality and freshness of all kinds of food.

Refrigeration Range

Two modern refrigerators side by side, one plain and one white, with no visible text or symbols.

Multi Drawer

WX Series 700 Litres

470 Litres

Two modern refrigerators, one silver and one black, displayed side by side (no text or symbols visible)

French Door

LX Series 564 Litres

L4 Glass Series 635 Litres

580 Litres

Two white and black refrigerators side by side, one white and one black, displayed against a plain background (no text or symbols visible).

Bottom Mount

CGX Glass Series 450 Litres

CX Series 450 Litres

Two black and silver rectangular refrigerators side by side, no visible text or symbols.

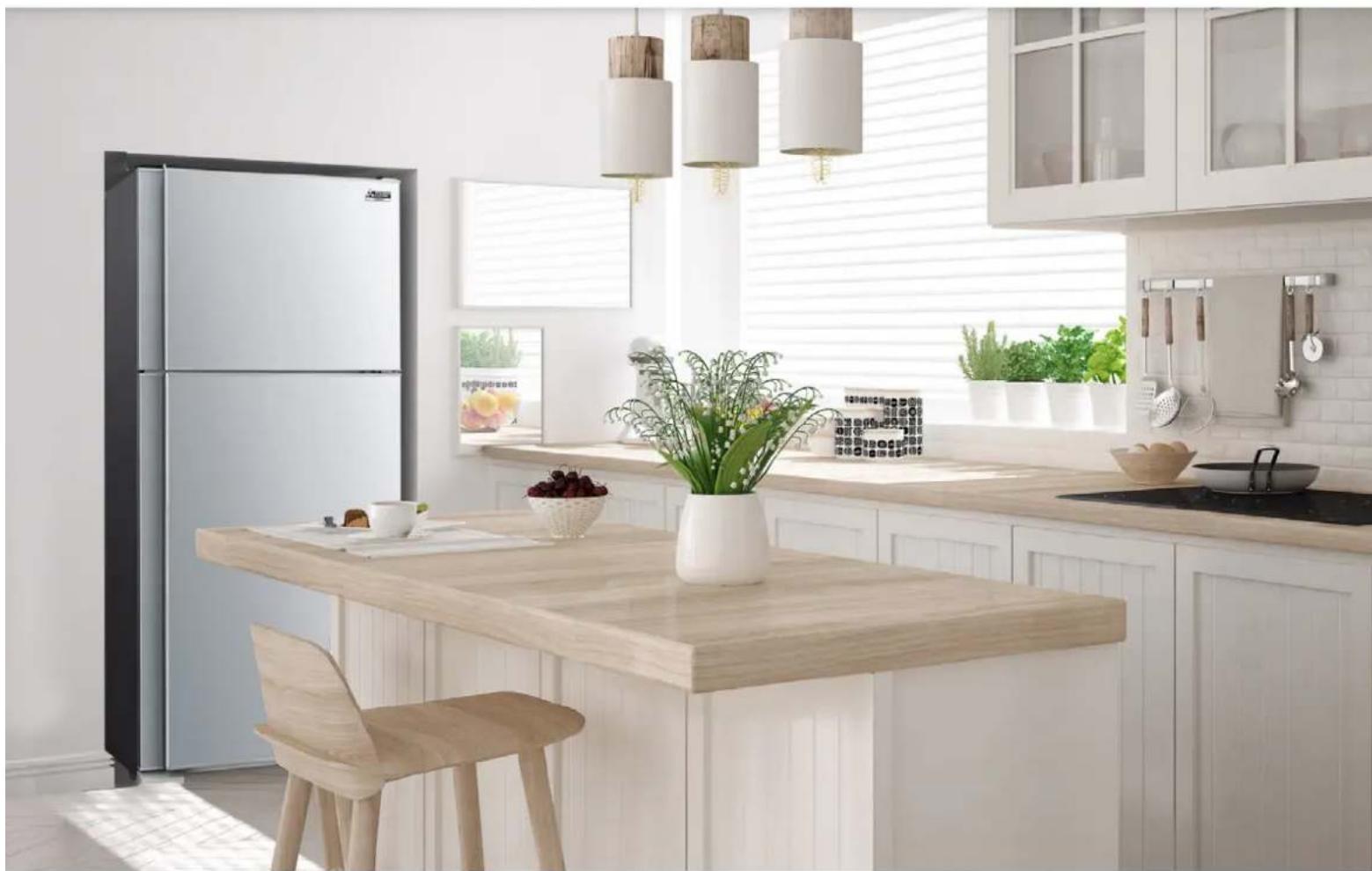

Top Mount

Modern kitchen interior with silver cabinets and stainless steel shelves, no visible text or symbols

The more stars the more energy efficient ENERGY RATING www.energyrating.gov.au

4.0 Star Energy Rating

The higher the energy rating, the lower the power consumption costs will be over time.

黑猫回家

Premium Quality and Design

Unique LED Touch Screen panel and luxury glass door finish to complement most modern kitchens.

PARTS & LABOUR WARRANTY ON INVERTER COMPRESSOR # MITSUBISHI ELECTRIC PAF#RACE RATO RS # FOR PEACE OF MINO DNO 10 YEAR PARTS WARRANTY 5 YEAR "Tums and Conditions Apply

10 Year Compressor Warranty

Mitsubishi Electric Inverter refrigerators are backed by a comprehensive 5 year parts and labour warranty and a 10 year parts warranty on the Inverter compressor.

Refer to page 24 for details.

Modern kitchen interior with wooden paneling and large windows overlooking a cityscape (no text or symbols visible)

Abstract 3D geometric shape with blue translucent blocks and gray outlines, no text or symbols present

Smart Cube/VIP

Thanks to Vacuum Insulation Panel Technology, the WX series allow for maximising food storage space while maintaining a slim, sleek profile.

WX Series MULTI DRAWER

The unique Vacuum Insulation Panel (VIP) and Smart Cube technologies help maximise the WX Series capacity without enlarging its dimensions. The luxury glass door finish completes the modern design. The MR-WX700C features a 4.0 Star Energy Rating, which will assist in reducing power consumption costs over time.

Available in 700 and 470 litres catering for various kitchen sizes. The MR-WX470F is designed with a reduced height and width, to easily fit into a compact fridge cavity of 660mm width.

TOTAL USABLE CAPACITY

700/470 LITRES

Dimensions

MR-WX700C

H 1821 x W 800 x D 748mm

MR-WX470F

H 1696 x W 650 x D 709mm

C only

Diamond White

Argent Silver

MR-WX700C / MR-WX470F FEATURES

» Multi Airflow System
» Power Save Mode
» Temperature Sensors
» Smooth Case Roller
» 2 Adjustable Feet
» Separable Shelf (MR-WX700C)
» Two-Way Flexi Glass Shelf

» Inverter Technology
» Quick Ice Making
» Sliding Top Tray
» Completely Washable Water Supply Parts
» Supercool Chilling Case
» Multi Temperature Setting

» ECO Mode
» Humidity Control
» Aluminium Tray
» Adjustable Door Pockets
» Super Quiet Operation (15dBA)
» External Touch Control Panel
» Clean Tray (MR-WX700C)

MR-WX700C

700 Litres

MR-WX470F

470 Litres

BEST BRAND CHOICE 2021 FRIDGES

Interior view of a refrigerated refrigerator with cutlery and food items (no visible text or labels)

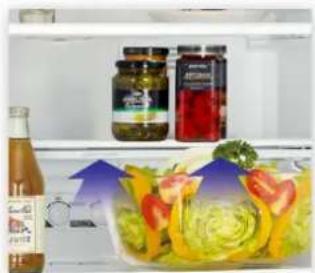

Supercool Chilling Case

The Supercool chilling function is ideal for storing meat, fish, or other perishable food without freezing it. This provides the convenience of food ready to cook without the need to defrost it.

Fresh produce display with tomatoes, strawberries, and vegetables in plastic containers (no visible text or labels)

Vegetable Drawer

VitaLED lighting system slows down the wilting process, keeping fruit and vegetables crisper and fresher for longer. The vegetable drawer features a tray at the top which is ideal for storage and organisation of smaller items.

Hand pouring white liquid into a transparent container with white powder (no text or symbols visible)

Automatic Ice Maker

There is no need for a separate plumbing connection. The removable water tank can be filled with water and all the parts are completely washable.

Person handling a white plastic tray or drawer with a paper roll, no visible text or symbols

Clean Tray

The Clean Tray was designed to keep the vegetable drawer clean with an anti-bacterial hybrid nano coating. This Clean Tray prevents dirt from sticking to the tray and is removable for easy cleaning. (MR-WX700C)

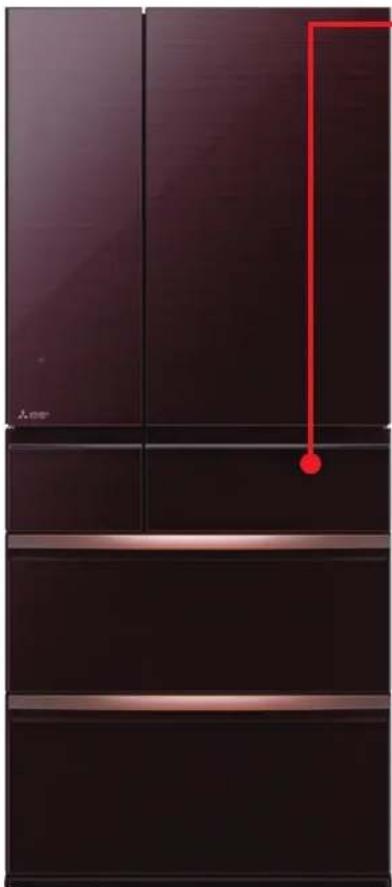

Close-up of a dark-colored refrigerator with a red vertical line and a red dot at the bottom (no visible text or symbols)

MR-WX700C-BR

Supercool Freezing Drawer

The Supercool Freezing Drawer offers functionality in preserving food quality without losing moisture and taste. It has two main modes, Supercool Freezing and Hot Freezing.

Hot Freezing\*

The LED Sensor is designed to detect hot food and adjust the cold air flow directly onto the hot food. This saves time while also preserving the quality and freshness of the food.

Soft Freezing\*

Soft Freezing allows food to be frozen for up to three weeks in a 'soft' state. This means meat can be easily cut without thawing.

Supercool Freezing\*

Ensures food is frozen evenly, minimising cell destruction, preserving its freshness, texture and locking in maximum flavour.

*Please note these modes must be manually set in order to function.

Refer to page 24 ^4

LX Series

FRENCH DOOR

The first thing you notice about the LX Series is its striking looks with toughened glass front panels, presenting a luxurious finish. French doors open up to reveal spacious wide shelving.

The French Door design delivers a wide internal space, perfect for large platters and ensuring maximum storage capacity.

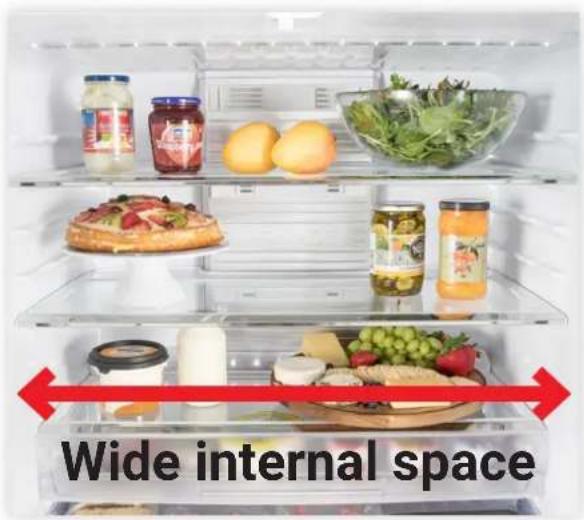

Wide internal space

Modern kitchen interior with dark wood cabinets, a black pot on a stove, and hanging utensils (no text or symbols visible)

Modern kitchen interior with large refrigerator and open door, black walls, no visible text or symbols

LX Series

FRENCH DOOR

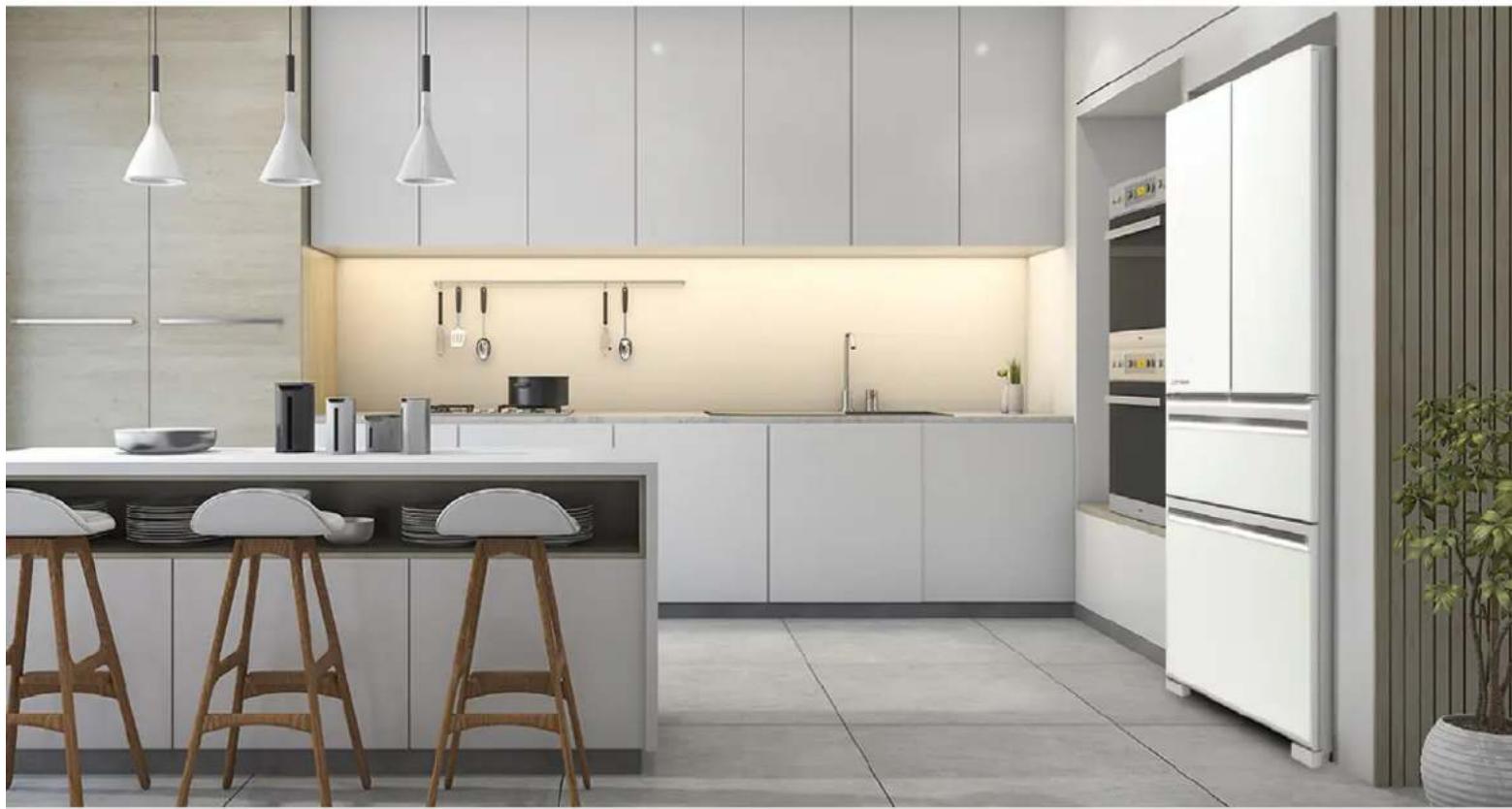

Modern kitchen interior with white cabinetry, stainless steel appliances, and wooden stools (no visible text or symbols)

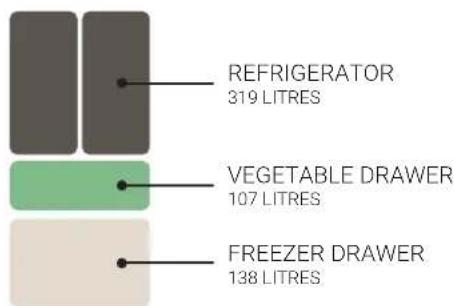

Convenient features include separate vegetable and freezer drawers, an automatic ice maker that doesn't require plumbing and a Supercool chilling case for storing items at about -3°C to 0°C without freezing it.

TOTAL USABLE CAPACITY

564 LITRES

Dimensions

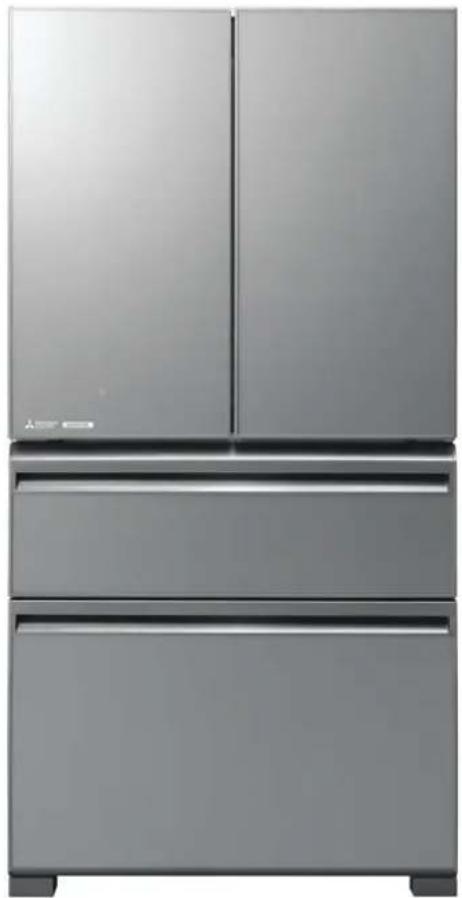

MR-LX564ER

H 1798 x W 900 x D 735mm

Brilliant Black

Glacier White

Argent Silver

MR-LX564ER FEATURES

» 4.0 Energy Rating
» Inverter Technology
» R600A Refrigerant
» Multi Airflow System
» Tempered Glass Shelves
» Water Tank

» Adjustable Pocket
» Wide Chilling Case (Upper case)
»VitaLED
» Smooth Case Roller
» Rapid Cooling
» Eco Mode

» Power Saving Mode
» Glass Door
» Large Capacity
» Automatic Ice Maker
» Door Alarm
» Egg Shelf

MR-LX564ER

564 Litres

BEST BRAND CHOICE 2021 FRIDGES

Exterior view of a modern stainless steel refrigerator with two doors and three drawers (no visible text or symbols)

Black refrigerator with open doors showing various food items including milk, dairy, vegetables, and beverages (no visible text or labels)

MR-LX564ER-GBKMR-LX564ER-GSL

Interior view of a refrigerator with open storage compartments filled with raw meat (no visible text or labels)

Supercool Chilling Case

The Supercool chilling function is ideal for storing meat, fish, or other perishable food without freezing it. This provides the convenience of food ready to cook without the need to defrost it.

Fresh vegetables arranged in a white dish, including broccoli, bananas, and tomatoes (no text or labels visible)

Vegetable Drawer

A large drawer with a divider in between to store fruit and vegetables. A full-width tray at the top is ideal for storage and organisation of smaller and delicate items such as punnets of fruit.

Hand placing a white substance into a transparent plastic container (no text or symbols visible)

Automatic Ice Maker

There is no need for a separate plumbing connection. The removable water tank can be filled with water and the Ice Maker is ready to go!

Close-up of a hand interacting with a black appliance panel, showing Chinese text and logos

Endless Intuitive Features

A unique LED control panel lights up with just a touch to provide access to all the settings.

Refer to page 24 ^1

L4 Glass Series

FRENCH DOOR

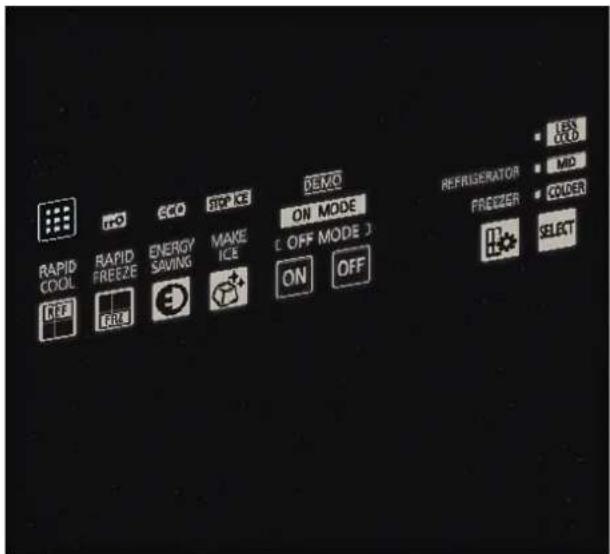

RAPID COOL RAPID FREEZE ENERGY SAVING MAKE ICE DEMO ON MODE [ OFF MODE ] ON OFF REFRIGERATOR FROZER LESS OLED MID COLDER SELECT

Easy to use LED Touch Panel features three smart operation modes so that the refrigerator can perform optimally, in line with the user's needs.

Modern kitchen interior with white refrigerator and wooden table, no visible text or symbols

Modern kitchen interior with wooden cabinets, hanging pendant lights, and a potted plant in a bowl (no visible text or symbols)

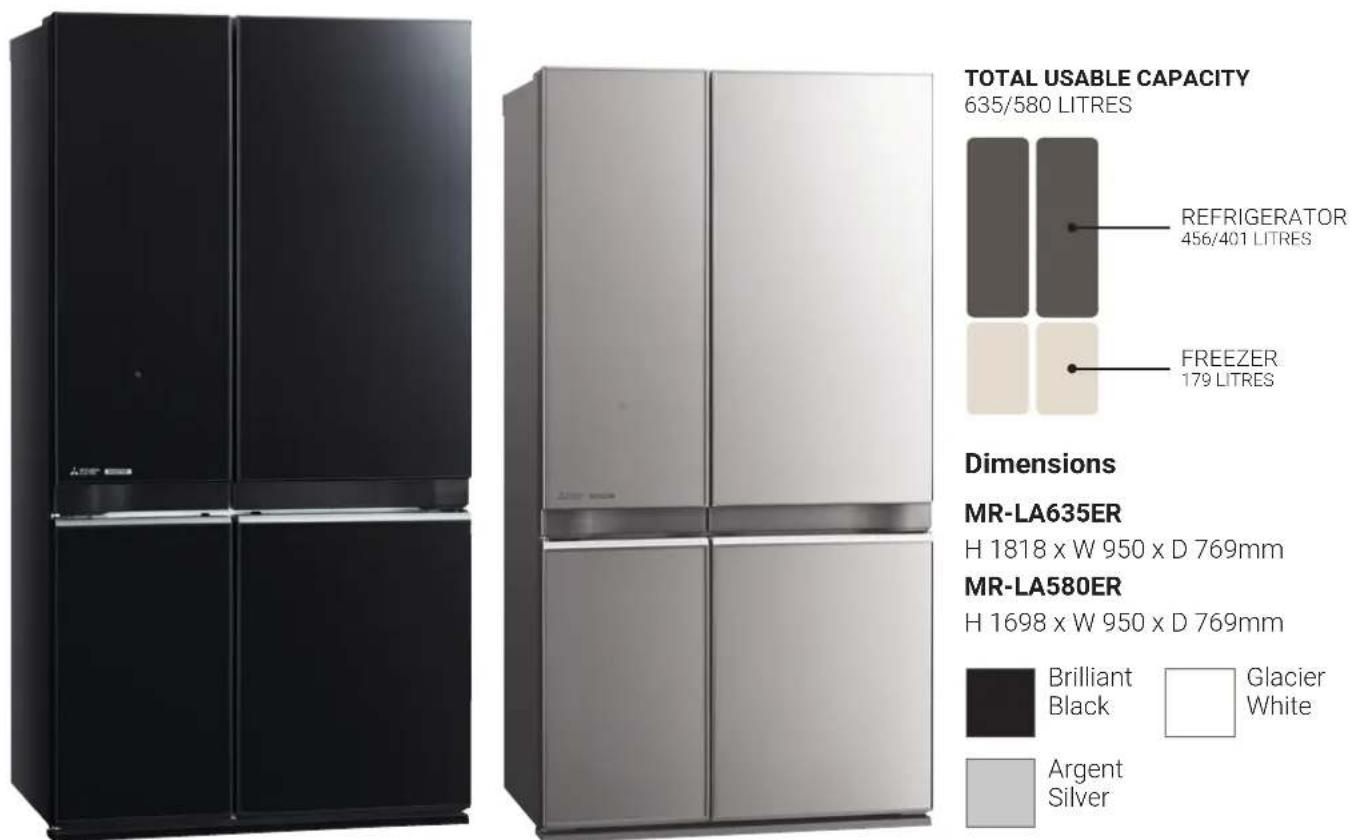

L4 Glass Series

FRENCH DOOR

The new L4 Glass Series is designed for larger living and now features an Automatic Ice Maker that doesn't require plumbing connection. The toughened glass front panels present a luxurious finish.

The L4 Mini Glass (580L) is designed with a reduced height, to easily fit into a French Door cavity with overhead cupboards. The easy-to-use LED Touch Panel features three smart operation modes so that the refrigerator can perform optimally, in line with the user's needs.

Dimensions

MR-LA635ER

H 1818 x W 950 x D 769mm

MR-LA580ER

H 1698 x W 950 x D 769mm

Designed for larger living

Exterior view of a modern office building (no signage)

Automatic Ice Maker

There is no need for a separate plumbing connection. The removable water tank can be filled with water and all the parts are completely washable.

Close-up of a hand cleaning a yellow cloth over a dark surface (no text or symbols visible)

Glass Door Finish

Toughened glass front panels present a luxurious finish that are easy to keep clean.

ASSEMB COIL BOARD PLAST PRESS GREEN CAPSIC SMAIN ICE ON MODE OFF MODE ON OFF REFRIGERATION PRESSOR START

Touch Control Panel

Featuring three smart operation modes - including Eco Mode, an energy saving setting which automatically adjusts the temperature, and Rapid Cool or Freeze which cools quickly to preserve the freshness of food.

Fresh vegetables including lettuce, tomato, and onion arranged in a rack inside a refrigerator (no text or symbols visible)

Vegetable Crisper

Designed to store fruit and vegetables. Some require more humidity than others, that is why the humidity controls will help to regulate the amount of moisture in the crisper.

Multi Airflow System

With 6 different temperature points in the fridge, this technology efficiently cools all food, even in hard-to-cool places such as filled door pockets.

Interior view of a refrigerator with two white milk cans on the door (no visible text or labels)

Large Bottle Pockets

The smart big bottle door pocket is designed for convenient storage and retrieval of large and small bottles.

Interior view of a refrigerator with open doors, showing various food compartments including refrigerators and refrigerators (no visible text or labels)

Large Capacity

The French Door design delivers a wide internal space, perfect for large platters and maximising storage capacity.

The more stars are more energy efficient! ENERGY RATING www.energyrating.gov.au

4.0 Star Energy Rating

The L4 Glass Series features a 4.0 Star Energy Rating which will assist in reducing power consumption costs over time.

Providing more usable space for items such as bulky groceries and platters.

Refer to page 24 ^1

CGX Glass Series

BOTTOM MOUNT

Modern kitchen interior with gray cabinets, stainless steel appliances, and a large window (no visible text or symbols)

The CGX Glass Series bottom mount fridge is the ultimate in innovation with its unique 3 door design and glass front door. It is designed with a reduced width, perfect for smaller fridge cavity space, and features a vegetable drawer, an automatic ice maker, a supercool chilling case, and a convenient freezer drawer.

Dimensions

MR-CGX450ER

H 1798 x W 699 x D 709mm

MR-CGX450ER FEATURES

» Small Item Pocket
» Tempered Glass Shelf
» Fruit & Vegetable Drawer
» Freezer Drawer
» Adjustable Feet
» 4.0 Star Energy Rating
» R600a Refrigerant

Glacier

White

» Inverter Technology
» Glass Door Finish
» Automatic Ice Maker
» Door Alarm
»VitaLED
» Egg Case

MR-CGX450ER

450 Litres

BEST BRAND CHOICE 2021 FRIDGES

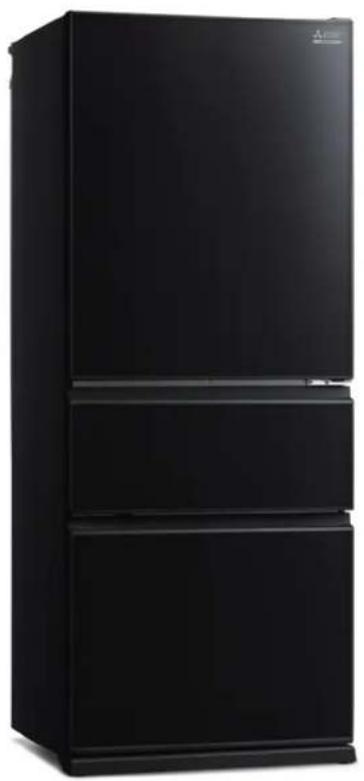

Black refrigerator with three stacked doors, no visible text or labels

MR-CGX450ER-GBK MR-CGX450ER-GWH

White refrigerator with open doors showing various food items including breakfast, snacks, and beverages (no visible text or labels)

TOTAL USABLE CAPACITY 450 LITRES

Fresh vegetables including carrots, broccoli, red peppers, and bell peppers arranged in a tray (no text or labels visible)

Vegetable Drawer with VitaLED

Designed to maximise the freshness of produce. The drawer features a higher humidity than the main refrigerator compartment and is ideal for storing and keeping fruit and vegetables crisper and fresher for longer.

Close-up of a blue hourglass pouring liquid into a transparent container, surrounded by ice cubes (no text or symbols visible)

Automatic Ice Maker

There is no need for a separate plumbing connection. The removable water tank can be filled with water and the Ice Maker is ready to go!

Hand placing a plastic tray into a clear refrigerator filled with packaged goods (no visible text or labels)

Supercool Chilling Case

The Supercool chilling function is ideal for storing meat, fish or other perishable food without freezing it. This provides the convenience of food ready to cook without the need to defrost it.

Interior view of a grocery store shelf with shelves of jars, a plate of vegetables, and a bottle of alcohol (no visible text or symbols)

2-Way Flexi Glass Shelf

Make the Tempered Glass shelf deeper or push it in for more space. It is ideal for storing taller items such as a salad or dessert bowl.

Hand holding a yellow cloth cleaning a dark surface (no text or symbols visible)

Glass Door Finish

Toughened glass front panels present a luxurious, striking finish and are easy to keep clean.

The more stars the more energy efficient ENERGY RATING www.energyrating.gov.au

4.0 Star Energy Rating

The number of stars on the energy rating label helps you compare the efficiency of the same volume and similar type.

CX Series

BOTTOM MOUNT

Modern kitchen interior with wooden cabinets, black storage shelves, and a large refrigerator (no visible text or symbols)

Perfect for apartment living, the CX Series bottom mount fridge is the ultimate in innovation with its unique 3 door design. Featuring a vegetable humidity drawer, automatic ice maker that doesn't require plumbing, a supercool chilling case and convenient freezer drawer. Available in two colours to suit your decor.

Dimensions

MR-CX450ER

H 1798 x W 699 x D 709mm

MR-CX450ER FEATURES

» Small Item Pocket
» 2-Way Flexi Glass Shelf
» Tempered Glass Shelf
» Fruit & Vegetable Drawer
» Freezer Drawer
» Adjustable Feet
» R600a Refrigerant

Stainless

Steel

» Inverter Technology
» 4.0 Star Energy Rating
» Automatic Ice Maker
» Door Alarm
»VitaLED
» Egg Case

MR-CX450ER

450 Litres

BEST BRAND CHOICE 2021 FRIDGES

Exterior view of a modern black refrigerator with three-tier doors (no visible text or symbols)

MR-CX450ER-BST MR-CX450ER-ST

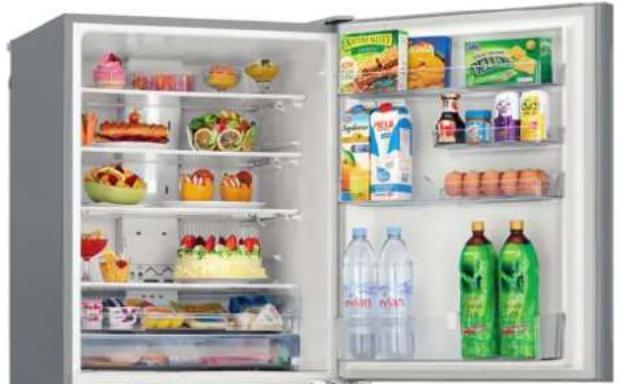

Interior view of a refrigerator showing full shelves with various food items including fruit, drinks, and beverages (no visible text or labels)

Exterior view of a modern stainless steel refrigerator with two doors (no signage or text visible)

TOTAL USABLE CAPACITY 450 LITRES

Fresh vegetables including carrots, broccoli, red peppers, and lettuce arranged in a tray (no text or symbols visible)

Vegetable Drawer with VitaLED

The drawer features higher humidity than the main refrigerator compartment and is ideal for storing and keeping fruit and vegetables crisper and fresher for longer.

Close-up of a blue plastic funnel pouring liquid into a transparent container, surrounded by ice cubes (no text or symbols visible)

Automatic Ice Maker

There is no need for a separate plumbing connection. The removable water tank can be filled with water and the Ice Maker is ready to go!

Interior view of a refrigerator with food items on the side (no visible text or labels)

Supercool Chilling Case

The Supercool Chilling function is ideal for storing meat, fish or other perishable food without freezing it. This provides the convenience of food ready to cook without the need to defrost it.

Interior view of a refrigerator shelf with jars, a plate of vegetables, and a bottle of sauce (no visible text or symbols)

2-Way Flexi Glass Shelf

Make the Tempered Glass shelf deeper or push it in for more space. It is ideal for storing taller items such as a salad or dessert bowl.

White refrigerator drawer with open storage compartments filled with food items (no visible text or labels)

Freezer Drawer

It is roomy enough to fit bulky items such as ice cream tubs, loaves of bread and frozen vegetables.

The more stars the more energy efficient ENERGY RATING www.energyrating.gov.au

4.0 Star Energy Rating

The number of stars on the energy rating label helps you compare the efficiency of the same volume and similar type.

ER Series

TOP MOUNT

Modern kitchen interior with white cabinetry, wooden table, and hanging pendant lights (no visible text or symbols)

The ER Series now features 4.5 Star Energy Rating and with its sleek integrated handle design gives your kitchen a clean, contemporary look that will complement your decor.

Dimensions

MR-505ER

H 1777 x W 751 x D 795mm

MR-458ER

H 1654 x W 751 x D 795mm

MR-505ER / MR-458ER FEATURES

» Tempered Glass Shelves
» 2-Way Flexi Glass Shelf
» Frost Free
» Triple Twist Ice Tray
» Bottle pockets & Stopper
» Adjustable Feet
» Sliding Case

Stainless Steel

White

MR-505ER

505 Litres

MR-458ER

458 Litres

BEST BRAND CHOICE 2021 FRIDGES

» 4 Rollers
» 4.5 Star Energy Rating
» Multi Airflow System
» R600a Refrigerant
» Door Alarm
» Egg Case

TOTAL USABLE CAPACITY 505/458 LITRES FREEZER 148 LITRES REFRIGERATOR 357/310 LITRES

MR-458ER-W MR-505ER-SB

White bell icon with signal waves, no text or symbols present

Door Alarm

The refrigerator and freezer compartments have separate door alarms which sound when open for over a minute.

Two sandwiches on a white shelf, one with lettuce and the other with a soda can (no text or symbols visible)

LED Light

The LED light will illuminate your refrigerator while being energy efficient.

Interior view of a refrigerator displaying various food items including snacks, drinks, and a salad (no visible text or labels)

Sliding Case

Equipped with a smooth-sliding roller, the Sliding Chilled Case allows for easy access. Great for storing dairy products, fresh fish or meat and chilling drinks.

Interior kitchen scene with fresh vegetables and a cocktail in a glass bowl (no visible text or symbols)

Tempered Glass Shelves

The Tempered Glass Shelves are easy to clean and built to withstand up to 100 kilograms of weight.

The more stars the more energy efficient ENERGY RATING www.energyrating.gov.au

4.5 Star Energy Rating

The new Top Mount ER Series now features a 4.5 star energy rating. The more stars on the energy rating Label, the more energy efficient the fridge is compared with a similar size model.

Interior kitchen appliance display with a plate of colorful vegetables and jars, no visible text or symbols

2-Way Flexi Glass Shelf

Make the Tempered Glass shelf deeper or push it in for more space. It is ideal for storing taller items such as a salad or dessert bowl.

SPECIFICATIONS

REFRIGERATOR		FRENCH DOOR
		WX Series LX Series L4 Glass Series
MODEL		MR-WX700C MR-WX470F MR-LX564ER		MR-LA635ER MR-LA580ER
Usable Capacity (L)*	TOTAL	700 470 564	635 580
	Refrigerator Compartment	378 230 319	456 401
	Freezer Compartment 118 89 138 179 179
	Ice Making Compartment 25 23---
	Supercool Freezing Compartment 45 30---
	Vegetable Compartment 134 98 107	--
Dimensions(mm)	Width	800 650 900	950 950
	Height	1821	1696	1798	1818	1698
	Depth	738 699 735	769 769
	Depth with Leg Cover	748 709 735	769 769
Clearance Dimensions(mm)	Top	50 25 100 100	100
	Left	5	5 30 30 30
	Right	5	5 30 30 30
	Back	-- 50 60 60
Energy Efficiency
Energy Star Rating*		4.0	4.0	4.0	4.0	4.0
Energy Consumption (kWh/year)*		425 340 385	441 423
Inverter Compressor		•	•	•	•	•
Refrigerant Type		R600a	R600a	R600a	R600a	R600a
Door Finish
Colour		ARGENT SILVER	ARGENT SILVER	ARGENT SILVER	ARGENT SILVER	ARGENT SILVER
		DARK MAHOGANY	-	BRILLIANT BLACK	BRILLIANT BLACK	BRILLIANT BLACK
		DIAMOND WHITE	DIAMOND WHITE	GLACIER WHITE	GLACIER WHITE	GLACIER WHITE
Glass Door Finish		•	•	•	•	•
Refrigerator
Cooling System		MULTI AIRFLOW
Wide Chilled Case (Upper Case)		•	•	•	-	-
Supercool Chilling Case / Chilled Case (Lower Case)		•	•	•	-	-
Vegetable Case with VitaLED		-	-	-	•	•
Vegetable Case with Humidity Control		-	-	-	•	•
Tempered Glass Shelves		•	•	•	•	•
Separable Shelf (Middle Shelf)		•	-	-	-	-
Two-Way Flexi Shelf (Middle Shelf)		•	•	-	-	-
Utility Case		-	-	-	2	2
Water Tank Capacity for Auto Ice Maker (L)		1.2	1.2	1.1	1.0	1.0
Bottle Pocket (Large)		1	1	2	1	1
Bottle Pocket (Small)		1	1	-	1	1
Adjustable Pocket (Large)		2	2	2	1	-
Adjustable Pocket (Small)		2	2	2	1	1
Egg Tray		1	1	1	-	-
Egg Shelf		1	1	-	1	1
LED Light		•	•	•	•	•
Door Alarm		•	•	•	•	•

• Standard feature
  *Tested in accordance with AS/NZS IEC 62552-3 Standard

\*1. WARRANTY:

Mitsubishi Electric Inverter Refrigerators are backed by a comprehensive 5 year parts and labour warranty and a 10 year parts warranty on the inverter compressor.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

SPECIFICATIONS

REFRIGERATOR	FRENCH DOOR
	WX Series LX Series L4 Glass Series
MODEL MR-WX700C MR-WX470F MR-LX564ER MR-LA635ER MR-LA580ER
Vegetable Compartment
Humidity Control······
VitaLED······
Vegetable Case (Upper) 1.1 --
Vegetable Case (Lower)	1.1.1	--
Clean Tray	1	----
Door Alarm	······
Freezer Compartment
Freezer Case (Upper)	1.1.1	--
Freezer Case (Lower)	1.1.1	--
Freezer Case (Small)	---	2.2
Freezer Case (Medium)	---	1.1
Freezer Case (Large)	---	1.1
Door Alarm	······
Supercool Freezing Compartment
Supercool Freezing	·	·	-	-	-
Soft Freezing	······
Hot Freezing	······
Aluminium Tray	······
Door Alarm	······
Ice Compartment
Automatic Ice Maker (Non-Plumbed)	······
Completely Washable Water Supply Parts	·	·	-	·	·
Quick Ice Making Mode (min)	75	85	-	-	-
Triple Twist Ice Tray	----
Door Alarm	······
Others
Smart Cube VIP (Vacuum Insulation Panel)	·	·	-	-	-
Rapid Cooling	······
Energy Saving Mode	······
Number of Sensors	16	16999

• Standard feature

Exterior view of a dark maroon refrigerator with three drawers (no visible text or symbols)

MR-WX700C-BR

White refrigerator with three doors and three drawers, no visible text or symbols

MR-WX470C-W

Exterior view of a modern stainless steel refrigerator with double doors and three drawers (no visible text or symbols)

MR-LX564ER-GSL

Black four-door refrigerator with four doors and a silver door, no visible text or symbols

MR-LA635ER-GBK

White refrigerator with four doors, no visible text or symbols on the cabinet surface

MR-LA580ER-GWH
Refrigerators are for illustration purposes only.

SPECIFICATIONS

REFRIGERATOR		BOTTOM MOUNT TOP MOUNT
		CGX Series CX Series ER Series
MODEL MR-CGX450ER MR-CX450ER MR-505ER MR-458ER
Usable Capacity (L)*	TOTAL 450 450 505 458
	Refrigerator Compartment	253 253 357 310
	Freezer Compartment	107 107 148 148
	Vegetable Compartment	90 90 -
Dimensions (mm)	Width 699 699 751 751
	Height	1798	1798	1777	1654
	Depth 709 709 795 795
	Depth with Leg Cover	709 709 795 795
Clearance Dimensions (mm)	Top	100 100 100 100
	Left 20 20 20 20
	Right	20 20 20 20
	Back	50 50 50 50
Energy Efficiency
Energy Star Rating*		4.0	4.0	4.5	4.5
Energy Consumption (kWh/year)*		332 332 345 330
Inverter Compressor		•	•	•	•
Refrigerant Type		R600a	R600a	R600a	R600a
Door Finish
Colour		GLACIER WHITE	- WHITE	WHITE
		-	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
		BRILLIANT BLACK	-	SHINY BLACK	SHINY BLACK
		-	BLACK STAINLESS	-	-
Door Opening		Right	Right	Right	Right
Glass Front Door		•	-	-	-
Refrigerator Compartment
Cooling System		MULTI AIRFLOW
Sliding Case		2	2	1	1
Supercool Chilling Case		•	•	-	-
Two-Way Flexi Shelf		1	1	1	1
Tempered Glass Shelf		3	3	4	3
Water Tank Capacity for Auto Ice Maker (L)		1.1	1.1	-	-
Egg Case		1	1	2	2
Multi-Free Pocket		2	2	3	2
Fruit & Vegetable Case		-	-	1	1
VitaLED		----
LED Light		LED Light
Bottle Pocket		1	1	2	2
Bottle Stopper		1	1	2	2
Door Alarm		•	•	•	•
Freezer Compartment
Auto Ice Making		•	•	-	-
Twist Ice Tray		-	-	3	3
Ice Box		-	-	1	1
Freezer Case Lower		1	1	-	-
Freezer Case Upper & Ice Box		1	1	-	-
Ice Spoon		1	1	-	-
Freezer Door Pocket		-	-	2	2
Plastic Shelf		-	-	1	1
Glass Shelf		----
Door Alarm		•	•	•	•
Vegetable Drawer
Vegetable Case (Upper & Lower)		1	1	-	-
VitaLED		•	•	-	-
Others
Frost Free		•	•	•	•
Deodoriser		FILTER
Castors		4	4	4	4
Kick Plate		•	•	•	•
Adjustable Foot		2	2	2	2

• Standard feature
  *Tested in accordance with AS/NZS IEC 62552-3 Standard

GRID NOTES

The Illustrations, specifications, design and other contents appearing in this publication are described as at the date of printing. Product design and specifications may change without notice. Images are representational for illustration purposes. PRINTED: March 2022 © Mitsubishi Electric 2022 REF2022 MART
