Product Type	Powered Subwoofer
Enclosure Type	Sealed (Acoustic Suspension)
Driver Size	8 inches
Woofer Material	Polypropylene Cone
RMS Power	60 Watts
Max Power	150 Watts
Frequency Response	40Hz - 150Hz
Impedance	8 Ohms
Input Connections	Stereo RCA Line In, High-Level Spring-Loaded Terminals
Output Connections	High-Level Spring-Loaded Terminals
Controls	Crossover (40-150Hz), Gain, Phase (0°/180°), Power (Auto On/Off)
Power Supply	AC 115V/230V Auto Switch, 50/60Hz
Construction Material	Non-Resonant MDF
Dimensions (L x W x H)	13.5 x 10.8 x 10.4 inches
Placement	Corner placement recommended for enhanced bass
Care and Cleaning	Wipe with soft damp cloth; do not use solvents
Safety Warnings	Unplug during storms, avoid liquids, do not open enclosure
Repairability	Refer to qualified service personnel only

Frequently Asked Questions - PSUB8A Pyle

What is the maximum power output of the Pyle PSUB8A?

The subwoofer has a maximum power of 150 Watts and an RMS power of 60 Watts.

How do I connect the subwoofer to my AV receiver?

Use the line level inputs (RCA) if your receiver has a subwoofer pre-out, or connect to the high-level inputs (speaker terminals) if not. The inputs are summed to mono.

What crossover frequency should I set?

Adjust the crossover control between 40Hz and 150Hz. For best results, set it between 60-80Hz to avoid muddy sound. If using an LFE output, set to maximum.

What does the phase switch do?

The phase switch selects 0° or 180° to match the subwoofer's output with your main speakers. Choose the position that gives the most apparent bass.

How does the auto on/off feature work?

In Auto ON mode, the subwoofer turns on when a signal is detected. The LED is red when idle and turns green when active. If no signal for 15 minutes, it switches to standby (flashing red).

Can I place the subwoofer in a corner?

Yes, corner placement is recommended as it uses three surfaces to amplify bass output, giving a stronger effect.

How do I clean the subwoofer?

Unplug the power cord first. Use a soft damp cloth to wipe the surface. For stubborn dirt, use a cloth moistened with mild detergent, then dry with a soft cloth. Do not use strong solvents.

What type of power supply does it use?

The subwoofer has an auto-switching power supply that works with 115V or 230V AC, 50/60Hz.

What safety precautions should I follow?

Do not expose to liquids or place near water. Unplug during lightning storms or long non-use. Do not open the enclosure – refer all servicing to qualified personnel. Avoid overloading outlets.

Why is the sound distorted or boomy?

Distortion may occur if the gain is set too high or the crossover frequency is too high. Lower the gain and adjust the crossover between 60-80Hz. Also check that input sensitivity matches your source.

USER MANUAL PSUB8A Pyle

Black rectangular cube with four small feet, isolated on white background (no text or symbols)

☆*☆☆☆

×☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆

with Sealed Design (Black)

USER GUIDE

To ensure you will be completely satisfied with this product, read and understand this manual carefully before use. Keep the manual in a safe place. The Operating Manual must be passed on to all subsequent users.

IMPORTANT SAFETY PRECAUTIONS

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be sufficient magnitude to constitute a risk: of electric shock to humans.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating instructions and maintenance in the literature accompanying the product.

This product should be operated only from the type of power source indicated at the back. DO NOT locate the product where the power cord will be abused by constant stepping on it. DO NOT allow anything to rest on the power cord.

The AC power plug shall remain readily operable. Unplug the power cord during lightning storms or when not in used for a long period of time. DO NOT overload wall outlets and extension cords as this can result fire or electric shock.

No objects filled with liquids, such as vase shall be placed on it. DO NOT install the product near bathtub, washbowl, kitchen sink, laundry tub or any wet area.

DO NOT expose the product to dripping or splashing.

DO NOT install this product in a poorly ventilated or confined space.

When cleaning, unplug the power cord from the wall outlet.

DO NOT use strong solvents or liquid cleaners. Use a soft damp cloth for cleaning.

For stubborn dirt, use a cloth moistened with mild detergent then wipe the dirt off. Use a soft dry cloth to wipe it dry.

DO NOT attempt to fix the product yourself.

Opening or removing the cover may expose you to dangerous voltage or other hazards. Refer servicing to a qualified service personnel.

NOTES:

Read instructions carefully and completely. Keep this user's manual for future reference. Heed all warnings and follow all instructions.

It is the perfect addition to ang home theater system. The down-firing sub delivers bass more evenly through out the room while the sealed enclosure (also known as acoustic suspension) offers tight, accurate bass.

This sub delivers realistic, room-shaking home theater bass effects.

HOOK UP

1. Line Level Inputs

The line level inputs are used to connect pre-out or preamplifier outputs directly to the subwoofer amplifier's internal crossover. These inputs are summed to mono. This is the preferred way to connect the subwoofer amplifier. If you have a mono line level signal from a "Pro Logic" or "Dolby Digital" receiver use the right "red" input.

Note: If a LFE mono output is connected, set the crossover point to maximum.

2. High Level Inputs

If preamplifier outputs are not available, use the high-level (speaker) inputs.

The speaker level inputs can be connected directly to the amplifier by inserting the speaker wire.

3. High Level Outputs

There are also high level outputs which can be used to connect to main speakers or to another powered subwoofer with high level inputs.

Note: High level outputs are paralleled to the high level inputs with no high pass filter.

4. Crossover Frequency Control

Continuously variable from 40Hz to 150Hz. Set the frequency control to where the audio does not sound "muddy", normally between 60-80Hz.

Note: If a LFE mono output is connected set the crossover point to maximum.

5. Gain Control

Adjusts the output level of the subwoofer. Set the level to where the bass frequencies blend with the other speakers.

Note: Most people have a tendency to set the level too high, which makes the audio sound "boomy".

6. Phase Switch

Selectable between 0^ and 180^ . This assists subwoofer placement.

The correct position will be the one that provides the most apparent bass output.

7. Power Switch (Auto On/Auto Off)

When the power is in the auto ON position, the amplifier will automatically turn ON when a signal is present.

Note: In auto OFF mode, the power on LED is always green;

In auto ON mode, when there is no signal, the power LED is red and it will turn green when the unit is activated. It will turn red flashing light if there is no signal again after 15 minutes.

1. AC Input: Auto 115/230V, frequency from 50/60 HZ.

9. Power Supply

Turn on the amp bg pressing the bUtton "I", turn off the amp by pressing the button "0".

The Subwoofer System will produce more bass effect when placed in a corner. Choose a front corner that is available and near to your components for best performance in home theater applications.

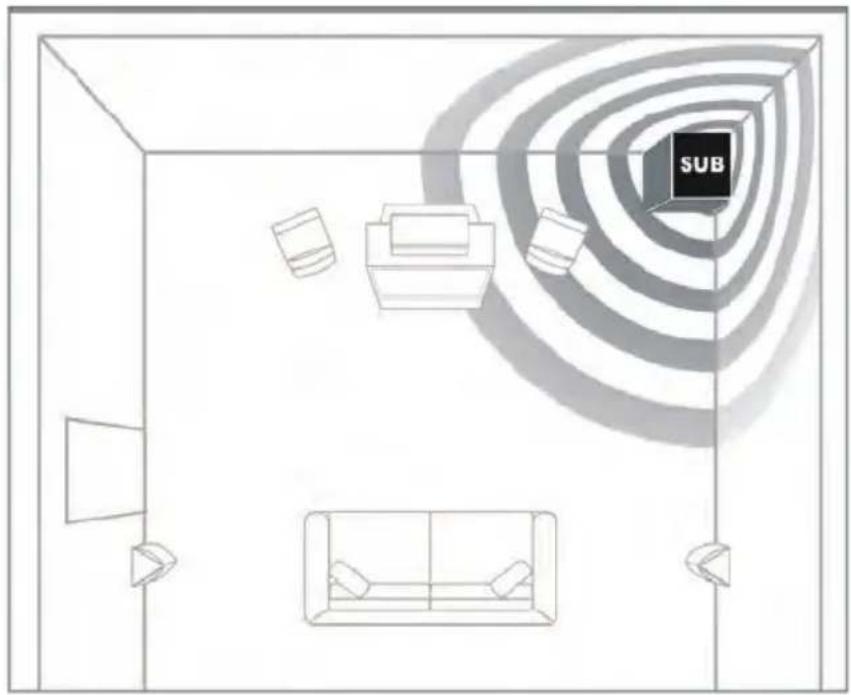

The SUB uses 3 surfaces to amplify the output

Top-down architectural rendering of a living room with sofa, coffee table, and circular ceiling pattern (no text or symbols)

Technical Specs:

• Construction Material: Non-Resonant MDF
• MAX Power: 150W
- RMS Power: 60W
- SW Driver: 8" Polypropylene Cone Woofer
• Frequency Response: 40Hz-150Hz
- Impedance: 8 Ohms
• Audio Signal Input: Stereo Line In, High-Level Input
- Speakers Output: High-Level Output
- Input Connectors: 2 x RCA, Spring-Loaded Terminal
• Power Output: AC 115V/230V, Auto Switch
- Product Dimensions (L x W x H): 13.5" x 10.8" x 10.4"-inches

Note: Input sensitivity is adjusted to the maximum for music quality for varying strength between the sources (sound console, CD/DVD, mobile phone, etc). If you hear a sound distortion, please turn down the volume.

California Prop 65 Warning

! WARNING:

This product contains Bisphenol A (BPA) which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov
