MelintoshMcIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com

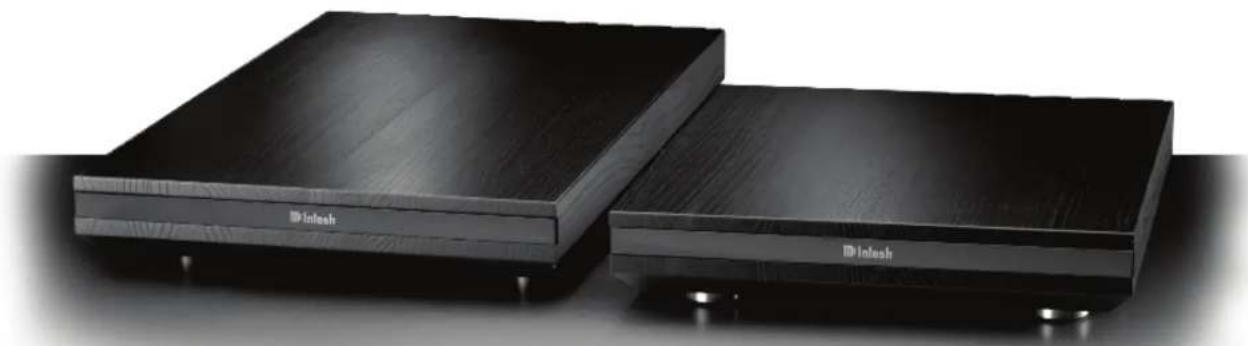

AS901/AS125
Amplifier Stands
Owner's Manual
Thank you from all of us at McIntosh
With the AS901/AS125 Amplifier Stand, you have invested in a premium accessory that will provide you with many years of enjoyment. Please take a few moments to familiarize yourself with the features and instructions to get the most from your equipment.
If you need further technical assistance, please contact your dealer who may be more familiar with your particular setup including other brands. You can also contact McIntosh with additional questions or in the unlikely event of needing service.
McIntosh Laboratory, Inc.
2 Chambers Street
Binghamton, New York 13903
Technical Assistance: (607) 723-3512
Customer Service: (607) 723-3515
Fax: (607)
Email: support@mcintoshlabs.com
Website: mcintoshlabs.com
Make a Note
For future reference, you can jot down your serial number and purchase information here. We can identify your purchase from this information if the occasion should arise.
| Serial Number: | |
| Purchase Date: | |
| Dealer Name |
Table of Contents
Introduction....3
AS901 Dimensions....4
AS125 Dimensions.... 5
Power Control 6
AS901 Specifications....6
AS125 Specifications 6
Packing Your Amplifier Stands....7
Introduction
The AS901 and AS125 Premium Amplifier Stands were designed from the ground up to be worthy of housing your high-end, premier McIntosh Power Amplifiers. These Amplifier Stands -- with their beautiful grain structures, sleek black finishes, and acrylic face plates with backlit McIntosh logos -- will not only visually complement your audio equipment, but paired with McIntosh Power Amplifiers such as the MC901 or MC1.25KW, they will provide you with a viewing experience that lives up to the high expectations you have for your McIntosh listening experience. The AS901 and AS125 Amplifier Stands were built from the strongest, finest Solid Ash Wood, so you can rest assured that you can enjoy this visual and audio splendor for years and years to come.
Copyright 2022 © by McIntosh Laboratory, Inc

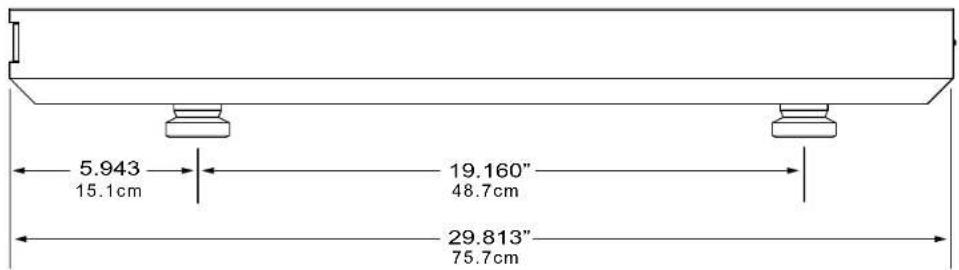

AS901 Dimensions
Front View


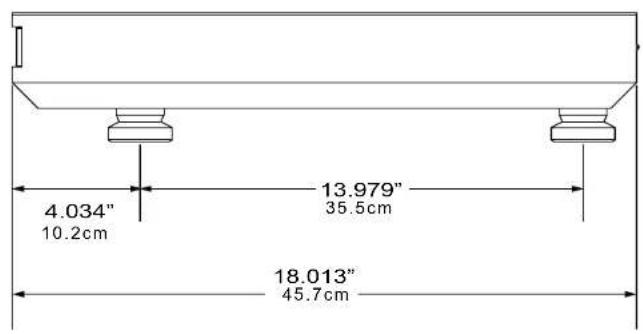

Dialash 17.813 45.2cmAS125 Dimensions
Power Control (Logo Backlight)
Note: Your Amplifier Stand logo backlight can illuminate when your audio equipment powers on. To do this, connect a cable to the Power Control port in the rear of the stand using the cable and connector described here.
Power Control and Trigger Connectors
The Power Control Trigger Output Jacks sends and receives Power On/Off Signals Main, Trip 18 (+12 volt/0 volt) when connected to other McIntosh Components. An additional connection is for controlling the illumination of the Power Output Meters on McIntosh Power Amplifiers. A 3.5mm stereo mini
phone plug is used for connection to the Power Control, Trigger and Passthru Outputs.
Main, Trig 1&2 and Pass-Thru
AS901 Specifications
Stand Material
Ash Wood
Overall Dimensions
Width is 17.813 inches (45.2cm)
Height is 4.051 inches (10.3cm)
Depth is 29.813 inches (75.7cm)
Weight
41.6 pounds (18.9Kg) net, 51.1 pounds (23.2Kg) in shipping carton
Shipping Carton Dimensions
Width is 23.812 inches (60.5cm)
Depth is 38.312 inches (97.3cm)
Height is 9.5 inches (24.1cm)
AS125 Specifications
Stand Material
Ash Wood
Overall Dimensions
Width is 17.813 inches (45.2cm)
Height is 4.051 inches (10.3cm)
Depth is 18.013 inches (45.7cm)
Weight
27.1 pounds (12.3Kg) net, 35.1 pounds (15.9Kg) in shipping carton
Shipping Carton Dimensions
Width is 23.812 inches (60.5cm)
Depth is 28.188 inches (71.6cm)
Height is 9.5 inches (24.1cm)
Packing Your Amplifier Stands
In the event it is necessary to repack the equipment for shipment, the equipment must be packed exactly as shown. Failure to do so will result in shipping damage. Use the original shipping carton and interior parts only if they are all in good, serviceable condition. If a shipping carton or any of the interior part(s) are needed, please call or write to the Customer Service Department of McIntosh Laboratories. Please see the Part List for the correct part numbers.
Part List
Quantity Part Number Description
1 033739 Poly Bag
20" W X 10" D X 36" L
2 034673 Foam End Cap
1 752682 Manual/Assembly Pack
1 034674 Shipping Carton (AS901)*
1 034672 Shipping Carton (AS125)*
*Note: Your amplifier stand contents will include only one shipping carton for your corresponding model number (AS901 or AS125).

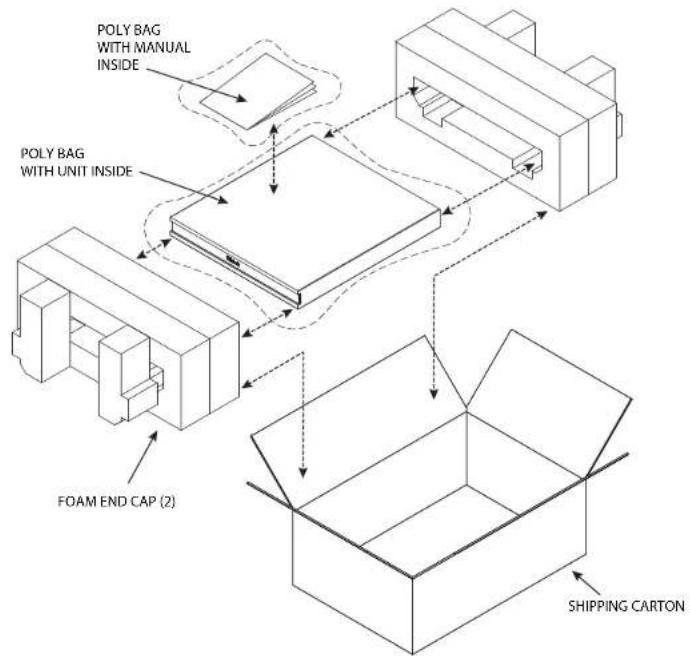

AS901 AS125
