Product Type	Outdoor Cooking Cart (Grill Cart)
Brand	GE (General Electric)
Model	ZX36CTYSS
Dimensions (Approx.)	36" width x 24" depth x 36" height
Weight (Cart Only)	~60 lbs (27 kg)
Weight Capacity	Up to 200 lbs (91 kg) for grill
Power Source	None (passive cart for grill mounting)
Material	Stainless steel / powder-coated steel
Color	Stainless steel
Side Shelves	Two folding side shelves (one right-hand dedicated)
Wheels / Casters	4 casters with front locking caster
Assembly Required	Yes (basic mechanical skills, 2 people for grill mount)
Included Hardware	10-24 x 1-1/2" screws (4), aluminum spacers (4), Phillips head screws (6), 1/4-20 nuts (4)
Tools Needed	3/8" wrench or socket, Phillips head screwdriver, gloves
Compatible Grill Sizes	36" and 48" GE Monogram grills
Safety Features	Locking front caster, anti-slip channels for shelves
Care & Cleaning	Wipe with damp cloth; avoid abrasive cleaners
Warranty	Contact GE Answer Center for details (800.626.2000)
Repair Parts	Contact GE Monogram local service at 1-800-444-1845
Country of Origin	United States (likely)

Frequently Asked Questions - ZX36CTYSS GE

How do I assemble the GE ZX36CTYSS grill cart?

Assembly requires basic mechanical skills. First, attach the side shelves by sliding them into the channels on the cart sides and securing with the provided screws and spacers. Then mount the grill (requires 2 people) onto the cart, ensuring it sits behind the front lip. Finally, screw the grill to the cart using the provided screws. Refer to the manual for detailed step-by-step instructions.

What tools are needed for assembly?

You will need a 3/8" wrench or socket, a Phillips head screwdriver, and gloves to protect against sharp edges.

What is the weight capacity of the cart?

The cart is designed to hold a grill weighing up to approximately 200 lbs (91 kg). The grill itself is very heavy, so two people are required to lift and place it onto the cart.

Are the shelves removable or foldable?

Yes, the side shelves are folding. To fold them down, lift the shelf slightly, fold it down, and let it slide down onto the spacers. The spacers and screws prevent the shelf from sliding out of the channels when folded.

How do I clean the grill cart?

Wipe the cart with a damp cloth using mild soap if needed. Avoid abrasive cleaners or scouring pads that could damage the finish.

What safety precautions should I take?

Always lock the front caster to prevent movement when mounting the grill. The grill is extremely heavy; use two people to lift it. Wear gloves during assembly to avoid cuts.

Where can I get replacement parts or service?

For replacement parts or service, contact GE Monogram local service at 1-800-444-1845. For general product information, call the GE Answer Center at 800.626.2000.

What are the dimensions of the cart?

The cart is designed for 36" and 48" grills. Approximate cart dimensions are 36" width x 24" depth x 36" height. Exact dimensions may vary slightly.

Is the cart compatible with other brand grills?

The ZX36CTYSS is specifically designed for GE Monogram grills of 36" and 48" sizes. It is not recommended for use with other brands without modification.

How do I store the cart when not in use?

If the grill is mounted, store as a unit. For winter storage, disconnect the gas supply (if applicable) and cover the cart/grill. Keep the manual with the cart for future reference.

USER MANUAL ZX36CTYSS GE

GE Monogram® Assembly Instructions

Before you Begin – Read these instructions completely and carefully.

Note To Installer: Be sure to leave these instructions with the Consumer.

Note to Consumer: Keep these instructions with your Use and Care Book for future reference.

If you have questions concerning the installation of this product, call the GE Answer Center® Consumer Information Service at 800.626.2000, 24 hours a day, 7 days a week.

If you received a damaged Grill Cart, you should contact your dealer.

Assembly of this grill cart requires basic mechanical skills. Proper assembly is the responsibility of the installer.

NOTE:

The shelves must be installed on the cart before the grill is mounted and before any gas connections are made.

Step 1:

Remove

Packaging

Open the box and remove the contents.

Remove packaging and protective film from shelves.

Locate the hardware accessory package and check contents.

10-24 x 1-1/2 Screws Count 4

Aluminum Spacers Count 4

Phillips Head Screws Count 6

1/4-20 Nuts Count 4

Line drawing of a rectangular industrial machine with wheels and internal compartments (no text or symbols)

Line drawing of two simple furniture items with handles, no text or symbols present

Installation

36" and 48" Grill Cart Assembly

Tools

You Will

Need

Step 2:

Install

Side Shelves

• 3/8" wrench or socket
• Phillips head screwdriver
- Gloves to protect against sharp edges

CAUTION: The grill is extremely heavy. 2 people are required to lift and place the grill onto the cart.

Technical line drawing of a mechanical device with wheels and mounting brackets (no text or symbols)

- Remove the top screw in the front shelf slide on the left and right sides. Retain screws. NOTE: One shelf is marked "R/H Shelf". Be sure to use that shelf on the right side of the cart.

Technical line drawing of a mechanical device with mounting brackets and wheels (no text or symbols)

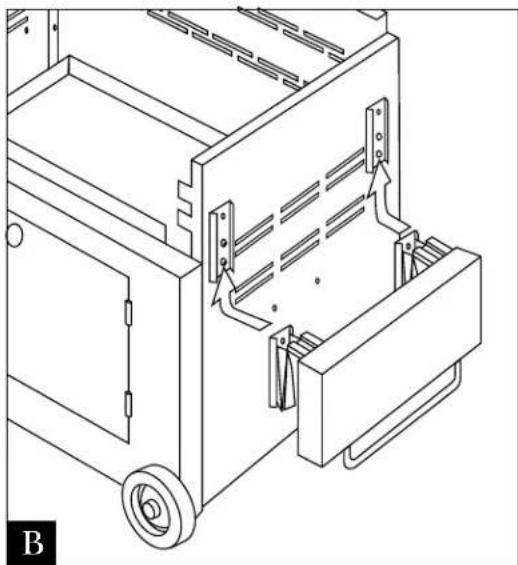

- Slide shelf supports up and into the channels on the sides of the cart.

Technical line drawing of a mechanical device with wheels and a handle (no text or symbols)

• When the shelf reaches stops at the top, fold the shelf out horizontally.
  •The shelf should rest securely in the channels.

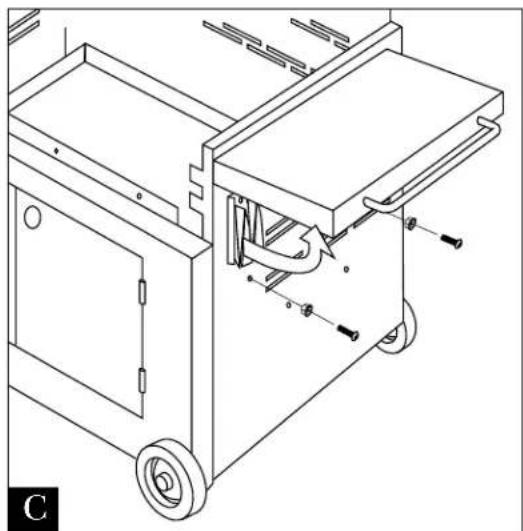

  • Install the long 10-24 screws and spacers below the shelf supports. Secure with nuts on the inside of the cart. (2 on each side.)
  •The spacers and screws will prevent the shelf from sliding out of the channels when folded down.

Technical line drawing of a mechanical device with wheels and internal components (no text or symbols)

To fold the shelves down:

• Lift the shelf up until it clears the channels.
• Fold down and let the shelf slide down and stop on the spacers.
• Fold both shelves down.

Installation

36" and 48" Grill Cart Assembly

Step 3: Mount Grill on Assembled Cart

CAUTION: Lock front caster on the cart to prevent movement.

See Installation instructions packed with the grill. Remove packaging, drip tray, smoker tray, burner grates and parts box.

CAUTION: The grill is extremely heavy. 2 people are required to lift and place the grill onto the cart.

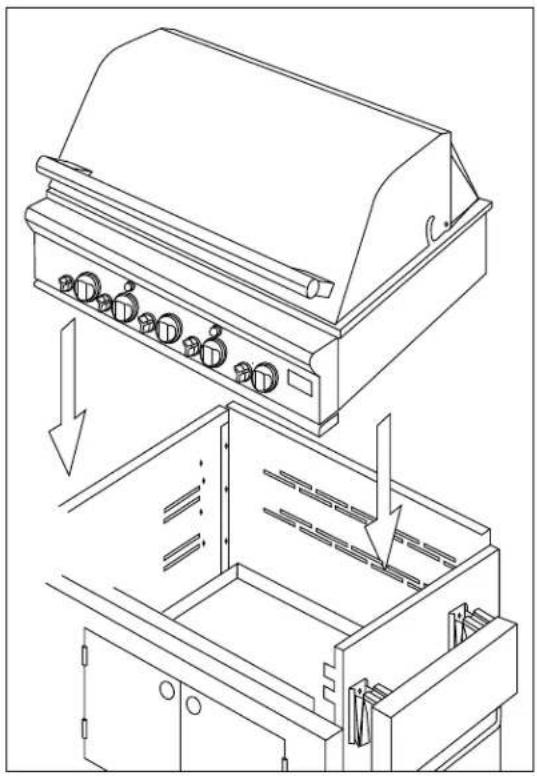

• Carefully, lower the grill onto the cart. The grill should be behind the lip on the front of the cart.
• Check to be sure the grill rests securely and fits square on the cart. The screw holes at the front and back should be aligned.

Technical line drawing of a fire extinguisher cabinet with internal components and airflow arrows (no text or symbols)

Step 4: Secure Grill to Cart

• Install 3 screws along the front and 3 screws along the back with a phillips head screw-driver.
- Re-install long screws previously removed in the top of each front slide.

Technical line drawing of a portable stove or gas stove unit with wheels and control panels (no text or labels)

To obtain specific information concerning any

Monogram product or service, call GE Answer Center®

consumer information service at 800.626.2000—any

time, day or night.

For Monogram local service in your area, call

1-800-444-1845.

NOTE: Product improvement is a continuing endeavor at General

Electric. Therefore, materials, appearance and specifications are

subject to change without notice.
