USER MANUAL MFF3036RS Philco

of your Electric Range

Line drawing of various household appliances including washing machines, refrigerators, and a refrigerator (no text or symbols)

TABLE OF CONTENTS

Important Safety Instructions....3-5

Before Setting Surface Controls....6-9

Setting Surface Controls 10-11

Before Setting Oven Controls 12

Oven Control Functions (100)....13

Setting Oven Controls....13-16

Care & Cleaning 17-21

Before You Call 22-23

International Warranty......Back Cover

PRODUCT RECORD AND REGISTRATION

Contents

Important Safety Instructions 3-5

Before Setting Surface Controls....6-9

About the cooktop & radiant elements....6-7

Cookware material types....8

Home canning 9

Setting Surface Controls ....10-11

Setting single surface elements....10

Setting dual radiant surface elements 11

Before Setting Oven Controls....12

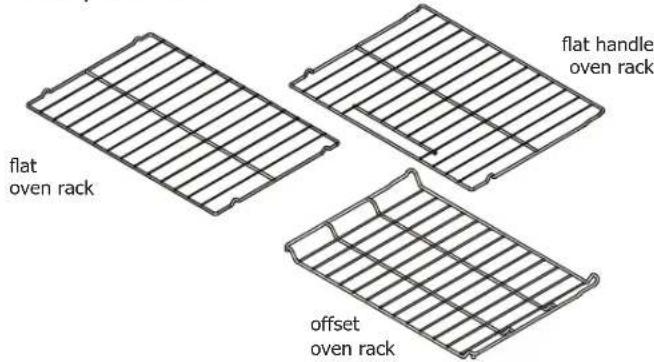

Removing, replacing & arranging the oven racks ..... 12

Oven Control Functions....13

Setting Oven Controls 13-16

Setting the clock 13

Changing oven temperature display ( F^ or C^ ) ..... 13

Setting minute timer....14

Setting bake 14

Setting broil....15

Adjusting oven temperature....16

Operating oven light....16

Care & Cleaning....17-21

Cleaning recommendation table 17

Coil cooktop maintenance & cleaning....18

Ceramic glass cooktop maintenance & cleaning ..... 19

Cautions for aluminum use 20

Removing & replacing oven door 21

Before You Call

Solutions to common problems 22-23

International Warranty .... Back Cover

Congratulations on your purchase of a new range! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority.

We know you'll enjoy your new range and Thank You for choosing our product. We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model. Use your range only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference.

Model Number: ____

Serial Number: ____

Purchase Date: ____

Serial plate location

al plate location:

Serial plate location: open storage drawer (some models) or remove lower front panel (some models).

This Use & Care Manual contains general operating instructions for your range and feature information for several models. Your range may not have all the described features. The graphics shown are representational. The graphics on your range may not look exactly like those shown.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, may result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation, maintenance or valuable information that is not hazard related.

• Remove all tape and packaging before using the range. Destroy the carton and plastic bags after unpacking the range. Never allow children to play with packaging material.
• Proper installation—Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70 latest edition and local electrical code requirements. Install only per installation instructions provided in the literature package for this range.
• User servicing—Do not repair or replace any part of the appliance unless specifically recommended in the manuals. All other servicing should be done only by a qualified technician. This may reduce the risk of personal injury and damage to the range.
• Never modify or alter the construction of a range by removing the leveling legs, panels, wire covers, anti-tip brackets/screws, or any other part of the range.

Ask your dealer to recommend a qualified technician and an authorized repair service. Know how to disconnect the power to the range at the circuit breaker or fuse box in case of an emergency.

WARNING

Tip Over Hazard

• A child or adult can tip the range and be killed.

• Verify the anti-tip device has been installed to floor or wall.

• Ensure the anti-tip device is re-engaged when the range is moved to floor or wall.

• Do not operate the range without the anti-tip device in place and engaged.
• Failure to follow these instructions can result in death or serious burns to children and adults.

Range leveling leg Anti-Tip bracket

To check if the anti-tip bracket is installed properly, use both arms and grasp the rear edge of range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.

- Remove the oven door from any unused range if it is to be stored or discarded.

WARNING

Stepping, leaning or sitting on the door or drawers of a range can result in serious injuries and also cause damage to the appliance. DO NOT allow children to climb or play around the range. The weight of a child on an open oven door may cause the range to tip, resulting in serious burns or other injury.

Never use your appliance for warming or heating the room.

Do not use the oven, warmer drawer or lower oven (if equipped) for storage.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

• Storage in or on appliance—flammable materials should not be stored in an oven, warmer drawer, near surface units or in the storage drawer. This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the range.
• DO NOT LEAVE CHILDREN ALONE—children should not be left alone or unattended in the area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance, including the storage drawer, lower broiler drawer, warmer drawer or lower double oven.

CAUTION

• Do not store items of interest to children in the cabinets above a range or on the backguard of the range. Children climbing on the range to reach items could be seriously injured.
• Do not touch surface heating units or surface cooking elements, areas near these units or elements, or interior surface of the oven. Both surface heating and oven heating elements may be hot even though they are dark in color. Areas near surface cooking units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials touch these areas until they have had sufficient time to cool. Among these areas are the cook top, surfaces facing the cook top, the oven vent openings and surfaces near these openings, oven door and oven door window.
• Wear proper apparel—loose-fitting or hanging garments should never be worn while using the appliance. Do not let clothing or other flammable materials contact hot surfaces.

IMPORTANT

Do not attempt to operate the range during a power failure. If the power fails, always turn off the range. If the range is not turned off and the power resumes, the range will begin to operate again. Once the power resumes, reset the clock and oven function.

• Do not use water or flour on grease fires—smother the fire with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to become too hot.
• Use dry potholders - moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholders touch hot heating elements. Do not use a towel or other bulky cloth instead of a potholder.
• Do not heat unopened food containers - buildup of pressure may cause container to burst and result in injury.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

• Use care when opening oven door, lower oven door or warmer drawer (if equipped)—Stand to the side of the range when opening the door of a hot oven. Let hot air or steam escape before you remove or replace food in the oven.
• Keep oven vent ducts unobstructed. The oven vent is located under the left rear surface element if your model is equipped with coil elements. The oven vent is located below the backguard for models equipped with ceramic-glass cook tops. Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heat-sensitive items on or near the oven vent. These items could melt or ignite.
• Placement of interior oven racks. Always place oven racks in desired location while oven is cool. If rack must be moved while oven is hot use extreme caution. Use potholders and grasp the rack with both hands to reposition. Do not let potholders contact the hot heating elements in the oven. Remove all utensils from the rack before moving.

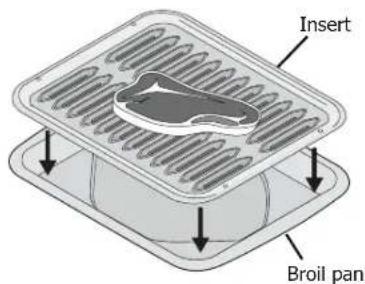

• Do not use the broiler pan without its insert. The broiler pan and its insert allow dripping fat to drain and be kept away from the high heat of the broiler. Do not cover the broiler insert with aluminum foil. Exposed fat and grease could ignite.
• Protective liners—Do not use aluminum foil to line the oven bottom. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating unit. Place a pan of food on the unit before turning it on, and turn the unit off before removing the pan.
• Use proper pan size—This appliance is equipped with one or more surface units of different sizes. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to element will also improve efficiency.
• Utensil handles should be turned inward and not extend over adjacent surface elements—To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.
• Never leave surface elements unattended at high heat settings—Boilovers cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.
• Do not immerse or soak removable heating elements—Heating elements should never be immersed in water. Heating elements clean themselves during normal operation.
• Glazed cooking utensils—Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for cook top service without breaking due to the sudden change in temperature. Check the manufacturer's recommendations for cook top use.
• When flaming foods under a ventilating hood, turn the fan on.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

COIL COOK TOP MODELS

• Make Sure Reflector Pans or Drip Bowls Are in Place—Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.
• Protective Liners—Do not use aluminum foil to line surface unit drip bowls, or reflector pans. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire. Improper installation of these liners may result in risk of electric shock, or fire.

FOR CERAMIC-GLASS COOK TOP MODELS

• Do not cook on broken cook top—If cook top should break, cleaning solutions and spillovers may penetrate the broken cook top and create a risk of electric shock. Contact a qualified technician immediately.
• Clean cook top with caution—If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR RANGE

• Clean the range regularly to keep all parts free of grease that could catch fire. Pay particular attention to the area around each surface element. Do not allow grease to accumulate.
• Kitchen cleaners and aerosols—Always follow the manufacturer's recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and injury.
• Clean ventilating hoods frequently—Grease should not be allowed to accumulate on the hood or filter. Follow the manufacturer's instructions for cleaning hoods.

CAUTION

• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of this appliance by a person responsible for their safety.

BEFORE SETTING SURFACE CONTROLS

Oven vent location

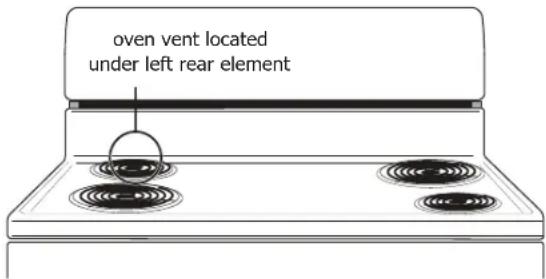

Coil cooktop models

The oven vent is located under the left rear surface element (See Fig. 1).

oven vent located under left rear element

Fig. 1

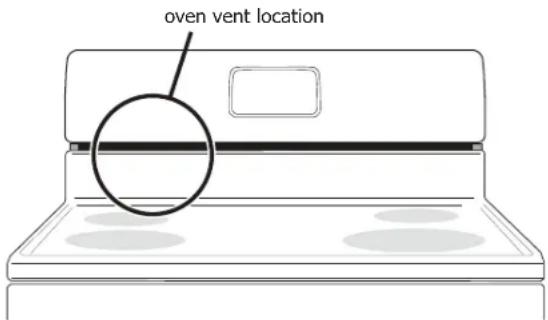

Ceramic glass cooktop models

The oven vent is located under the left side of the control panel (See Fig. 2).

oven vent location

Fig. 2

When the oven is on, warm air passes through this vent. This venting is necessary for proper air circulation in the oven and good baking results. Do not block the oven vent.

About surface elements

For efficient cooking, turn OFF the element several minutes before cooking is complete. This will allow residual heat to complete the cooking process.

The type and size of cookware, the number of surface elements in use and their settings are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become hot enough to cause burns.

About ceramic glass cooktops (some models)

A ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop and only flat-bottomed cookware should be used.

The element temperature rises gradually and evenly. As the temperature rises, the element will glow red. To maintain the selected setting the element will cycle ON and OFF. The heating element retains enough heat to provide a uniform and consistent heat during the off cycle.

NOTES

Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps to prevent damage to the ceramic smoothtop. Cycling at the HI setting is normal and will occur more often if the cookware is too small for the radiant element or if the cookware bottom is not flat.

Be sure to read the detailed instructions for ceramic glass cooktop cleaning in the Care & Cleaning and Before You Call checklist sections of this Use & Care Manual.

BEFORE SETTING SURFACE CONTROLS

Element on & hot surface indicator lights

Ceramic glass cooktops (some models)

Your appliance is equipped with two different types of radiant surface control indicator lights that will glow on the control panel — the on indicator and the hot surface indicator lights.

The element on indicator light will glow when any surface element is turned ON. A quick glance at this indicator light after cooking is an easy check to be sure the surface controls are turned OFF (See Fig. 1).

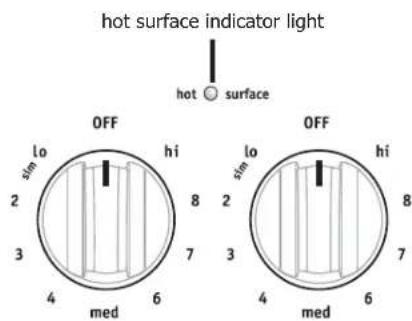

The hot surface indicator light will glow when any surface cooking area heats up and will remain on until the glass cooktop has cooled to a MODERATE level (See Fig. 2).

element ON indicator light OFF lo hi 2 8 3 7 4 6 med OFF hi 6 4 2 lo lo 2 off on

Fig. 1

hot surface indicator light hot surface OFF LO hi 2 8 3 7 4 med 6 OFF LO hi 2 8 3 7 4 med 6

Fig. 2

Types of ceramic cooktop elements

(some models)

The ceramic glass cooktop has radiant surface elements located below the surface of the glass. The patterns on the ceramic glass outline the size and type of element available. The single radiant element has one round outline pattern shown. The dual radiant element has two outline patterns. The dual radiant element may be set using only the smaller inner element or both inner and outer elements may be set to heat together for a larger surface (See Fig. 3).

OFF lo sim 2 3 4 med 6 7 8 hi Single radiant surface control

Fig. 3

OFF hi 6 4 2 lo lo hi 6 4 2 Dual radiant surface control (some models)

BEFORE SETTING SURFACE CONTROLS

Cookware material types

The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom. The most popular materials available are:

Aluminum - Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists staining and pitting). If aluminum pans slide across the ceramic cooktop, they may leave metal marks which will resemble scratches. Remove these marks immediately.

Copper - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum).

Stainless - Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

Cast Iron - A slow heat conductor but will retain heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.

Porcelain-enamel on metal - Heating characteristics will vary depending on base material. Porcelain-enamel coating must be smooth to avoid scratching ceramic cooktops.

Glass - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

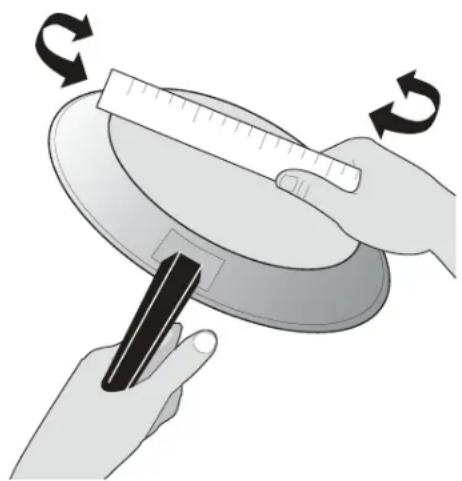

Illustration of hands using a measuring tool to measure a circular object, with rotation arrows indicating clockwise motion (no text or symbols)

Fig. 1

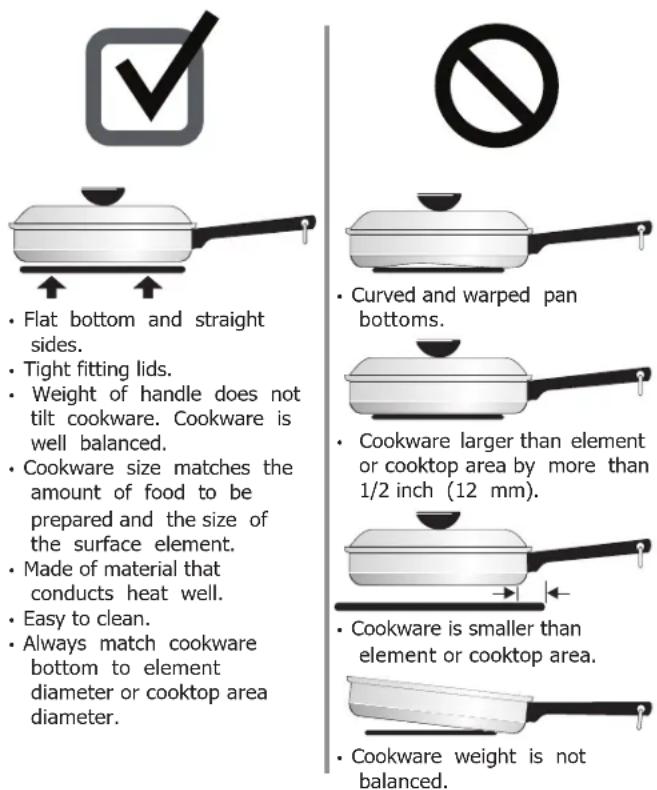

Using proper cookware

The size and type of cookware used will influence the setting needed for best cooking results. Be sure to follow the recommendations for using proper cookware as illustrated in Figs. 1 and 2.

Cookware should have flat bottoms that make good contact with the entire surface heating element (See Fig. 1). Check for flatness by rotating a ruler across the bottom of the cookware (See Fig. 2). For more information about the ceramic cooktop see "Cooktop cleaning & maintenance" in the Care & Cleaning section.

• Flat bottom and straight sides. • Tight fitting lids. • Weight of handle does not tilt cookware. Cookware is well balanced. • Cookware size matches the amount of food to be prepared and the size of the surface element. • Made of material that conducts heat well. • Easy to clean. • Always match cookware bottom to element diameter or cooktop area diameter. • Curved and warped pan bottoms. • Cookware larger than element or cooktop area by more than 1/2 inch (12 mm). • Cookware is smaller than element or cooktop area. • Cookware weight is not balanced.

Fig. 2

Home Canning

Be sure to read and observe all the following points when home canning with your appliance. Check with the USDA (United States Department of Agriculture) website and be sure to read all the information they have available as well as follow their recommendations for home canning procedures.

• Use only quality flat bottom canners when home canning. Use a straight-edge to check canner bottom (see "Cookware material types" in the Before setting surface controls section).
• Use only a completely flat bottom canner with no ridges that radiate from the bottom center when home canning using a ceramic cooktop.
• Make sure the diameter of the canner does not exceed 1 inch beyond the surface element markings or coil element. It is recommended to use smaller diameter canners on electric coil and ceramic glass cooktops.
• Start with hot tap water to bring water to boil more quickly.
• Use the highest heat seating when first bringing the water to a boil. Once boiling is achieved, reduce heat to lowest possible setting to maintain that boil.

IMPORTANT

NEVER place or straddle a cooking utensil over two different surface cooking areas at the same time. This can cause uneven heating results.

Placing or straddling a cooking utensil over two cooking areas may cause a ceramic cooktop to fracture.

SETTING SURFACE CONTROLS

Single surface elements

To operate the single element:

1. Place correctly sized cookware on single surface element.
2. Push in and turn the surface control knob in either direction (Fig. 2) to the desired setting (Refer to the Suggested surface element settings table, Fig. 1). Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking. The surface control knobs do not have to be set exactly on a particular spot. Use the graphics provided as a guide and adjust the control knob as needed (See Fig. 2). Each surface element provides a constant amount of heat at each setting.
3. When cooking is complete, turn the surface element OFF before removing the cookware.

Suggested surface element settings

The suggested settings found in Fig.1 below are based when cooking with medium-weight aluminum pans with lids. Settings may vary when using other types of pans.

Suggested surface element settings table

Settings Type of cooking

High (HI - 9) Start most foods, bring water to a boil, pan broiling

Medium high (7 - 8) Continue a rapid boil, fry, deep fat fry

Medium (5 - 6) Maintain a slow boil, thicken sauces and gravies or steam vegetables

Medium Low (2 - 4) Keep foods cooking, poach, stew

Low (LO - 1) Keep warm, melt, simmer

Fig. 1

OFF lo sim hi 2 8 3 7 4 6 med

Fig. 2

NOTES

The size and type of utensil used, and the amount and type of food being cooked will influence the setting needed for best cooking results.

The on indicator light will glow when one or more elements are turned ON. A quick glance at this indicator light when cooking is finished is an easy check to be sure all control knobs are turned OFF (some models).

On ceramic glass cooktops (some models) a glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

CAUTION

Do not place flammable items such as plastic salt and pepper shakers, spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite. Potholders, towels or wooden spoons could catch fire if placed too close to the surface elements.

SETTING SURFACE CONTROLS

Dual radiant surface elements

Ceramic glass cooktops only (some models)

Symbols on the backguard indicate which coil of the dual radiant element will heat. The osymbol indicates the inner coil only (See Fig. 1). The symbol indicates both inner and outer coils will heat (See Fig. 2).

To operate a dual radiant element:

1. Place correctly sized cookware on dual radiant surface element.
2. Push in and turn the surface control knob clockwise to begin heating both the inner and outer portions of the dual element. If only the inner heating portion is needed like for smaller cookware, push in and turn the knob counter-clockwise to start.
3. When cooking is complete, turn the dual radiant surface element OFF before removing the cookware.

Start most cooking operations on a higher setting and then turn to a lower setting to finish cooking. The surface control knobs do not have to be set exactly on a particular mark. Use the marks as a guide and adjust the control knob as needed. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

You may switch from either coil setting at any time during cooking. See Suggested surface element settings table on previous page.

IMPORTANT

Do not allow aluminum foil, or ANY material that can melt to make contact with the heating elements or ceramic glass cooktop. If these items melt they will damage the ceramic cooktop.

OFF hi 6 4 2 lo lo Hi 6 4 2 Heating with inner (small) element only

Simple black circle centered within a white concentric circle on a light gray background (no text or symbols)

Areas that heat are shown darkened.
Fig. 1

OFF HI 6 4 2 lo lo Heating with both elements

Simple black and white concentric circle diagram with no text or symbols

Fig. 2

CAUTION

Surface elements may appear to have cooled after they have been turned off. The surface may still be hot and burns may occur if the surface is touched before it has cooled.

On ceramic glass cooktops, the hot surface indicator light will continue to glow AFTER the control knob is turned to the OFF position and will glow until the heating surface area has cooled.

BEFORE SETTING OVEN CONTROLS

Types of oven racks

Your range may be equipped with one or more of the oven rack styles shown.

flat oven rack flat handle oven rack offset oven rack

The flat oven rack or flat handle oven rack (some models) may be used for most cooking needs.

The offset oven rack (some models) is designed to place the base of the rack about 1/2 of a rack position lower than normal. This rack design provides several additional possible locations between the standard positions.

Removing, replacing & arranging racks

To remove - pull the rack forward until it stops. Lift up front of rack and slide out.

To replace - fit the rack onto the guides on the oven walls. Tilt the front of the rack upward and slide the rack back into place.

Arranging - always arrange the oven racks when the oven is cool (prior to operating the oven).

① ② ③ ④ ⑤

Fig. 1

Recommended rack positions by food type

Food type Position

(See Fig. 1)

Broiling meats See broil

Cookies, cakes, pies, biscuits & muffins 2 or 3

Frozen pies, angel food cake, yeast, bread and casseroles 1 or 2

Small cuts of meat or poultry 1 or 2

Turkey, roast or ham 1

Air circulation in the oven

For best baking results allow 2-4" (5-10 cm) around the cookware for proper air circulation and be sure pans and cookware do not touch each other, the oven door, sides or back of the oven cavity. Hot air must be able to circulate around the pans and cookware in the oven for even heat to reach around the food.

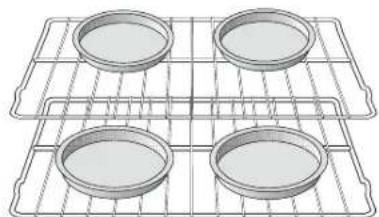

Baking layer cakes with 1 or 2 oven racks

For best results when baking cakes using 2 flat oven racks, place cookware on rack positions 2 & 5 (See Fig. 2). For best results when using a single oven flat rack, place cookware on rack positions 2, 3 or 4 (See Fig. 3).

Two identical wire grating grids with four circular samples, no text or symbols present

Fig. 2

Two circular petri dishes placed on a wire rack (no text or symbols visible)

Fig. 3

CAUTION

Always use oven mitts when using the oven.

When using the appliance, oven racks and cooktop will become very hot which can cause burns.

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.

For satisfactory use of your oven, become familiar with the various pad features and functions of the oven as described below.

Feature indicator lights— These indicator lights show if bake or broil is active. Bake pad—Use to select the bake feature. Broil pad— Use to select the variable broil feature. 88:30 Up and down arrow pads— Use with the feature or function pads to set oven temperature or adjusting the clock and minute timer. Timer on-off pad— Use to set or cancel the minute timer. The minute timer does not start or stop cooking. clock pad— Use to set the time of day. Clear off pad— Use to clear any feature previously entered except the time of day and minute timer. Press clear off to stop cooking.

SETTING OVEN CONTROLS

Setting the clock

When the appliance is first plugged in or when the power supply to the appliance has been interrupted, the display will flash "12:00". It is recommended to always set the clock for the correct time of day before using the appliance.

To set the clock:

1. Press clock once (do not hold key pad down).
2. Within 5 seconds, press and hold the ∧ or ∨
   the correct time of day appears in the display.

Changing the temperature display mode (°F or °C)

The electronic oven control is set to display °F (Fahrenheit) when shipped from the factory. The display may be changed to show either Fahrenheit or Celsius oven temperatures.

To change the temperature display mode from °F to °C (Celsius) or from °C to °F (Fahrenheit).

1. Press and hold broil (for 6-8 seconds) until F or C appears in the display. At this time the display will show the current temperature display mode whether set for F or C. Before proceeding read the notes below.
2. Press either on key pad to toggle between F (Fahrenheit) or C (Celsius) mode choices.
3. To accept the change, wait until the oven control provides the acceptance beep (See Notes below).
4. The display will return to the time of day with the temperature display mode changed the next time the oven is set for bake or broil.

NOTES

• If at any time during the process of changing the temperature display mode you decide not to change the mode, press the clear off key pad once before the acceptance beep.
• The temperature display mode cannot be changed when bake or broil is active.

SETTING OVEN CONTROLS

Setting the minute timer

1. Press timer on-off.
2. Press the to increase the time in one minute increments. Press and hold the to increase the time in 10 minute increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.

Note: If the pad is pressed first, the timer will advance to 11 hours and 59 minutes.

1. When the set time has run out, the timer will sound a 3 second tone. 0:00 will show in the display until timer on-off is pressed.

To change the timer while it is in use

While the timer is active and shows in the display, press and hold the ∧ or ∨ increase or decrease the time remaining.

To cancel the minute timer before the set time has run out press timer on-off once.

NOTES

• The minute timer will not start or stop the cooking process. It serves as an extra timer in the kitchen that will beep when the set time has run out. The minute timer can be used alone or while using any of the other oven features.
• If another feature is active when the minute timer is active, the minute timer will show in the display. To view information about other active features, press the pad for that feature.

Setting bake

The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C). The factory preset bake temperature is 350°F (177°C).

To set bake

1. Press bake. "— — —" appears in the display.
2. Within 5 seconds, press the . The display will show "350°F (177°C)." By pressing and holding the , the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
3. As soon as the oA pad is released, the oven will begin preheating to the selected temperature. When the oven reaches the desired baking temperature, the control will beep once.

To change the oven temperature after bake has started

1. Press bake. Visually check the bake temperature and that it needs to be changed.
2. Press the or pad to increase or decrease the set temperature to the desired new oven temperature.

CAUTION

Do not cook foods directly on oven bottom. To avoid damaging the oven interior always cook foods inside the oven using cookware positioned on an oven rack.

NOTE

To cancel baking at any time, press clear off.

IMPORTANT

Dark or dull pans absorb more heat than shiny bakeware resulting in dark or overbrowning of foods. It may be necessary to reduce the oven temperature or cook time to prevent overbrowning of some foods. Dark pans are recommended for pies. Shiny pans are recommended for cakes, cookies and muffins.

Setting broil

Use the broil feature to cook meats that require direct exposure to radiant heat for optimum browning results. When broiling always remember to arrange the oven racks while oven is still cool.

For medium done steaks, position the oven rack closer to the broil element (positions 4 or 5, See Fig. 1). For well-done foods such as chicken, fish, lobster or thick cuts of meat, position the oven rack further from the broil element.

To set Broil

1. Arrange the oven rack while oven is still cool. Position the oven rack as needed.
2. Press broil. " — —" will appear in display.
3. Press and hold the o until the desired broil setting level appears in the display. Press the for HI broil or the LO broil. Most foods may be broiled at the HI broil setting. Select the LO broil setting to avoid excess browning or drying of foods that should be cooked to the well-done stage.
4. For optimum results, preheat oven for 5 minutes before adding food.
5. Place the insert on the broil pan (some models; Fig. 2), then place the food on the broil pan insert.
6. Place the broiler pan and insert on the oven rack.
7. Open the oven door to the broil stop position when broiling.
8. Broil on one side until food is browned. Turn and broil food on other side.
9. When broiling is finished press clear off.

NOTE

Always pull the oven rack out to the stop position before turning or removing the food.

⑤ ④ ③ ② ①

Fig. 1

Insert Broil pan

Fig. 2

WARNING

Should an oven fire occur, close the oven door and turn the oven OFF. If the fire continues, use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive.

CAUTION

• The broiler pan and the insert (some models) allows grease to drain and be kept away from the high heat of the broiler. DO NOT use the pan without the insert. DO NOT cover the insert with aluminum foil; the exposed grease could ignite.
• To insure proper results when broiling use ONLY Electrolux Home Products, Inc. approved broil pan and insert.

SETTING OVEN CONTROLS

Adjusting oven temperature

Your appliance has been factory calibrated and tested to ensure an accurate baking temperature. For the first few uses, follow your recipe times and temperature recommendations carefully. If you think the oven is cooking too hot or too cool for your recipe times, you can adjust the control so the oven cooks hotter or cooler than the temperature displayed.

To adjust oven temperature

1. Press & hold the bake key pad and release after the display shows the factory temperature setting of 00. If the oven temperature has been previously adjusted from the factory setting, the latest adjusted value will appear in the display instead.
2. You may increase the oven temperature in 5^ F increments with each press of the key pad. You may also adjust the oven temperature downward in 5^ F increments with each press of the key pad (total adjustment range is +35^ F to -35^ F).
3. To accept the change, wait until the oven control provides the acceptance beep (See Notes).
4. The oven temperature adjustment has been accepted by the oven control and the display will return to the time of day.

NOTES

• If at any time during the process of adjusting the oven temperature feature you decide not to make the change, press the clear off key pad once before the acceptance beep.
• The oven temperature adjustment feature can not be modified if bake or broil is active.
• The oven temperature adjustment may be made if your oven control has been set for °C (Celsius) temperature display mode. In this case each press of the ∧ or √ pad will adjust in 1°C increments upward (maximum +18°C) or downward (maximum -18°C), depending on which arrow key pad is pressed.
• DO NOT USE oven thermometers such as those found in grocery stores to check the temperature settings inside your oven. These oven thermometers may vary as much as 20 to 40 degrees from actual temperatures.

Operating oven light (some models)

The interior oven light will automatically turn ON when the oven door is opened. Press the oven light switch located on the upper left control panel to turn the interior oven light ON and OFF whenever the oven door is closed.

oven light switch bake trol... timer... roll

Cleaning recommendation table

Surface type	Recommendation
Control knobsPainted body partsPainted decorative trimAluminum, plastic or vinyl trim pieces	For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes. Rinse with a damp cloth and dry.Do notuse abrasive cleaners on these surfaces; they can scratch. To remove control knobs, turn to the OFF position, grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides of both the knob and the shaft, then push the knob into place.
Control panelDecorative trim(some models)	Before cleaning the control panel, turn all controls OFF. If needed, remove any knobs from the panel. Clean using hot, soapy water and a cloth.Squeeze excess water from the cloth beforewiping the control panel, especially when wiping around the controls area. Excess water in or around the controls may cause damage to the appliance. Rinse with clean water and a cloth, squeeze excess water from cloth before wiping the control panel.
Stainless Steel(some models)	Clean heavier soils with hot, soapy water and a cloth. Rinse with clean water and a cloth.Do not use cleaners with high concentrations of chlorides or chlorine.Do not use harsh scrubbing cleaners. Only use cleaners that are especially made for cleaning stainless steel. Always be sure to completely wipe cleaner residue from the surface; bluish stains may occur during heating that cannot be removed.
Oven interior & door linerPorcelain enamel broiler pan and broiler pan insert(some models)	Gentle scouring with soap and a non-abrasive scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, then scrub with soap and a non-abrasive scouring pad. Rinse and wipe dry with a clean cloth. Do not allow food spills with a high sugar or acid content (milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface; they may cause a dull spot even after cleaning.The oven interior is porcelain-coated and is safe to clean using oven cleaners following manufacturer's instructions. After cleaning, remove any oven cleaner or the porcelain may become damaged during future heating.Do notspray oven cleaner on any electrical controls or switches.Do notspray or allow oven cleaner to build up on the oven temperature sensing bulb.Do notspray cleaner on oven door trim, door gasket, plastic drawer glides, handles or any exterior surfaces of the range.Clean any soils from the oven frame, the door liner outside the oven door gasket and the small area at the front center of the oven bottom. Clean with hot, soapy water. Rinse using clean water and a cloth.
Oven racks	Remove oven racks from oven before cleaning. Clean by using a mild, abrasive cleaner following manufacturer's instructions. Rinse with clean water and dry.
Oven door	Use soap and water to thoroughly clean the top, sides and front of the oven door. Rinse well. Glass cleaner may be used on the outside glass of the oven door.Do notimmerse the door in water.Do not spray or allow water or glass cleaner to enter the door vents. Do not use oven cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of the oven door.
Cooktop	Do notuse spray oven cleaners on the cooktop. See cooktop cleaning and maintenance in theCare & Cleaningsection.

CARE & CLEANING

Coil cooktop surface elements and drip bowls cleaning (some models)

CAUTION

• Make sure drip bowls are in place - Absence of these bowls during cooking may subject wiring or components underneath to damage.
• Never immerse a surface element in water.
• Be sure the range is cool before removing surface elements or drip bowls. Be careful not to bend terminal ends when replacing surface elements after cleaning.
• Protective liners—Do not use aluminum foil to line surface drip bowls, or reflector pans. Only use aluminum foil as recommended in this manual. Improper installation of these liners may result in risk of electric shock, or fire.

Surface elements may be unplugged and removed to make cleaning the drip pans easier. The surface elements clean themselves when they are turned on. Food spilled on a hot element will burn off. Food spilled on a COOL element may be cleaned with a damp cloth—any remaining soil will burn off the next time the element is used.

To remove the surface elements and drip bowls

1. Lift the edge of the drip bowl across from the terminal end. Lift the surface element and drip bowl together just enough to clear the cooktop.
2. While holding the drip bowl and surface element, gently pull the terminal end out from terminal plug. DO NOT remove hold down clip (if equipped) from the drip bowl.

Hold down clip (if equipped) Element support Allow element support to rest on drip pan inside rim. Terminal end Terminal plug

Fig. 1

Cleaning drip bowls

Wash in hot, soapy water or in the dishwasher. Rinse and dry while still warm. Hard to remove soils can be removed by soaking the drip bowls for about 20 minutes in a lightly diluted liquid cleanser or a solution of ammonia and water (1/2 cup ammonia to 1 gallon of water). A nylon scrubber may be used after soaking. DO NOT use abrasive cleaners or steel wool, they will scratch the surface. Always rinse with clean water and polish dry with a soft cloth.

To replace drip bowls and surface elements

1. Slide the terminal end on the element through the opening in the drip bowl (See Fig. 1).
2. Align the element support to rest on the rim inside the drip bowl. If your drip bowl is equipped with a hold down clip, align the element support opposite the terminal end with the slot in the hold down clip, and snap into place.
3. After the element is positioned in the drip bowl, line up the terminal end with the terminal plug as shown.
4. Hold the surface element and drip bowl together as level as possible and firmly push the terminal end into the terminal plug. Make sure element terminal is seated properly into terminal plug. Make sure the surface element is level to reduce the hazard of pans sliding off the element.

Ceramic glass cooktop maintenance

(some models)

IMPORTANT

Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop.

Prior to using your cooktop for the first time, apply some of the glass-ceramic cooktop cleaner supplied with your new appliance. Buff with a non-abrasive cloth or no-scratch cleaning pad. This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can become permanent if not removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough or dirty bottoms can mark or scratch the cooktop surface.

Do not:

• Slide anything metal or glass across the cooktop.
• Use cookware with dirt or dirt build up on bottom; replace with clean cookware before using.
• Use your cooktop as a cutting board or work surface in the kitchen.
  • Cook foods directly on the cooktop surface without a pan.
• Drop heavy or hard objects on the ceramic glass cooktop, they may cause it to crack.

Diagram illustrating a prohibition symbol with arrows and circles, indicating no movement or prohibition in a control system.

Ceramic glass cooktop cleaning

(some models)

CAUTION

Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

For light to moderate soil:

Apply a few drops of glass-ceramic cooktop cleaner directly to the cooktop. Use a paper towel or use a non-abrasive plastic type no-scratch cleaning pad to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly, leaving no residue.

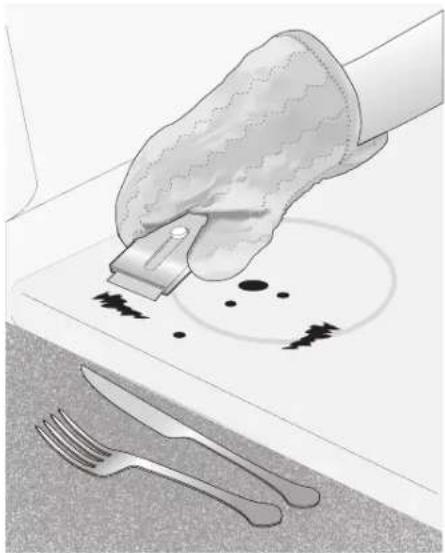

For heavy, burned on soil:

Apply a few drops of glass-ceramic cooktop cleaner directly to the soiled area. Rub the soiled area using a non-abrasive plastic type no-scratch cleaning pad, applying pressure as needed. Do not re-use the pad used to clean the cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor blade scraper, holding scraper at a 30 degree angle to the surface. Remove loosened soils with cooktop cleaning cream and buff surface clean.

Illustration of a hand using a grater to clean food on a kitchen counter, with a fork and knife nearby (no text or symbols)

CARE & CLEANING

Ceramic glass cooktop cleaning (cont'd)

(some models)

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or melted onto the ceramic cooktop surface. Permanent damage (such as pitting of the cooktop surface) may occur if not removed immediately.

After turning the surface elements OFF, use a razor blade scraper or a metal spatula with a mitt and scrape the soil from the hot surface (as illustrated). Allow the cooktop to cool, and use the same method for heavy or burned on soils.

WARNING

DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health and can chemically damage the ceramic glass surface.

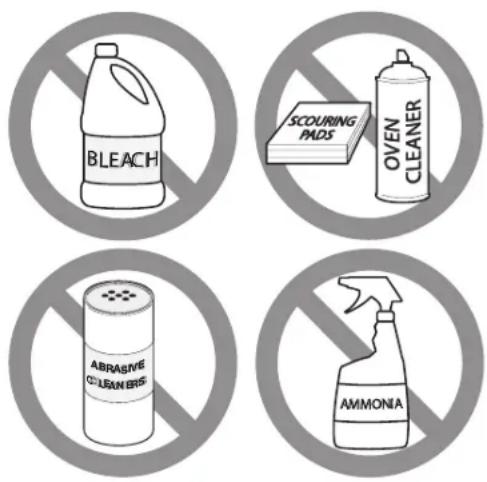

Do not use the following on the ceramic cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and some nylon pads. They may scratch the cooktop, making it more difficult to clean.
• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven cleaners, as they may etch or discolor the cooktop.
• Do not use dirty sponges, cloths or paper towels, as they can leave soil or lint on the cooktop which can burn and cause discoloration.

IMPORTANT

Damage to the ceramic glass cooktop may occur if you use an abrasive type cleaning pad. Only use cleaning products that have been specifically designed for ceramic glass cooktops.

Caution for aluminum use on the cooktop

• Aluminum Foil - Use of aluminum foil on a hot cooktop will damage the ceramic cooktop. Do not use thin aluminum cooking utensils or allow aluminum foil to touch the ceramic cooktop under ANY circumstances.
• Aluminum utensils - The melting point of aluminum is much lower than that of other metals. Care must be taken when aluminum pots or pans are used on the cooktop. If aluminum pans are allowed to boil dry when using the cooktop, the utensil may be damaged or destroyed and it may fuse to, break or mark the ceramic glass surface, permanently damaging the cooktop surface.

Removing and replacing the lift-off oven door

CAUTION

The oven door is heavy. For safe, temporary storage, lay the oven door flat with the inside of the door facing down.

To remove oven door

1. Open oven door completely (horizontal with floor-Fig. 1).
2. Remove 2 screws located on the inside of the oven door liner (See A Fig. 2).
3. Insert the 2 screws into the door hinge holes located on the side of the hinge arm, one into each hinge (See B Fig. 2).
4. Close oven door until the door stops, (do not force the door to close any further). The placement of these screws should keep door open in about a 45 degree position.
5. Grasp oven door firmly on both sides and slide door up and off hinges at the same angle (See Fig. 3).
6. To clean oven door, follow the instructions provided listed in the cleaning chart under "oven door".

1. Be sure the hinge arms remain at the 45 degree angle position. Be sure the screws are still locking the hinge arms from moving. If the screws fall out of the hinge holes, the hinge(s) may snap back against the oven frame and could pinch fingers or chip the porcelain finish on the oven front frame.
2. Hold door at the sides near the top while resting the lower front of door on your knee. Insert the door channels at the bottom of door over the door hinges, (See Fig. 3).
3. Allow the door to slide down into the door hinges evenly at the same 45 degree angle. The hinge arms should be inserted into the bottom corners as far as they can go.
4. Open door completely (horizontal with floor) and remove both screws from holes in door hinges.
5. Reinstall the 2 screws into the door liner (See C Fig. 2).
6. If the door is not in alignment with the oven frame, remove door and repeat the above steps.

Special door care instructions - Most oven doors contain glass that can break.

• Do not close the oven door until all the oven racks are fully in place.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.

Diagram of a refrigerator with labeled parts and directional arrows indicating movement or force, accompanied by partial text.

Oven door hinge
locations
with oven door
fully open.

Fig. 1

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including a bolt and screw alignment indicator.

Fig. 2

about 45 degrees Oven Door Oven Door Hinge

Fig. 3

Cleaning under lower element (some models)

For models that have a visible lower bake element ONLY - This bake element was designed to be tilted up using your hand from the front of the bake element for cleaning purposes. Remove the bottom oven rack before raising the element. Do not to raise the element more than 4 or 5 inches from the resting position.

CAUTION

The oven bake and broil elements may appear to have cooled after they have been turned OFF. The elements may still be hot and burns may occur if these elements are touched before they have cooled sufficiently.

Problem Solution

Poor baking results. • Many factors affect baking results. Make sure the proper oven rack position is used. Center food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. If you feel the oven is too hot or cool, seeAdjusting oven temperature section in this Use & Care Guide.
Appliance is not level.	• Be sure floor is level, strong & stable enough to adequately support range.• If floor is sagging or sloping, contact a carpenter to correct the situation.• Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of appliance until the rack is level.• Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square & have sufficient room for appliance clearance.
Cannot move appliance easily. Appliance must be accessible for service.	• Cabinets not square or are built in too tightly. Contact builder or installer to make appliance accessible.• Carpet interferes with appliance. Provide sufficient space so appliance can be lifted over carpet.
Surface element too hot or not hot enough.	• Incorrect control setting. Be sure the correct control is ON for the element that you are attempting to use.
Surface element does not heat.	• Lightweight or warped pans used. Use only flat, evenly balanced, medium or heavyweight cookware. Flat pans heat better than warped pans. Cookware materials and weight of the material affect heating. Heavy & medium-weight pans heat evenly. Because lightweight pans heat unevenly, foods may burn easily.
Entire appliance does not operate.	• The time of day is not set. The time of daymustfirst be set in order to operate the oven. SeeSetting the clockin theSetting Oven Controlssection.• Make sure cord/plug is plugged correctly into outlet.• Service wiring is not complete. Contact your dealer, installing agent or authorized service agent.• Electrical power outage. Check house lights to be sure. Call your local electric company for service.
Oven portion of appliance does not operate.	• Be sure the oven controls are set properly for the desired cooking feature. SeeSetting Oven Controlsin this manual or read the instructions "Entire appliance does not operate" in this checklist.
Flames inside oven or smoking from oven vent.	• Excessive spillovers in oven. For example this will happen for pie spillovers or large amounts of grease left on the oven bottom. Wipe up excessive spillovers before starting oven. If flames or excessive smoke are present seeSetting broilin theSetting Oven Controlssection.
Areas of discoloration with metallic sheen on cooktop surface (ceramic glass cooktop models only).	• Mineral deposits from water and food. Remove using a ceramic-glass cooktop cleaner. Use cookware with clean, dry bottoms.

Problem Solution

Oven smokes excessively during broiling.	Incorrect setting. Follow broil instructions in Setting Oven Controls.Make sure oven door is opened to broil stop position.Meat too close to the broil element. Reposition the oven rack to provide proper clearance between the meat and the element. Preheat the broil element for searing.Meat not properly prepared. Remove excess fat from meat. Cut remaining fatty edges to prevent curling, but do not cut into lean.Broiler pan and insert wrong side up and grease not draining. Always place insert on the broiler pan with ribs up and slots down to allow grease to drip into pan (some models).Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently. Old grease or food spatters cause excessive smoking.
Oven control panel beeps & displays any F code error.	Oven control has detected a fault or error condition. Press clear off to clear the display and stop beeping. Try the bake or broil feature again. If the F code error repeats, remove power from appliance, wait 5 minutes and then repower appliance and set clock for the time of day. Try the bake or broil feature again. If the fault recurs, record fault and call for service.
Scratches or abrasions on cooktop surface (ceramic glass cooktop models only).	Coarse particles such as salt or sand between cooktop and utensils can cause scratches. Be sure cooktop surface and bottoms of utensils are clean before usage. Small scratches do not affect cooking and will become less visible with time.Cleaning materials not recommended for ceramic-glass cooktop have been used. See Cooktop cleaning and maintenance in the Care & Cleaning section of this Use & Care Guide.Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Metal marks on cooktop (ceramic glass cooktop models only).	Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on cooktop surface. Use a ceramic-glass cooktop cleaner to remove the marks. See “Cooktop cleaning and maintenance” in the Care & Cleaning section.
Brown streaks or specks on cooktop (ceramic glass cooktop models only).	Boilovers are cooked onto surface. Use razor blade scraper to remove soil. See Cooktop Cleaning and Maintenance in the Care & Cleaning section.
Drip bowls are pitting or rusting (coil cooktop models only).	Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion. Remove and wash drip bowls as soon as possible after a spill over.Normal environment. Houses located along sea coasts are exposed to salt air. Protect bowls as much as possible from direct exposure to salt air.
Drip bowls are turning color or distorted (coil cooktop models only).	Bottom surface of cookware extends beyond surface element and touches cooktop surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT use cookware of this type. Pan sizes should be matched to the size of the element. Replacement drip bowls may be purchased from your appliance dealer.

INTERNATIONAL WARRANTY

This warranty covers AUTOMATIC WASHERS • AUTOMATIC DRYERS • WASTE DISPOSERS • COOK TOPS • COOKER HOODS • OVENS • RANGES • DISHWASHERS

For your protection as the original purchaser, for home use, this appliance is warranted as set forth below.

IMPORTANT:

This Warranty shall not apply if the appliance has been subject to any accident, abuse or misuse, or damage by fire, flood or other acts of God. This Warranty covers only parts obtained through our Authorized Service Agency.

1-YEAR - MANUFACTURE & MATERIAL:

During the 1st year from the date of installation, we will, through our Authorized Service Agency, repair or replace (at our option) FOB factory any part that becomes inoperable due to defects in manufacture or material under normal use and service.

CUSTOMER'S RESPONSIBILITIES:

1 Record the model and serial number on this Warranty and keep it with your sales slip or invoice as a record of your installation date.
2. Provide proper connection to utilities, installation, setting of controls, and maintenance in accordance with instructions in the user's manual for the appliance.
3. Pay charges for pick up and delivery of the appliance, labor, transportation, local duties or taxes associated with warranty service including any charge to analyze the condition of the appliance. During the 1-Year Warranty, such charges are the responsibility of the dealer from whom the appliance was purchased, or as specified at the time of the purchase of the appliance.
4. Replacement of glass and light bulbs.

HOW TO OBTAIN SERVICE:

Contact the dealer where the appliance was purchased or any other of our authorized dealers. The dealer will make the necessary arrangements or refer you to our Authorized Service Agency.

THERE ARE NO OTHER WARRANTIES EXPRESS OR IMPLIED COVERING THIS APPLIANCE, EXCEPT THIS WARRANTY, WHICH IS IN LIEU OF ALL OTHER WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY LAW, ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL WE BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, OR FOR ANY DELAY IN THE PERFORMANCE OF THIS WARRANTY DUE TO CAUSES BEYOND OUR CONTROL.

THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE LIMITED TO THE REPLACEMENT OF PARTS AS HEREINBEFORE PROVIDED.

ELECTROLUX INTERNATIONAL COMPANY PITTSBURGH, PA 15220, U.S.A.

ID09-816A

كل ما يتعلق

بالاستخدام والعنابة

Line drawing of various household appliances including washing machines, refrigerators, and a door (no text or symbols)

جدول المحتويات

Pure diagram of a rectangular container with a circular arrow pointing to the side (no text or symbols)

• Despite thinking myocardial withdrawal لابق Execution difficulties من الشحوم التي demands television from the Internet. An attack is thinking outside the management of the world's country. These are also interesting to be able to discuss the situation of the world's health and life.

Illustration of hands using a measuring tool to measure a circular object, showing rotational motion (no text or symbols)

شکل 1

Simple black and white concentric circle diagram with no text or symbols

Illustration of four circular petri dishes arranged on a grid plate, with no text or symbols present.

Diagram of two circular containers on a grid rack, labeled 'شکل ۲' (no other text or symbols)

Diagram of a kitchen or oven with numbered labels pointing to different sections, likely for cooking or storage instructions.

شکل 1

Uzbek Thabits (العربية) Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek Uzbek

العناية والتنظيف

Illustration of a hand using a grater to clean food on a kitchen counter with a fork and knife nearby (no text or symbols)

Diagram illustrating a hand holding a magnifying glass over a grid of circles, with directional arrows and a prohibition symbol.

هام
