USER MANUAL SREC0190SS-2 Technika

Exterior view of a modern stainless steel HVAC unit with ventilation grilles and mounting bracket (no text or symbols visible)

TELESCOPIC HOOD

USER'S MANUAL

INSTRUCTIONS FOR INSTALLATION AND USE

CE

For original parts & reliable service:

TECHNIKA

1800 333 244

Table of Contents

• From the Manufacturer 3
• Specifications 3
  • SAFETY : Read this first ! 4, 5
• Vent System Requirements 5
  • Ducted vs. Re-circulating 6, 7
  • Description of Parts 8
• Instruction for Use 9
  • Technical Information 10
  • Installation 11
  • Cleaning & Maintenance 12, 13
• Troubleshooting 14
  • Schematic Diagram 15

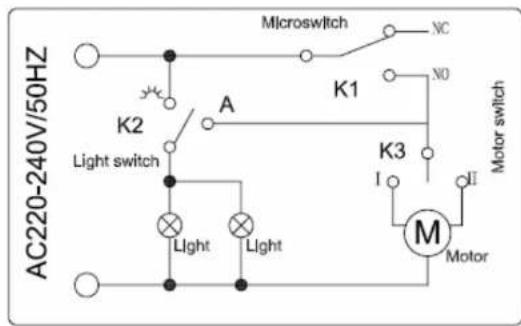

Schematic Diagram

AC220-240V/50HZ Microswitch NC K1 N0 K2 A Light switch K3 I Motor switch M Light Light Motor

For Service Contact Technika 1800 333 244

Troubleshooting

Symptoms Possible Cause Action

Does not function No electrical supply		Check that the plug is connected.
		Check that the main switch is turned on.
Poor airflow	Aluminum filters grease clogged	Clean the filters and replace when it is dry
	Charcoal grease filters clogged	Replace charcoal filters with new sets
Motor running but no airflow	Butterfly valve jammed Contact technician
Motor cuts after a few minutes	High temperature safety device activated	The kitchen is not sufficiently ventilated
	The hood is installed too near the cooking stove	The hood must be at least 65cm from stove
Strong cooking smell	Charcoal filters not installed	In re-circulating mode, charcoal filters must be installed
Oil dripping onto stove	Aluminum grease filter saturated	Wash the aluminium grease filters
	Aluminum grease filter saturated	Wash the aluminium grease filters
Whirring sound Foreign object in contact with fan blade		Contact technician

From the Manufacturer

• This appliance and it's packaging are produced by processes that minimize waste and respect the environment.
• Please help us to continue the protection of the environment by disposing of the packaging in a correct manner.

- Safety!

- Please do not allow young children to play with the plastic bag packaging.

- Before disposing of any old appliances, be sure to cut off the power chord so that others will not be endangered by a defective electric appliance.

Specifications

Input : 220-240V 50Hz

Absorption : 1 x 85W

Lamps : 2 x 40W

External Dimensions

- 60cm version : 600x280x180mm

- 90cm version : 900x280x180mm

SAFETY : Read this First !

• Do not connect the appliance if there are obvious signs of transportation damage.
• Read this user manual thoroughly before attempting to use this appliance.
  • Installation and repair should be attempted only by qualified technical personnel.
• It is dangerous to modify any part of this appliance.
• The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
• Ensure the location in which this appliance is installed has good, permanent ventilation.
• The distance between the bench top to the lower part of the hood must not be at less than 65 cm or higher than 75 cm.
  • Use an electrical connector with earth that is correct for your location.
• Check that the voltage in your area is correct before plugging in.
• The electrical connection of this appliance must be connected to earth.

Green & yellow		=	EARTH
Blue	=		NEUTRAL
Brown		=	LIVE

- Multiple plugs and extension cables must not be used. Overload is dangerous and may cause a fire.

- Ensure that the power supply chord is free from any heat source or sharp objects.

- The appliance should be switched off and the electrical supply disconnected before any cleaning or maintenance work can be carried out..

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning & Maintenance (continued)

Activated charcoal filter

To install the charcoal filter, the motor anchorage is made to coincide with the anchor points of the activated charcoal filter, inserting and locking into place.

The carbon filter lasts from three to six months depending on the particular conditions of use.

The activated carbon filter can neither be exhausted, it must be changed. Once it is exhausted, it must be changed.

Changing Bulbs

Remove the filter support to access the bulbs.

Take care to disconnect the mains beforehand and that the bulbs to be replaces are not hot.

The maximum bulbs power is 40W.

Cleaning & Maintenance

Before carrying out any cleaning or maintenance activities, ensure that the appliances is disconnected from the mains and follow the safety Instructions.

Filter Cleaning

To withdraw the filters from their locations release the anchoring points. Clean the filter either putting in the dishwasher (refer to notes) or leaving it standing in hot water to simplify the removal of grease or, if wished, by means of special sprays (protecting the non metallic parts). Once clean, leave it to dry.

Notes: cleaning in the dishwasher with aggressive detergents may blacken the surface of metallic parts, without this affecting its gas retaining properties.

The filter must be cleaned at least once a month depending on how often the appliances is used. It must be remembered that grease is deposited in the extractor when cooking, whether it is switched on or not.

Cleaning the appliances body

The use of (40°C approx.) soapy water is recommended. A cloth moistened in this water is used for cleaning the extractor, paying special attention to the grids and dry it using a lint-free cloth.

Note: avoid using abrasive detergents, scourers, acidic cleaners such as lime scale remover etc. as these could damage the surface and can result in the development of rust and corrosion.

Do not use scrapers with metallic surfaces such as knives, scissors etc.

SAFETY : Read this First ! (Continued)

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. There is a fire risk if cleaning is not carried out in according with the instructions. The hood use four hob element at most.

Vent System Requirements

Determine which venting method is best for your application. Vented (non-recirculating) system must be terminate to the outside. Ductwork can extend either through the wall or the roof. Do not terminate the vent system in an attic or other enclosed area.

The length of the ductwork and the number of elbows should be kept to a minimum to provide efficient performance. The size of the ductwork should be uniform. Do not install two elbows together. Use duct tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or floor opening around the cap.

Make sure there is proper clearance within the wall or floor for exhaust duct before making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.

Ducted vs. Re-circulating

Your cooker hood can be configured to operate in the ducted or re-circulating mode, Depending on model.

A. DUCTED MODE (VENTED MODE)

- In the ducted mode, cooking fumes are vented outdoors through suitable connection of 125mm diameter. In this mode, only the aluminum filters are installed.

415

Installation

To fix the extractor to the kitchen unit.

The lower part of the extractor must be located at a minimum height of 60cm above the hob for electric cookers and 65cm for gas cookers. If the instructions of a gas cooker indicate a greater distance these must be observed.

When the extractor is working at the same time as other non-electrical cooking equipment, the outlet air pressure must not exceed 4 Pa.

To achieve optimum performance the length of the outlet hose should not exceed 4 meters, or include more than two 90 angles (elbows)

Although venting to the outside is recommended, activated carbon filters may be used, which allow the gas to be returned to the kitchen through the outlet pipe.

280°200 50 Power cord 50 20 10 20

Instructions for Installation

Recommended Clearances

Rangehood 650-750 Cooking Surface

Install Range Hoods in accordance with the manufacturer's instructions.

Technika recommends that all Range Hood clearances be a minimum of 650mm to a maximum of 750mm (between the top of the cooking surface and to the underside of the rangehood).

Distance may be reduced to 600mm to align with the AGA code.

Electrical Connection 35 858 20 143 183 70 608 155 283

Ducted vs. Re-circulating (Continued)

B. RE-CIRCULATING MODE (Depending on model)

- Fume s are filtered for grease and odors through the aluminum grease filters and the charcoal filters respectively and re-introduced into the kitchen environment. In re-circulating mode, both the aluminum grease filters and the charcoal filters must be installed.

Description of Parts

Extractable Group Light Switch Motor Control Filters Lamps Charcoal Filter

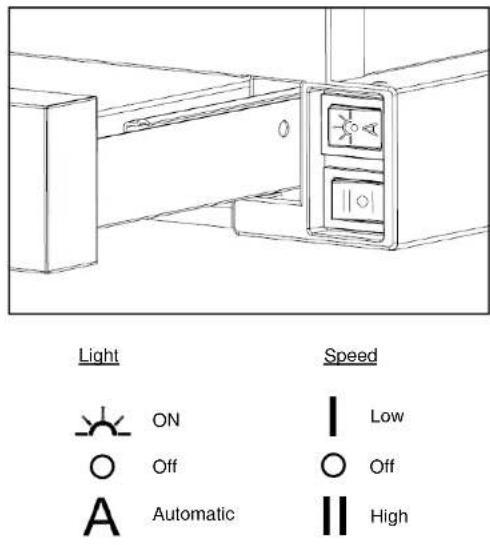

Instructions for Use

By pressing the button shown in the below, you will be able to control the functions of the extractor.

Light ON Off A Automatic Speed Low Off High

To achieve better extraction, we recommend switching on the extractor a few minutes before starting to cook (3—5 minutes) so that the air flow is continuous and stable when extracting fumes.

Likewise, keep the extractor switched on for a few minutes when cooking is complete to allow all fumes and odors to be expelled.

READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.

The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this handout. In addition, the appearance of the figures reported is also purely indicative.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.

Technika constantly seeks ways to improve the specifications and designs of their products.

Whilst every effort is made to produce up to date literature, this document should not be regarded as an infallible guide. Actual product only should be used to derive cut out sizes.

All Technika Appliances must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and AGA codes, with compliance being issued as required by state or national legislation.

Additionally all Technika Upright cookers must have chains installed correctly in adherence to the relevant AGA, and plumbing codes by the Licenced installer.

For maximum effectiveness and efficiency all rangehoods should be installed with the use of ductwork, by a licenced installer with adherence to the relevant state and national building codes and regulations.

All Technika appliances are for Domestic use only, and must be installed by a licence installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.
