SFF-8639 - Power adapter StarTech.com - Free user manual and instructions

Product Type	Power Adapter
Brand	StarTech.com
Model	SFF-8639
Input Voltage	100-240 V AC
Input Frequency	50/60 Hz
Output Voltage	12 V DC
Output Current	2 A
Power Output	24 W
Connector Type	SFF-8639
Dimensions (L x W x H)	100 x 50 x 30 mm
Weight	200 g
Cable Length	1.5 m
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Safety Certifications	CE, FCC, RoHS
Overload Protection	Yes
Short Circuit Protection	Yes
Compatible Devices	SFF-8639 compatible drives and enclosures
Cleaning	Wipe with a dry cloth; avoid liquids
Storage	Store in a cool, dry place

Frequently Asked Questions - SFF-8639 StarTech.com

What is the input voltage range of the StarTech.com SFF-8639 power adapter?

The input voltage range is 100-240 V AC, making it suitable for use worldwide with the appropriate plug adapter.

What is the output voltage and current?

The output is 12 V DC at 2 A, providing up to 24 W of power.

Which devices are compatible with this adapter?

This adapter is designed for devices with an SFF-8639 connector, commonly used in enterprise storage drives and enclosures.

Is the adapter safe to use with my device?

Yes, it includes overload and short circuit protection and complies with CE, FCC, and RoHS standards for safety.

Can I use this adapter internationally?

Yes, because it supports a wide input voltage (100-240 V AC), but you may need a plug adapter for different outlets.

What are the physical dimensions of the adapter?

The adapter measures 100 x 50 x 30 mm and weighs approximately 200 g.

How long is the DC cable?

The DC cable is 1.5 meters long, providing flexible placement.

How should I clean and maintain the adapter?

Unplug the adapter and wipe it with a dry, soft cloth. Do not use liquids or solvents.

What should I do if the adapter gets wet?

Immediately unplug it and allow it to dry completely before use. If damaged, replace it.

Is there a risk of overheating?

The adapter is designed to operate within 0°C to 40°C. Ensure proper ventilation and avoid covering it.

USER MANUAL SFF-8639 StarTech.com

M.2 Drive to U.2 (SFF-8639) Host Adapter for M.2 NVMe SSDs

U2M2E125

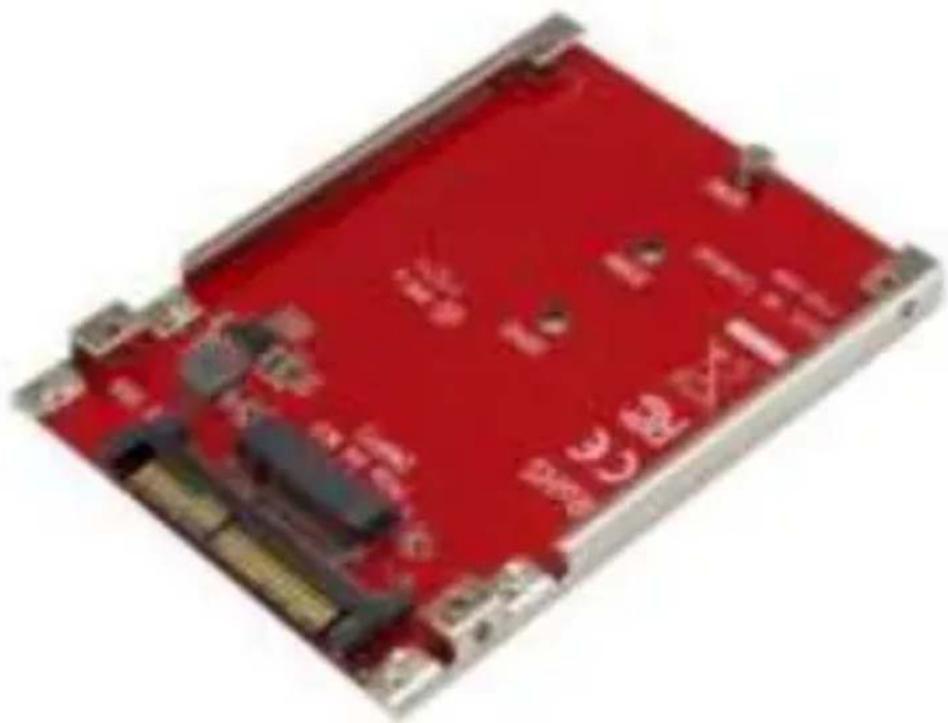

Red electronic component with visible pins and connectors (no readable text or symbols)

*actual product may vary from photos

For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/U2M2E125.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Product diagram ....1

Package contents....1

Requirements 2

Connect an M.2 NVMe SSD 2

Install the adapter....3

Technical support......4

Warranty information....4

Product diagram

Drive-mounting hardware Adapter-mounting hole Adapter-mounting hole M.2 NVMe connector Adapter-mounting hole Adapter-mounting U.2 SFF-8639 connector drive-mounting holes hole

Package contents

• 1 x M.2 drive to U.2 adapter
• 4 x adapter-mounting screws
  • 1 x set of drive-mounting hardware
• 1 x quick-start guide

Requirements

• M.2 NVMe SSD
- Computer or server with a 2.5" SSD or HDD mounting bay
• Computer or server with an SFF-8643 port
• SFF-8643 to SFF-8639 cable
- Screwdriver
- Pliers

This adapter is OS independent and doesn't require any additional drivers or software.

Note: To determine if the drive and motherboard that you're using are compatible, consult the technical specifications that came with the drive and motherboard.

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/U2M2E125.

Connect an M.2 NVMe SSD

Warning! Drives should be handled carefully, especially when you transport them. If you're not careful with your drives, you may experience lost or corrupted data. Make sure that you're properly grounded by wearing an anti-static strap when you install any computer component. If an anti-static strap isn't available, touch a large, grounded metal surface for several seconds to discharge any built-up static electricity.

1. Depending on the length of the drive, you may need to move the preinstalled drive-mounting hardware. Place the drive next to the adapter and note the drive-mounting hole that matches the length of your drive. If the drive-mounting hardware is already installed in the correct position, proceed to step 4.
2. Use a small pair of pliers to remove the nut from the reverse side of the converter.
3. Place the nut and standoff that you removed in the previous step in the drive-mounting hole that matches the length of the drive, and use a screwdriver to tighten them.
4. Gently slide the connector on the drive into the M.2 NVMe connector on the adapter.
5. Insert the drive-mounting screw through the drive and into the standoff, and use a screwdriver to tighten the drive-mounting screw.

To remove a drive, use a screwdriver to remove the drive-mounting screw that is holding the drive in place and slide the drive out of the adapter.

Install the adapter

Warning! Computer components can be severely degraded by static electricity. If an anti-static strap isn't available, discharge any built-up static electricity by touching a large, grounded metal surface for several seconds.

1. Turn off your computer and any devices or peripherals that are connected to it (for example, printers, external storage, and so on).
2. Unplug the power cable from the back of your computer.
3. Disconnect any peripheral devices that are connected to your computer.
4. Open your computer case.
   For more information about how to do this, consult the documentation that came with your computer system.
5. Connect an SFF-8643 to SFF-8639 cable to the U.2 SFF-8639 connector on the adapter and to the system motherboard or controller card.
6. The top or side mounting holes and provided adapter-mounting screws may or may not be required to secure the adapter.
   For more information about how to secure the adapter to the motherboard or controller card, consult the documentation that came with the system motherboard or controller card.
7. Place the cover back onto your computer case.
8. Reconnect the power cable to the back of your computer.
9. Reconnect the peripheral devices.
10. Turn on your computer.

Technical support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
