Product Type	Refrigerator with ice compartment
Brand	Zanussi-Electrolux
Model	ZER140W
Dimensions (H x W x D)	85 cm x 49.5 cm x 60 cm
Weight (approx.)	30 kg (estimated)
Power Supply	220-240 V / 50 Hz
Total Power Absorbed	120 W
Average Daily Energy Consumption	0.55 kWh
Gross Capacity	139 L
Net Capacity	134 L
Temperature Control	6 positions + OFF (O) setting
Ice Cube Tray	Plastic ice cube tray included
Defrosting	Manual defrost when frost exceeds 6 mm; using bowl of hot water
Interior Light Bulb	15 W, replaceable (screw type)
Cleaning	Warm water and bicarbonate of soda (5 ml to 0.5 L water)
Door Reversal	Yes, reversible door (instructions provided)
Installation Requirements	100 mm clearance above; 50 mm sides; 25 mm rear; ambient 10°C-32°C
Safety Features	Child safety lock (recommended), earthed appliance, refrigerant circuit protection
Spare Parts Availability	Genuine parts from Service Force Centre or authorized agents
Service Contact	UK: 08705 929929; Ireland: [phone]
Warranty	12 months standard, European guarantee transferable

Frequently Asked Questions - ZER140W Zanussi-Electrolux

How do I set the temperature on my Zanussi-Electrolux ZER140W refrigerator?

Turn the thermostat control knob to a position between 1 (minimum coldness) and 6 (maximum coldness). An intermediate setting is usually suitable. Allow 24 hours for temperature to stabilize.

What should I do if the refrigerator is not cooling properly?

Check the thermostat setting, ensure the door is closed properly, and verify that the ambient temperature is between 10°C and 32°C. Also check for obstructions in air ventilation and avoid overloading.

How do I defrost the ice compartment?

Remove items, turn thermostat to OFF (O). Place a bowl of hot water inside the ice compartment (with cardboard underneath) to accelerate defrosting. Place a tray under the drain hole and remove stopper. After defrosting, dry thoroughly, replace stopper, and turn thermostat back to medium setting.

How do I replace the interior light bulb?

Disconnect the appliance from the electricity supply. Unscrew the light cover, replace the bulb with a new 15 watt bulb (available from Service Force Centre), then reattach the cover and screw.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the steps in the manual: remove worktop, unscrew top hinge and refit on opposite side, then bottom hinge and foot. Ensure gasket seals properly after reversal.

How do I clean the refrigerator?

Use warm water and bicarbonate of soda (5 ml to 0.5 L water). Do not use detergents, abrasive powders, or perfumed cleaners. Clean the drain hole regularly. For external cleaning, use warm soapy water.

What should I do if the compressor runs continuously?

Adjust the thermostat to a lower setting. Check that the door is closed properly and that large quantities of food have not been recently added. Ensure proper ventilation around the appliance.

Is the refrigerator suitable for storing carbonated drinks?

No, do not place carbonated or fizzy drinks in the ice compartment. They can leak at low temperatures.

What is the recommended clearance for installation?

Allow 100 mm (4 inches) between the top of the cabinet and any overhanging furniture. Alternatively, 50 mm (2 inches) top and 25 mm (1 inch) on each side. The back can be close to the wall but not touching.

How do I contact service for my ZER140W?

In the UK, call Service Force Centre at 08705 929929. In Ireland, call [phone] or email [e-mail]. Have your model and serial number ready.

USER MANUAL ZER140W Zanussi-Electrolux

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings of these warnings contact the Customer Care Department.

Prior to Installation

- Check the appliance for transport damage. Under no circumstance should a damaged appliance be installed. In the event of damage please contact your retailer.

Installation

• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• Ensure that the appliance does not stand on the electrical supply cable. Important: if the supply cable is damaged, it must be replaced by a cable available from the manufacturer or your local Service Force Centre.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as states in the installation instructions.
• The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Refrigerant

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition.

- thoroughly ventilate the room in which the appliance is situated.

Child Safety

• Do not allow children to tamper with the controls or play with the product.
• There is a risk of suffocation! Keep packaging material away from children!

During Use

• This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs only. It is not intended for commercial or industrial use.
• Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the refrigerator.
• Do not place carbonated or fizzy drinks in the ice compartment.
• Ice lollies can cause 'frost/freezer burns' if consumed straight from the ice compartment.
• Do not remove items from the ice compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Maintenance and Cleaning

• Before cleaning, always switch off the appliance and disconnect from the electrical supply.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.

Servicing

• This product should be serviced by an authorised engineer and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the end of the Appliance Life

- When disposing of your appliance use an authorised disposal site.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your

household waste disposal service or the shop where you purchased the product.

- Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Contents

Instructions for the User

Important Safety Instructions ....2

Operation 4

Before use 4

Setting the temperature 4

Fresh food refrigeration ....4

The ice compartment 4

Making ice cubes 4

Normal Operating Sounds 4

Health and Safety Guidelines ....5

Defrosting 5

Maintenance and Cleaning 6

Internal cleaning 6

External cleaning 6

Changing the light bulb 6

When the appliance is not in use .....6

Something Not Working? 7

Service and Spare Parts ....8

Customer Care Department ....8

Guarantee Conditions 9

Instructions for the Installer

Technical Specifications ....10

Installation ....10

Positioning 10

Door reversal 11

Electrical Connection ....12

Before use

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

Setting the temperature

The temperature inside the refrigerator and the ice compartment is regulated by a thermostat control knob with 6 temperature positions and one «OFF» (O) position.

Position 1 = minimum coldness

Position 6 = maximum coldness

Turn the thermostat control knob to the required position.

An intermediate position is usually the most suitable, although the temperature will be affected by:

• Room temperature
  • How often the door is opened
  • How much food is stored
• Position of the appliance

In determining the correct temperature control setting all these factors have to be considered and some experimentation may be necessary.

When altering the temperature setting, allow 24 hours for the temperature to stabilise before making further changes.

Important

During prolonged periods of abnormally hot weather, if the thermostat is set on too high a number, the cooling system may operate continuously. Turning the knob to a lower number will cause a saving in electricity consumption.

If you wish to return to a lower temperature, turn the thermostat knob to a higher number, however you should turn the setting lower occasionally.

Fresh food refrigeration

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.

Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & chicken or poultry): wrap in polythene bags and place on top of the salad bin.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad bin.

Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

The walls of the refrigerator are equipped with runners so that shelves can be positioned as desired.

Technical line drawing of a structural panel with diagonal bracing and vertical supports (no text or symbols)

The ice compartment

This compartment is suitable for ice cube making.

Making ice cubes

The appliance is provided with a plastic ice cube tray. Fill the tray 3/4 full to allow the ice to expand and place it in the ice compartment. To turn out the ice cubes simply give the tray a slight twist to release the cubes.

Never try to free an ice tray that is frozen to the ice compartment using a sharp or pointed object.

Important

Do not consume ice-lollies which have just come out of the ice compartment. Their extremely low temperature can cause frost burns. Do not remove items from the ice compartment if your hands are damp/wet, as this could cause skin abrasions or "frost/freezer burns".

Normal Operating Sounds

You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing at the rear, to the cooling plate.

When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring sound or pulsating noise from the compressor.

A thermostat controls the compressor, and you will hear a faint 'click' when the thermostat cuts in and out.

i Health and Safety Guidelines

Because of consumer demand, preservatives have been removed from many pre-prepared foods.

This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.

The following tips should help you to ensure that the food in your home is in as perfect condition as possible.

• Keep the time between buying chilled food and placing it in your fridge as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22^ in an hour between the supermarket and home. It then took 11 hours to get down to 7^ in the refrigerator.
• Keep the refrigerator door closed as much as possible.
• Do not push food together too much, try to allow air to circulate around each item.
• Cool cooked food as quickly as possible but do NOT place in the refrigerator until cool. (Leave food in a cool place in order that it can then be placed in the refrigerator as soon as possible).

• Do NOT mix raw and cooked meat, they must be in separate containers. Take care not to let the meat juices drip onto other food. If the meat does drip, remove everything and clean thoroughly.

• Do not store food uncovered.

• Remove suspect food from your refrigerator and clean the interior (see “Maintenance and Cleaning”).
• Never allow spillages to dry and harden.
• Store eggs in the egg rack provided in the refrigerator door. Discard any broken or chipped eggs.
• Regularly check the refrigerator door seal to ensure that it is clean and free from debris.
  • Always wash your hands with soapy water and dry them with a clean towel before handling food.
• Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.

Defrosting

While in operation the ice compartment becomes progressively covered with frost.

This frost, which acts as an insulator and thus prevents the cold from reaching the food should be removed whenever the thickness of the frost exceeds 6 mm (1/4").

To carry out complete defrosting proceed as follows:

1. Remove any items from inside the ice compartment.

2. Turn the thermostat contol knob to the «OFF» (O) position, making sure that the stopper of the water collector tray is firmly inserted in the water drain hole. To accelerate defrosting, place a bowl of hot water inside the compartment (with a piece of cardboard underneath the bowl as protection).

3. Place a tray on the upper shelf of the refrigerator under the drain hole of the conveyor and remove the stopper as shown in the figure.

4. When defrosting is completed, dry thoroughly and remove the water collected in the tray. Replace the stopper.

Turn the thermostat control knob on a medium position to restart the appliance.

After letting the appliance run for at least half an hour, replace the previously removed items into the ice compartment.

When defrosting it is not necessary to remove the foods from the inner door and the refrigerator compartment.

Important Never use

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it beyond repair.

Diagram of a refrigerator interior with a magnified view showing a drop in the refrigerator (no text or symbols present)

Warning

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply.

Internal cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE POWDERS, HIGHLY PERFUMED CLEANING PRODUCTS OR WAX POLISHES, TO CLEAN THE INTERIOR AS THESE WILL DAMAGE THE SURFACE AND LEAVE A STRONG SMELL.

Clean the drain hole of the water trough at regular intervals and make sure that the drain hole is never obstructed, so that the defrost water may flow freely.

Important

Do not use abrasive products.

External cleaning

Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.

Once or twice a year dust the condenser (black grill) and the compressor at the back of the appliance, with a brush or vacuum cleaner, see the figure.

You MUST ensure that the appliance is switched OFF. An accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

Changing the light bulb

Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply. Replace the bulb as follows:

1. Unscrew the light cover. Unscrew the bulb and replace it with a new 15 watt bulb (available from your nearest Service Force centre).
2. Replace the light cover into its original position and replacing the screw.

Illustration of a hand using a screwdriver to adjust a mechanical component (no text or symbols visible)

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Something not Working?

Before contacting your local Service Force Centre check the following points.

IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.

Symptom Solution
No power to appliance	- Check there is power at the socket.- Check there is not a power cut by checking the household lights.- Check the fuse has not blown.
The light does not come on	- Ensure that the bulb is correctly fitted.- Replace the bulb if it has blown.- Check the door light switch is not jammed.
The temperature in the fridge is too high	- Check the ambient temperature is within the appliances operating limits of 10^ to 32^ .- Check the thermostat control knob is turned to the correct setting relative to ambient conditions.
The compressor runs continuously	- Adjust the thermostat control knob to give correct temperature control. See page 4.- Check that the door is closed.- Large quantities of food have recently been placed in the cabinet and/or door is frequently opened.- Check that air ventilation is not obstructed.
Excessive frost and ice has built up	- Ensure the door is not left open.- Check that nothing is preventing the door from closing.- Is the door gasket intact and clean.
Noise	- Refer to normal operating sounds.

If after the above checks, there is still a fault, call your local Service Force Centre.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service calls.

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:-

08705 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working."

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

For Customer Service in Ireland please contact us at the address below:

Zanussi-Electrolux

Electrolux Group (Irl) Ltd

Long Mile Road

Dublin 12

Republic of Ireland

Tel: [phone]

Email: [e-mail]

Customer Care Department

For general enquiries concerning your Zanussi-Electrolux appliance or for further information on Zanussi-Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.zanussi-electrolux.co.uk

Customer Care Department

Zanussi-Electrolux

55-77 High Street

Slough

Berkshire

SL1 1DZ

08705 727727 (*)

* calls to this number may be recorded for training purposes.

Standard guarantee conditions

We, Zanussi-Electrolux, undertake that if within 12 months of the date of purchase this ZANUSSI-ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
• Products of Zanussi-Electrolux manufacture which are not marketed by Zanussi-Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliance.

France Senlis [phone]

Germany Nürnberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

UK Slough [phone]

Ireland Dublin [phone]

DIMENSIONS Height 85 cm

Width 49,5 cm

Depth 60 cm

POWER SUPPLY VOLTAGE AND FREQUENCY 220-240 V / 50 Hz

TOTAL POWER ABSORBED 120 W

AVERAGE DAILY UNITS ELECTRICITY(*) 0,55 kWh

GROSS CAPACITY 139 I

NET CAPACITY 134 I

(*)This figure is based on standard test results in accordance with European Standard EN153. Actual consumption will depend on how the appliance is used and where it is located).

Installation

Positioning

For this appliance to work efficiently, it must not be located where the temperatures will fall below 10^ C ( 50^ F) or rise above 32^ C ( 90^ F), e.g. conservatories.

For correct operation this appliance must be located in a dry atmosphere, away from heat sources, e.g. cookers, radiators, boilers and direct sunlight.

You should also ensure that air can circulate freely around the back and the top of the cabinet. There should be 100mm (4") between the top of the cabinet and any overhanging kitchen furniture. Alternatively allow 50mm (2") between the top of the cabinet and any overhanging kitchen furniture and a gap of 25mm (1") on either side of the appliance.

Do not obstruct the space underneath. The back of the cabinet may be placed close to the wall but must not touch it. DO NOT install in places with restricted ventilation.

Adjust the level of the appliance by screwing out the adjustable foot, or feet, at the bottom of the cabinet using your fingers.

Technical diagram showing a screw fastener inserted into a housing, with two clamped clips at the base (no text or symbols)

Before carrying out the operations described below, pull out the mains plug from the wall socket.

To carry out this reversal go through the following steps:

1. Remove screws (A) which secure the worktop (B) on the back.
2. Move the top (B) slightly to release it from the retainers and remove it.

1. Unscrew the top hinge (C) and refit it on the opposite side.

Diagram of a 3D cube with an arrow indicating rotation, labeled 'C' and 't', no text or symbols present.

1. Refit the worktop (B).
2. Gently lay the appliance on its back with the top held away from the floor by 5-8 cm (2-3 inches) of packing.

1. Remove the bottom door hinge (D), unscrew the foot at the base (E) and refit them on the opposite sides.

When positioning the bottom hinge blade on the reverse side, the securing screws will require a degree of exersion when fitting.

It is therefore advisable to lubricate the screw tips before starting this operation.

Important After cor

After completion of the door reversal operation, verify that the door gasket is sealing onto the cabinet.

If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdryer on a low setting.

WARNING

THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

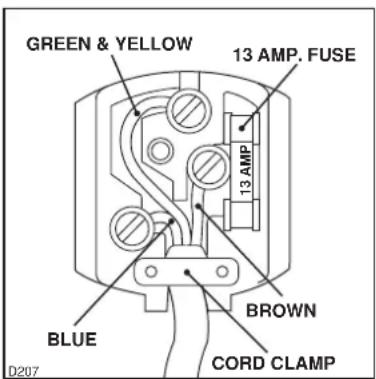

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance, may not correspond with the markings identifying the terminals in your plug, proceed as follows:

Connect the Green and the Yellow (earth) wire to the terminal in the plug which is marked with the letter

«E» or the earth symbol ⊕ or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the plug which is marked with the letter «N» or coloured black.

Connect the brown (live) wire to the terminal in the plug which is marked with the letter «L» or coloured red.

The plug moulded onto the lead incorporates a fuse. For replacement, use a 13amp BS1362 fuse. Only ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is lost. The cover/carrier is indicated by the coloured insert at the base of the plug.

This appliance complies with the following E.E.C. Directive:

CE-73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent amendments.

• 87/308 of 2.6.87 (Radio Interference Suppression) and subsequent amendments.
• 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent amendments.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of breakdown.

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
