ZUT6245S - Freezer Zanussi-Electrolux - Free user manual and instructions

Brand	Zanussi-Electrolux
Model	ZUT6245S
Product Type	Freezer
Gross Capacity	117 L
Net Capacity	100 L
Energy Class	A
Energy Consumption	0.562 kWh/day (204 kWh/year)
Freezing Capacity	12 kg/24h
Rising Time	17 h
Dimensions (W x H x D)	550 x 850 x 600 mm
Weight	39 kg
Climate Class	SN (+10 to +32°C), N (+16 to +32°C), ST (+18 to +38°C)
Refrigerant	Isobutane (R600a), flammable
Fast Freeze Function	Yes (yellow light, compressor runs continuously)
Indicator Lights	Green (power), Red (temperature alarm), Yellow (fast freeze)
Storage Compartments	Freezing tray, freezing compartment (wire baskets)
Defrost Method	Manual defrost with plastic scraper; complete defrost recommended when ice >6 mm
Door Reversible	Yes
Adjustable Feet	Yes (2 front feet)
Power Supply	220-240 V, 90 W, 13 A plug (BS1363)
Noise Level	Not specified (typical chest freezer ~40-45 dB)

Frequently Asked Questions - ZUT6245S Zanussi-Electrolux

How do I set the temperature on my Zanussi-Electrolux ZUT6245S freezer?

The thermostat control knob is located on the control panel. Turn it clockwise to make the temperature colder. The setting 0 turns the freezer off. For normal use, a medium setting is recommended.

How do I use the fast freeze function?

Press the fast freeze switch (located on the control panel, pops up and lights yellow) to activate. This makes the compressor run continuously for rapid freezing. For small quantities (up to 3-4 kg), activate it 4 hours before adding food; for larger quantities, activate it about 24 hours before. After 24 hours, press the switch again to deactivate.

How do I defrost the freezer?

When frost exceeds 6 mm, remove food and disconnect the appliance. Pull out the drain spout and place a tray under it. Leave the door open, optionally place a bowl of hot water inside to speed defrosting. Never use sharp tools. After defrosting, dry interior, replace spout, and run with fast freeze on for 4 hours before restocking.

What should I do during a power failure?

Keep the door closed. If the power cut is short and the freezer is full, food should stay frozen. If food begins to thaw, check its condition: ice cream should be discarded, fruits/vegetables if soft should be cooked, bread/cakes can be refrozen, and large meat pieces with ice crystals can be refrozen. Cooked dishes and chicken should be refrigerated and used quickly.

Why is the red indicator light on?

The red light indicates the interior temperature is too high. It is normal for the light to come on after adding fresh food or opening the door for a while. If it stays on continuously, check if the door is properly closed, the thermostat setting is correct, or the ambient temperature is within the correct range (16-32°C). If the problem persists, contact service.

How do I clean the freezer?

Disconnect the appliance from power first. For internal cleaning, use lukewarm water with bicarbonate of soda (5 ml to 0.5 L water). For external cleaning, use warm soapy water. Do not use detergents, abrasive powders, highly perfumed products, or wax polishes. Rinse and dry thoroughly.

My freezer is noisy. What can I do?

Check if the appliance is level. All four feet should be on the floor. If not, adjust the front feet accordingly. Also ensure there is adequate ventilation and the appliance is not touching walls or cabinets. Normal operating sounds include compressor and air circulation noises.

How do I reverse the door opening direction?

Disconnect the appliance. Tilt it backwards. Remove the adjustable feet and lower hinge plate, then remove the door. Swap the hinge pin to the opposite side of the door, refit the hinge plates on the new side, and reinstall the door. To reverse the handle, remove screws and blanking plugs, relocate the handle to the opposite side, and fit the supplied plugs. Detailed steps are in the manual.

What is the correct ambient temperature for this freezer?

The freezer is rated for climate classes SN, N, ST, which correspond to ambient temperatures: SN (+10 to +32°C), N (+16 to +32°C), ST (+18 to +38°C). For best performance, keep the appliance in a well-ventilated room away from heat sources.

Can I store carbonated drinks in the freezer?

No. Do not store carbonated or fizzy drinks in the freezer as they can burst when frozen. Also, ice lollies should be consumed carefully to avoid frost burns. Containers with flammable gases or liquids are also prohibited.

USER MANUAL ZUT6245S Zanussi-Electrolux

This instruction book contains safety precautions, information on use and helpful hints and tips.

To ensure you use this appliance effectively and safely, please read this instruction book carefully before installing or using this appliance and retain for future reference.

The symbols below help you to find things more easily:

Safety precautions

Warnings and Safety information

Hints, useful information

Environmental information

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

IMPORTANT SAFETY INSTRUCTIONS

These warnings are provided in the interest of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Prior to installation

- Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.

Installation

- This appliance is heavy. Care should be taken when moving it.

- It is dangerous to alter the specifications or attempt to modify this product in any way.

- Ensure that the appliance does not stand on the electrical supply cable. If the supply cable is damaged, it must be replaced by a cable available from your local Service Force Centre.

- Make sure that the power plug has not been squashed or damaged during transit.

- A damaged power plug may overheat and cause a fire.

- As you unpack the appliance, check carefully for any signs of transit damage.

- Do not place heavy articles or the fridge/freezer itself on the power cord.

- There is a risk of a short circuit and fire.

- Do not remove the power cord by pulling on its lead, particularly when the fridge/freezer is being pulled out of its niche.

- Damage to the cord may cause a short-circuit, fire and/or electric shock.

- If the power cord is damaged, it must be replaced by a certified service agent or qualified service personnel.

- If the power plug socket is loose, do not insert the power plug.

There is a risk of electric shock or fire.

- Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

- Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall, but leaving the required distance for ventilation, as stated in the installation instructions.

- The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

- Do not allow children to tamper with the controls or play with the product.

- Keep packaging materials away from children, to prevent the risk of suffocation!

During Use

- This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. It is not intended for commercial or industrial use.

- Containers with flammable gases or liquids can leak at low temperatures. Do not store any containers with flammable materials, such as spray cans, fire extinguisher refill cartridges etc. in the freezer.

- Frozen food should not be refrozen once it has thawed out.

• Do not place carbonated or fizzy drinks in the freezer.
• Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.
• Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Bottles and cans must not be placed in the freezer they can burst when the contents freeze.
• Manufacturers' recommended storage times should be adhered to. Refer to relevant instructions.

Maintenance and Cleaning

• Before cleaning, always switch off the appliance and disconnect from the electrical supply.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.

Servicing

• This product should be serviced by an authorised engineer and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the end of the Appliance Life

• When disposing of your appliance use an authorised disposal site.
• Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Safety precautions for isobutane

Warning

• The refrigerant isobutane (R 600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance.

The Appliance and the Environment

This appliance does not contain gases which could damage the ozone layer.

Avoid damaging the cooling unit.

The packaging used on this appliance marked with the symbol is recyclable.

Keep this instruction book for future reference and ensure it is passed on to any new owner.

CONTENTS

Instructions for the User

Guide to use the instruction book 2

Important Safety Information 3

Instructions for the User 5

General Information 5

Description of the Appliance 5

Indicator Lights 6

Fast Freeze Facility 6

Basket Storage 6

Freezer Tray 6

Using the Appliance 7

Before Use 7

To Start the Appliance 7

Thermostat Control 7

Freezing Fresh Food 7

Frozen Food Storage 8

Thawing 8

Making Ice Cubes 8

Hints and Tips 8

Food Storage 8

Energy Saving Advice 9

In the Event of a Power Failure 9

Maintenance and Cleaning 9

Internal cleaning 9

External cleaning 9

When the appliance is not in use 9

Defrosting 9

Something Not Working 10

Service and Spare Parts 11

Customer Care Department 11

Guarantee Conditions 12

Instructions for the Installer

Technical Specifications 13

Installing the Appliance 13

Transportation, Unpacking 13

Location 13

Ventilation Requirements 14

Levelling 14

Door Reversal 14

Electrical Connection 15

INSTRUCTIONS FOR THE USER

General information

This appliance is designed for the freezing and storage of frozen food in a domestic home.

To ensure correct operation, the appliance should be located where the ambient temperature is between 16-32 °C.

Description of the Appliance

1. Freezing tray (with 1 ice tray)
2. Freezing compartment
3. Storage compartments (wire baskets)
4. Rating Plate
5. Control Panel

A) Green Indicator Light
B) Red Indicator Light
C) Yellow Indicator Light and Freezer Switch
D) Thermostat control

1. Defrost water outlet
2. Adjustable feet
3. Door gasket
4. Thermostat
5. Air grid
6. Condenser
7. Air circulation
8. Compressor

Indicator Lights

The indicator lights are situated in the control panel.

A.) Green Indicator Light

When the appliance is switched on at the mains the green indicator light will glow and continue to glow until the appliance is switched off at the mains.

B.) Red Indicator Light

A few hours after starting up the red indicator light will go out to show that the correct temperature has been reached for the setting chosen and will stay out to indicate that everything is in order.

It will come on if the freezer temperature rises unduly for instance, after opening the freezer door or placing food inside the cabinet, but the light should go out again when the temperature returns to the correct storage level.

C.) Yellow Indicator Light and Freezer Switch

In the switched-on state of the switch (pops up and lights by pressing) the compressor operates continuously thus providing for the coldest interior temperature - achievable by the freezer - needed for freezing.

D.) Thermostat Control

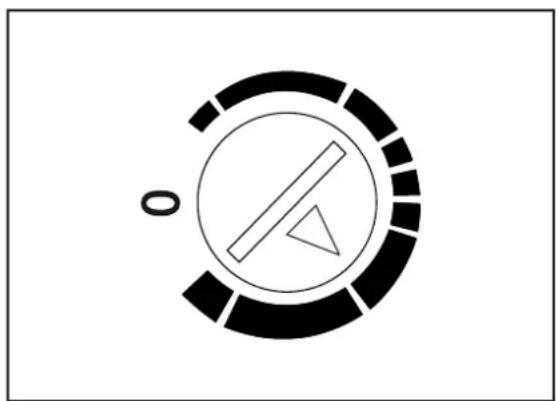

This knob is provided for setting and changing the temperature inside the appliance.

Basket Storage

Frozen food should be stored in the two lower baskets and the top compartment used for fast freezing.

Freezer Tray

The freezer tray is particularly suitable for open freezing, for example strawberries, raspberries etc.

Using the Appliance

Before Use

Remove all packaging and securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0,5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol.

To Start the Appliance

1. Allow the appliance to stand for 2 hrs after installation.
2. Plug in the appliance and switch on at the mains supply.

Thermostat Control

The temperature within the freezer is controlled by the thermostat situated on the control panel.

0 = Off

Turning the thermostat clockwise makes the temperature progressively colder.

Freezing Fresh Food

It is important that fresh food placed in the freezer is frozen quickly and that the food already in the freezer is heated as little as possible.

If more than 3-4 kg of food is to be frozen:

1. Switch on the freezer switch (pops up and lights by pressing) 4 hours before freezing food of small quantities and about 24 hours before freezing products of larger quantities. This time the compressor operates continuously to reach the temperature necessary for freezing.
2. Place in the foods to be frozen and let the appliance operate for about 24 hours as written above.
3. Then push the fast freezer switch again (the yellow light will go out and the switch turns to its original position).

1. The freezing tray is suitable for freezing smaller fruits (raspberry, strawberry, currant, etc.). Fruits should be put on the tray in thin layers without packaging. After freezing they can be packed and sorted out then placed into the storing compartments.

If the 'fast freeze' switch is accidentally left on, the freezer will not be damaged, but energy will be wasted.

Frozen Food Storage

When first starting the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least 4 hours with the 'fast freeze' switch on before storing frozen food.

Do not exceed the storage period indicated by the manufacturer.

Do not open the door frequently or leave it open longer than is necessary.

Important

Do not put carbonated liquids in the freezer.

Ice lollies, if consumed immediately after removal from the freezer can cause a low temperature skin burn.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

In the event of a power cut the food in the freezer will not be affected if the power cut is short and the freezer is full. Do not open the lid. Should the food begin to thaw it must be consumed quickly and must not be re-frozen. (See Hints and Tips)

Thawing

Deep frozen or frozen food, prior to being used, can be thawed in a fridge or at room temperature, depending on the time available. Small food items may even be cooked from frozen, in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible, or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Defrosted cooked food must never be refrozen.

To Make Ice Cubes

1. Fill the ice cube tray 3/4 full with cold water, place in the freezing compartment and leave to freeze.
2. To remove the cubes twist the tray or hold it under running water for a few seconds.

Never try to free an ice tray that is frozen to the freezer compartment by using pointed or sharp edged objects.

Hints & Tips

Food Storage

To obtain the best performance from your freezer:

• Do not store warm food or evaporating liquid.
• Avoid buying frozen food if you cannot store it straight away. The use of an insulated container is advisable. When you arrive home, place the frozen food in the freezer immediately.
• Do not push food together too much, try to allow air to circulate around each item.
• Do not store food uncovered.
• Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best.
• Lean food keeps better and longer than fatty food, salt reduces the storage time.
• Wrap the food in polythene or aluminium freezing bags or foil so that they adhere to the food and provide an airtight seal.
• Packaging which is swollen or has traces of refrozen water droplets on the pack could indicate that the product has not been kept at a suitable temperature and that it may have lost its original quality. Partially thawed food must not be refrozen, it must be consumed within 24 hours. Never exceed the storage times indicated by the manufacturer.

Energy Saving Advice

• Do not install the appliance close to sources of heat, such as a boiler or radiator.
• Locate the appliance in a cool well ventilated room and make sure that the air openings of the appliance are not obstructed.
• Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before placing them in the freezer.
• Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer.
• Try to avoid keeping the door open for long periods or opening the door too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
• Ensure there are no obstructions preventing the door from closing properly.

In the Event of a Power Failure

If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise, do not refreeze the food without checking its condition. The following guidelines should assist you:

Ice Cream: Once thawed should be discarded.

Fruits & Vegetables: If soft should be cooked and used up.

Breads & Cakes: Can be refrozen without danger.

Shellfish: Should be refrigerated and used up quickly.

Cooked Dishes: i.e. casseroles should be refrigerated and used up.

Large Pieces of Meat: Can be refrozen providing there are still ice crystals remaining within them.

Small Joints: Should be cooked and can then be refrozen as cooked dishes.

Chicken: Should also be cooked and refrozen as a fresh dish.

Maintenance & Cleaning

Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply.

Internal Cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Rinse and dry thoroughly.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

External Cleaning

Wash the outer cabinet with warm soapy water.

Once or twice a year dust the condenser (black grille) and the compressor at the back of the appliance with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.

When the Appliance is not in Use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door open to prevent unpleasant smells.

Defrosting

The freezer compartment will become progressively covered with frost. This should be removed with the special plastic scraper provided whenever the thickness of frost exceeds 6 mm (1/4").

During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out and it is advisable to perform this operation when the appliance is empty.

To carry out complete defrosting:

1. Disconnect the appliance from the electrical supply. If the plug is inaccessible turn the thermostat control knob to „0“.
2. Remove any stored food, wrap in several layers of newspaper and store in a cool place.
3. Leave the door open.

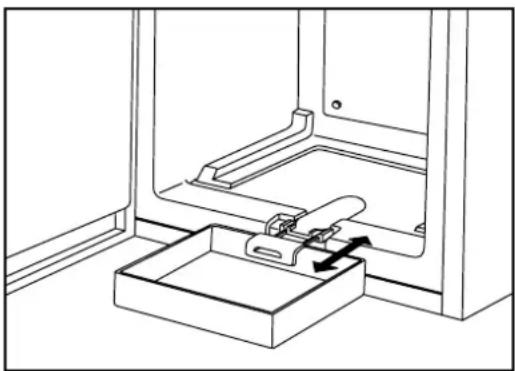

4. Carefully draw the plastic drain spout out of the lower part of the appliance according to the direction of the arrow and place a tray of a suitable size in the position shown.

1. During defrosting, push the defrost water towards the edge of the cooling plates using a dry cloth or a sponge. It will be collected at the bottom of the appliance, from where it can be diverted into the tray and then disposed of.
2. To accelerate the defrosting process place a bowl of hot (not boiling) water inside the freezer and close the door.
3. When defrosting is completed, dry the interior thoroughly, replace the drain spout and close the door.
4. Turn the thermostat control knob back to a medium setting and leave to run for at least 4 hours with the 'fast freeze' switch on.
5. Replace the previously removed food.

Important

A temperature rise of the frozen food packs during defrosting may shorten their safe storage life.

Never use sharp metal tools to scrape off frost from the evaporator as this could damage the appliance beyond repair.

Something Not Working

If the appliance is not working correctly, please carry out the following checks before contacting your local Electrolux Service Force Centre.

Problem	Possible Cause	Solution
No power to the appliance	No power at the socket.There is a power cut.The fuse has blown.Thermostat control is set at „0“.	Check there is power at the socket.Check there is not a power cut by checking the household lights.Check the fuse has not blown.Check the thermostat setting.
The temperature in the appliance is too high	The appliance is located in an unsuitable position.The thermostat control is set too low.	Check the ambient temperature is within the appliances operating limits of 16 °C to 32 °C.Check that the thermostat control knob is turned to the correct setting relative to ambient conditions.
The temperature in the appliance is too low	The thermostat control is set too high.	Set the thermostat control knob to a lower position.
Excessive frost and ice has built up	The door has been left open.Something is obstructing the door.The door gasket is dirty.	Check the door has not been left open.Check nothing is preventing the door from closing.Check the door gasket is intact and clean.
The appliance is noisy.	The appliance is not level.	Check if the appliance stands stable (all four feet should be on the floor).

If after the above checks your appliance still does not operate correctly, contact your local Electrolux Service Force Centre.

Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.

In-guarantee customers should ensure that the above checks have been made, as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:-

08705 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working."

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

For Customer Service in Ireland please contact us at the address below:

Zanussi - Electrolux Electrolux Group (Irl) Ltd Long Mile Road Doublin 12 Republic of Ireland

Tel: [phone]

Email: [e-mail]

Customer Care Department

For general enquiries concerning your Zanussi - Electrolux appliance or for further information on Zanussi - Electrolux products, please contact our Customer Care Department by letter or telephone at the addresses below or visit our website at www.zanussi-electrolux.co.uk

Major Appliances - Customer Care Department

Zanussi - Electrolux

101 Oakley Road

Luton

Bedfordshire

LU4 9QQ

08705 727727 (*)

* calls to this number may be recorded for training purposes.

Guarantee Conditions

We Zanussi - Electrolux undertake that if within 12 months of the date of the purchase this ZANUSSI - ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, the company will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electrical supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

EXCLUSIONS

This Guarantee does not cover:

Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.

• Costs incurred for calls to put right an appliance improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
• Products of Zanussi - Electrolux manufacture which are not marketed by Zanussi - Electrolux.

The guarantee is in addition to your statutory and legal rights.

EUROPEAN GUARANTEE

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.

• This guarantee relates to you and cannot be transferred to another user.

• Your new home is within the European Community (EC) or European Free Trade Area.

• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone]

Germany Nurenberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

UK Luton [phone]

Ireland Dublin [phone]

Instructions for the Installer

Technical Specifications

Model	ZUT 6245S
Gross capacity (l)	117
Net capacity (l)	100
Width (mm)	550
Height (mm)	850
Depth (mm)	600
Energy consumption (kWh/day)(kWh/year)	0,56204
Energy class, according to EU Standards	A
Freezing capacity (kg/24h)	12
Rising time (h)	17
Rated power (A)	90
Weight (kg)	39

Installing the appliance

Transportation, unpacking

The appliance and the interior fitting are protected for transport.

• Remove all packaging and any adhesive tape.
• Any remnants of adhesive can be removed using white spirit.
• After transportation the appliance must not be switched on for 2 hours. This is to allow the refrigerant to settle.

Cleaning

Clean the accessories and the inside of the appliance with warm water and bicarbonate of soda (5 ml to 0.5 litres of water). Rinse and dry thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.

Location

The appliance should be positioned in a well ventilated, dry room.

Energy use is affected by the ambient temperature.

The appliance should therefore:

• not be installed next to radiators, cookers or other sources of heat
• only be installed at a location where the ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the serial plate.

The following table shows which ambient temperature is correct for each climate classification:

Climate Classification	Ambient Temperature
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C

Ventilation Requirements

The appliance must have adequate ventilation to ensure correct operation.

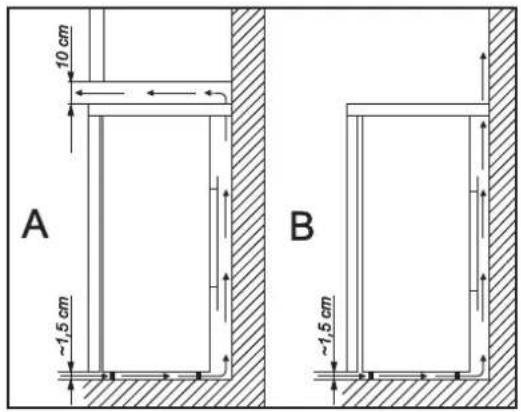

Diagram shows the ventilation requirements when installed:

A* Under a worktop, or cupboard.

* The clearance space of 10 cm above the appliance may be reduced to 5 cm providing a clearance space 2.5 cm is left on either side of the appliance.

B When freestanding

Levelling

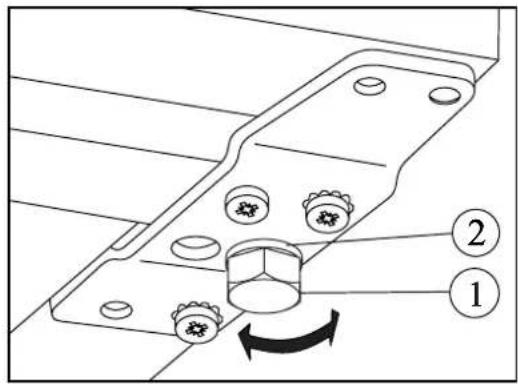

The appliance must be level. Level the appliance by adjusting the two adjustable feet (1) at the front of the appliance.

If required the washer (2) can be removed.

Door Reversal

If required the opening direction of the door can be changed as follows:

• Disconnect the appliance from the electricity supply.
• Tilt the appliance backwards, resting the top edge of the appliance on a stool or something similar.
• Unscrew the adjustable feet situated on both sides at the front (2 pieces). Remove the lower door hinge plate by unscrewing the 3 retaining screws.
• Remove the hinge pin from the bottom of the door.
• Slot the hinge pin into the hole in the hinge plate.
  • Take the door off.

• Refit the upper hinge pin into the opposite location.
  • Fit the door in place on the hinge pin.
• Slot the hinge pin into the hole in the hinge plate and relocate the hinge assembly to the opposite location and refit using the retaining screws.
• Refit the bottom hinge plate assembly on the opposite side, taking care that the edge of the door is parallel with the side of the cabinet.

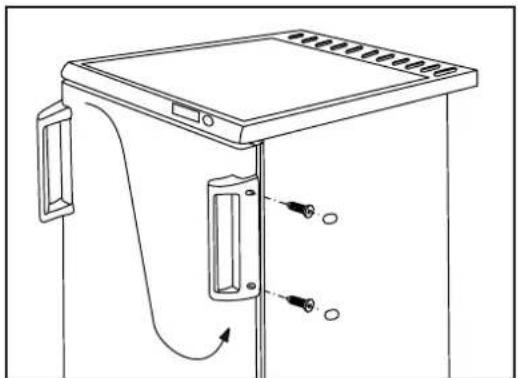

To reverse the handle proceed as follows:

• Remove screw covers (if fitted) and handle retaining screws. Remove blanking plugs on the opposite side using a punch.
• Relocate the handle to the opposite side and refit retaining screws (covers if fitted), and push the plastic plugs supplied with the instruction book into the holes where the handle was previously fitted.

Electrical Connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

This appliance must be earthed.

The manufacturer declines any liability should these safety measures not be observed.

Electrical Requirements

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.

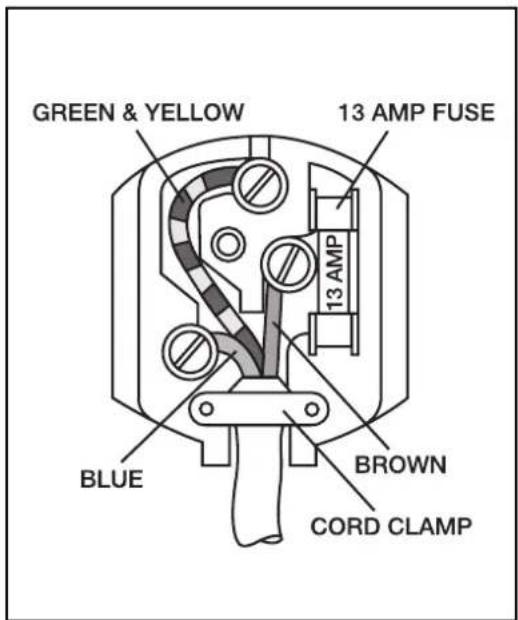

The appliance is supplied with a 13 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need to be replaced

for any reason. The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

The wire coloured green and yellow must be connected to the terminal marked with the letter "E" or by the earth symbol or coloured green and yellow.

The wire coloured blue must be connected to the terminal "N" or coloured black.

The wire coloured brown must be connected to the terminal marked "L" or coloured red.

Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

Important!

The plug must still be accessible after the appliance has been installed.

The appliance should not be connected to the electrical supply by means of an extension cable. In case that the electrical cable has to be replaced, please contact your local Service Force Centre.

Warning!

A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed of safely.

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.02.73 (Low Voltage Directive) and subsequent modifications,

- 89/336 EEC of 03.05.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

© Electrolux plc 2006

ELECTROLUX HOME PRODUCTS OPERATIONS EUROPE

The Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
