Product Type	Solid Stainless Steel Door Panel for 84" High Integrated Refrigerator (Left-Hand)
Brand	Monogram
Model	ZKSSN849NLH
Cutout Width	30 inches (762 mm)
Cutout Depth	25 inches (635 mm) for flush installation
Cutout Height Range	83.5 inches (2121 mm) to 84.5 inches (2146 mm) for 84" high unit
Power Supply	115 V, 60 Hz, 15 or 20 A circuit; individual branch circuit recommended
Water Supply	Cold water line with pressure 40–120 psi (276–827 kPa); 1/4" OD copper or plastic tubing
Refrigerant	R600A (hydrocarbon, HFC-free)
Panel Weights (max)	Fresh Food Door: 33 lbs (15 kg); Freezer Door: 9 lbs (4.1 kg); Convertible Drawer: 19 lbs (8.6 kg)
Door Swing	Factory set 115°, adjustable to 90° with 2-position door stop
Door Clearance at 115°	17 inches (432 mm) minimum
Door Clearance at 90°	4 inches (102 mm) minimum
Temperature Zones	3 independent zones: fresh food, freezer, convertible drawer
Convertible Drawer	Independent temperature control; can store fresh, frozen, wine, or beverages
Icemaker	Electronic icemaker in freezer drawer with removable ice bin and scoop
Lighting	LED interior lighting with gradual bright/dim on door/drawer open/close
Shelves	Adjustable glass shelves with aluminum trim
Drawer Closing	Soft-close mechanism for freezer and convertible drawers
Controls	Illuminated electronic glass-touch controls for all three zones
Water Filtration	GE water filtration system (model GSWF) for clean ice cubes
Sabbath Mode	Capable of complying with Kosher practices
Energy Star	Qualified (model ZIC30GNNII only)
Optional Accessories	Side-by-side kit ZUG30; Handle kits ZKGC3H3CNSS (Minimalist) and ZKGC3H3PNSS (Statement)
Panel Thickness	3/4 inch (19 mm) for custom panels; designed for wood panels

Frequently Asked Questions - ZKSSN849NLH Monogram

What are the electrical requirements for the Monogram ZKSSN849NLH refrigerator?

The refrigerator requires a 115 V, 60 Hz, 15 or 20 amp power supply. An individual properly grounded branch circuit or circuit breaker is recommended. GFI (ground fault interrupter) is not recommended.

What water pressure is needed for the icemaker?

A cold water supply with pressure between 40 and 120 p.s.i. (276–827 kPa) is required. Use 1/4" OD copper or GE SmartConnect™ plastic tubing routed from the house cold water line.

Can the door swing be adjusted?

Yes, the refrigerator is equipped with a 2-position door stop. The factory-set 115° door swing can be adjusted to 90° if clearance to adjacent cabinets or walls is restricted.

What are the cutout dimensions for a flush installation?

For a flush installation, the finished cutout width must be 30" and the cutout depth must be 25". For an 84" high unit, the cutout height can range from 83-1/2" to 84-1/2". Leveling legs and wheels allow up to 1" height adjustment.

What type of refrigerant does this refrigerator use?

It uses R600A, a hydrocarbon (HC) refrigerant that is HFC-free, making it more environmentally friendly.

How heavy are the custom door panels?

Maximum panel weights: fresh food door panel 33 lbs (15 kg), freezer door panel 9 lbs (4.1 kg), and convertible drawer panel 19 lbs (8.6 kg). Panels must be 3/4" thick and made of wood.

Can I use stainless steel panels instead of custom wood panels?

Yes, the model ZKSSN849NLH is specifically a solid stainless steel door panel (left-hand) for an 84" high installation. It comes with matching freezer and convertible drawer panels and toekick.

What accessories are available for side-by-side installation?

For side-by-side installation, the optional heater kit ZUG30 is required. Additionally, handle kits are available: Minimalist Collection (ZKGC3H3CNSS) and Statement Collection (ZKGC3H3PNSS).

Does the refrigerator have adjustable temperature zones?

Yes, the refrigerator features three independent temperature-management zones: fresh food, freezer, and a convertible lower drawer that can be set for fresh, frozen, wine, or beverages.

Is the door swing reversible?

The door swing is reversible. For 84" high installations, the door panel is not reversible; you must purchase a left-hand (LH) or right-hand (RH) model accordingly. For example, ZKSSN849NLH is left-hand.

USER MANUAL ZKSSN849NLH Monogram

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

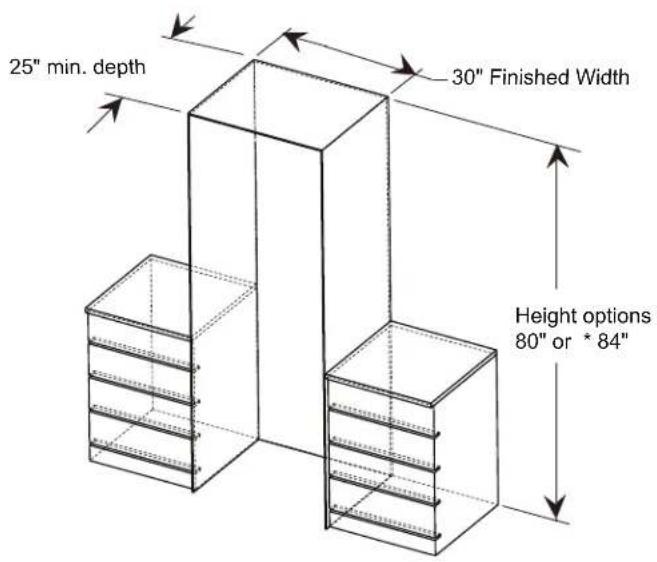

The Installation Space

The finished cutout width must be 30".

The cutout depth must be 25" for flush installations.

- The front face of the refrigerator fits flush with 25" depth adjacent cabinets.

Electrical

A 115V, 60Hz., 15 or 20 amp power supply is required. An individual properly grounded branch circuit or circuit breaker is recommended. Install a properly grounded 3-prong electrical receptacle recessed into the back wall. Electrical must be located on rear wall as shown.

Note: GFI (ground fault interrupter) is not recommended.

Water Line

• A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 p.s.i.
• Route 1/4" OD copper or GE SmartConnect™ plastic tubing between the house cold water line and the water connection location.
• Tubing should be long enough to extend to the front of the refrigerator. Allow enough tubing to accommodate a bend leading into the water line connection.
• Water line can enter an opening through the floor or back wall.
• Install a shut-off valve between the icemaker water valve and cold water supply in the home.

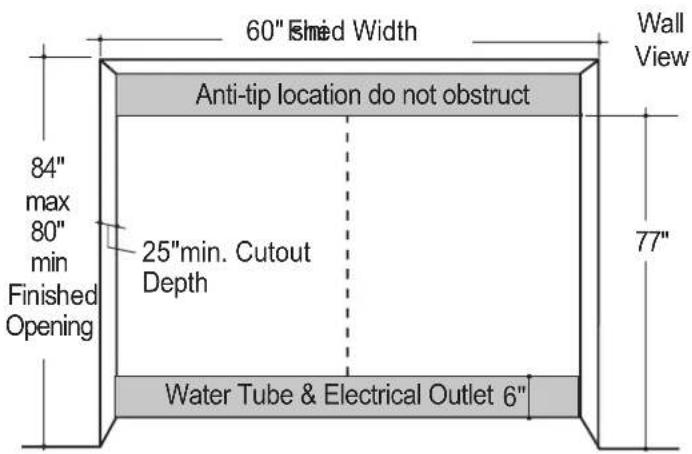

Note: When two units are placed side by side, order heater kit ZUG30.

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

Customization Basics:

These refrigerators are factory set for a right hinged door swing. The door swing is reversible. Choose an RH model with hinge on the right side; the door swings left to right. Choose an LH model with hinge on the left side; the door will swing right to left.

Note:

For 84" panels, the top space behind the top panel can be enclosed with wood and stained by the cabinet maker to match adjacent cabinetry.

Door Handles

Custom handles of your choice, supplied by your cabinetmaker, can be installed. If desired, you may order the Monogram Contemporary or Pro stainless steel handle kits for custom panels.

Optional Accessory Kits

ZUG30: For side-by-side installation

Minimalist Collection

Handle Kit: ZKGC3H3CNSS

Statement Collection

Handle Kit: ZKGC3H3PNSS

Door Swing Clearances

The installation must allow for clearances to adjacent walls or cabinets. These refrigerators are equipped with a 2-position door stop. The factory-set 115° door swing can be adjusted to 90° if clearance to adjacent cabinets or walls is restricted.

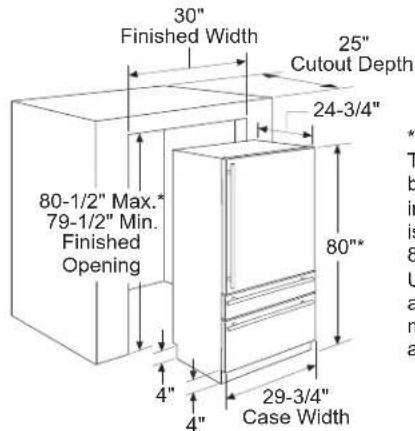

Product Dimensions

* 80" High installation. The refrigerator can be adjusted to fit into a cutout that is 79-1/2" min. to 80-1/2" max. height. Use leveling legs and wheels for a maximum 1" height adjustment.

* 84" High installation. The refrigerator can be adjusted to fit into a cutout that is 83-1/2" min. to 84-1/2" max with the appropriate door kit. Use leveling legs and wheels for a maximum 1" height adjustment.

Allow 17" minimum clearances for a full 115° door swing.

• 4" minimum clearance is required when the door swing is adjusted to 90°.
• See door swing illustrations to determine interaction with adjacent cabinets or countertops.

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

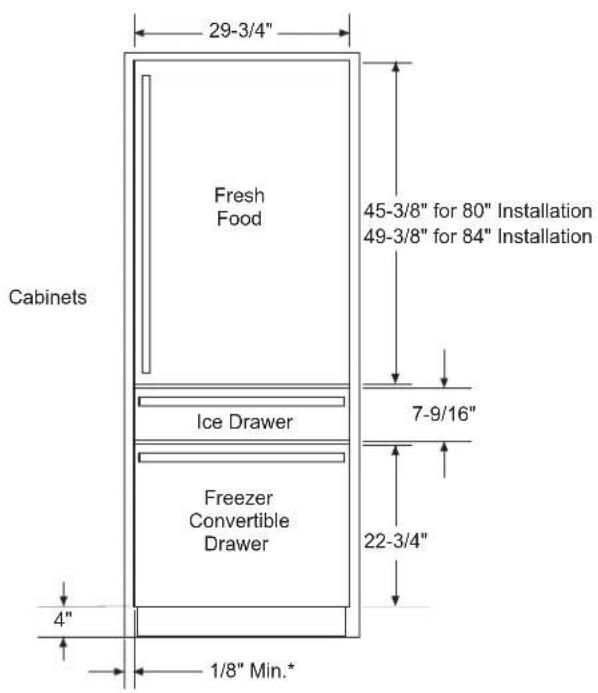

SS PANEL ACCESSORY & DIMENSIONS

3/4"-Thick Solid Door Panel Options

For 80" High Installation

• LH Solid SS Door - Model ZKSSN809NLH
• RH Solid SS Door - Model ZKSSN804NRH

For 84" High Installation the door panel is not reversible for the 84" installations. A left or right-hand door panel accessory must be purchased.

• LH Solid SS Door - Model ZKSSN849NLH
• RH Solid SS Door - Model ZKSSN844NRH

Note: Each kit also contains matching freezer and customizable drawer panels and toekick.

3/4"-Thick Frame for Glass Door Options For 80" High Installation

• LH Glass Door - Model ZKGSN809NLH
• RH Glass Door - Model ZKGSN804NRH

For 84" High Installation The door panel is not reversible for the 84" installations. A left or right-hand door panel accessory must be purchased. The top space behind the top panel can be enclosed with wood and stained by the cabinet maker to match adjacent cabinetry.

• LH Glass Door - Model ZKGSN849NLH
• RH Glass Door - Model ZKGSN844NRH

Note: Each kit also contains matching freezer and convertible drawer panels and toekick.

Optional Accessory Kits#:

• Side-by-Side Installation Kit - ZUG30
• Minimalist Collection Handle Kit: ZKGC3H3CNSS
• Statement Collection Handle Kit: ZKGC3H3PNSS

*Pro style window is slightly smaller.

ELEVATE EVERYTHING ^®

MONOGRAM

Listed by Underwriters Laboratories

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

3/4" CUSTOM PANEL DIMENSIONS:

80" High Fully Integrated Installation

If you choose to install custom panels, they must be cut to the dimensions shown.

NOTE: This product is designed to handle 3/4" panels that are made of wood. 33-3/8" x 23" is the maximum opening for a glass window. The opening may be smaller if desired.

PANELS FOR GLASS DOOR

PANELS FOR SOLID DOOR AND DRAWERS

IMPORTANT NOTE:

Maximum panel weight:

A Fresh Food Door Panel: 33 lbs.

B Freezer Door Panel: 9 lbs.

C Convertible Food

Door Panel: 19 lbs.

Design Tip: Some amount of each panel will be visible on the interior side of the unit. It is recommended that both sides of each panel be finished.

Design Tip: If using custom panels, a custom toe kick should be considered. The bottom of case is white.

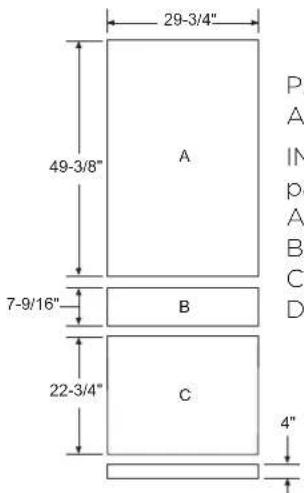

3/4" CUSTOM PANEL DIMENSIONS:

84" High Fully Integrated Installation

If you choose to install custom panels, they must be cut to the dimensions shown. The panels will attach to the door and drawers using a hook and bracket system. The top space behind the top panel can be enclosed with wood and stained by the cabinet maker to match adjacent cabinetry.

NOTE: This product is designed to handle

3/4" panels that are made of wood. 33-3/8" x 23" is the maximum opening for a glass window. The opening may be smaller if desired.

PANELS FOR GLASS DOOR

PANELS FOR SOLID DOOR AND DRAWERS

IMPORTANT NOTE: Maximum panel weight:

A Fresh Food Door Panel: 33 lbs.

B Freezer Door Panel: 9 lbs.

C Convertible Food

Door Panel: 19 lbs.

Design Tip: Some amount of each panel will be visible on the interior side of the unit. It is recommended that both sides of each panel be finished.

Design Tip: If using custom panels, a custom toe kick should be considered. The bottom of case is white.

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

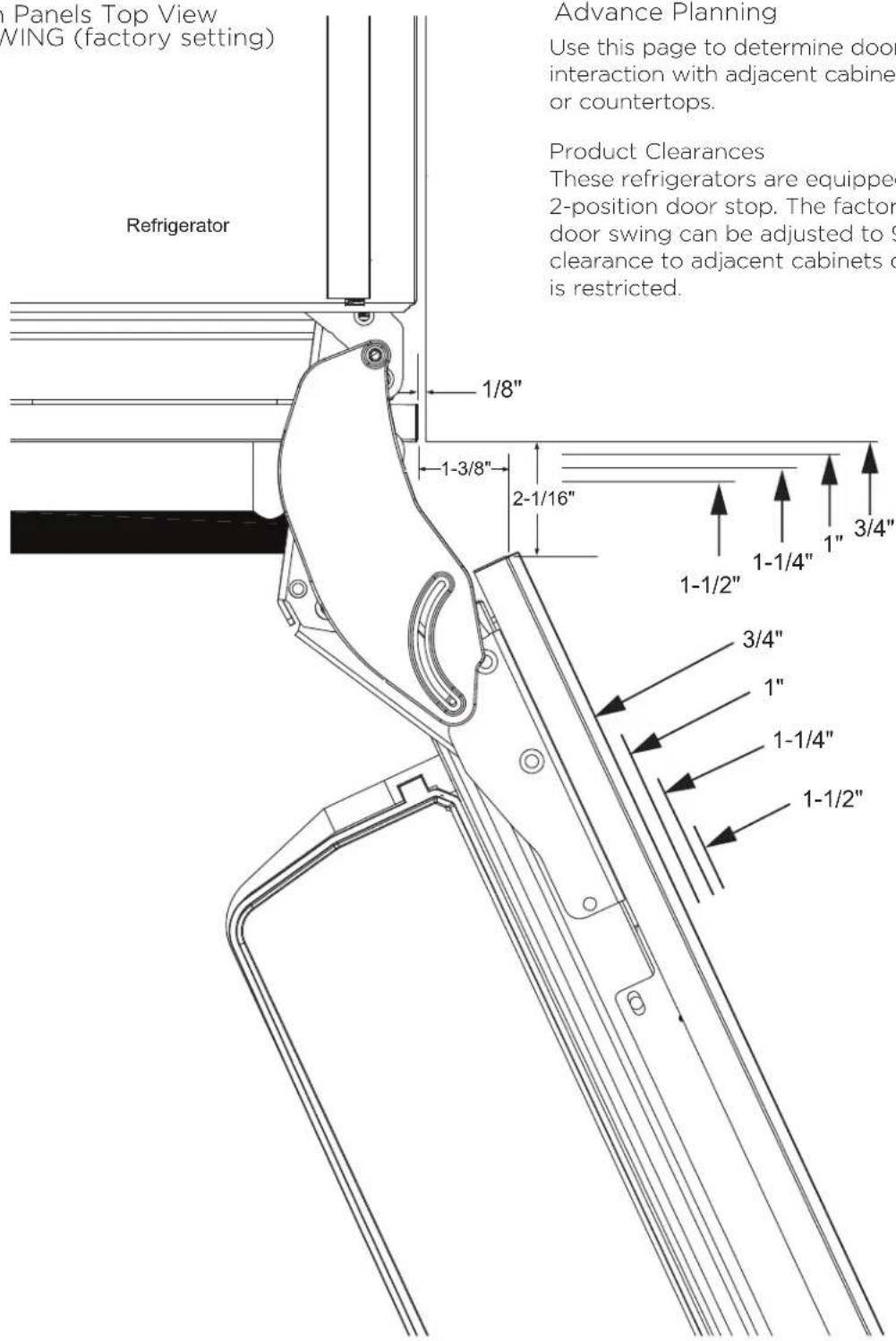

SS or Custom Panels Top View 115° DOOR SWING (factory setting)

Advance Planning

Use this page to determine door swing interaction with adjacent cabinets or countertops.

Product Clearances

These refrigerators are equipped with a 2-position door stop. The factory-set 115° door swing can be adjusted to 90° if clearance to adjacent cabinets or walls is restricted.

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

Advance Planning

Use this page to determine door swing interaction with adjacent cabinets or countertops.

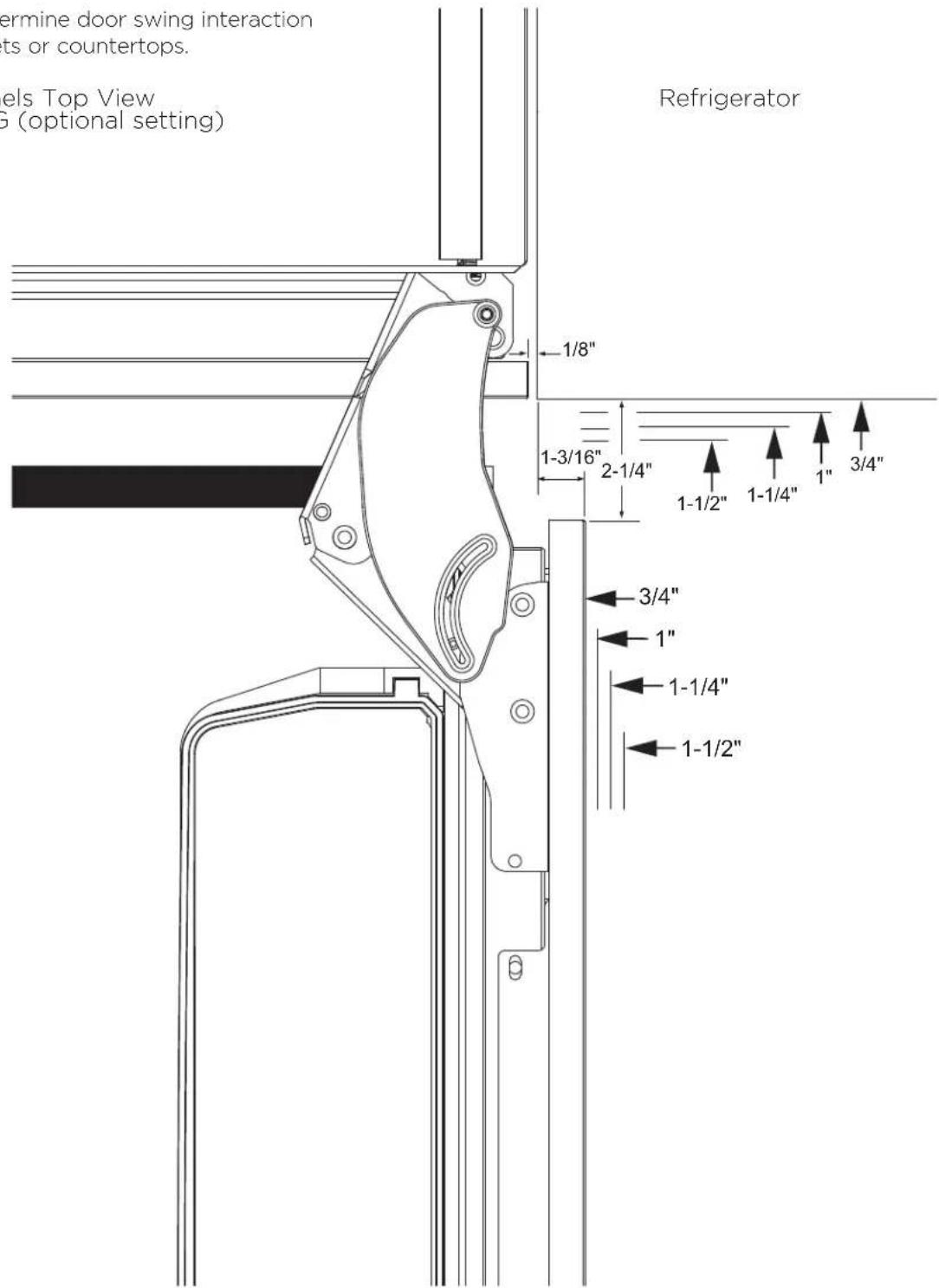

SS or Custom Panels Top View 90° DOOR SWING (optional setting)

ELEVATE EVERYTHING ^TM

MONOGRAM

Listed by Underwriters Laboratories

FEATURES AND BENEFITS

INTEGRATED DESIGN

Blends seamlessly with surrounding cabinetry and can be fitted with custom or Stainless Steel panels in 80- or 84-inch heights

Provides precise and customizable climate control with three independent temperature-management zones

CONVERTIBLE LOWER DRAWER

With independent temperature controls can be used to store fresh food, frozen foods, wine or beverages

GE UNVEILS FIRST HFC-FREE REFRIGERATOR IN THE U.S

Replaces the standard hydrofluorocarbon (HFC) refrigerant with a hydrocarbon (HC) alternative, R600A

FREEZER DRAWER WITH ELECTRONIC ICEMAKER

Includes a removable ice bin and scoop and accommodates everyday freezer items

LED INTERIOR LIGHTING

Gradually brightens and dims when door or drawer is opened and closed

ADJUSTABLE GLASS SHELVES

With aluminum trim provides an elegant and uncluttered appearance

SOFT-CLOSE FREEZER AND CONVERTIBLE DRAWERS

Smoothly and quietly slide into a secure shut position

ILLUMINATED, ELECTRONIC GLASS-TOUCH CONTROLS

Make it easy to adjust interior lighting, temperature (Fahrenheit or Celsius), control lock and other settings for all three climate zones

GE WATER FILTRATION SYSTEM

Provides clean, fresh-tasting ice cubes (GSWF)

SABBATH MODE-CAPABLE

Allows the refrigerator to comply with Kosher practices

ENERGY STAR QUALIFIED

To use less energy and save money (ZIC30GNNII model only)

MODEL ZIC30GNNII - Solid door

Line drawing of a refrigerator with front and back panels (no text or symbols)

ZIC30GNNII - Solid door

Line drawing of a refrigerator with five shelves and door (no text or symbols)
