Product Type	Under-Desk Keyboard Extension Mechanism
Brand	Chief (Milestone AV Technologies)
Model	KBD-MINI-19T
Weight Capacity	10 lbs (4.5 kg)
Materials	Steel and aluminum
Track Length	19 inches
Installation	Under-desk mounting with included track and screws
Adjustments	Height and tilt
Height Adjustment	Lift mechanism arm up/down to desired height
Tilt Adjustment	Turn tilt knob to adjust keyboard tray tilt
Cable Management	Includes cable clips for under-tray or desk routing
Included Parts	Keyboard mechanism (A), under-desk track (B), bumper (C), track guard (E), cable clips (F), #8 x 5/8" wood screws (D) x 20
Tools Required	1/8" drill bit, Phillips screwdriver, open-ended wrench (optional)
Safety Warnings	Do not exceed weight capacity; ensure adequate structural support; not for outdoor use; not for supporting video equipment
Warranty	Standard Chief warranty (check manual for details)
Compatibility	Designed for use with standard keyboard trays (not included)

Frequently Asked Questions - KBD-MINI-19T Chief

What is the weight capacity of the Chief KBD-MINI-19T?

The weight capacity is 10 lbs (4.5 kg). This includes the keyboard and any accessories attached to the tray.

Does the KBD-MINI-19T include a keyboard tray?

No, the mechanism does not come with a keyboard tray. You must purchase a compatible keyboard tray separately and follow its installation instructions.

How do I install the under-desk track?

Use the track as a template to mark and drill ten 1/8-inch pilot holes. Then secure the track to the desk using the included #8 x 5/8" wood screws.

Can the height and tilt be adjusted?

Yes, the height is adjusted by lifting the mechanism arm up or down, and the tilt is adjusted by turning the tilt knob.

What tools are required for installation?

You will need a 1/8-inch drill bit, a Phillips screwdriver, and optionally an open-ended wrench for adjustments.

How do I manage cables with this mechanism?

Use the included cable clips (F) to route cables under the keyboard tray or desk as desired.

What is the track length?

The under-desk track (B) is 19 inches long, as indicated by the model number KBD-MINI-19T.

Is this mechanism suitable for outdoor use?

No, the mounting system is not designed for outdoor use. Use only indoors.

Can I use this to hold a computer monitor or TV?

No, this mechanism is intended for keyboard trays only. Do not use it to support video equipment such as televisions or computer monitors.

What should I do if the mechanism is damaged?

If the mounting system is damaged, do not operate it. Return it to a service center for examination and repair.

USER MANUAL KBD-MINI-19T Chief

INSTALLATION INSTRUCTIONS

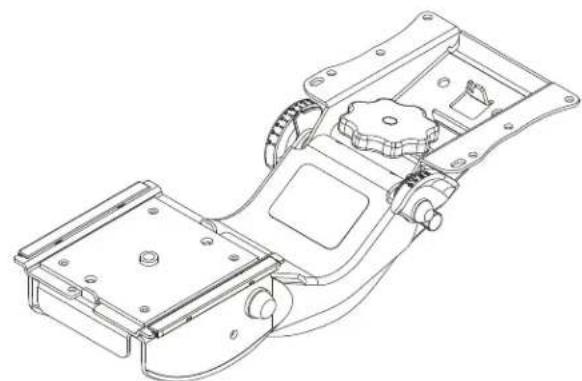

Technical line drawing of a mechanical assembly with mounting brackets and gears (no text or symbols)

(KBD-MINI-XXX)

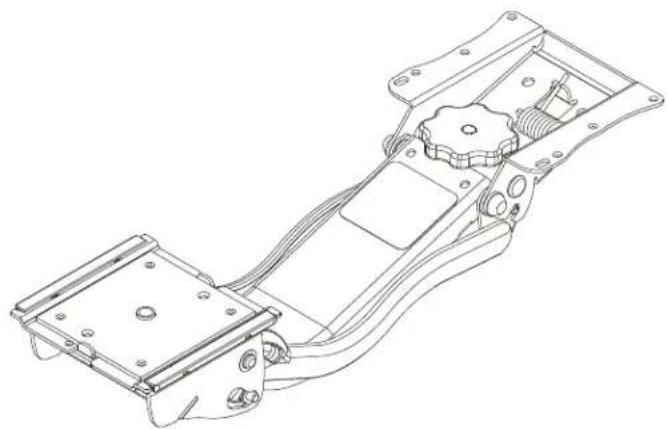

Technical line drawing of a vehicle chassis frame with mounting brackets and structural components (no text or symbols)

(KBD-S2S-XXX)

Under Desk Keyboard Extension Mechanisms

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all mounting systems are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this mounting systems can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this mounting system is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the mounting system.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to mounting system does not exceed 10 lbs (4.5 kg).

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this mounting system outdoors.

WARNING: RISK OF INJURY TO PERSONS! Do not use this mounting system / accessory to support video equipment such as televisions or computer monitors.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

KBD-MINI-XXX

KBD-S2S-XXX

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lösen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Adjust
	Destornillador Phillips		Ajustar
	Kreuzschlitzschraubendreher		Einstellen
	Chave de fendas Phillips		Ajustar
	Cacciavite a stella		Regolare
	Kruiskopschroevendraaier		Afstellen
	Tournevis à pointe cruciforme		Ajuster
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Opcional
	Von Hand		Optional
	Com a mão		Opcional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguridad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de cabeça sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

TOOLS REQUIRED FOR INSTALLATION

1/8" (3.17mm)

2

3

PARTS

Technical line drawing of a mechanical assembly with housing and components (no text or symbols)

A (1)
[Keyboard extension mechanism]

Technical line drawing of a rectangular plate with mounting holes, labeled B(1) and [Under-desk track] (no other text or symbols)

[Under-desk track]

C (1)
[Bumper]

D (20)

8 × 5/8"

[Track guard]

F (2)
[Cable clip]

Assembly And Installation

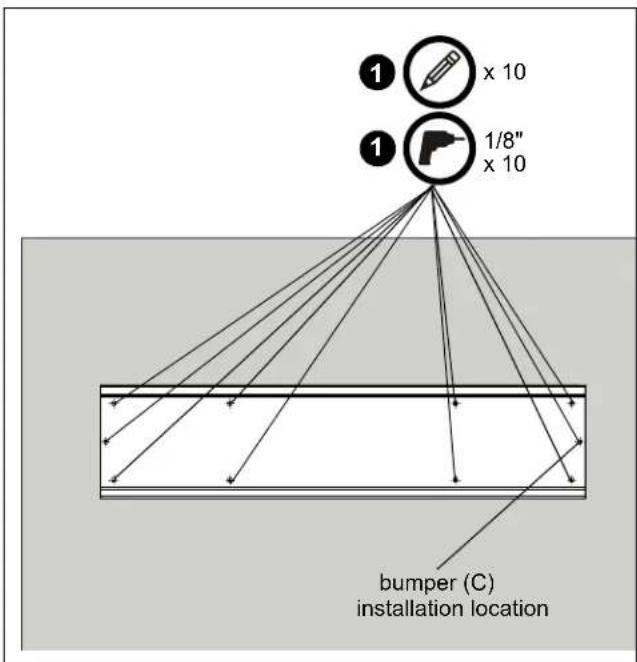

1. Using under-desk track (B) as a template, mark and drill ten 1/8" diameter pilot holes. (See Figure 1)

Figure 1

1. Use eight #8 x 5/8" wood screws (D) to secure under-desk track (B) to desk. (See Figure 2)
2. Install bumper (C) with one #8 x 5/8" wood screw (D). (See Figure 2)

Figure 2

1. Slide keyboard mechanism (A) into under-desk track (B). (See Figure 3)

Figure 3

1. Install keyboard tray (not included) onto keyboard mechanism following installation instructions included with keyboard tray.

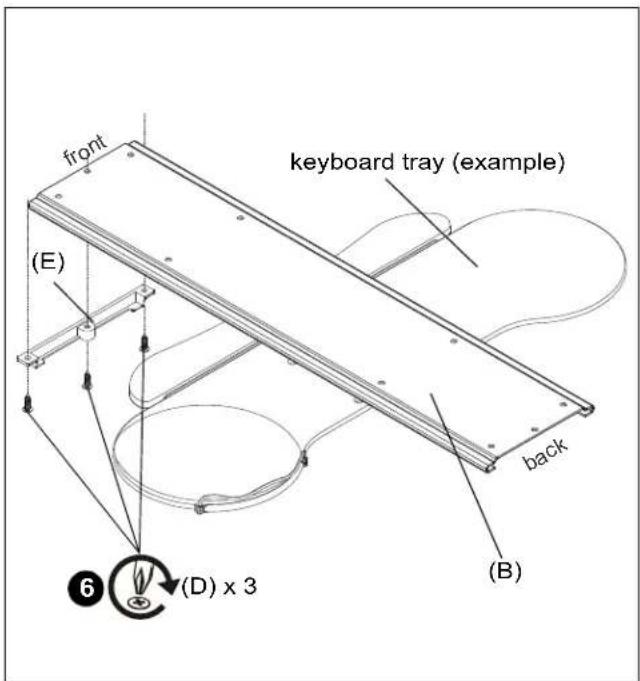

2. Use three #8 x 5/8" wood screws (D) to secure track guard (E) to under-desk track (B) and desk. (See Figure 4)

Figure 4

Adjustments

Height

1. Lift mechanism arm up or down until desired height is reached. (See Figure 5)

Tilt

1. Turn tilt knob to adjust keyboard tray tilt. (See Figure 5)

Figure 5

Cable Management

1. Use cable clips (F) under keyboard tray or desk as desired to manage cables.
