USER MANUAL PowerShot 1056-CH Pulse ShowerSpas

Two identical stainless steel showerheads with adjustable arm and neck, shown from different angles (no text or symbols visible)

Please Read The Following Instructions

COMPLETELY Before Beginning!

Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.

If you encounter any problems during installation

PLEASE VISIT CUSTOMER SUPPORT AT

WWW.PULSESHOWERSPAS.COM

Before returning your Shower System to the store

Parts You Will Me Channel loc

Shower System Parts

1. Showerhead
2. Shower Arm
3. Escutcheon
4. Diverter
5. Swivel Joint
6. Hose
7. Handshower
8. Handshower Holder
9. Plumber's Tape
10. Glue
11. Rubber Washer
12. Check Valve
13. Restrictor

You Will Need The Following Tools

Channel locks or adjustable wrench

Installation Instructions

①

Diagram of a shower pipe with a bulb and valve, shown against a grid background (no text or symbols)

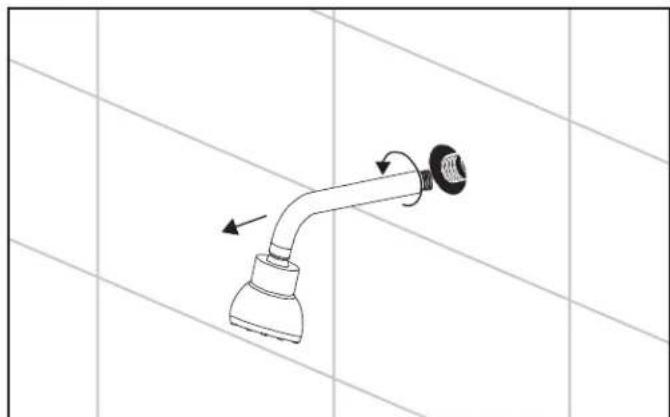

Remove existing shower arm and showerhead.

2

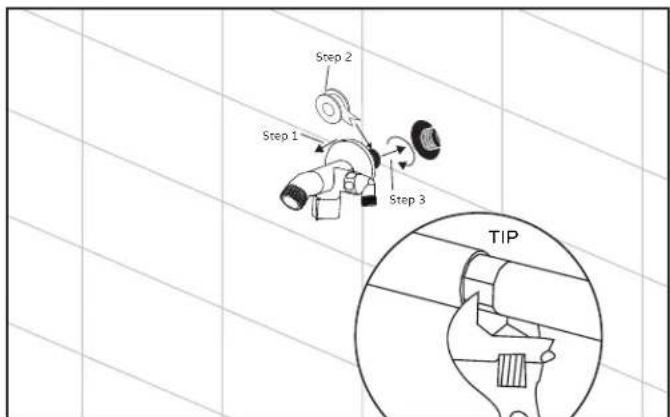

Step 2 Step 1 Step 3 TIP

Step 1: Slide escutcheon (3) onto nipple. Step 2: Place plumbers tape (9) on nipple threads. Step 3: Insert nipple into existing plumbing and thread to secure. TIP: Use wrench to secure arm and place in leveled vertical position.

③

Line drawing of a kitchen sink with a hand holding a megaphone, no text or symbols present

Thread showerhead (1) onto shower arm (2).

④

Handshower holder is tapered. Assure larger opening is upright. Back of handheld holder Glue Tape

Apply glue (10) to the handshower holder (8) as indicated and add tape (included) to secure onto wall. Let it cure for 48 hours for complete result.

5

Line drawing of a showerhead and shower tube against a tiled wall (no text or symbols)

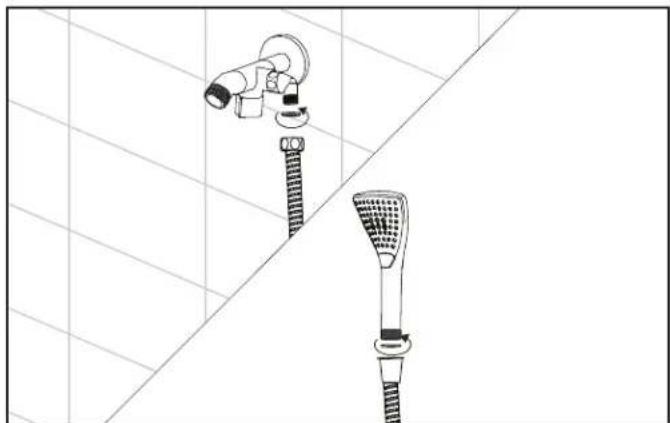

Once handshower holder (8) is secure, insert rubber washer (11) into both ends of hose (6). Connect hex head end to swivel joint (5) and tapered end to handshower (7). Place the tapered end of the hose into the handshower holder (8).

⑥

Line drawing of a showerhead and shower tube device against a grid background (no text or symbols)

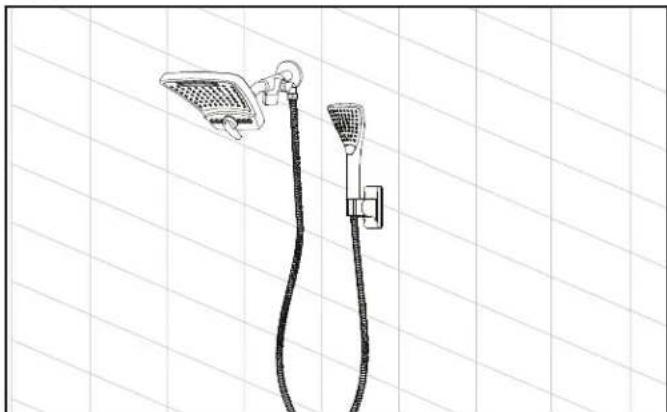

Finished product.

Operations

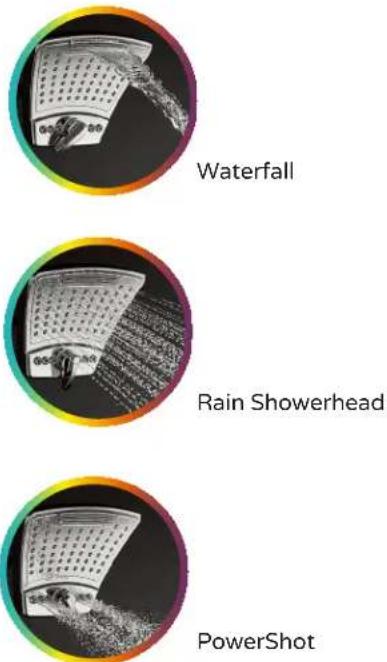

Diverter Waterfall PowerShot Rain Showerhead

3-Function Showerhead

Waterfall Rain Showerhead PowerShot

MANUFACTURER'S LIFETIME LIMITED WARRANTY

1. Defects Covered; Warranty Period: Pulse Shower Spas, Inc. ("Pulse") warrants to the original consumer purchaser who purchases this shower spa (the "Product") for use in his or her own home, that the Product will be free from defects in material and manufacturing workmanship for as long as the original consumer purchaser owns that same home. For all other purchasers (including, but not limited to purchasers for industrial, commercial and business use), the above warranty will apply for a period of 5 years from the original date of purchase.
2. Remedy: If the Product does not conform to the above warranty, Pulse, at its option, will repair or replace the Product, free of charge, or refund your purchase price. For warranty claims, please visit www.pulseshowerspas.com/index.php/warranty. Pulse may require that you return the Product to Pulse, shipping prepaid, in which case Pulse will provide you with a return materials authorization number (RMA). Pulse may also require that you provide evidence of the date you purchased the Product. Pulse will ship a new or repaired Product to you, at the expense of Pulse, or refund your purchase price. Service labor performed by you or others in connection with the removal or replacement of the Product will not be reimbursed by Pulse.
3. Exclusions: Pulse shall not be responsible for failure of the Product, and the above warranties will not apply, if the Product fails as a result of improper installation, improper use, modifications or repairs by anyone other than Pulse, or accident or abuse (including damage during shipment).

4. Warranty on Repairs and Replacements: For consumer purchasers who purchased the Product for home use, repaired or replacement Products will continue to be covered under this warranty for as long as he or she owns that same home. For other purchasers, repaired or replacement Products will be covered for the balance of the original warranty period.

5. No Other Warranties; Limitation of Liability: OTHER THAN THE LIFETIME LIMITED WARRANTY STATED ABOVE, PULSE DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT PERMITTED BY APPLICABLE LAW. THE REMEDIES STATED ABOVE ARE YOUR SOLE REMEDIES IN CONNECTION WITH THIS WARRANTY. IN NO EVENT WILL PULSE BE LIABLE TO YOU FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR BUSINESS INTERRUPTION, ARISING OUT OF OR RELATING TO THE PRODUCT OR ITS USE, WHETHER UNDER A CONTRACT, WARRANTY, TORT, OR ANY OTHER CAUSE OF ACTION, EVEN IF PULSE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOTWITHSTANDING THE TERM OF ANY LIMITED OR IMPLIED WARRANTY, OR IN THE EVENT THAT ANY LIMITED WARRANTY FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL PULSE'S ENTIRE LIABILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE AND PROVINCE TO PROVINCE.

PULSE ShowerSpas, Inc. | 297 Anna Street | Watsonville, CA 95076 | 831.724.7300 www.PulseShowerSpas.com

PULSE19-REV. B
