Product Type	Cordless Vacuum Cleaner with UV Sanitiser
Brand	Kogan
Model	KAVACUV22CA
Rated Voltage	21.6V
Rated Power	100W
Max Power	120W
Battery Capacity	2200mAh
Working Time	Approx. 25 minutes
Charging Time	4.5 hours
UV Lamp Power	6W
Dust Cup Capacity	≥0.5L
Net Weight	1.5 kg
Adapter Input	100-240V~ 50/60Hz
Adapter Output	DC 26V 0.5A
Included Accessories	Main unit, charging base, dust cup (pre-assembled), power adaptor, user guide, brush
Safety Features	UV lamp infrared sensor safety switch; UV disables when not in contact with surface
Filter Type	Cyclone filter, cotton filter, exhaust filter (washable)
Usage Environment	Dry environment only; not for wet or humid conditions
Recommended Use	Household, for vacuuming and UV sanitisation on flat surfaces
Battery Indicator	3 lights: 100%; 2 lights: 65%; 1 light: 30%; 1 light flashing: needs charging
Storage	Cool, dry place; charge/discharge battery every 3 months if not used

Frequently Asked Questions - KAVACUV22CA Kogan

How do I charge the vacuum cleaner?

Plug the adapter into the charging base and the other end into a power socket. Place the machine into the charging base; the power indicator will flash during charging. Charge fully before first use, for at least 3 hours.

What do the indicator lights mean?

When powered on, 3 lights indicate 100% battery, 2 lights indicate 65%, 1 light indicates 30%, and 1 flashing light means the battery needs charging.

Why is the UV light not turning on?

The UV lamp has an infrared sensor safety switch. It only activates when the machine is in full contact with a flat surface. Ensure the bottom of the machine is touching the surface properly. If still not working, the lamp tube may be damaged.

How do I clean the dust cup and filters?

Turn the dust cap clockwise to remove the dust cup. Separate the dust cup and clean with a brush. Remove the cyclone filter by turning the dust cap clockwise and wash it. The cotton filter can be brushed or washed. The exhaust filter is accessed by twisting the outlet housing clockwise and can be washed. All parts must be completely dry before reinstallation.

Can I use this vacuum to pick up water or liquids?

No. The vacuum is not waterproof and is only for dry environments. Do not vacuum water, damp dust, or any liquids.

What should I avoid vacuuming with this machine?

Avoid vacuuming high-temperature substances (cigarettes, matches, hot ash), ultra-fine materials (cement, plaster, ash), sharp objects (glass, nails), dangerous goods (solvents, detergents), chemicals (acids, detergents), and flammable/explosive liquids (gasoline, alcohol). Also avoid large debris that may block the suction.

How long does the battery last on a full charge?

The working time is approximately 25 minutes on a full charge.

What is the dust cup capacity?

The dust cup has a capacity of ≥0.5 liters. It should be emptied regularly to maintain suction.

The vacuum is making excessive noise. What could be wrong?

Excessive noise may be due to a full dust cup, blocked suction inlet, or blocked dust cup filter. Discontinue use, clean out any blockages, and ensure all filters are installed correctly.

Can I use this vacuum on pets?

The UV lamp is equipped with an infrared sensor safety switch that disables the UV when not in contact with a surface. For pet use, keep the machine moving and avoid prolonged exposure to one area to prevent skin or eye damage. However, the manual warns against pointing UV at skin or eyes.

USER MANUAL KAVACUV22CA Kogan

White industrial device with circular top and base, featuring a red button labeled 'Power Supply' (no text or symbols on the device itself)

CORDLESS 22.2V VACUUM CLEANER WITH UV SANITISER

KAVACUV22CA

SAFETY & WARNINGS

• Read all instructions fully before using the product for the first time and retain them for reference. If passing this product on to a new owner, include a copy of this guide.
• Any operation that does not comply with the instructions of the manual may result in serious personal injury, property damage or damage to the product itself.
• This product is intended for household use. Do not use it to suck up metal particles or construction waste. This product is not intended for use by people who have no experience and knowledge of bed mites, including children, unless they are supervised and responsible for their safety.
  • Do not stand or sit on this product.
• Keep this product in a safe place out of reach of children. Do not store the unit in a high place to avoid the risk of accidental falls.
• This product is not intended for use by persons with physical, sensory, or intellectual disabilities or those who lack experience and common sense (including children) unless they are supervised or directed to ensure that they are safe to use.
• This product is only suitable for working in a dry environment. Do not use it in a humid environment.
  • This product is not waterproof. Do not use it to vacuum water or damp dust.
• Do not vacuum high-temperature substances (cigarettes, matches or hot ash), ultra-fine materials (such as lime, cement, wood chips, gypsum powder, ash, toner, etc.), sharp objects (such as glass, nails, pins, etc.), dangerous goods (such as solvents, detergents, etc.), chemicals (such as acidic substance, detergents, etc.) or flammable or explosive liquids (gasoline, alcohol products).
• Keep the suction area and moving parts away from hair, loose clothing, fingers, and other body parts, especially eyes and ears.
• Ensure the area is clear before use. If you find paper, paper balls, plastic cloth or sharp objects and things that are thicker than the straw diameter, remove this debris to avoid damage to the product.
• If the unit is leaking or the motor temperature is too high and abnormal sounds are heard, discontinue use immediately and contact Kogan.com
• Ensure to check and empty the dust cup regularly to keep the ventilation hole unobstructed, which avoids blockages and loss of suction.
• Do not use lubricants, detergents, polishes, etc., to clean the unit
• Do not attempt to repair or modify the unit. Contact Kogan.com in the event of a fault.
  • This product is a power tool; never allow it to operate unattended.

• Keep the appliance away from heat sources or fire.

• Do not disassemble the dust cup, the UV lamp cover or open the air hood when the machine is powered or running to avoid injury or machine damage.

• Only use the original power adaptor included with the product.

Ultraviolet safety precautions

• This product is equipped with an ultraviolet sterilising lamp; avoid looking at the bottom of the machine when the power is on and the ultraviolet sterilising function is enabled to prevent personal injury.
• Avoid exposing animals and plants to ultraviolet rays.
• Do not concentrate UV rays in one place for an extended period, as this may cause damage to surfaces.
• Do not point the ultraviolet lamp at the skin or eyes.
• Avoid exposing the photosensitive components at the bottom of the machine to strong direct light during operation, as this may lessen performance and present the risk of failure.
• Clean the surface of the sensor probe with a clean cloth to prevent dust build-up and ensure proper operation.

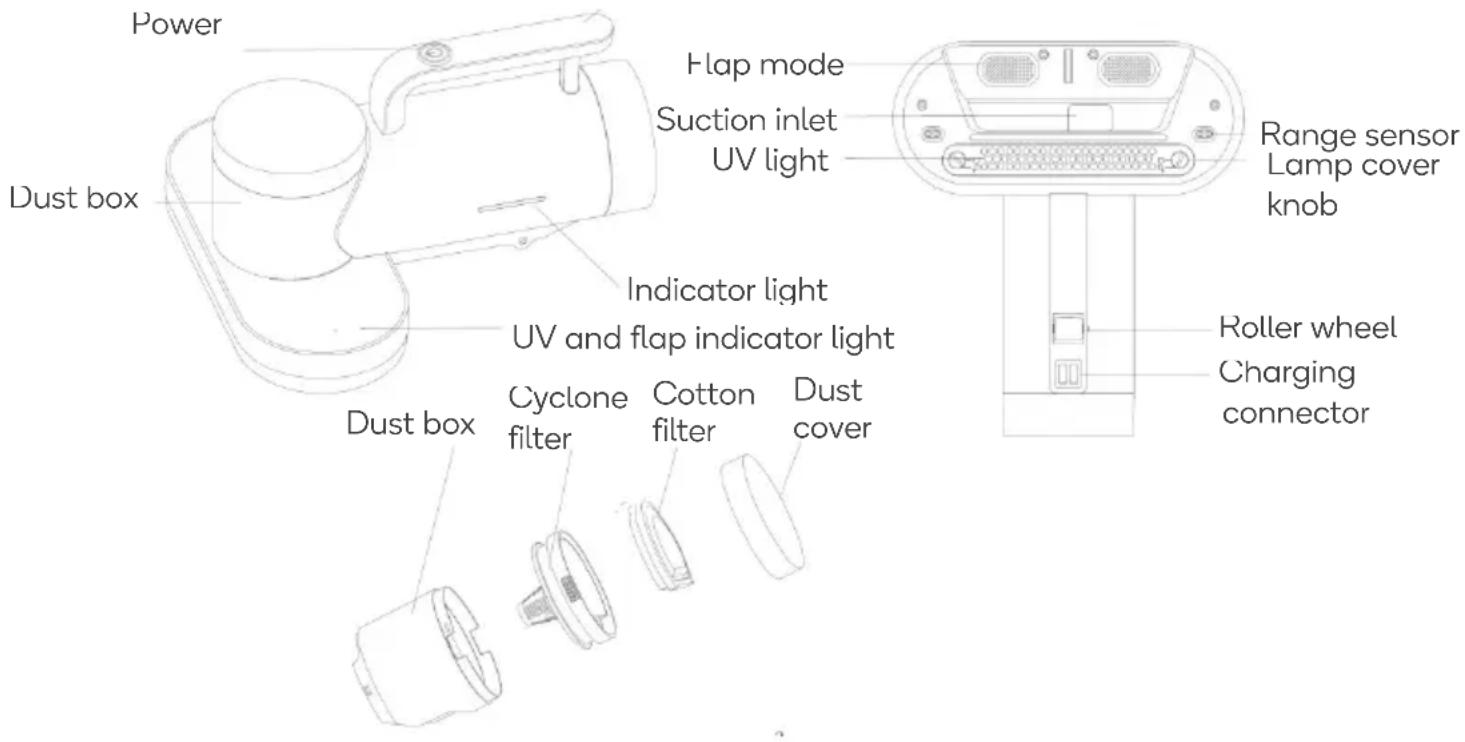

OVERVIEW

ATTENTION: Before assembling the product, please check the accessories list below and confirm that all parts have been received.

Before use

• Ensure the components of the UV vacuum cleaner are assembled in place.
• Check whether the power is sufficient to ensure the product works normally.

Charging instructions

• Plug the adapter into the charging base and the other end into the power socket.
• Do not operate the appliance whilst charging.
  • The power indicator light is fully charged when all three lights are illuminated.

Pure mechanical assembly diagrams without any text, numbers, or symbols

I he power indicator flashes in turn when charging

• Put the machine into the charging base and the power indicator will flash to indicate charging is in progress.
• Charge the battery fully when you use a new battery, before first use or after long-term storage.
• Charge for more than 3 hours before the first use.

Indicator light

Press the power button, and once all three lights are illuminated, the machine is ready to operate. Press the power button again to power the unit off.

Pure technical line drawing of a sewing machine without any text, numbers, or symbols

• 3 lights 100%

- 2 lights 65%

- 1 light 30%

• 1 light to flash, need to be charged

ATTENTION: To avoid accidental pet injury, the UV lamp is equipped with an infrared sensor safety switch. The UV lamp will automatically disable until it is in contact with the surface to be cleaned.

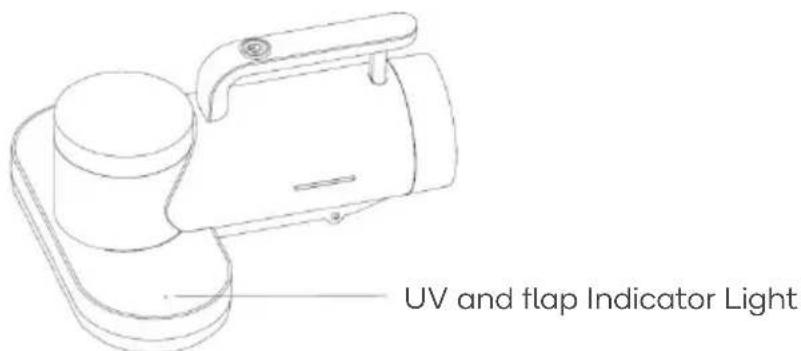

UV and flap Instructions

When the machine touches the object surface, the infrared sensor detects the object. When the UV light is on, the flap will engage. When the machine is removed from the surface and the infrared sensor cannot detect the surface, the UV light and flap will both disable.

CLEANING & CARE

Cleaning the dust box

	Turn the dust cap clockwise
Remove the dust box Separate the dust box		Clean the dust box with a brush
I urn the dust cap clockwise and remove the cyclone filter	Wash the cyclone filter	Clean the cotton filter with a brush or wash

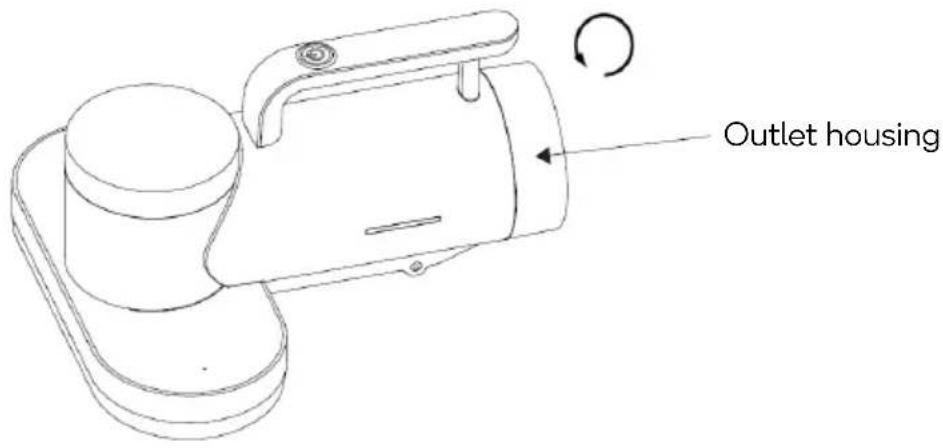

Exhaust filter

Twist the outlet housing clockwise

Simple line drawing of an oval shape with two small dots labeled 'a' nearby (no text or symbols on the shape itself)

Remove the exhaust filter and wash

ATTENTION: Washable parts can only be reinstalled into the appliance once they have dried completely.

Daily storage

• When not using the machine for a long time, store in a cool and dry place. Do not place the machine in direct sunlight or a moist environment.
• When you do not use the machine for a long time, make sure to charge and discharge the battery at least once every three months.

SPECIFICATIONS

Voltage	21.6V
Power	100W
Max Power	120W
Capacity	≥0.5L
UV lamp power	6W
Net weight	1.5kg
Charging time	4.5h
Adapter voltage input	100-240V~ 50/60Hz
Adapter voltage output	DC 26V 0.5A
Working time	Approx. 25min
Battery capacity	2200mAh

IN THE BOX

Main unit	Charging base	Dust cup (pre-assembled)
Power adaptor	User Guide	Brush

TROUBLESHOOTING

Details	Possible cause	Solution
Machine will not power on	Low battery	Charge the battery
	Power switch has not been pressed	Press the power switch
Insufficient suction	The suction inlet of the machine is blocked	Clean the suction inlet
UV light does not work	Object surface is not smooth, or the machine bottom does not fully touch the object, so the safety feature is enabled	Keep the surface flat or the machine bottom the full contact with the surface to be cleaned
	Lamp tube damaged	Replace the lamp tube
Excessive noise	Full dust cupThe suction inlet is blockedThe dust cup filter is blocked	Discontinue use and clean out the blockage
	No filtering component is installed	Install the filter component

NOTES

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require,

head online to help.kogan.com
