Product Type	Swivel Stand for Flat Panel Displays
Brand	Chief
Model	PSS2000
Weight Capacity	150 lbs (68.04 kg)
Swivel Range	±45°; adjustable stops for 15°, 25°, or 35°
Height Adjustment	Yes, via slide mechanism. Ships assembled for displays ≤30", can be reconfigured for larger displays.
Roll Adjustment	Yes, via upper and lower nuts for leveling
Mounting Type	Free-standing on flat surface
Materials	Steel
Included Components	Stand base (A), slide with faceplate, rubber bumpers (B), mounting hardware (cap screws, washers, lock nuts, button head screws)
Cable Management	Yes, central hole in base for routing cables
Required Tools	Phillips screwdriver, open-ended wrench, hex-head wrench, drill (for mounting surface), optional security wrench
Cleaning and Maintenance	Wipe with a damp cloth. Do not use abrasive cleaners.
Safety Notes	Attach to structure capable of supporting 5x total weight. Do not exceed 150 lbs total.
Display Compatibility	Works with most flat panel displays using appropriate interface bracket (not included)
Locking Feature	Padlock holes on faceplate; optional pin and nut for permanent lock

Frequently Asked Questions - PSS2000 Chief

What is the maximum weight capacity of the PSS2000?

The maximum combined weight of all components (display and interface bracket) is 150 lbs (68.04 kg).

How do I adjust the height of the display?

Hold the display in place, loosen the four height adjustment screws on the slide, position the display to the desired height, then tighten the screws securely.

Can the PSS2000 be wall-mounted?

No, the PSS2000 is designed for free-standing use on a flat, dry surface. It is not intended for wall mounting.

What tools are needed for installation?

You will need a Phillips screwdriver, open-ended wrench, hex-head wrench, and a drill. A security wrench may be required for some adjustments.

How do I adjust the swivel tension?

With the display attached, slightly tighten or loosen the adjustment screws located on the bottom of the PSS2000 until the desired tension is achieved.

How do I install the display onto the stand?

While supporting both sides of the display, align the four mounting buttons on the display or interface bracket with the holes in the faceplate. Lower the display until you hear a click, indicating the ClickConnect mechanism is engaged.

Can I lock the display to prevent theft?

Yes, the faceplate has holes for a padlock. Additionally, you can remove the pin and nut from the upper holes and install them in the lower holes for a more permanent locking solution.

How do I route cables?

Route display cables through the cable management hole in the base of the stand. You can also route cables through a separate hole in the mounting surface.

What is the swivel range of the stand?

The stand can swivel up to ±45°. You can limit the swivel to 15°, 25°, or 35° by inserting a screw into the corresponding stop hole on the base.

How do I level the display?

Loosen the upper and lower roll adjustment nuts on the back of the slide, level the display, then tighten the nuts to secure the position.

USER MANUAL PSS2000 Chief

INSTALLATION INSTRUCTIONS

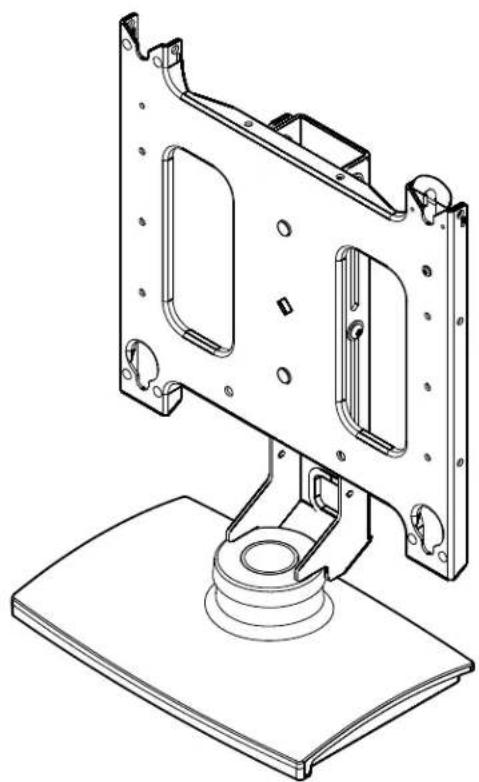

Technical line drawing of a mechanical assembly with mounting base and mounting bracket (no text or symbols)

PLASMA SWIVEL STAND

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® and ClickConnect™ are registered trademarks of Milestone AV Technologies. All rights reserved.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located on the PSS2000 does not exceed 150 lbs (68.04 kg).

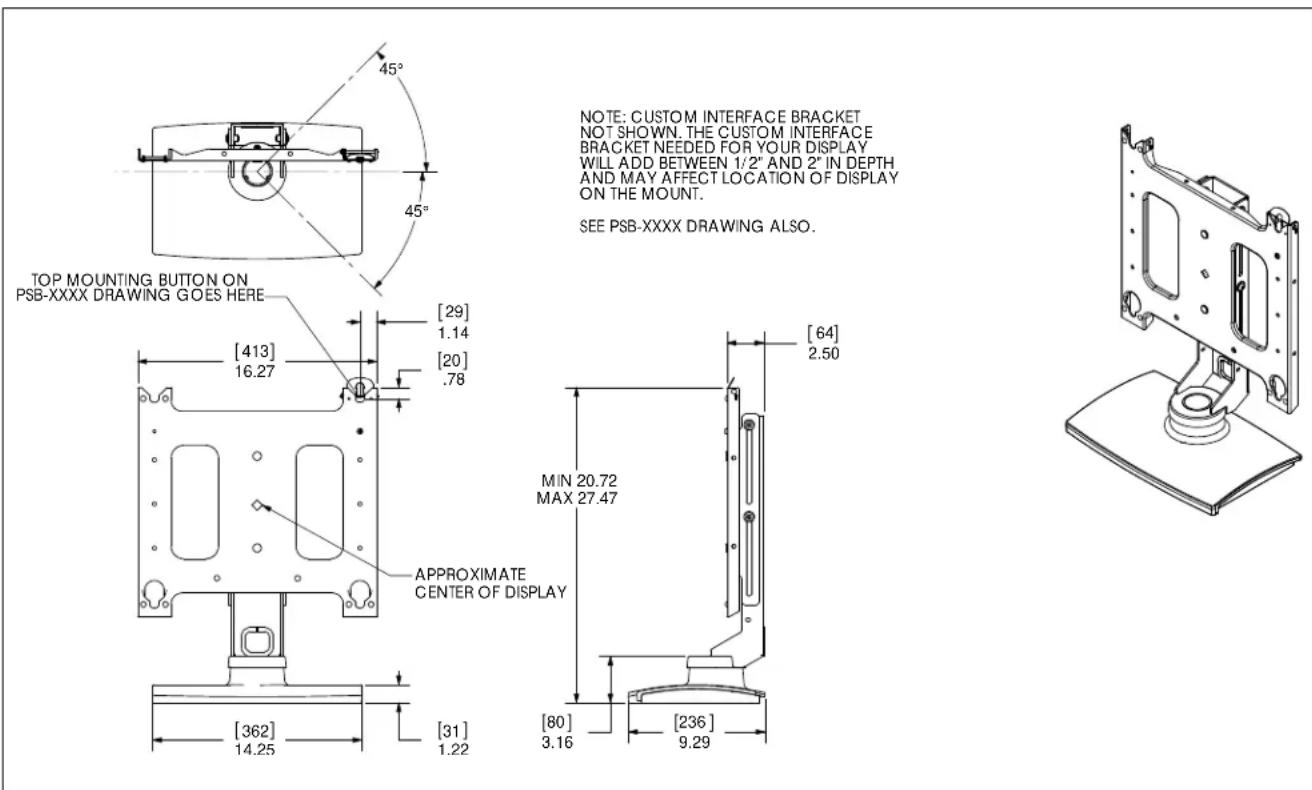

DIMENSIONS

LEGEND

	Tighten Fastener
	Apretar elemento de fijación
	Befestigungsteil festziehen
	Apertar fixador
	Serrare il fissaggio
	Bevestiging vastdraaien
	Serrez les fixations
	Loosen Fastener
	Aflojar elemento de fijación
	Befestigungsteil lösen
	Desapertar fixador
	Allentare il fissaggio
	Bevestiging losdraaien
	Desserrez les fixations
	Phillips Screwdriver
	Destornillador Phillips
	Kreuzschlitzschraubendreher
	Chave de fendas Phillips
	Cacciavite a stella
	Kruiskopschroevendraaier
	Tournevis à pointe cruciforme
	Open-Ended Wrench
	Llave de boca
	Gabelschlüssel
	Chave de bocas
	Chiave a punte aperte
	Steeksleutel
	Clé à fourche
	By Hand
	A mano
	Von Hand
	Com a mão
	A mano
	Met de hand
	À la main
	Hex-Head Wrench
	Llave de cabeza hexagonal
	Sechskantschlüssel
	Chave de cabeça sextavada
	Chiave esagonale
	Zeskantsleutel
	Clé à tête hexagonale

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Remove

Quitar

Entfernen

Remover

Rimuovere

Verwijderen

Retirez

Optional

Opcional

Optional

Opcional

Opzionale

Optie

En option

Security Wrench

Llave de seguridad

Sicherheitsschlüssel

Chave de segurança

Chiave di sicurezza

Veiligheidssleutel

Clé de sécurité

TOOLS REQUIRED FOR INSTALLATION

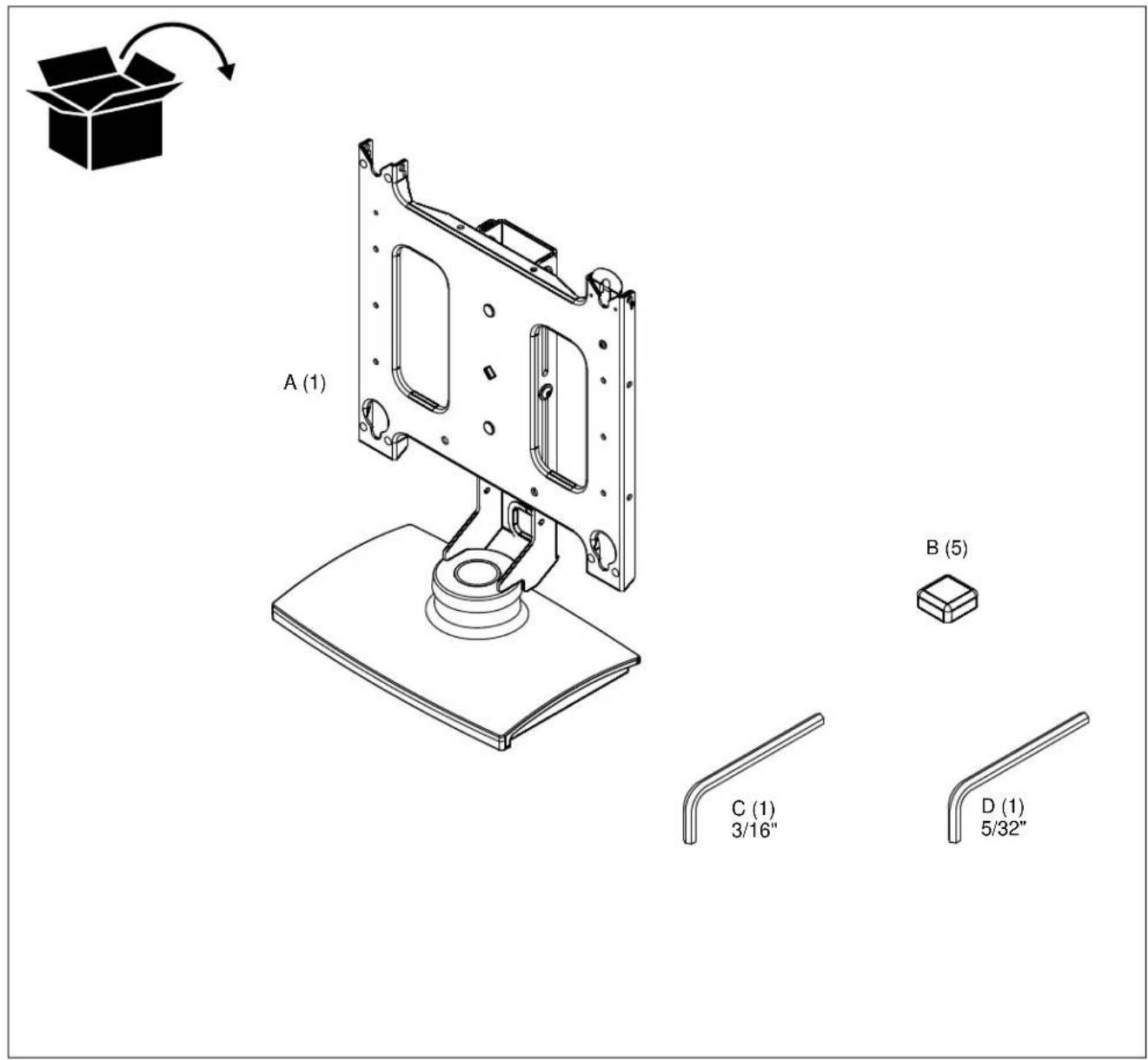

PARTS

INSTALLATION

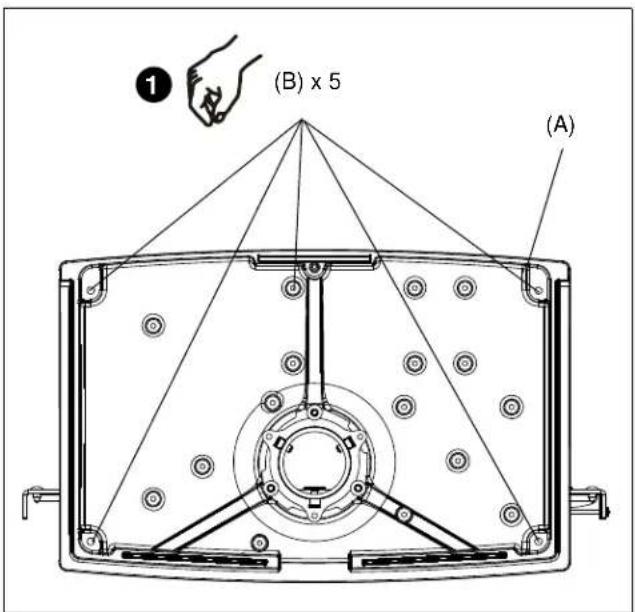

NOTE: For free-standing applications only, install five rubber bumpers (B) onto bottom of stand (A). (See Figure 1)

Figure 1

Stand Assembly

NOTE: PSS2000 ships assembled for displays 30" in height or less, and lowered to its minimum height.

Display Height 30 Inches or Smaller

1. Loosen the four height adjustment screws and raise the slide with faceplate to its maximum height. (See Figure 2)
2. Raise slide to the maximum height.
3. Secure slide in place by tightening the four height adjustment screws. (See Figure 2)

Figure 2

Display Height Greater Than 30 Inches

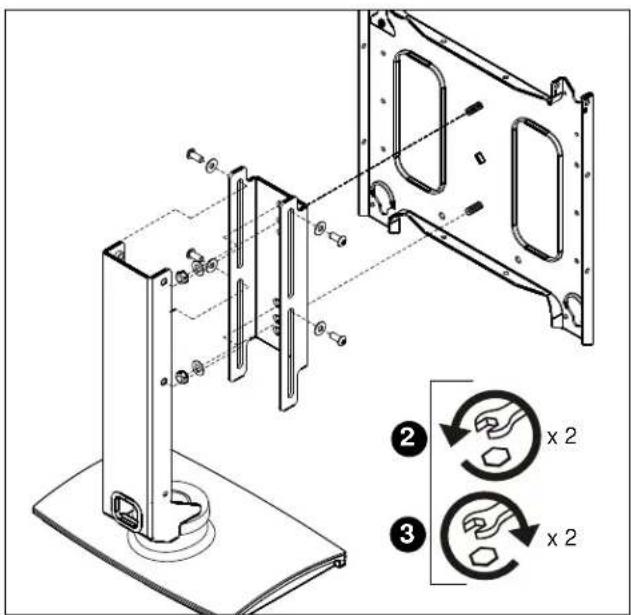

1. Remove slide from base by removing four button head cap screws and four flat washers. (See Figure 3)
2. Remove faceplate from slide by removing two flat washers and two lock nuts. (See Figure 3)

Figure 3

1. Install faceplate into upper mounting holes of slide using two flat washers and two lock nuts removed in Step 2.
2. Install slide onto base using four button head cap screws and four flat washers removed in Step 1.

NOTE: Do NOT fully tighten slide mounting screws at this time.

1. Raise slide to maximum height.
2. Tighten four height adjustment screws. (See Figure 2)

Site Preparation

WARNING: EXCEEDING WEIGHT CAPACITY CAN RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer's responsibility to make sure the combined weight of all components does not exceed 150 lbs (68.04 kg).

CAUTION: TURNING DISPLAY CAN CAUSE DAMAGE TO SURROUNDING OBJECTS. Make certain location provides enough area for the display to rotate ±45^ without being obstructed.

NOTE: See Display Stop Location Adjustment section for information on adjusting rotation.

1. Locate a flat dry surface on which to mount the PSS2000 assembly.

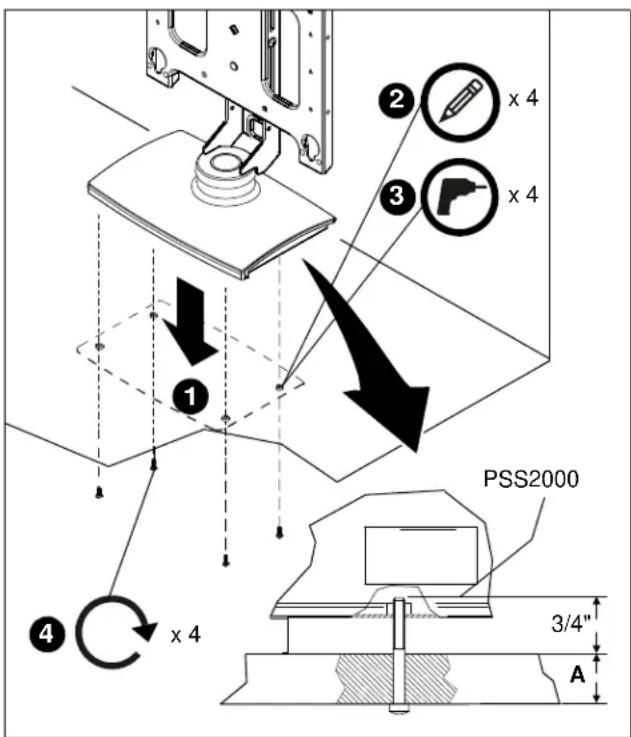

2. Measure the hole locations on bottom of PSS2000 and mark the four mounting hole locations on mounting surface. (See Figure 4)

Figure 4

1. Drill four 1/4" diameter holes through mounting surface at marks.
2. Secure mount to mounting surface using four 1/4-20 cap screws with a length equal to the thickness of the mounting surface A plus 3/4". (See Figure 4)

Display Installation

The following procedure assumes that the proper interface bracket for the display being mounted has already been installed on the display.

If no interface bracket is present on display, install bracket to display using the instructions included with the interface bracket before proceeding.

If an interface bracket for the display being mounted needs to be obtained, or additional assistance is required, contact Chief.

To install the display:

1. While supporting both sides of display, align four mounting buttons on display or interface bracket with four mounting holes in faceplate.
2. Lower display into place listening for audible "click" to ensure recessed area of mounting buttons are properly seated in lower area of mounting holes and ClickConnect mechanism has engaged. (See Figure 1)

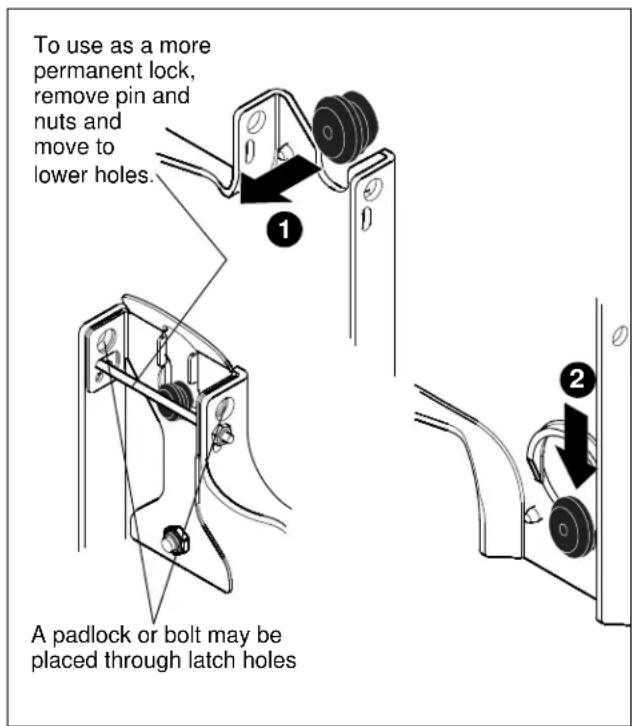

NOTE: Holes are provided in the faceplate for use with a padlock or similar locking device, if desired. In addition, the pin and nut may be removed from the upper holes and moved to the lower holes for use as a more permanent locking device.

Figure 5

Stand Adjustment

Adjusting Display Height

CAUTION: DO NOT ALLOW DISPLAY TO DROP TO BOTTOM OF STAND. Displays are fragile and may be damaged.

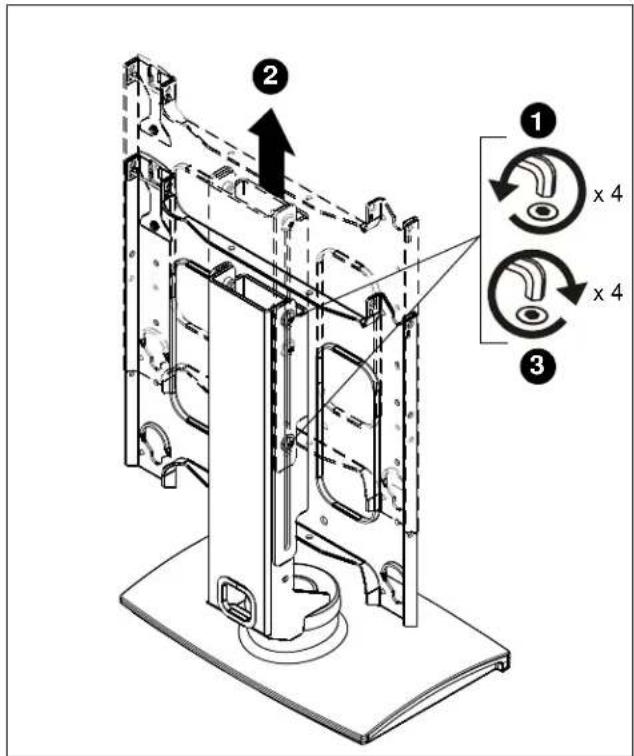

1. Hold display in place and loosen the four height adjustment screws. (See Figure 2)
2. Position display to the desired height.
3. Tighten the four height adjustment screws. (See Figure 2)

Adjusting Stand Tension

1. Check swivel tension while display is attached to the stand.

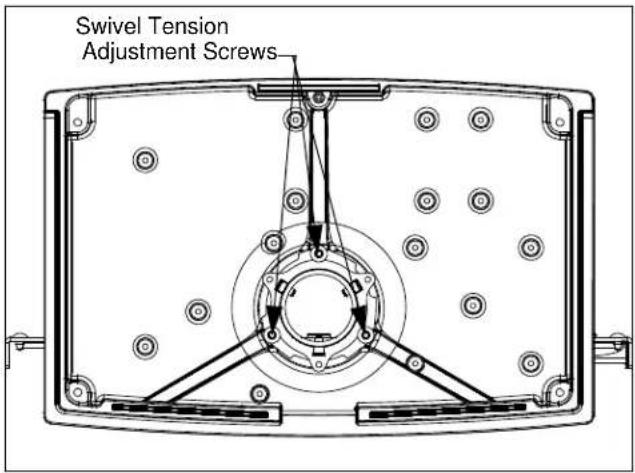

2. If tension adjustment is necessary, slightly tighten or loosen adjustment screws on bottom of PSS2000. (See Figure 6)

Figure 6

Adjusting Swivel Stops

1. Decide the amount of desired stand swivel (15°, 25° or 35°).

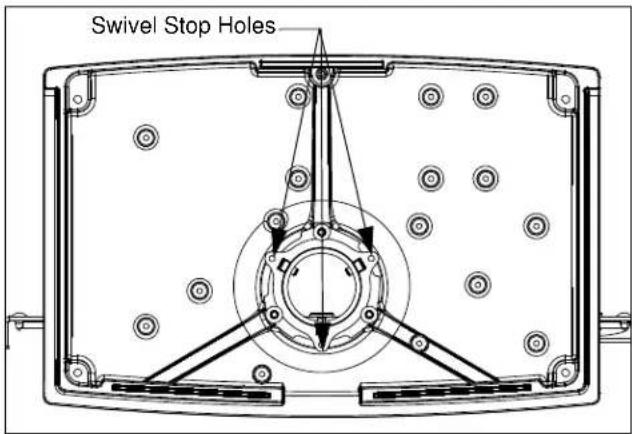

2. Insert a 10-24 x 1/2" screw (not provided) in one of the three swivel stop holes in the stand base. (See Figure 7)

Figure 7

Adjusting Display Roll

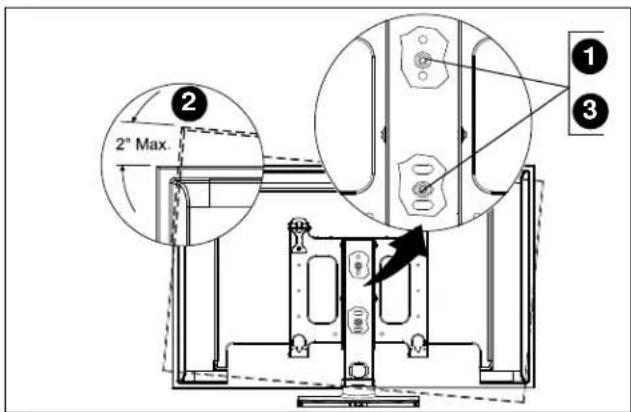

1. Loosen upper and lower roll adjustment nuts.(See Figure 8)
2. Level display.
3. Tighten roll adjustment nuts.

Figure 8

Cable Routing and Management

WARNING: ELECTRICAL SHOCK HAZARD! Improper routing can lead to wires or cables being damaged. Make certain display power cable is not routed through areas where it can be pinched or cut.

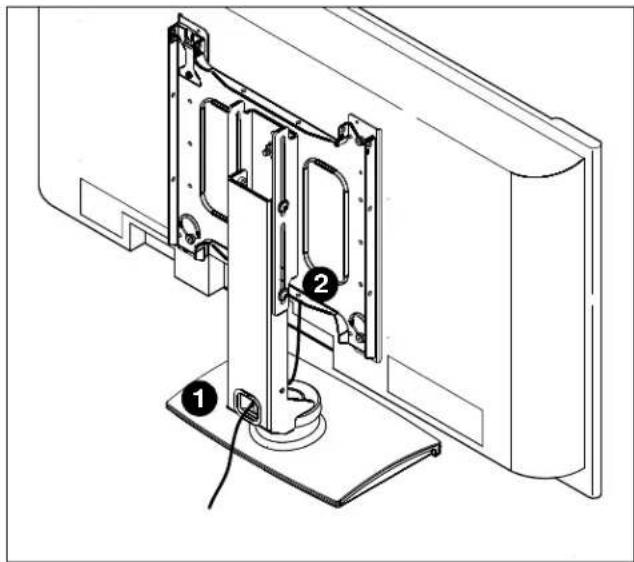

1. Route display cables and wiring through cable management hole in base. (See Figure 9)

NOTE: Cables may also be routed through a hole in the mounting surface.

1. Connect wires and cables to display.

Technical line drawing of a mechanical assembly with labeled components (no text or symbols present)

Figure 9

CHIEF®

Our Mounts. Your Vision.

Chief Manufacturing, a division of Milestone AV Technologies

8800-000070

©2008 Milestone AV Technologies

www.chiefmfg.com

10/08

USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378

P 800.582.6480 / 952.894.6280

F 877.894.6918 / 952.894.6918

Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands

P [phone]

F [phone]

Asia Pacific A Room 24F, Block D, Lily YinDu International Building

LuoGang, BuJi Town, Shenzhen, CHINA.
